1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation

1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
1013D 7inch Digital 2 Channels Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Capacitor Screen Touch+Gesture Operation
$179.99
Ex Tax: $179.99
  • Stock: In Stock
  • Model: MZ003471
  • SKU: MZ003471

Available Options



Description:

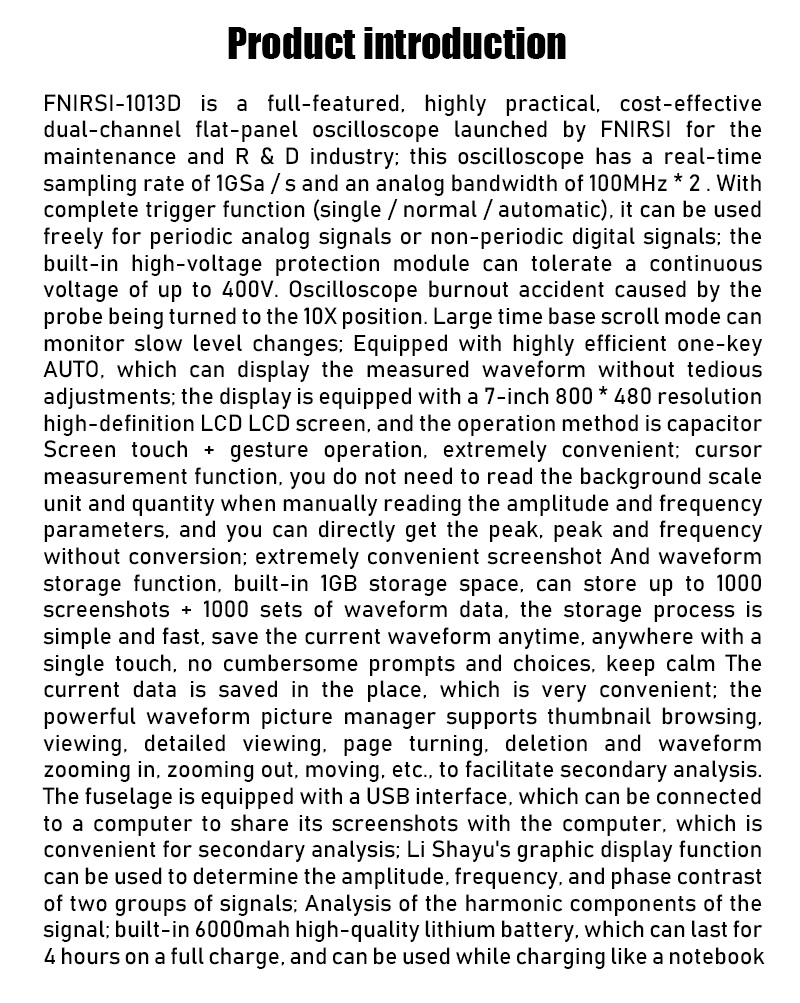

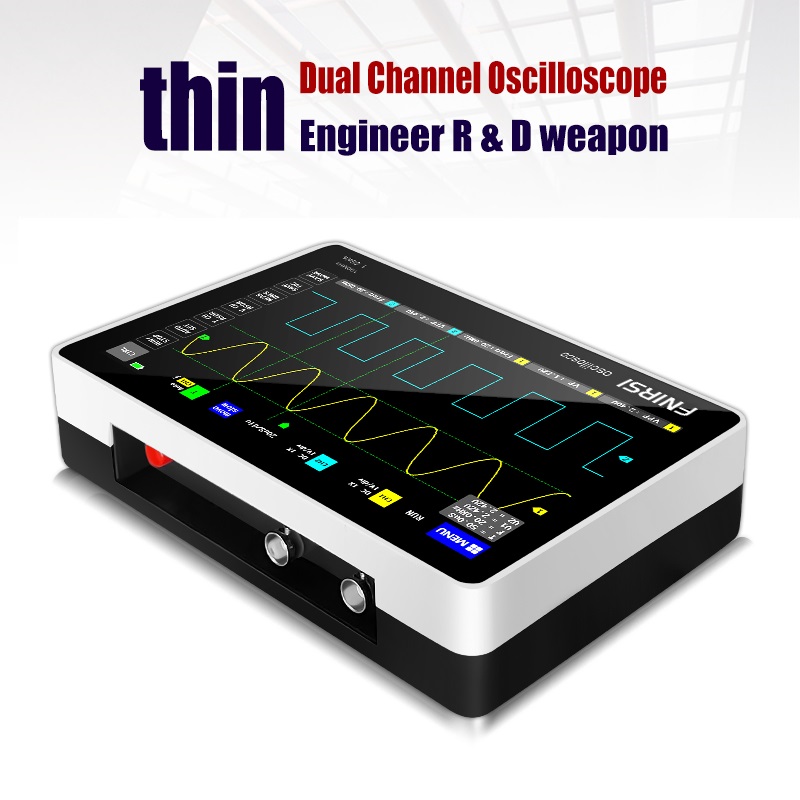

FNIRSI-1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope launched by FNIRSI for the maintenance and R & D industry; this oscilloscope has a real-time sampling rate of 1GSa / s and an analog bandwidth of 100MHz * 2 . With complete trigger function (single / normal / automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V.


Features:

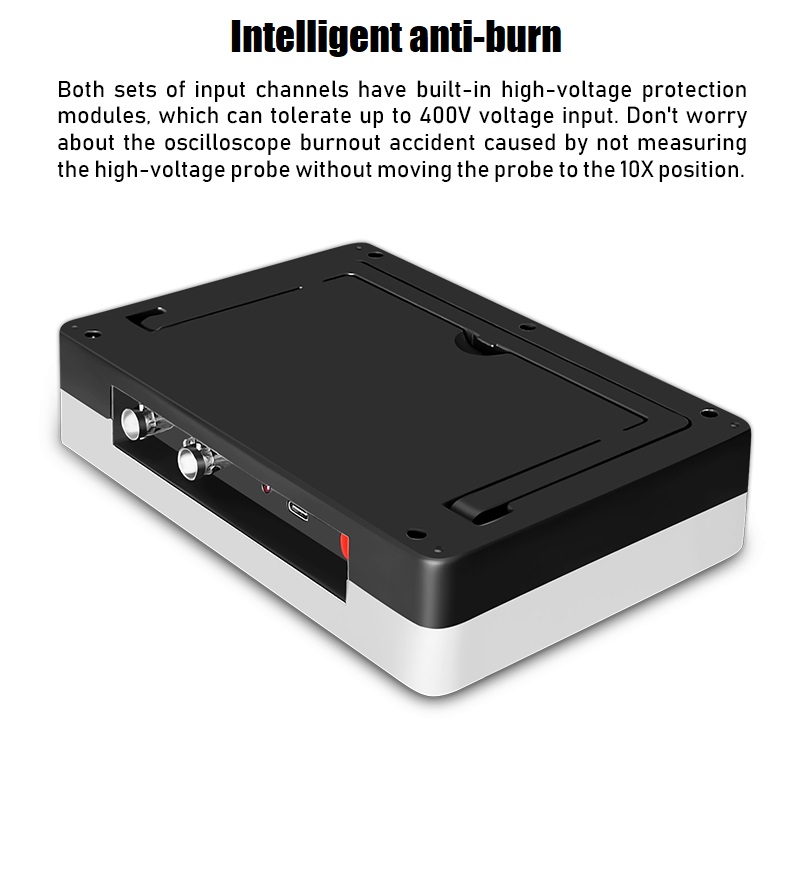

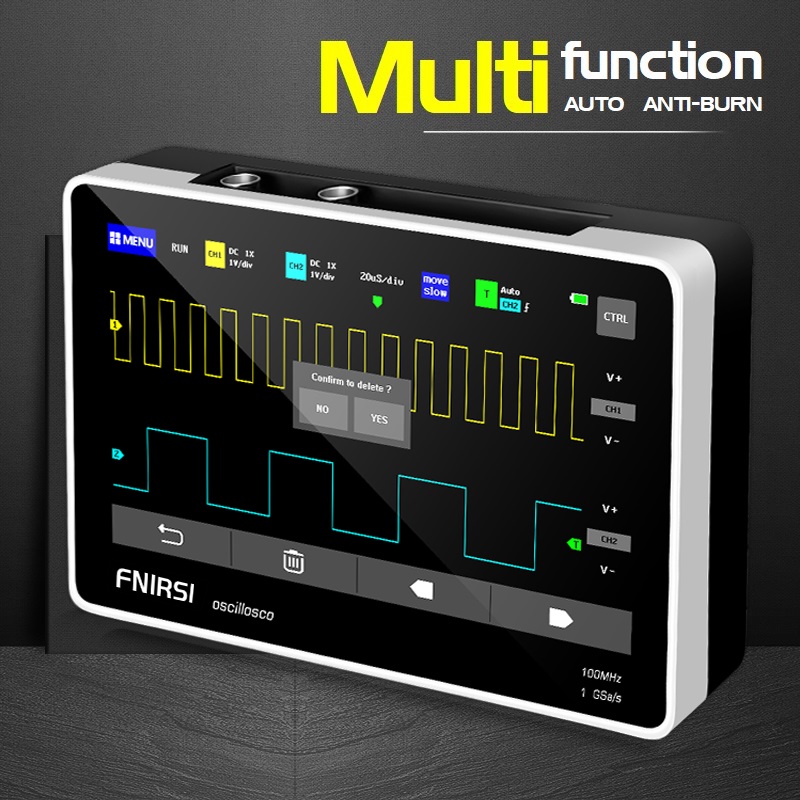

1:Intelligent anti-burn,1X Can withstand up to 400V withstand voltage

2:100MHz analog bandwidth @ 1GSa/s sampling rate(1X = 5MHz,10X = 100MHz)

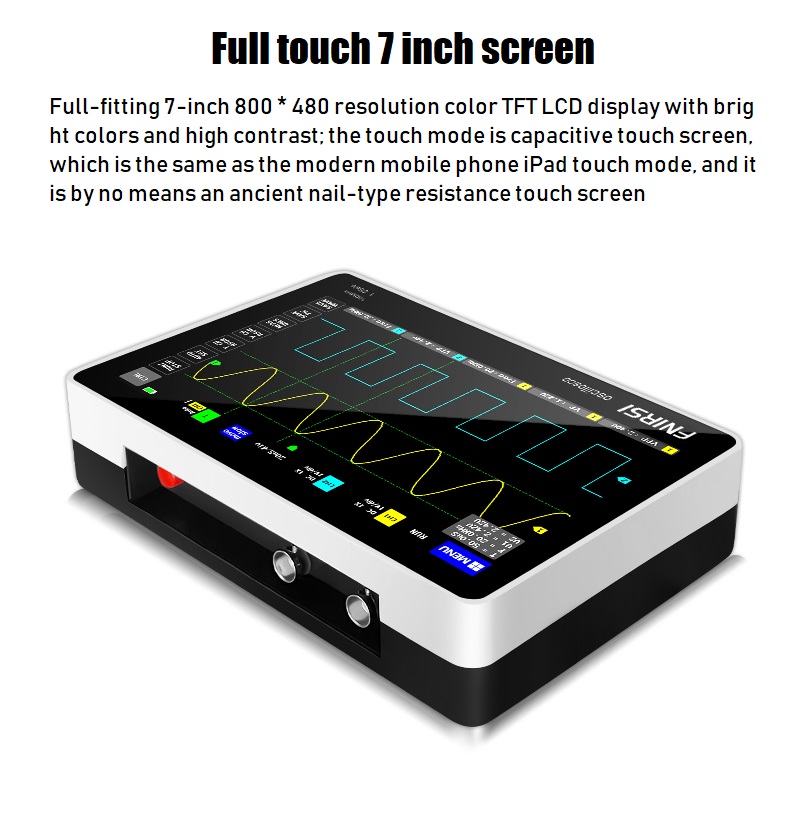

3:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast

4:Capacitive touch screen, the same as the touch mode of modern mobile, is not a resistive touch screen with ancient nail operation

5:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V,100X can measure 0 ~ 4000V

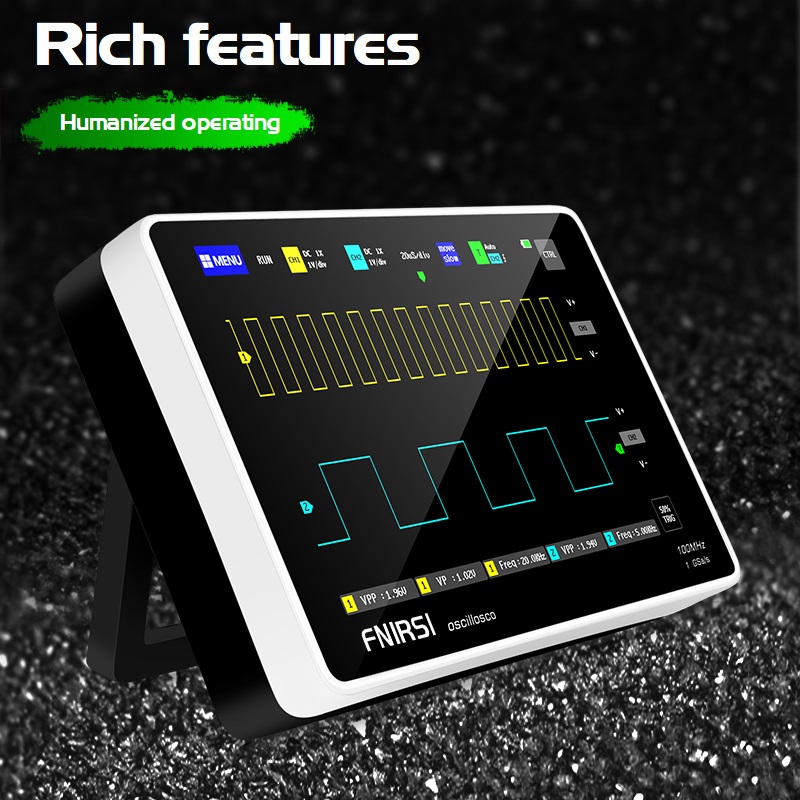

6:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Period

7:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage

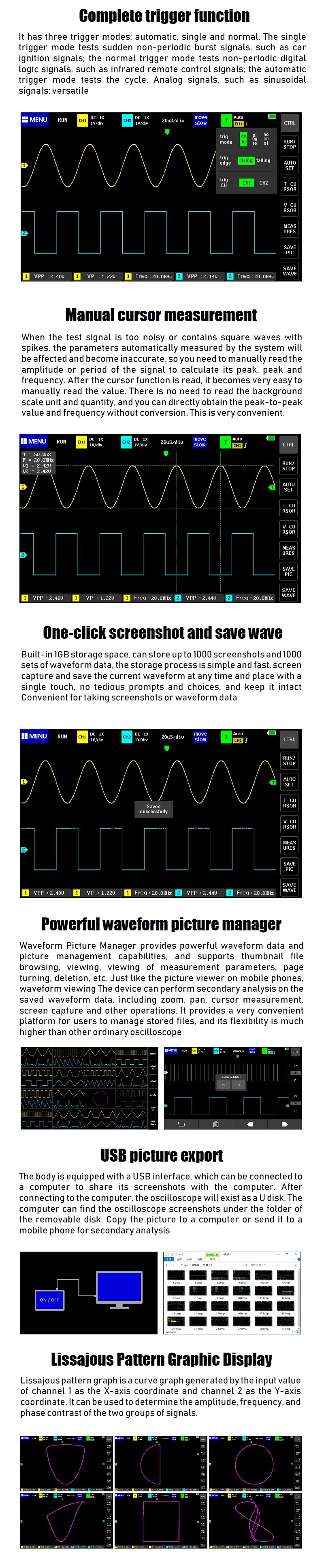

8:Complete triggering function (single, normal, automatic)

9:At any time, the waveform display (suspend function) is frozen

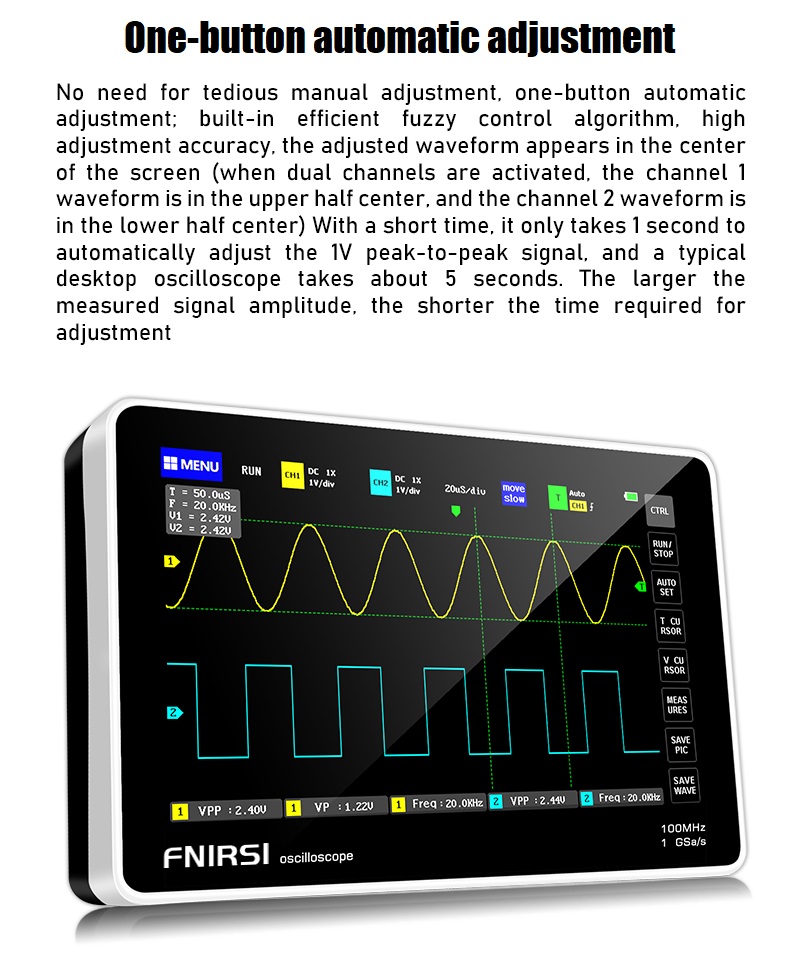

10:Equipped with high efficiency One-button AUTO

11:One-button waveform storage and screenshot

12:Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

13:Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

14:Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis

15:Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals

16:FFT display function, can analyze the spectral characteristics of the signal

17:Built in 6000mAh rechargeable lithium battery,Fully charged for 4 hours of continuous use at the highest screen brightness

18:Memory compression technology, waveform refresh screen does not flicker

19:Screen brightness adjustment

20:Background grid brightness adjustment

21:Ultra thin, easy to carry

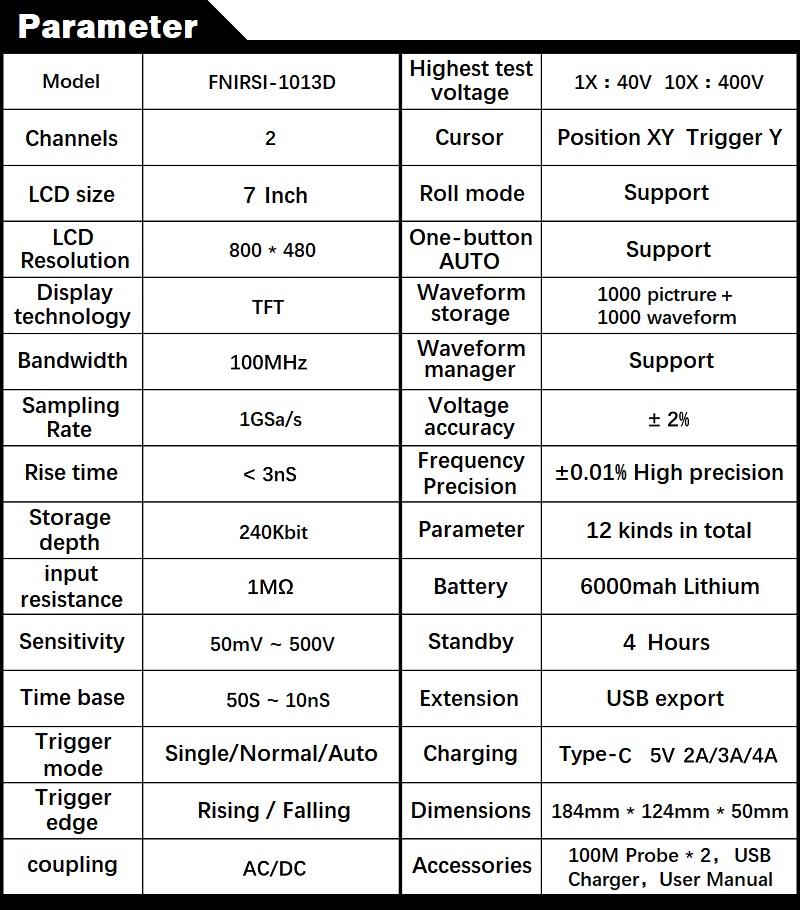

Specification:

Analog bandwidth: 100MHz * 2

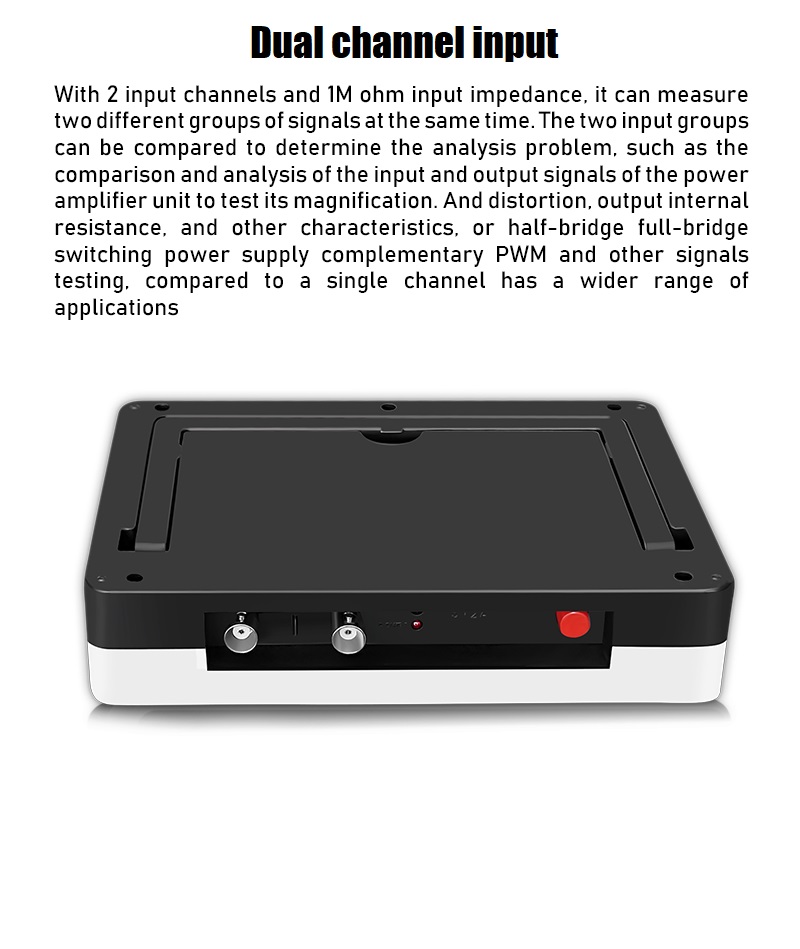

Number of channels: 2 channels
Maximum real time sampling rate: 1GSa/s
Vertical sensitivity: 50 mV/div ~ 500 V/div
Horizontal time base range: 50S/div ~ 10nS/div
Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
Storage depth: 240Kbit
Input resistance: 1M
ADC precision: 8bits
Coupling mode: AC/DC
Trigger mode: Single, Normal, Auto
Trigger edge: Rising edge/Falling edge
External trigger voltage 0 – 40 V
Display: 7 inch - 800*480
Operating: Capacitive touch screen + gesture
Extension ports:USB picture export
Power supply: 6000 mAh lithium battery
Size: 184mm x 124mm x 50mm
Total weight: 650g

Package Includes:

1 x FNIRSI-1013D Oscilloscope
2 x Matching 100MHz Probe(1X and 10X)
1 x 5V/2A Charger(Include USB data line)
1 x User Manual (English)

Details Picture:

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-1

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-2

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-3

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-4

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-5

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-6

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-7

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-8

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-9

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-10

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-11

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-12

FNIRSI-1013D-7-inch-Digital-2-Channels-Tablet-Oscilloscope-100M-Bandwidth-1GSs-Sampling-Rate-800x480-1865539-13
