1S Mini Spot Welder Welding Machine DIY 18650 Lithium Battery Nickel Belt Spot Welding Portable Household Fiber Welding Machine
- Stock: In Stock
- Model: MZ001134
- SKU: MZ001134
Questions and Answers:
Q: What is the difference between upgrading 1s and the previous 1?
A: 1S increases the idle automatic discharge function, and automatically discharge to 50%in 5 days, extending the battery life. 1S also optimizes the circuit layout and structure with better performance. In addition, 1S has added Type C charging port.
Q: What is the difference between Type C and Micro USB?
A: The Type C version uses Type C charging port, supports positive and reverse, and is equipped with a Type C charging cable. In addition, the C -type circuit uses the Shen Jin technology, which is more durable.
Q: Do Type C support fast charging?
A: Considering that fast charging may affect battery life, it only takes about 2 hours from 50%to 100%, so it does not support fast charging.
feature:

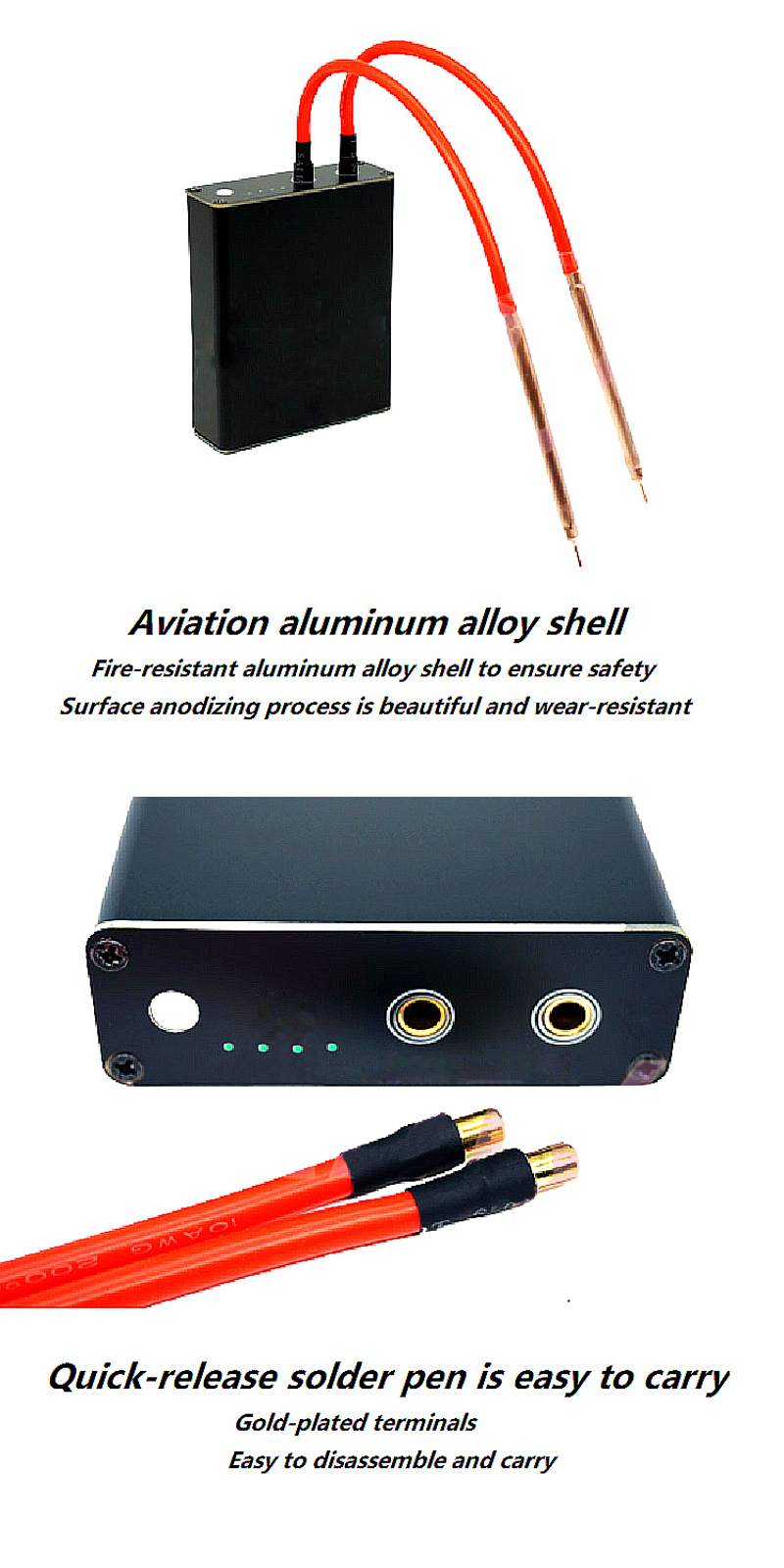

Aluminum alloy shell material, fire prevention and falling; surface anode oxidation technology, anti -abrasion, safe use.
Portable point welding machines are mainly used for welding of nickel sheets such as cylindrical battery such as 18650.

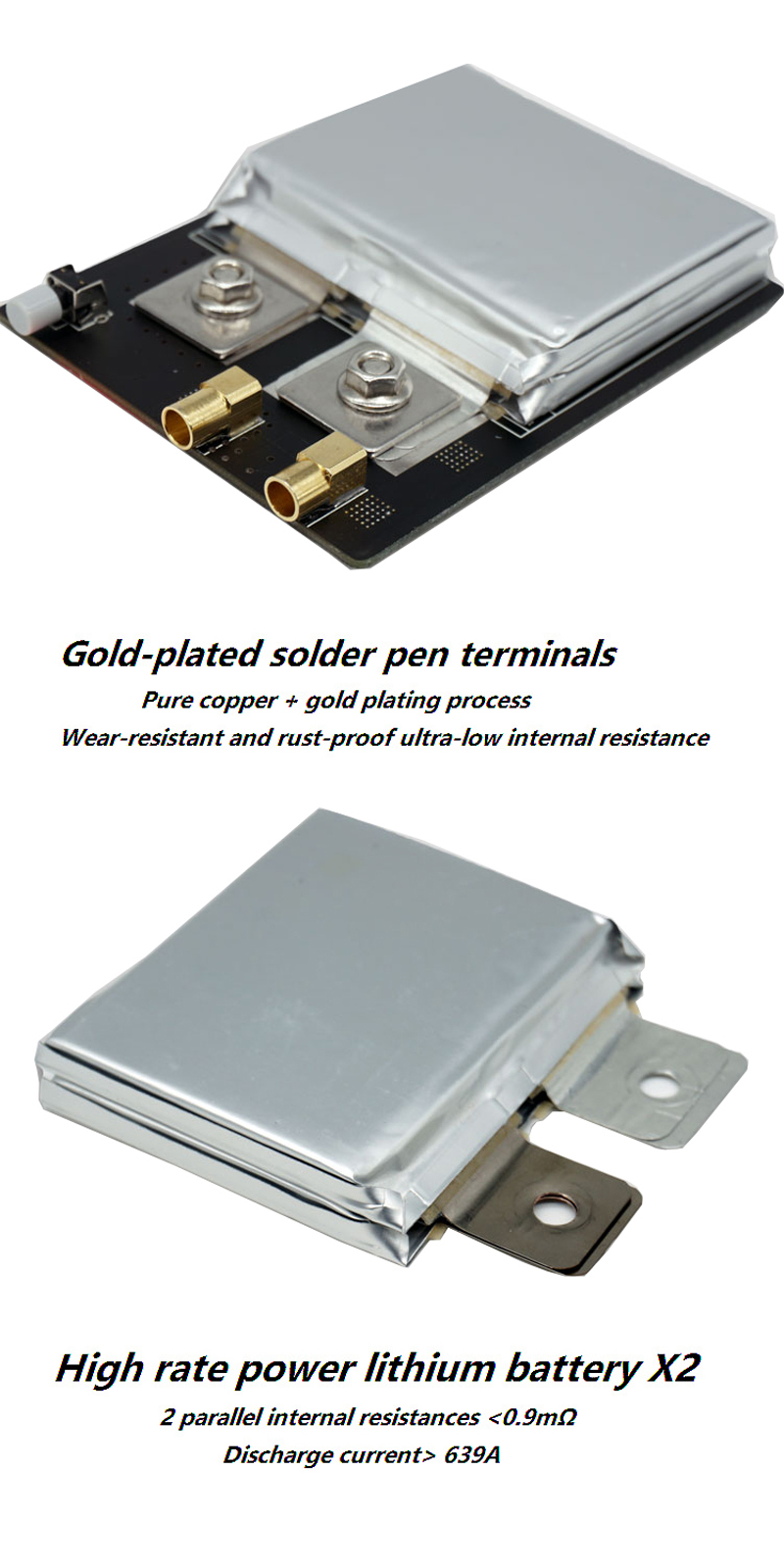

The built -in high -magnification polymer battery has a maximum output current of up to 639A. After full charging, it can be welded continuously for thousands of points.

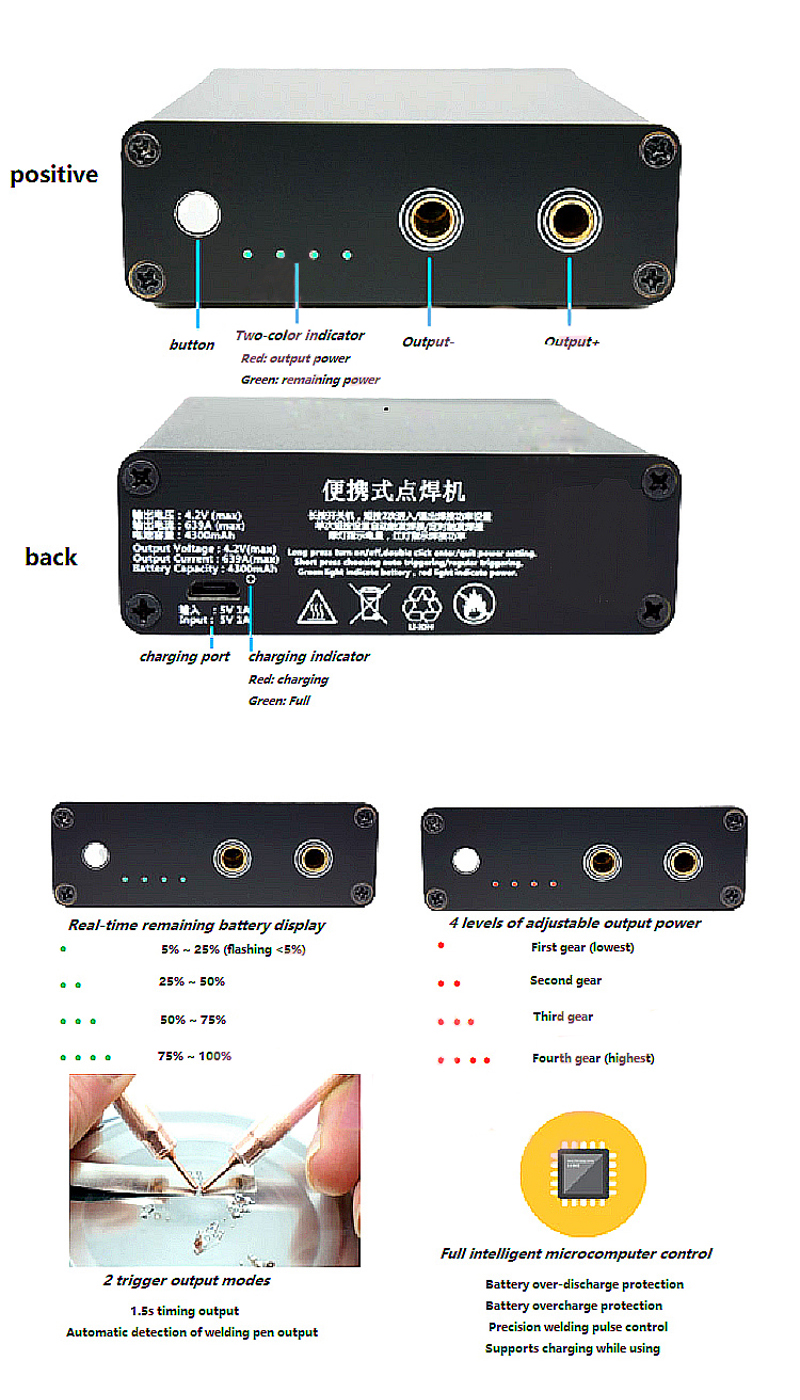

With the output power and the remaining power instructions, there are two output methods: regular trigger output and automatic trigger output. At the same time, you can set 4 output power.
There are four two -color indicator lights, the green light indicates the power supply, and the red light indicates the welding power supply.
Charging indicator: Red means charging, green is full.
Do not use it in ten minutes to shut down.

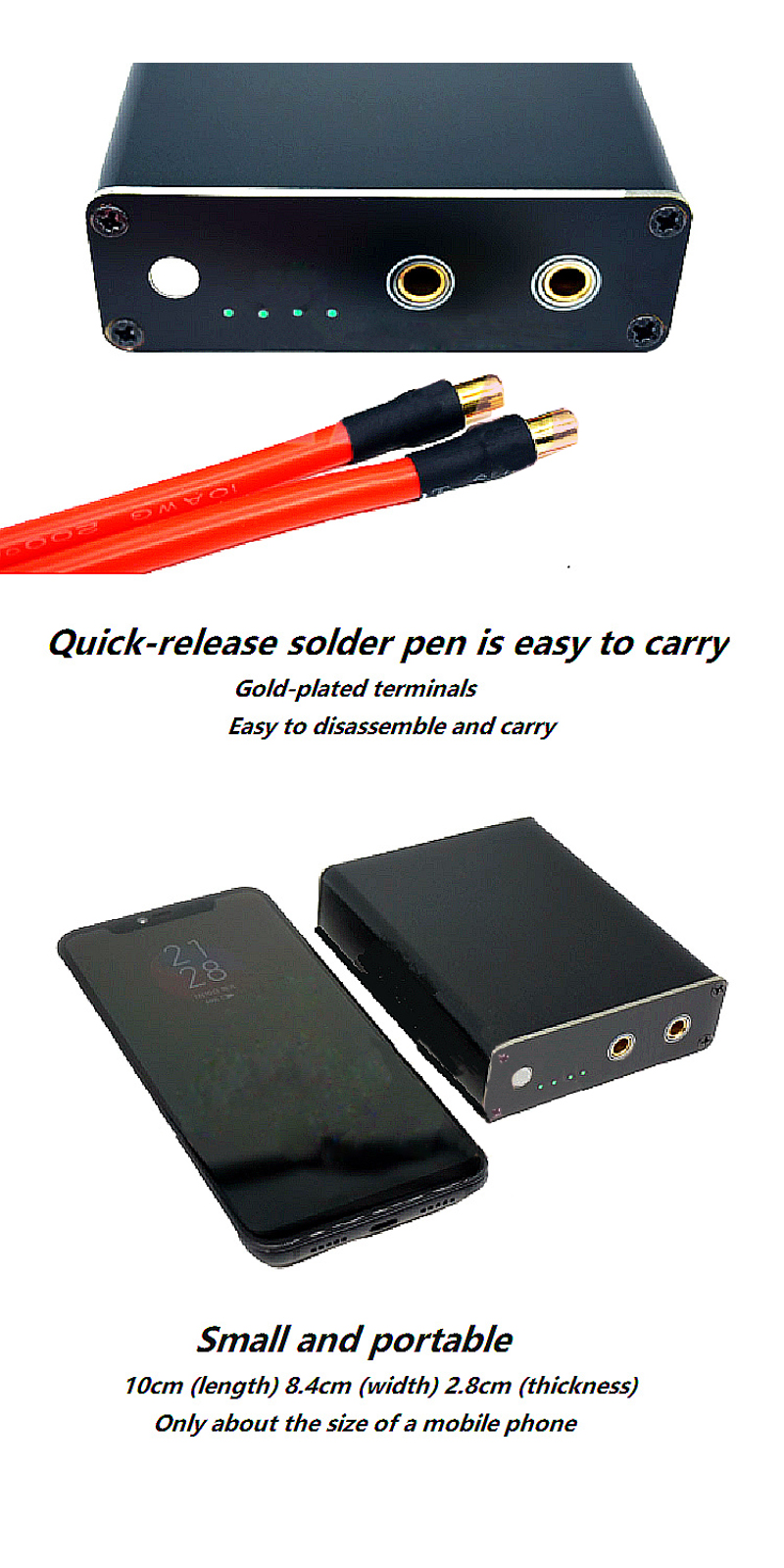

Small size, light weight, easy to carry.
Specification:
Project type: point welding machine
Material: aluminum alloy
Size: 10x8.4x2.8cm/3.9x3.3x1.1in
Colour: Black
Output voltage: 4.2V (maximum value)
Output current: 639A (maximum value)
Design current: 1200A (maximum)
Battery capacity: 4300mAh

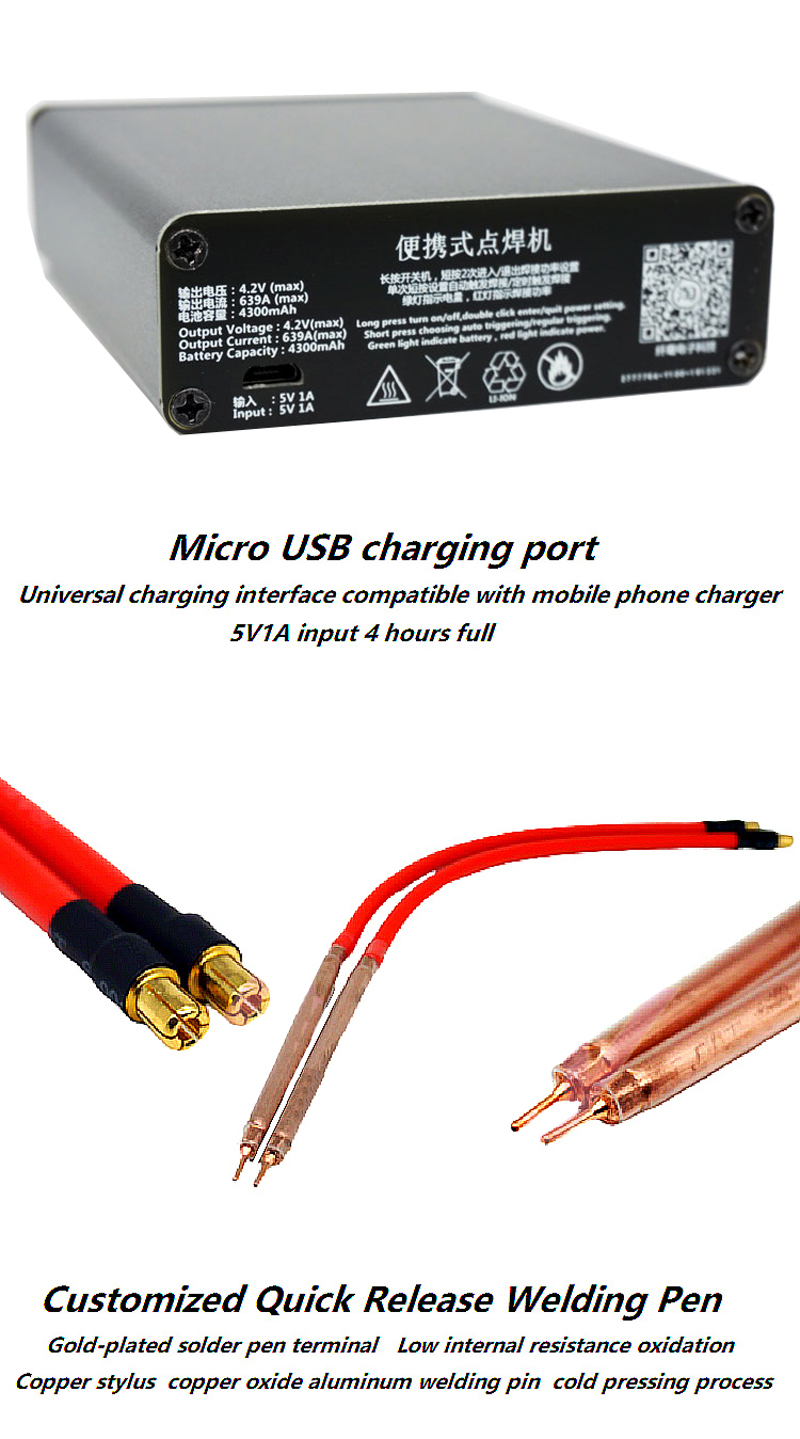

Enter interface: Micro USB
Input: 5V 1A
Welding thickness: 0.1-0.12mm
Quantity: 1 set
instruct:
Long press and turn on the button, the green light displays the power, and the red light shows the output power.
Two times enter the power settings, four -gear power output, short press and save exit twice.
At this time, the welding is triggered at this time, and the output is 1.5s once.
Switch to the automatic trigger mode once, when the two welding pens are detected and the contact with nickel sheets is good.
Long press and shut down.
The package includes:
1 X point welding machine
1 X charging cable
2 x point welding pen
detailed picture:
