3 In 1 Dowelling Jig 6/8/10mm Wood Drilling Guide Locator Adjustable Dowel Jig Kit For DIY Woodworking Tool

Descriptions:

3 In 1 Doweling Jig 6/8/10mm Wood Drilling Guide Locator Adjustable Dowel Jig Kit For DIY Woodworking Tool



Features:

- Quick Doweling Jig

The woodworking jig is made of Aluminum alloy,nitrided hard tool steel drill sleeve.

High hardness, wear and durability

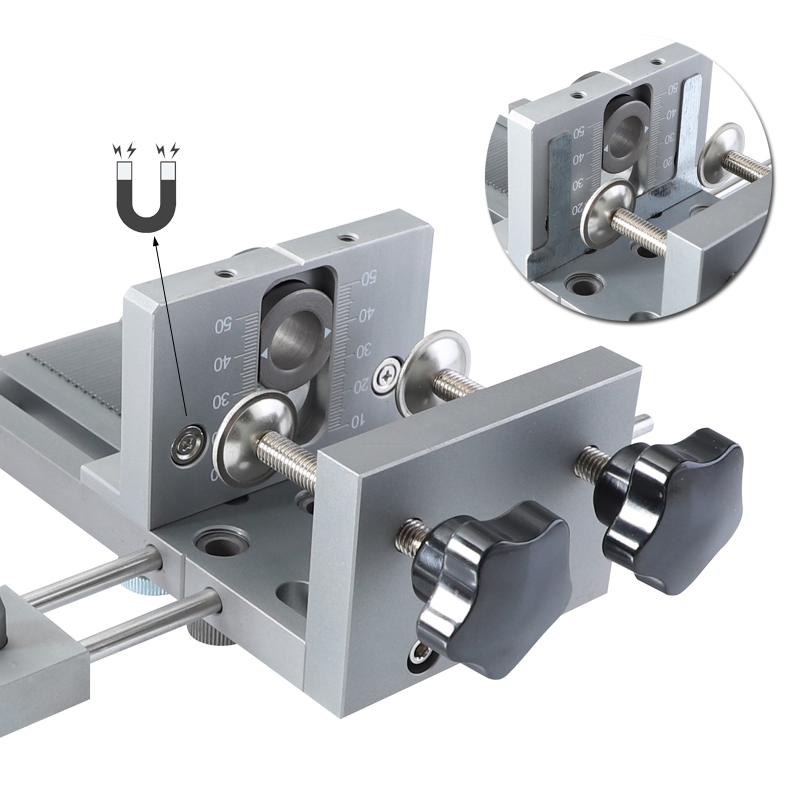

- Strong Magnetic Sheet

Doweling Jig with strong magnetic sheet and gasket design make sure that the side hole accuracy is within 0.5mm

(Since the slider moves 2mm each time it can only be aligned with 10, 14, 18, 22mm and etc thickness wood plate centers if not these plates,it can not align with the center at all without shim)

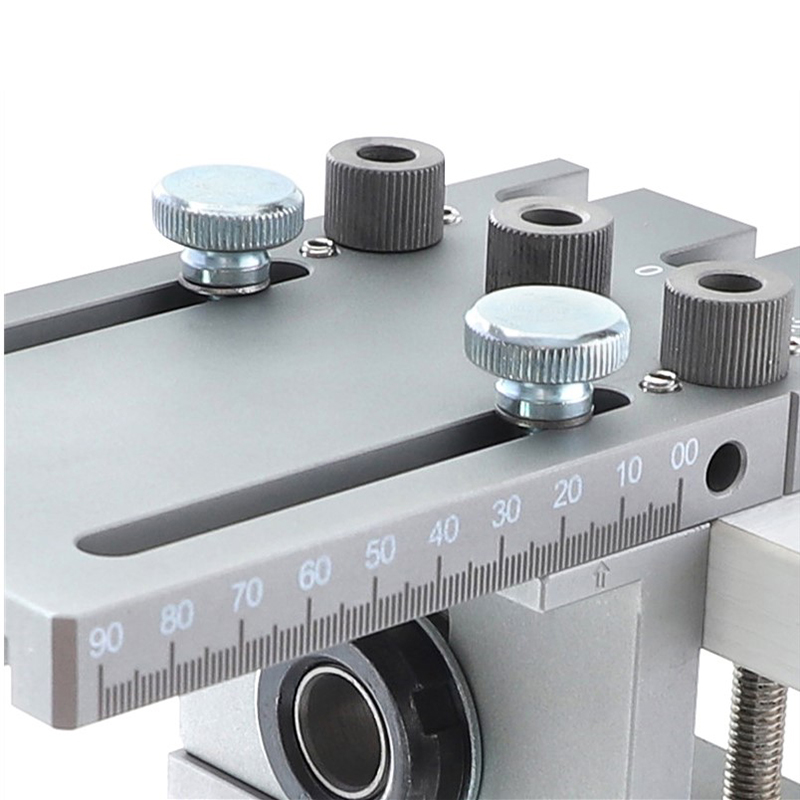

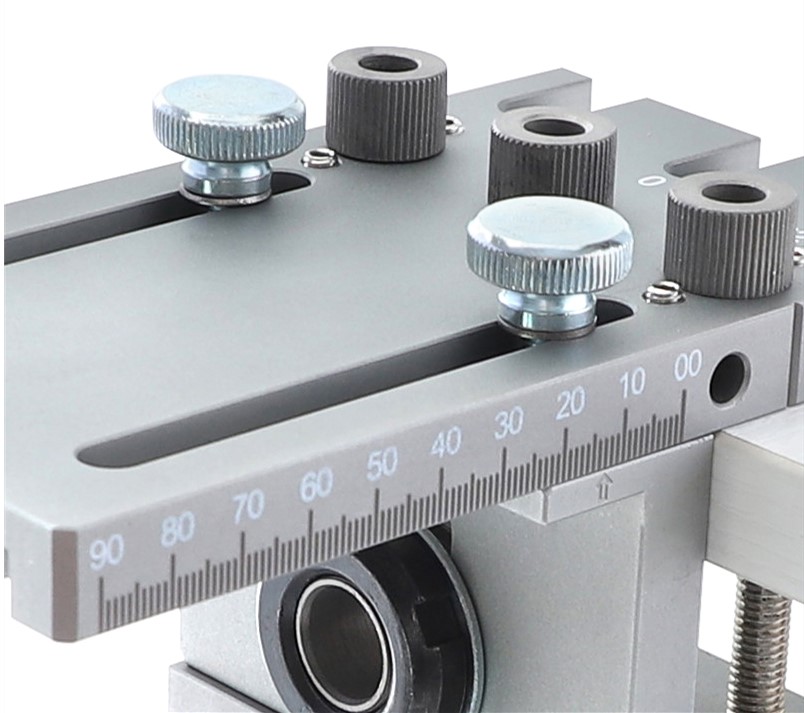

- Clear Scale

Drilling Dowel Jig with clear scale,engraving process the scale value is half the thickness of the wood plate

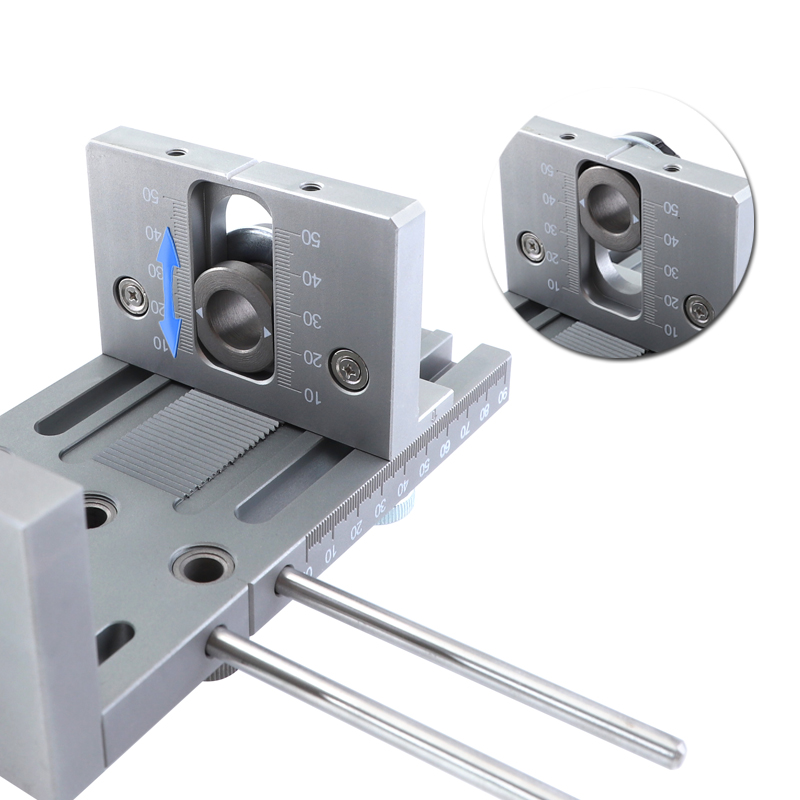

- Adjustable Drill Guides

Adjust the eccentric hole position according to the length of the connecting rod

Side hole stroke 23-43mm

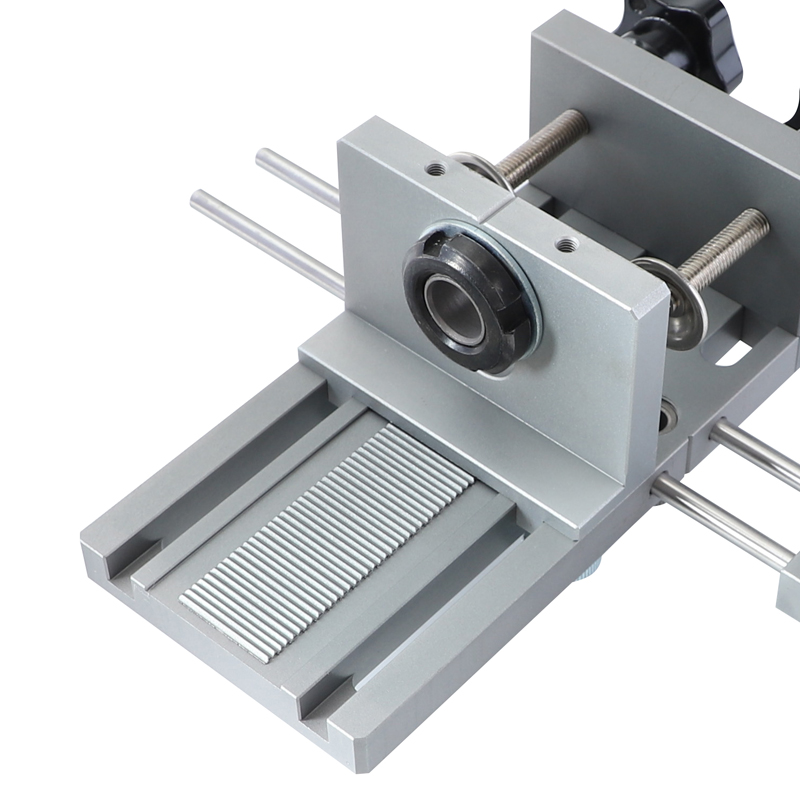

- Easy To Use

The star screw of drilling locator can hold the wood plate tightly

Two clamping methods,drilling is precise and convenient

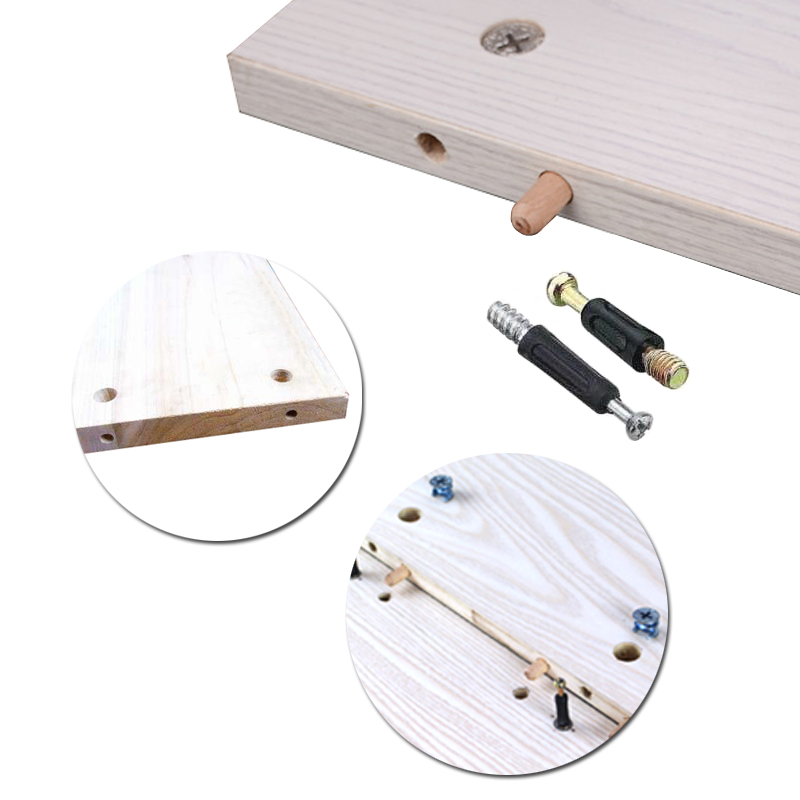

- Application

Woodworking Locator kit used for edge,surface,T-shaped,and L-shaped joints

Suitable for quick connection of furniture, woodworking DIY, etc.

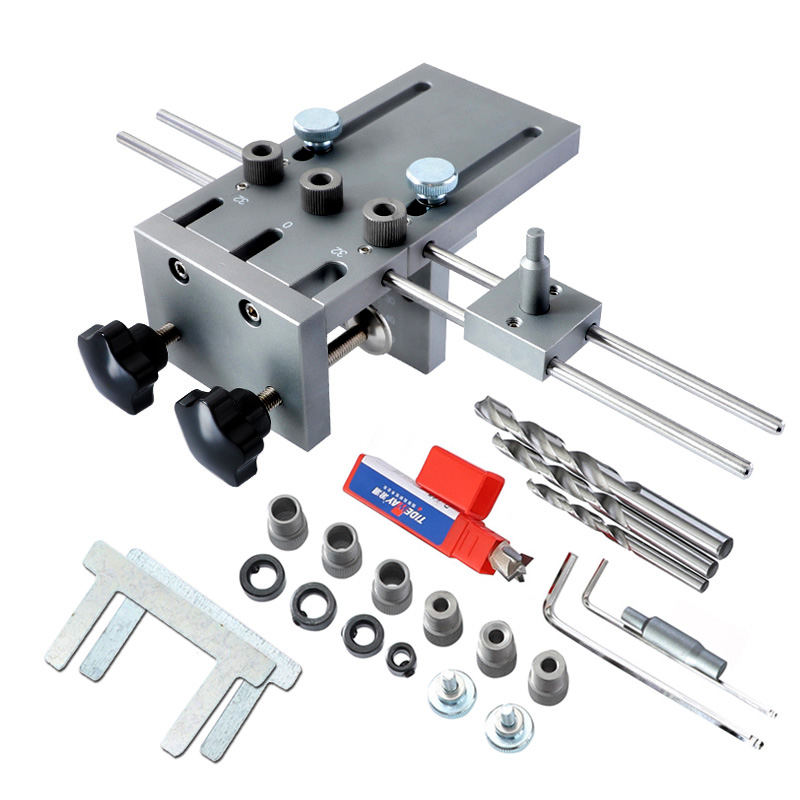

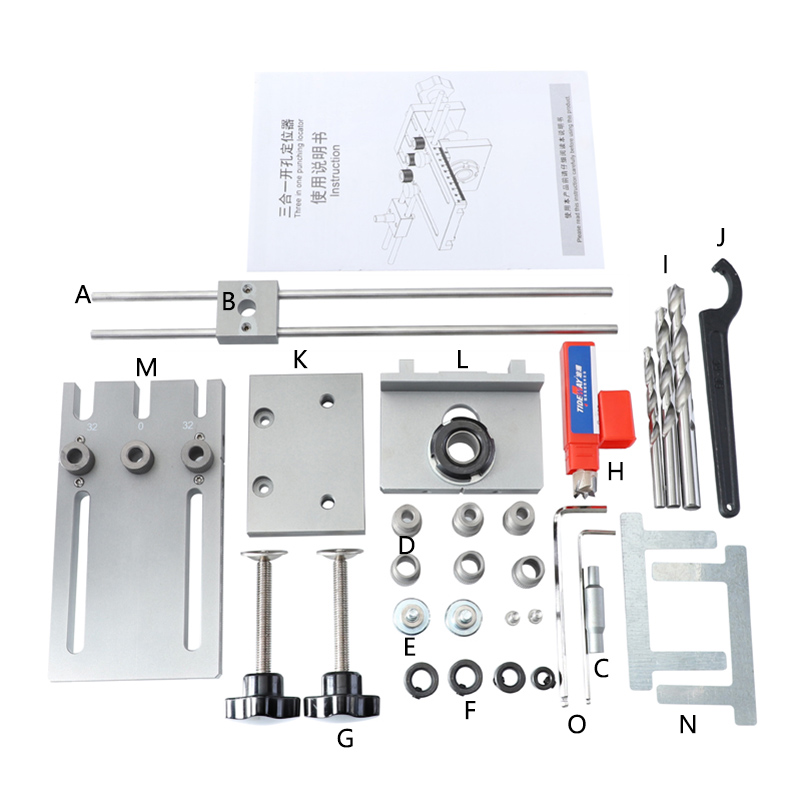

Package Included:

A. Extension Rod	1 Set
B. Positioning Block	1 Pcs
C. Positioning Rod	1 Pcs

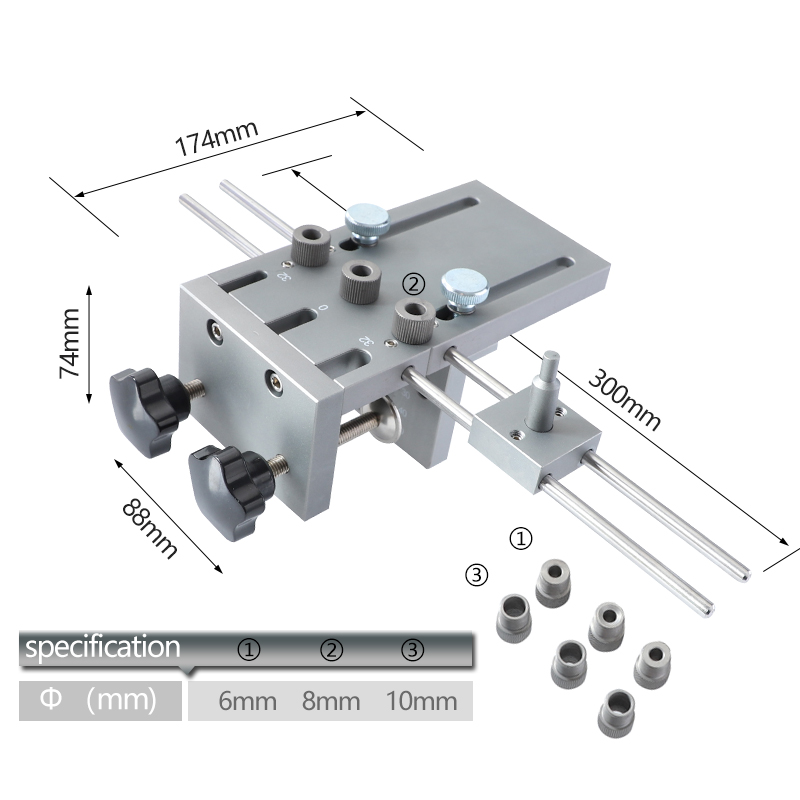

D. 6/8/10mm Drill Bushing	Each 3 Pcs
E. Knurled Screw	2 Pcs
F. 6/8mm Spacing Ring	Each 1 Pcs
G. Screws	2 Pcs
H. 15mm Drill Bits	1 Pcs
I. 6/8/10mm Drill Bits	Each 1 Pcs
J. Crescent Wrench	1 Pcs
K. Clamping Plate	1 Pcs
L. Sliding Clock	1 Pcs
M. Main Body	1 Pcs
N. 0.5/1mm Shim	Each 1 Pcs
O. Allen Wrech	2 Pcs
