42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control

42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
42 Two Phase Hybrid Stepper Motor 0.9 Degree 40mm 1.68A Stepper Motor for CNC Control
$24.99
Ex Tax: $24.99
  • Stock: In Stock
  • Model: MZ007575
  • SKU: MZ007575

Description:

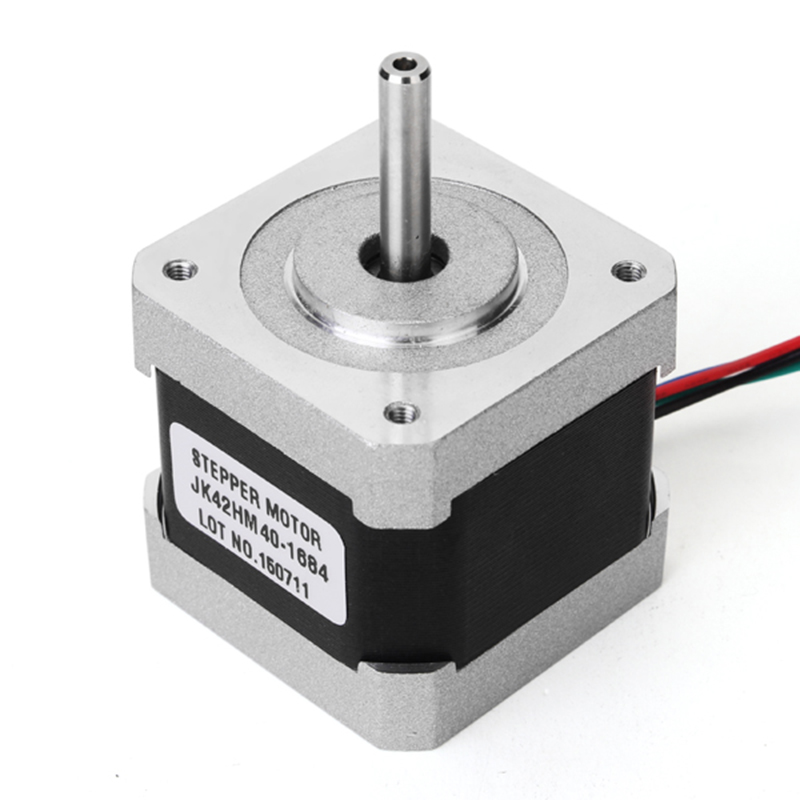

JKM NEMA17 0.9 Degree 42 Two Phase Hybrid Stepper Motor 40mm 1.68A For CNC Control


Specifications:

Product Name

Hybrid Stepper Motor

Diameter Of Axle

5mm

Motor Length

40mm

Boundary Dimension

42*42mm

Size

42mm x 42mm x 40mm

Holding Torque

3.3Kg.cm

Certification

CE

Scope

3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.

Quantity1 Pcs


Genaral Specifications:

Step Angle

0.9°

Temperature Rise

80℃max

Ambient Temperature

 -20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

28N (20mm from the flange)

Max. axial force

10N


Model No.

Step Angle( °)

Motor Length(L)mm

Rate
Voltage(V)

Current
/Phase(A)

Resistance
/Phase(Ω)

Inductance
/Phase(mH)

Holding Torque(kg.cm)

# of Leads(No.)

Detent Torque(g.cm)

Rotor Inertia(g.cm)

Mass(Kg)

JK42HM40-1684

0.9

40

2.8

1.68

1.65

3.2

3.3

4

220

54

0.28


Features:

- The Electromechanical coil adopts pure copper enameled wire, so that the motor temperature is lower, and there will be no deformation and other problems when carried for a long time;

- Strongly away from high speed to keep the motor speed;

- Precise jujube harvesting with high precision and low noise operation;

- Suitable for 3D printers, placement machines, automation equipment and medical equipment.


Package Included:

1 x

Hybrid Stepper Motor
