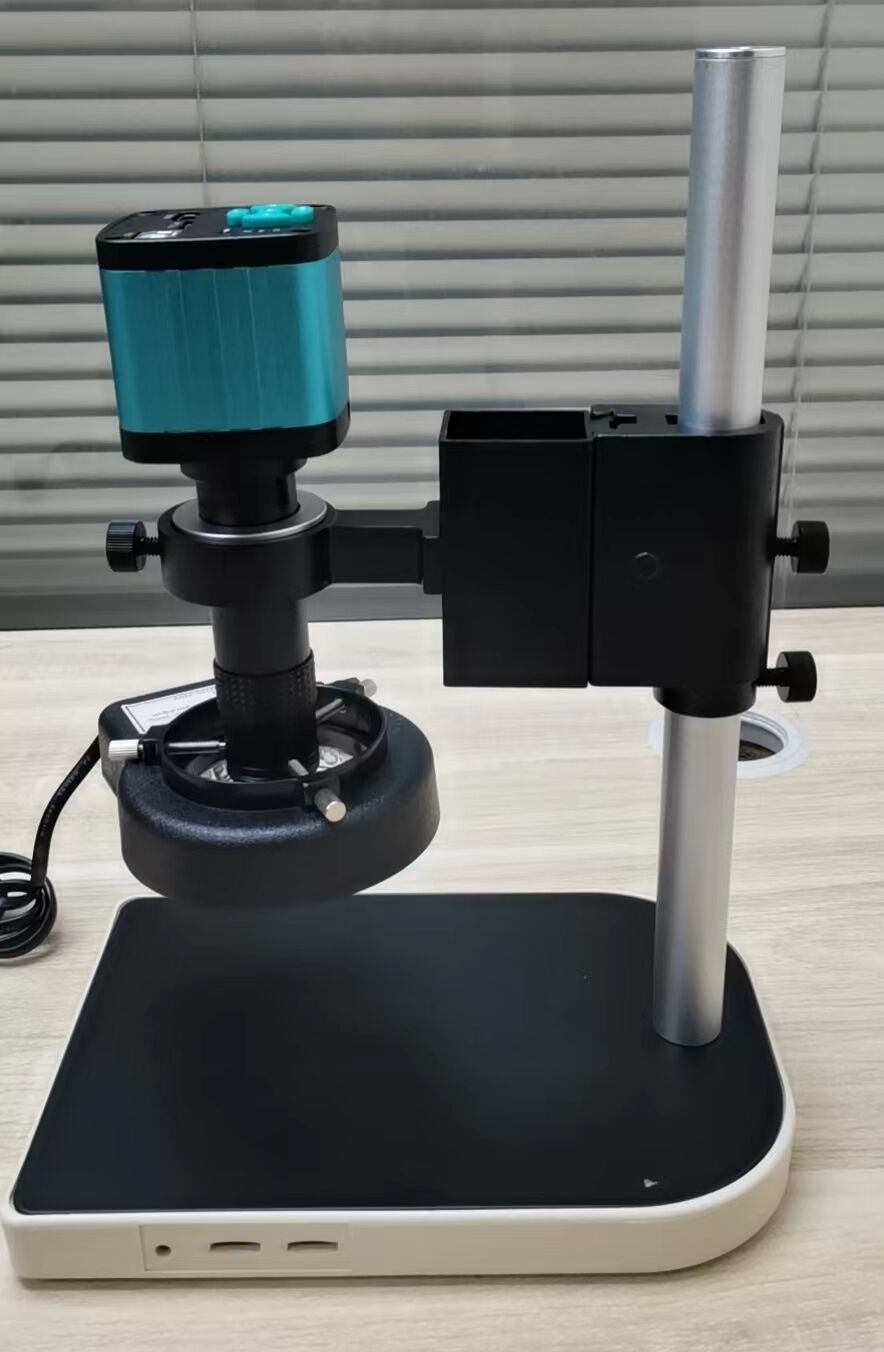

48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools

48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
48MP 4K HDMI USB Digital Video Monocular Microscope Camera 1X-130X Zoom C-Mount Lens for Soldering Mobile Phone Repair Tools
$199.99
Ex Tax: $199.99
  • Stock: In Stock
  • Model: MZ002149
  • SKU: MZ002149


Note: Since 2022.5.21, the appearance of the delivery bracket has changed, and other parameters remain unchanged.
48MP-4K-HDMI-USB-Digital-Video-Monocular-Microscope-Camera-1X-130X-Zoom-C-Mount-Lens-for-Soldering-M-1921303-1


Specification:

Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size: 4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format: MOV
HDMI interface: HDMI/USB output
Image: 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language: Chinese/English
Mirroring: Support
Frequency: 50Hz/60Hz
Monitor: 16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply: 5-12V 1A

1X-130X C-Mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1: 15
Magnification Power by 0.13- 2X (about 1-130X on the display)
view field of Max multiple: 4.2mm x 2.4mm
view field of Min multiple: 130mm x 70mm
Size: 30mm(diameter) x 99mm(length)
Weight: 195g

56 LED adjustable compact microscope ring light
Provides strong and concentrated shadow-free lighting
56 bright white LED bulbs
Variable lighting direction
Variable intensity control
Strong and concentrated shadow-free lighting
100,000 hours of life
Power input: 100-240V, 50-60HZ, automatic switching
The inner diameter of the ring light: 1.0 inch (27 mm)
Overall outer diameter: 1.77 inches (45 mm)
Working distance: 27mm-120mm

Package included:

1 x Microscope Camera
1 x Power adapter (EU)
1 x HDMI cable
1 X Remote controller
1 x Bracket
1 x 100X C-MOUNT lens
1 x 56 LED ring light
