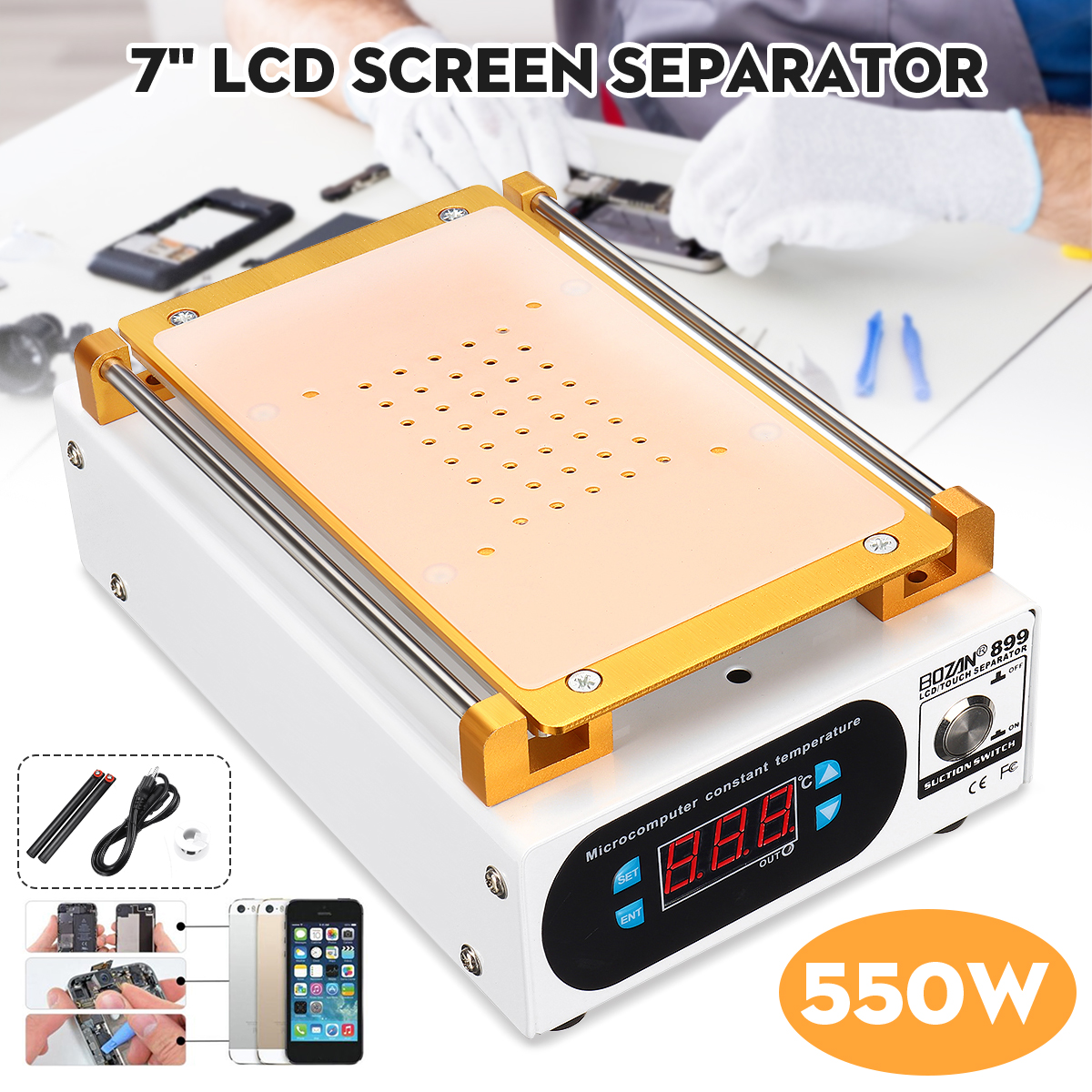

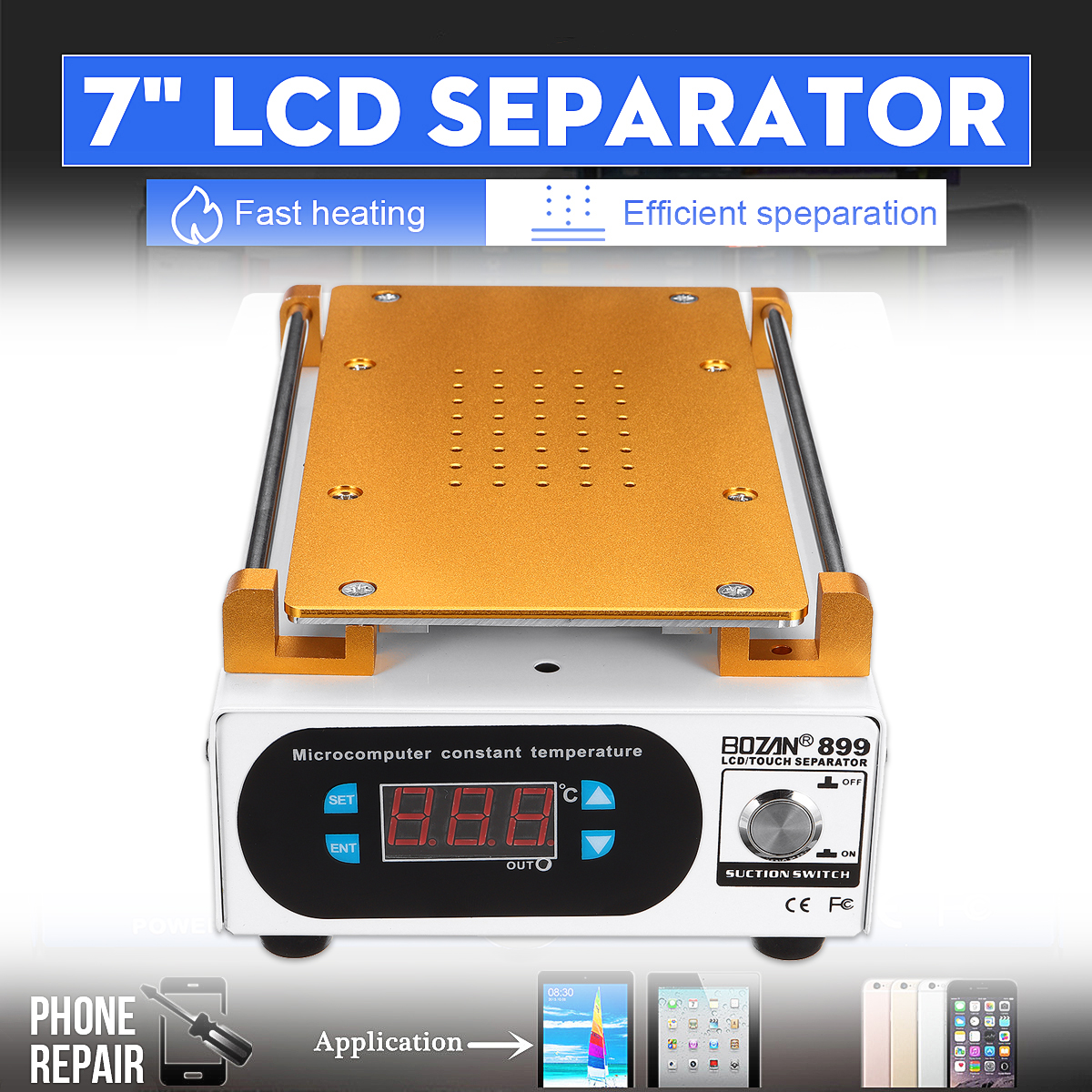

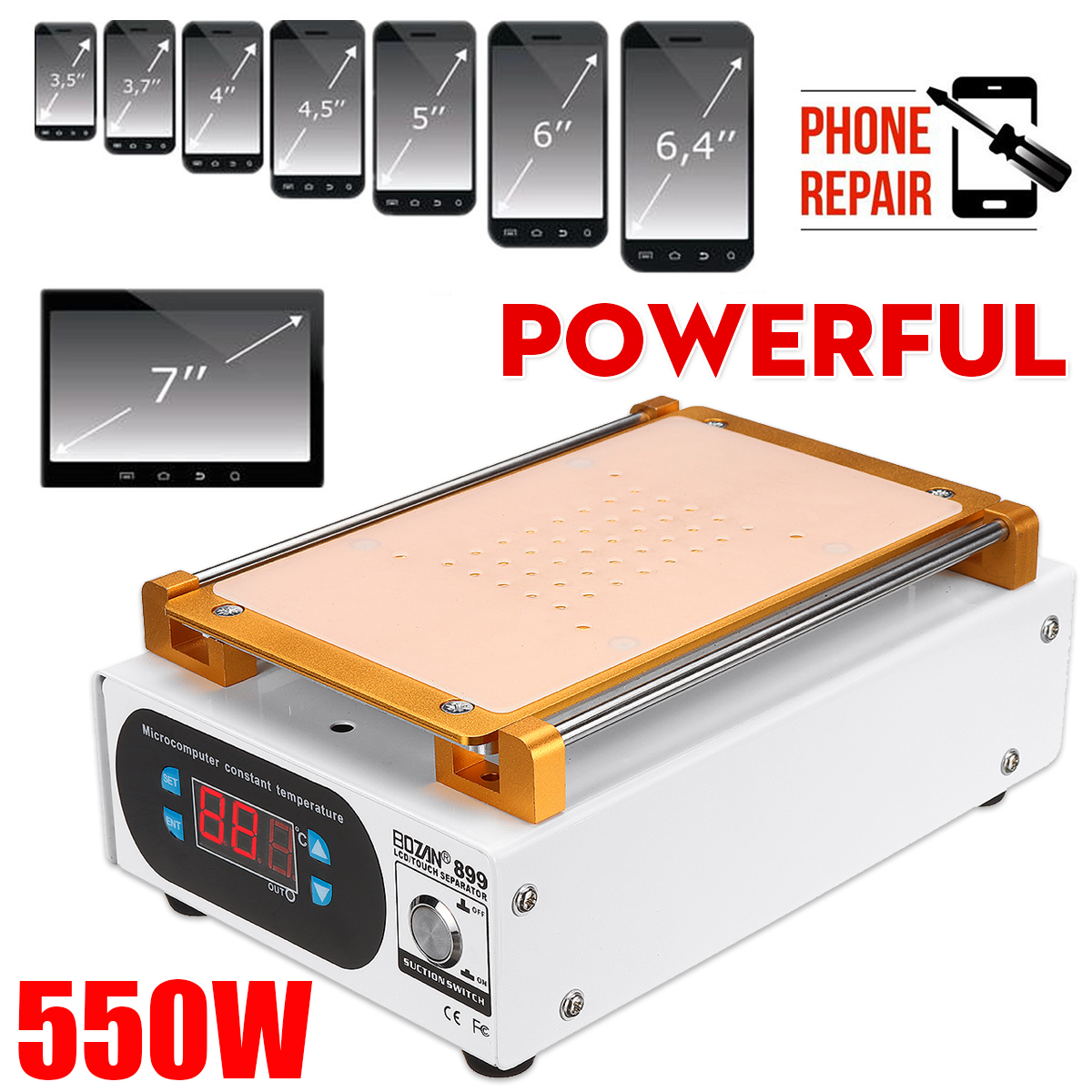

7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine

7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
7Inch 2 Air Pump Built-in Vacuum Pump Mobile Phone LCD Glass Screen Separator Repair Machine
$72.99
Ex Tax: $72.99
  • Stock: In Stock
  • Model: MZ003997
  • SKU: MZ003997

Available Options

Note :
1.If you have any problems or concerns, please contact us, we are always there
2.Please allow 1-3cm measuring deviation due to manual measurement.Thanks for your understanding
3.Monitors are not calibrated same, product colour displayed in photos may be showing slightly different from the real object. Please take the real as standard

Features :
● Double air pump suction is better
● Auto heating metal plate, maximum temperature is 350 centigrade
● Safety power system inside, avoiding the electric leakage problem
● Smooth metal plate to hold the touch screen without any damaged
● Built-in Imported Suction Pump to suck touch screen glass on the plate
● With LED display, you can get the clearly Temperature information on it
● Anti static body material, prevent the LCD and the flex cable being damaged from the static
● Please do not set the temperature to more than 120 degrees, because it may damage the screen

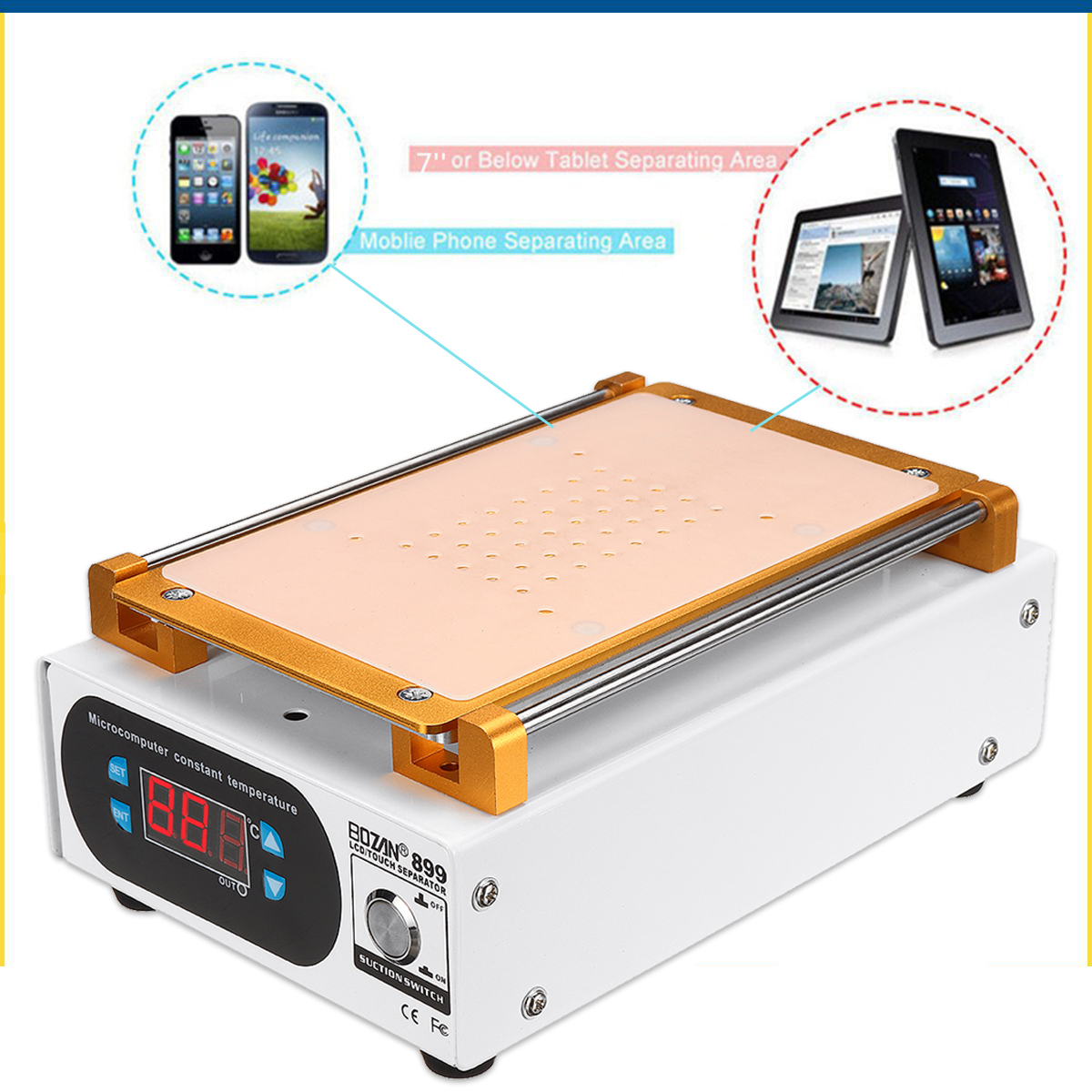

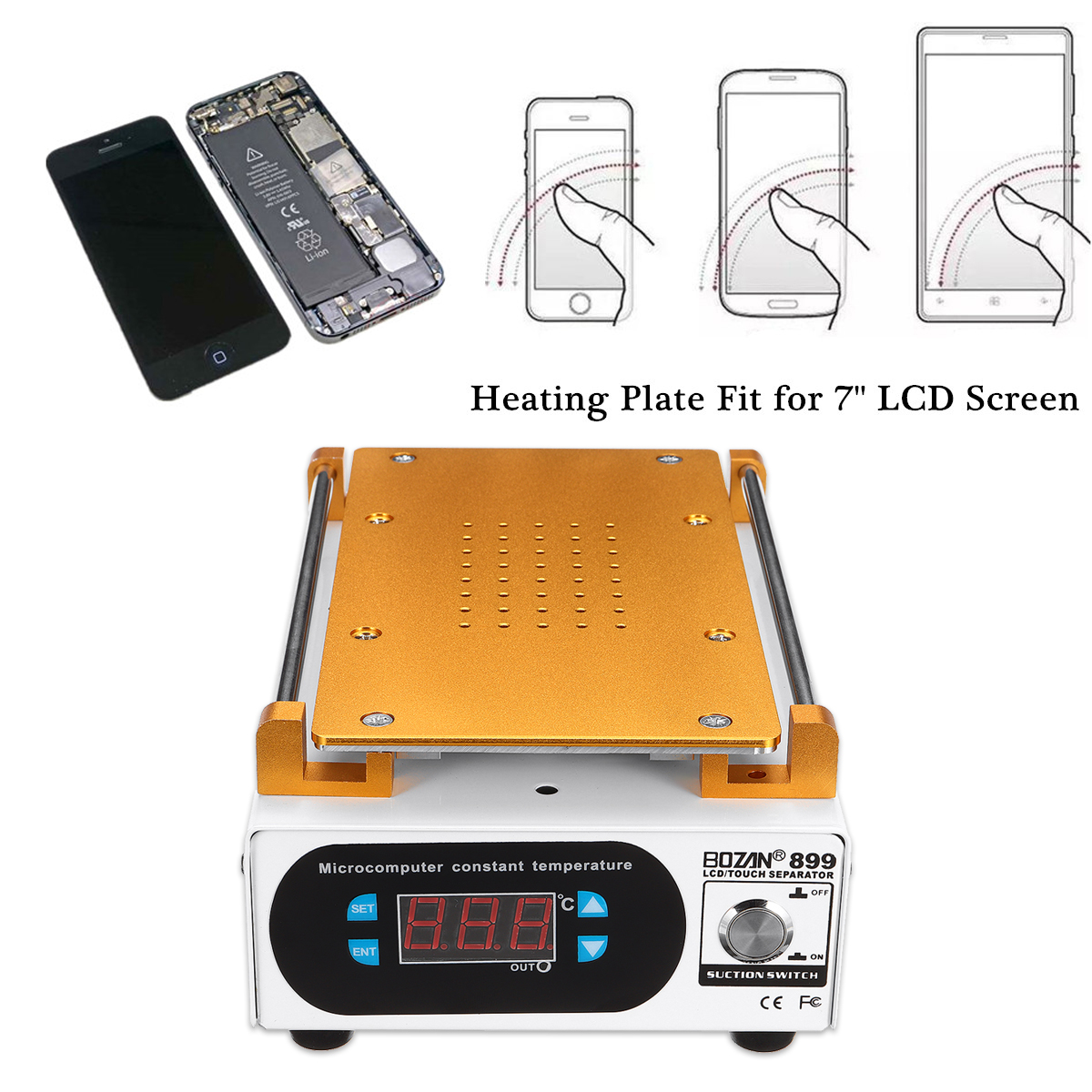

● The separate machine is suitable for cell phones of 10 ~ 17cm in length (for lcds under 7 inches)
● Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on iPhones or galaxy series
● The machine is used for separating lcd and touch screen of Apple, Samsungs, HTCs, Huawei, LG, Xiaomi Oneplus as well as other Smart Phones
● This is our latest vacuum separator it is a preheater, a LCD touch glass separator machine, this one can largely help us to solve the big problem

Specifications :

Plug(Option)
EU Plug / US Plug

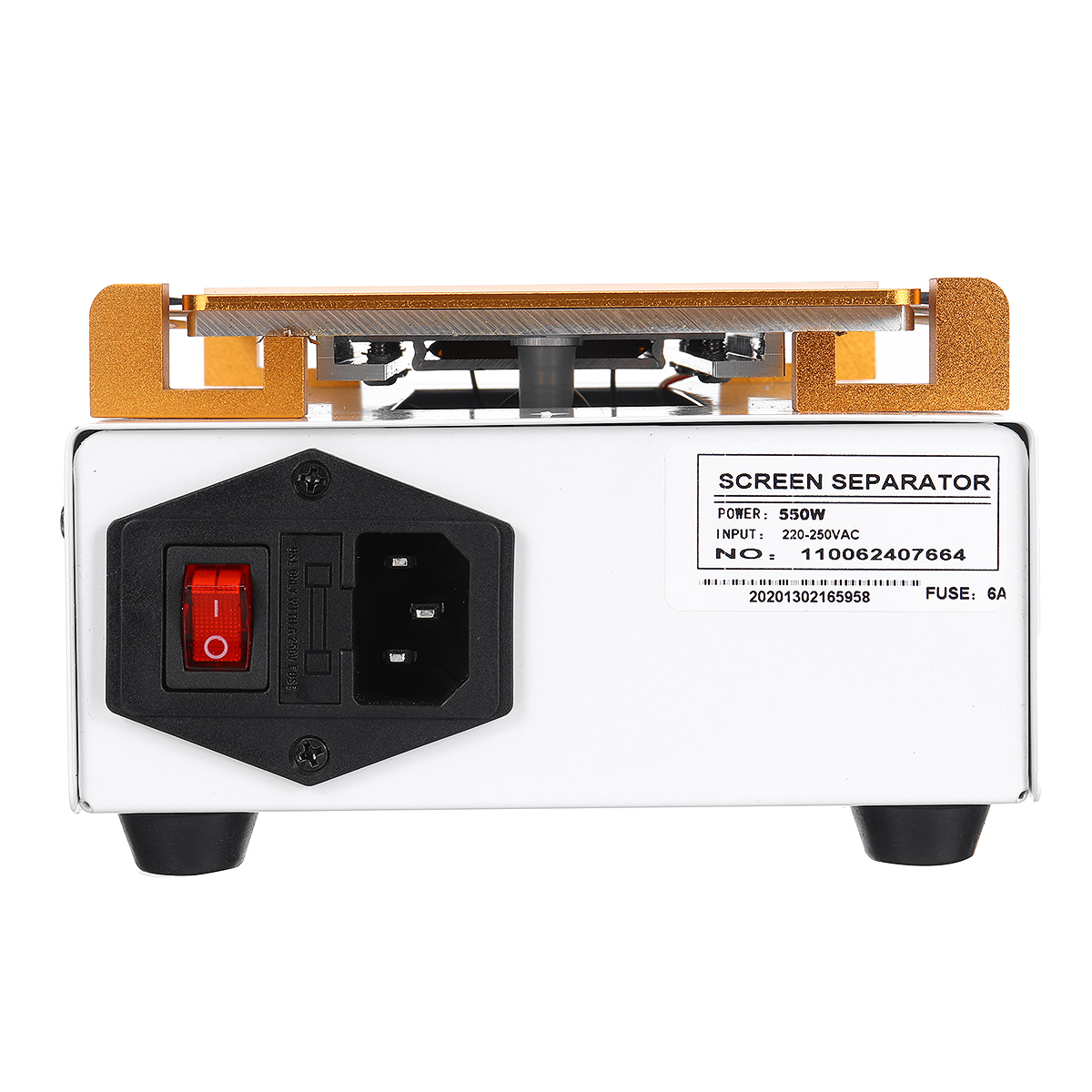

Power
550W
Input
220-250VAC
Temperature Control Range
0~350℃
Screen Fixing Method
Vacuum suction
Constant Temperature Stability
±1.5℃
Display Mode
High-definition LCD screen digital display
Use Range
7-inch smart touch screen product screen repair
Package Weight
About 1400g / 3.1lb

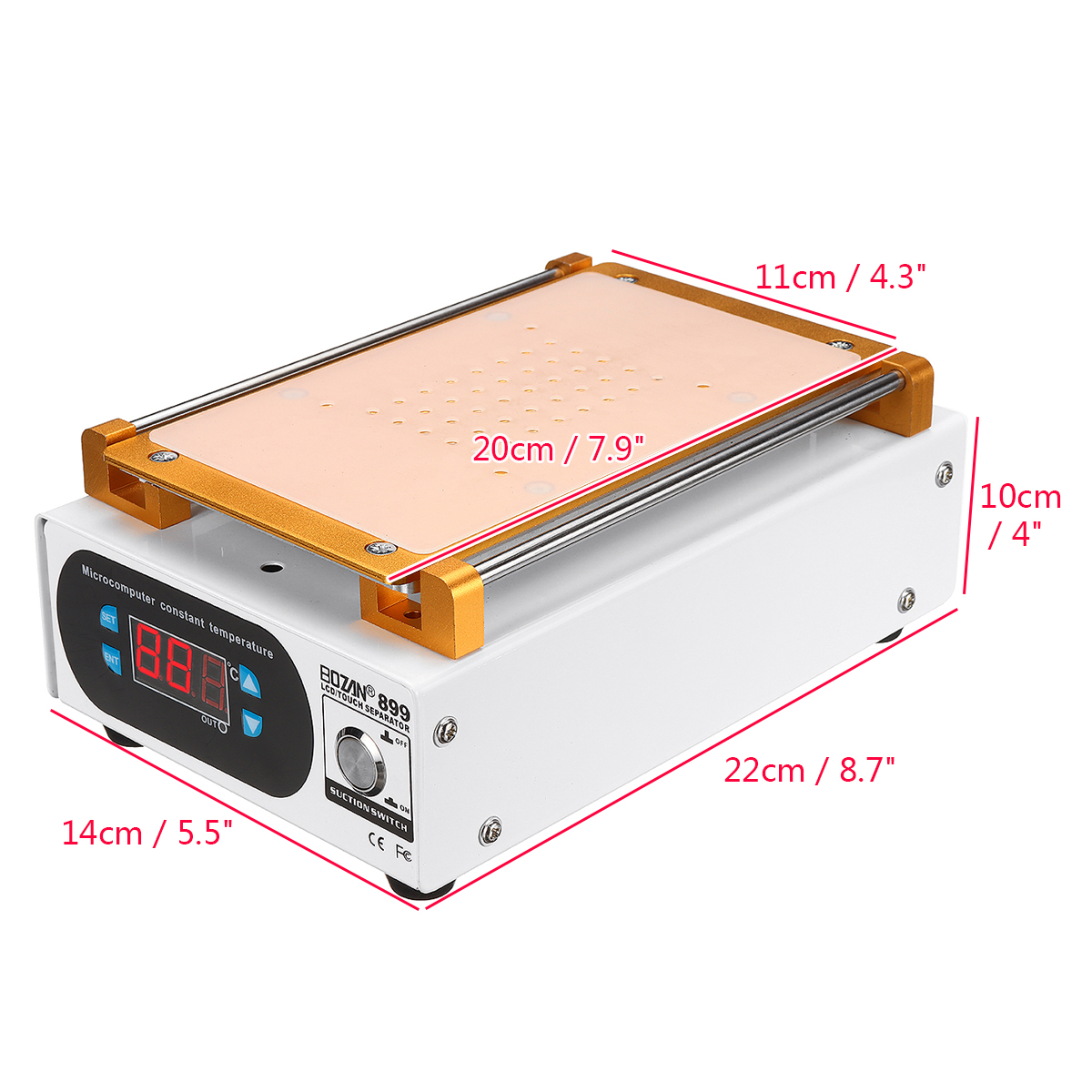

Product Size(L * W * H)
About 22cm * 14cm * 10cm / 8.7" * 5.5" * 4"
Package Size(L * W * H)
About 25cm * 21cm * 13cm / 10" * 8" * 5"
Compatible With
For 7" or below LCD or LED screen assembly

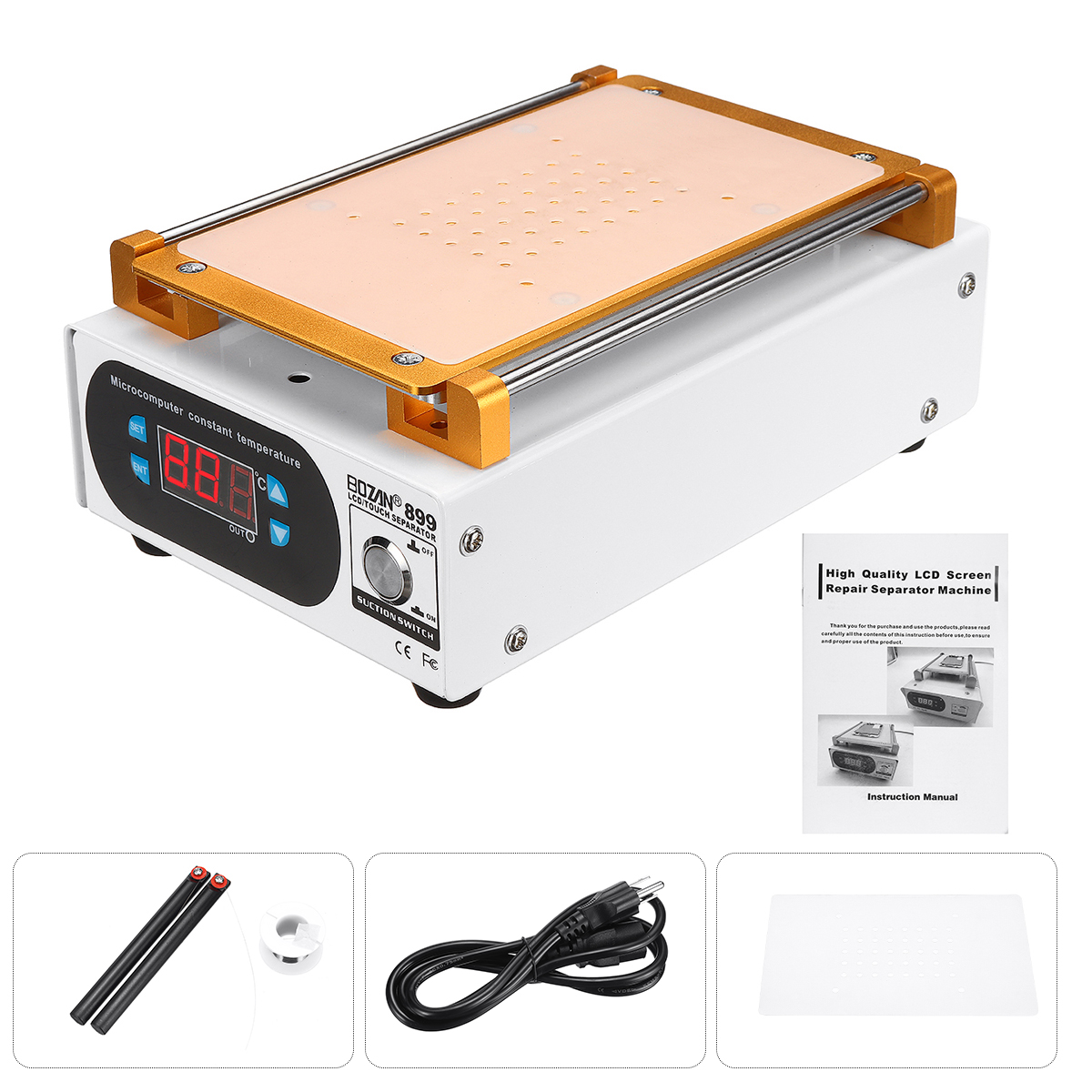

Package Includes :
1 x Screen Separator (110V / 220V)
1 x Silicone Pad
1 x Diamond Silk
2 x Separation Rod
1 x Plug Charger
(1 * Plug Adapter,according to your country of delivery)

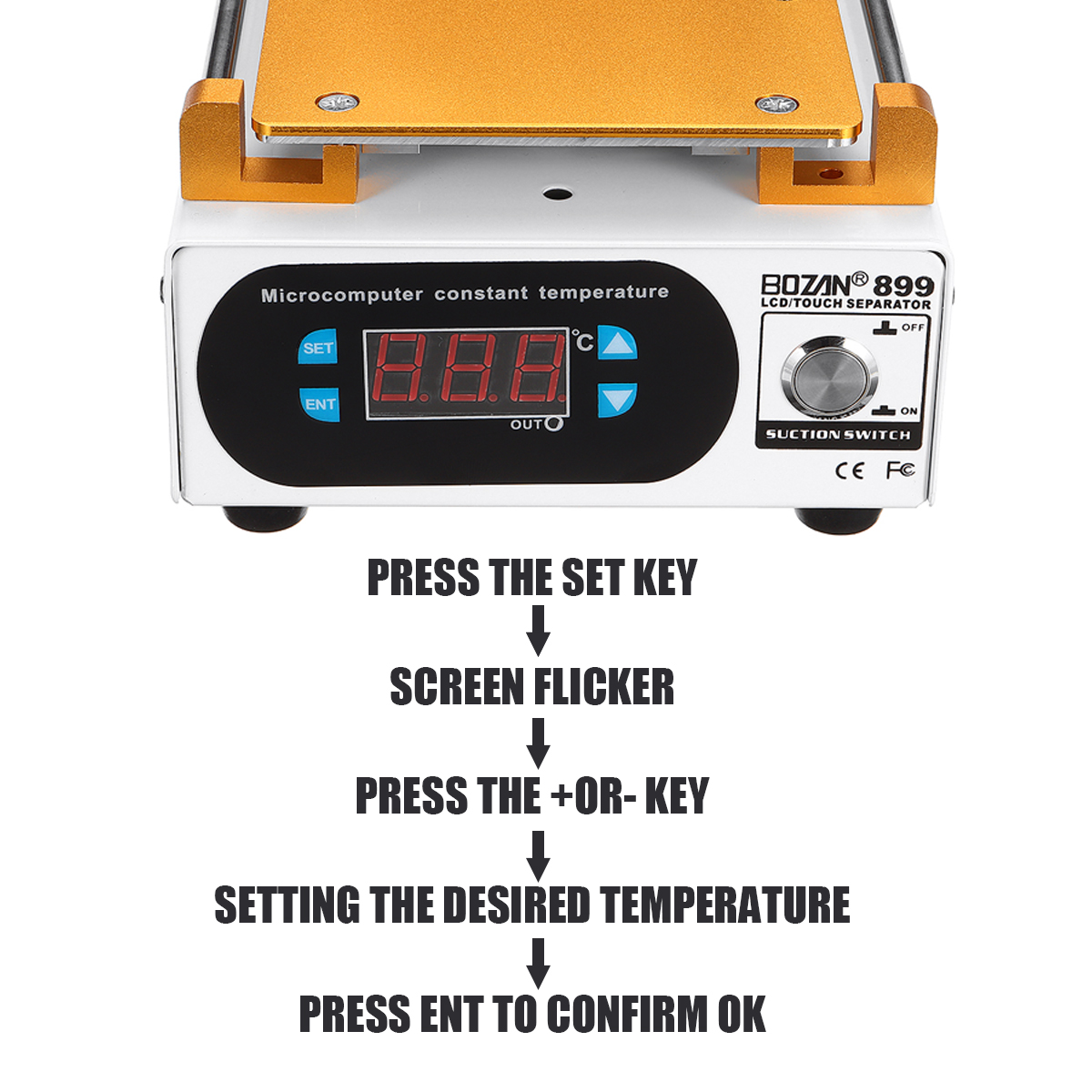

Operation Steps :
1. Turn on the power switch
2. Adjust the temperature to 80°C
3. About 1-2 minutes, the heating plate's temperature reaches 80°C
4. Put the silicone pad on the heating plate holes to holes
5. Put the screen downwards the hole of the heating plate
6. Turn on the vacuum pump switch
7. After the screen be sucked
8. Use the steel wire to separate the LCD and glass
9. Take off the LCD, screen separation is finished

Warning :
1.When you use the screen separator, please put it on the working table, make sure the table is even flat and the material of the table is heat-resistant
2.The heating plate is very hot when the screen separator is working, please pay attention to it
3. Please pay attention to the item you'd like to separate: the item will be damaged if the temperature is too high
4.Stop using the screen separator besides the flammable things
5. You can move or touch the screen separator when you have powered screen separator off and it is cool down
6. Please power the screen separator off when you needn't use
7.Please do not set the temperature to more than 120 degrees, because it may damage the screen
