852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station

852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
852D++ 110V/220V 2 In 1 SMD Rework Station Hot Air Nozzle Soldering Station Desoldering Station
$109.99
Ex Tax: $109.99
  • Stock: In Stock
  • Model: MZ001225
  • SKU: MZ001225
  • UPC: 674423434553

Available Options

Features:

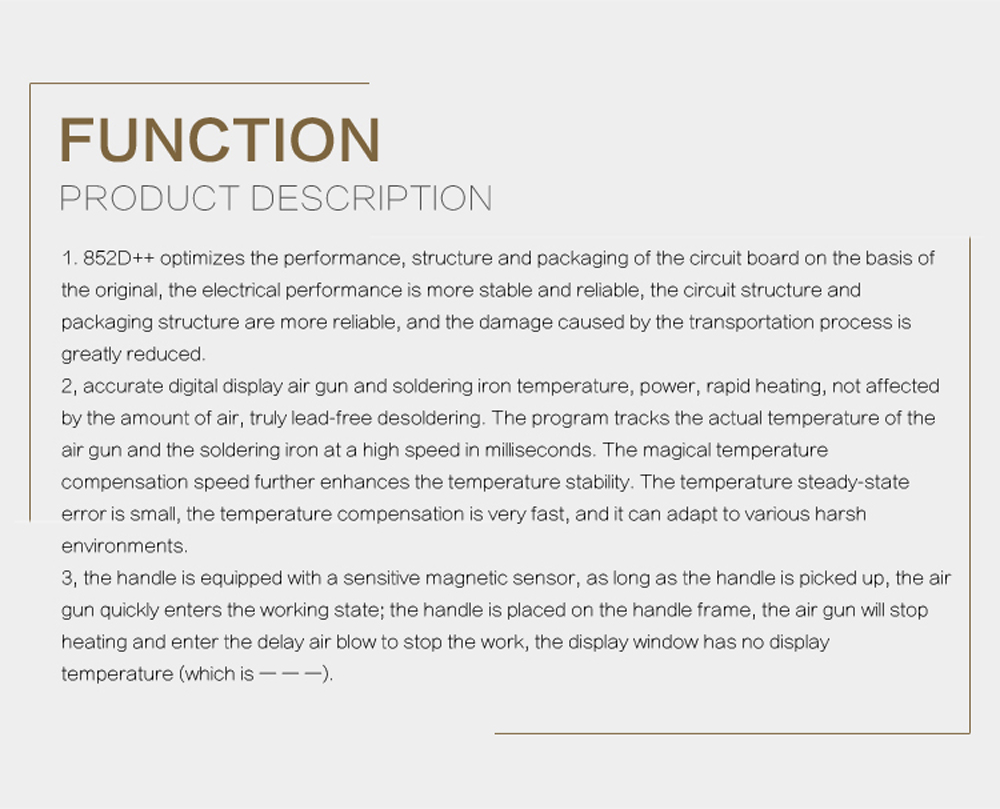

852D++ is based on the 852D+ circuit board performance, structure and packaging optimized, more stable and reliable electrical properties, circuit structure and packaging structure more reliable.

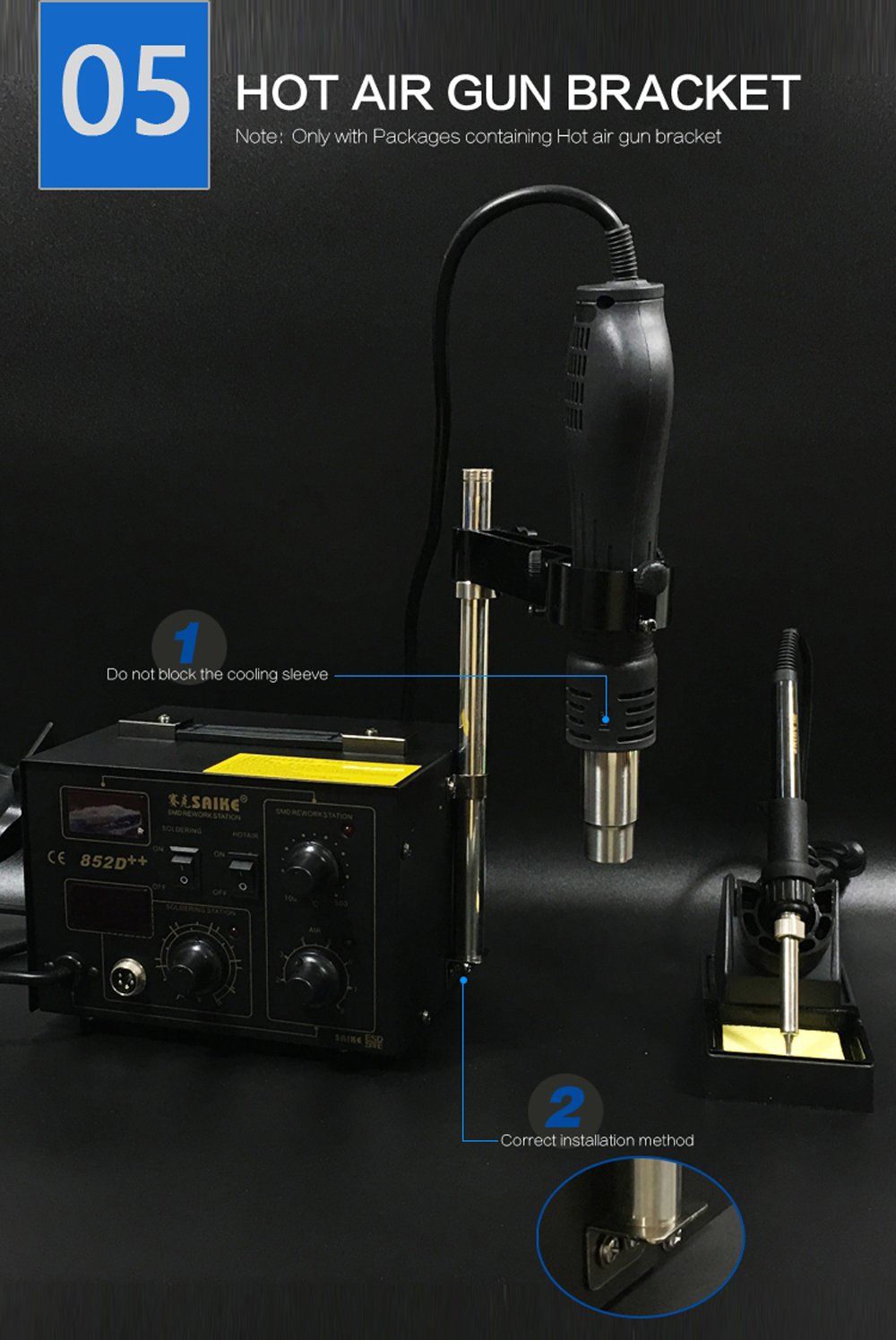

As required, you can install an air nozzle fixed support which well suits the preheat board. Therefore, you can easily dismantle the large chip.
1. Use the microcomputer processor PID program control technology. The procedure tracks the air nozzle and the iron actual temperature by highly speed take the millisecond as the unit, the mysterious temperature compensation speed strengthen the temperature stability, the temperature static error has been small, temperature compensation is very quickly,which could adapt each kind of adverse circumstance.
2. Air nozzle heater using the latest technology(skeleton type), high-quality heater production, significantly improved the stability and reliability and significantly improve avoid to shocking and anti-strike(traditional techniques use quartz glass, can not afford to drop and re-shock, in the transport and use of the pro- cess is very easy to damage), and working life is much longer than the traditional type.

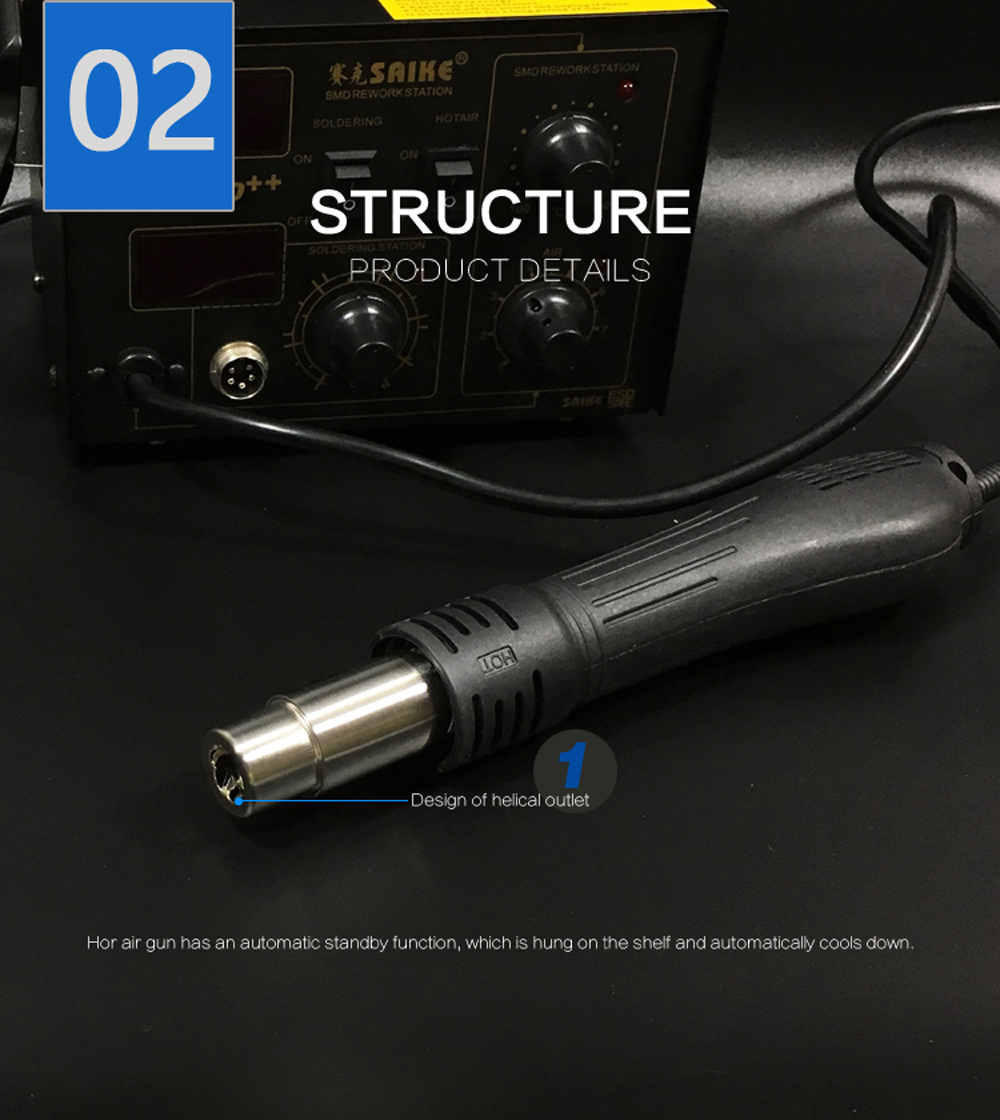

3. The handle equipped with a sensor switch, as long as we grip the handle, the system can quickly enter working mode; handle back into the handle frame, the system will enter standby mode, easy to operate in real time, meanwhile can extend heater life.
4. Use brushless fan as the air source,extremely long life, low- oise.

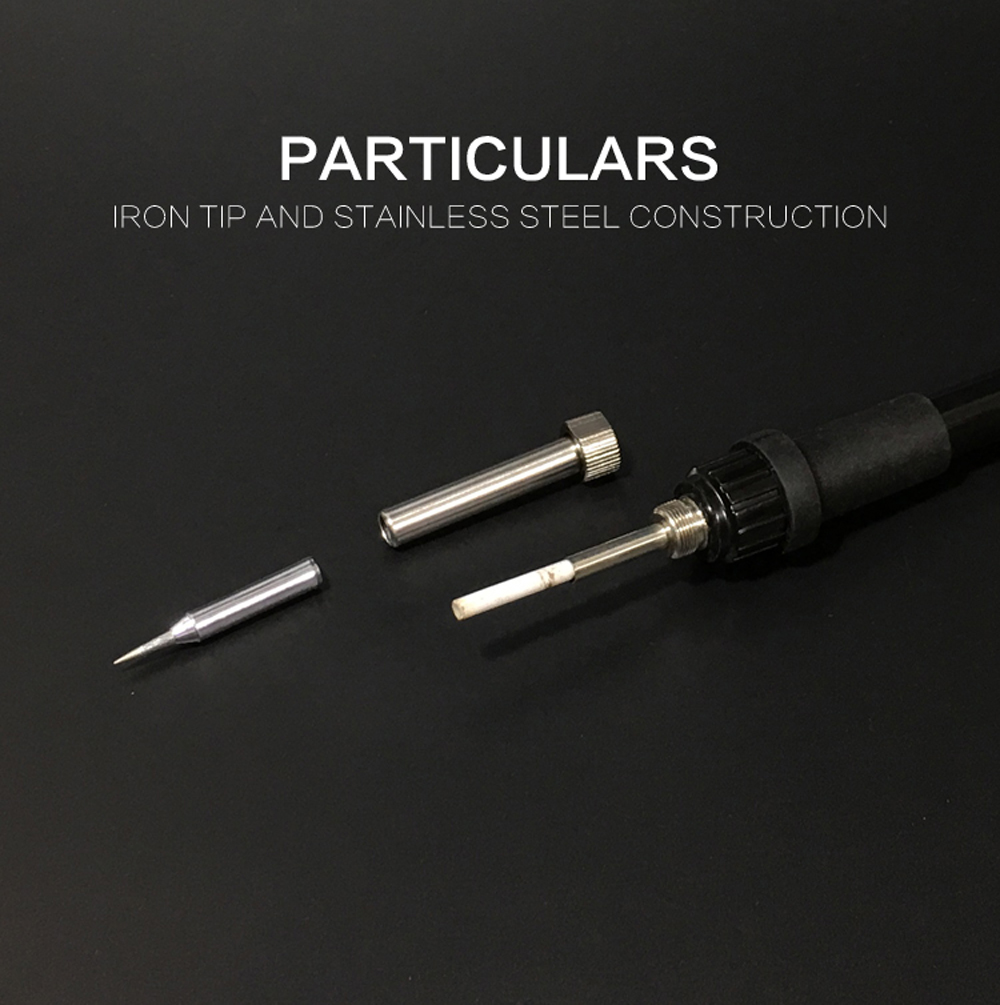

5. The iron part use high quality heating element, rapid heating and long service life; Antistatic design, to prevent electrostatic damage to the delicate SMD components.


Parameter:



Model 852D++
Type LED digital display
Input voltage 220V/50Hz(110V/60Hz)
Power consumption 700W
Hot air
Working voltage AC220V/50HZ(AC110V/60Hz)
Display form LED digital (resolution 1°)
Heating element Skeleton type ceramic heating core
Temperature range 100°-480°
Type of air flow Brushless fan soft wind
Temperature stability ±1°
Gas flow 120 L/min(max)
Noise Less than 45dB
Handle length About 100cm(Including handle line)

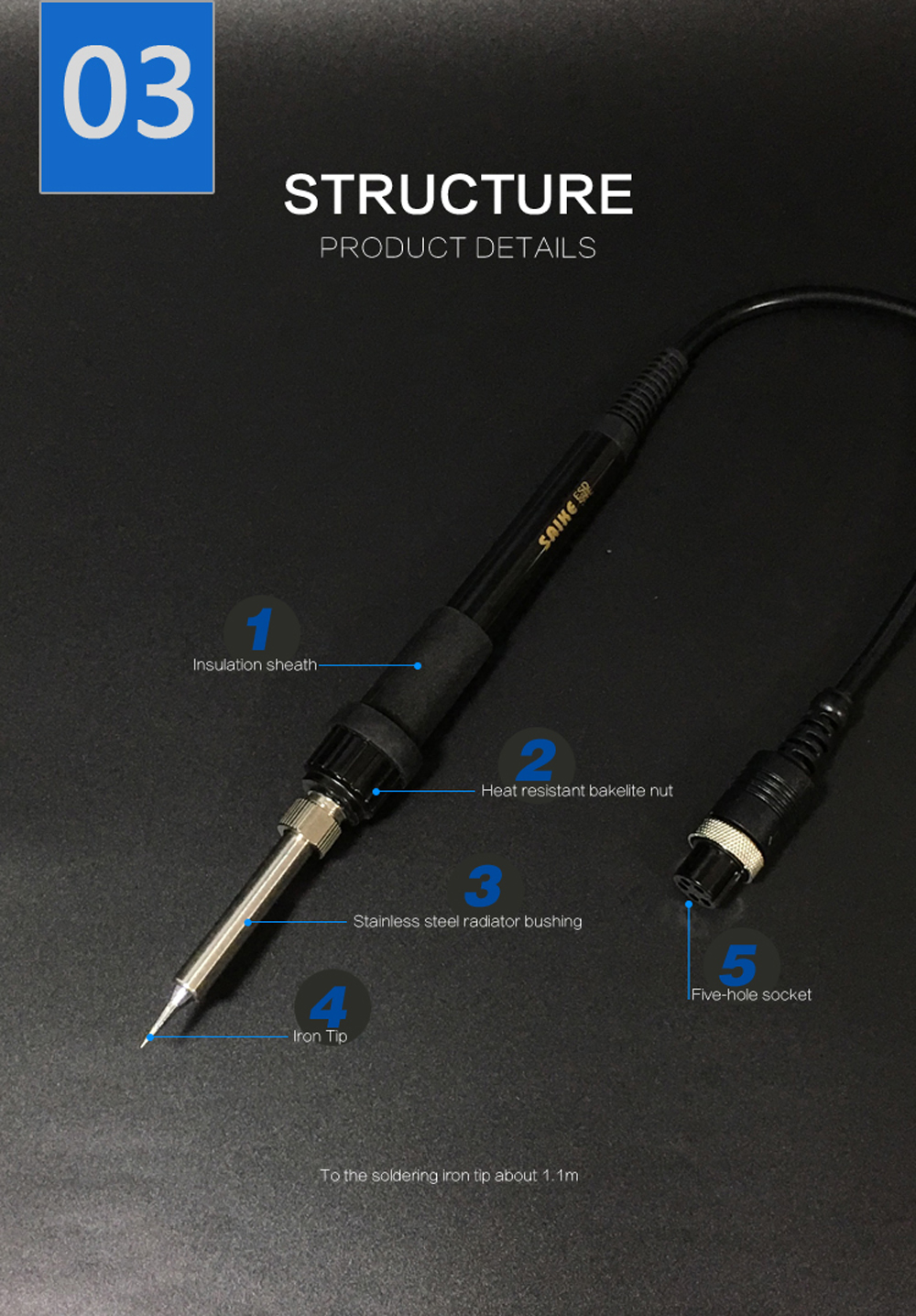

Soldering iron
Working voltage AC 24V 50/60HZ
Display form LED digital (resolution 1°)
Temperature range 200°-480°
Heating element A1322 ceramic heating core
Temperature stability ±2°(no load)
Handle length

 About 100cm(Including handle line)


Application:


1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA,SMD, etc. (especially mobile phone's cable).

2. Shrinking, drying Paint drying, adhesive removal, thawing, warming, Plastic welding.


Package included:

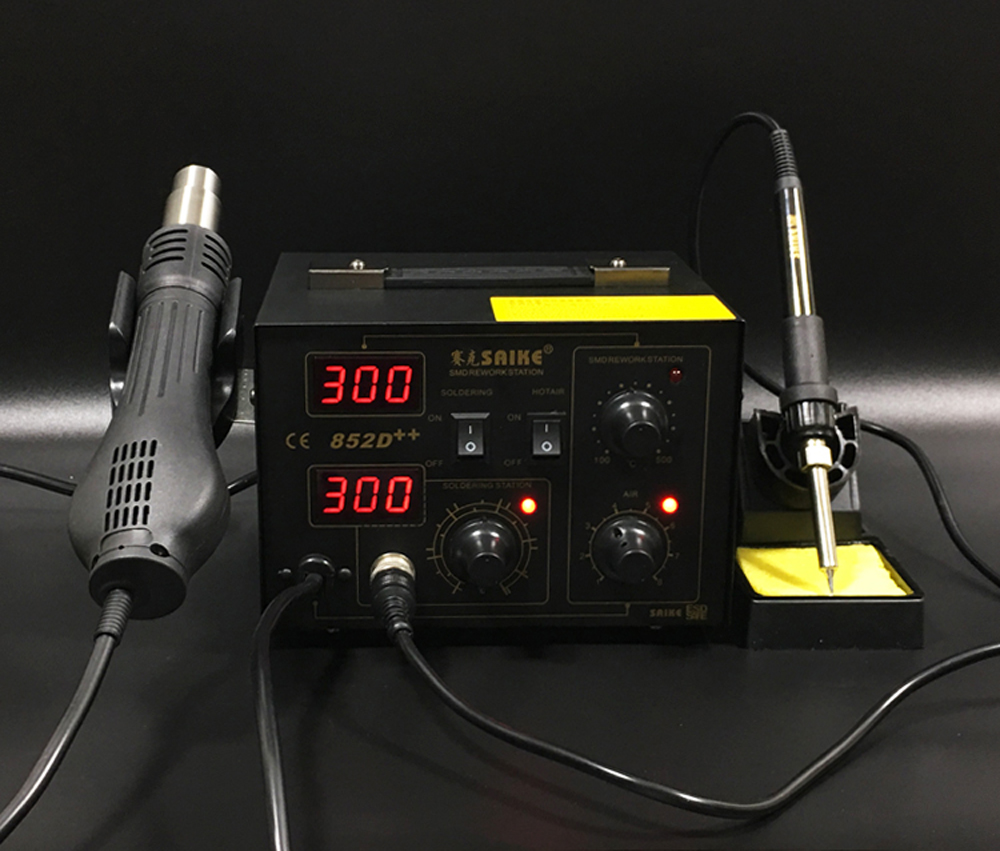

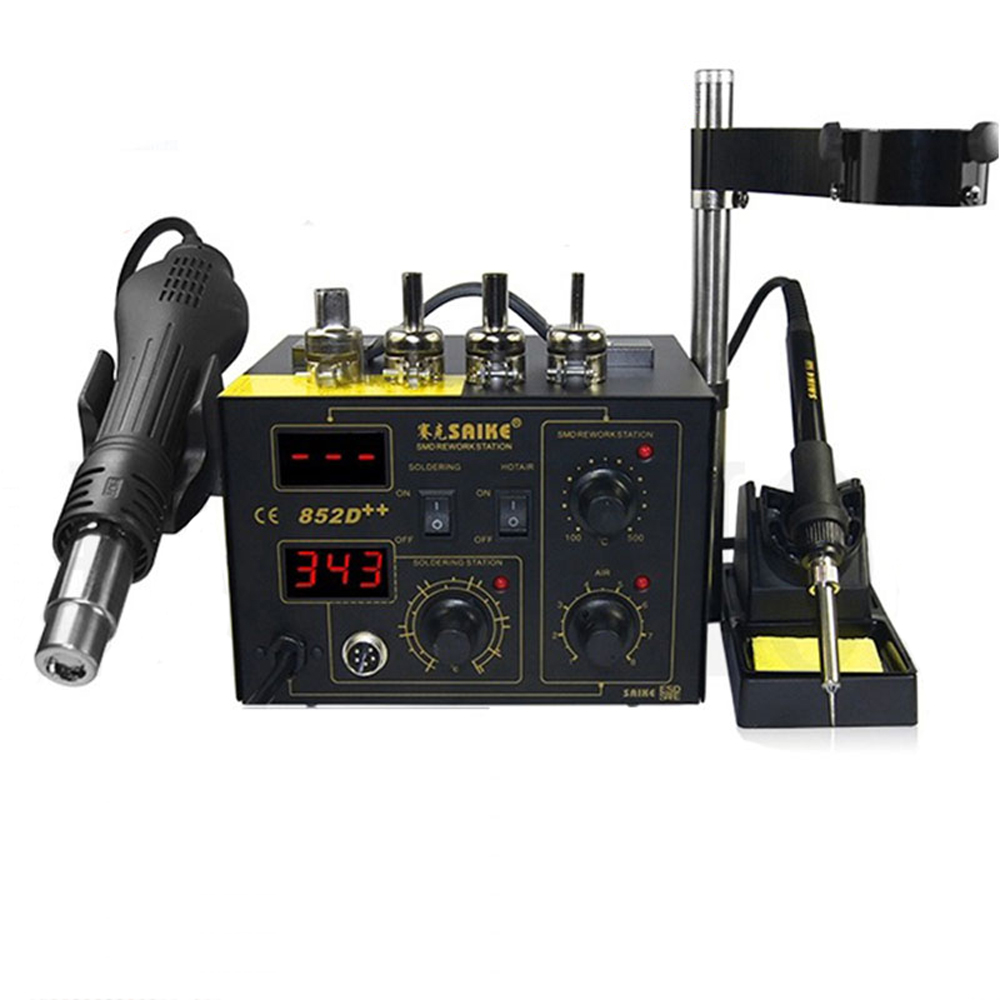

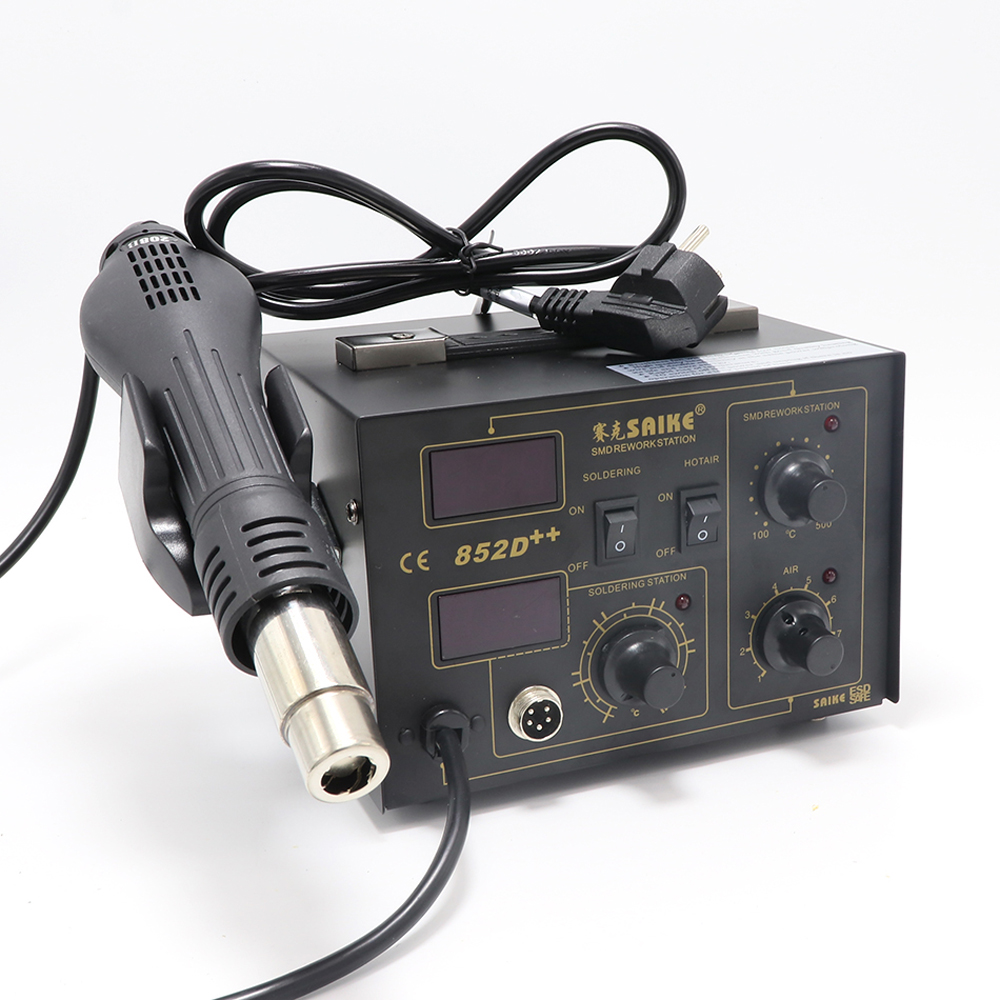

SAIKE 852D++ Hot air soldering station  * 1

Hot air nozzle vertical bracket * 1
