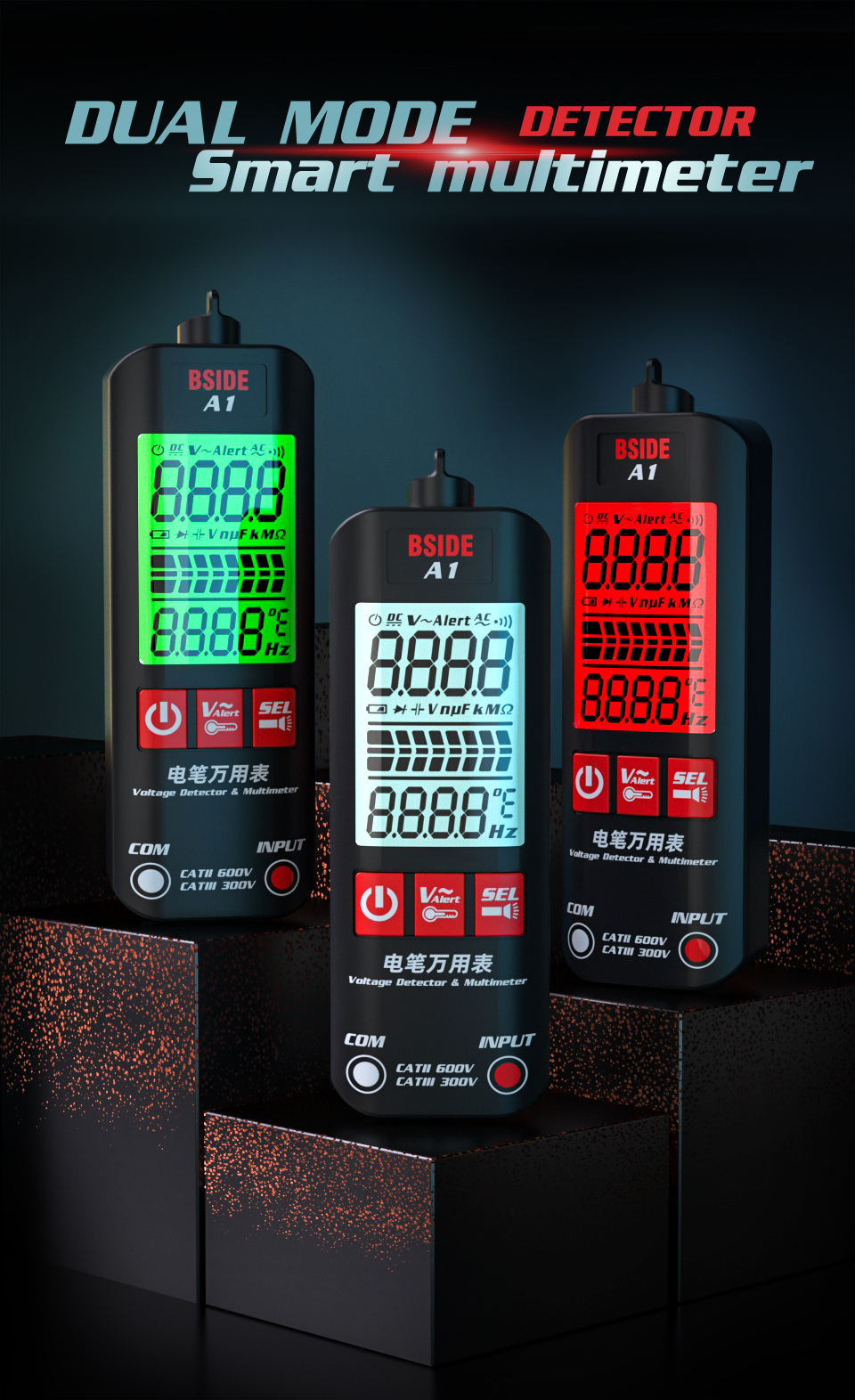

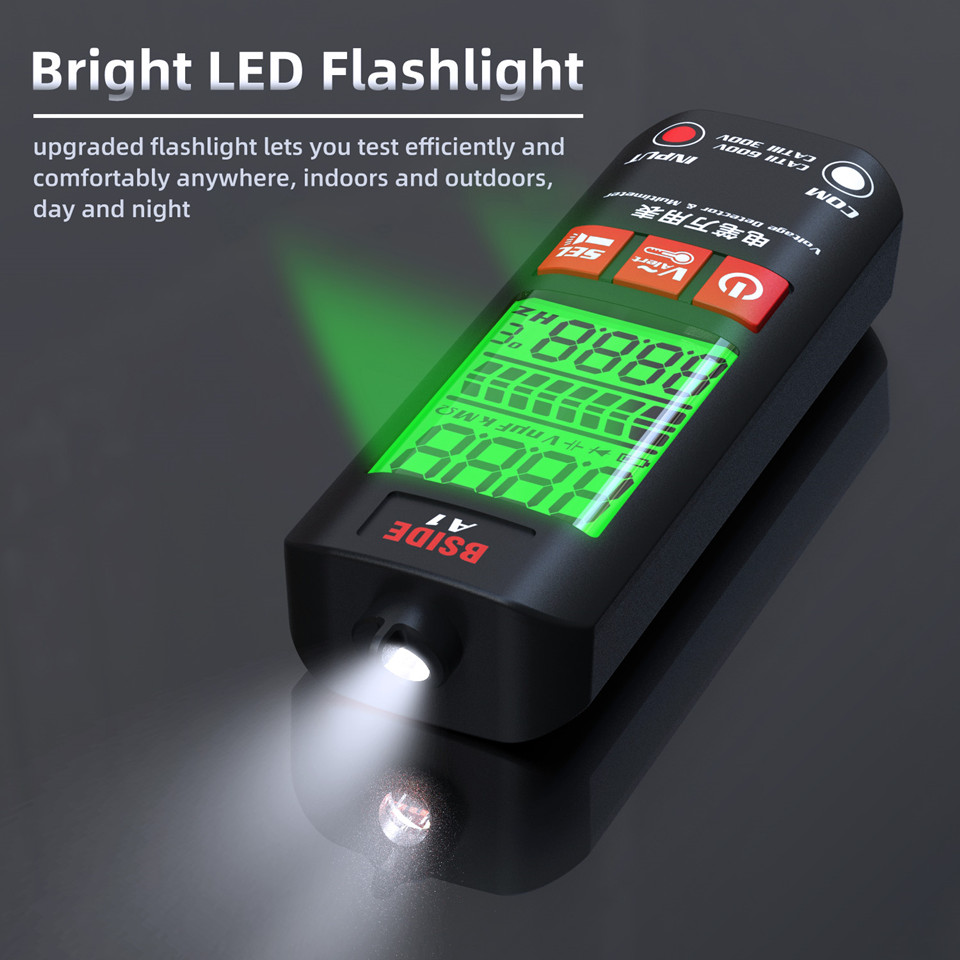

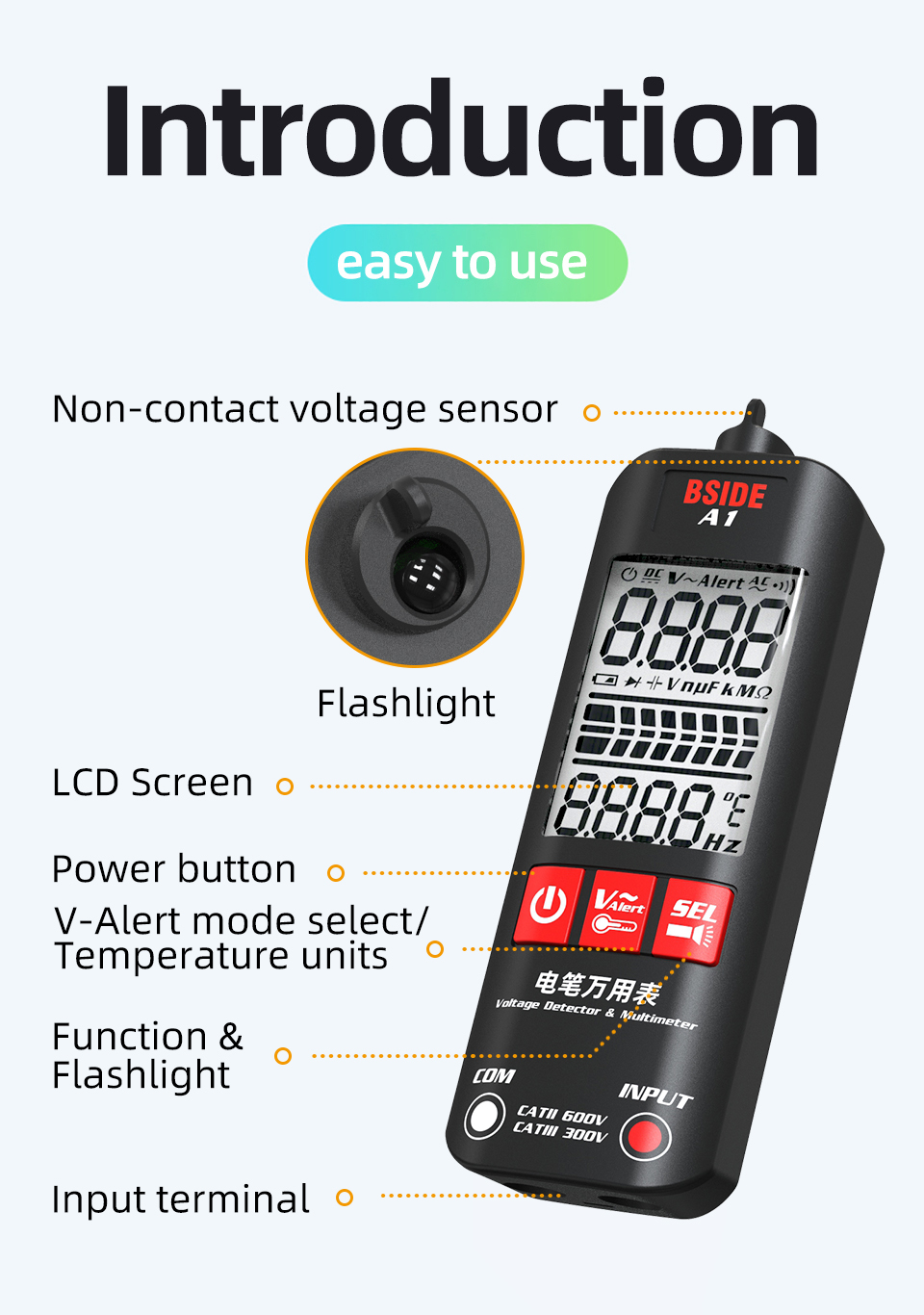

A1 Dual-mode Smart True RMS Multimeter Non-contact AC DC Voltage Tester with Flashlight
A1 Dual-mode Smart True RMS Multimeter Non-contact AC DC Voltage Tester with Flashlight
$19.99
Ex Tax: $19.99
- Stock: In Stock
- Model: MZ004799
- SKU: MZ004799
Features:
1. Automatic measuring range.
2. Full measuring range overload protection.
3. Maximum voltage allowed at the measuring end: 500V DC or 500V AC(RMS).
4. Work height: maximum 2000m
5. Display: LCD.
6. Maximum display value: 2000 digits.
7. Polarity indication: Self-indicating, ‘-’means Negative polarity.
8. Over-range display: ‘0L’ or ‘-0L’.
9. Sampling time: The meter figures show about 0.4 seconds
10. Automatic Power off time: About 5 minutes
11. Operational power: 1.5Vx2 AAA battery (not included).
12. Battery low voltage indication: LCD display symbol.
13. Operational temperature and humidity: 0~40 °C/32~104°F
14. Storage temperature and humidity: -10~60 °C/-4~140°F

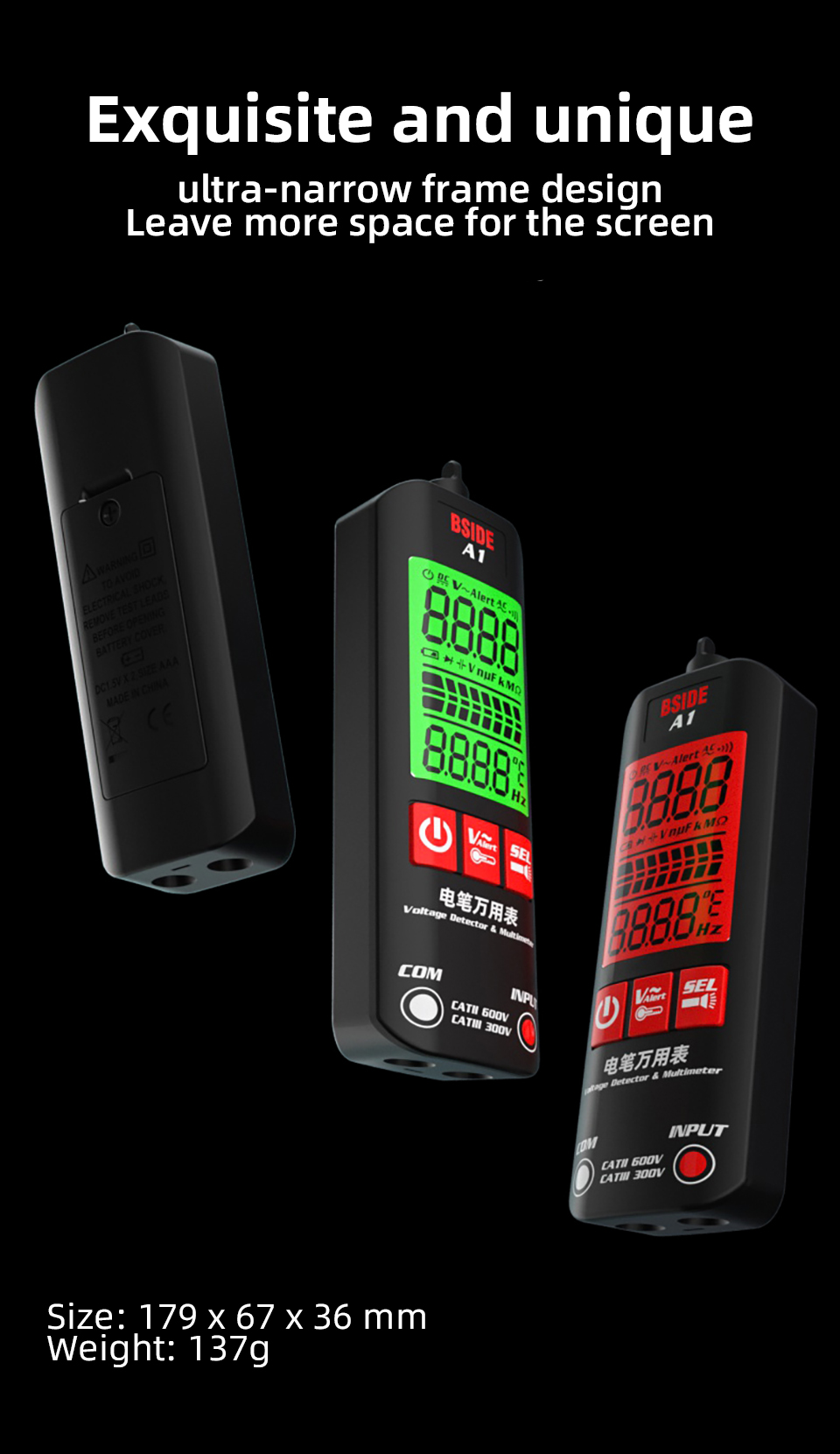

15. Boundary dimension: 127×42×25mm
16. Net weight: about 67g
Specification:
1. DC voltage
Range | Maximum Resolution | Accuracy |
500V | 0.01V | ±(0.8% reading + 3 digits) |
Auto Mode Sensitivity: Minimum 0.50V DC Voltage
Input Impedance: 1MΩ
Maximum input voltage: 500V DC or AC rms.
Others: When the measured value is greater than 90V, the red backlight is on.

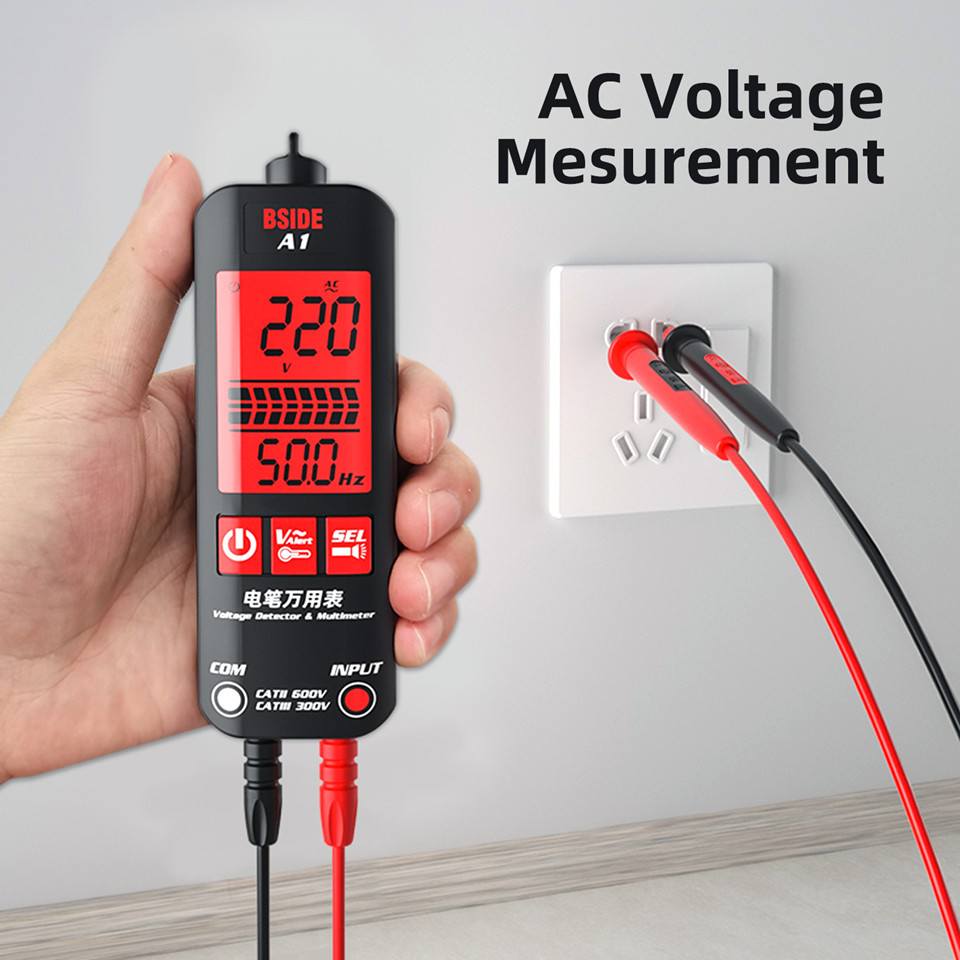

2. AC voltage
Range | Maximum Resolution | Accuracy |
500V | 0.01V | ±(1.2% reading + 5 digits) |
Auto Mode Sensitivity: Min. 0.80V AC Voltage
Input Impedance: 1MΩ
Maximum input voltage: 500V DC or AC rms.
Frequency range: 40Hz~1000Hz, true RMS response.
Others: When the measured value is greater than 90V, the red backlight is on.
3. Resistance
Range | Maximum Resolution | Accuracy |
0-10MΩ | 1 | ±(1.2% reading + 3 digits) |
4. Frequency
Range | Maximum Resolution | Accuracy |
| 1000Hz | 0.1Hz | ±(2.0% reading + 3 digits) |
Frequency range: 40Hz-1000Hz
5. Beep on and off
When the built-in buzzer sounds, the measured resistance is less than about 30Ω.

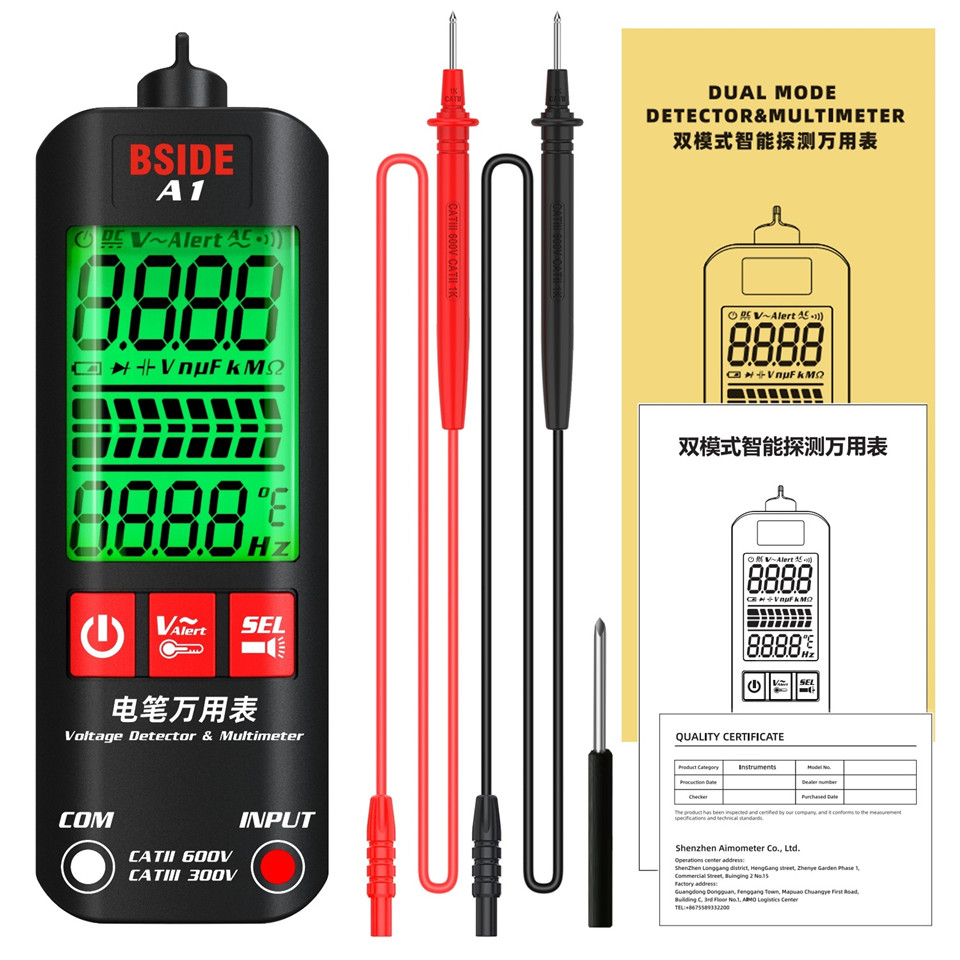

Package Includes:
1 x Multimeter(battery not included)
2 x Test Leads
2 x Test Leads
1 x Mini Screwdriver
1 x User Manual
NOTE:
1. Accuracy applies within one year of calibration.
2. Base conditions: ambient temperature 18°C to 28°C. Relative humidity not more than 80%RH.
3. Do not input a voltage higher than 500V, it is possible to display a higher voltage value, but there may be a risk of damage to the meter.
4. When measuring high voltages, take extra care to avoid electric shock.
5. After completing all measurement operations, disconnect the test leads from the circuit under test.
>>Please Contact us to download the manual in both Chinese and English<<
