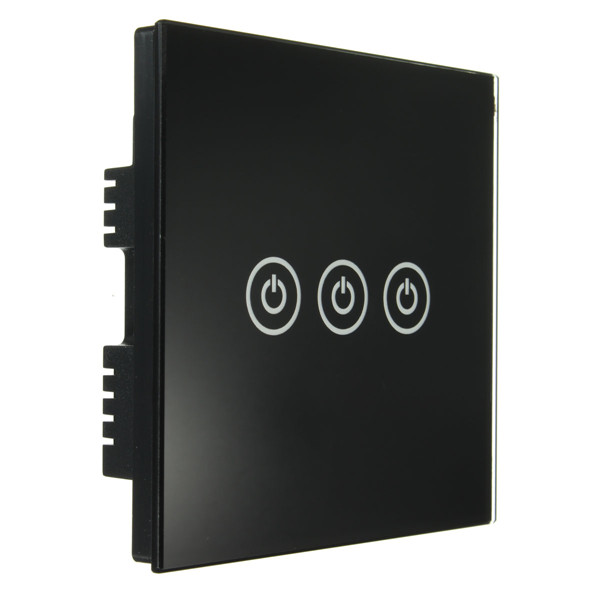

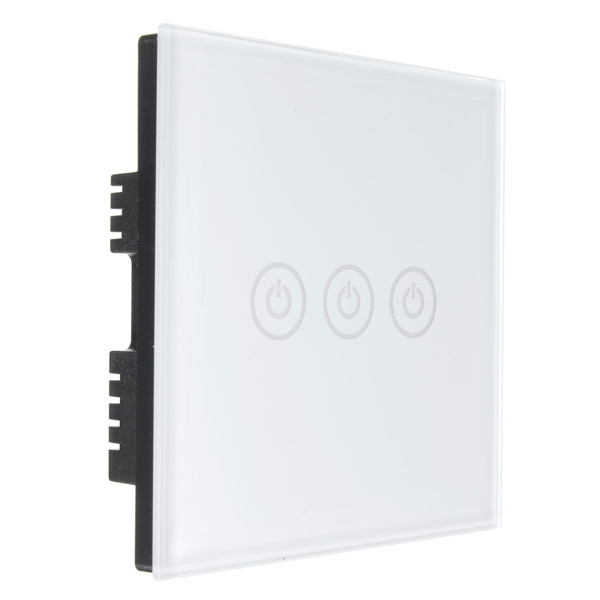

AC 250V Tempered Glass Wall Switch Panel - Three Switch Single Control
AC 250V Tempered Glass Wall Switch Panel - Three Switch Single Control
₹2,215.61
Ex Tax: ₹2,215.61
- Stock: In Stock
- Model: MZ008225
- SKU: MZ008225
Description:
AC 250V Tempered Glass Wall Switch Panel - Three Switch Single Control
Specification:
Features:
1×Tempered Glass Wall Switch Panel
More Details:
,
,
,
,
,
,
,
,
,
AC 250V Tempered Glass Wall Switch Panel - Three Switch Single Control
Specification:
| Product Name | 86 Smart Touch Control Panel |
| Type | 1 Way 3 Gang/Three Switch Single Control |
| Color | Black, White |
| Size | 83 x 83 x 32mm |

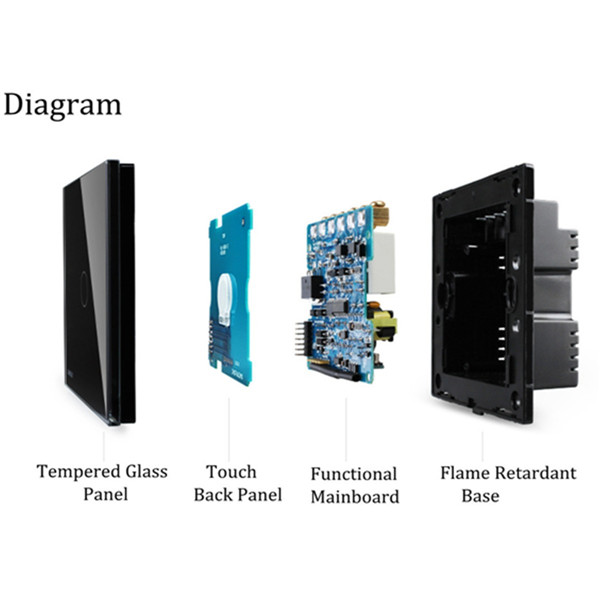

| Panel Material | High Grade Tempered Glass |
| Shell Material | Inflaming Retarding ABS (Acrylonitrile Butadiene Styrene Copolymers) |
| Voltage | 160-250V AC / 50Hz-60Hz |
| Current | Stable Current ≤2A, Transient Current≤5A (Use with 16A TRIAC) |
| Power | Unit Channel Load≤200W Single Channel |
| Power consumption | less than 0.05W of static power consumption |
| Temperature | -20 ~ 70 ℃ |
| Humidity | 10% to 90% |
| Minimum load | single fire switches connected total load power ≥5W |
1.Efficiency Designed, Tempered Glass Panel, Simple Operation.
2.Functional State Feedback;Ultrafast Reflection, Smaller Than 50 Milliseconds.
3.Support Mode Control (with the coordination of related terminals).
4.Adopt The Single Pole Double Throw Mode.

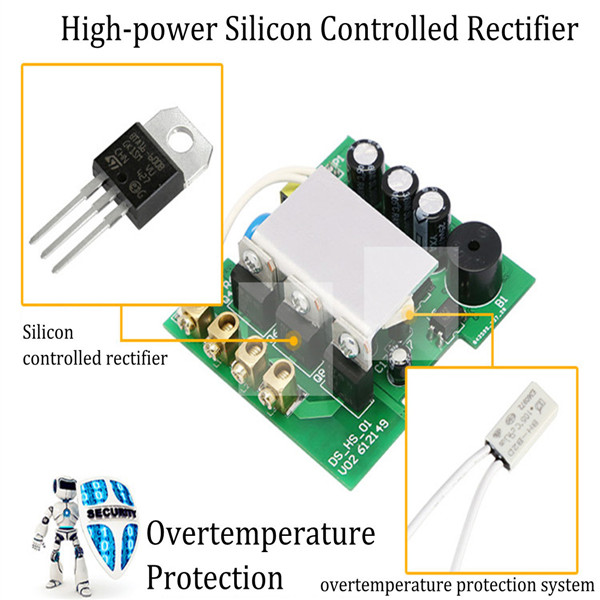

5.Over-length Life Span(Adopt high power SCR)
6. Anti-shocked Designed,Memory Function.

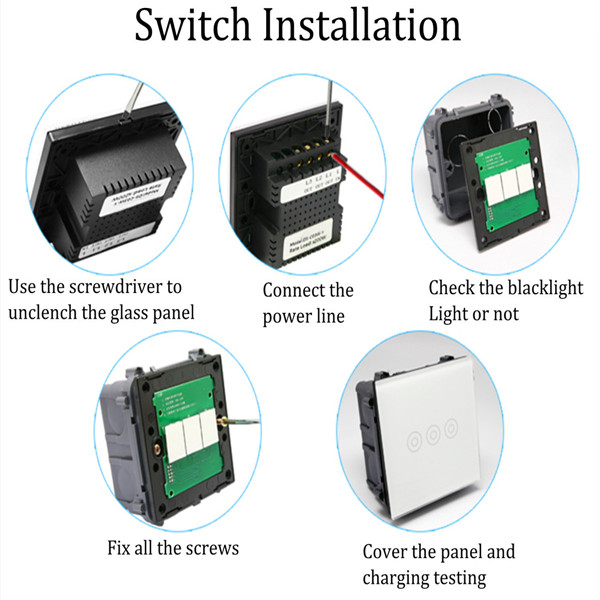

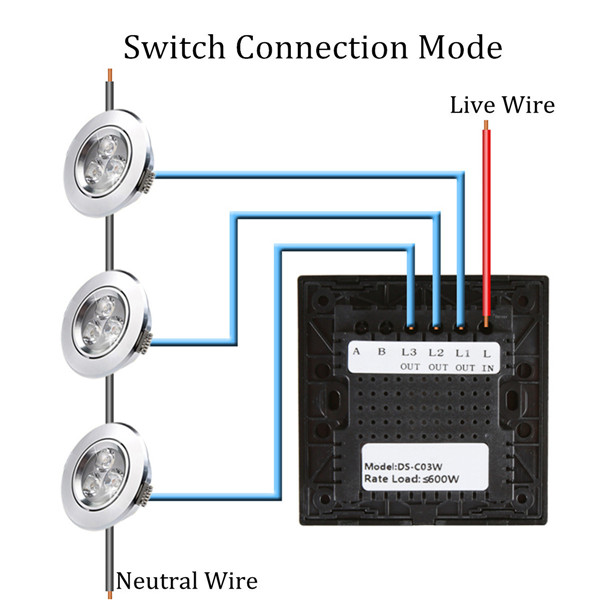

7.It Is Easily Installed and can replace an switch In Your Home Using Your Existing Wiring.
Package Included:
Switch Using Instruction:
1.Hand Mode Control:
-Switch ON/OFF on the glass panel. When the switch is ON, the pilot light changes to red; when it is OFF, the pilot light changes to blue. Everytime turning ON/OFF will the boomer make a sound of “Dee” to confirm the operation succeed.
1×Tempered Glass Wall Switch Panel
2×screws
