AN8001 Professional True Rms Digital Multimeter 6000 Counts Backlight AC/DC
AN8001 Professional True Rms Digital Multimeter 6000 Counts Backlight AC/DC
$18.99
Ex Tax: $18.99
- Stock: In Stock
- Model: MZ004528
- SKU: MZ004528
Features:
It is a Auto-ranging digital multimeter using double-integral style A/D transform as the core.
Can be used to measures AC/DC voltage, AC/DC current, resistance, capacitance, diode and continuity testing,frequency and etc.
The products are battery powered.
They are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading, are an ideal tools for lav,factory,radio fans and family use.
Specifications:
| Function | Range | Resolution | Accuracy | MAX.Value | Other |
| DC Voltage | 6.000V | 0.001V | ±(0.5%+3) | 1000V | Input Resistance:10MΩ |
| 60.00V | 0.01V | ||||
| 600.0V | 0.1V | ||||
| 1000V | 1V | ||||
| 60.00mV | 0.01mV | 600mV | |||
| 600.0mV | 0.1mV | ||||
|
AC Voltage | 6.000V | 0.001V | ±(1.0%+3) | 750V |
Input Resistance:10MΩ(600mV range, >60MΩ) Frequency Response: 40Hz-1kHz |
| 60.00V | 0.01V | ||||
| 600.0V | 0.1V | ||||
| 750V | 1V | ||||
| 60.00mV | 0.01mV | 600mV | |||
| 600.0mV | 0.1mV | ||||
|
DC Current | 6.000A | 0.001A | ±(1.2%+3) | 10A |
MAX.Current: 10A(no more than 15 seconds) No Voltage input at this mode Frequency Response(AC): 40Hz-1kHz |
| 10.00A | 0.01A | ||||
| 60.00mA | 0.01mA | 600mA | |||
| 600.0mA | 0.1mA | ||||
|
AC Current | 6.000A | 0.001A | ±(1.5%+3) | 10A | |
| 10.00A | 0.01A | ||||
| 60.00mA | 0.01mA | 600mA | |||
| 600.0mA | 0.1mA |
| Resistance | 600.0Ω | 0.1Ω | ±(0.5%+3) | 60MΩ | No Voltage input at this mode |
| 6.000kΩ | 0.001kΩ | ||||
| 60.00kΩ | 0.01kΩ | ||||
| 600.0kΩ | 0.1kΩ | ||||
| 6.000MΩ | 0.001MΩ | ||||
| 60.00MΩ | 0.01MΩ | ±(1.5%+3) | |||
| Capacitance | 9.999nF | 0.001nF | ±(5.0%+20) | 9.999mF | No Voltage input at this mode |
| 99.99nF | 0.01nF | ±(2.0%+5) | |||
| 999.9nF | 0.1nF | ||||
| 9.999μF | 0.001μF | ||||
| 99.99μF | 0.01μF | ||||
| 999.9μF | 0.1μF | ||||
| 9.999mF | 0.001mF | ±(5.0%+5) | |||
| Frequency | 99.99Hz | 0.01Hz | ±(0.1%+2) | 9.999MHz | |
| 999.9Hz | 0.1Hz | ||||
| 9.999kHz | 0.001kHz | ||||
| 99.99kHz | 0.01kHz | ||||
| 999.9kHz | 0.1kHz | ||||
| 9.999MHz | 0.001MHz | ||||
| Duty Cycle | 1%~99% | 0.1% | ±(0.1%+2) | ||
| Diode | √(DC forward current is 5mA, voltage is 3V) | No Voltage input at this mode | |||
| Continuity | √(no more than 50Ω) | ||||
Measurement methods: double integral A/D converter
Share ratio: 1% to 99% (+ 1%)
Ultra range display: OL
Working environment: 0~40 C, relative humidity < 80%
Power supply voltage: 3V (AAA x2 Pcs 1.5V)
Color: Blue & gray
Weight: 200g
Size: 130 x 65 x 30mm
Package size:140 x 80 x 40mm
>>>Contact us to find Red Color ANENG AN8001
>>>Contact us to find Red Color ANENG AN8001

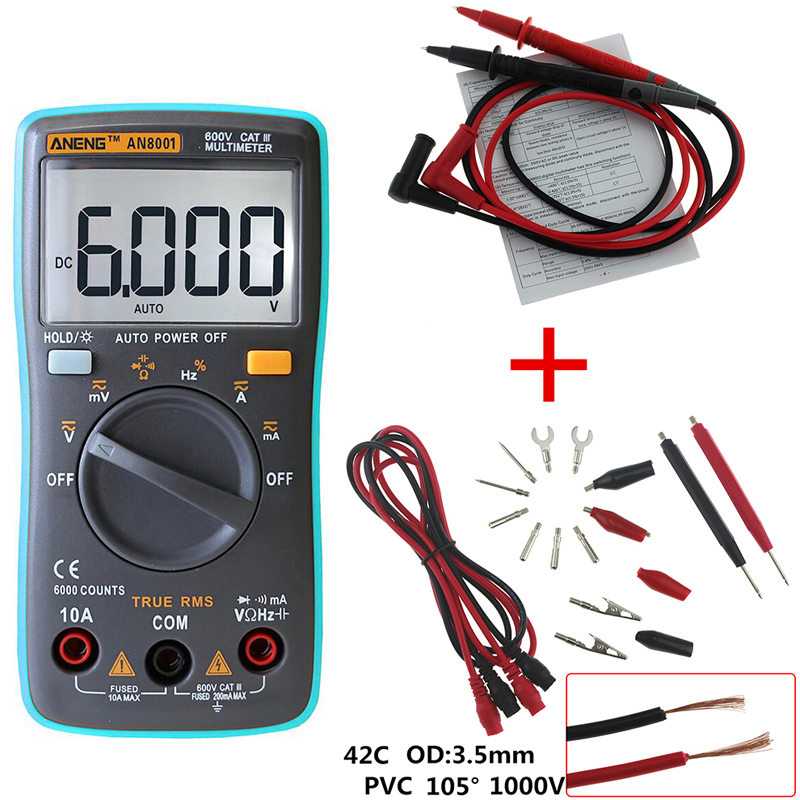

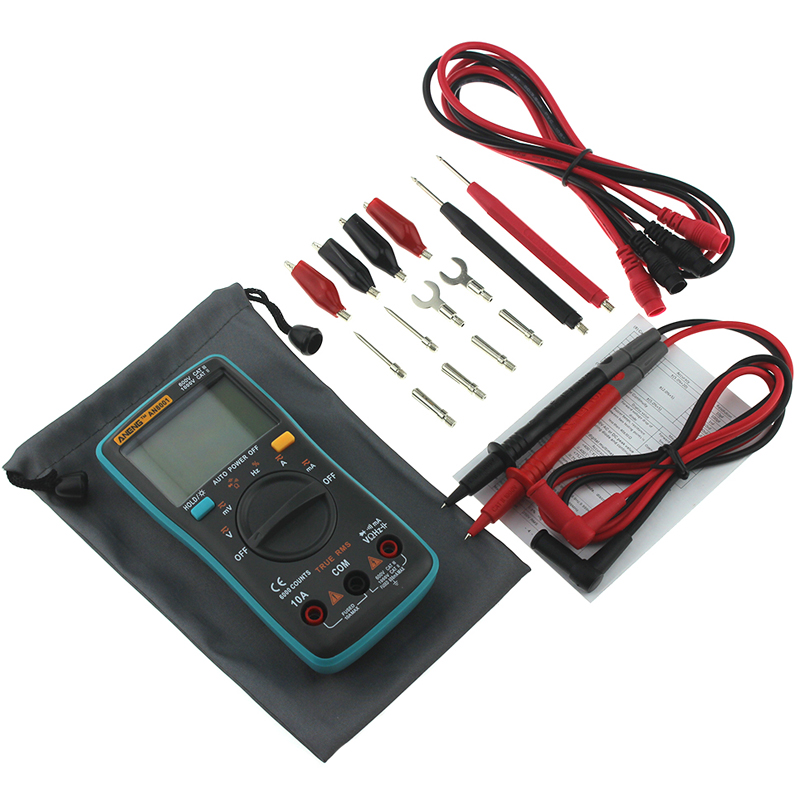

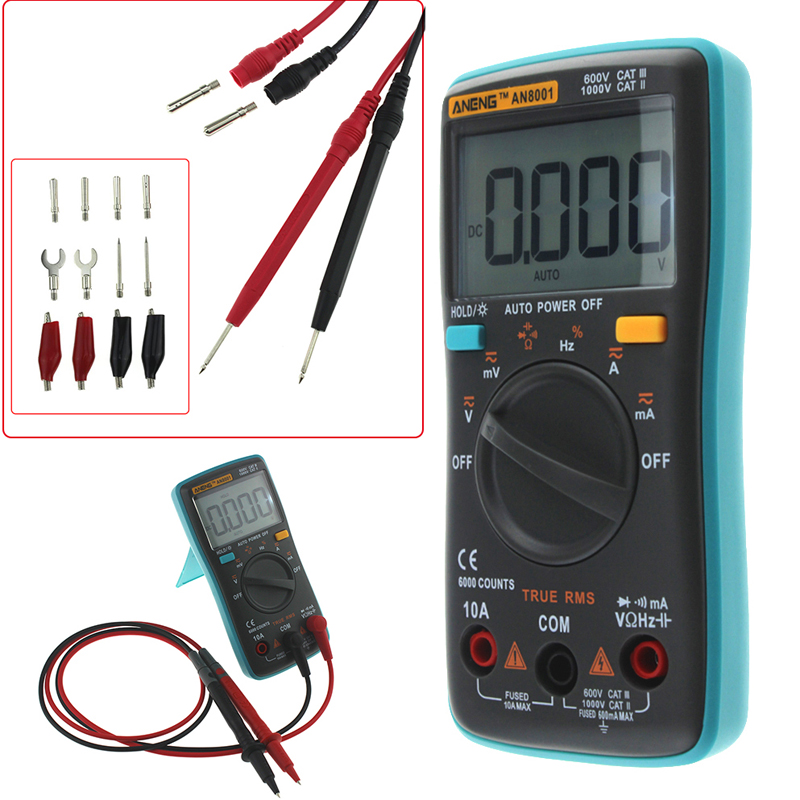

Package included:
1 x ANENG AN8001 Digital Multimeter

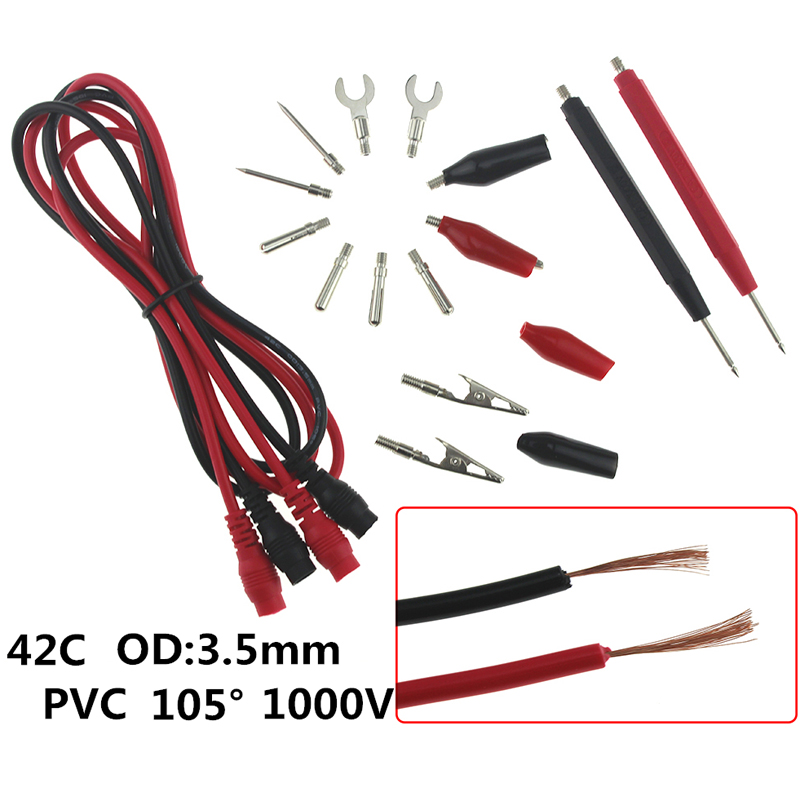

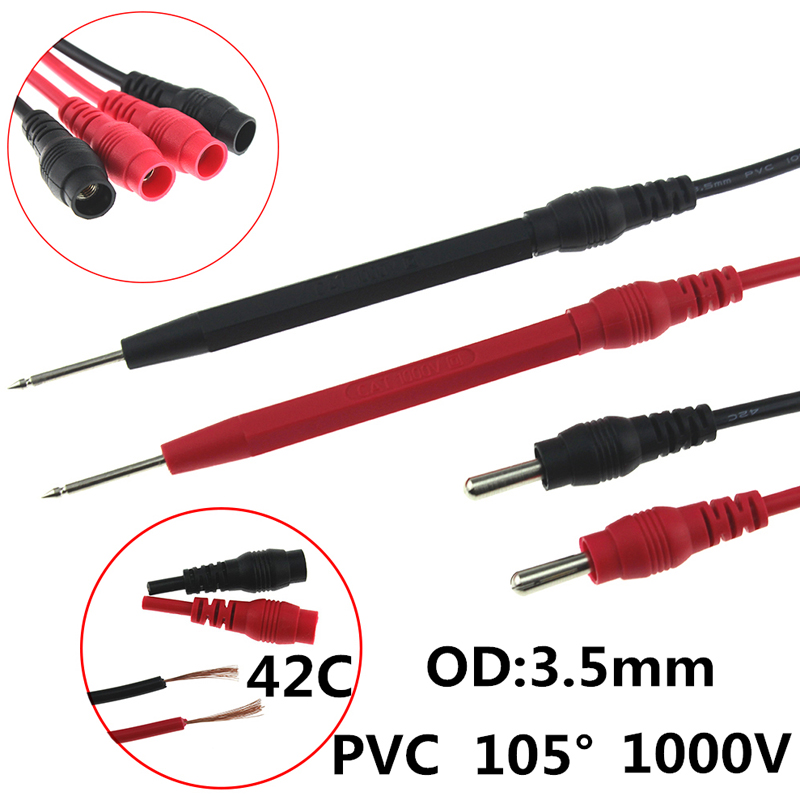

1 x 1pair Electronic Probe
1 x Test Lead Set
1 x Test Lead Set
1 x English User Manual
1 x Portable Bag

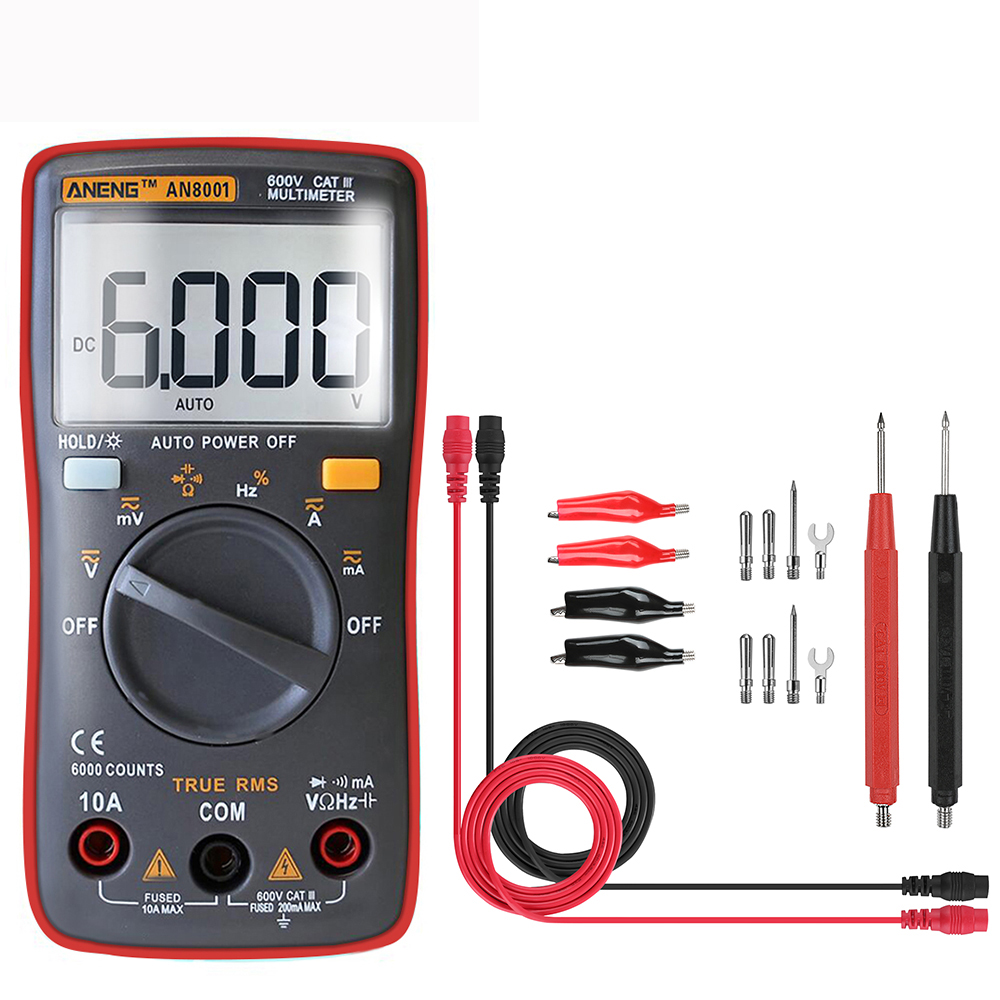

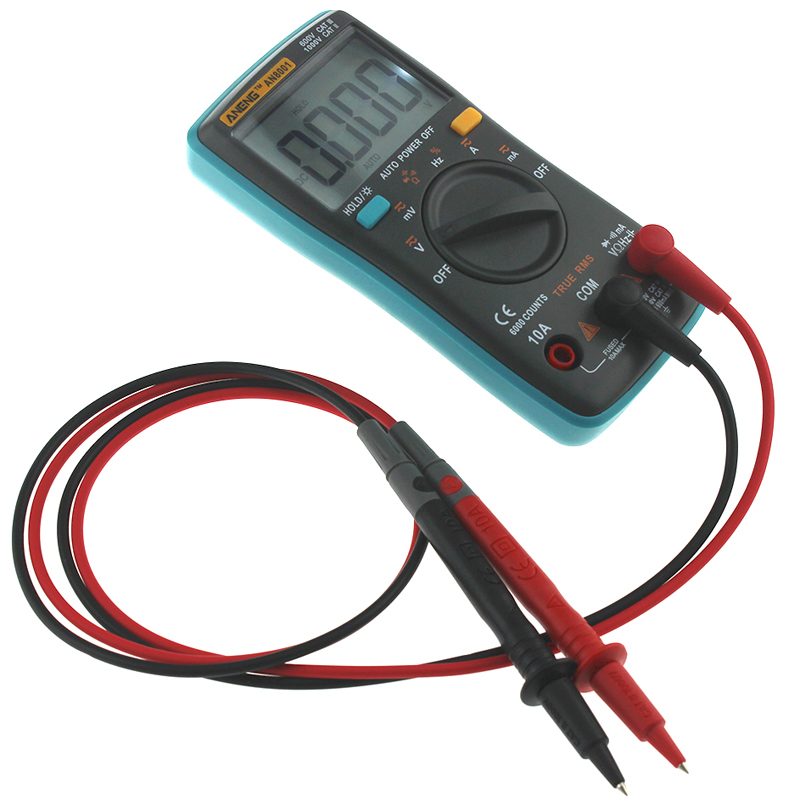

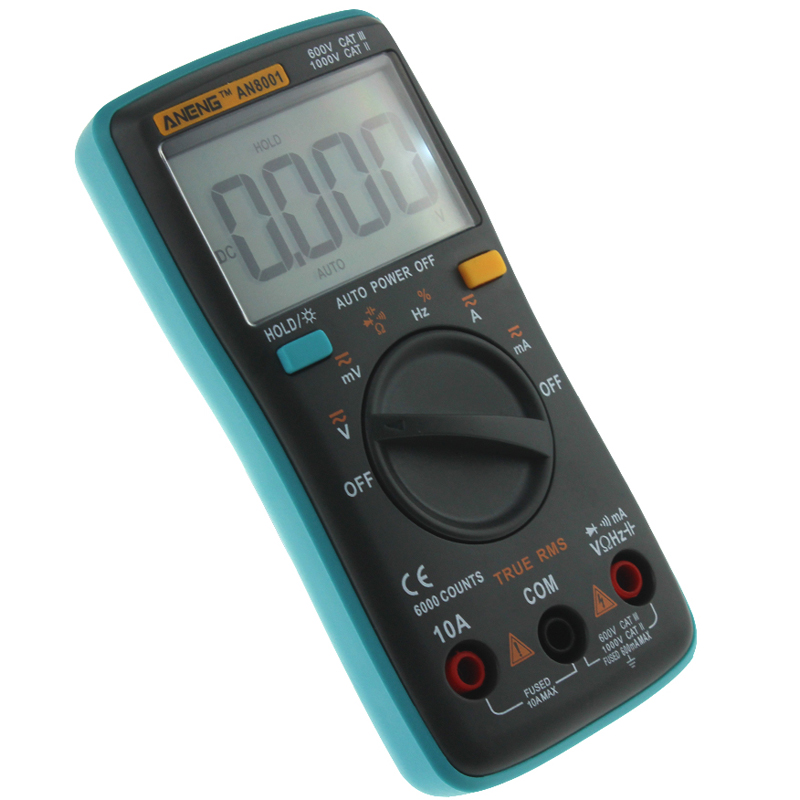

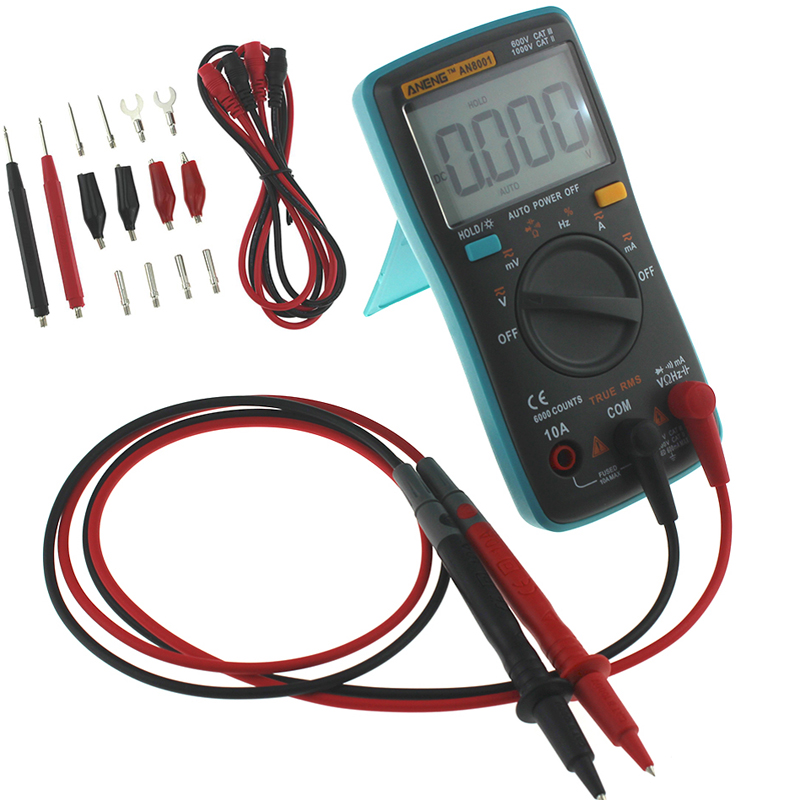

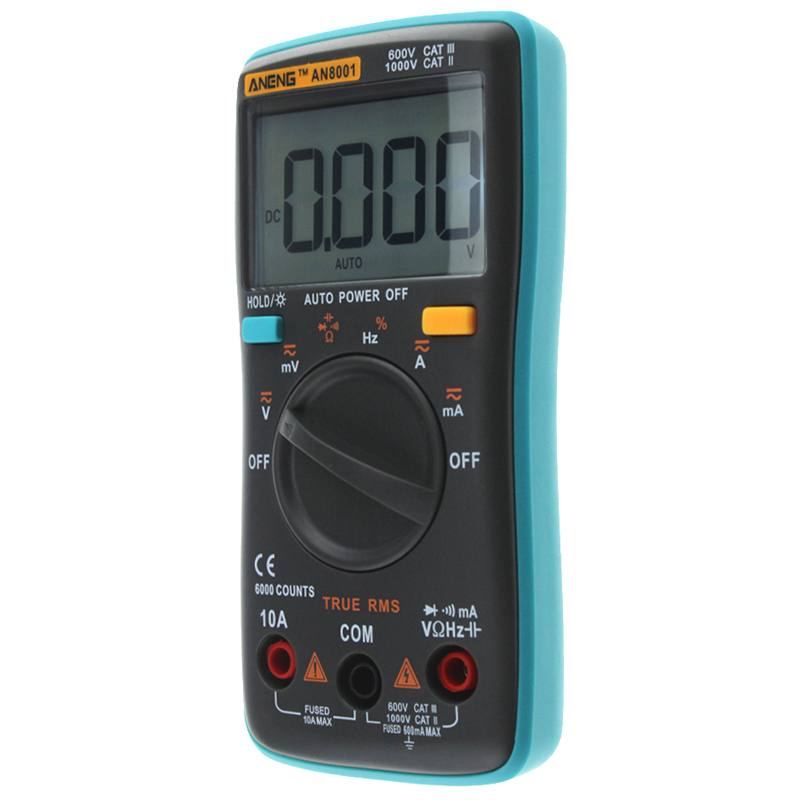

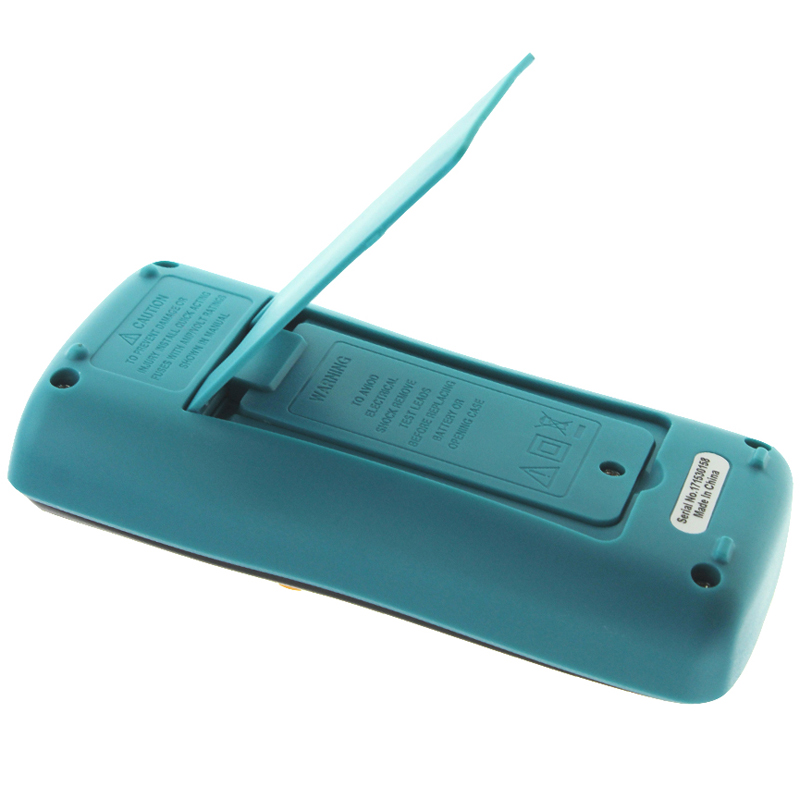

Detail Pictures:
Detail Pictures:
,
,
,
,
,
,
,
,
,
