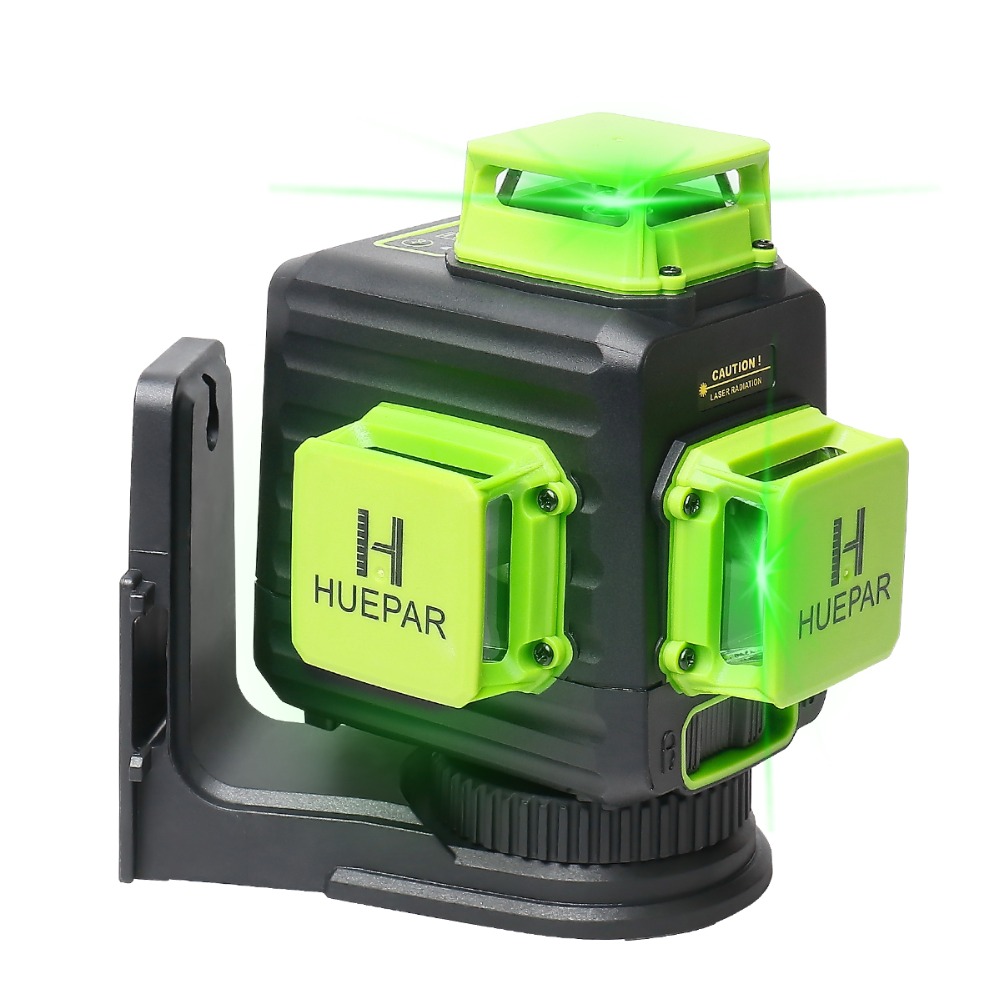

B03CG 3D Cross Line Self-leveling Laser Level 12 lines Green Beam Li-ion Battery with Type-C Charging Port Hard Carry Case
B03CG 3D Cross Line Self-leveling Laser Level 12 lines Green Beam Li-ion Battery with Type-C Charging Port Hard Carry Case
$159.99
Ex Tax: $159.99
- Stock: In Stock
- Model: MZ004962
- SKU: MZ004962
- UPC: 681877472475
Features:

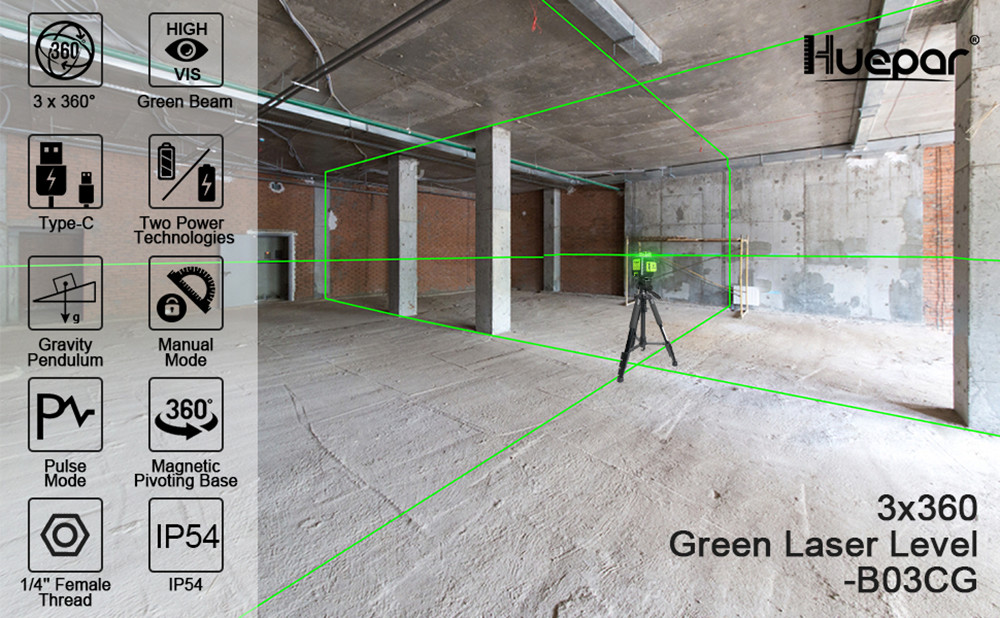

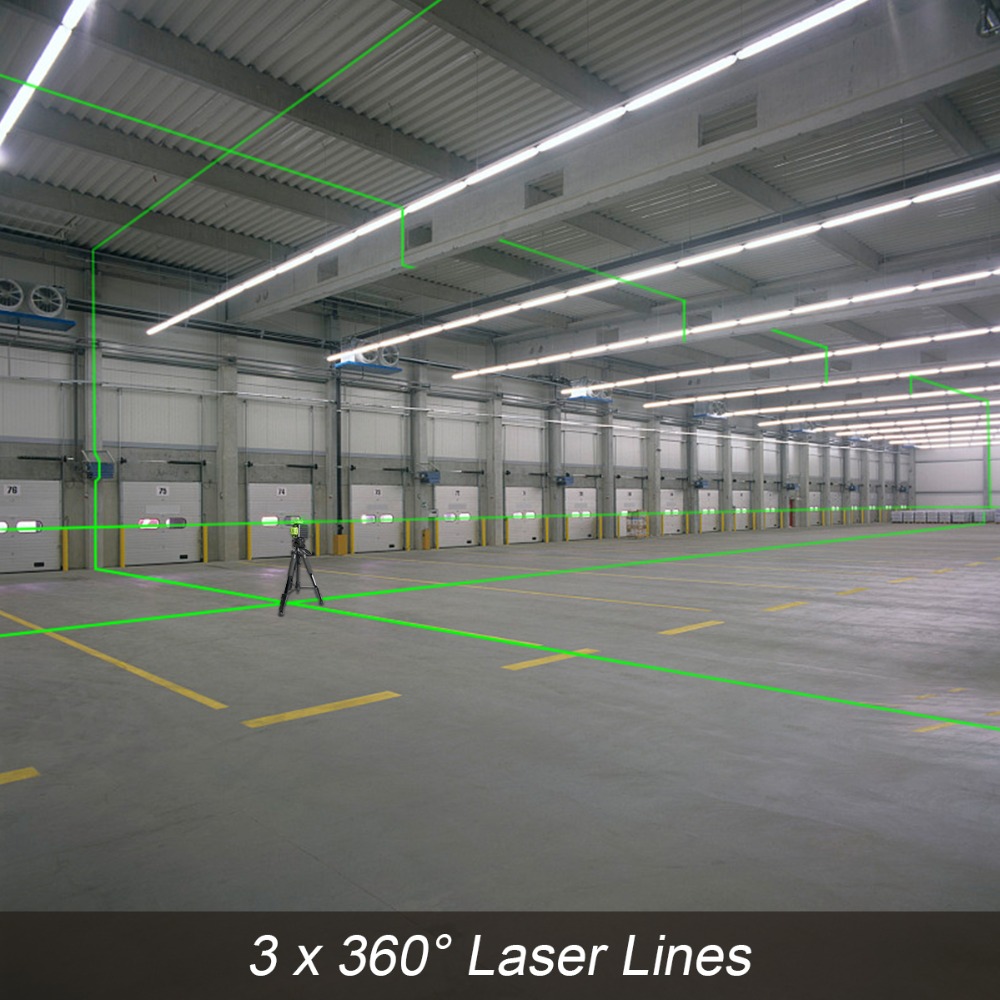

3 x 360° Multiple Line Switching Functions

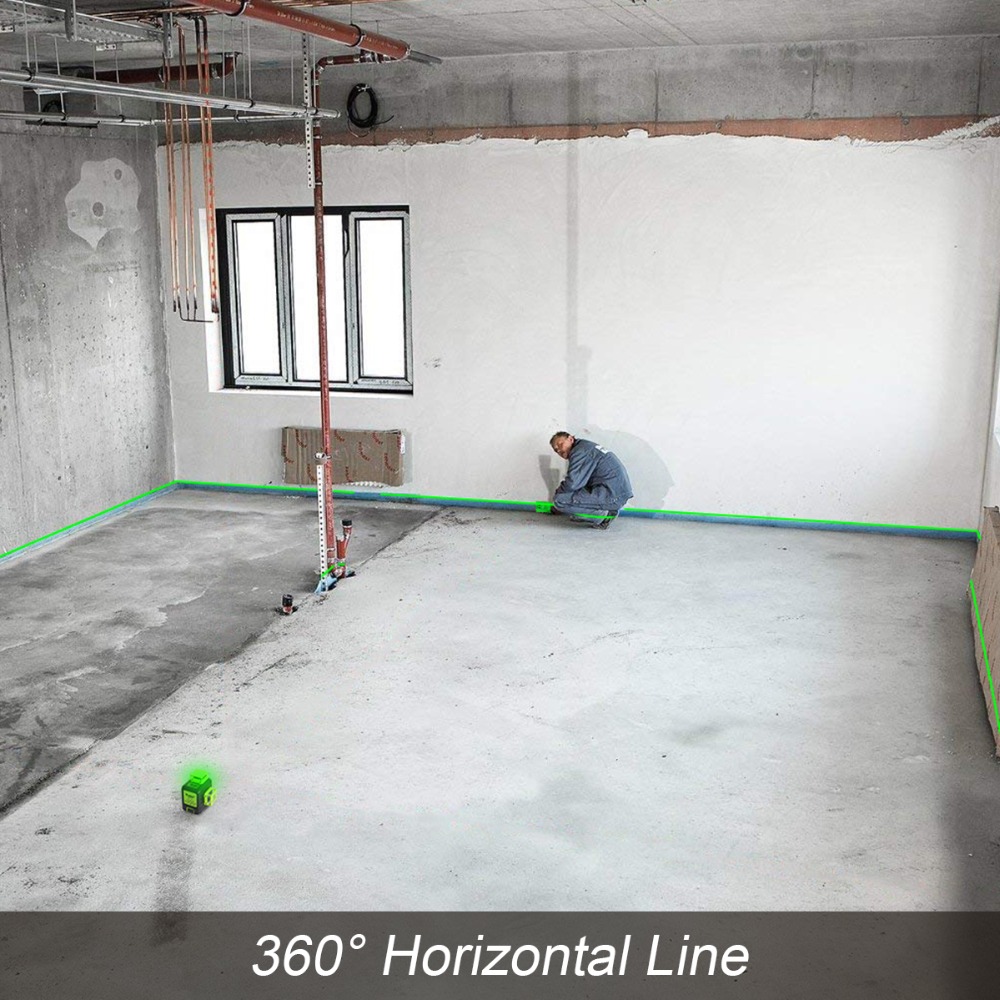

● This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal and two vertical lines.
● The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.

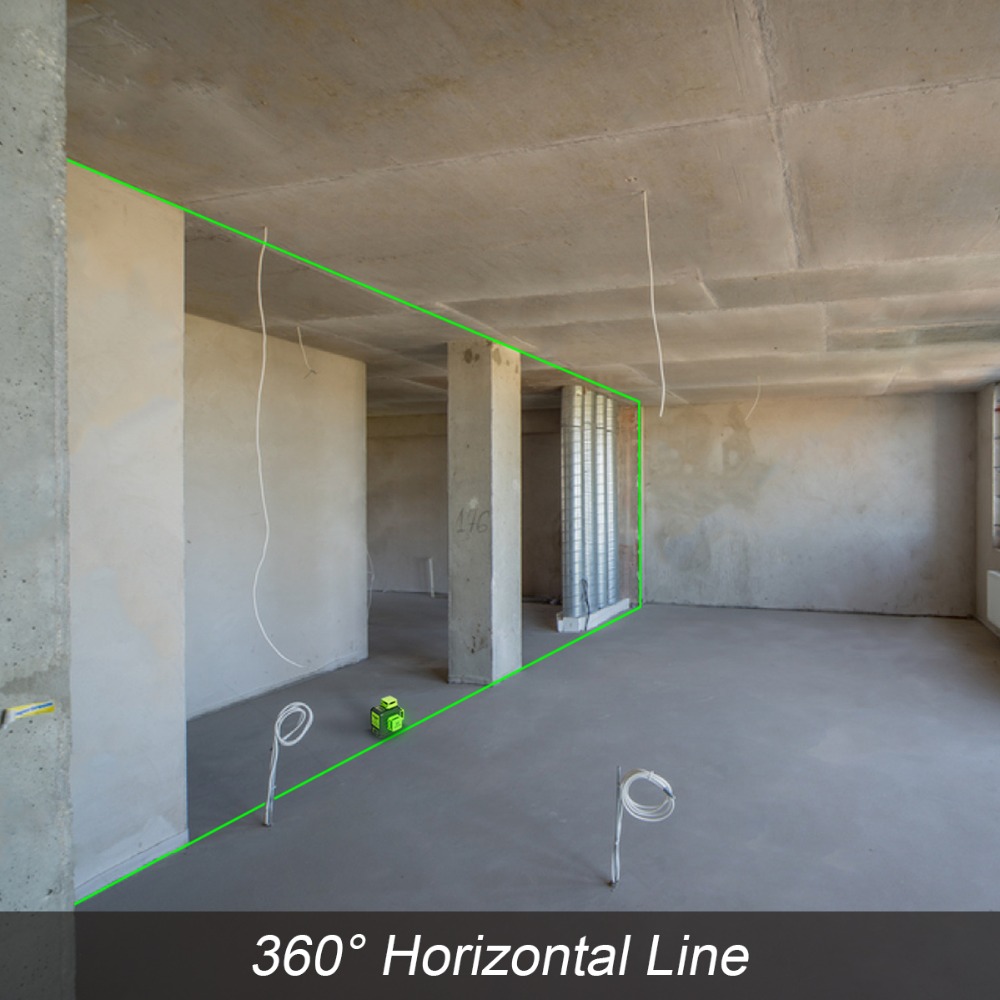

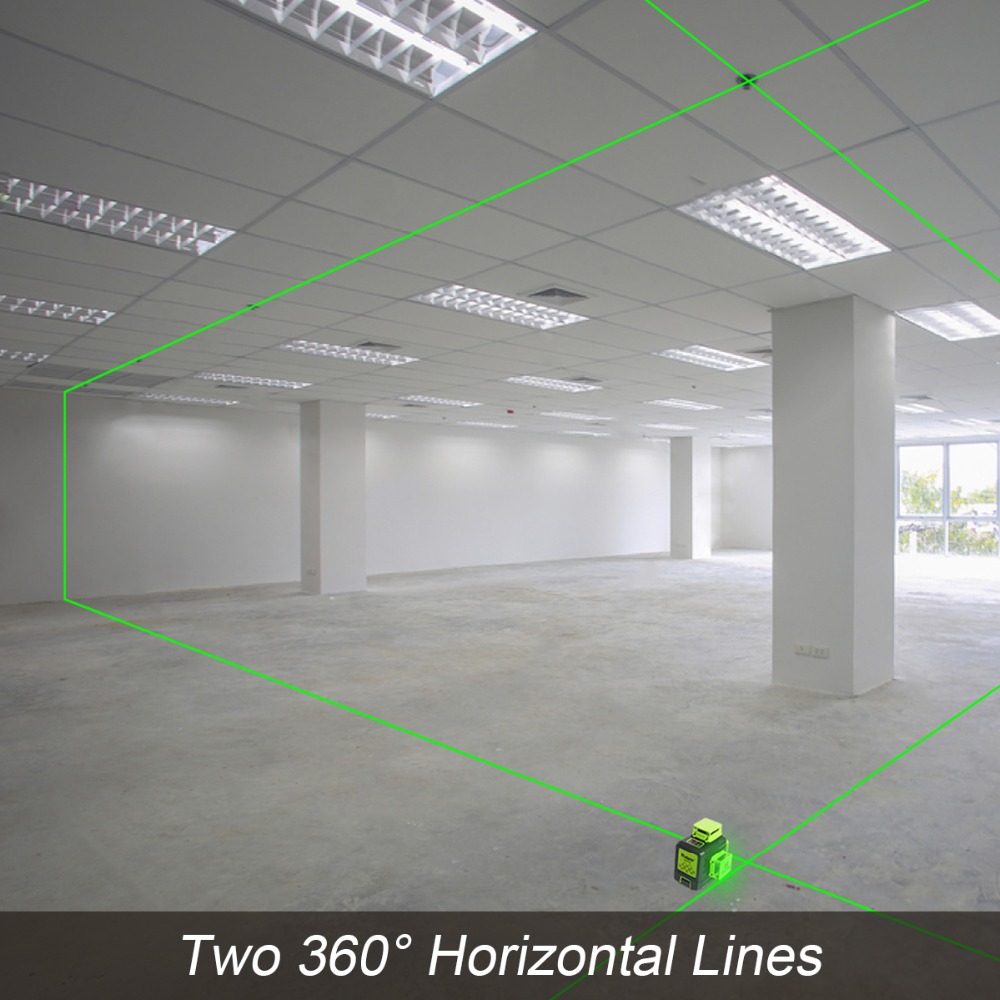

● Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal&360° Vertical Lines mode, 360° Horizontal Line mode, one 360° Vertical Line mode, one 360° Horizontal Line &one 360° Vertical Line mode, Two 360° Vertical Lines mode

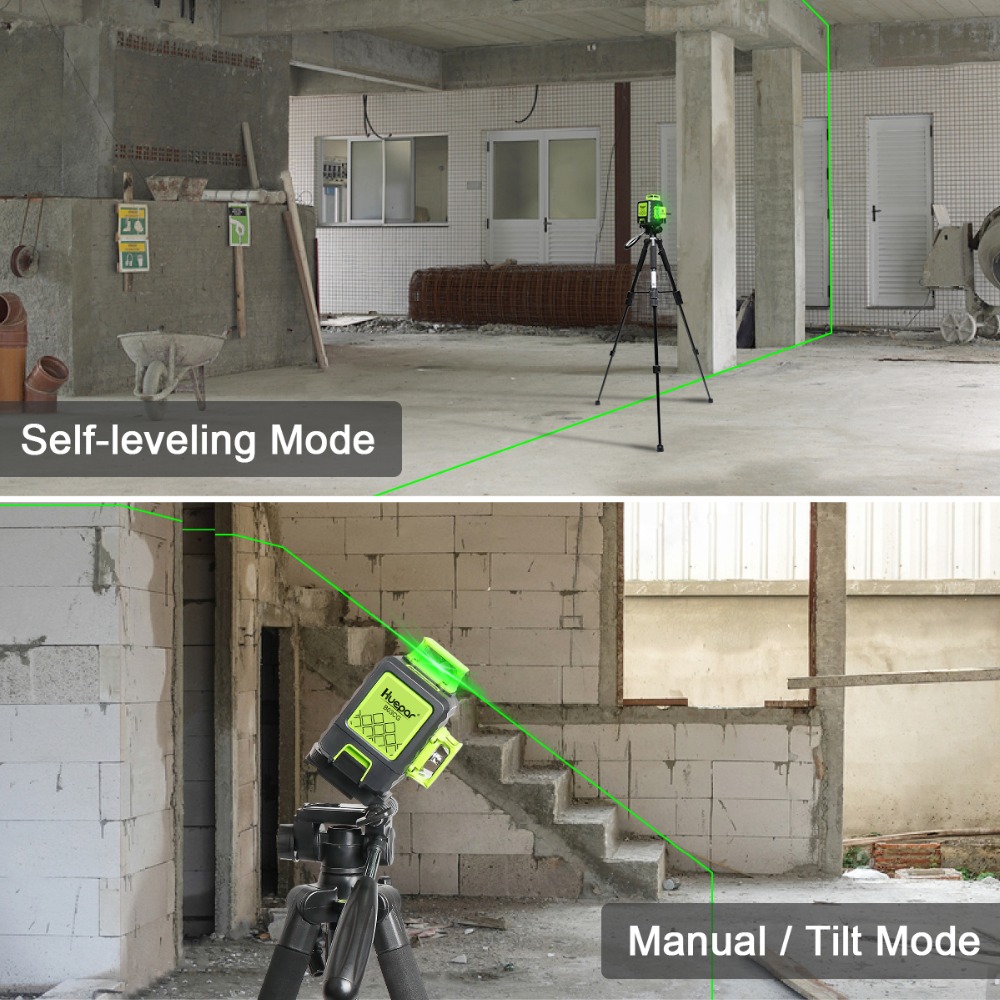

Self-leveling mode & Manual mode
Self-leveling mode:
When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Manual mode:
When the pendulum lock is in locked position, manual mode locks laser lines in place for use at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Pulse mode:
Turn on pulse mode: Slide the pendulum to the Unlocked Position, then press and hold the power button to turn on the pulse mode, the indicator lights up in blue.
Application：When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter condition or a larger working distance.
Note:
● When use with a receiver, it's necessary to turn on the pulse mode.
● It is compatible with Huepar Line Laser Receiver only.
Specifications:
Model: B03CG
Type: 12 Lines
Laser Beam Color: Green
Expanded Angle: 1H360°/2V360°
Laser Class: Class 2
Laser Wavelength: 520nm
Leveling Accuracy: ±3mm/10m
Leveling/Compensation Range: 4°±1°
Self-leveling Time: ≤3s
Working Distance (Line): 30m, ≥50m with level 100 Ft, ≥165 Ft with level

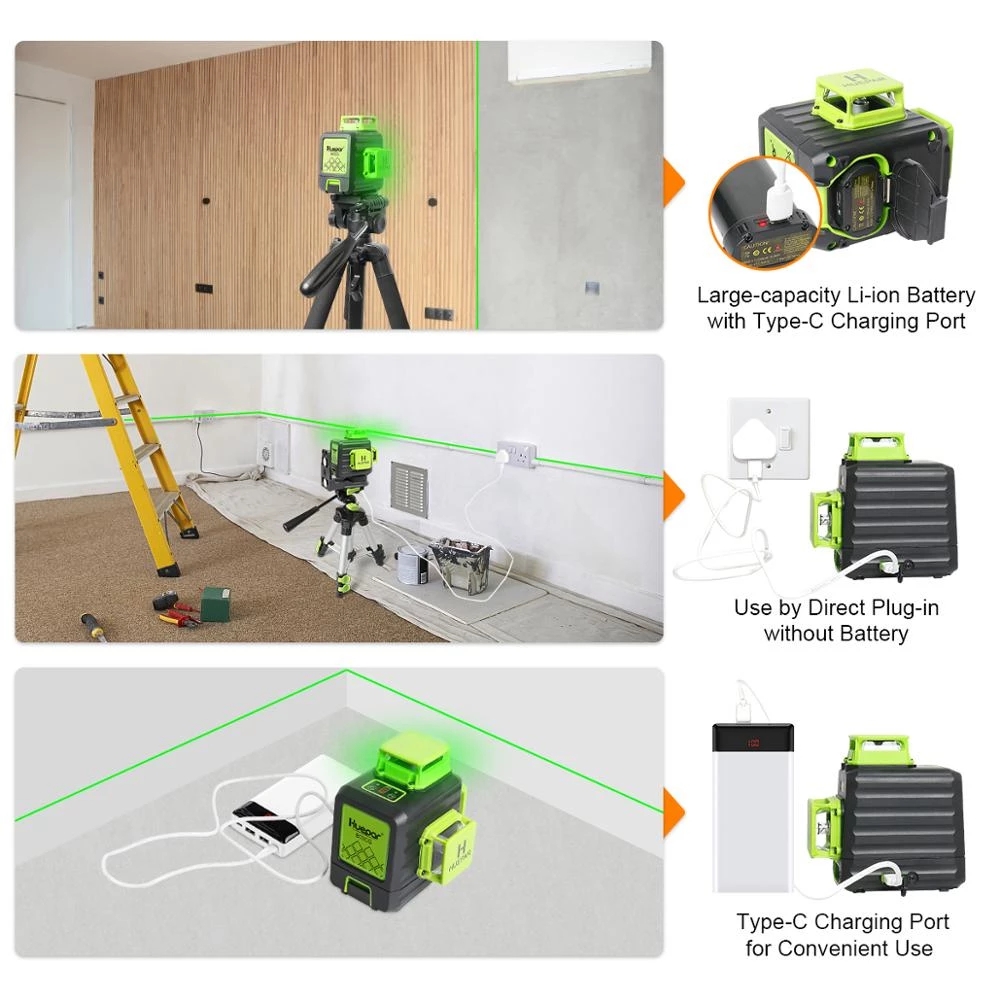

Power Source: Li-lon battery (Built-in)

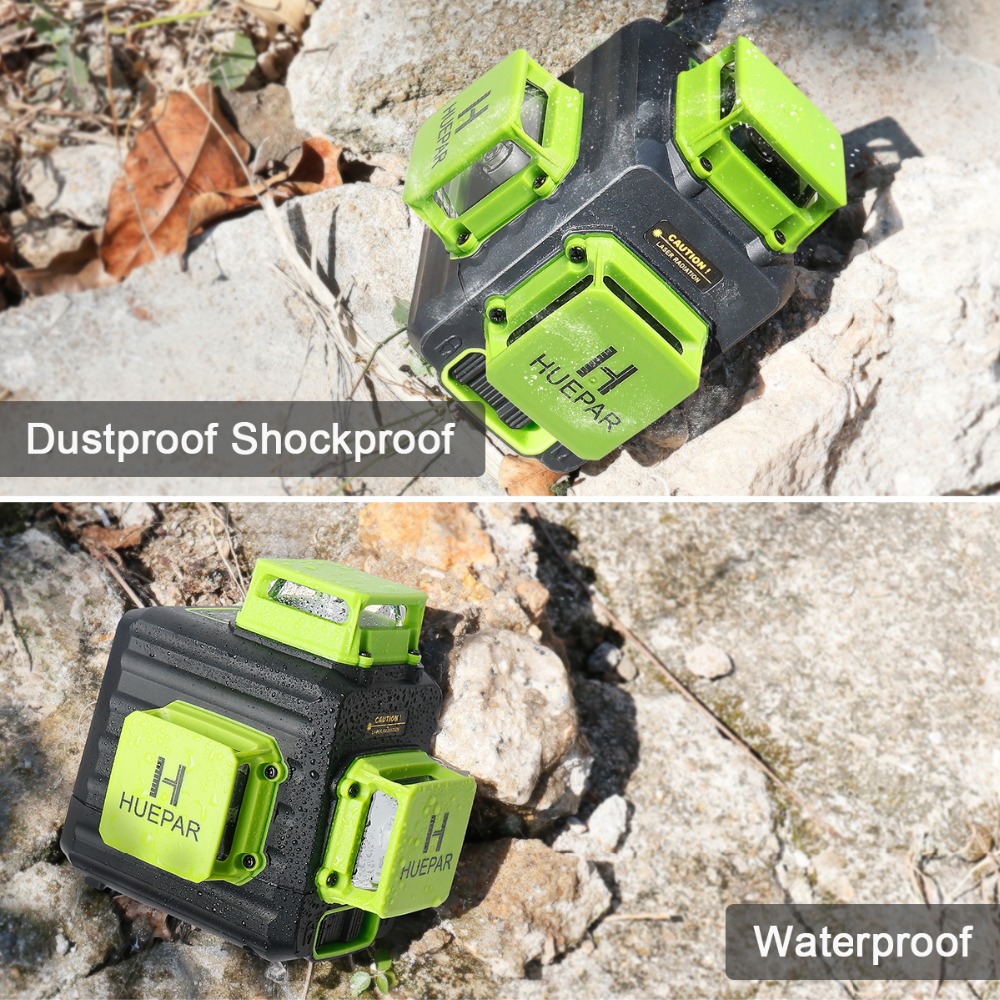

IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough.
Operation Temperature Range: 14℉- 122℉(-10℃-＋50℃)
Storage Temperature Range: -4℉- 158℉(-20℃-＋70℃)

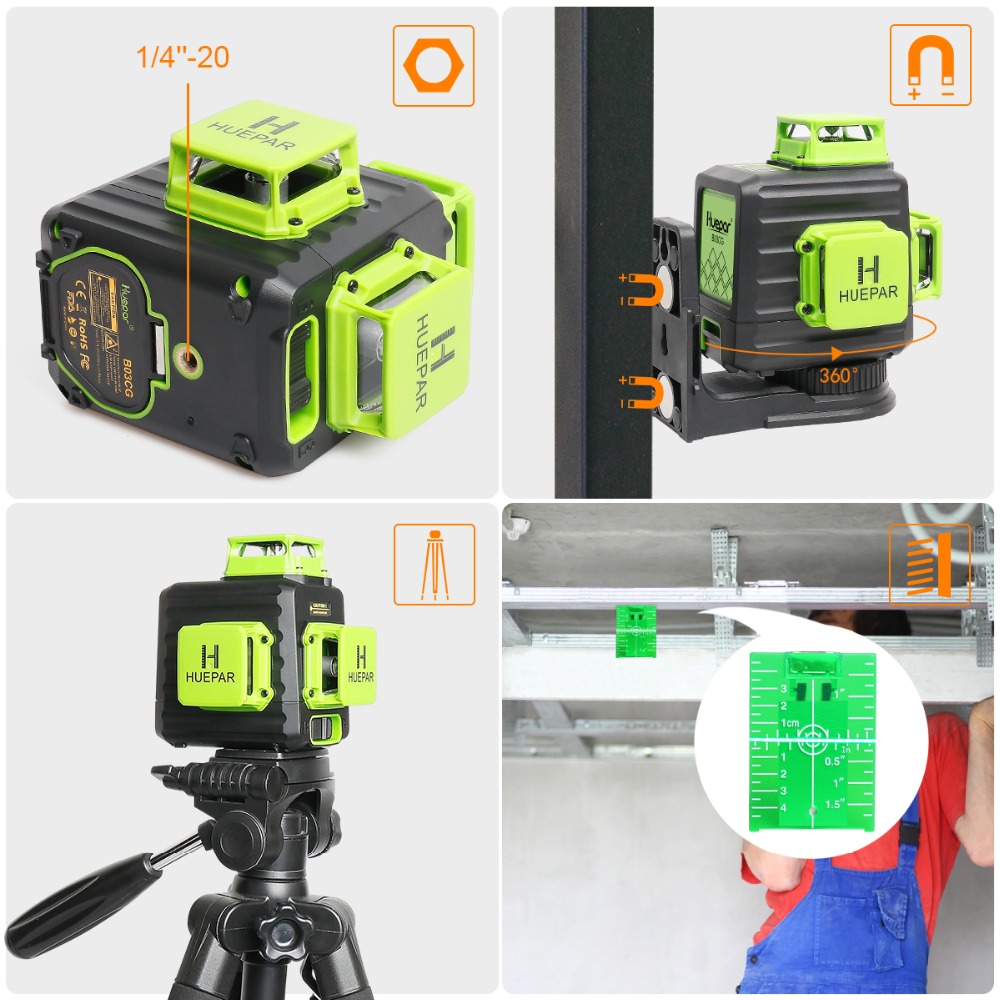

Mount Size: 1/4"-20

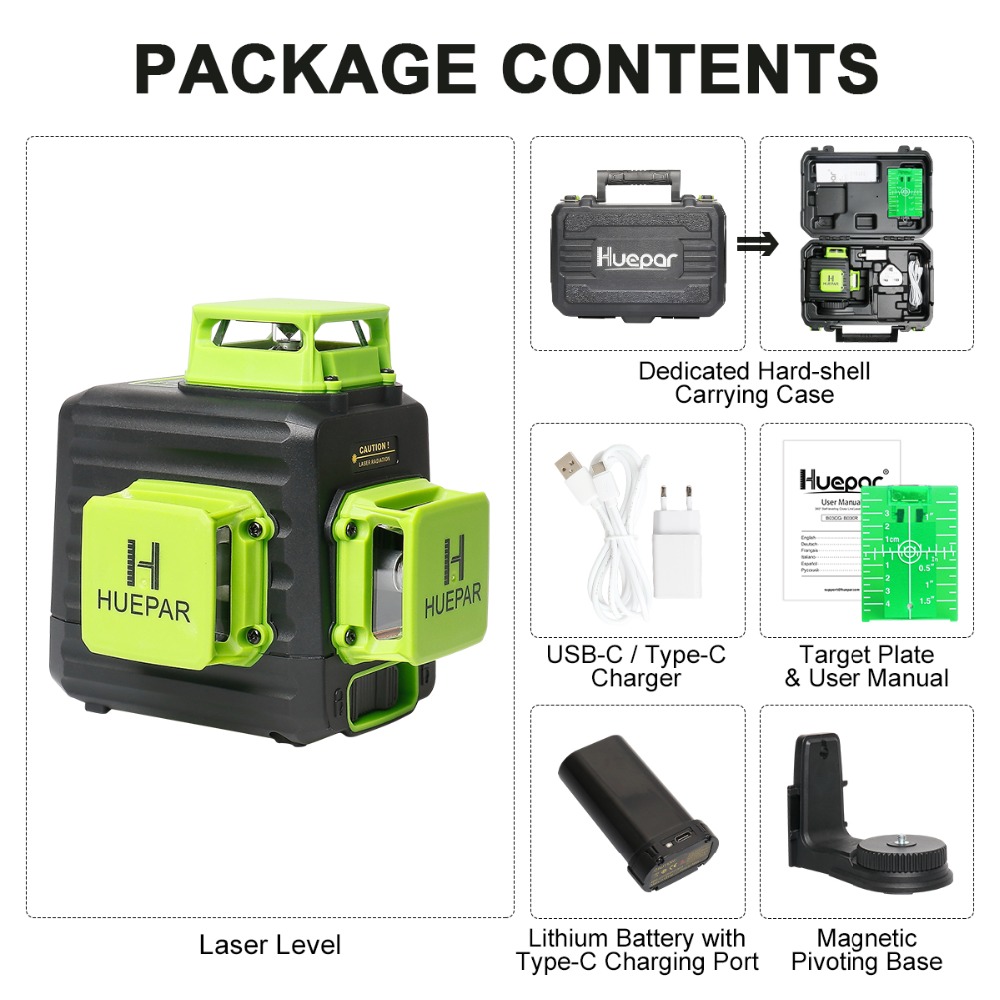

Package Includes:
1 x Laser Level
1 x 360° Magnetic Base
1 x Laser Target Plate
1 x Type-C Power Cord
1 x Power Adapter
1 x Hard Carry Case
1 x User Manual
Details Picture:
