DANIU DS18B20 Waterproof Digital Temperature Temp Sensor Probe 1M 2M 3M 5M 10M 15M
New
DANIU DS18B20 Waterproof Digital Temperature Temp Sensor Probe 1M 2M 3M 5M 10M 15M
$10.16
Ex Tax: $10.16
- Stock: In Stock
- Model: MZ10089
- SKU: MZ10089
Description :
DS18B20 Waterproof Digital Temperature Temp Sensor Probe 1M 2M 3M 5M 10M 15M
Features :
Flexibility resistance, Better thermal conductivity.
Length of Cable : 1M / 2M / 3M / 5M / 10M / 15M optional~ Size of Stainless steel sheath : 6 x 30mm
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to +125°C (-67°F to +257°F)
Storage temperature range : -55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C : ±0.5°C.
Application : Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System.
Connect:

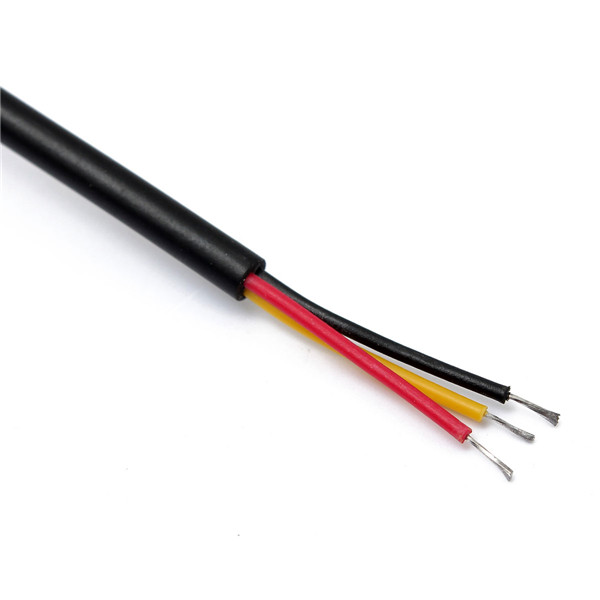

Probe's wire received is Red, Yellow and Black, conncet your probe as Output lead : Red (VCC), Yellow(DATA), Black(GND) : )
Package includes :
1 x Thermal probe/sensor DS18B20 (1M / 2M / 3M / 5M / 10M / 15M for optional~)

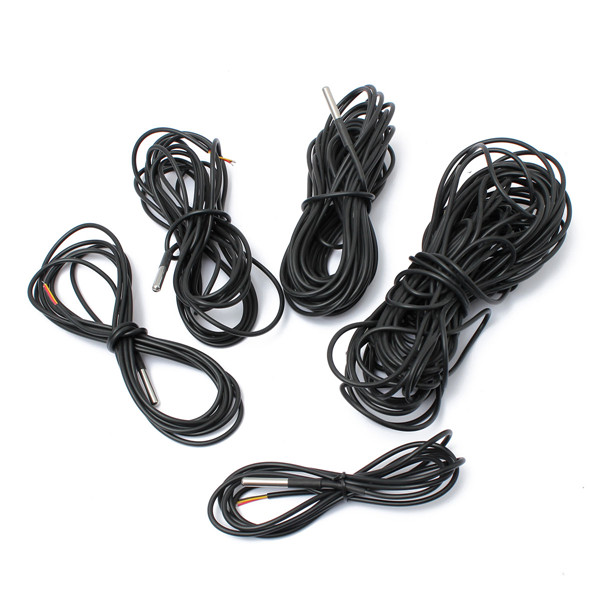

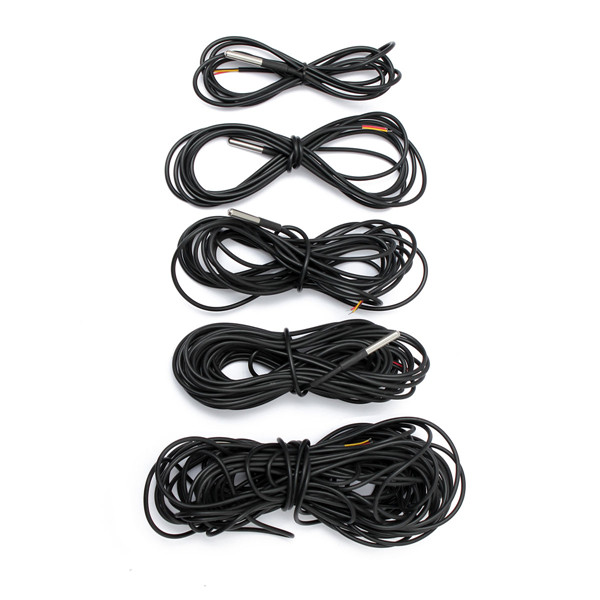

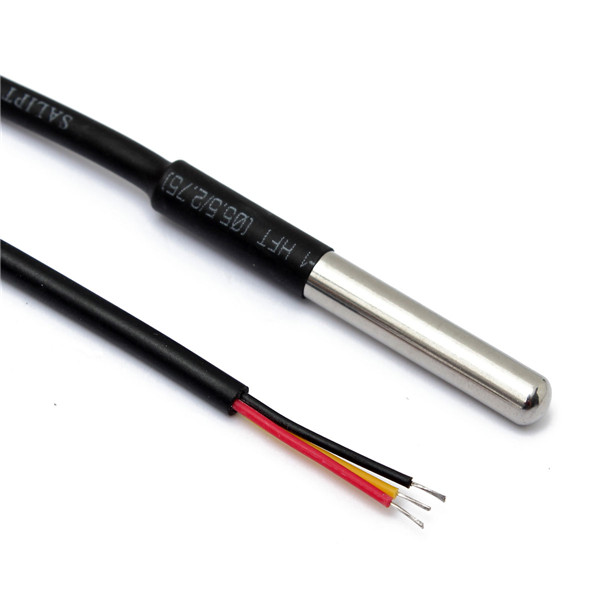

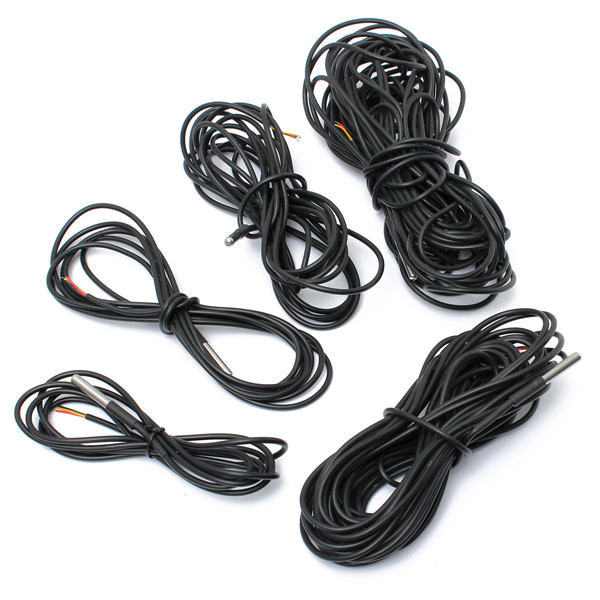

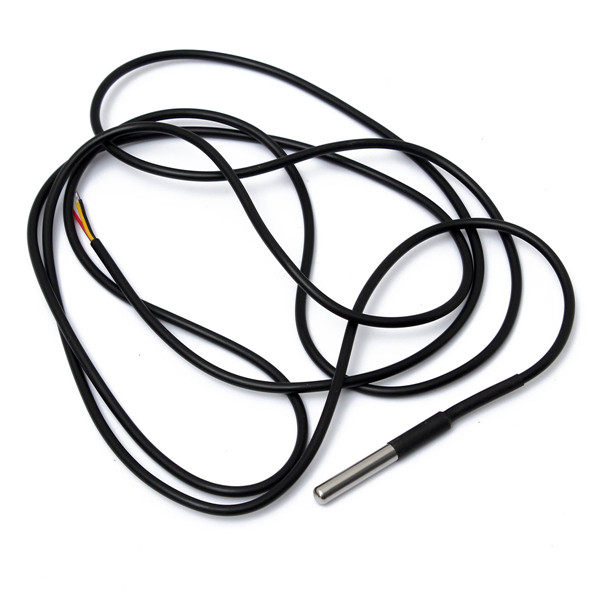

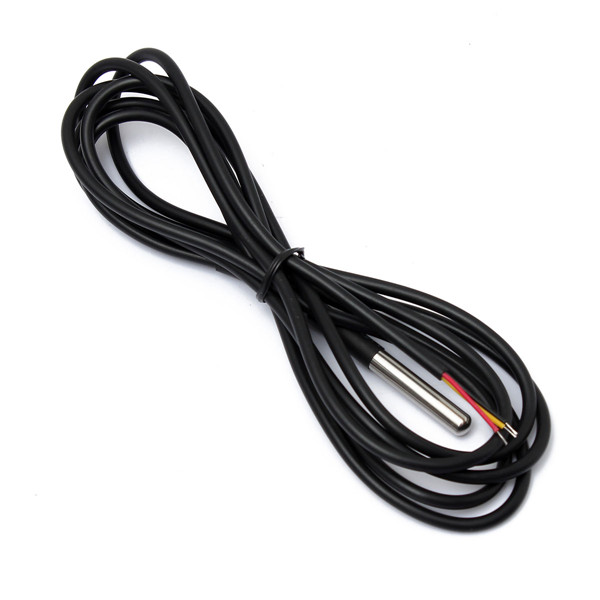

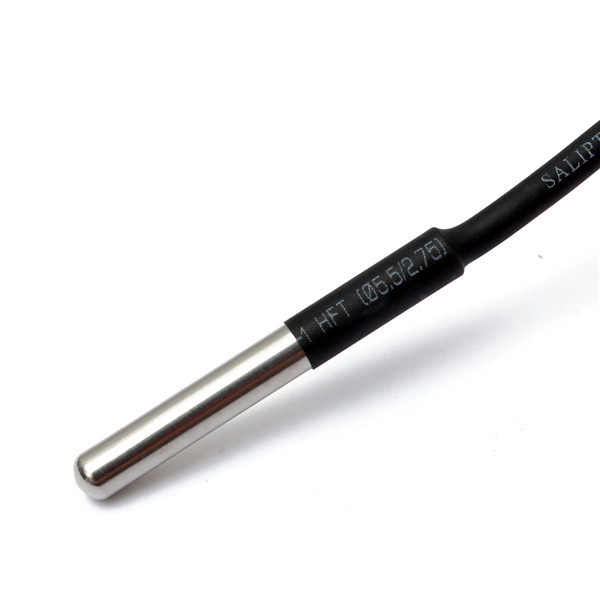

Details pictures :
,
,
,
,
,
,
,
DS18B20 Waterproof Digital Temperature Temp Sensor Probe 1M 2M 3M 5M 10M 15M
Features :
Flexibility resistance, Better thermal conductivity.
Length of Cable : 1M / 2M / 3M / 5M / 10M / 15M optional~ Size of Stainless steel sheath : 6 x 30mm
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to +125°C (-67°F to +257°F)
Storage temperature range : -55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C : ±0.5°C.
Application : Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System.
Connect:
Probe's wire received is Red, Yellow and Black, conncet your probe as Output lead : Red (VCC), Yellow(DATA), Black(GND) : )
Package includes :
1 x Thermal probe/sensor DS18B20 (1M / 2M / 3M / 5M / 10M / 15M for optional~)
Details pictures :
,,,,,,,
