DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras

DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
$10.99
Ex Tax: $10.99
  • Stock: In Stock
  • Model: MZ003725
  • SKU: MZ003725

Available Options

Descriptions:

Moonzite DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras


Specifications:

Product NameReduction Gear Motor
Model Number16GA050
Material304 Stainless Steel
ColorSilver
Rated VoltageDC 12V

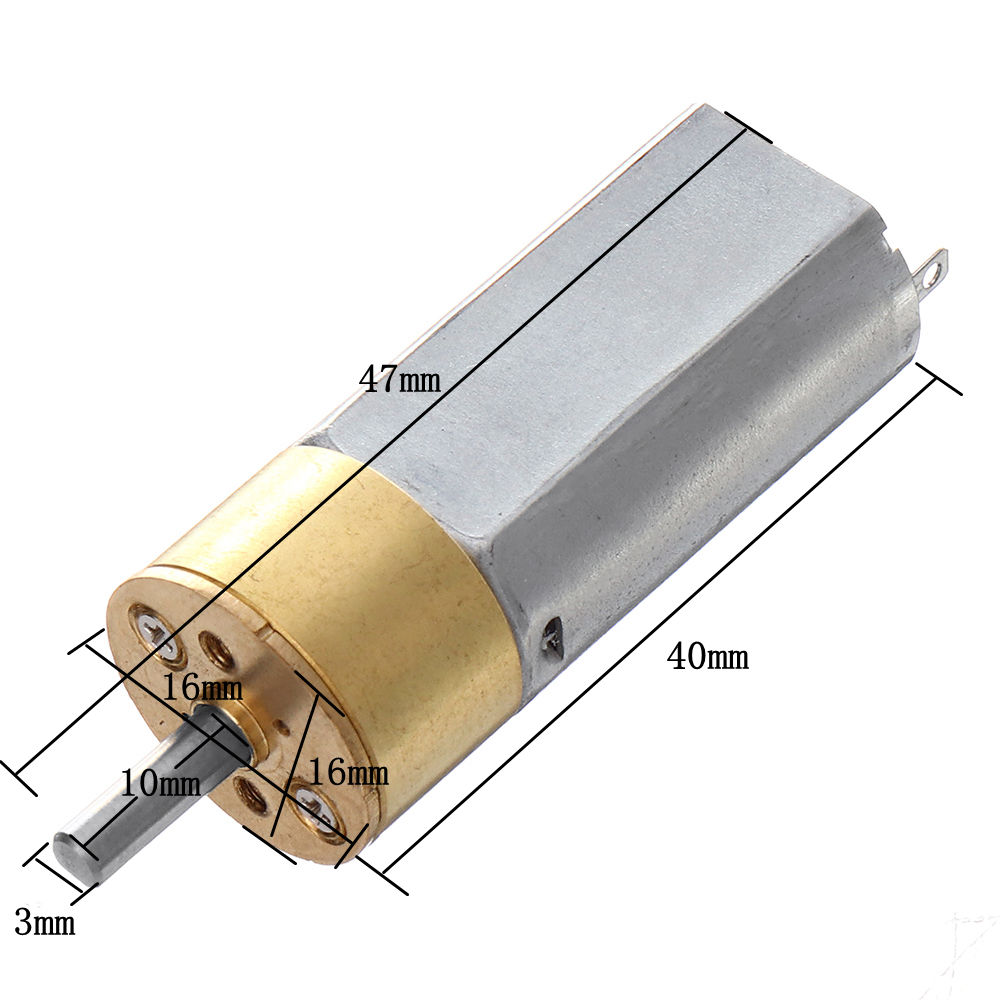

Size16mm×16mm×40mm
Total Length47mm
Body Length40mm
Shaft Length10mm
Shaft Diameter3mm
Quantity1 Pc x Reduction Gear Motor



VoltageGear RatioNo Land SpeedNo Land CurrentLoad Torque SpeedLoad Torque CurrentLoad Torque TorqueStall CurrentStall Torque
12V1:33030RPM≤50MA27RPM≤70MA560g.cm≤1.1A7.4KG.CM
12V
1:150
60RPM≤70MA
56RPM≤100MA480g.cm≤1.1A
6.4KG.CM
12V
1:100
100RPM≤50MA
83RPM≤85MA
340g.cm≤1.1A
5.0KG.CM
12V
1:80
150RPM≤50MA
132RPM≤85MA
320g.cm≤1.1A
5.2KG.CM
12V
1:62.5
200RPM≤80MA
165RPM≤105MA
280g.cm≤1.1A
4.65KG.CM
12V
1:40
300RPM≤50MA
234RPM≤85MA
210g.cm≤1.1A
4.4KG.CM
12V
1:30
400RPM≤70MA
322RPM≤145MA
180g.cm≤1.1A
3.85KG.CM
12V
1:24
500RPM≤90MA
416RPM≤145MA
165g.cm≤1.1A
3.6KG.CM
12V
1:20
600RPM≤90MA
505RPM≤145MA
160g.cm≤1.1A
3.6KG.CM
12V
1:16
800RPM≤90MA
688RPM≤145MA
145g.cm≤1.1A
3.4KG.CM


Features:

- It can be used in door locks, meters, security cameras, micro robots, medical equipment, etc.

- It has the characteristics of high efficiency, low noise, good sensitivity and long life.

- Equipped with a precision gear reducer, it can be called the preferred actuator in various automatic adjustment, drive and control servo systems.

- Stable operation, small speed fluctuation.

- It has outstanding energy saving, control and drag characteristics.


Package Included:

1 Pc ×Reduction Gear Motor
