DC 12V Linear Actuator 100mm Stroke 100/200/300/500/700/1000N Linear Drive Electric Motor Controller
- Stock: In Stock
- Model: MZ007943
- SKU: MZ007943

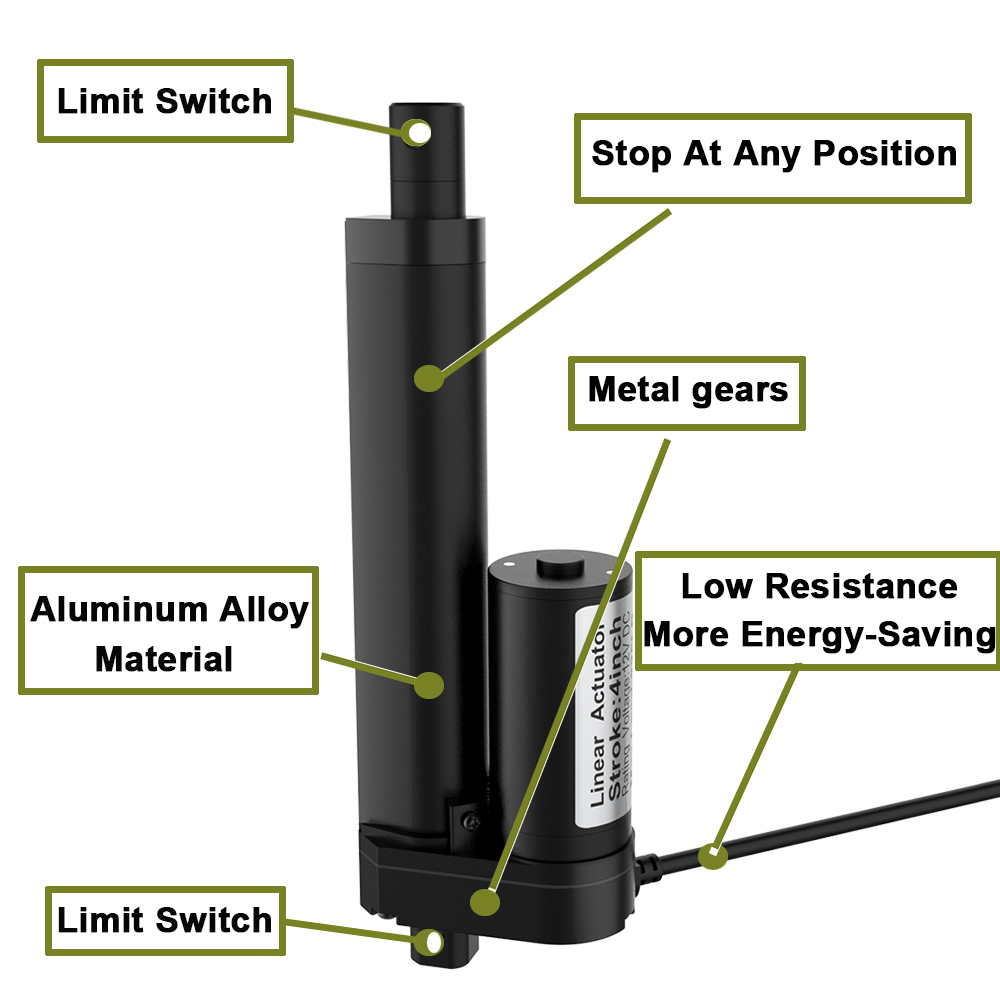

Features:

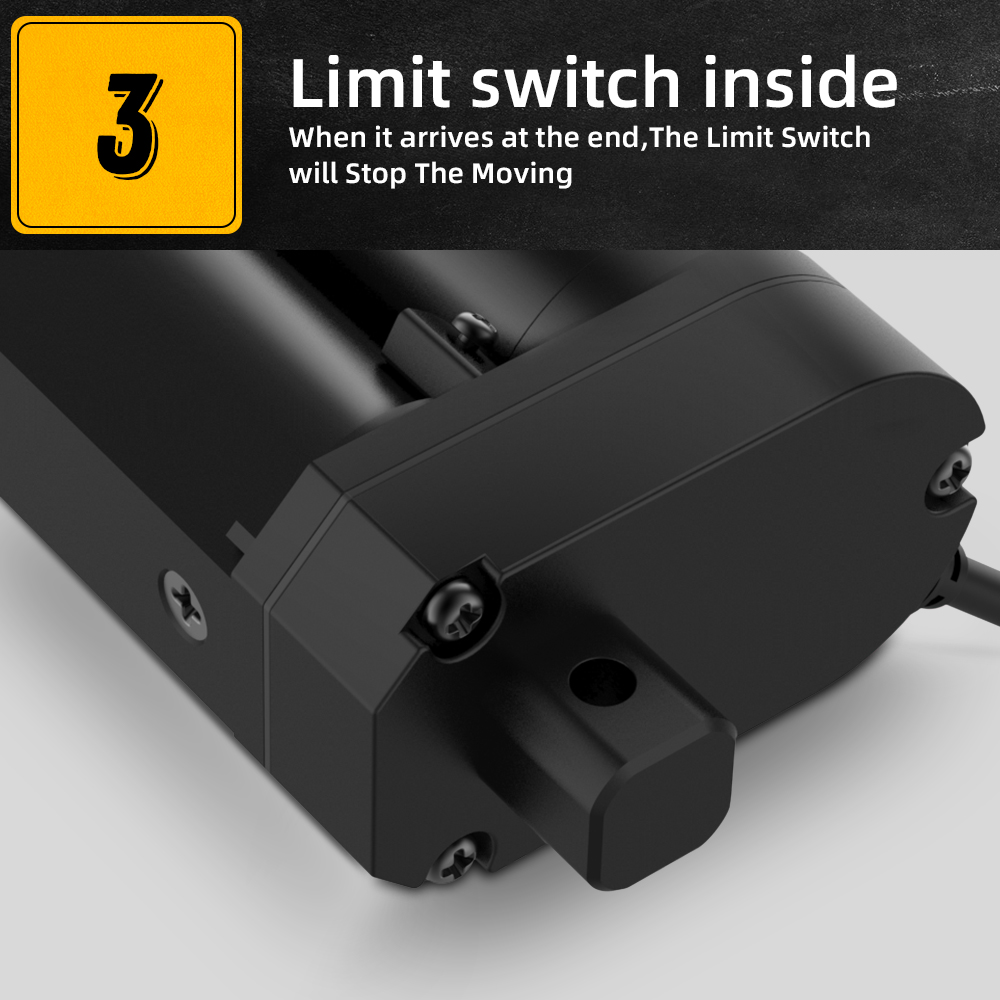

- [Built-in limit switches]: Self-locking function. The telescopic rod will automatically stop when it reaches the top/bottom. Make sure the motor will not burn empty.
- [Stop Anywhere]: Cut off the power, it can be stop at any position, with machine lock, safe and secure.

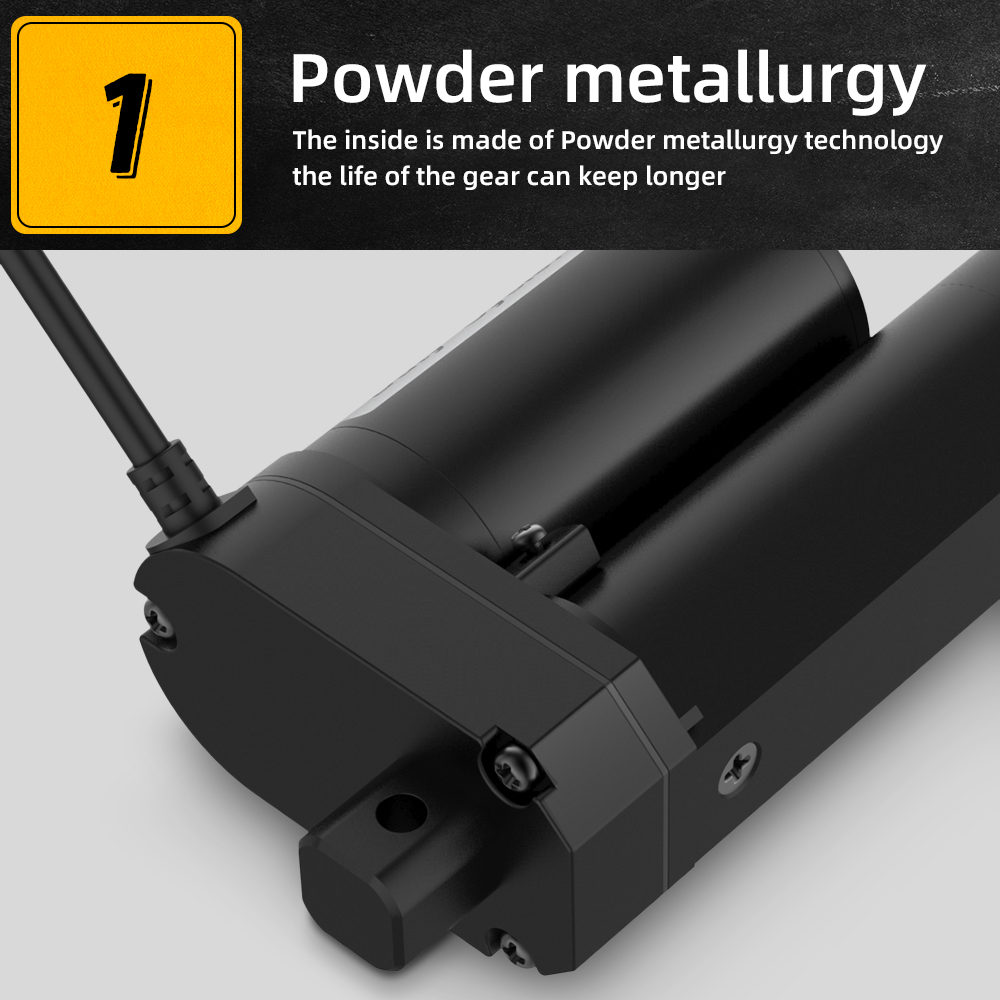

- [Metal gears]: powder alchemy technology, pure metal gears, double strength and toughness.

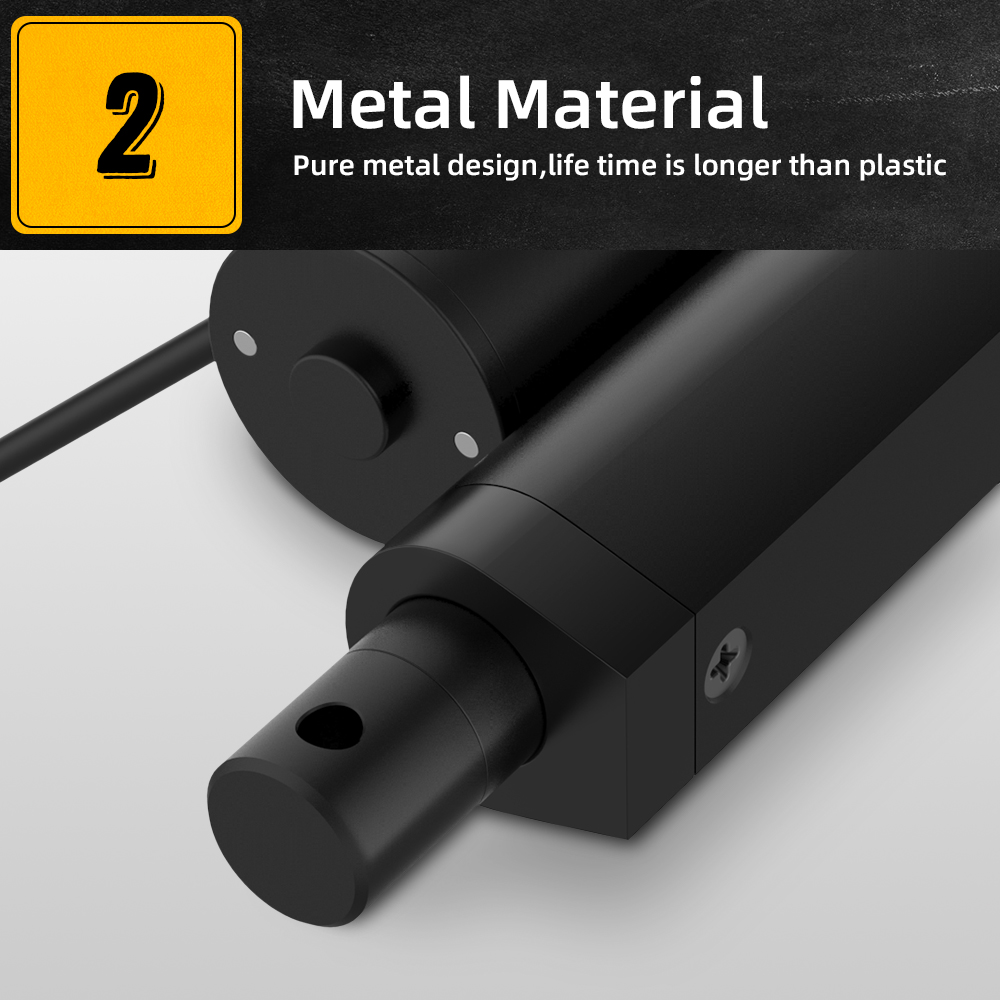

- [Aluminum Alloy Material]: IP54 protection, is a power unit. The surface has undergone 27 polishing processes, and the structure design is tight.
- [Low Resistance More Power-Saving]: the wire uses oxygen-free pure copper as the conductor, low resistance, durable and safe to use.
Specification:
| Material | Aluminum alloy |
| Input Voltage | DC 12V |
| Rated power | 20W, Max. 30W |
| Ambient temperature | -20°C to + 75°C |
| Standard protection class | IP54 |

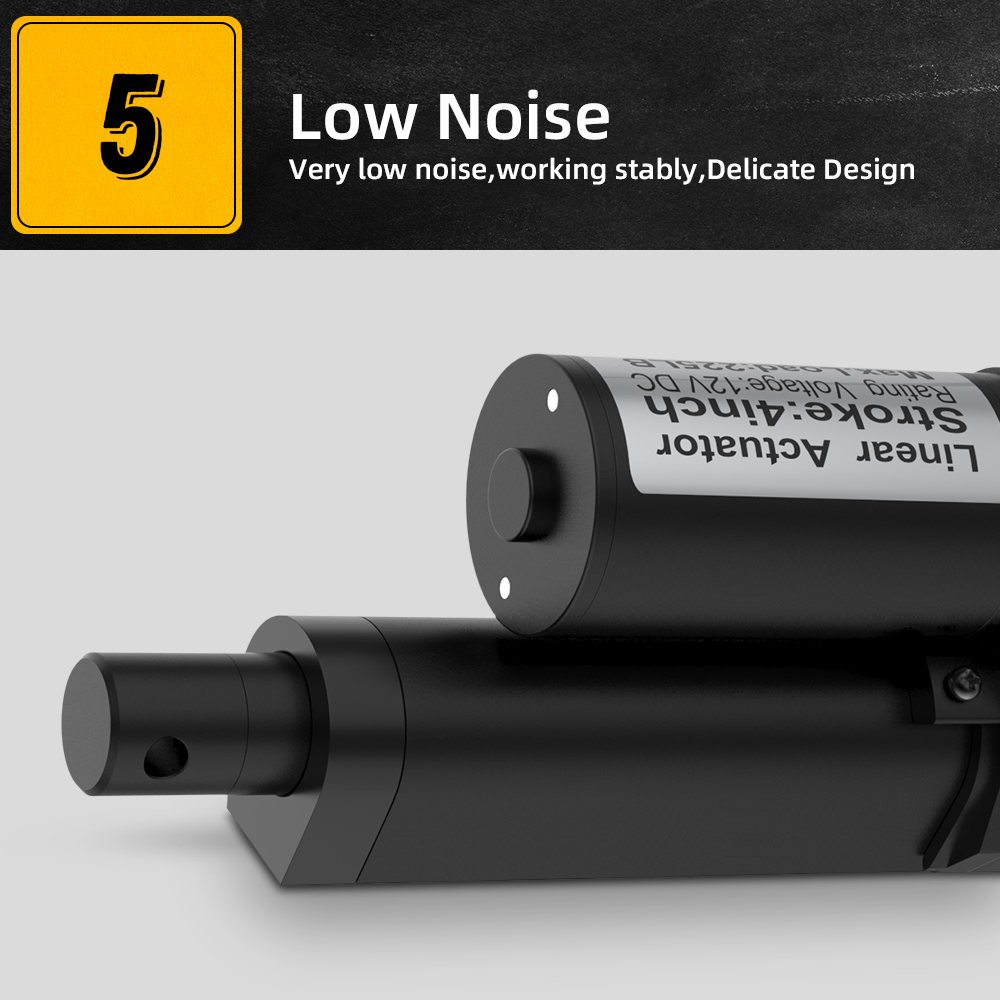

| Noise level | Less than 42dB |

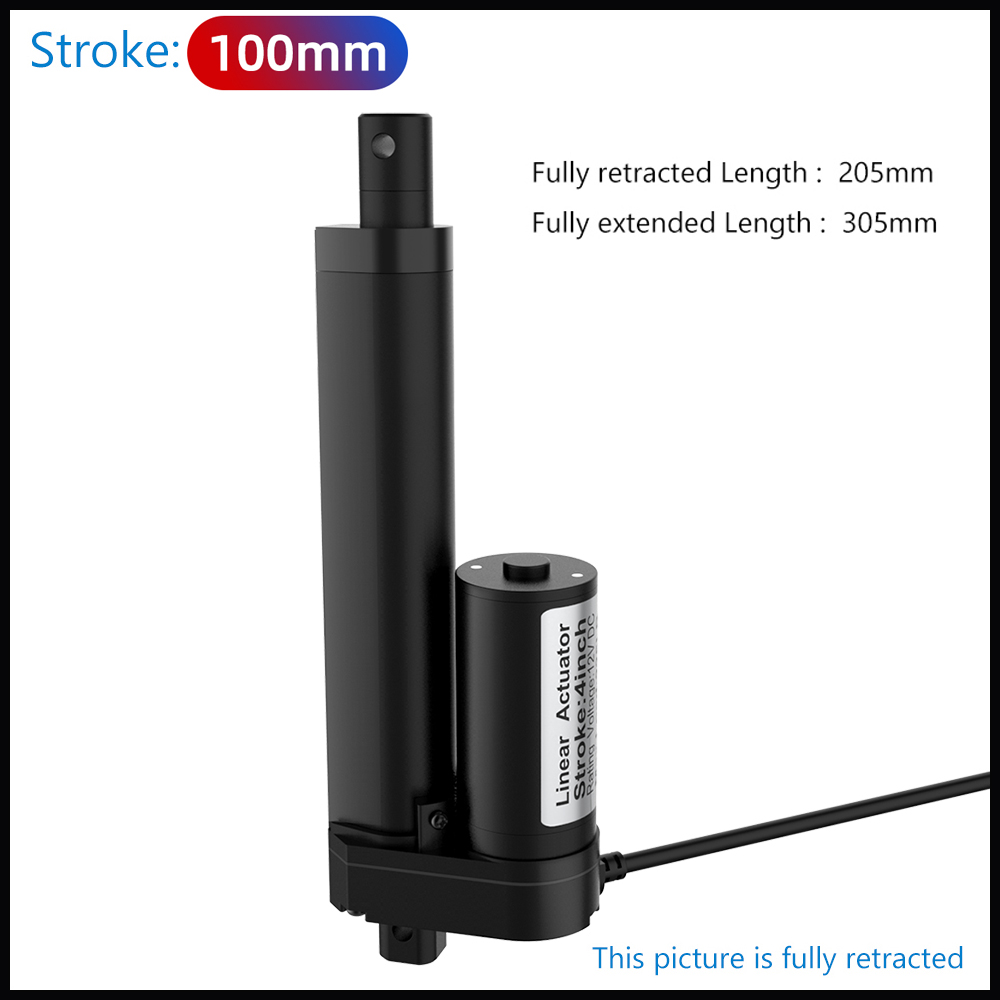

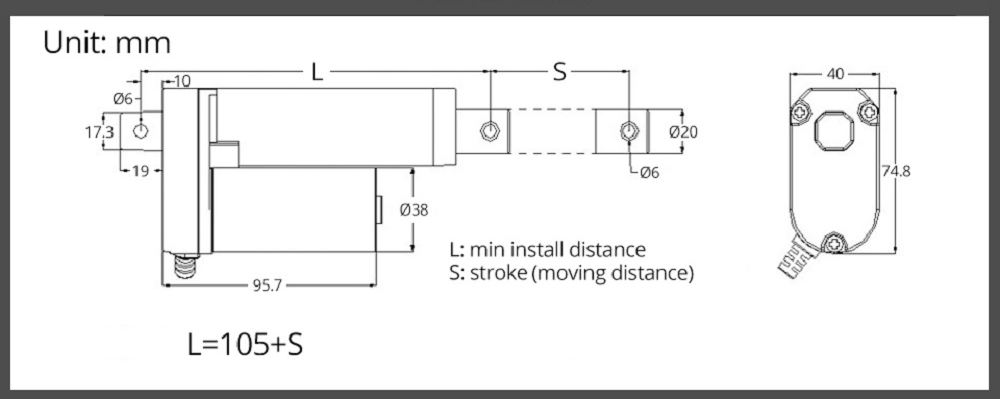

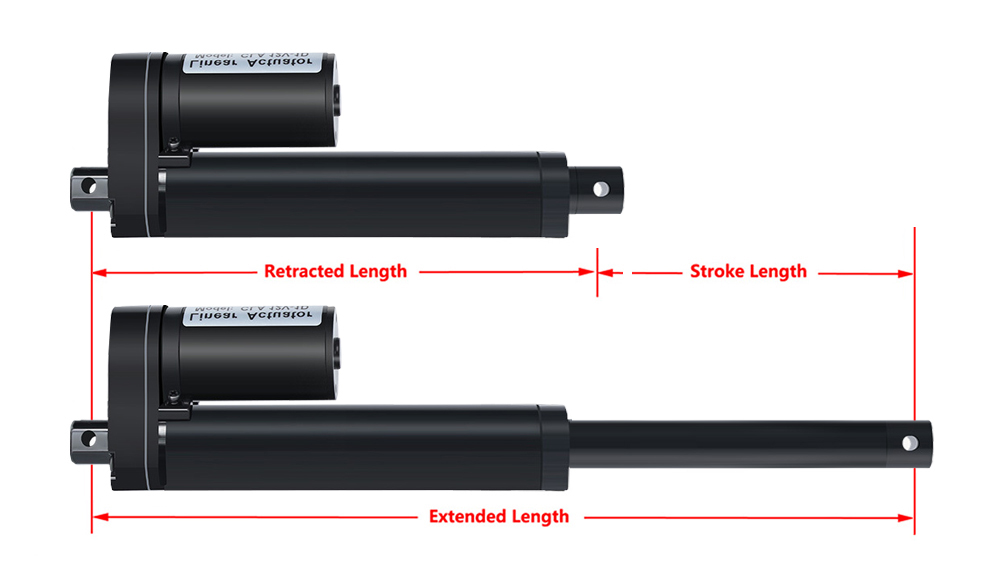

| Stroke length | 100mm / 6inch |
| Retracted length | 205mm |
| Extended length | 305mm |
| Options | 100N 90mm per second / 150N 70mm per second / 180N 50mm per second / 200N 40mm per second / 230N 25mm per second / 250N 15mm per second / 300N 30mm per second / 500N 20mm per second / 700N 10mm per second / 1000N 5mm per second |
| Quantity | 1pc |
Force And Speed:
100N≈10kg / 150N≈15kg /180N≈18kg / 200N≈20kg /
230N≈23kg / 250N≈25kg / 300N≈30kg / 500N≈50kg /
700N≈70kg / 1000N≈100kg
Produce Included:
| 1 x | 12V Linear Actuator |
More Detail:
