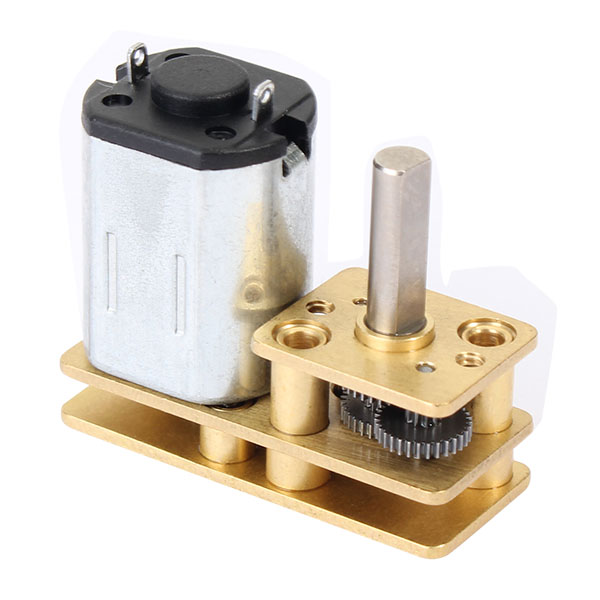

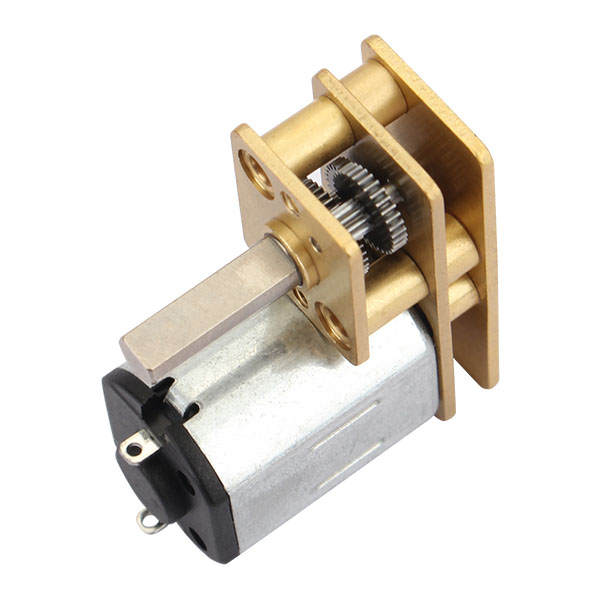

DC 6V 105RPM Micro DC Gear Motor Gear Box Motor

Based on 0 reviews. - Write a review

$12.99

Ex Tax: $12.99

Stock: In Stock
Model: MZ004183
SKU: MZ004183

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Reviews

Description:

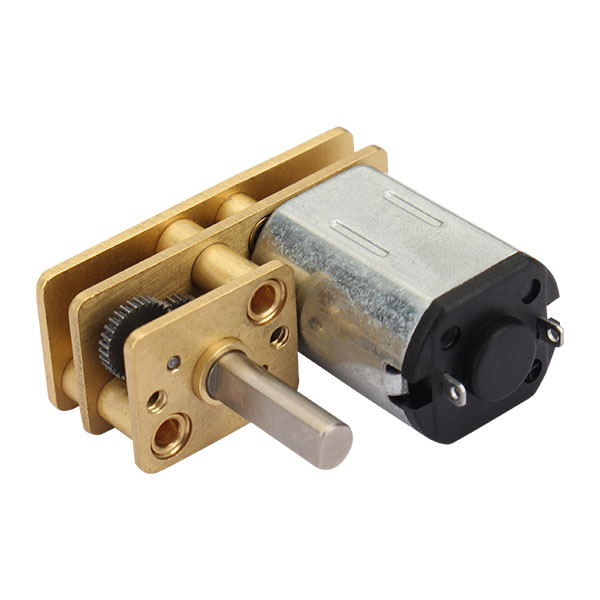

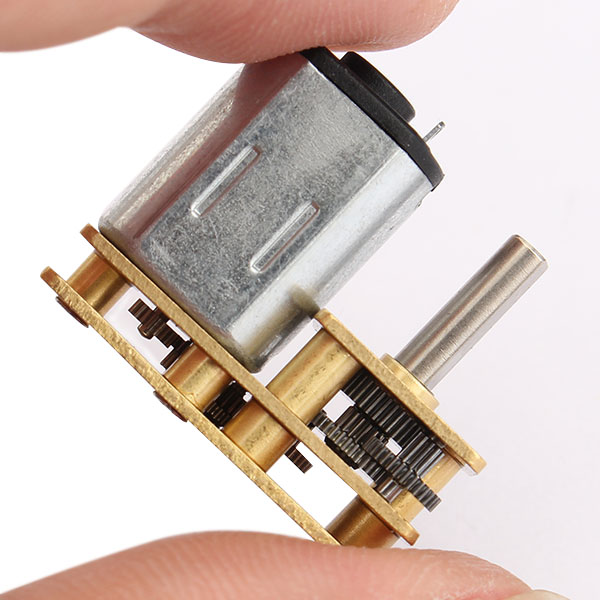

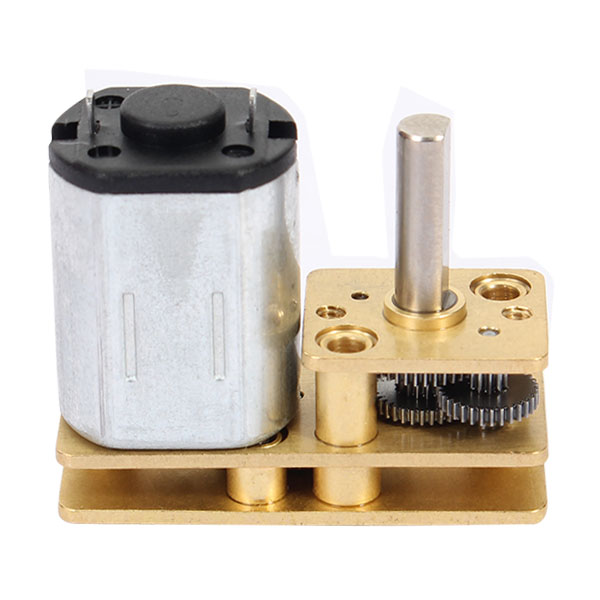

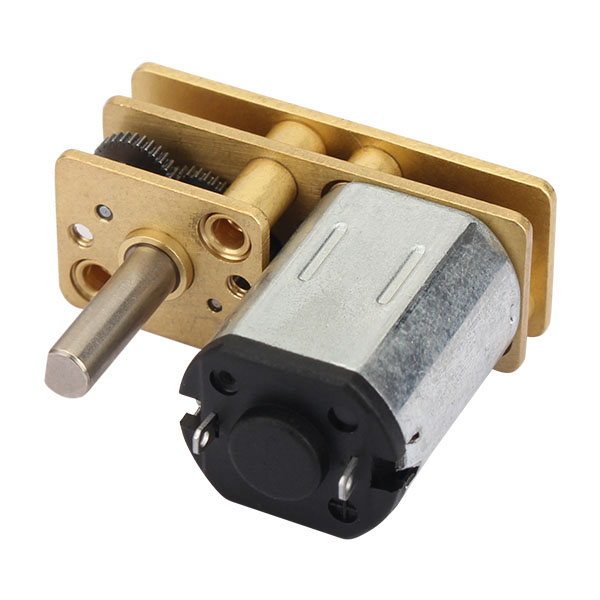

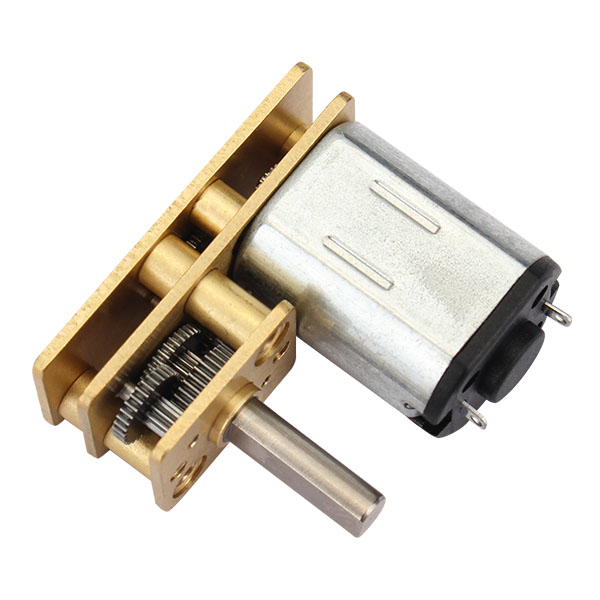

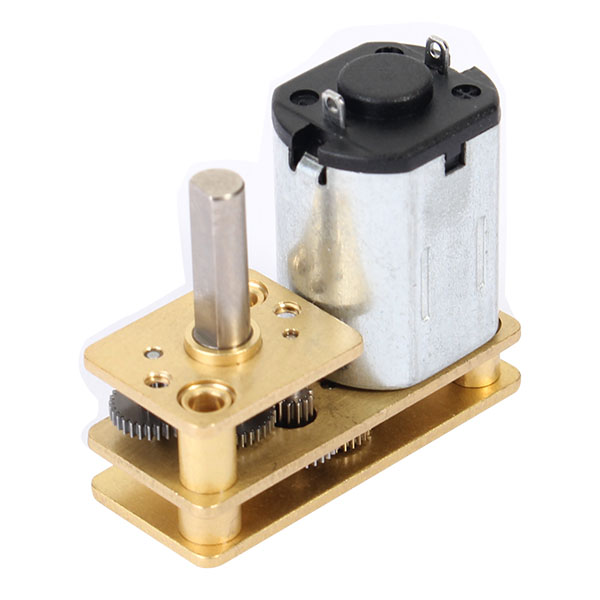

DC 6V 105RPM Micro DC Gear Motor Gear Box Motor

Specification:
Model: 24GA-N20-08220-150-10D
Material: Alloy steel, copper etc.

DC voltage: DC6V

Speed: 105rpm
Output shaft with the same direction of motor

1. Standard Operating Conditions

Item	Specification	Test Method
Rated Voltage	DC 6.0V	Multimeter
Gear Ratio	1/150
Rotation	CW	Handle
Motor Position	All position in horizontal	Handle
Temperature	0 - 30 Degree Celsius	Thermometer
Humidity	30% - 95%	Hygroscope

2. Performacnce of Motor

Item	Specification	Test Method
No-load Speed	16000 +/- 10%rpm	Flash Speed Indicator
No-load Current	35mA (Max)	DC Power Supply
Stall Current	650mA (Max)	DC Power Supply
Stall Torque	12g.cm	Torque Measure

3. Performance of Gear Motor

tem	Specification	Test Method
Output Speed	105 +/- 10%rpm	Flash Speed Indicator
No-load Current	50mA (Max)	DC Power Supply
Stall Current	650mA (Max)	DC Power Supply
Stall Torque	The maximum permissible load 3kg.cm	Torque Measure
Rated Torque	400g.cm	Torque Measure
Rated Current	150mA (Max)	DC Power Supply
Rated Speed	80+/- 10%rpm	Flash Speed Indicator
Noise	50dB	Digital Sound Levd Meter

4. Dimension

tem	Specification	Test Method
The outside Shaft Length	10mm	Vernier Calipers
Shaft End Play	0.05 - 0.30mm	Frock
Screw Size	M1.6 x 0.35	Frock
Diameter of Shaft	3 x 2.5mm	Vernier Calipers

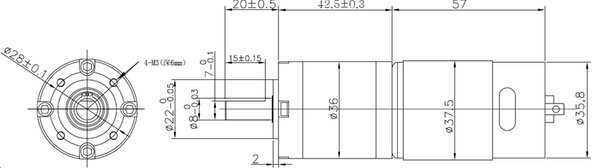

Outline Mounting Dimension	Refer to the outline Drawing	Callipe
