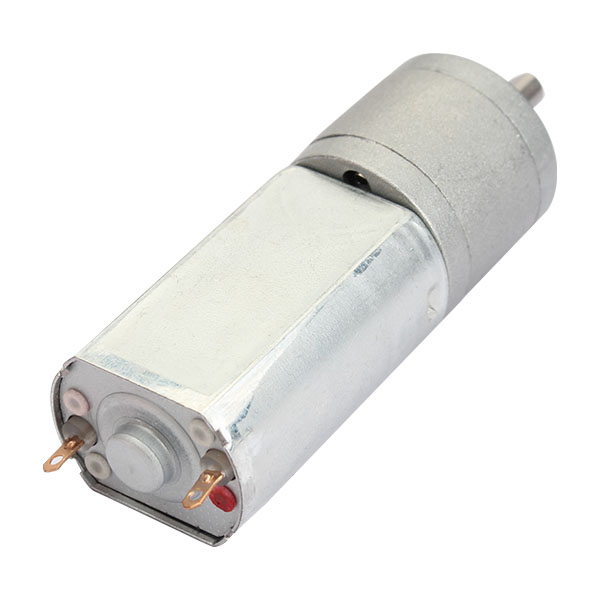

DC12V 100RPM Mini Metal Gear Motor Electric Gear Box Motor
DC12V 100RPM Mini Metal Gear Motor Electric Gear Box Motor
$11.99
Ex Tax: $11.99
- Stock: In Stock
- Model: MZ003515
- SKU: MZ003515
- UPC: 785825471081
Description:
DC12V 100RPM Mini Metal Gear Motor Electric Gear Box Motor
Specification:
6. Curve Drawings
Package Included: 1 x Motor
More Details:
,
,
,
,
,
,
,
,
DC12V 100RPM Mini Metal Gear Motor Electric Gear Box Motor
Specification:
Voltage: DC12.0V
No-load speed: 100RPM
Shaft diameter: 4mm
Axial length: 10.5mm
1. Standard Operating Conditions
2. Performance of Motor
3. Performance of Gear Motor
4. Dimension
5. Product Drawings
1. Standard Operating Conditions
| Item | Specification |
| Rated Voltage | DC 12.0V |
| Gear Ratio | 1/100 |
| Rotation | CW & CCW |
| Motor Position | All position in horizontal |
| Temperature | 0 - 30 Degree Celsius |
| Humidity | 30% - 95% |
2. Performance of Motor
| Item | Specification |
| No-load Speed | 10000 +/- 10%rpm |
| No-load Current | 95mA (Max) |
| Stall Current | 1600mA (Max) |
| Stall Torque | 100g.cm |
3. Performance of Gear Motor
| Item | Specification |
| Outer Speed | 100 +/- 10%rpm |
| No-load Current | 130mA (Max) |
| Stall Current | 1600mA (Max) |
| Stall Torque | 6.0kg.cm |
| Rated Torque | 1000g.cm |
| Rated Current | 280mA (Max) |
| Rated Speed | 85 +/- 10%rpm |
| Noise | 52dB |
4. Dimension
| Item | Specification |
| The Outside Shafft Length | 10.5mm |
| Shaft End Play | 0.05 - 0.50mm |
| Screw Size | M2.5 |
| Diameter of Shaft | 4 x 3.5mm |
| Outline Mounting Dimension | Refer to the Outline Drawing |

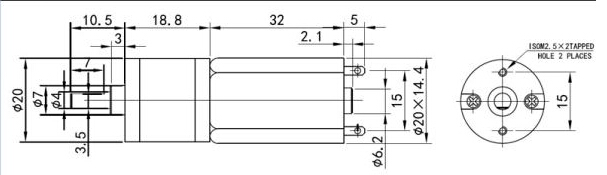

5. Product Drawings

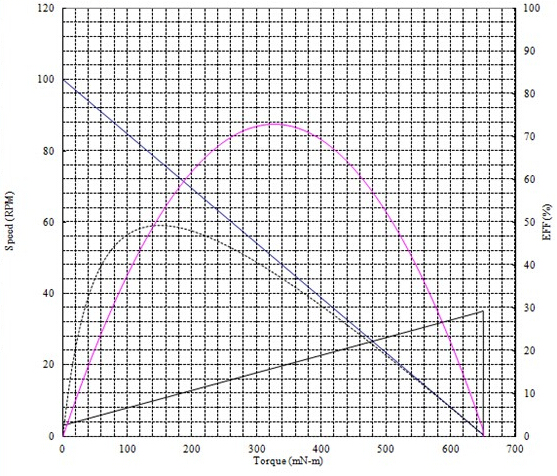

6. Curve Drawings
Package Included: 1 x Motor
