A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories

A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
A3007/8 True RMS Digital Multimeter + Voltage Test Pen + Phase Sequences Meter 3 In 1 with LCD Backlight Flashlight NCV Auto-off Multiple Accessories
$23.99
Ex Tax: $23.99
  • Stock: In Stock
  • Model: MZ004850
  • SKU: MZ004850
  • UPC: 681877470280

Available Options


Screen

Multimeter

Voltage Test Pen

Phase Sequences Meter

A3007

Normal LCD Screen

x

A3008

Color Screen


Description:

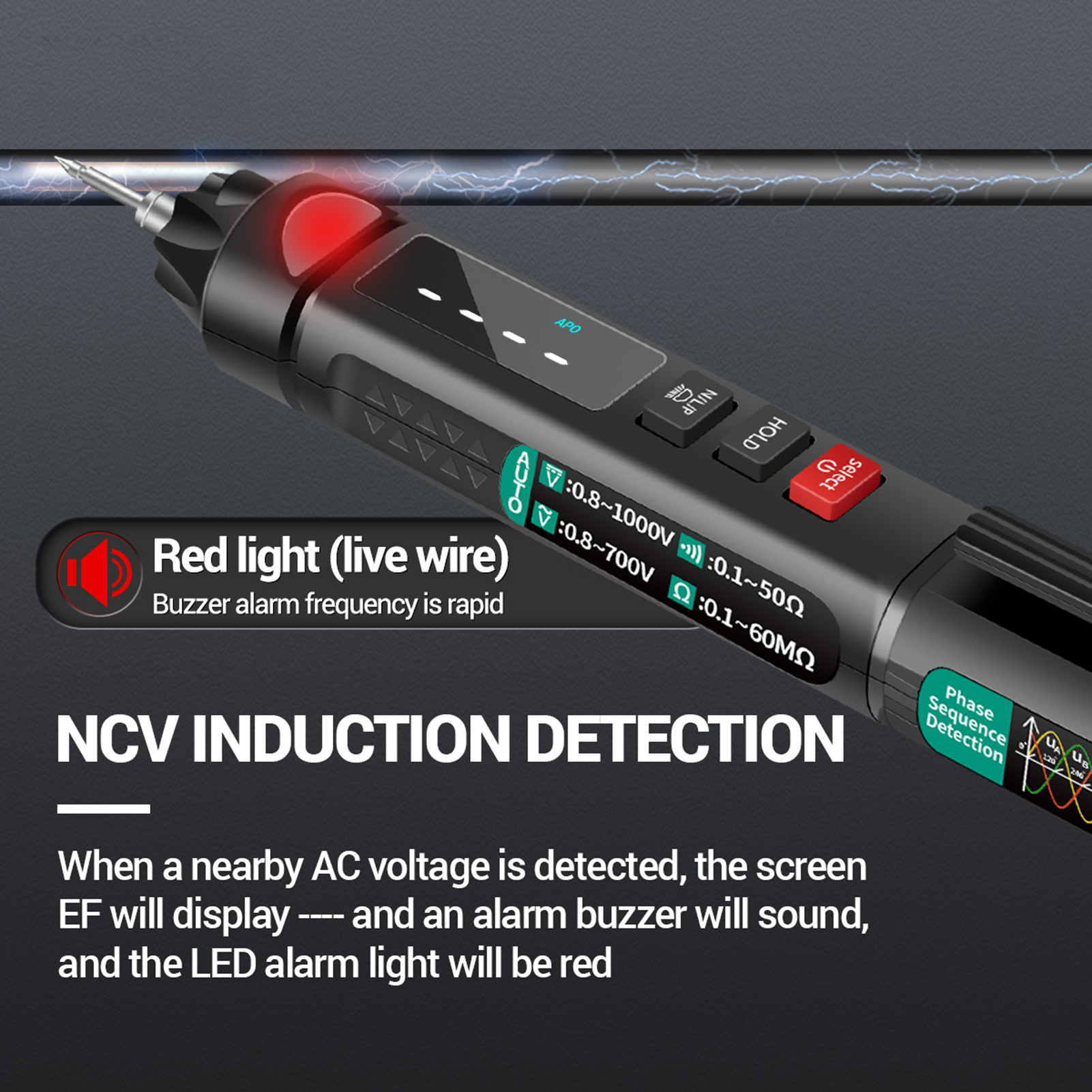

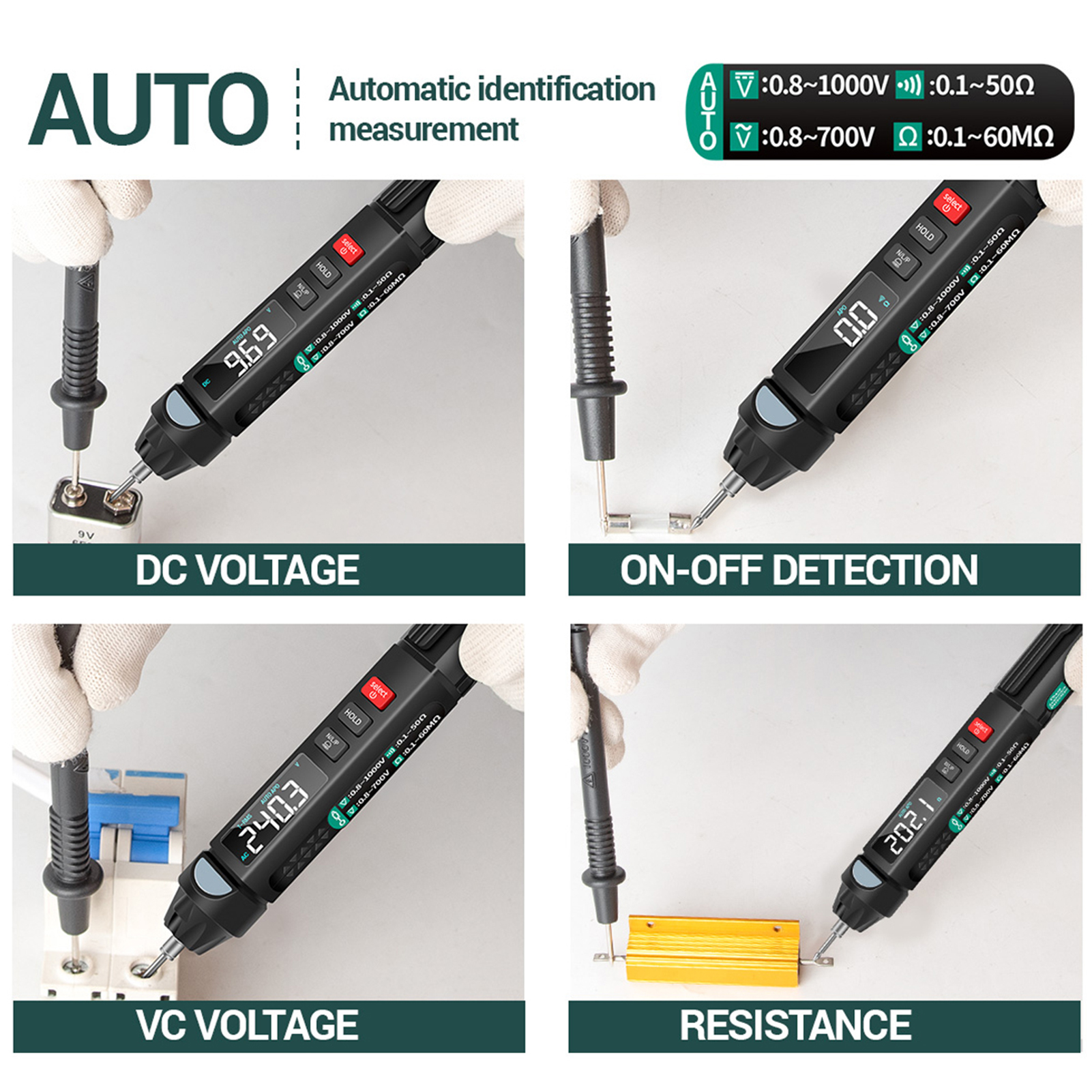

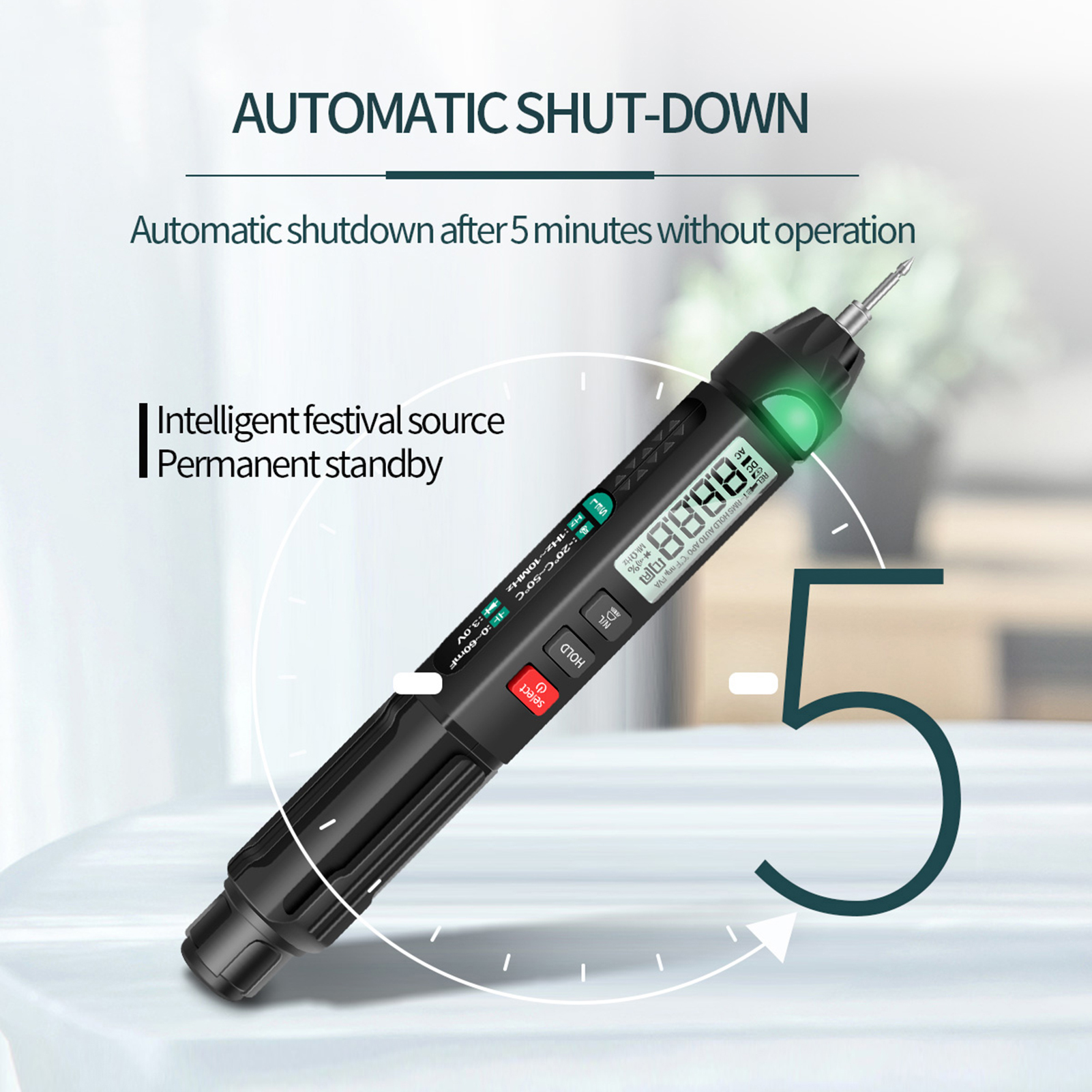

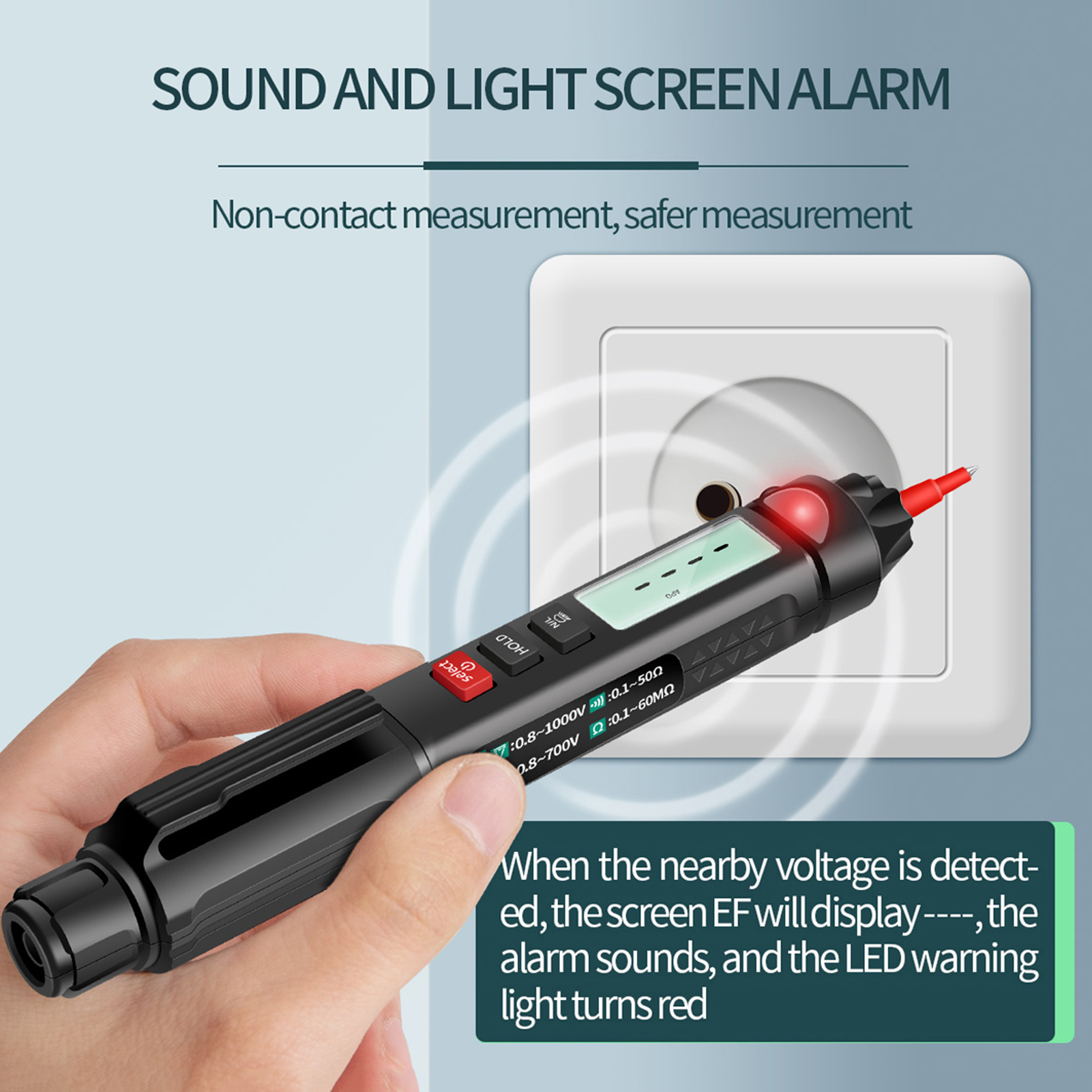

A3007/A3008 is a pocket type 3 5/6 digits pen-type smart multimeter, with true RMS. It will automatically identify DC voltage/AC voltage/resistance and measure, with no need to turn the dial to switch. Also, it features with stable performance, high precision, auto-off after 5min non-operation for energy saving, capacitance/diode/more test, overload protection, continuity test, non-contact voltage measurement(NCV), zero live line measurement, etc. A perfect tool for professional, factory, school, enthusiast or family use.


Features:

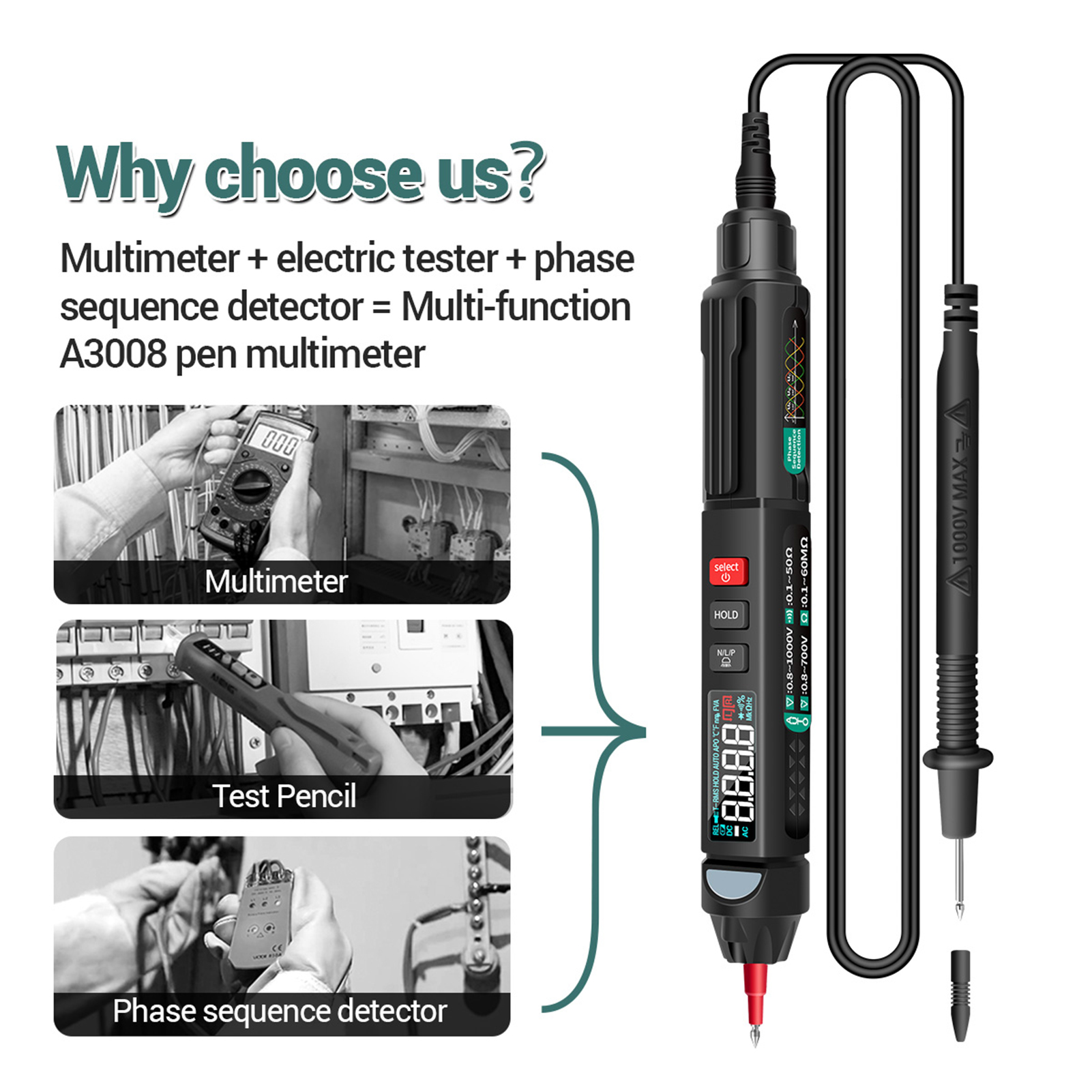

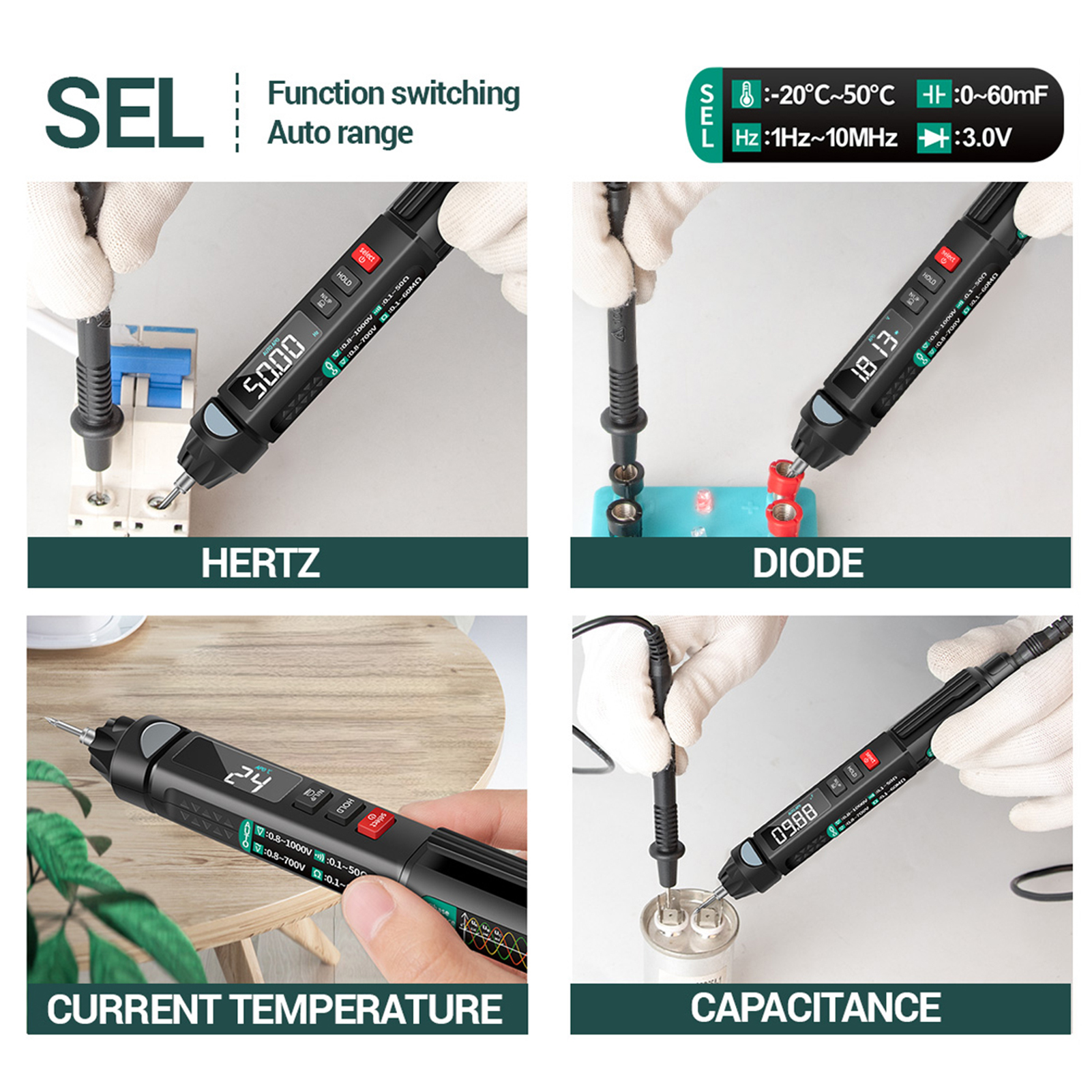

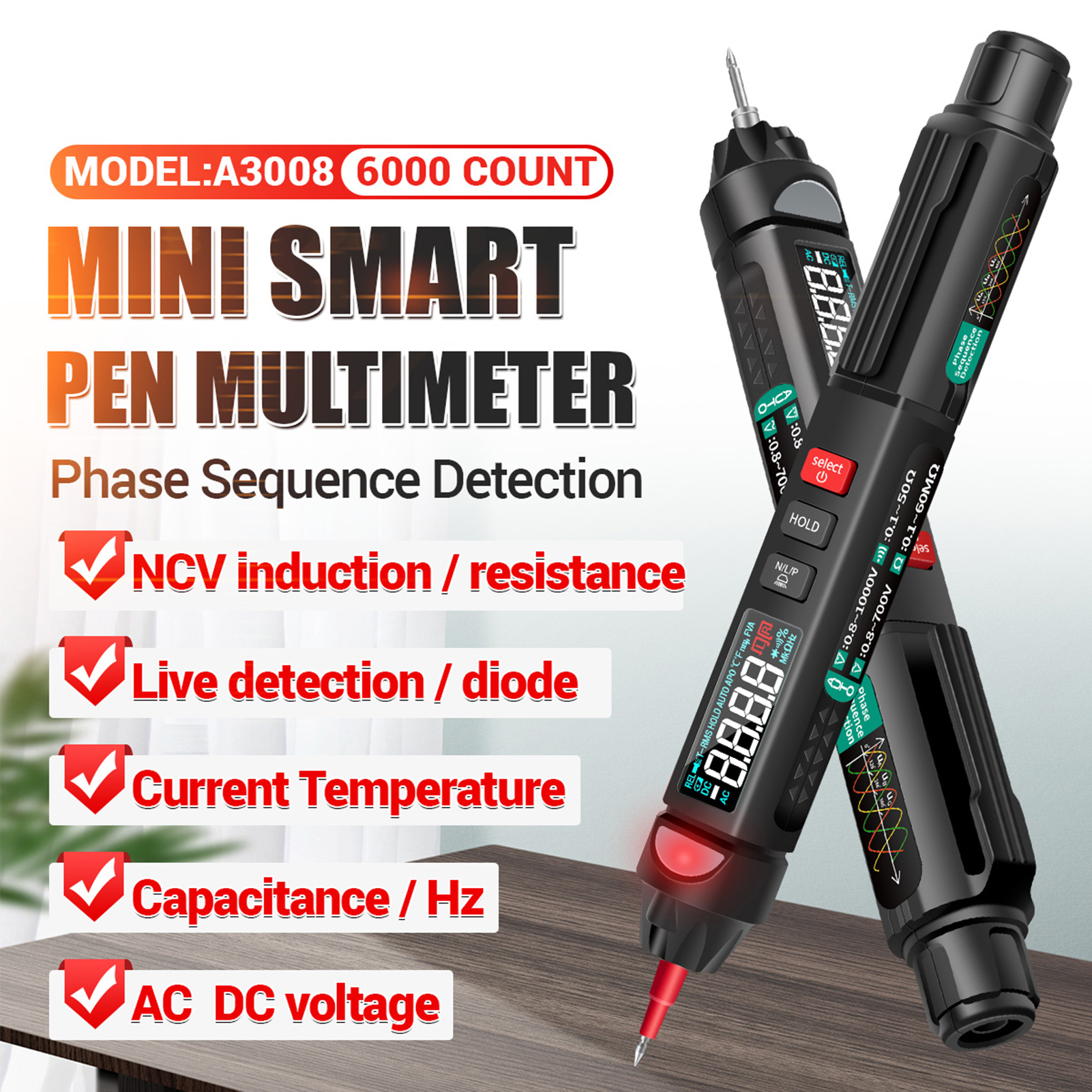

Multi-function pen multimeter: voltage/resistance/capacitance/diode/frequency/temperature, continuity, neutral line

and non-contact phase sequences detection.

Fast responses and high precision: ANENG A3007, 6000 counts digital pen type multimeter, has a sampling speed of 3 times per second and high precision measurement.

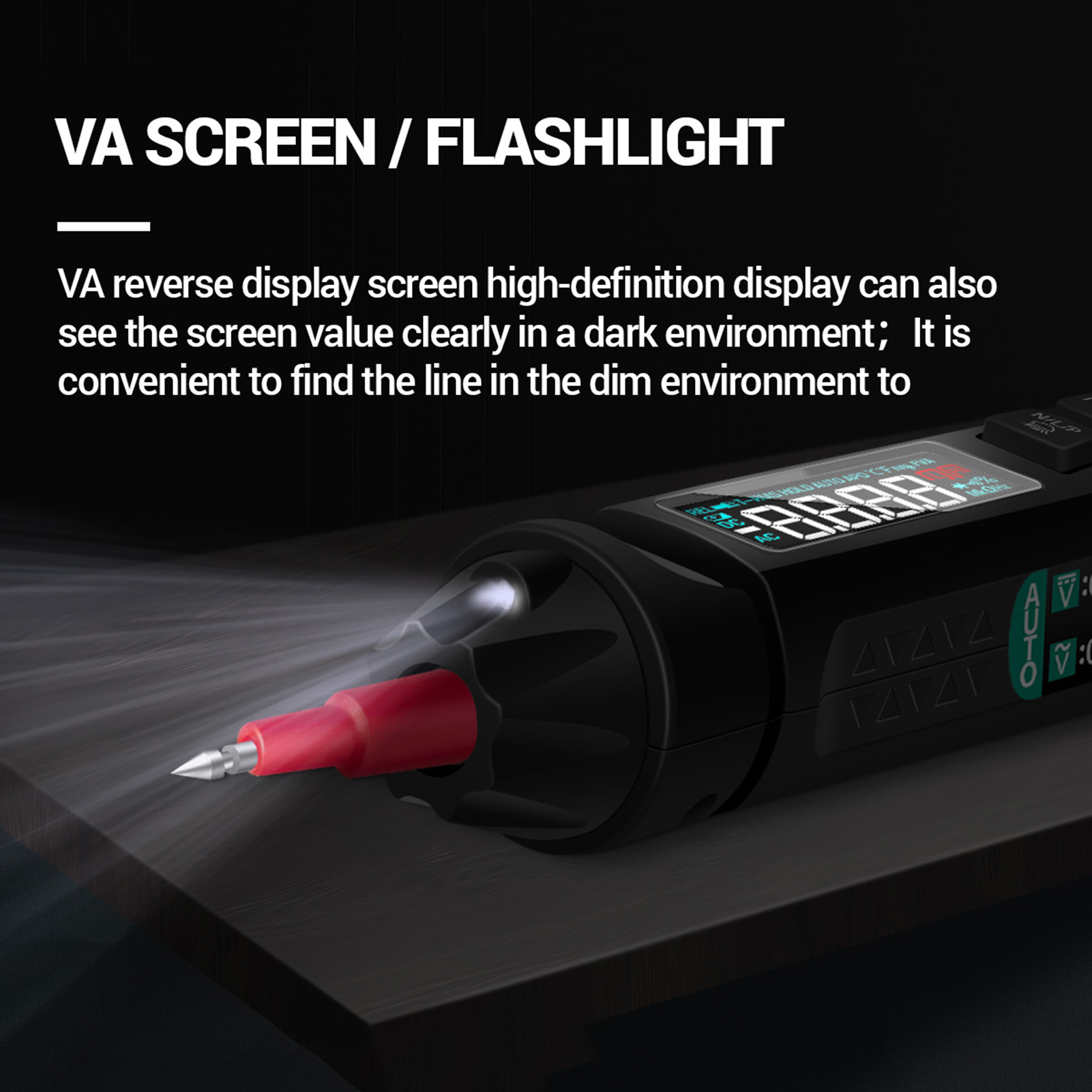

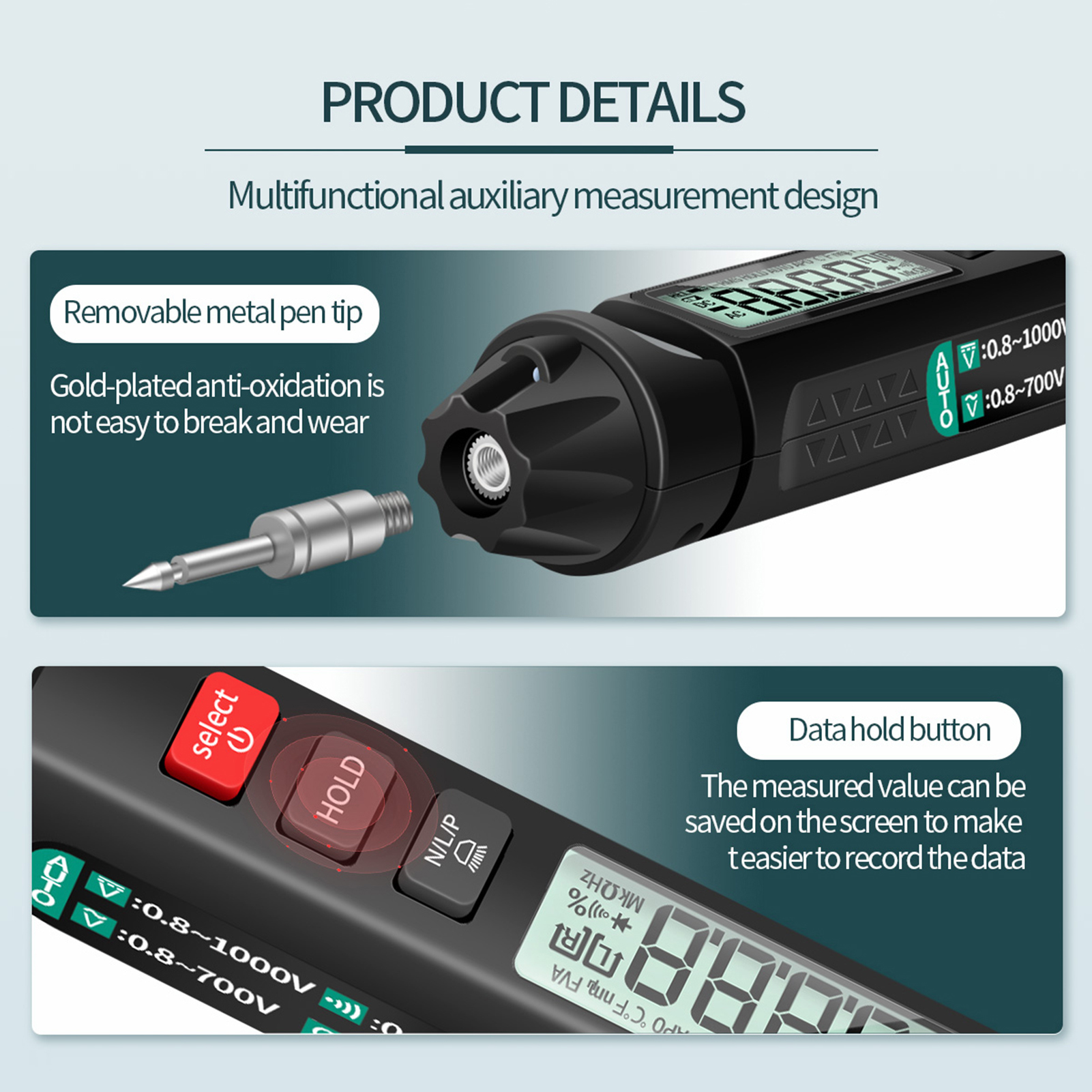

Easy operation: It has LCD clear screen, easy to read the measured values, flashlight available for darkness, data retention function convenient to query data, alarm beep when in use.

Durable materials and portable size: The meter, made from selected electronic components and sturdy plastic housing, is designed with light weight and easy-to-carry pocket size, comfort to grip.

Wide range of applications: The digital multimeter--a handy instrument and assistant, for testing, diagnosing and solving a variety of automotive and daily household electrical problems safely and accurately.

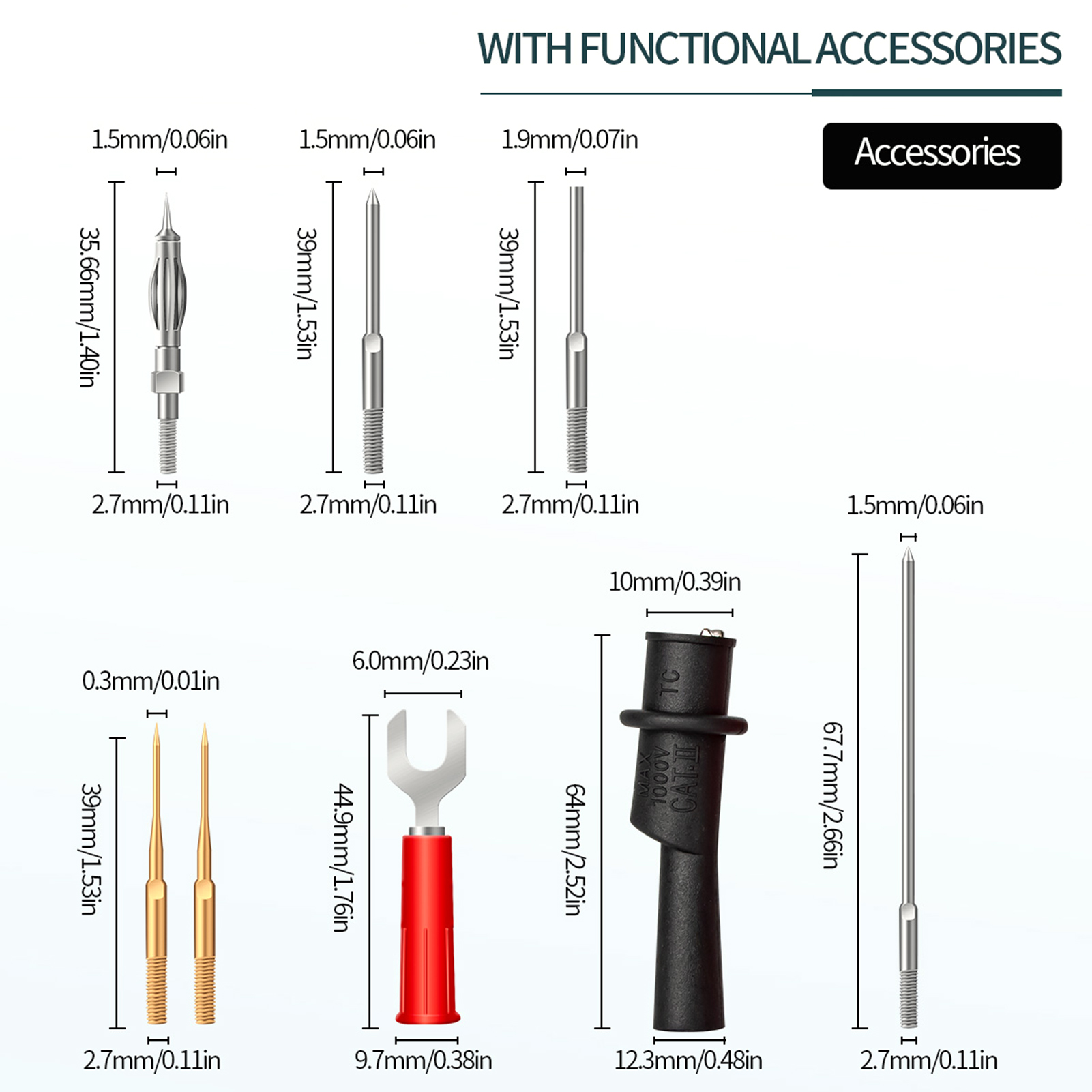

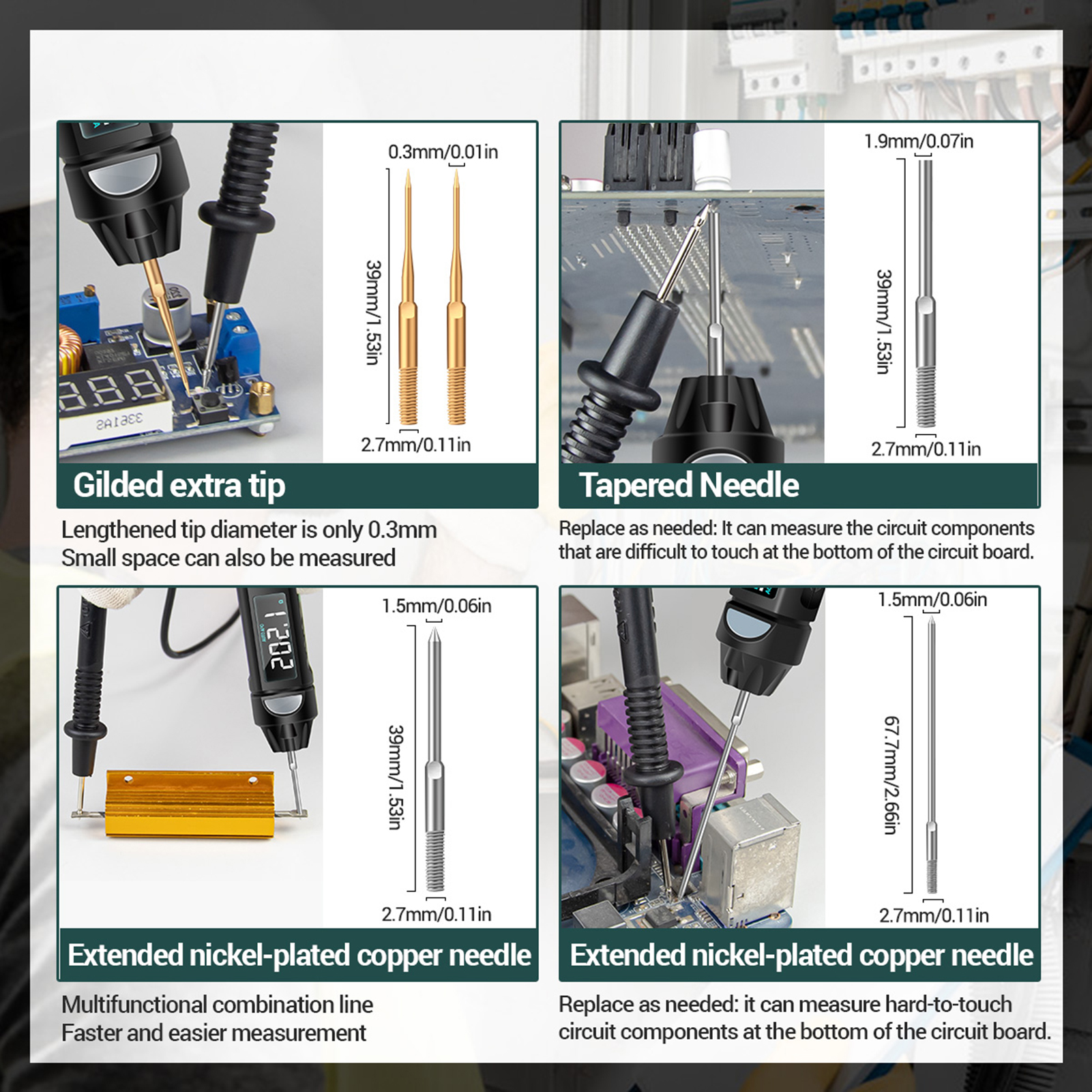

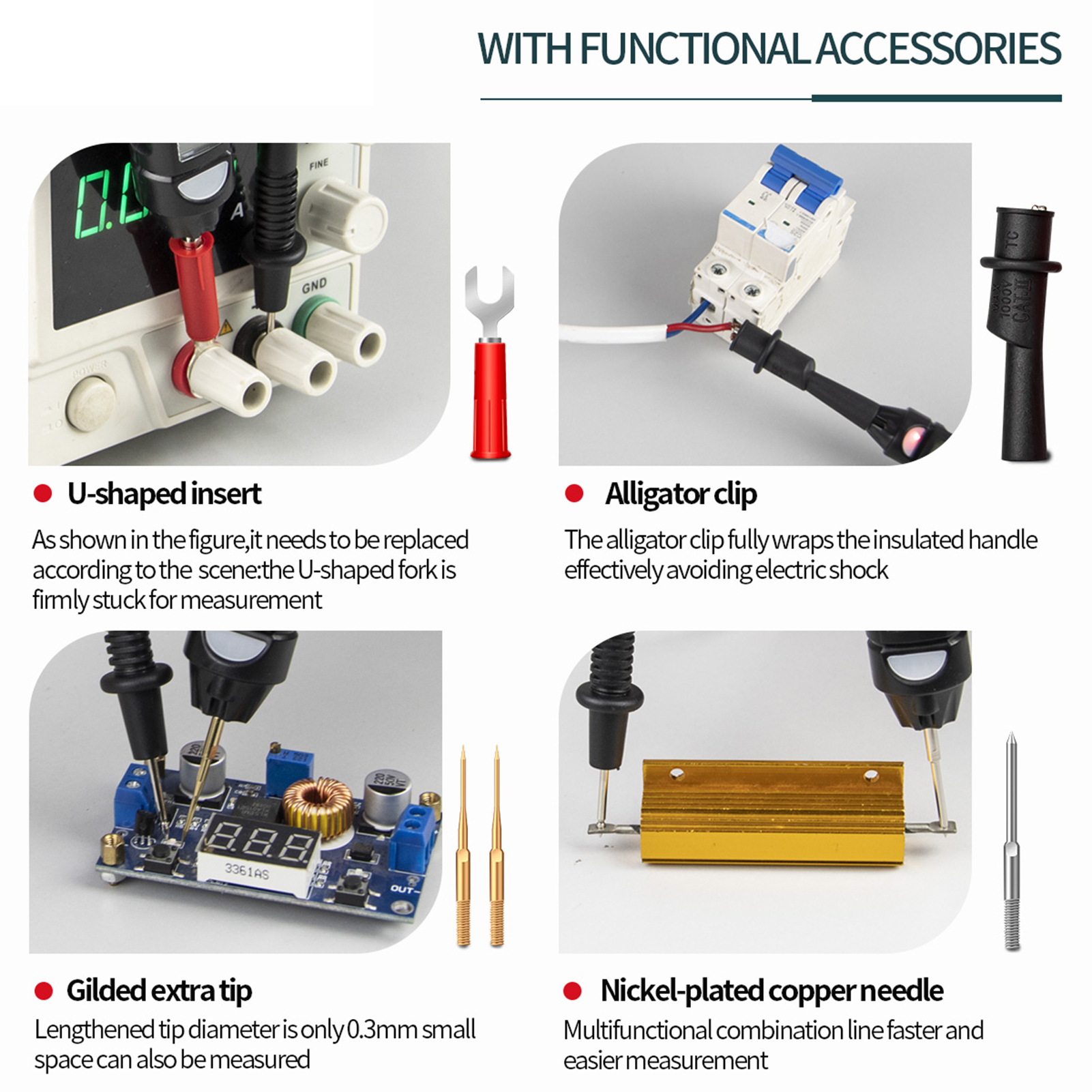

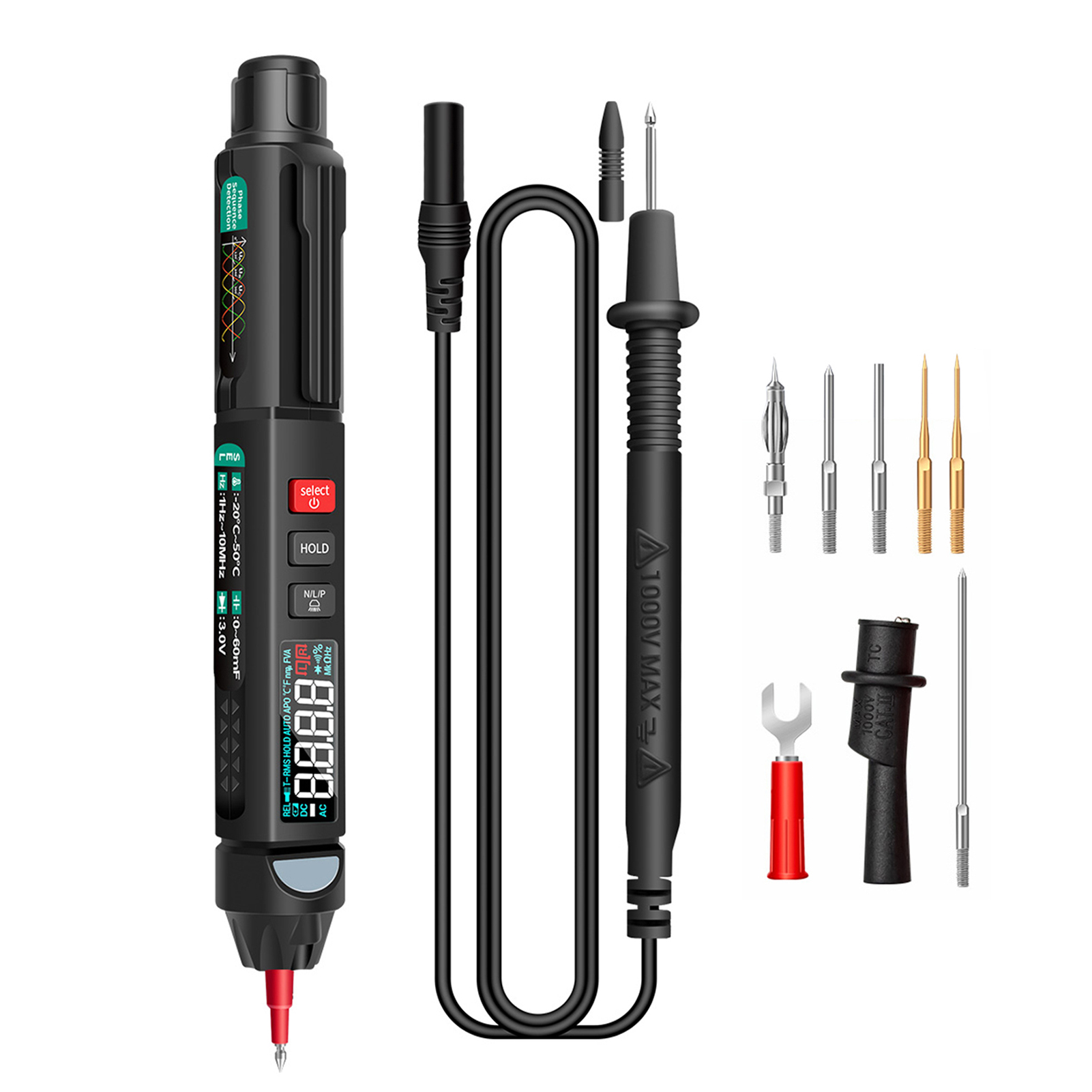

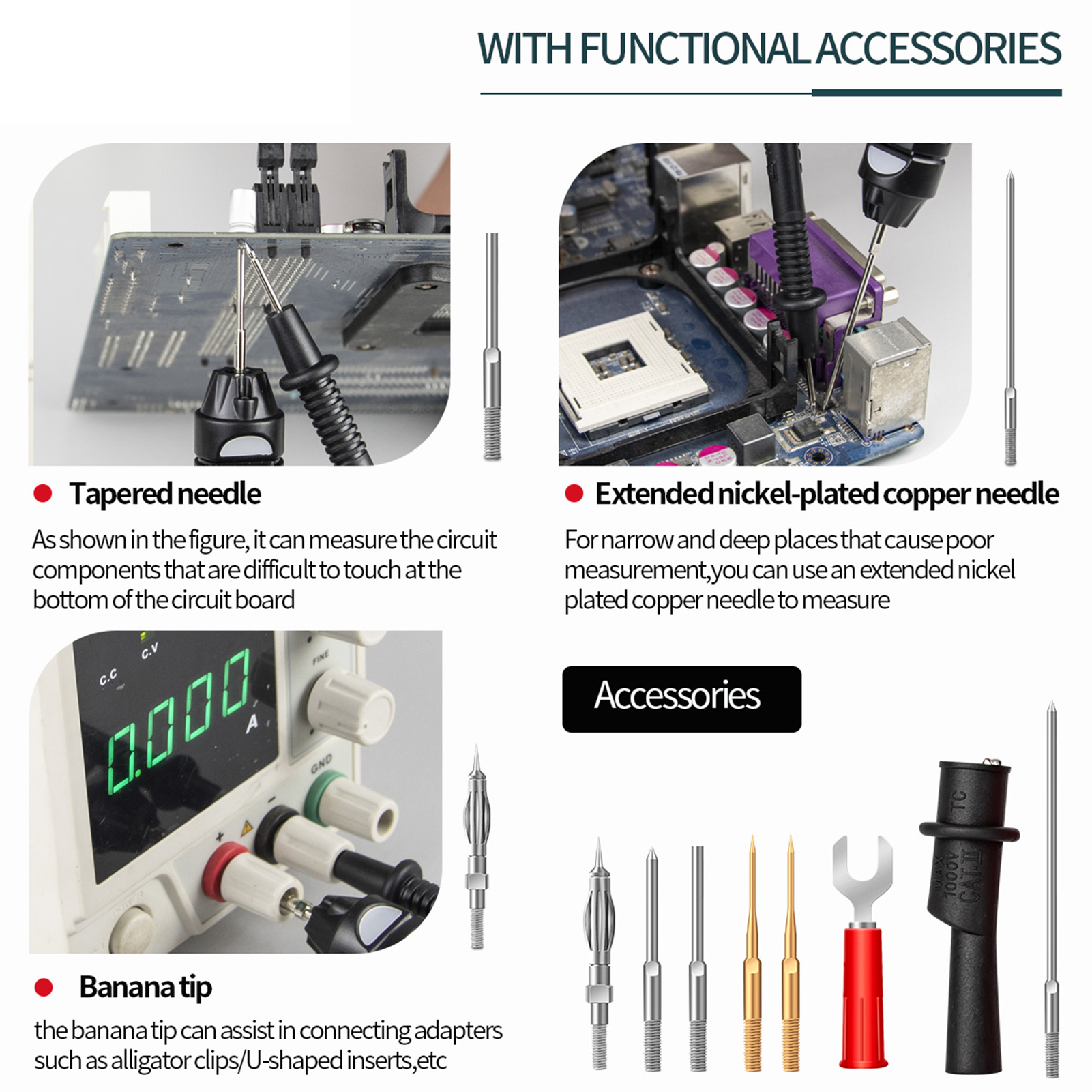

Variety of accessories: 1 × U-shaped insert, 1 × alligator clip, 2 × extra tip, 1 × nickel-plated copper needle, 1 × tapered needle, 1 × extended nickel-plated copper needle, 1 × banana tip are included.


Measurement Range & Accuracy:

DC Voltage: DC6V/DC60V/DC600V ±(0.5%+4); DC1000V ±(0.8%+10)

AC Voltage: AC6V/AC60V/AC600V ±(0.5%+4); AC700V ±(0.8%+10)

Resistance: 600Ω ±(0.8%+5); 6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3); 60MΩ ±(2.5%+3)

Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF ±(3.5%+20); 60mF ±(5%+3)

Temperature: -20~50℃,±(1.0%+5)<50℃; 0~122℉,±(0.75%+5)<122℉

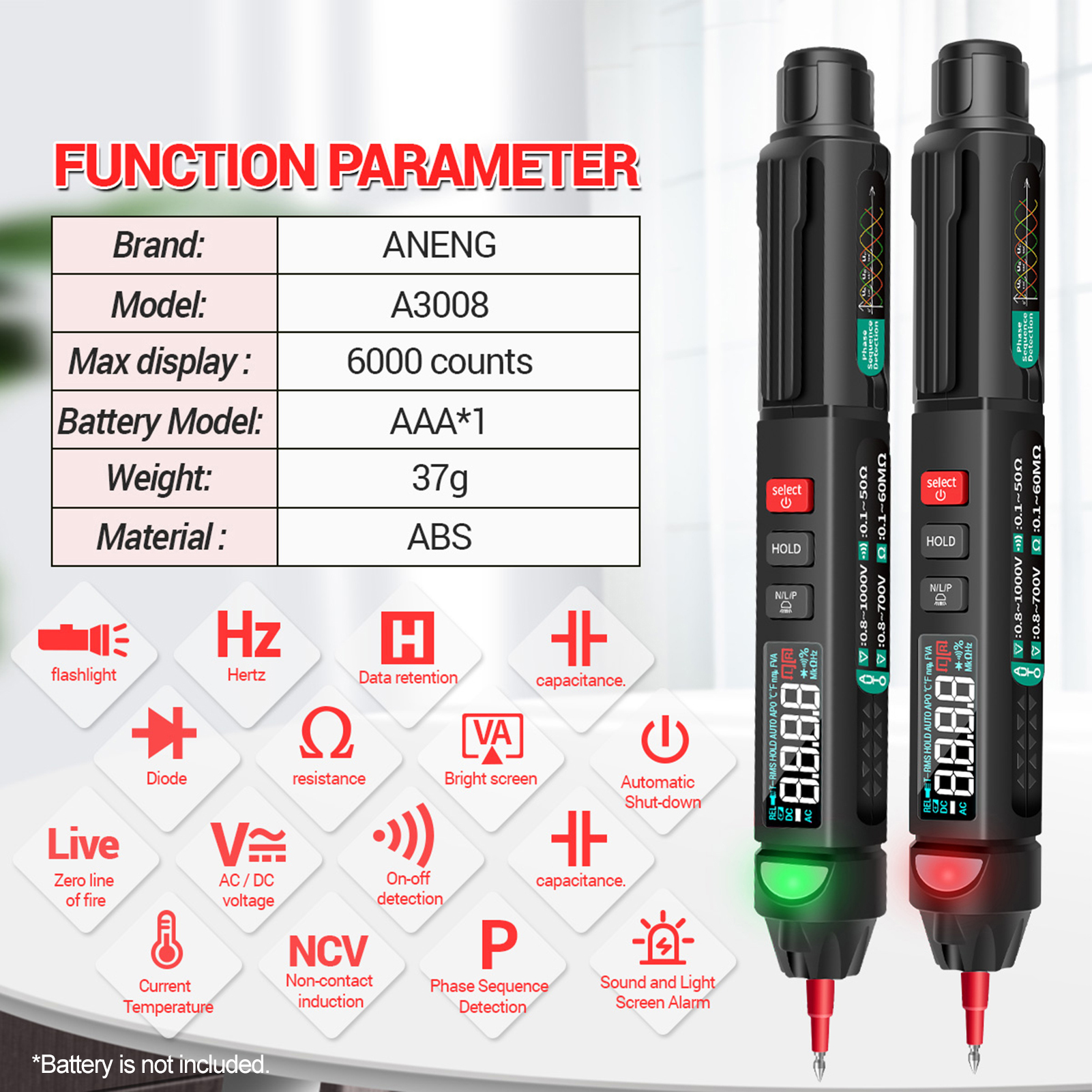

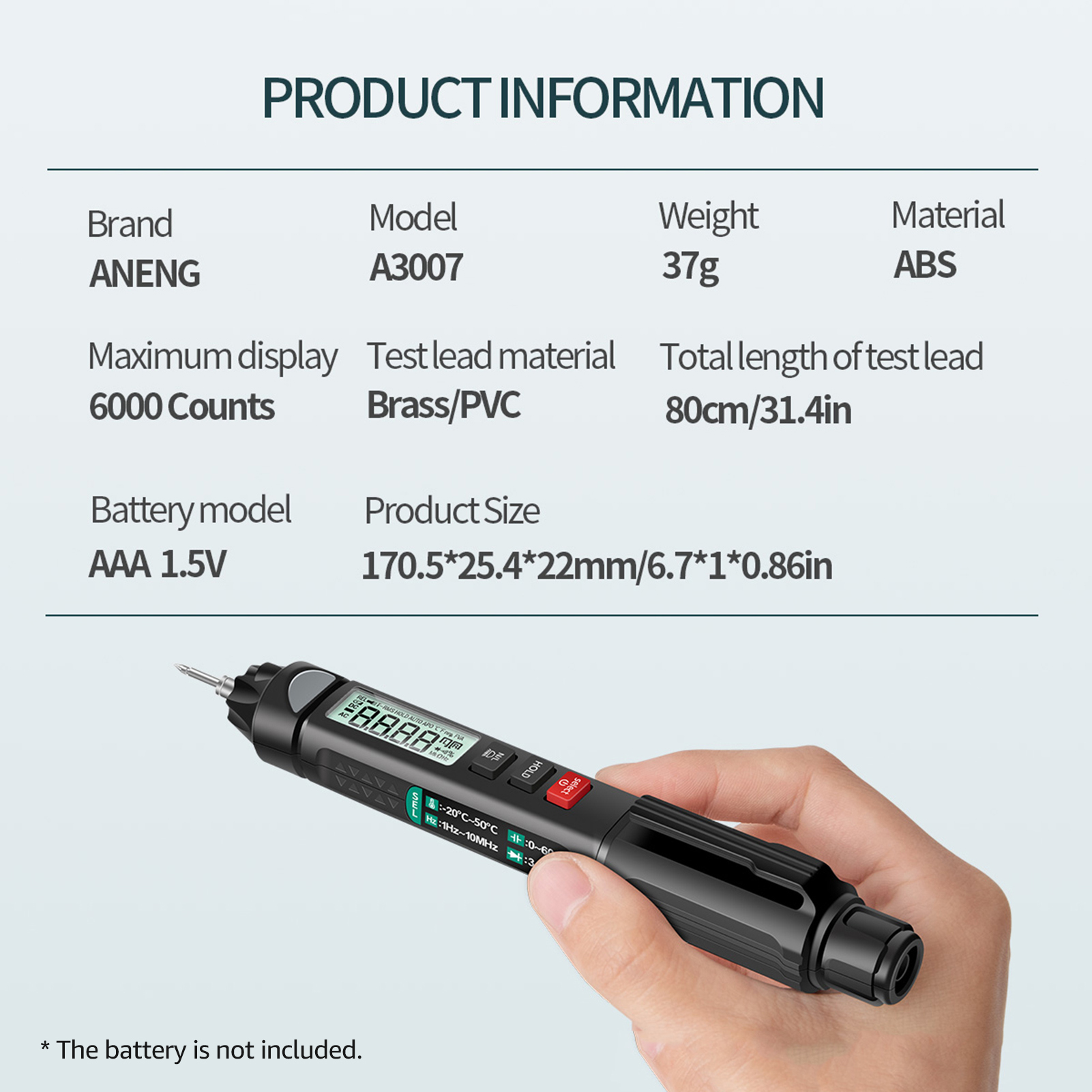

Specification:


Brand: Moonzite

Model: A3007/A3008

Material: ABS

Test Line Material: Brass / PVC

Main Color: Black

Screen: LCD display

Maximum Display: 5999 (3 5/6) automatic polarity display

Measurement Method: Double integral A/D conversion

Sampling Time: About 3 times / second

Over-range Indication: "OL" is displayed on the highest position

DC Voltage Test: Yes

AC Voltage Test: Yes

Resistance Test: Yes

Capacitance Test: Yes

Diode Test: Yes

Continuity Test: Yes

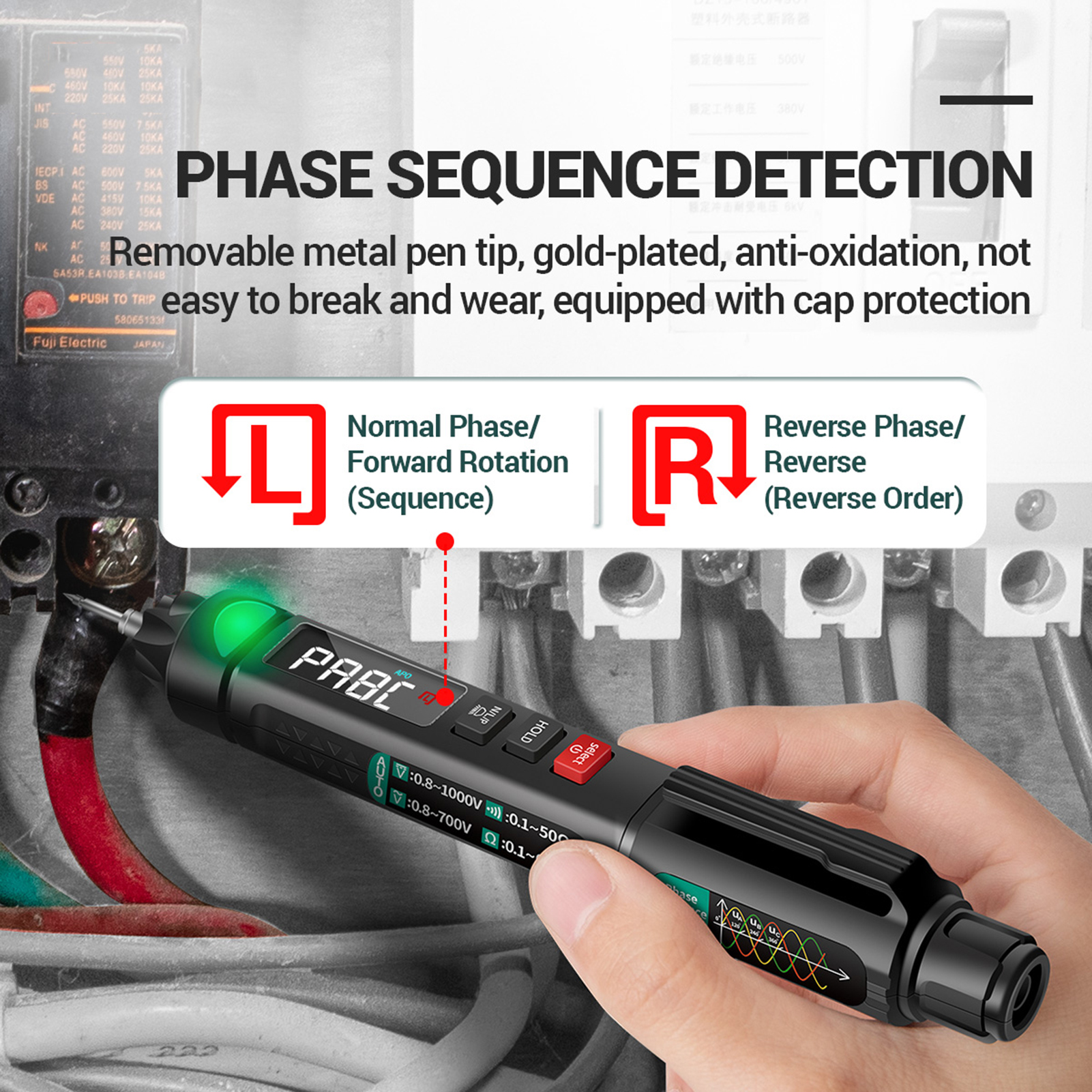

Non-contact Phase Sequences Test: Yes(Only A3008)

Color Screen: Yes

NCV: Yes

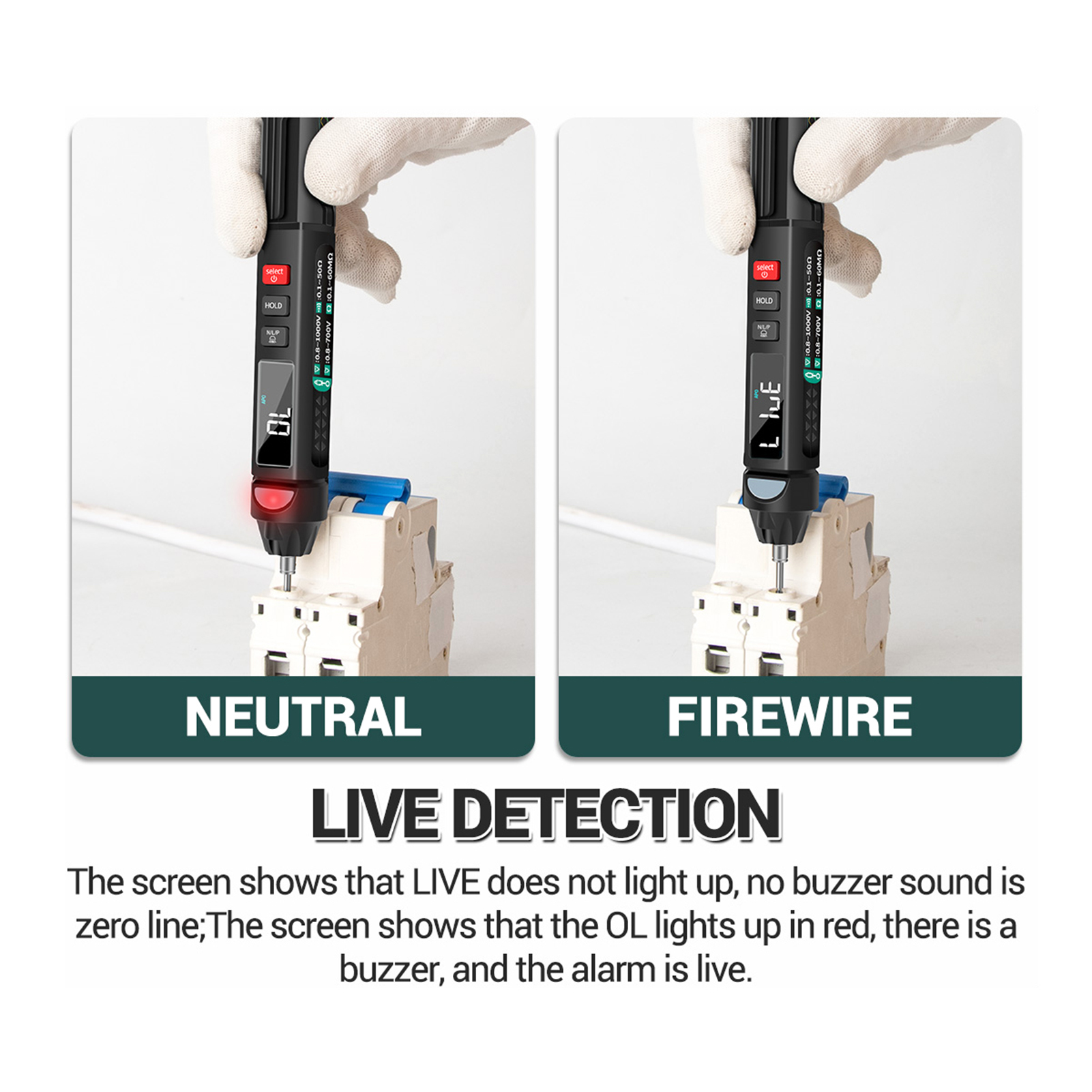

Neutral / Fire Test: Yes

Full Unit Symbol: Yes

Backlight: Yes

Auto Power Off: Yes

True RMS: Yes

Data Hold: Yes

Temperature (℃/℉): Yes

Hz: Yes

Flashlight: Yes

Working Condition: 0~40℃ temperature, <80% relative humidity

Power Supply: 1* 1.5V AAA battery (NOT included)

Test Lead Length: 117.4mm / 4.62in

Product Size: 170.5*25.4*22mm / 6.71*1.0*0.86in

Product Weight: About 50g / 1.76oz

Package Size: 190*80*35mm / 7.48*3.14*1.37in

Package Weight: 170g / 5.99oz

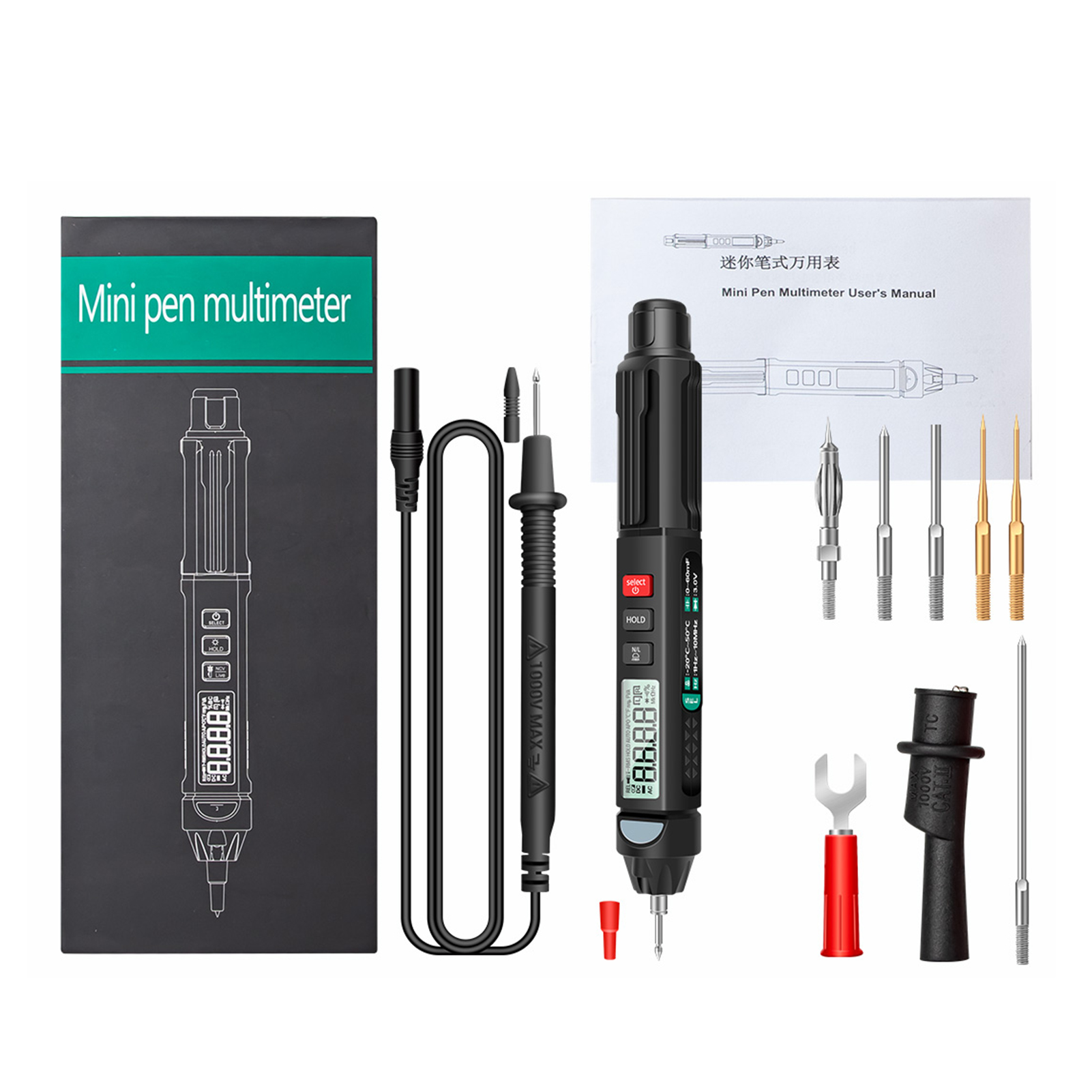

Package Included:

1 * Multimeter (Battery not included)
1 * Test Lead
1 * User Manual
1 * U-shaped Insert
1 * Alligator Clip
2 * Extra Tip
1 * Nickel-plated Copper Needle
1 * Tapered Needle
1 * Extended Nickel-plated Copper Needle
1 * Banana Tip
