5/6/8mm R0.5 Nano Blue Coating Carbide End Mill HRC60 4 Flute CNC Milling Cutter
5/6/8mm R0.5 Nano Blue Coating Carbide End Mill HRC60 4 Flute CNC Milling Cutter
$11.99
Ex Tax: $11.99
- Stock: In Stock
- Model: MZ005445
- SKU: MZ005445
Description:

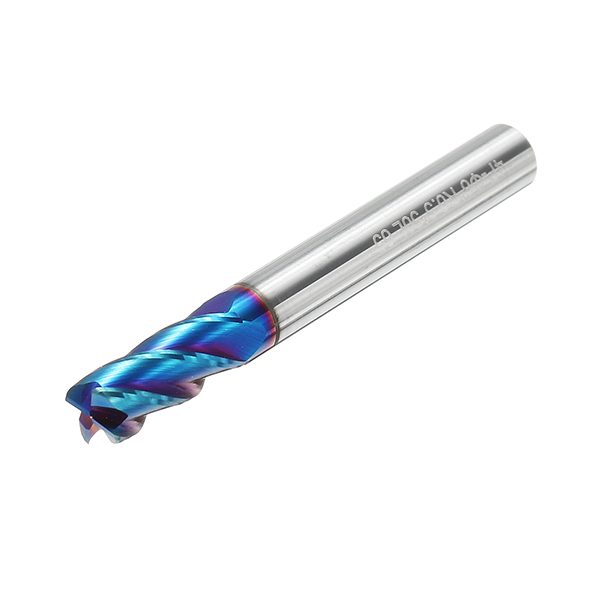

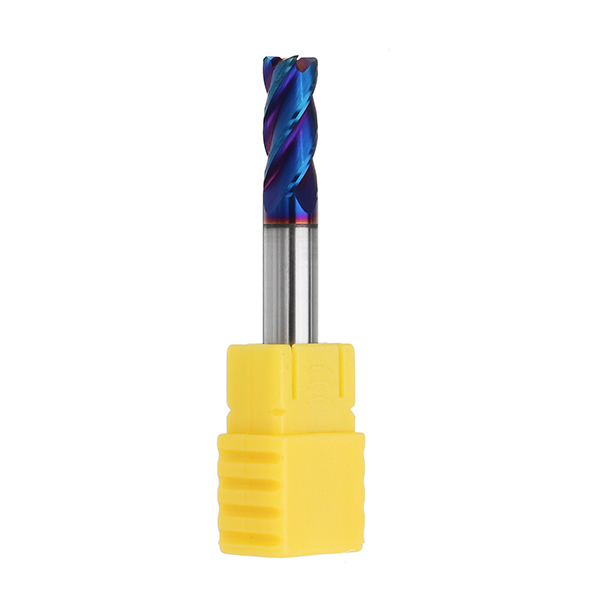

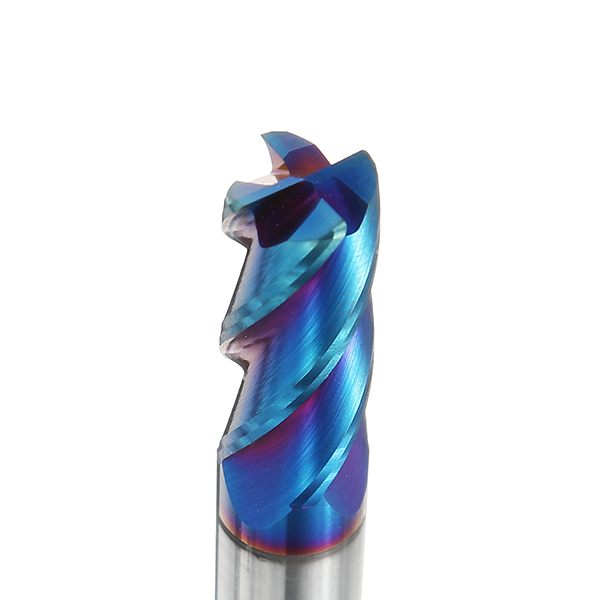

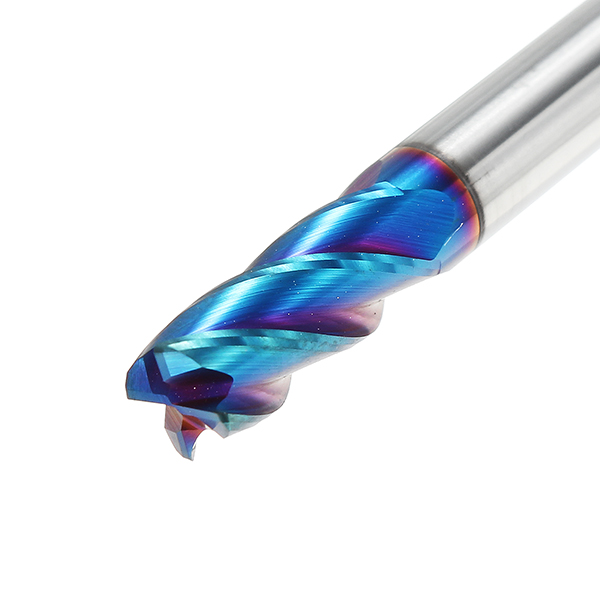

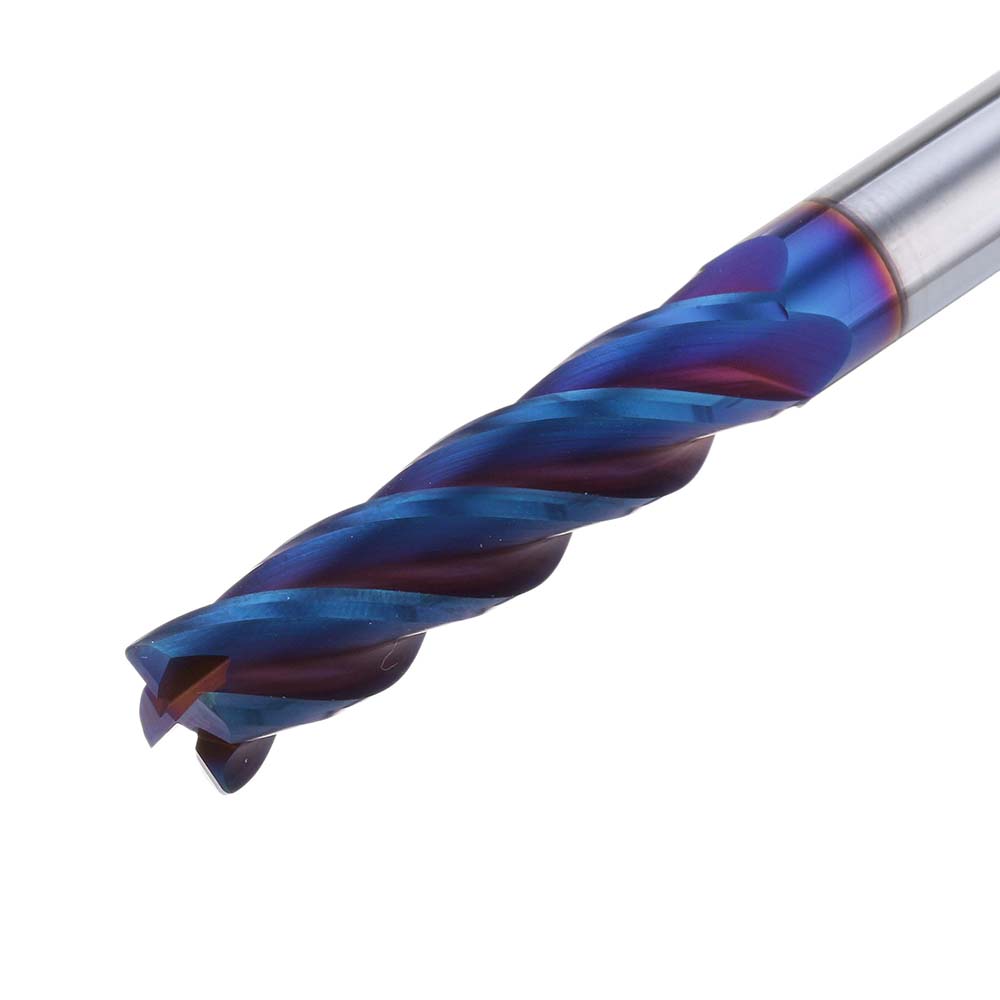

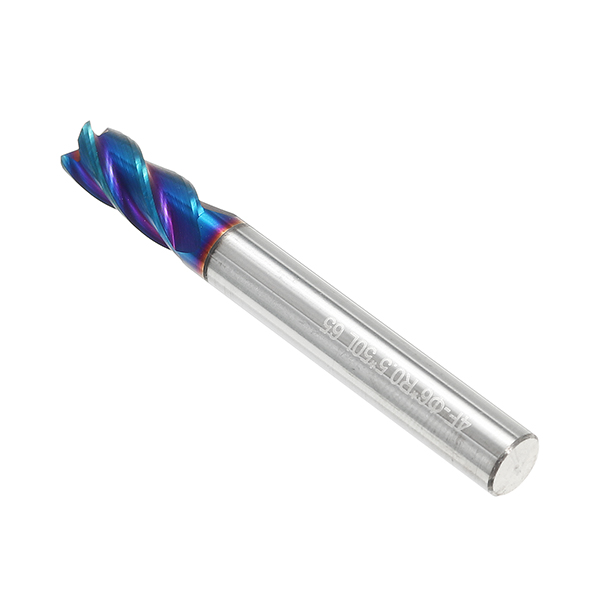

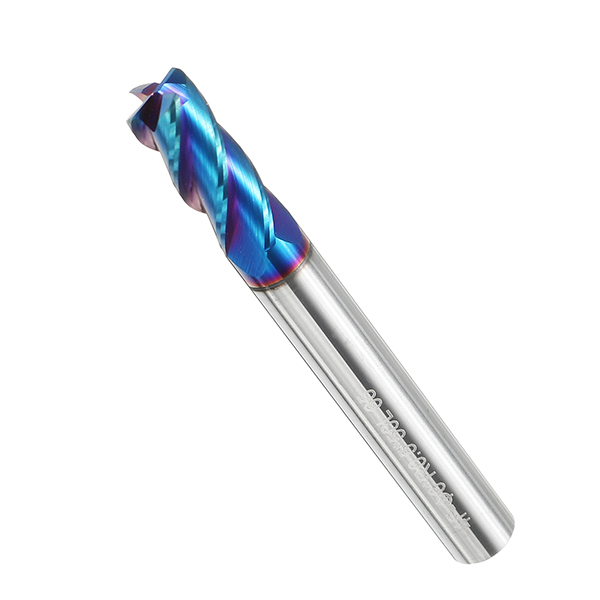

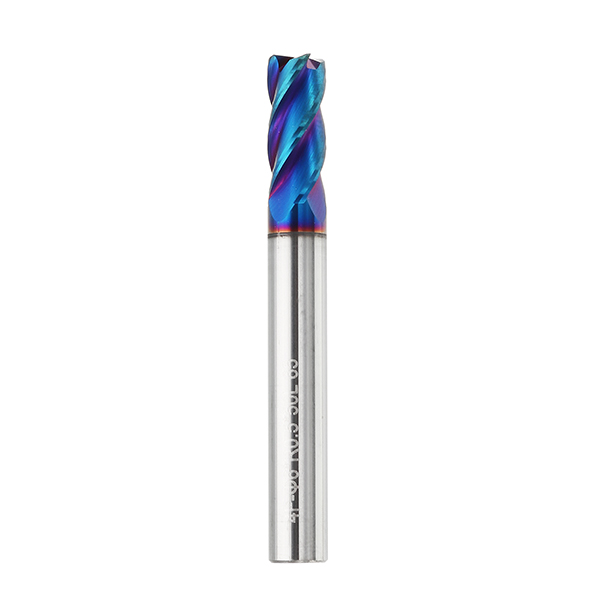

Moonzite 5/6/8mm HRC60 Round Nose Milling Cutter R0.5 4 Flutes Tungsten Carbide NACO Blue Coated End Mill CNC Tool
Specification:
Material: Carbide (tungsten steel)
Coating: NACO-blue Coated
Flute: 4 Flutes
Head Type: Round Nose
Head Type: Round Nose
Highest cutting hardness: HRC60
| Size | Type | Size of Round Nose | Diameter of Head (mm) | Diameter of Shank (mm) | Blade Length (mm) | Total Length (mm) |
| #1 | Φ5*R0.5*5D*50L | R0.5 | 5 | 5 | 10 | 50 |
| #2 | Φ5*R1*5D*50L | R1 | 5 | 5 | 10 | 50 |
| #3 | Φ6*R0.5*6D*50L | R0.5 | 6 | 6 | 15 | 50 |
| #4 | Φ6*R1*6D*50L | R1 | 6 | 6 | 15 | 50 |
| #5 | Φ8*R0.5*8D*60L | R0.5 | 8 | 8 | 20 | 60 |
| #6 | Φ8*R1*8D*60L | R1 | 8 | 8 | 20 | 60 |
Quantity: 1pc
Features:
- Highest harness could reach HRC60 for general steel, alloy steel, mold steel.
- Fit for milling from roughing to finishing one time(≤HRC60), reduce tool changing times.
- Fit for milling from roughing to finishing one time(≤HRC60), reduce tool changing times.
- Chamfer design, easy to install, reduce vibration.
- Round nose design, negative angle design, higher precision.
- Round nose design, negative angle design, higher precision.
- Passivation treatment improves accuracy and surface roughness.
Package Included:
1pc x 4 Flutes End Mill Cutter
Notice:
1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
