8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter

8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter
$16.99
Ex Tax: $16.99
  • Stock: In Stock
  • Model: MZ000786
  • SKU: MZ000786
  • UPC: 681877472147

Available Options

Description:

8mm Shank Multi-tooth V Joint Router Bit for Wood Tenon Cone Slotting Cutter Wave Splicing Cutter


Specifications:

Product NameRouter Bit
MaterialCarbide, Carbon Steel
Size(Optional)

#1: 8x24mm

#2: 8x30mm

#3: 8x41mm

#4: 8x55mm

Shank Diameter8mm
Applicable Machines
Trimming machine, engraving machine, router, electric milling machine
Uses
Suitable for wood products such as density board, medium fiber board, particle board, wood, etc.
Diameter
15.9mm
Quantity1 Pc × Router Bit


SizeTypeBearing DiameterCutting Tooth DepthCutting Length
Cutting Tooth Width
Cutting Tooth Length
Shank DiameterTotal Length

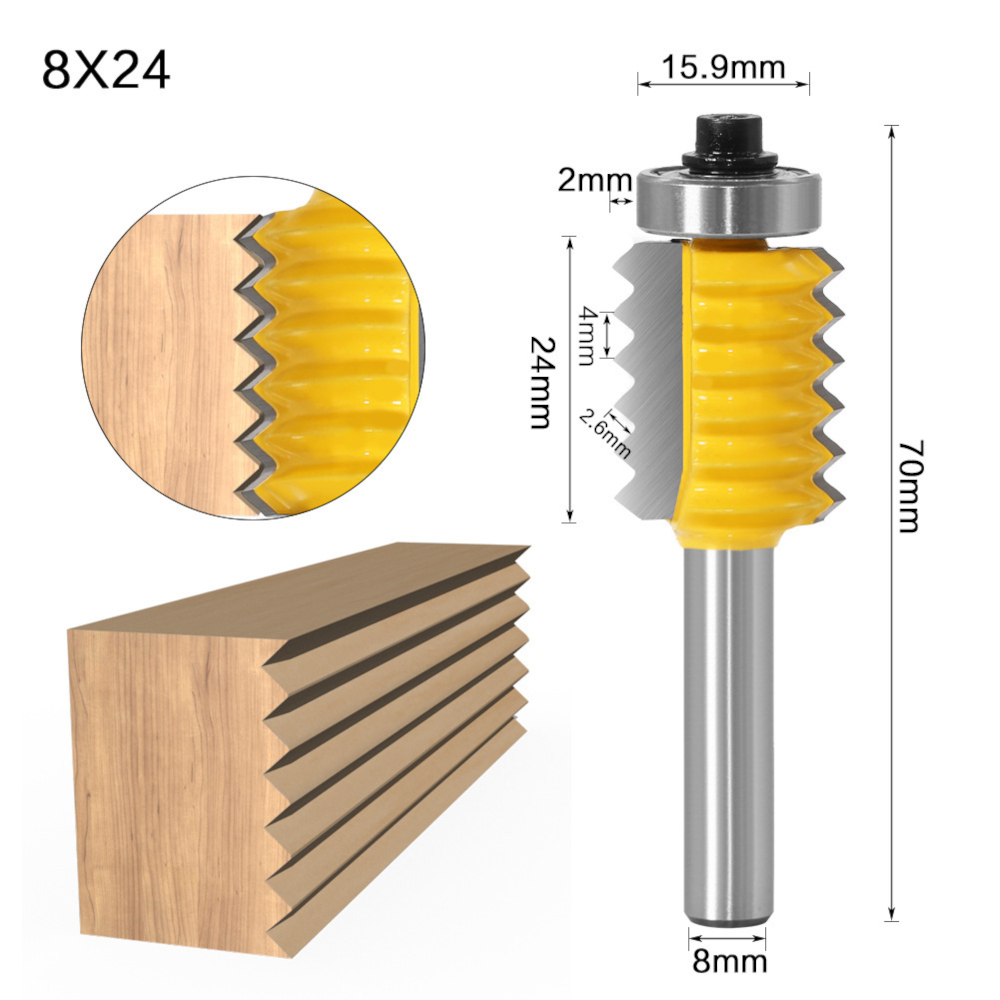

#18x24mm
15.9mm2mm24mm4mm2.6mm8mm70mm

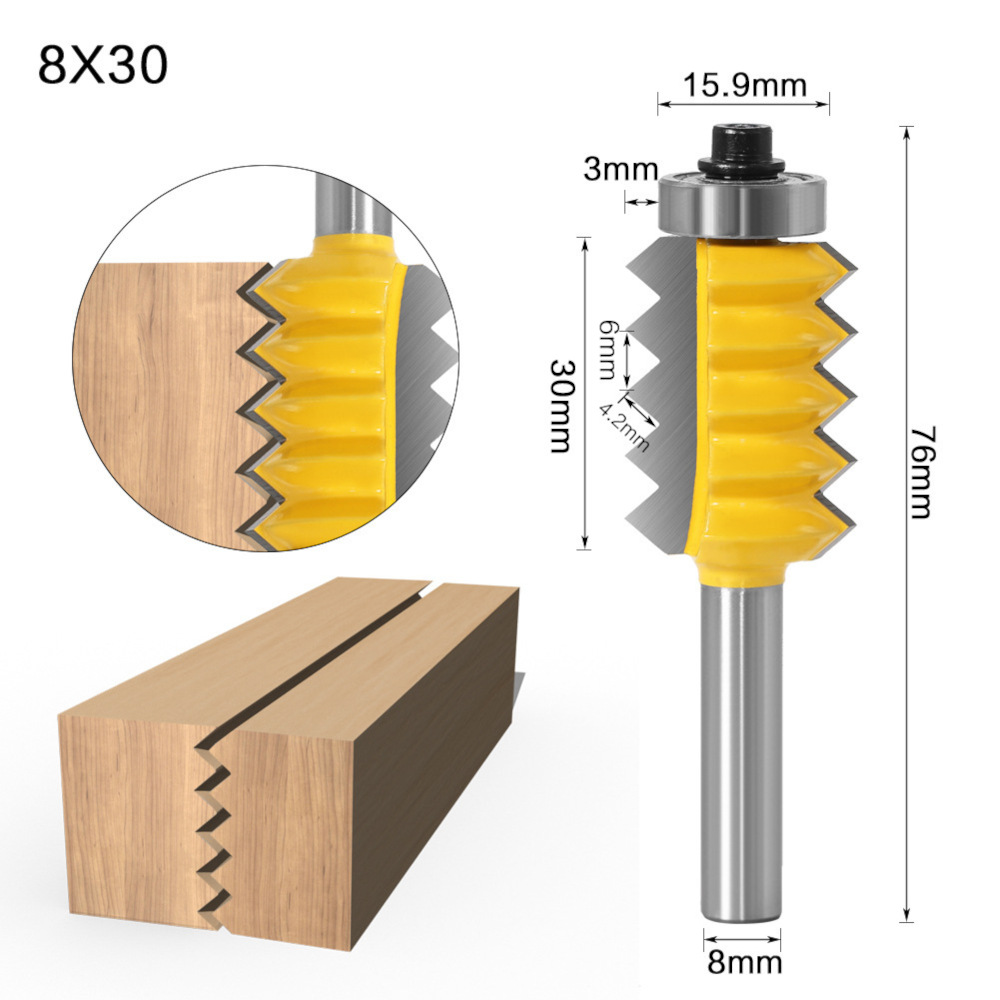

#28x30mm
15.9mm3mm30mm6mm4.2mm8mm
76mm

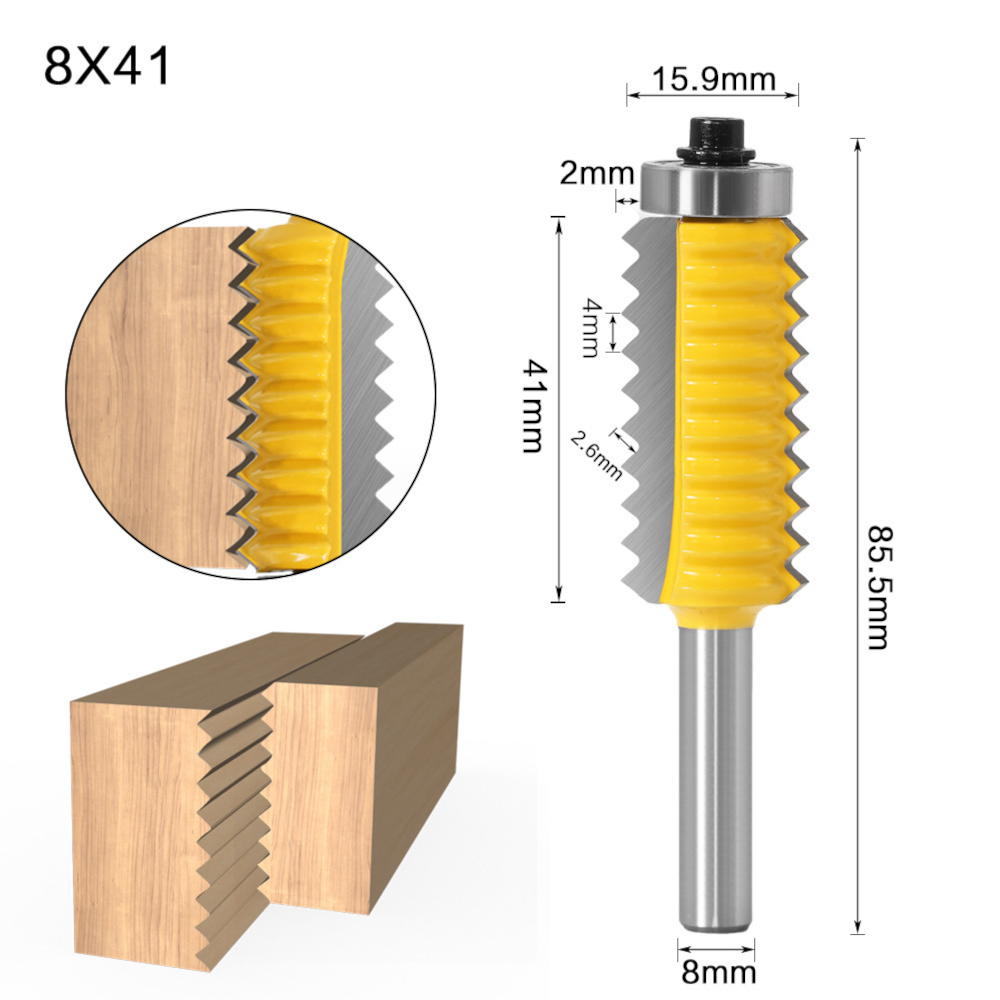

#38x41mm
15.9mm2mm41mm4mm2.6mm8mm
85.5mm

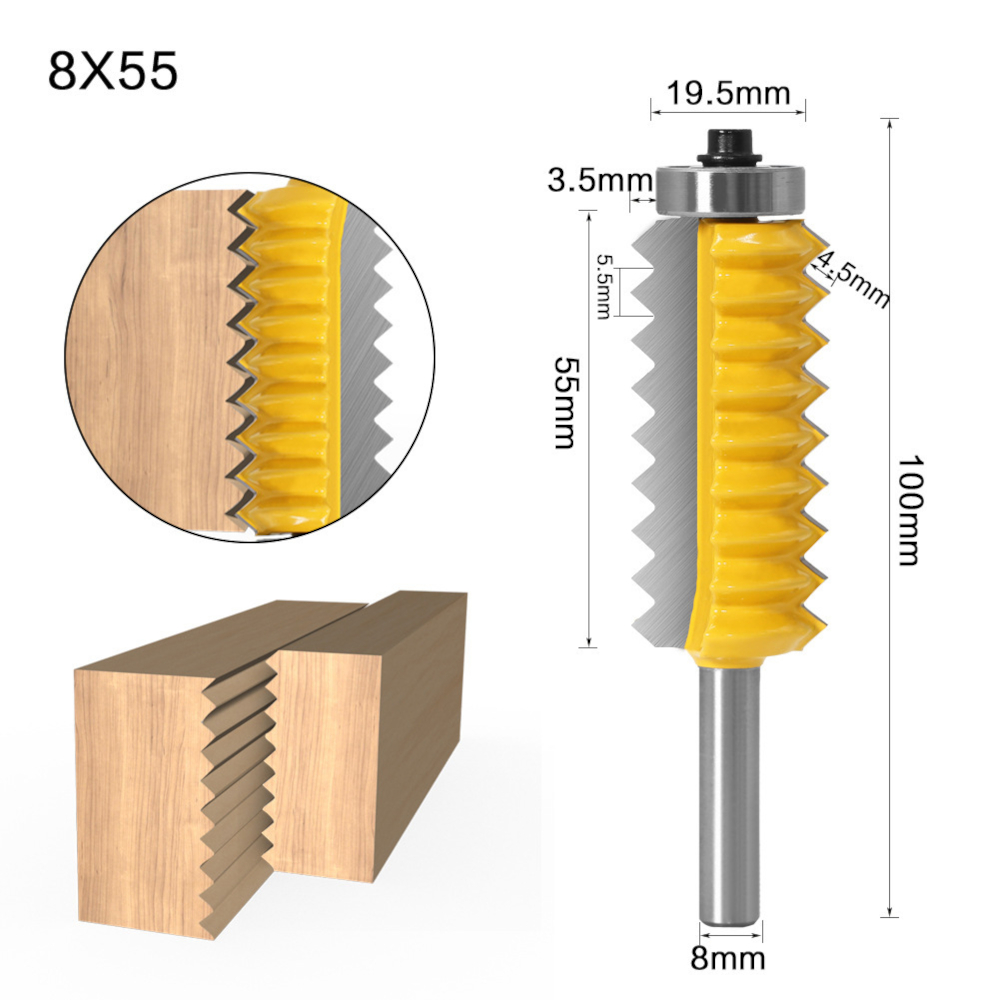

#48x55mm
19.5mm3.5mm55mm5.5mm4.5mm8mm
100mm


Features:

Industrial quality using for hand making a drawer or other woodworking.

- Solid hardened steel bodies with anti recoil design.

- Build-up & heat resistant Teflons coating.

- Hook & Shear Angles: High hook & shear angles allow

- Cutters to slice smoothly into stock producing clean, fragment free.

- Bearing: Totally enclosed & lubricated.


Package Included:

1 Pc ×
Router Bit
