250 Pcs Heat Shrink Butt Terminals Solder Seal Sleeve Wire Connector Waterproof Wire Connector Terminal
250 Pcs Heat Shrink Butt Terminals Solder Seal Sleeve Wire Connector Waterproof Wire Connector Terminal
$35.99
Ex Tax: $35.99
- Stock: In Stock
- Model: MZ001596
- SKU: MZ001596
- UPC: 698587748240
250 Pcs Heat Shrink Butt Terminals Solder Seal Sleeve Wire Connector Waterproof
Specification:
Color: As the pictures shown
Material: PE Shrinkage
Working Temperature:-55℃~125℃

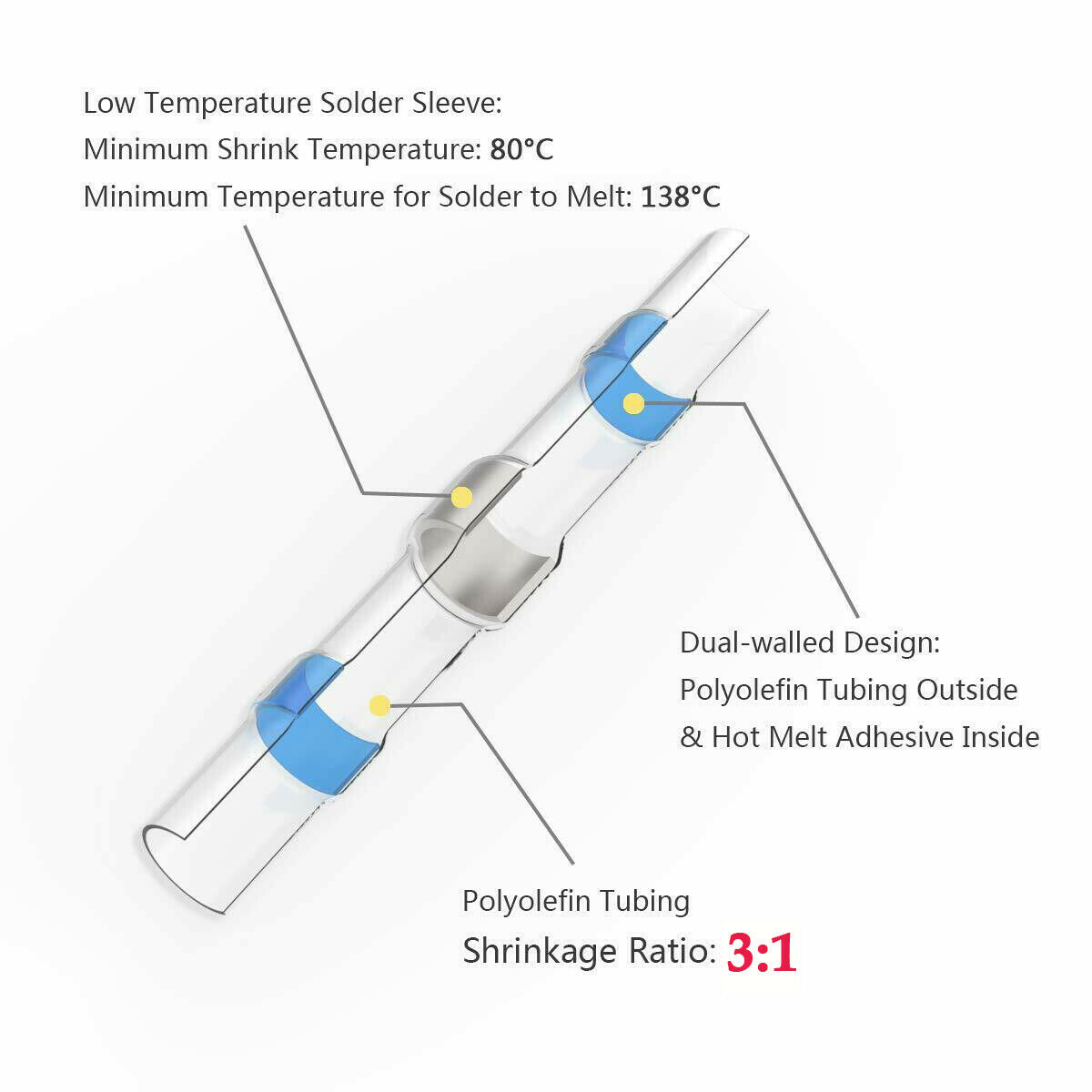

Start Shrinkage Temperature: 80℃
Starting Melting Temperature Of Solder: 138℃
Full Melting Temperature Of Solder: 160℃
Shrinkage Temperature:>160℃
Dielectric Strength: 1 kv
Protection Level: IP67
Box Size(L*W*H): 20.8 x 10.5 x 2.8 cm

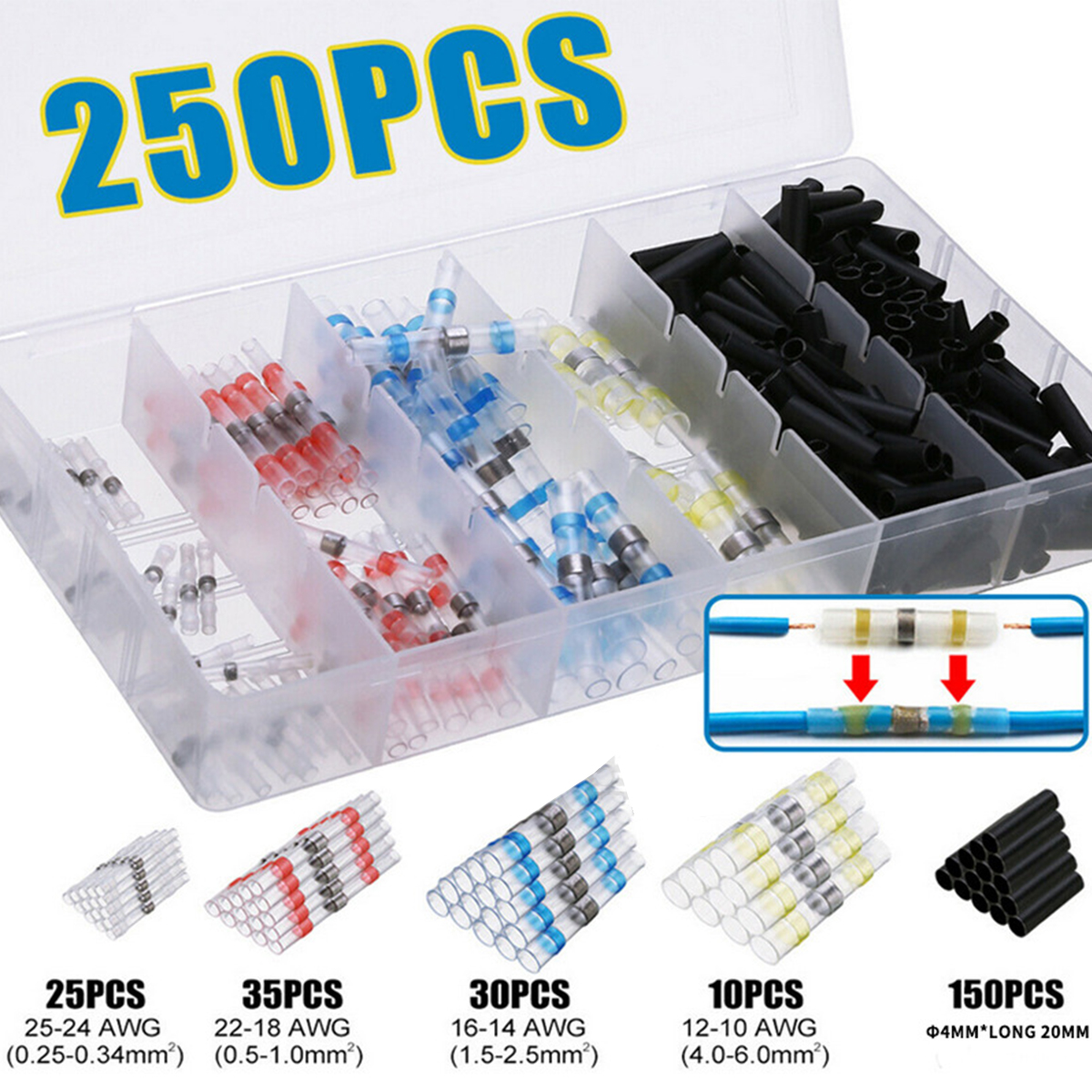

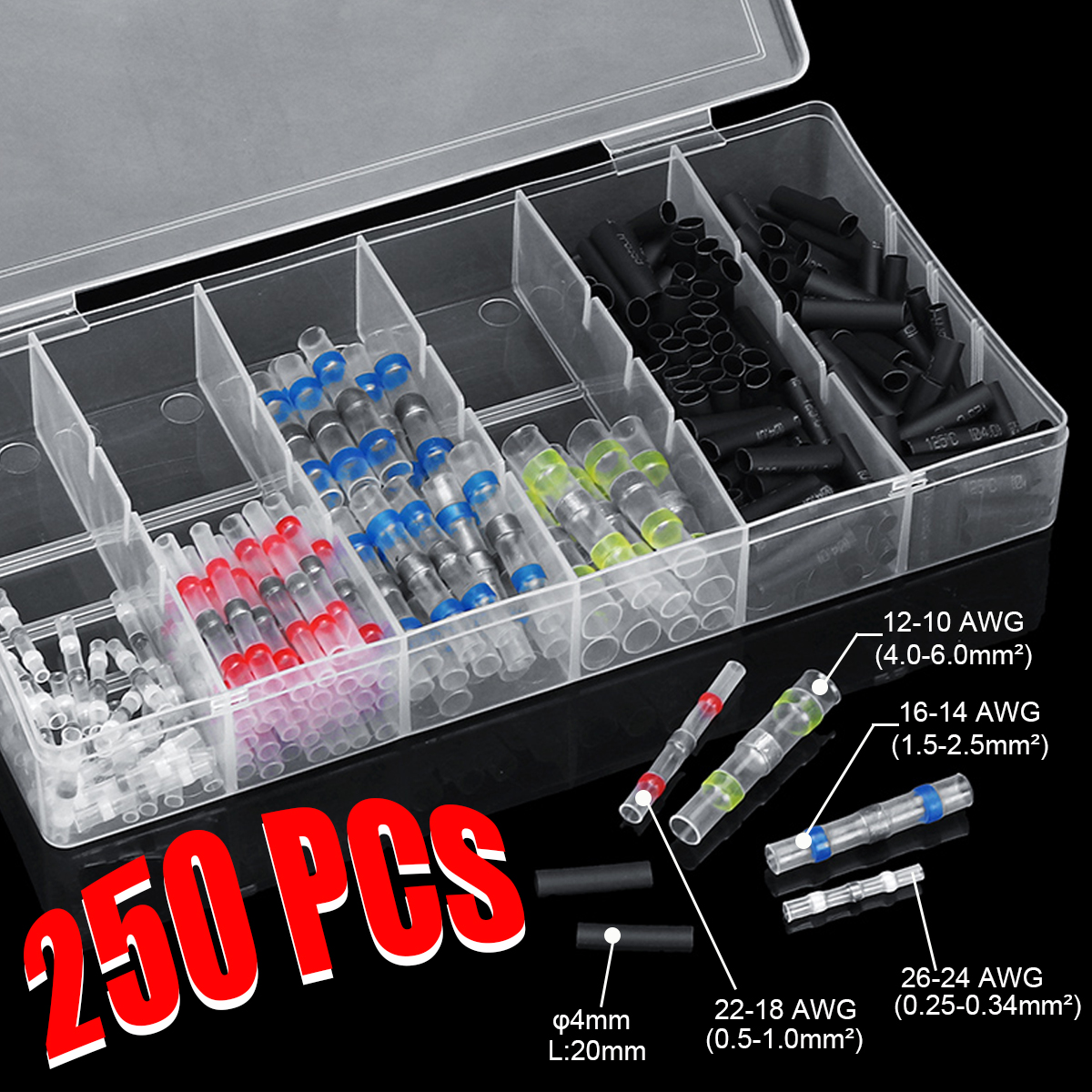

Total Quantity: 250 Pcs

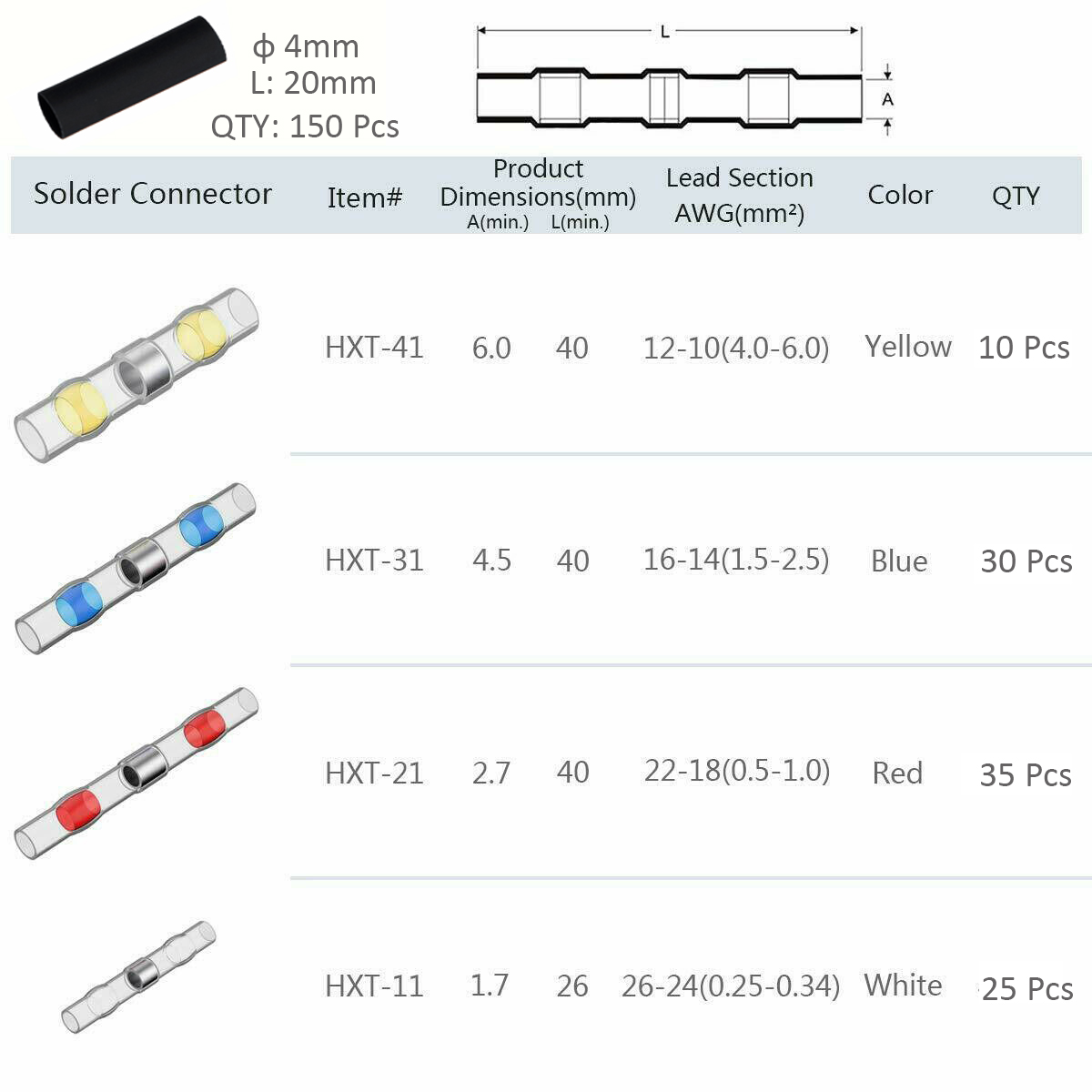

Important Product Parameters:
(1)Yellow Insulated Terminal
Model: YT-ST4Y
Dimensions: 4.0-6.0 mm²
AWG: 12-10 AWG
Quantity: 10 Pcs
(2)Blue Insulated Terminal
Model: YT-ST3B
Dimensions: 1.5-2.5 mm²
AWG: 16-14 AWG
Quantity: 30 Pcs
(3)Red Insulated Terminal
Model: YT-ST2R
Dimensions: 0.5-1.0 mm²
AWG: 22-18 AWG
Quantity: 35 Pcs
(4)White Insulated Terminal
Model: YT-ST1W
Dimensions: 0.25-0.34 mm²
AWG: 26-24 AWG
Quantity: 25 Pcs
(5)Black Tube Sleeve
Diameter: 4 mm
Length: 20 mm
Quantity: 150 Pcs
Features:
Color-coded tubing makes it easy for you to pick up for use.

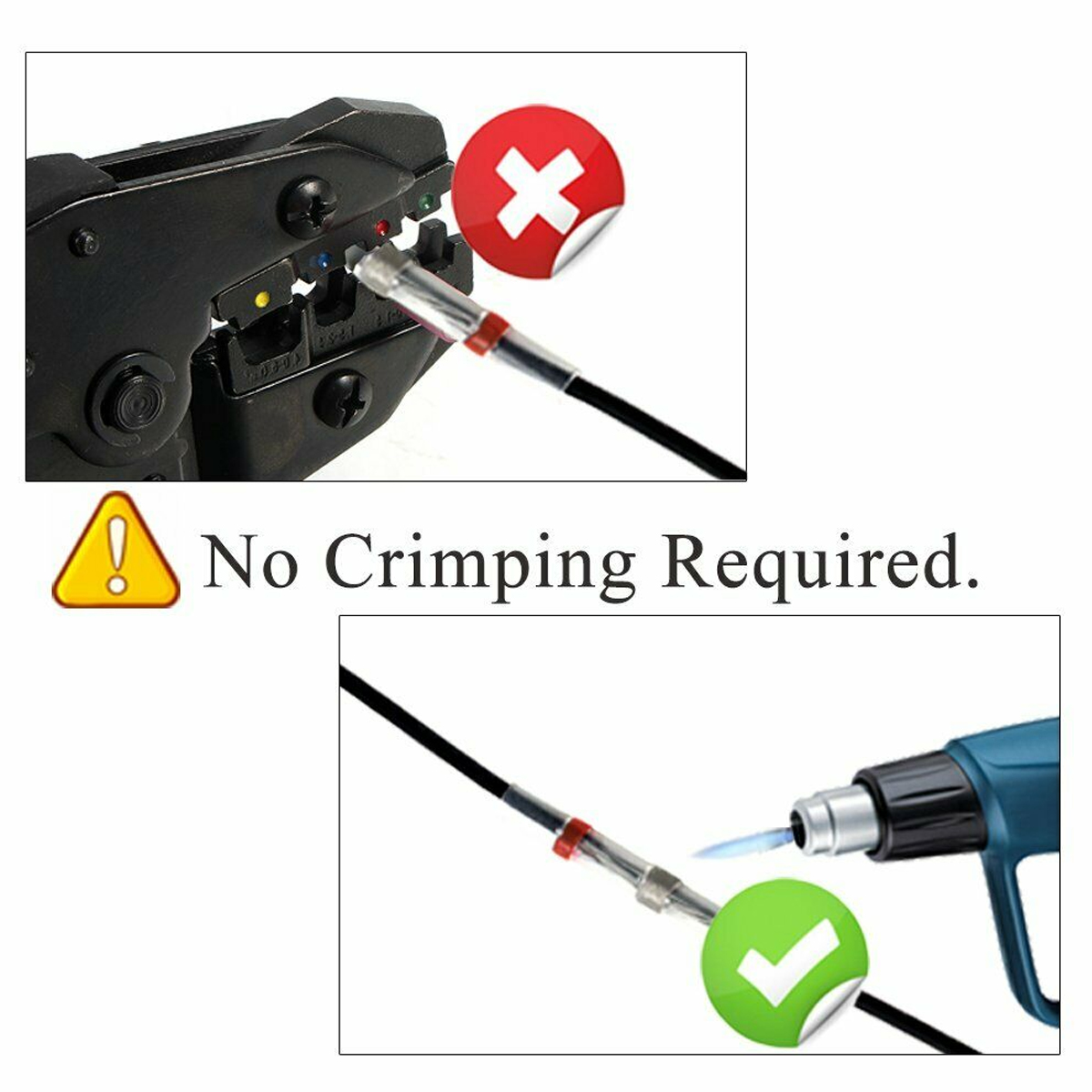

NO Crimping Needed. Transparent sleeve provides precise inspection when strip and insert wires inside.

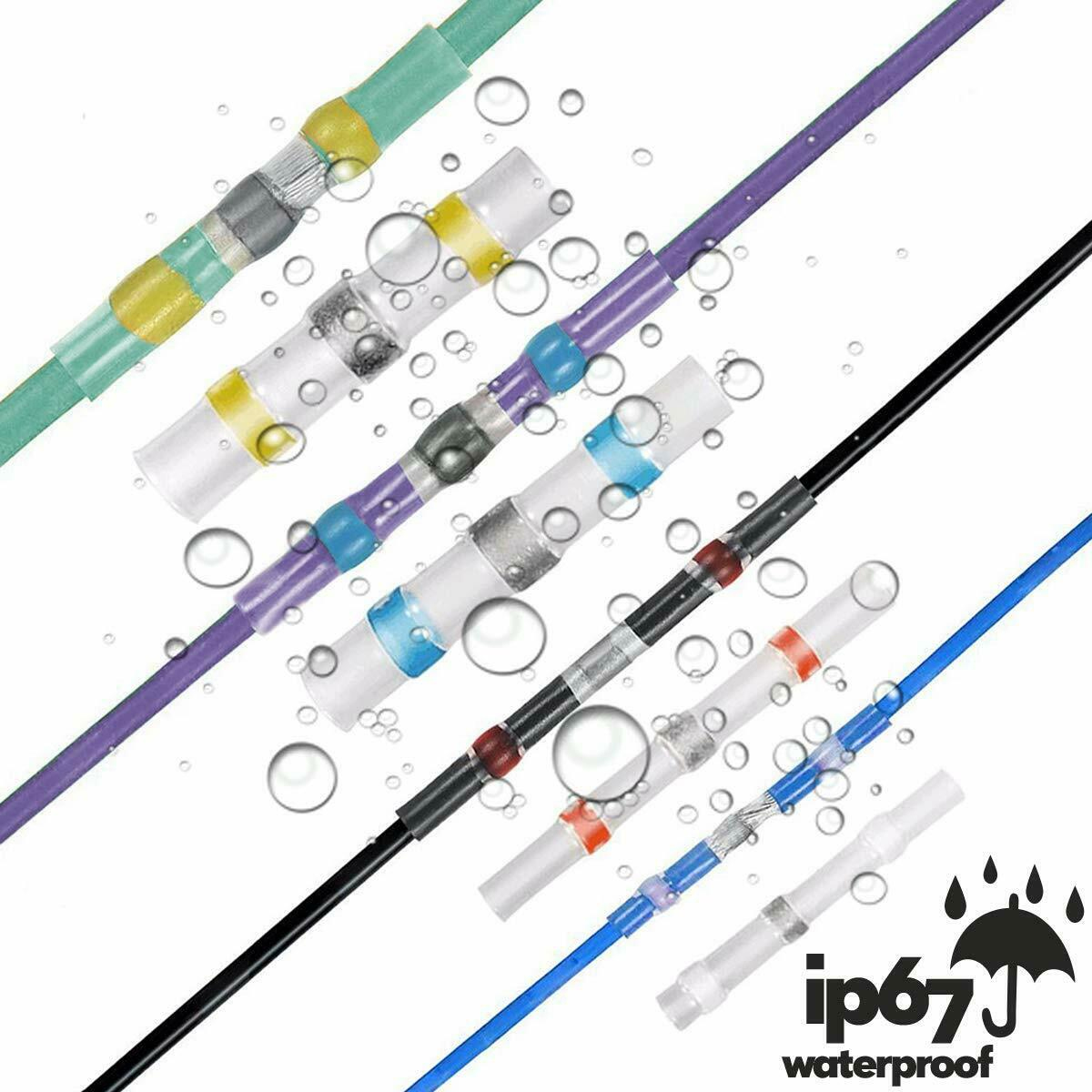

Polyolefin tubing outside and hot melt rings inside effectively improve waterproof performance and prevent wire corrosion.

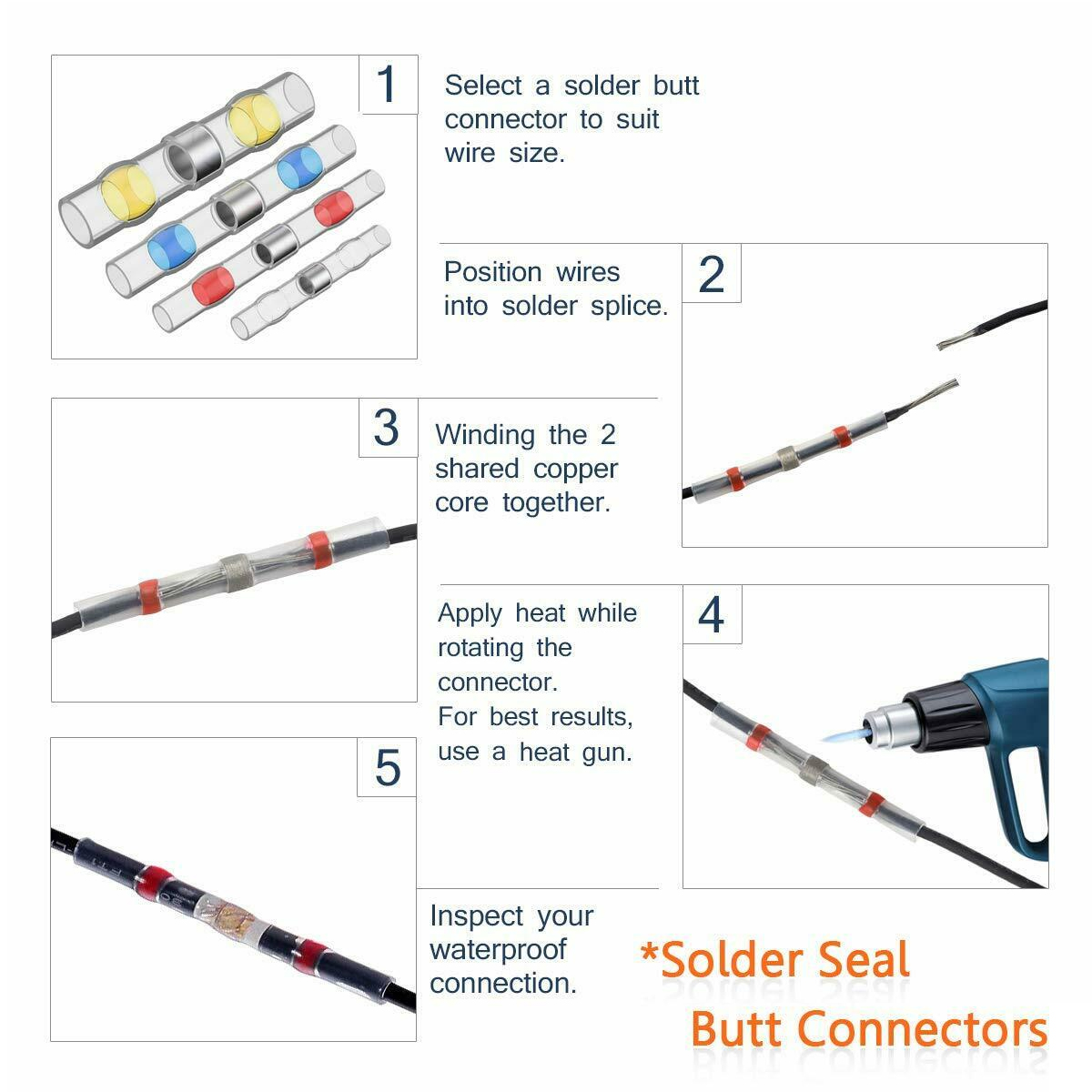

Tubing reduces in size and solder will melt and flow through the stripped wires, ensure strong holding. Your wire will never slip out of the connector.
Package Included:
10 x Yellow Insulated Terminal
30 x Blue Insulated Terminal
35 x Red Insulated Terminal
25 x White Insulated Terminal
150 x Black Tube Sleeve
