EPEVER 10A 12V 24V PWM Solar Charge Controller Timer IP67 Waterproof Led Driver Solar Charge&Discharge Constant Current Controller
EPEVER 10A 12V 24V PWM Solar Charge Controller Timer IP67 Waterproof Led Driver Solar Charge&Discharge Constant Current Controller
$37.99
Ex Tax: $37.99
- Stock: In Stock
- Model: MZ10037
- SKU: MZ10037
Description :
LS-BPL series combines solar charge controller and LED driver into one unit. It is ideal for solar LED Lighting requiring dimmer function. The control parameter can be programmed by Mobile APP ,SPP-02 and PC software.
LS-BPL series combines solar charge controller and LED driver into one unit. It is ideal for solar LED Lighting requiring dimmer function. The control parameter can be programmed by Mobile APP ,SPP-02 and PC software.
Models:
LS102460BPL 10A 12/24V Auto work
LS2024100BPL 20A 12/24V Auto work
Features :
• PWM charging
• Battery type selection: Sealed, Gel, Flooded and User(programmable).
• Flexible dimming function(0-100%)
• Battery temperature compensation
• Digital precision constant current control
• Maximum output efficiency of 96.7%
• Output current adjustable
• Parameter programmable via Mobile APP, PC software
• RS485 port with industrial standard MODBUS open architecture
• Aluminum housing for better cooling
• Fully encapsulated PCB, IP67 protection
Load control mode:
• Manual control
• Light ON/OFF (Default)
• Light ON+ Timer
• Time Control
Electronic Protections:
·PV short circuit protection
·PV reverse polarity protection
·Battery over discharge protection
·Battery over voltage protection
·Battery reverse polarity protection
·Load overload protection
·Load short circuit protection
·Battery overheating protection
·Controller overheating protection

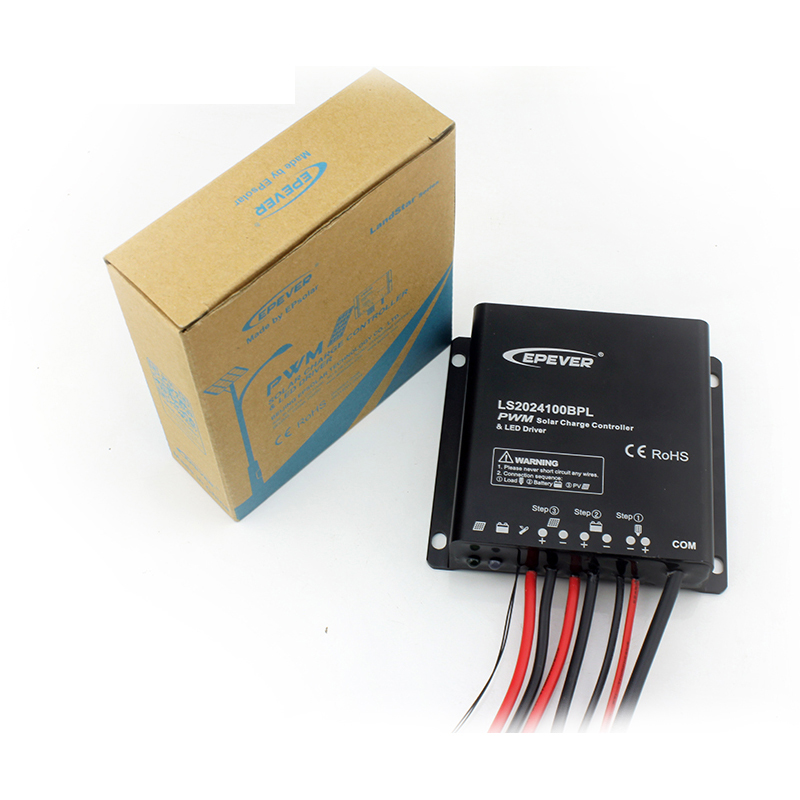

Package Includes :
1 x LS102460BPL/ LS2024100BPL Solar Charger Controller
1 x LS102460BPL/ LS2024100BPL Solar Charger Controller

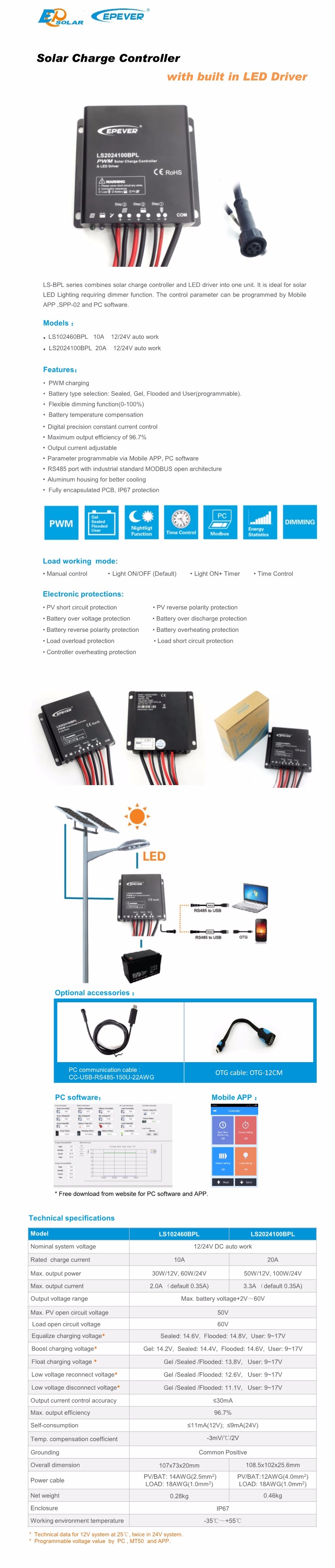

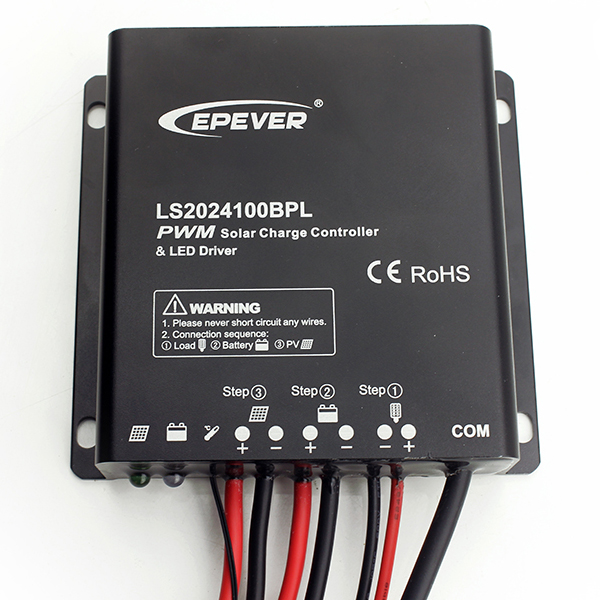

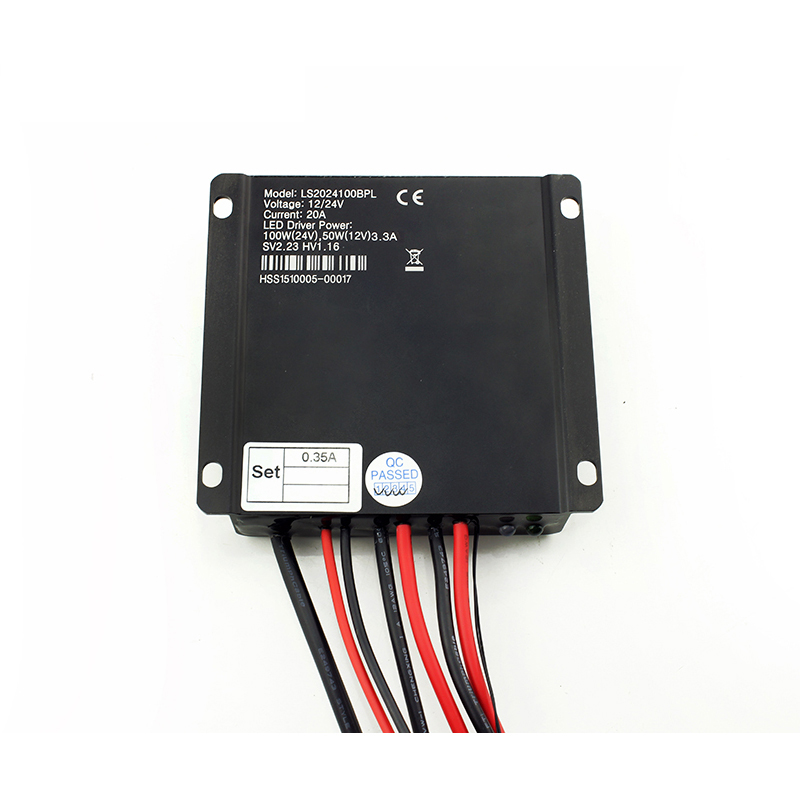

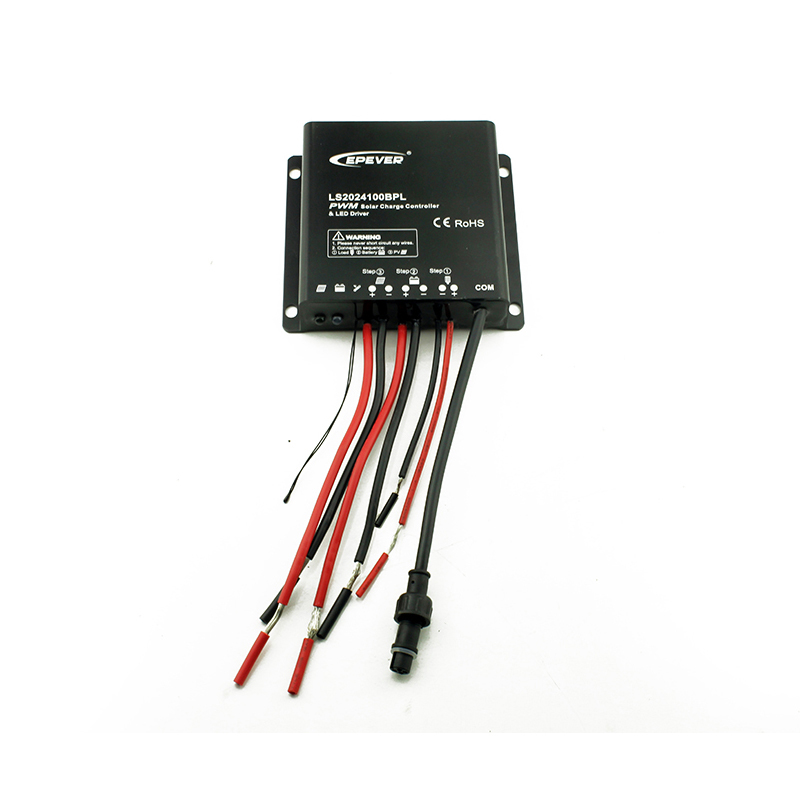

Details Pictures :
