DANIU Thermostat AC 250V 16A 50-300 Degrees Temperature Controller No NC for Electric Oven
$14.99
Ex Tax: $14.99
- Stock: In Stock
- Model: MZ10078
- SKU: MZ10078
Temperature controller temperature control switch thermostat knob Adjustable thermostat AC 250V 16A 50-300°C
Three feet is a normally closed and a normally open function
Three feet is a normally closed and a normally open function

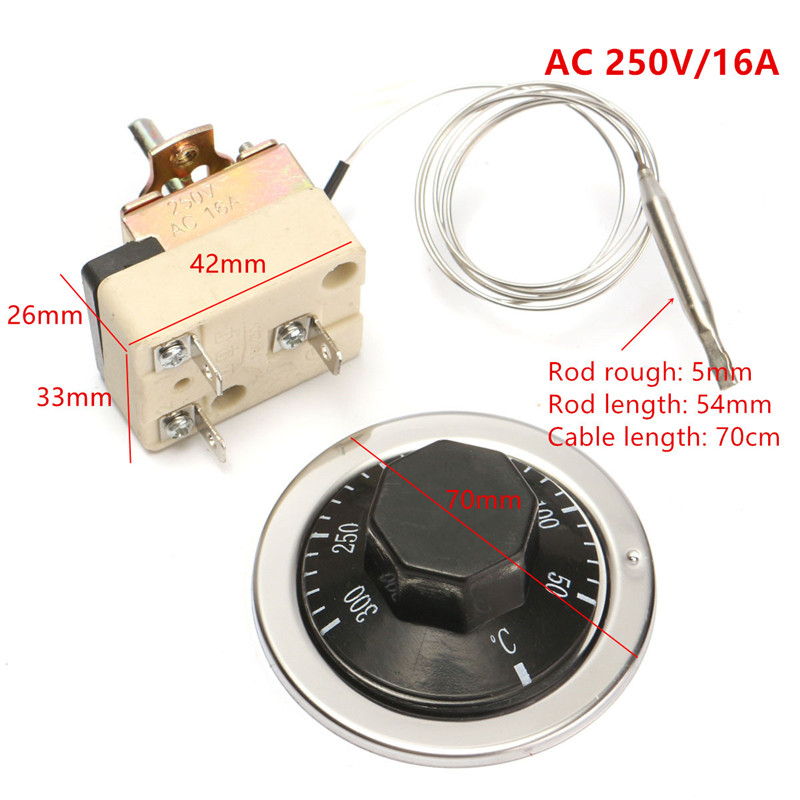

Specifications:
Material: Metal, plastics, ceramics,
Rod rough: 5mm
Rod length: 54mm
Cable length: 70cm
Voltage: AC 250V
Current: 16A
Temperature: 50 ° C-300 ° C
Product Life:> 100,000 times
Electric strength: AC2000V / 1min
Normal insulation resistance: ≥100MΩ
Contact resistance: ≤50mΩ
For tide insulation resistance: ≥10MΩ
Temperature response rate: ≤1.0 C / min
Minimum Current: 200mA
Principle of performance:
-- When the object to be controlled temperature changes
-- So that the working fluid thermostat temperature to produce the corresponding portion of the thermal expansion and contraction
-- Physical phenomena (working fluid volume change)
-- Temperature sensing bellows portion communicating together produce expansion or contraction.
-- Through leverage, driven by the switch-off operation, to achieve the purpose of constant temperature.
Suitable for:
-- Mainly used in household appliances (shower, drum-type washing machines, heaters),
-- Electric equipment (stainless steel automatic water boilers, electric frying pans, food machinery, medical equipment),
-- The refrigeration industry (kitchen freezer, fresh cabinet, refrigerator, ice machine, fish pond, cold drink machine, heating machine) with temperature control.
Package Included:
1 set of mechanical thermostat
![DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-1](image/catalog/Reactive-power-controller/DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-descriptionImage0.jpeg)
![DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-2](image/catalog/Reactive-power-controller/DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-descriptionImage1.jpeg)
![DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-3](image/catalog/Reactive-power-controller/DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-descriptionImage2.jpeg)
![DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-4](image/catalog/Reactive-power-controller/DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-descriptionImage3.jpeg)
![DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-5](image/catalog/Reactive-power-controller/DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-descriptionImage4.jpeg)
![DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-6](image/catalog/Reactive-power-controller/DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-descriptionImage5.jpeg)
![DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-7](image/catalog/Reactive-power-controller/DANIU-Thermostat-AC-250V-16A-50-300-Degrees-Temperature-Controller-No-NC-for-Electric-Oven-1442733-descriptionImage6.jpeg)
