Linear DC Power Supply 110V/220V Switching Voltage Regulator Laboratory Repair DIY UTP3313TFL-II UTP3315TFL-II
Linear DC Power Supply 110V/220V Switching Voltage Regulator Laboratory Repair DIY UTP3313TFL-II UTP3315TFL-II
$119.99
Ex Tax: $119.99
- Stock: In Stock
- Model: MZ003431
- SKU: MZ003431
- UPC: 681877471003
Specification:
Model | UTP3313TFL-II | UTP3315TFL-II |
Output voltage | 0~30V | 0~30V |
Output current | 0~3A | 0~5A |
Output power | 90W | 150W |
| Load regulation | CV≤0.01%+3mV, CC≤0.1%+5mA | CV≤0.01%+5mV, CC≤0.1%+10mA |
Accuracy (25℃±5℃) | Voltage ＜0.5%+20mV ＜0.5%+20mV Current ＜0.5%+5mA ＜0.5%+10mA | |
Ripple and noise | ≤1mVrms | ≤2mVrms |
Output regulation resolution | CV: 10mV (typical), CC: 1mA (typical) | |
| Reliability | MTBF(e): ≥2000hrs | |
Display mode | LED voltage and current dual display | |
Feature | Auto conversion of constant voltage and current with current limit protection | |
General Characteristics | ||
Power | Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz | |
Product color | White and grey | |
Product net weight | 3kg (UTP3313TFL-II) | 4kg (UTP3315TFL-II) |
Product size | 105mm x 165mm x 249mm | |
Standard accessories | Power cord, output cables | |
Standard packing | Carton box, English manual | |

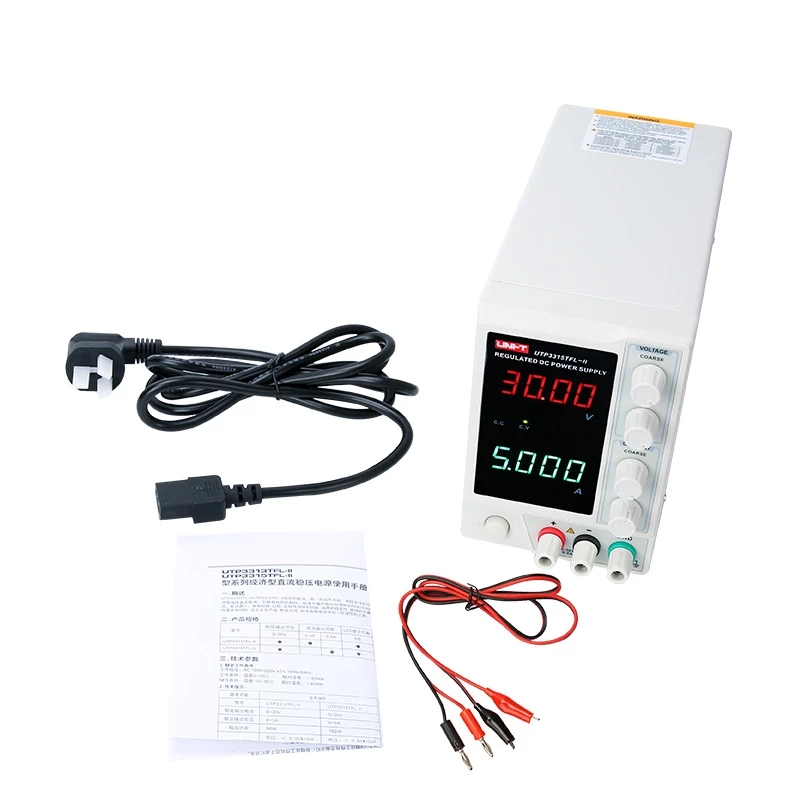

Package Included:
1 x DC Power Supply
1 x Power cord
1 x Output cable
1 x Packing box
1 x User English manual

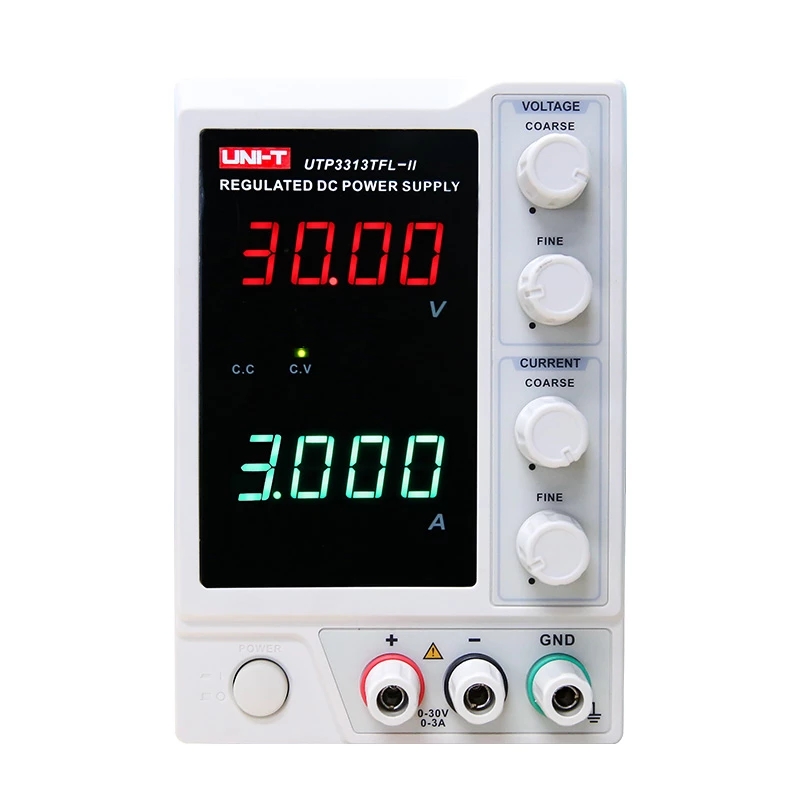

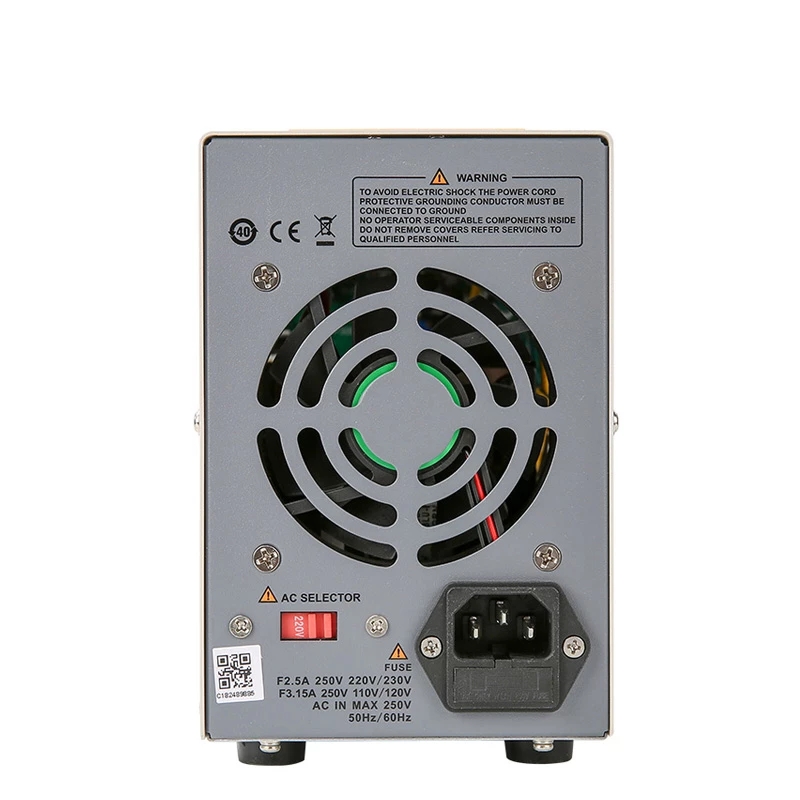

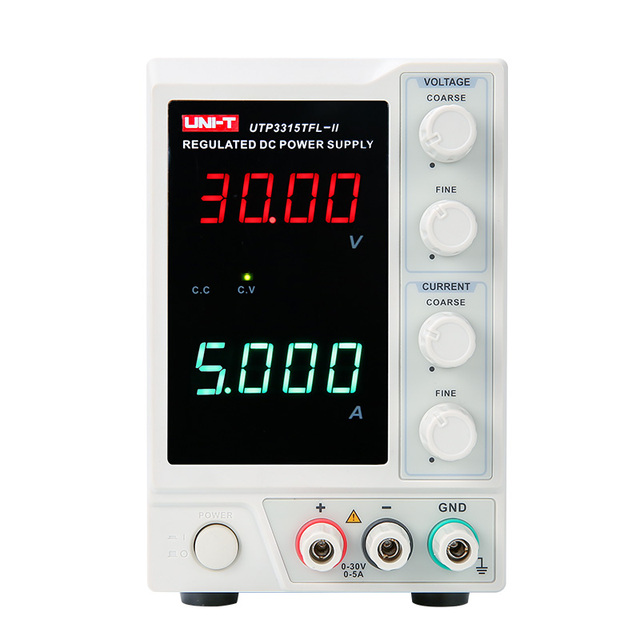

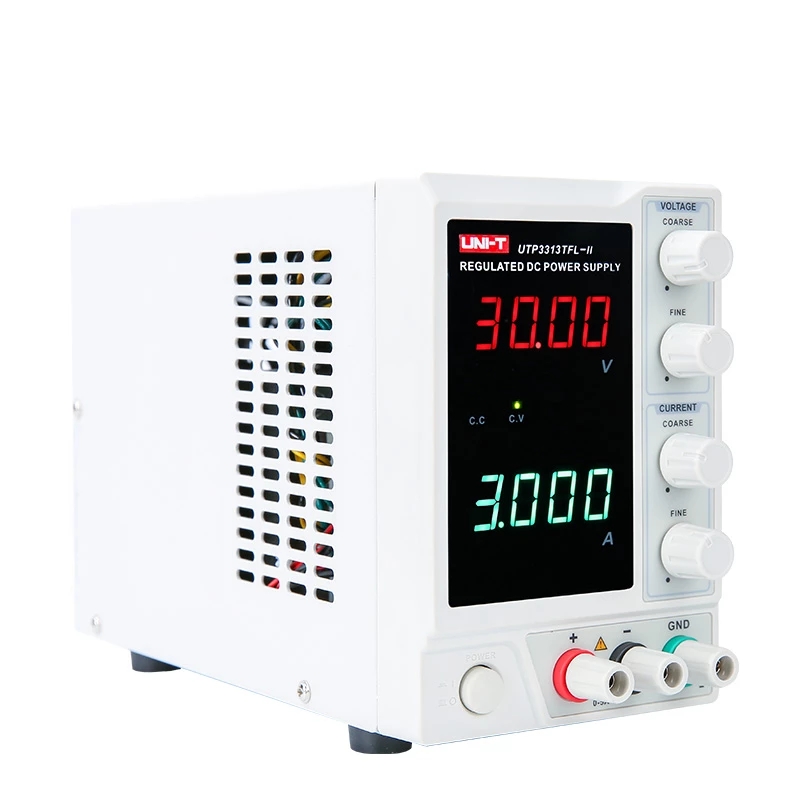

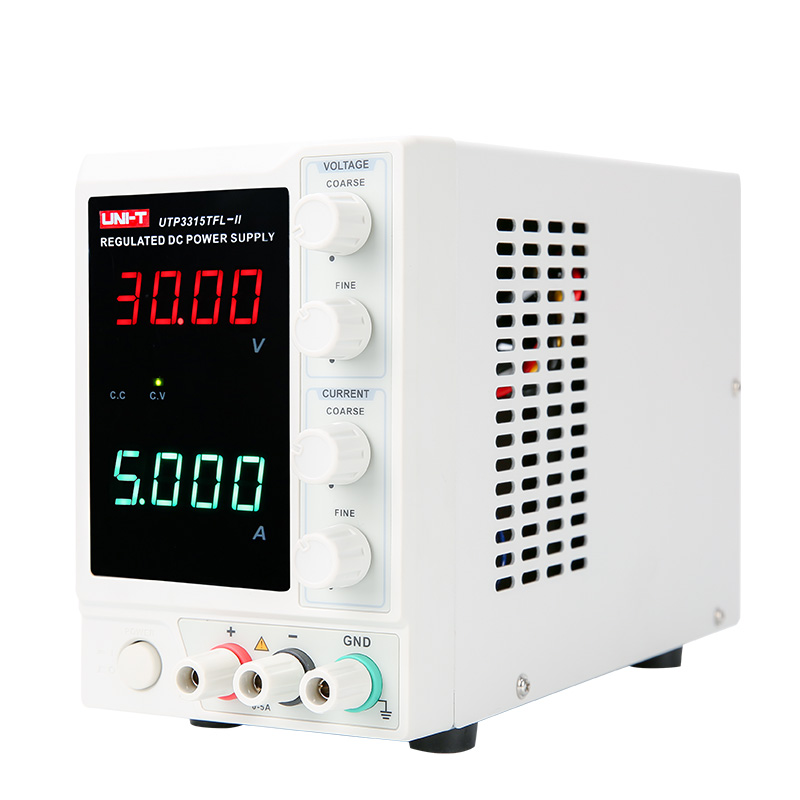

Details Pictures:
