$30.99
Ex Tax: $30.99
  • Stock: In Stock
  • Model: MZ004244
  • SKU: MZ004244

Available Options

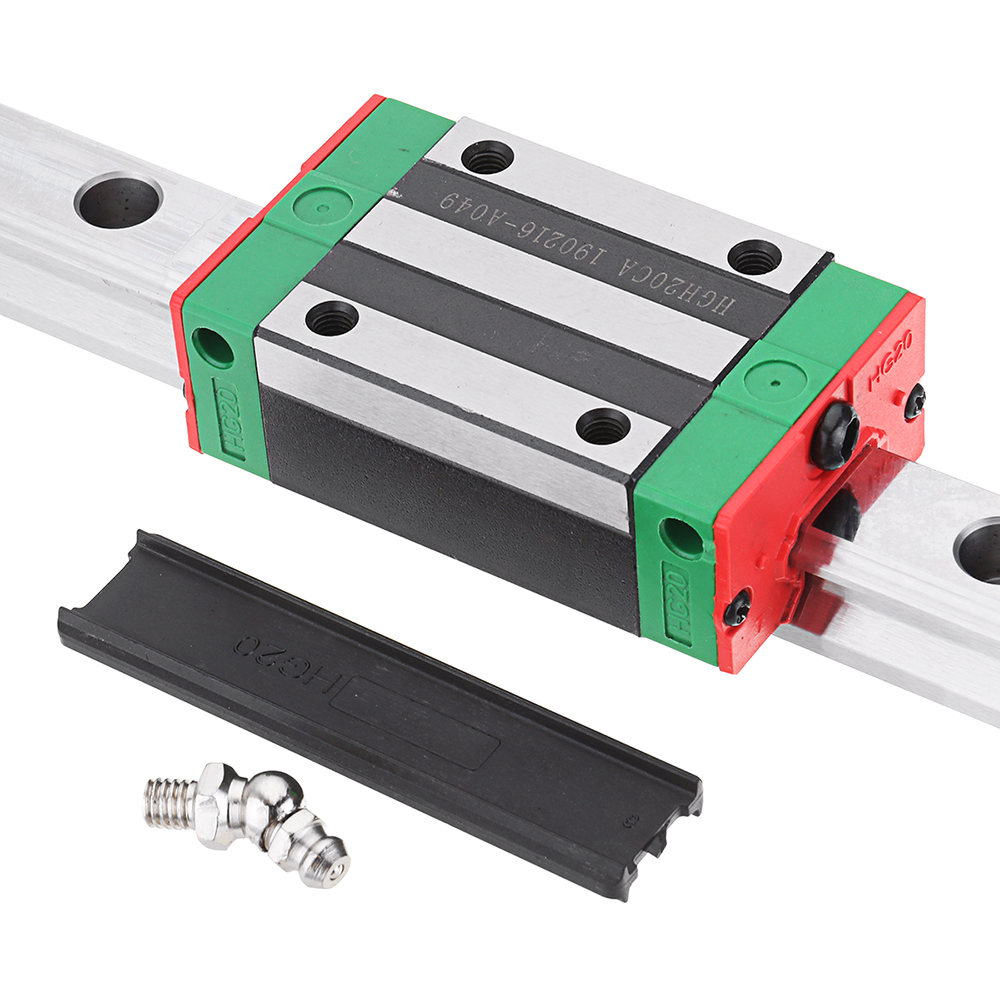

Description: Moonzite HGR20 100-1200mm Linear Rail Guide with HGH20CA Linear Rail Guide Block CNC Parts

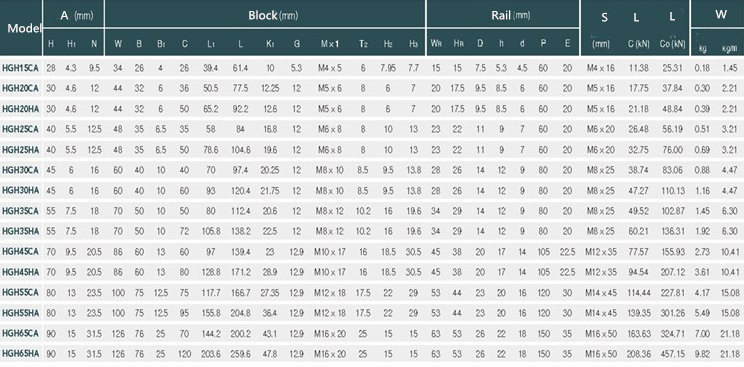

Specification:
Model
Rail: HGR20
Block: HGH20CA
Material Steel
Length 100/200/300/400/500/600/700/800/900/1000/1100/1200mm
Width 20mm
Quantity 1pcs

Features:
High precision, smooth, high wear resistance and low noise.
Advanced production technology, precise products, high hardness and durability.
High bearing capacity and low friction.
Widely used in CNC machine tools, machining centers, electronics, automated machinery, textile machinery, automotive woodworking machinery, printing machinery, etc.

Installation Precautions:
When installing, do not remove the plastic rail in the slider in advance, otherwise it will easily cause the steel ball in the slider to fall out during assembly and cannot be installed and used normally.

Installation steps:
1. Align the end of the rail with the slider.
2. Use the guide rail to slowly push out the plastic rail.
3. The plastic rail falls naturally until the slider is completely loaded into the guide rail.

Note:
Please note that the package includes one size set only.

Package Included: 1 x HGR20 Linear Rail
1 x HGH20 Linear Rail Guide Block

More Details:


Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-1

Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-2

Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-3

Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-4

Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-5

Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-6

Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-7

Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-8

                                                       Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-9

                                     Machifit-HGR20-100-1100mm-Rail--Linear-Guide-with-HGH20CA-Linear-Rail-Slide-Block-CNC-Parts-1443445-10
