Intelligent Screen Solar Pure Sine Wave Power Inverter 1600W/2200W/3000W/4000W DC 12V/24V/48V/60V To AC 110V 120V Converter
Intelligent Screen Solar Pure Sine Wave Power Inverter 1600W/2200W/3000W/4000W DC 12V/24V/48V/60V To AC 110V 120V Converter
₹6,976.83
Ex Tax: ₹6,976.83
- Stock: In Stock
- Model: MZ004210
- SKU: MZ004210
- UPC: 698587746567
Note:
Dear customers, this inverter has recently been upgraded to a brand customized pure sine wave inverter. In the future, we will pay more attention to the control of product quality and the sustainable development of the brand. At present, the appearance is different and the product quality is the same. Thanks for understanding and trust. Thanks for your continued support.
Specifications:
| Type: | Solar inverter |
| Output voltage waveform: | Pure sine wave |
| Power(Rated power): | 1600W(800W) / 3000W (1500W)/3200W(1600W)/4000W (2000W) |
| Output voltage: | AC 110V 120V |
| Input voltage: | 12V/24V/48V/60V |
| Output frequency: | 50Hz |
| Low-voltage protection: | 9.5V/ 20V |
| High-pressure protection: | 16V/30V |
| Conversion rate: | 90% or more |
| Size: | 21*11*5.5CM(1600W) / 25*11*5.5CM(2200W) / 26*11*5.5CM(3000W) / 30*15**7CM(4000W) |
Features:
- LCD display screen.
- Buzzer reminder device. Once any protection of the inverter is triggered, the inverter immediately disconnects the power supply and the load enters a protection mode and reminds people through a buzzer reminder.
- Double socket.
- Up to 90% conversion rate.
- Five intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, short circuit protection.
- Intelligent temperature control fan, make the inverter more quiet. When the temperature ≤ 45 ℃, the fan stops working, when the temperature ≥ 45 ℃, the fan began to work.
- Aluminum magnesiums alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
New Featues:
- Full bridge technology, also known as full bridge inverter, is the most stable and reliable design at present.
- Dual control cooling mode of temperature control and power control.
- Full time short-circuit protection function, whether it is full load, high temperature, short-circuit boot, boot short-circuit are safe protection.
- Strong load capacity
- The waveform is stable without burr.
- The machine is equipped with adjustable buttons: output voltage, output frequency, convenient switching.
- Highly integrated MCU control, more stable and reliable
Packaged included:
1 x Inverter
1 x User manual
1 x Ultra-thick battery cable (48V1600W /60V1600W /12V3000W /24V3000W /12V4000W /24V4000W /12V5000W /24V5000W /6000W /8000W)
(2 x Ultra-thick battery cable (12V1600W /24V1600W /2200W /48V3000W /60V3000W /48V4000W /60V4000W /48V5000W /60V5000W )

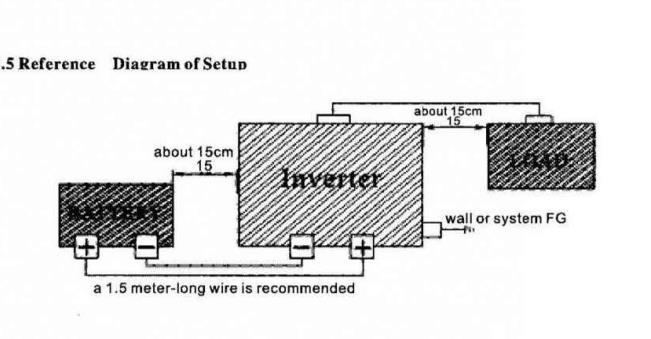

Correct Connet Way:
POSITIVE FROM THE BATTERY TO POSITIVE OF INVERTER and NEGATIVE FROM THE BATTERY TO NEGATIVE OF THE INVERTER!
(+...connect...+,-...connect...-)
