KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat

KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
$13.99
Ex Tax: $13.99
  • Stock: In Stock
  • Model: MZ005064
  • SKU: MZ005064

Available Options

Features:

The shell of our thermostat is made of high-quality plastic material with fine workmanship, environmental-friendly, safe, durable to use.
Its temperature controlling range is from 0° to 60°, perfect for using to control heater, filter fan, cooling equipment and other signal device in your home, market and so on.

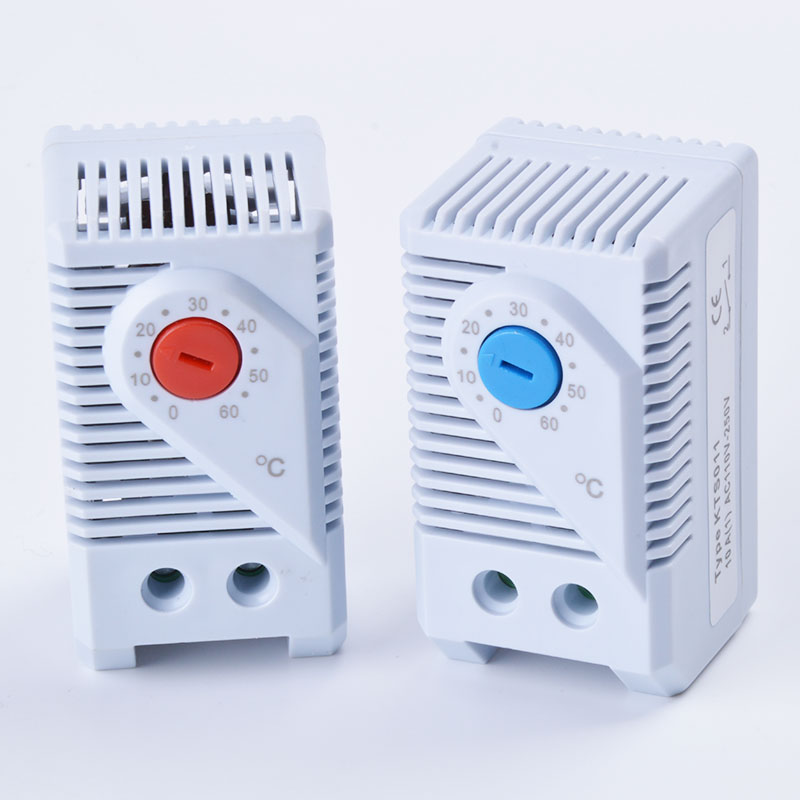

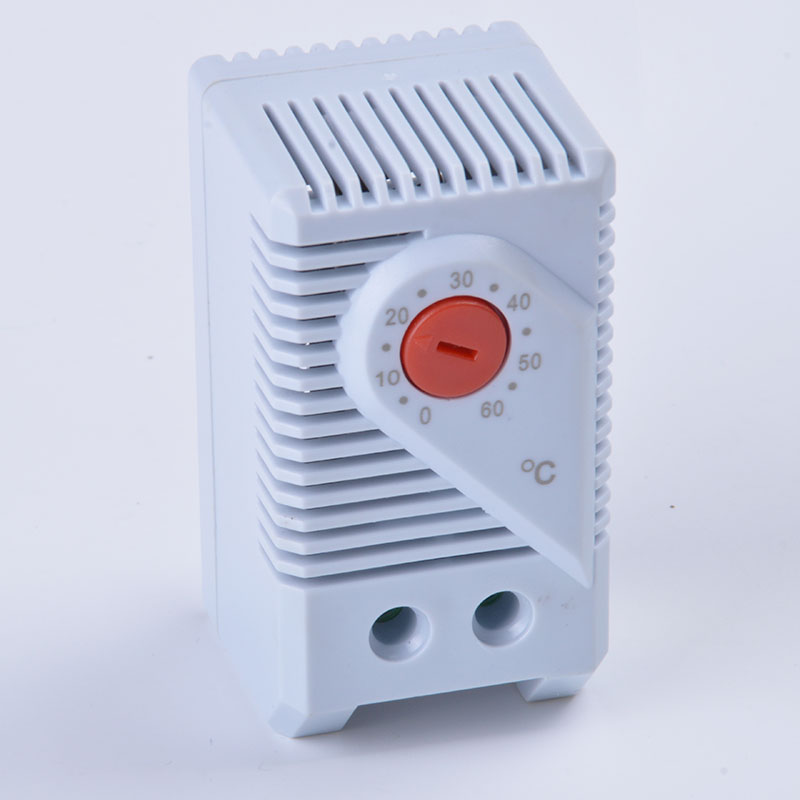

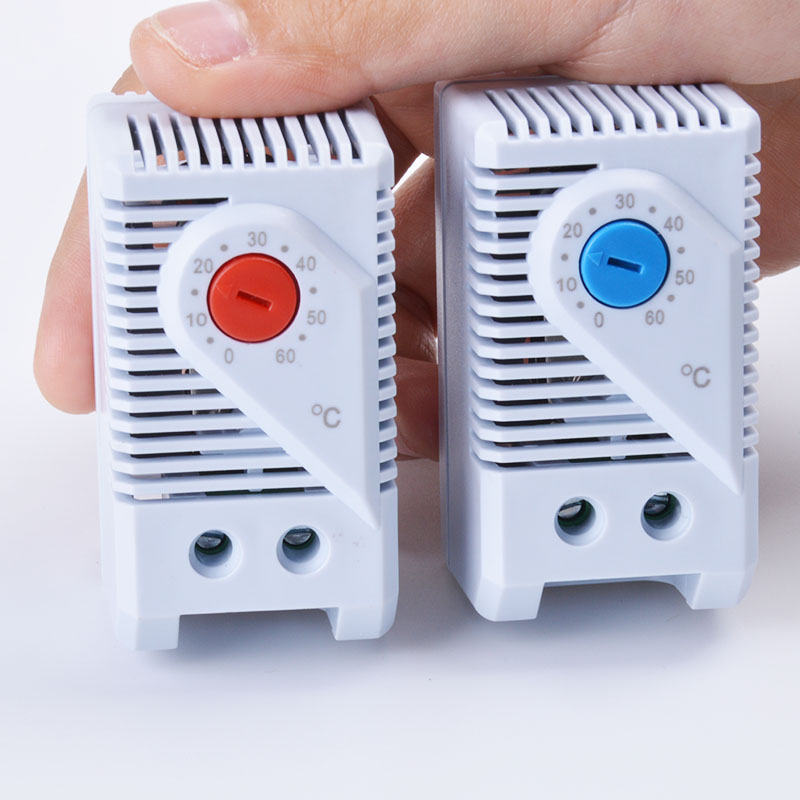

It has a large data scale and an adjustable button is for easy and convenient to adjust the controlling temperature, and the button color(red/blue) of thermostat could be choose for you.

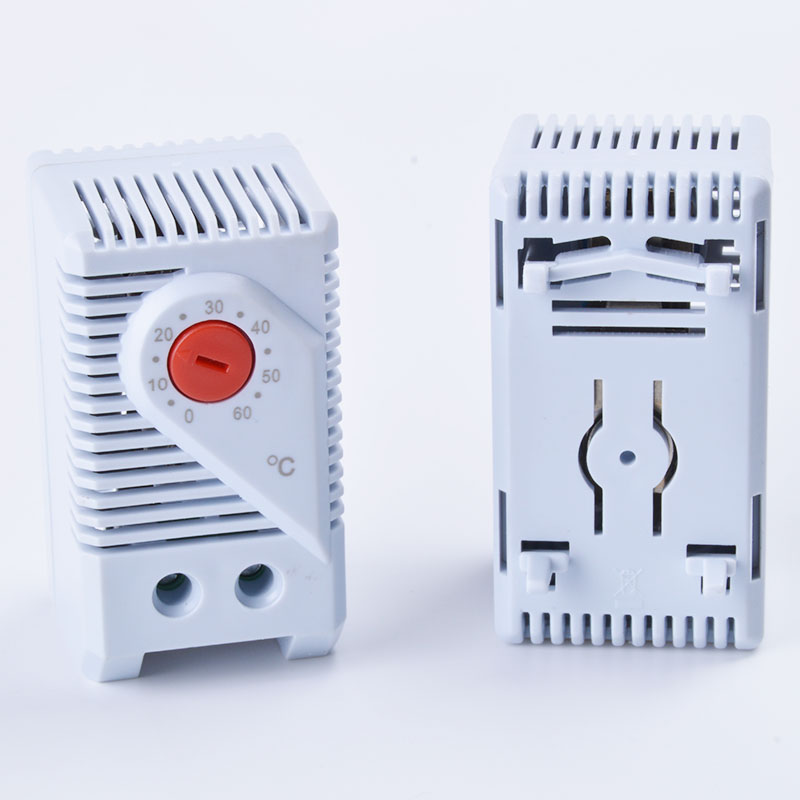

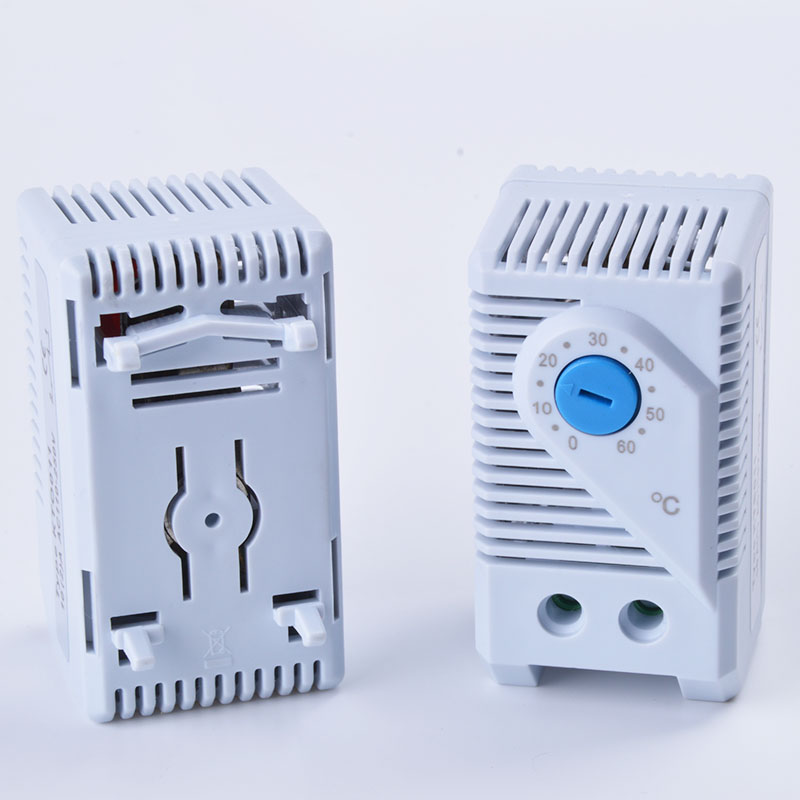

Adopting standard rail clip design, 4 feet holders, easy to install and disassemble.

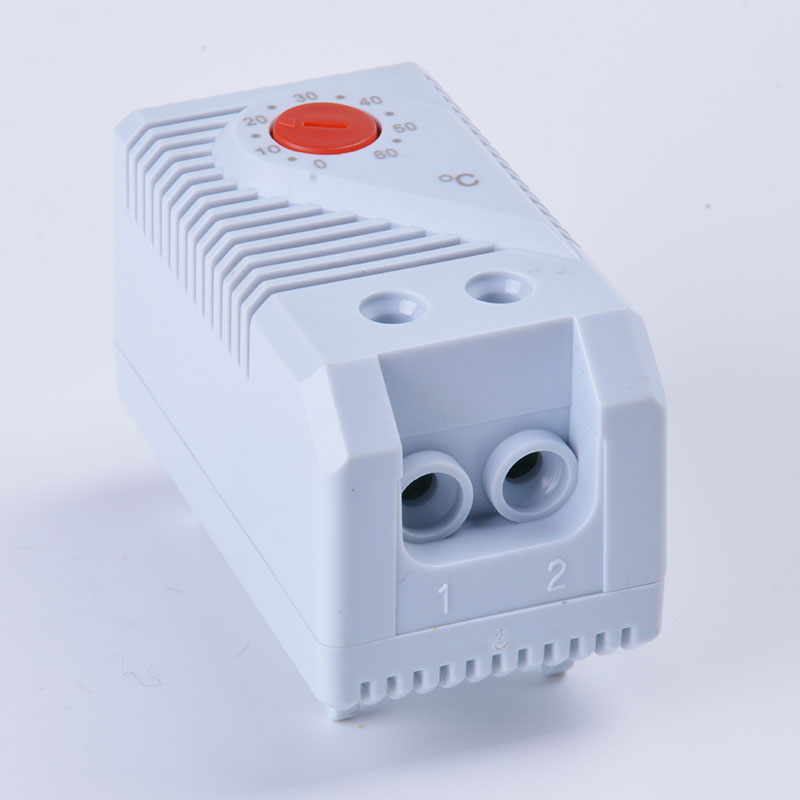

Circuit interfaces in the bottom of thermostat can make wire connection become more sturdy and safer.

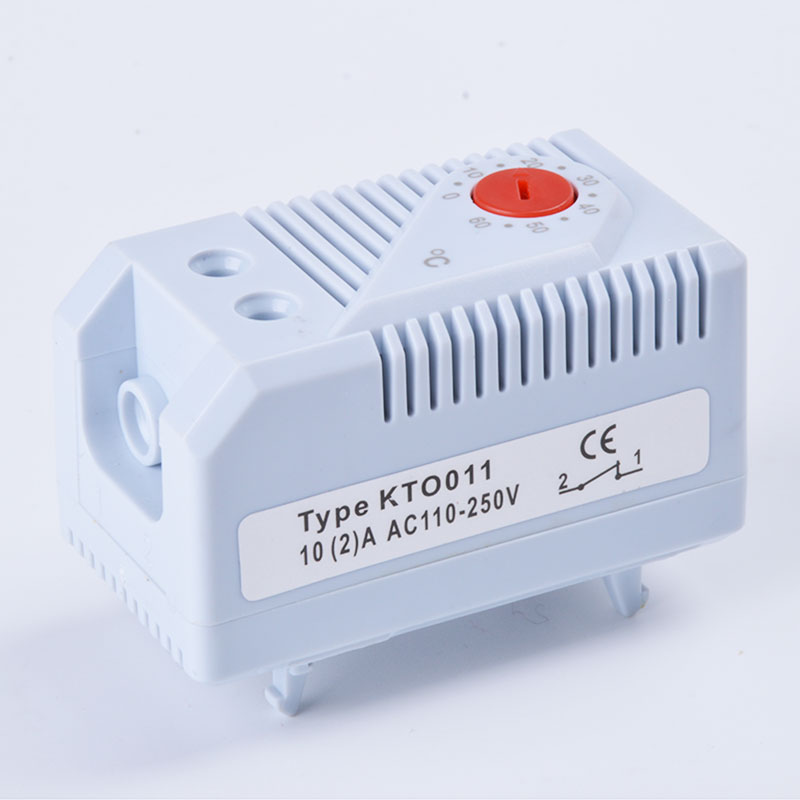

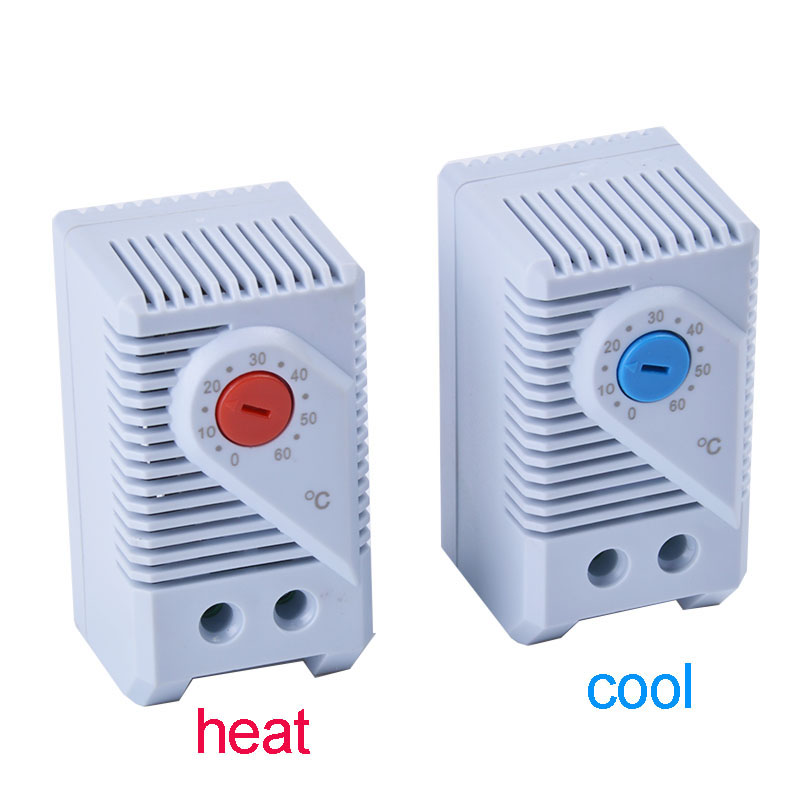

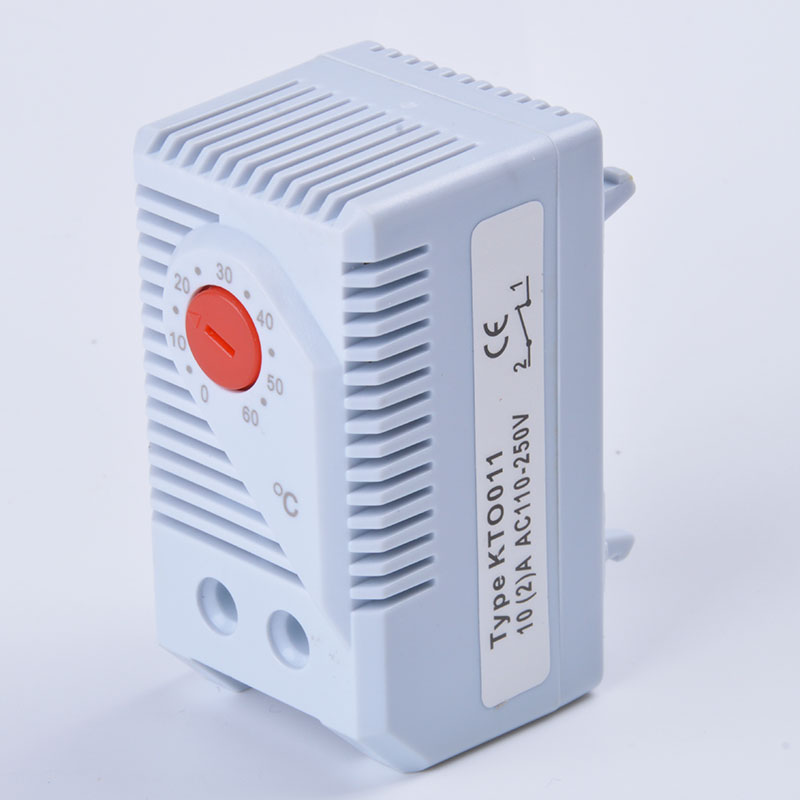

KTO 011: heat Thermostat (normally closed); contact breaker for regulating heaters.
KTS  011: cool Thermostat  (normally  open);  contact  maker  for  regulating  of  filter  fans  and  heat exchangers or for switching signal devised when temperature limit has been exceeded.

Specification:


Switch temperature difference

7K (± 4K tolerance)

Sensor element

thermostatic bimetal

Contact type

snap-action contact

Service life

> 100,000 cycles

Max. Switching capacity

250VAC, 10 (2) A



120VAC, 15 (2) A



DC 30W

Connection

2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2; stranded wire (with wire end ferrule) 1.5mm⊃2;

Mounting

clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)

Casing

plastic according to UL94 V-0, light grey

Dimensions

60 x 33 x 43mm

Weight

approx. 40g

Fitting position

variable

Operating / Storage temperature

-45 to +80°C (-49 to +176°F)

Operating / Storage humidity

max. 90 % RH (non-condensing)

Protection type

IP20


Package includes:

1 X Temperature Controller

Details pictures:



KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-1
KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-2
KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-3
KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-4
KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-5
KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-6
KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-7
KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-8
KTO011-KTS011-0-60-Degree-Compact-Normally-Close-NC-Mechanical-Temperature-Controller-Thermostat-1537119-9
