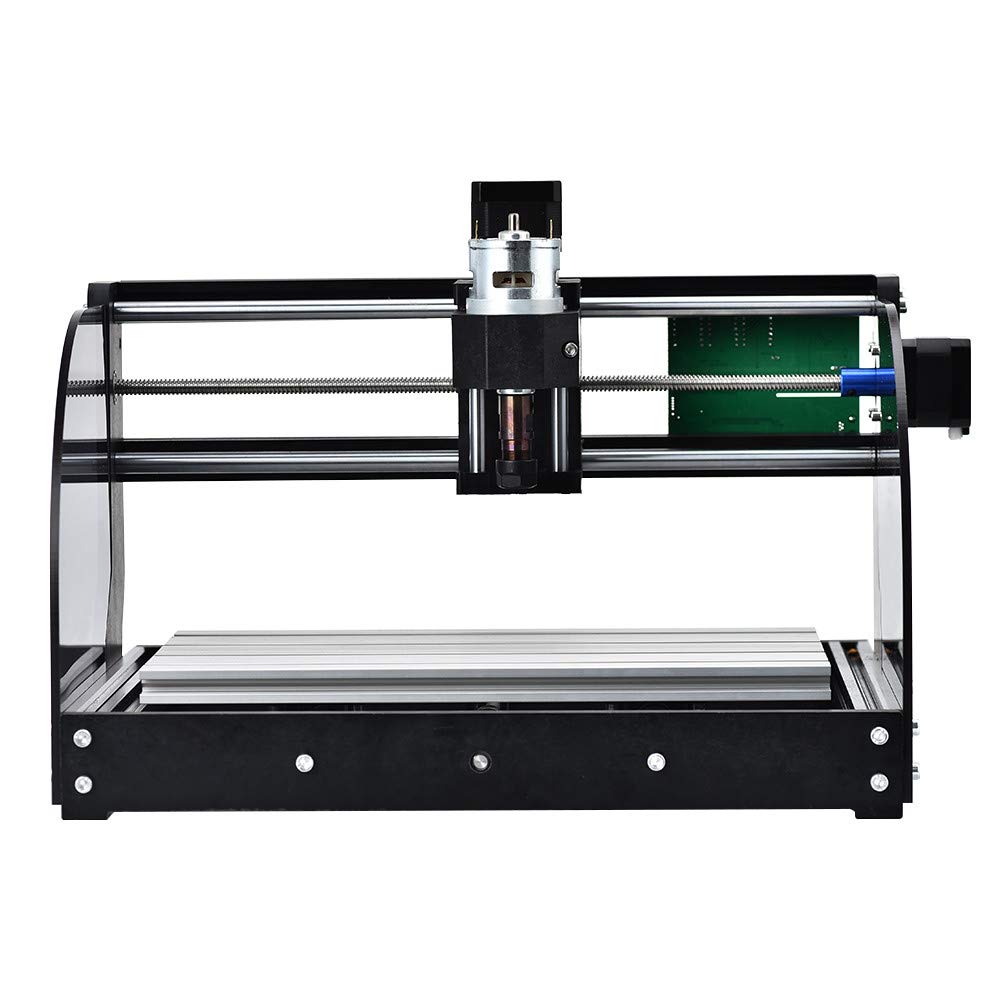

Upgraded 3018 Pro Offline CNC Engraver DIY 3Axis GRBL Laser Engraving Machine Wood Router

Machine Specification:

Style	3018 PRO (With Offline Controller )
Product Dimensions	10.9 x 16.7 x 10.9 cm

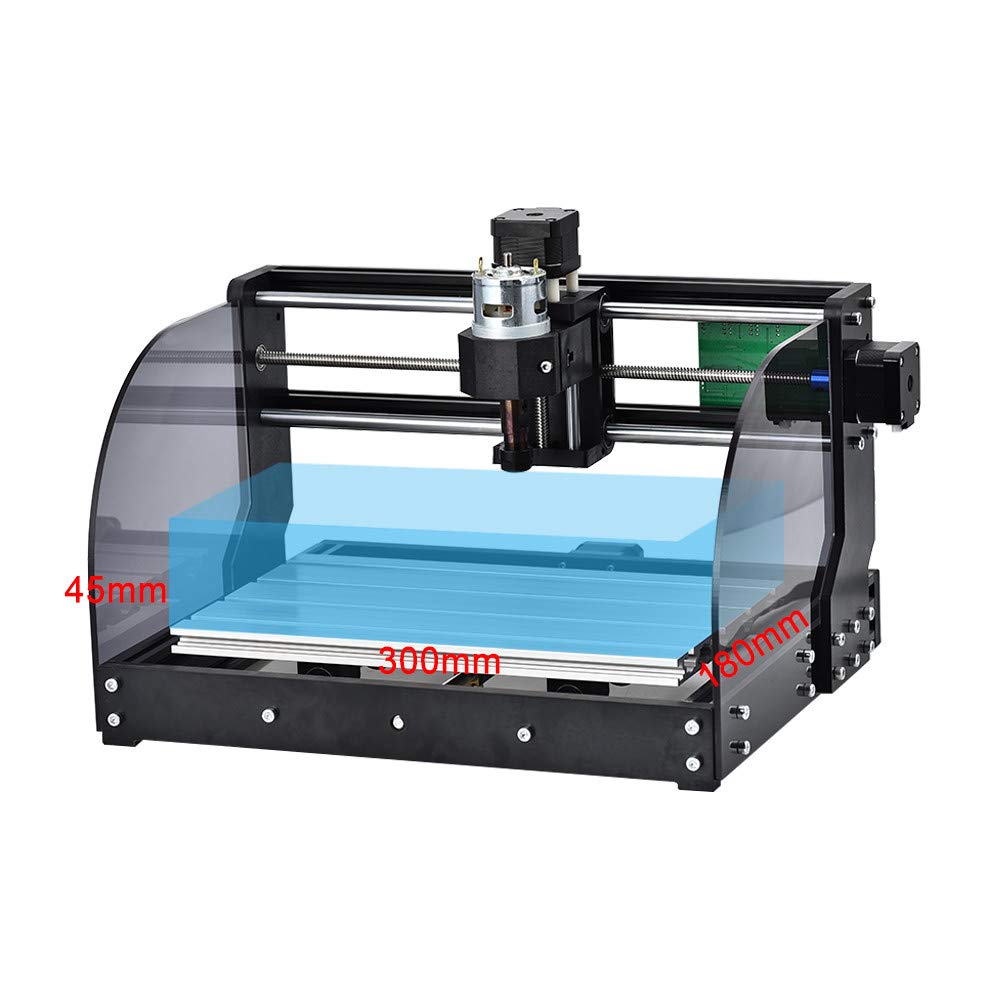

Effective Engraving Area	300 x 180 x 45mm(11.8 x 7.1 x 1.8”)
Item Weight	6 kg
Material	Metal
Step Motor	1.3 A, 12V, 0.25 Nm torque (2.2 in-lb)
Rated power	60W
Maximum power	120W
Softwear	GRBL control systems/ Lasergrbl control systems

Instructions & Software: Assembly instructions, control software and further information please CONTACT US

Features:
1.Designed for CNC: A great tool for entrance CNC. Able to carve text on daily materials easily. Great for those who are interested in CNC, helping you engrave the model efficiently.
2.GRBL Control: Latest control system different from other old conroller system which were no longer upgraded. No need for extra accessories. Just turn your computer into a CNC machine.
3.Offline Controller: Coming with offline controller for free, no need to connect to the computer. Just adjust X, Y, Z axis location spindle cooling fan as your wish manually.
4.Compatible with different laser modules of 2500mW, 5500mW, 7000mW, 10000mW(lasers not included), More than just a engraving machine but a laser engraver as well.
(Now we recommend the laser module (2500mW Blue Laser Module) produced by the originals manufacturer: ID: 1386316

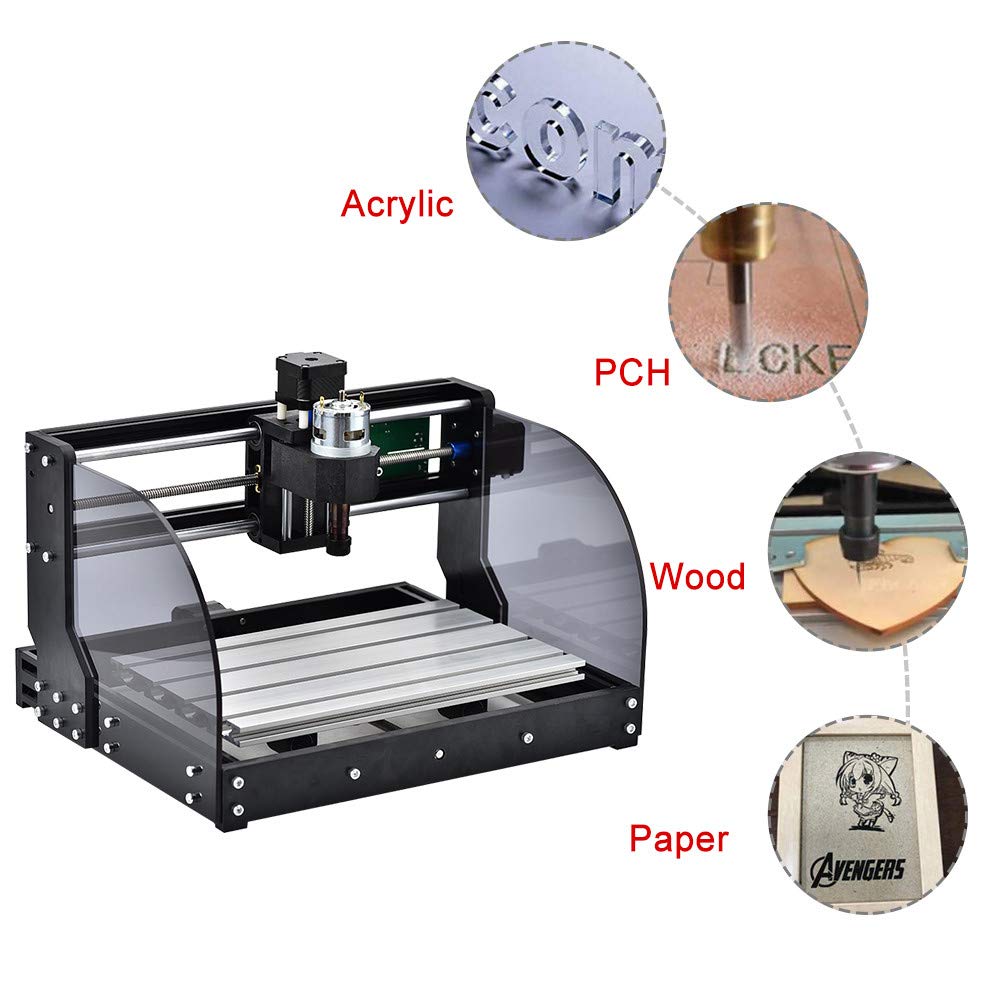

5.Wide Application: With manuals and software suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other materials, a great tool for CNC lover.
6.Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10
7.Drill Bits: Tip 0.2 mm, 20 degrees, Diameter 3.175 mm

Note:The software version should be version 0.9, version 1.1 is unstable, which will cause the engraving machine to run unsmoothly!

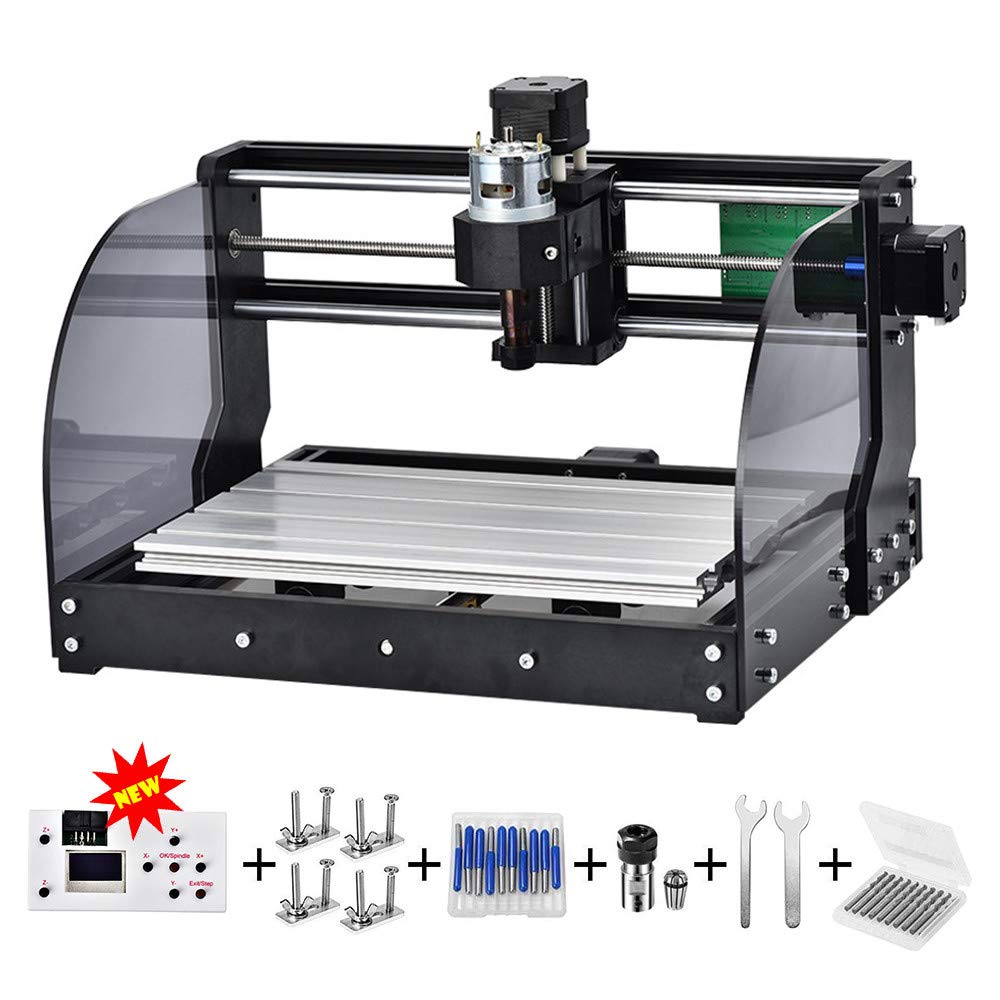

Packgae Included:
1 x Wood Engraving Machine Full Set (Unassembled Delivery)
1 x GRBL 3-Axis Control Board
1 x LCD Screen GRBL Controller

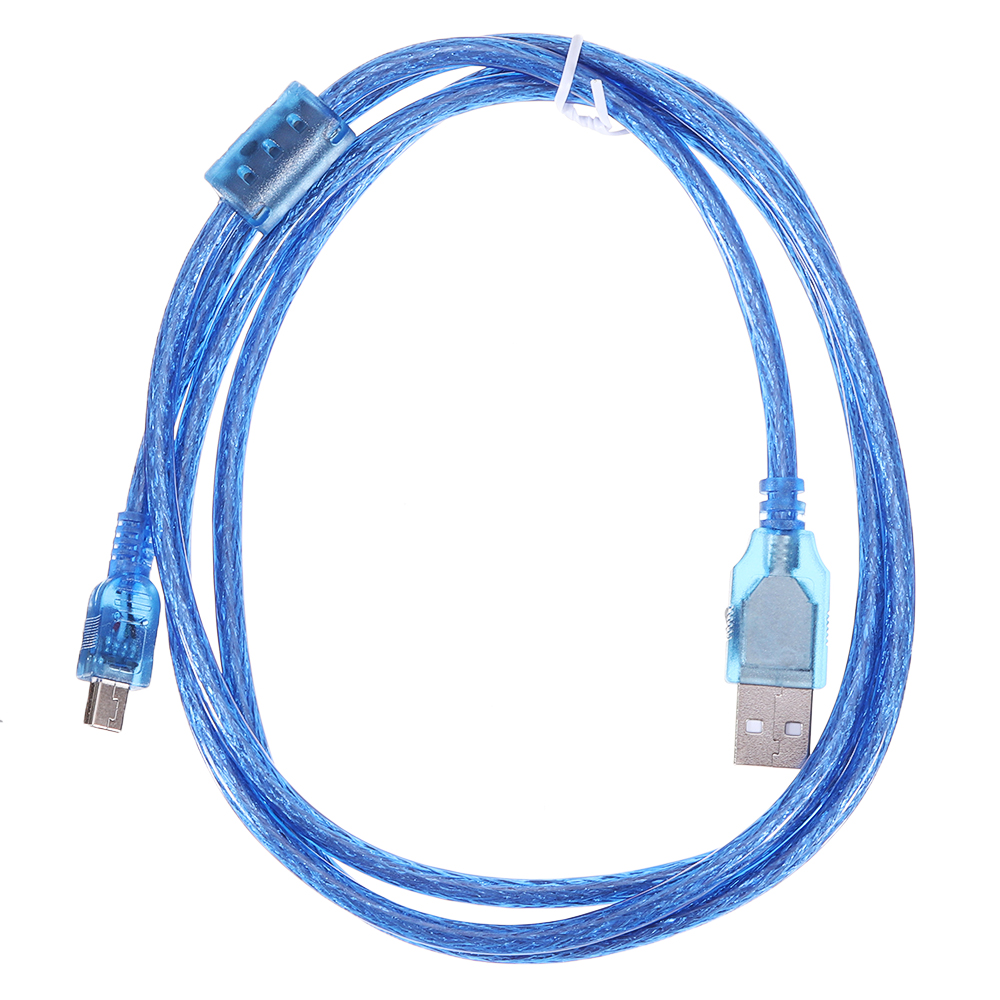

1 x USB Cable
1 x Cable for Spindle Connection

Controller Specification:
USB Cable Length: 20cm
Firmware: GRBL 08, 09, 1.1 and so on
Input Voltage: DC 7V- 36V
Applicable CNC Router: 3 Axis CNC router 1610; 2418; 3018
Description:
This offline controller w/ controller board is designed for the use of Mini CNC router 1610/2418/3018 and even with more advanced function of tool set, limit switch supportive, Laser supportive; Offline and Bluetooth supportive.

Features:
1. Support GRBL and benbox firmware. Support CNC 3-axis laser engraving machine.
2. The stroke length isn't limited to 30x18 and 24x18, it can be setting other length. Please set the stroke in the command.
For example
3018, please set the stroke in the command, 30cm length and 18cm width;
2418, please set the XY stroke in the command, length 24cm, width 18cm.

Instructions:

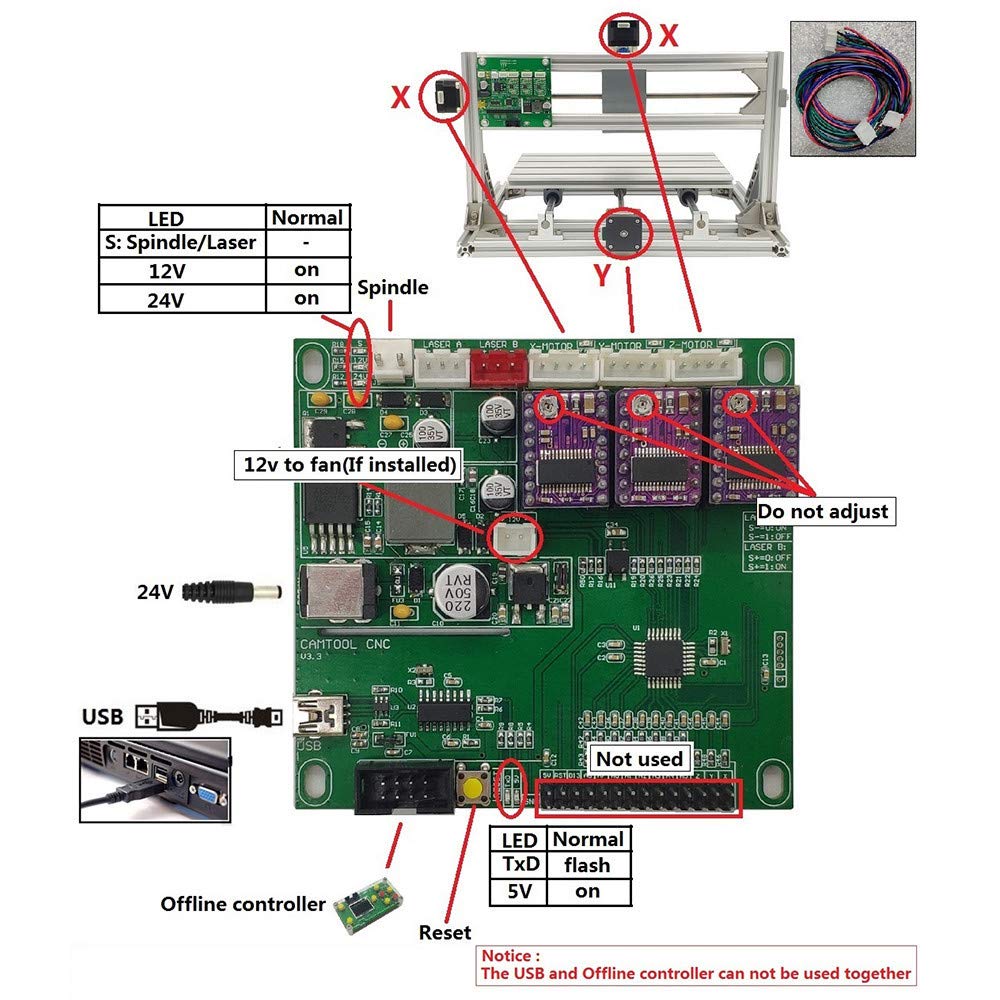

3-Axis GRBL Control Board
Output signal:
1: Fan: Used for shaft motor cooling
2: Shaft: Connect motor shaft, keep the same with power supply voltage, 5A electricity, if the motor power of the spindle is high, can connect external relays such as the switch. G code M3 open, M5 closed, with version 0.9 of the firmware can adjust PWM, achieve the speed of the axis governing and tunable laser
3: X axis motor signal output, A4988 max 1.5A electric current
4: Y-axis motor signal output, A4988 max 1.5A electric current
5: Z-axis motor signal output, A4988 max 1.5A electric current

Input Signal:
1: X-axis minimum limit X-
2: Y-axis minimum limit Y-
3: Z-axis minimum limit Z-
4: Reset button: press the button, system will restart, can be used for urgent stoping of machine

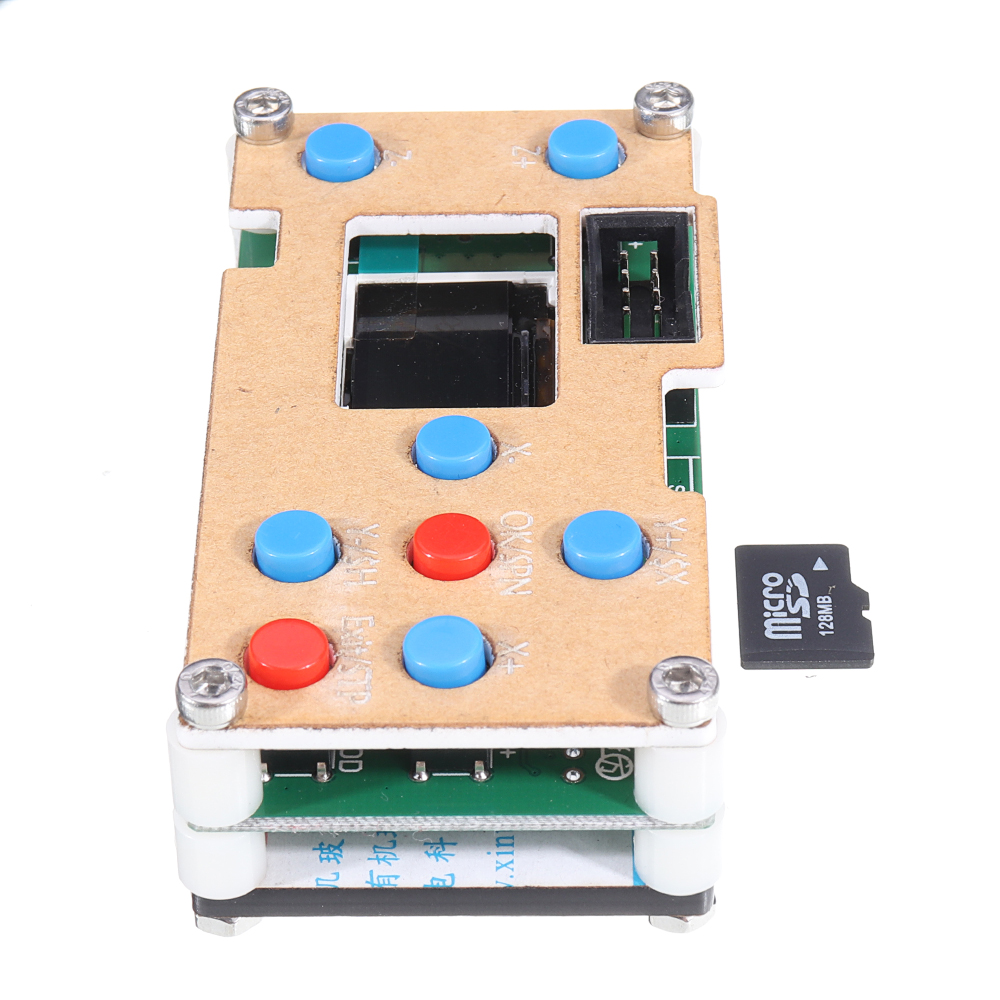

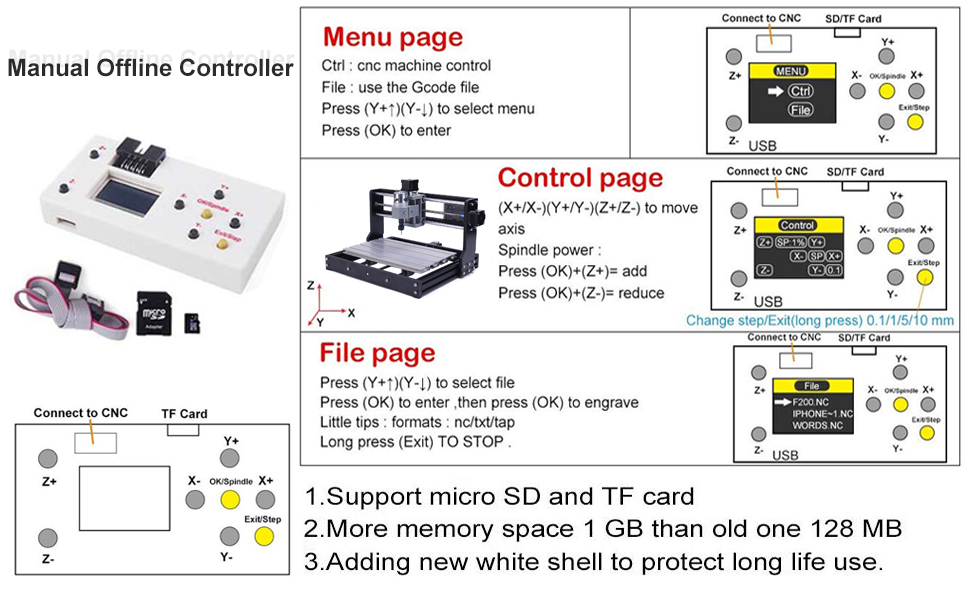

GRBL Off-line Controller
Press Z+ and Z- , the Z axis will move up and down.
Press X+ and X- , the X axis will move left and right.
Press Y+ and Y- , the Y axis will move Front and Back.
Press SPIN : Spindle on (Laser on ), Spindle off (laser off)
Press SMOD: return
Press Z+ for 5 seconds , change the Language to English.
SD Card: Included , you need a SD card reader to write into the root directory G-code files .
Notice:
The Laser Interface is 3 pin on this control board. Only support 42 stepper motor
