1-Inch 8TPI Direct Thread Midi Wood Turning Chuck Wood Lathe Chuck Wood Turning Tool
- Stock: In Stock
- Model: MZ000863
- SKU: MZ000863
Description:

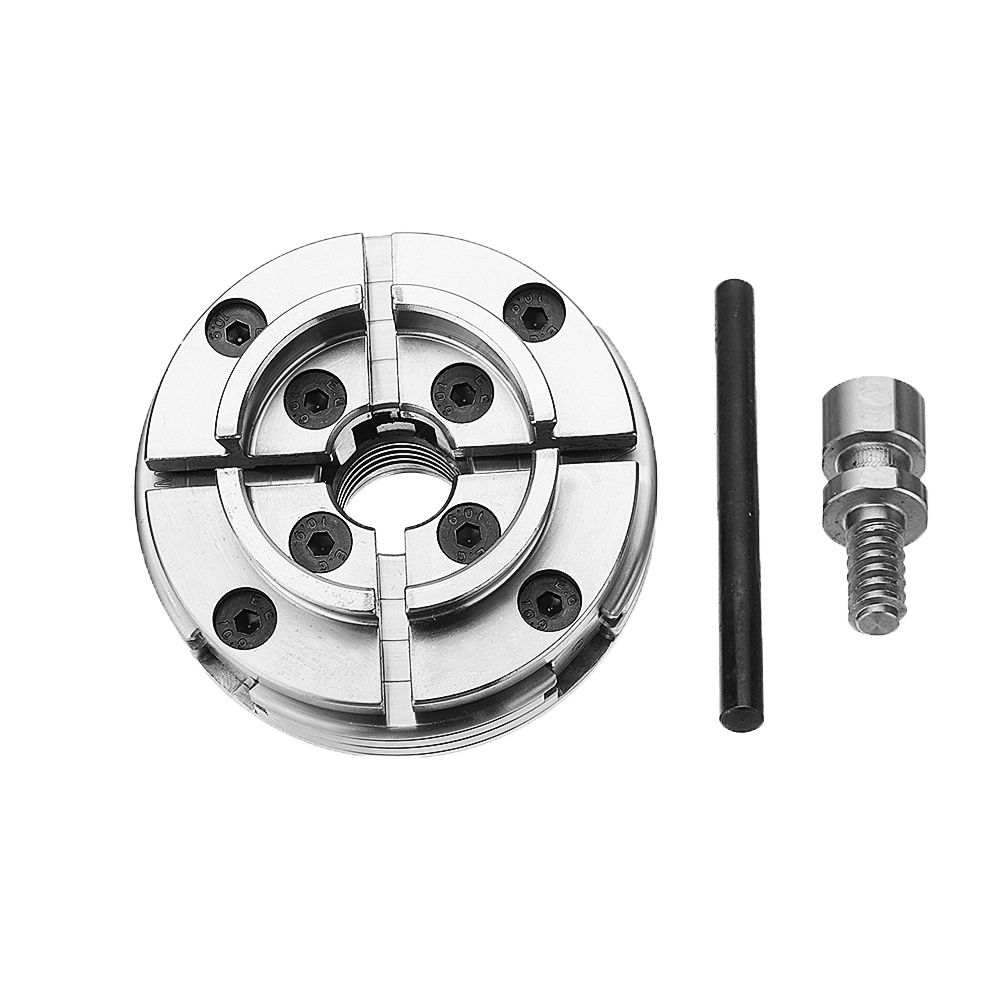

RED ARROW 1-Inch 8TPI Direct Thread Midi Wood Turning Chuck Wood Lathe Chuck

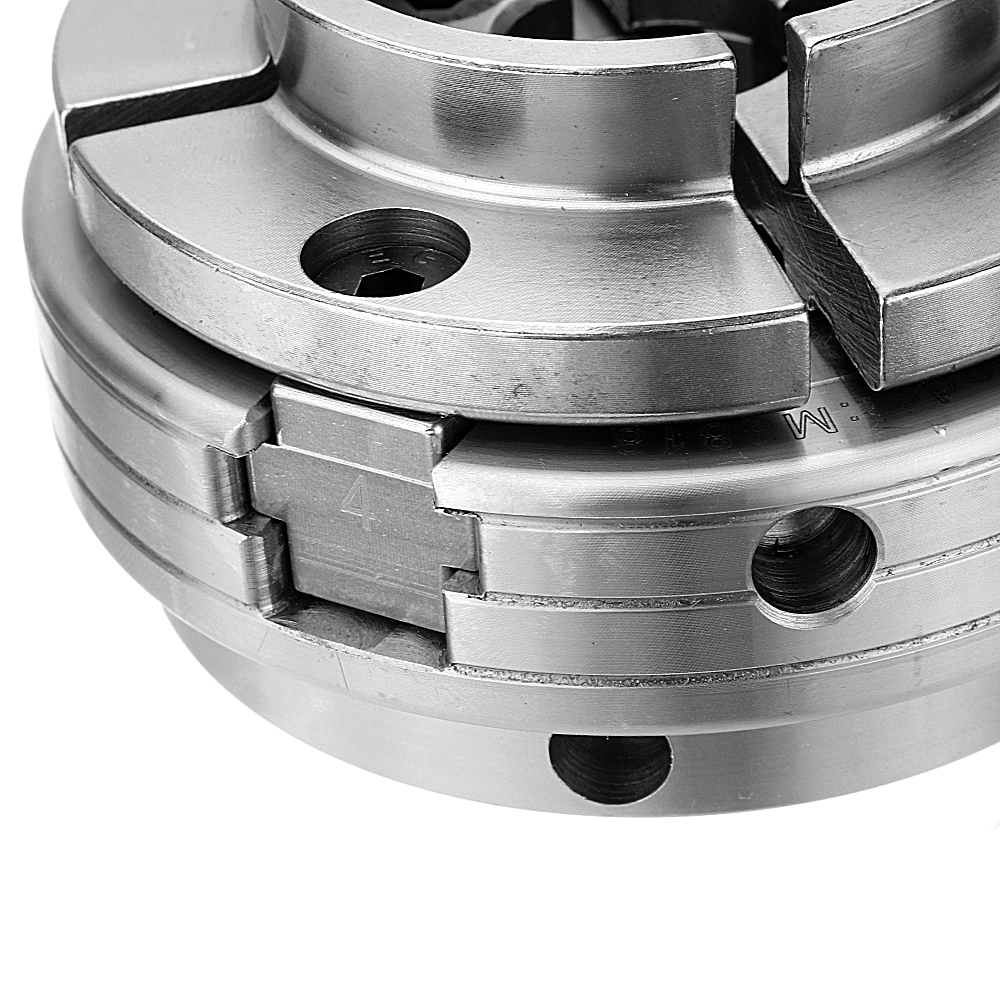

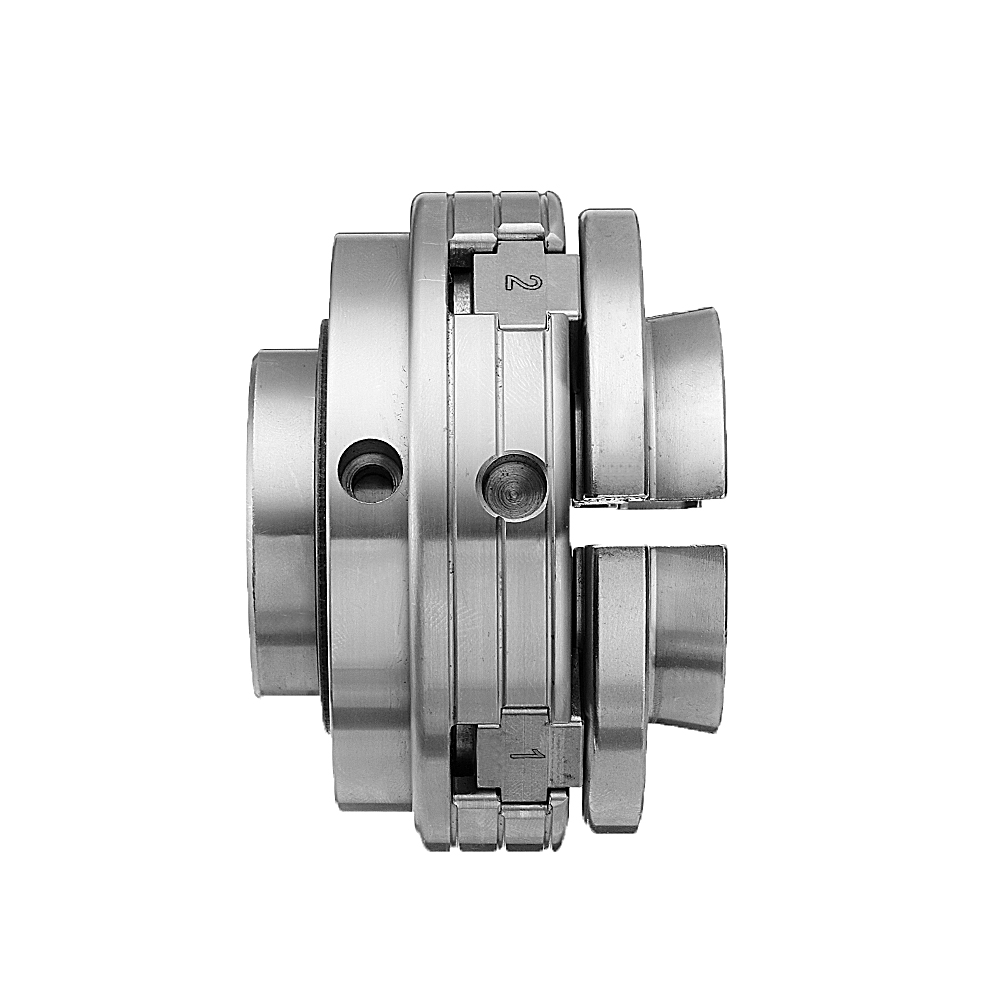

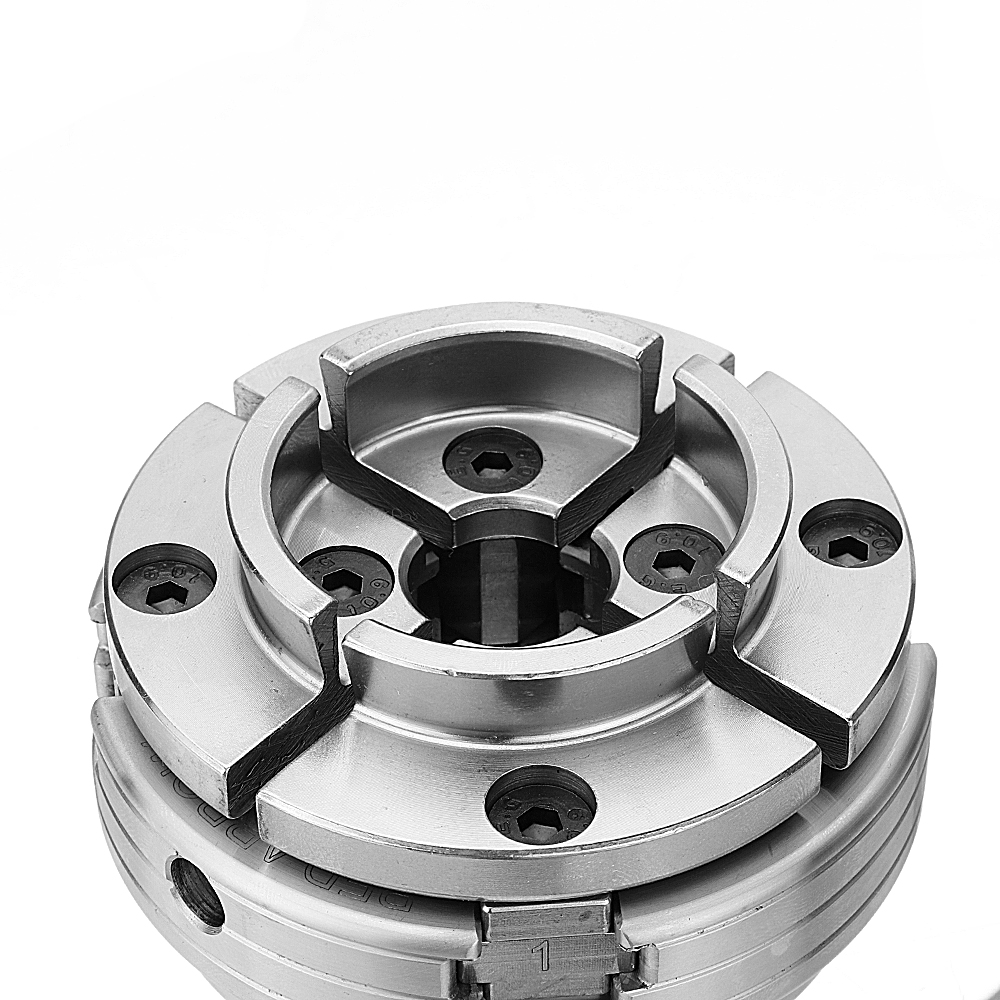

Mini Wood Turning Chuck is a smaller 4 Jaw self centering chuck that minimizes loads on small lathe spindles and bearings,
suitable for smaller Wood lathes with up to 12-Inch swing. With unique RED ARROW features such as Auto Stop,

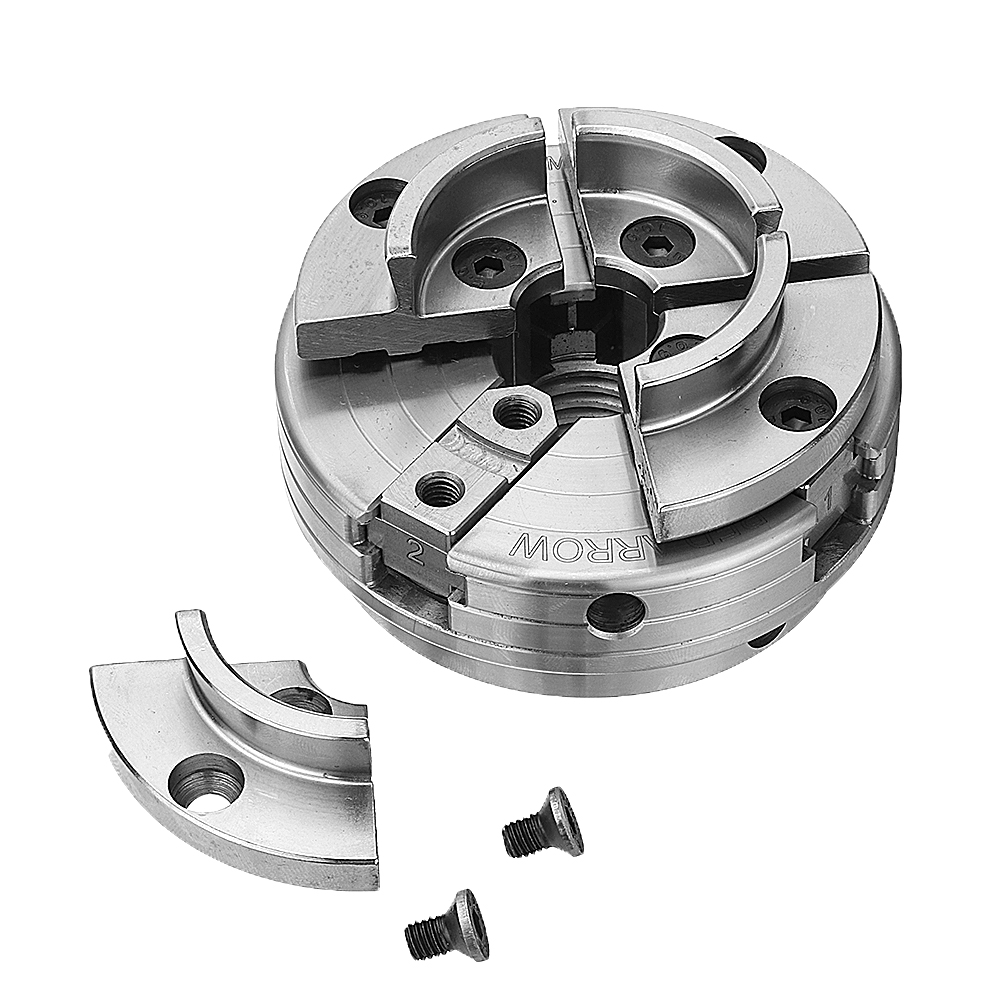

Copper composite Jaw Slides, Woodworm Screw and 2-Inch Jaws as standard, this chuck is fully featured.
If you need other jaws, click ID:1417416
Specification:
| Material | Machined 1045 high tensile steel |

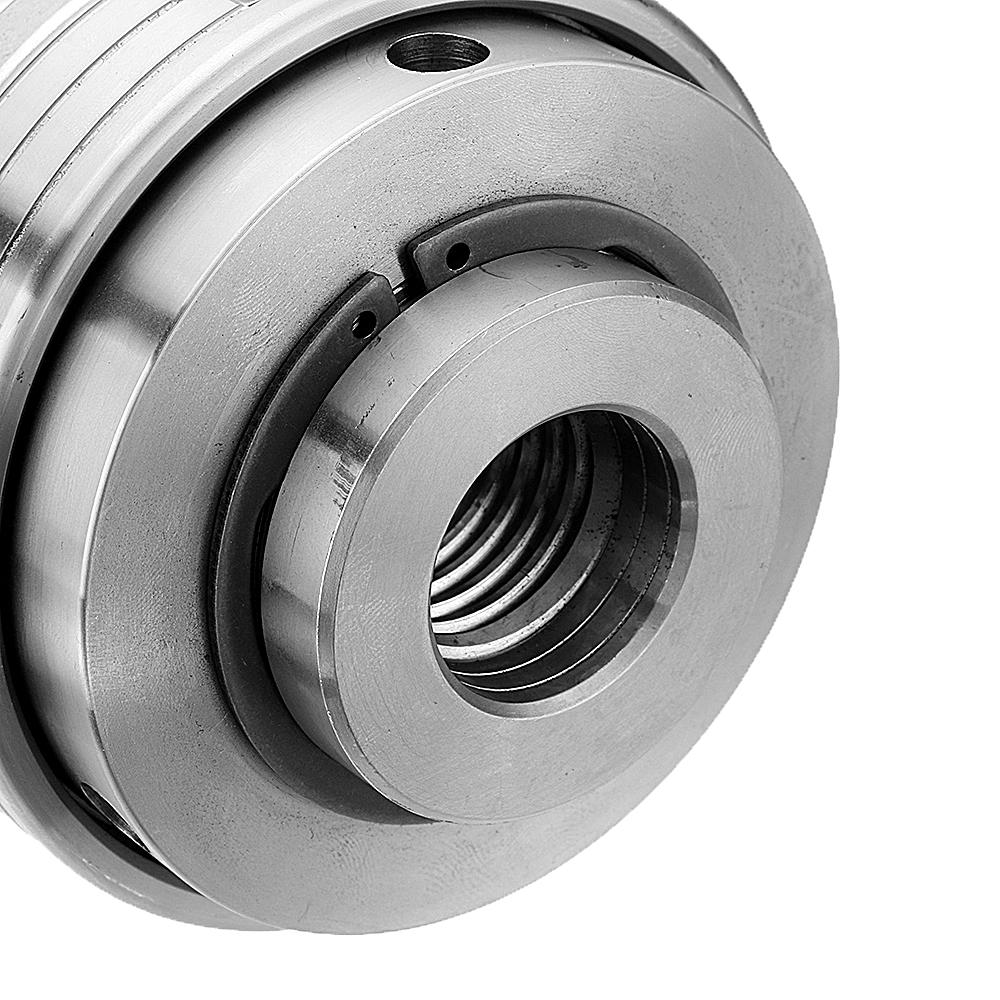

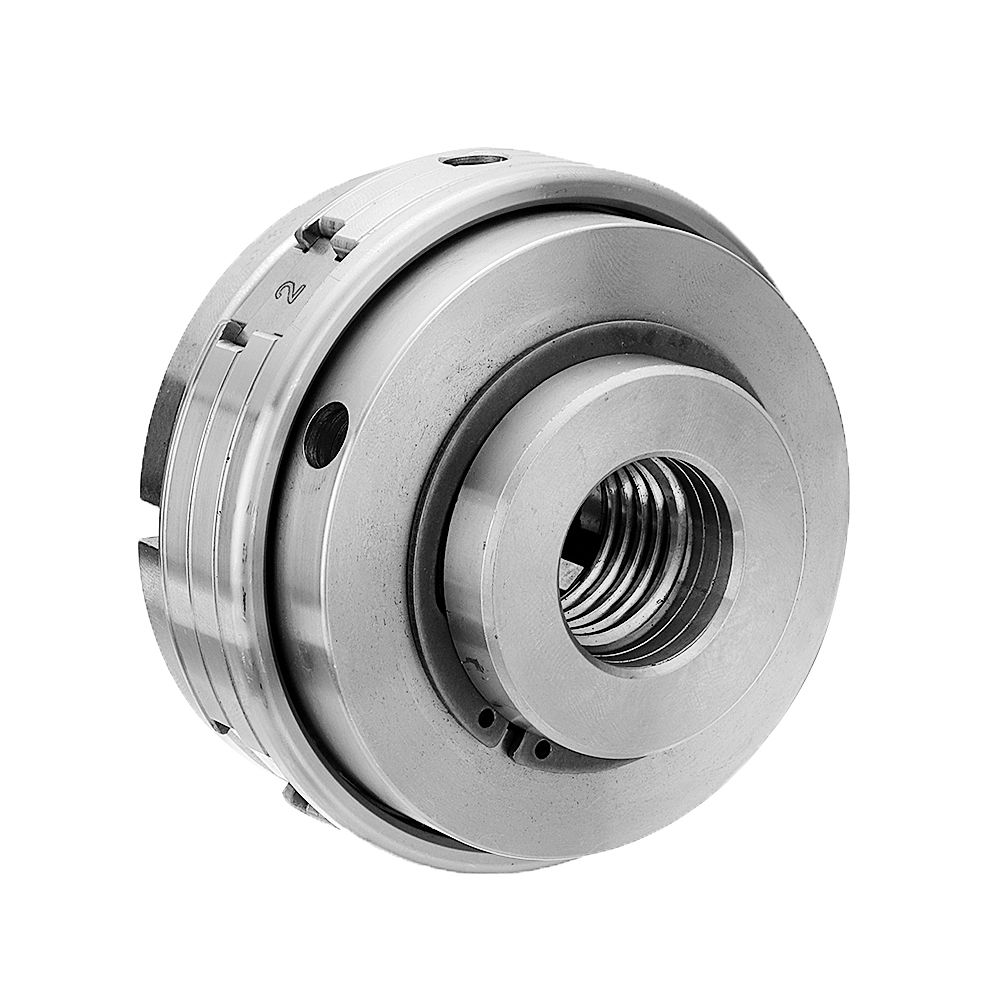

| Thread | 1"x 8tpi or M33x3.5 |
| Clamping diameter | 42-64MM |
| Diameter of outer support | 52-74MM |
| Ideal for lathes with up to | 12" swing |
Features:
1: Small, compact design minimizes load on small spindles and bearings.
2: 2-lever operation offers very fast action-ideal for production turning of small pieces.

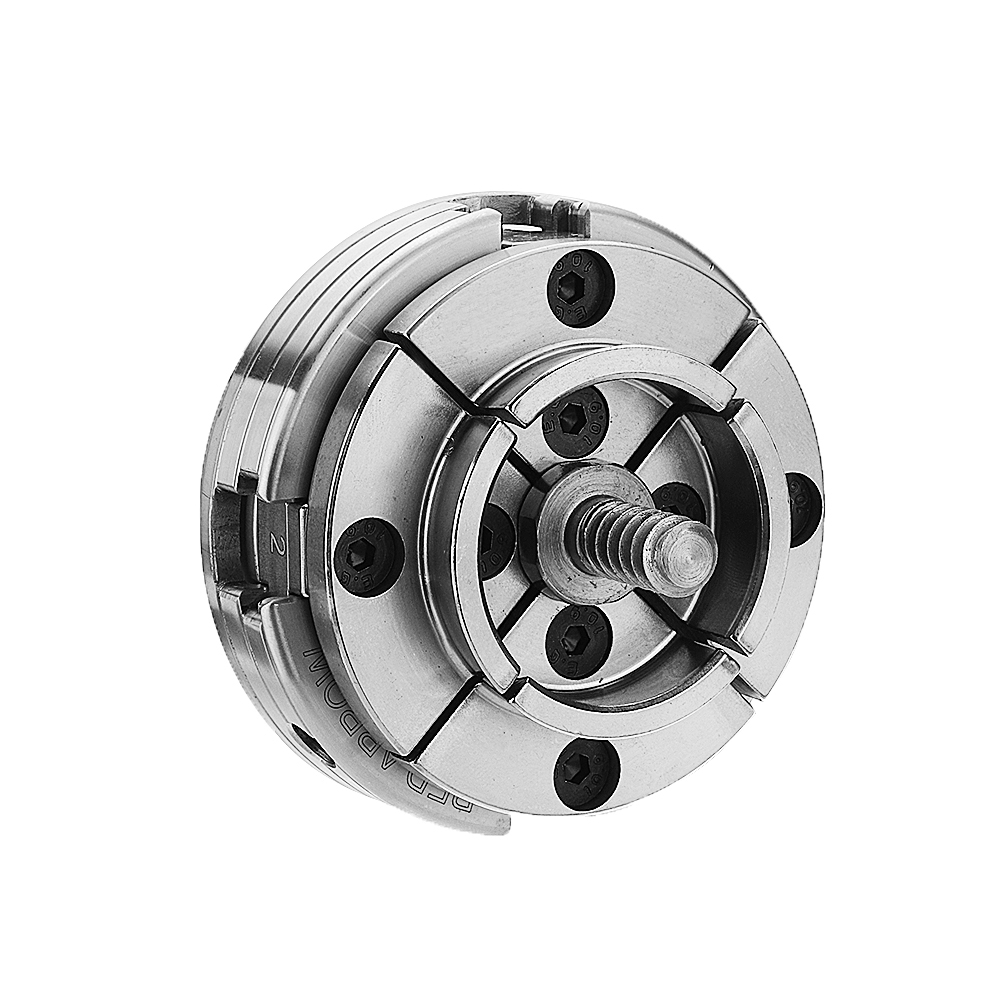

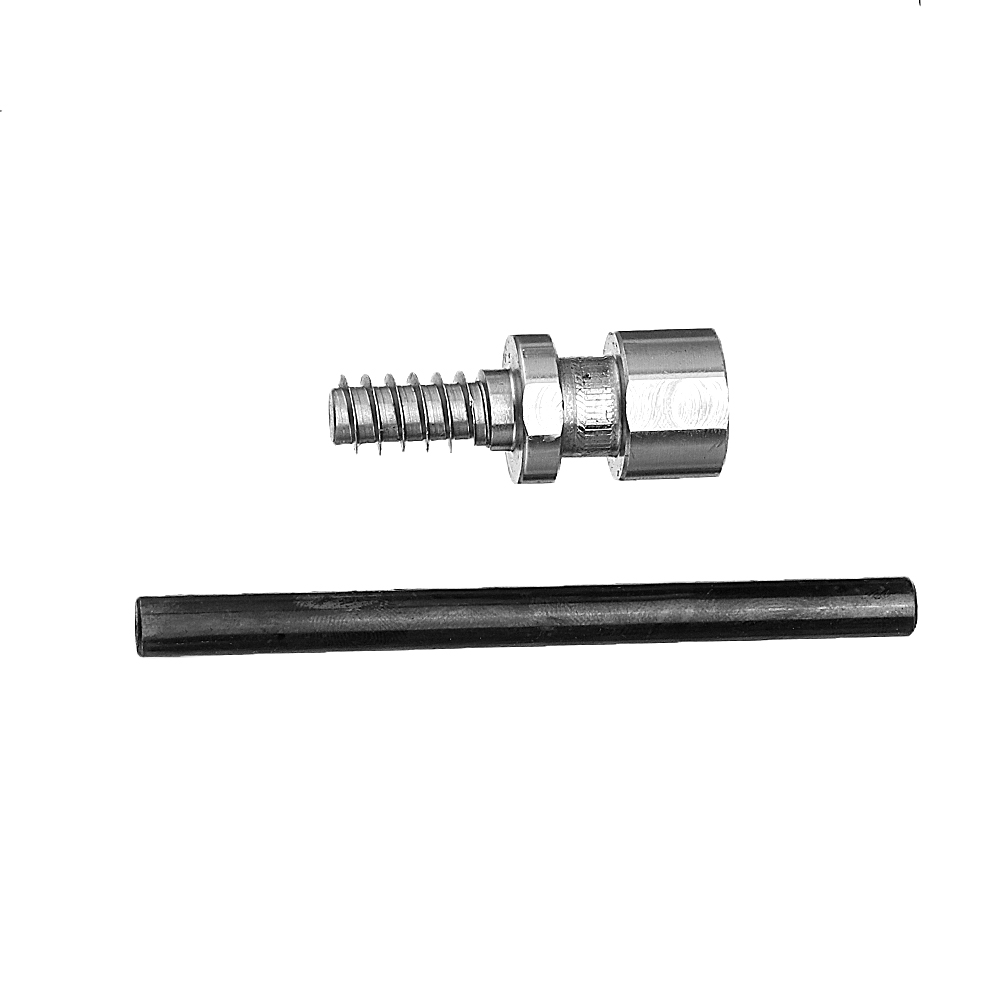

3: Safe Lock Woodworm screw included for fast mounting of rough timbers.
4: Machined in one operation from a solid steel block for optimal accuracy. Polished self-metal finish to allow for closer tolerances and accuracy.
5: Packed with unique features such as Auto Stop, Copper composite jaw slides, Woodworm Screw and 2″ jaws as standard.
6: Recommended for power work holding on lathes up to 300mm/12" diameter swing.
Package Included:
1 x Mini Lathe chuck set
