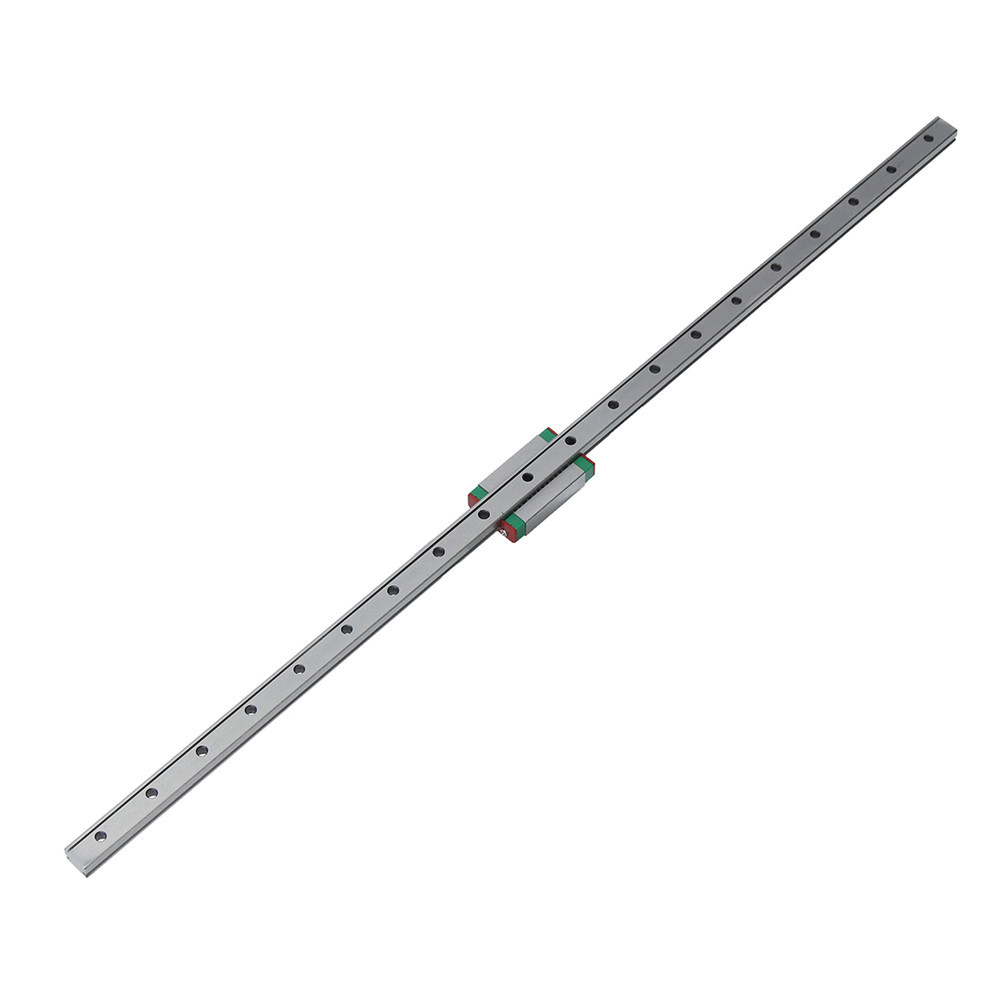

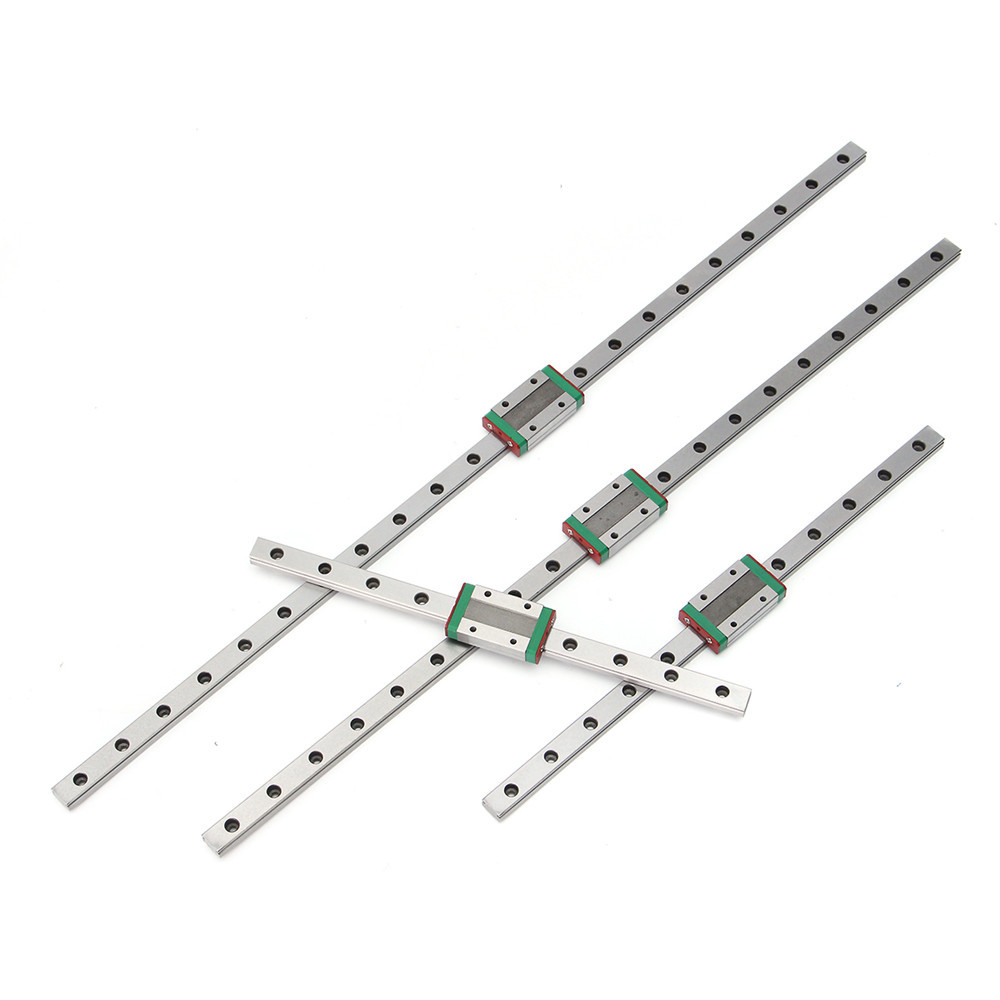

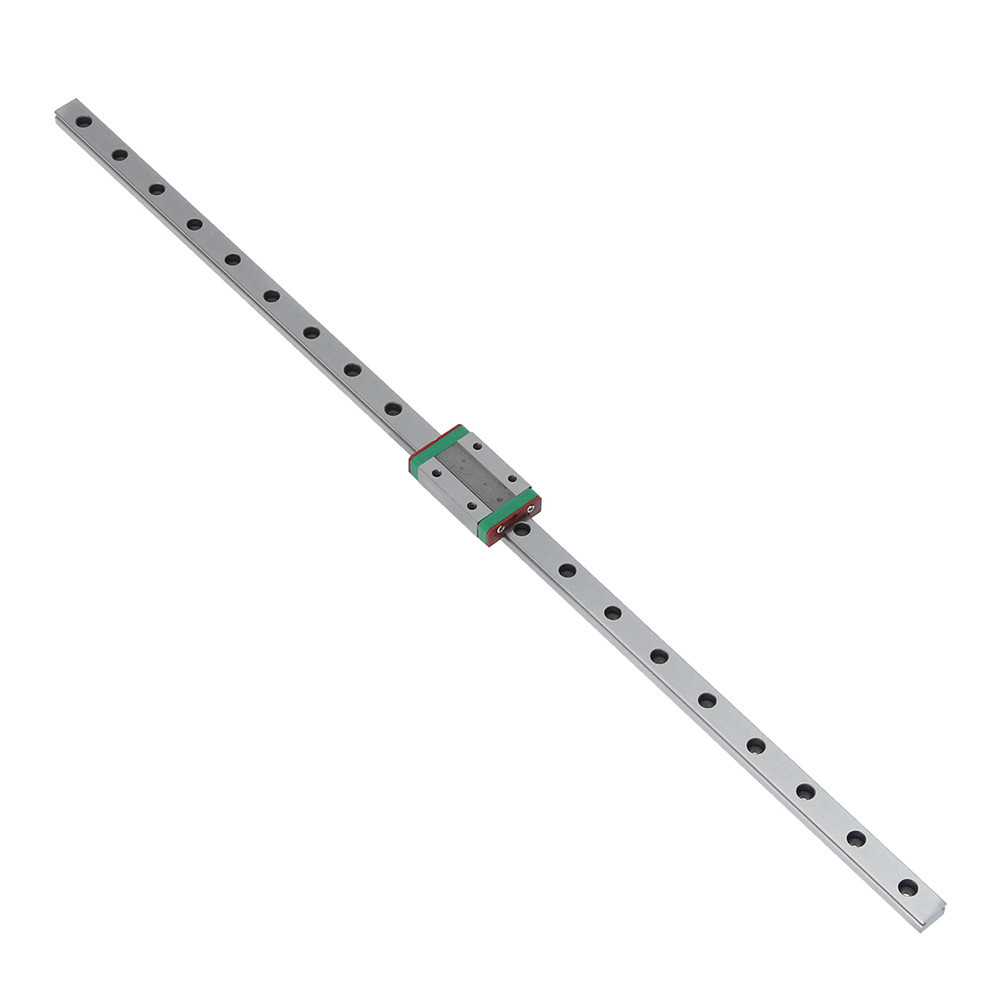

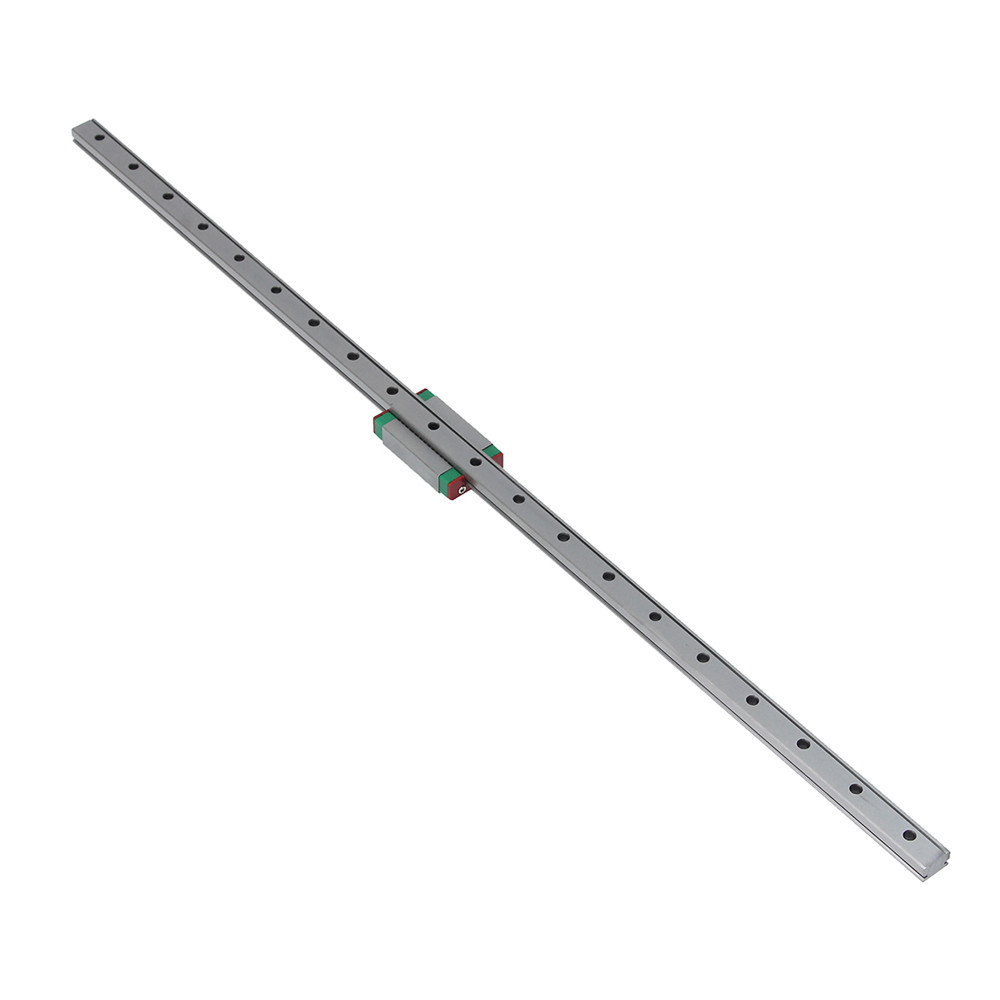

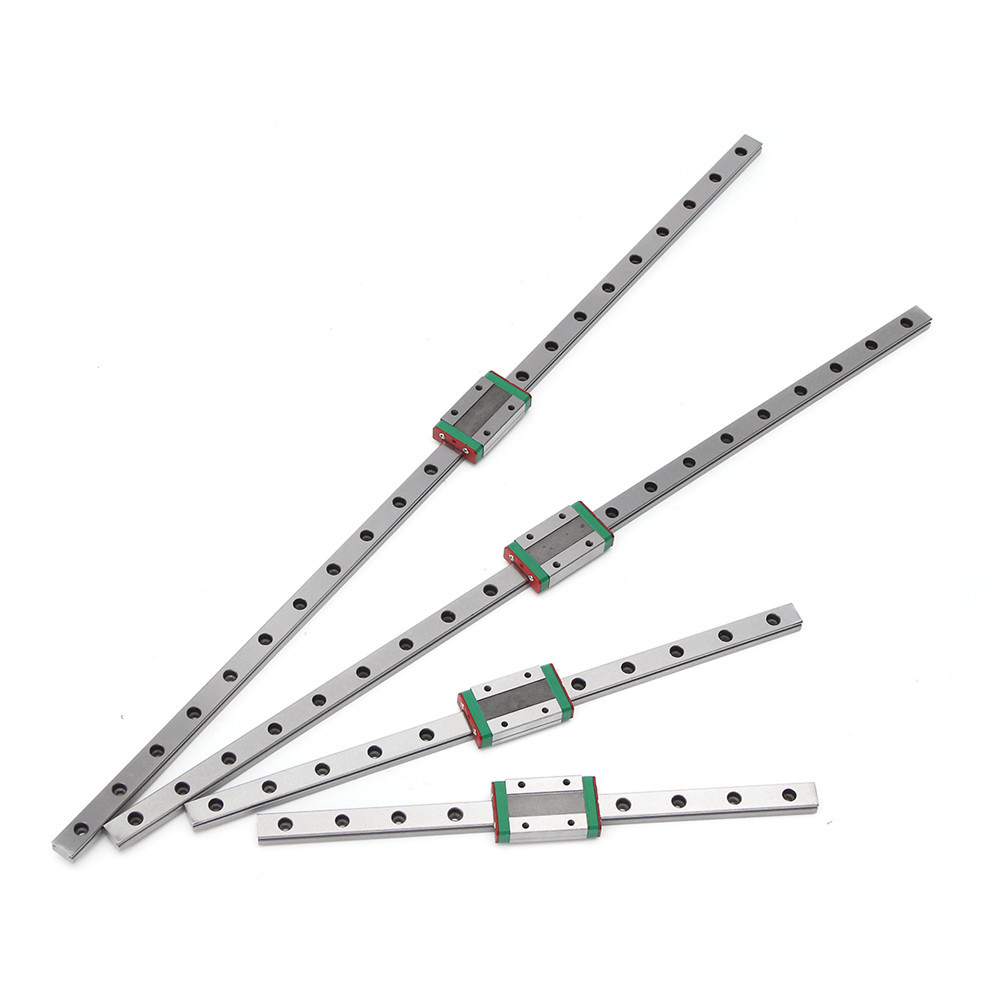

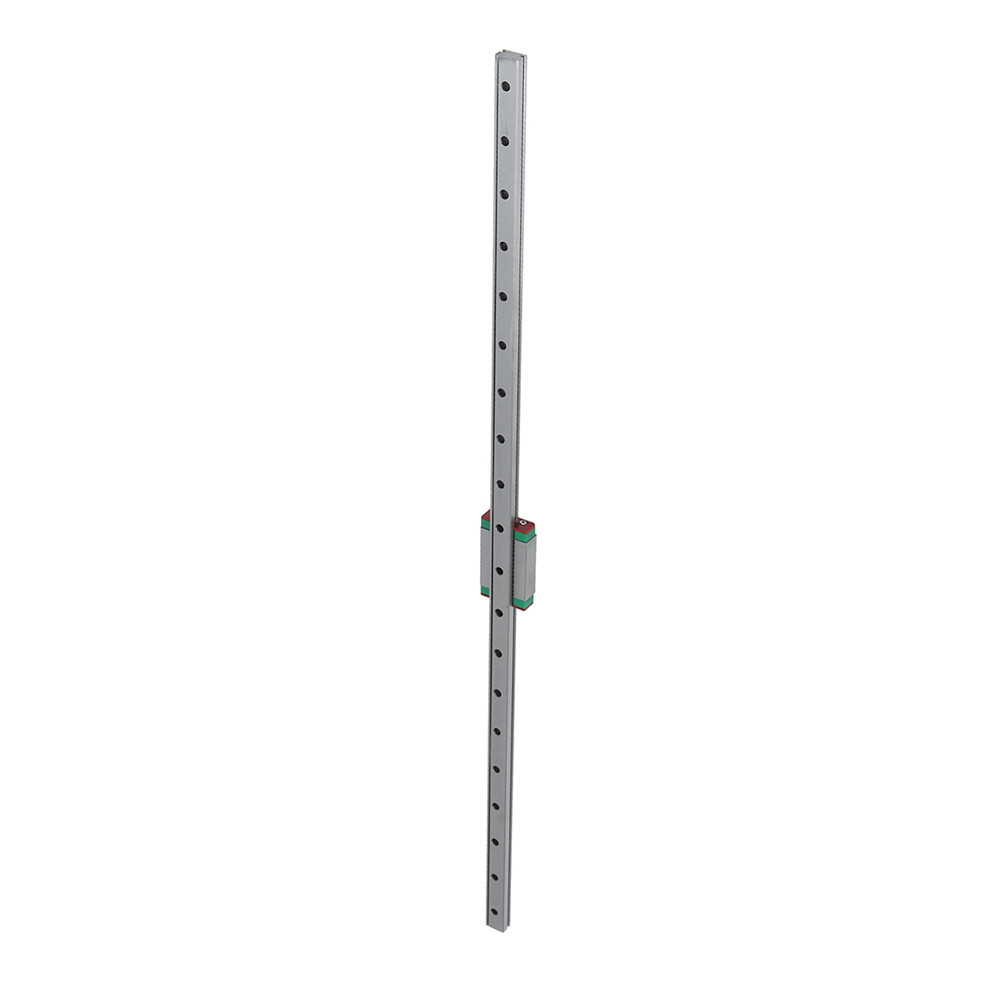

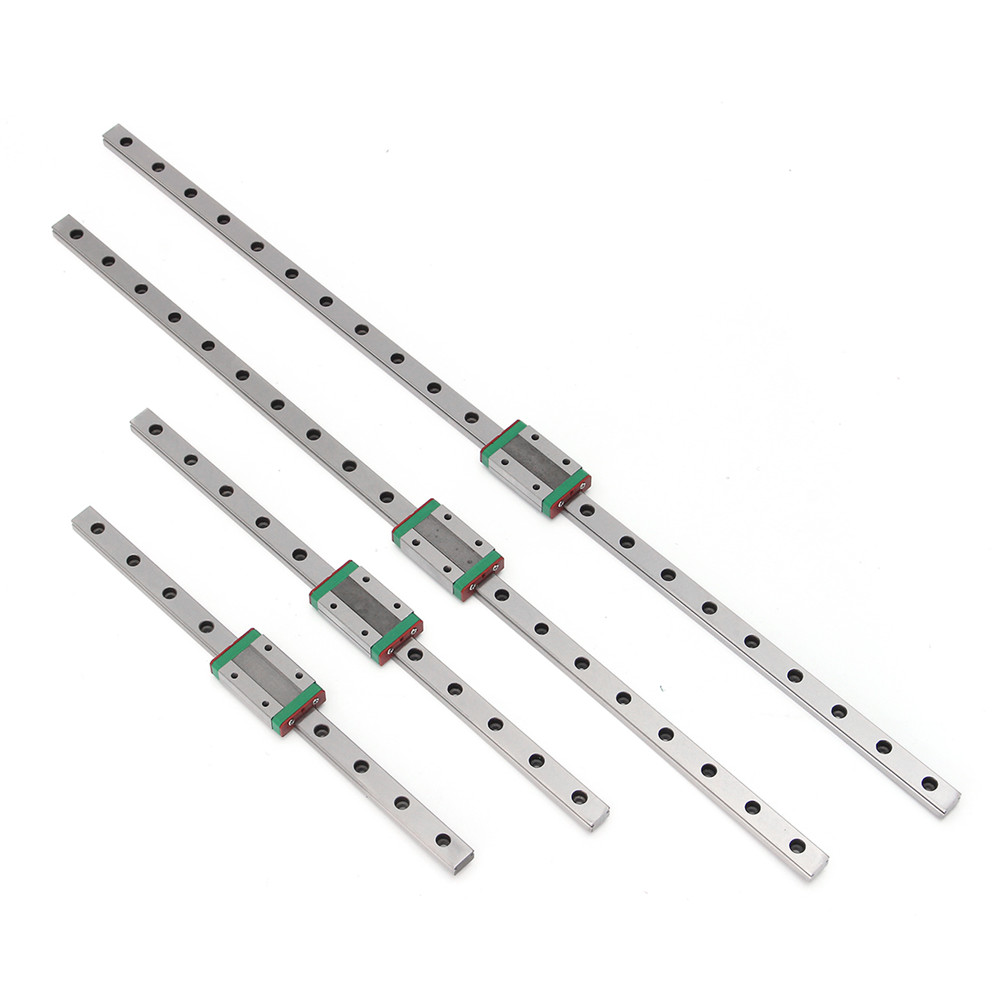

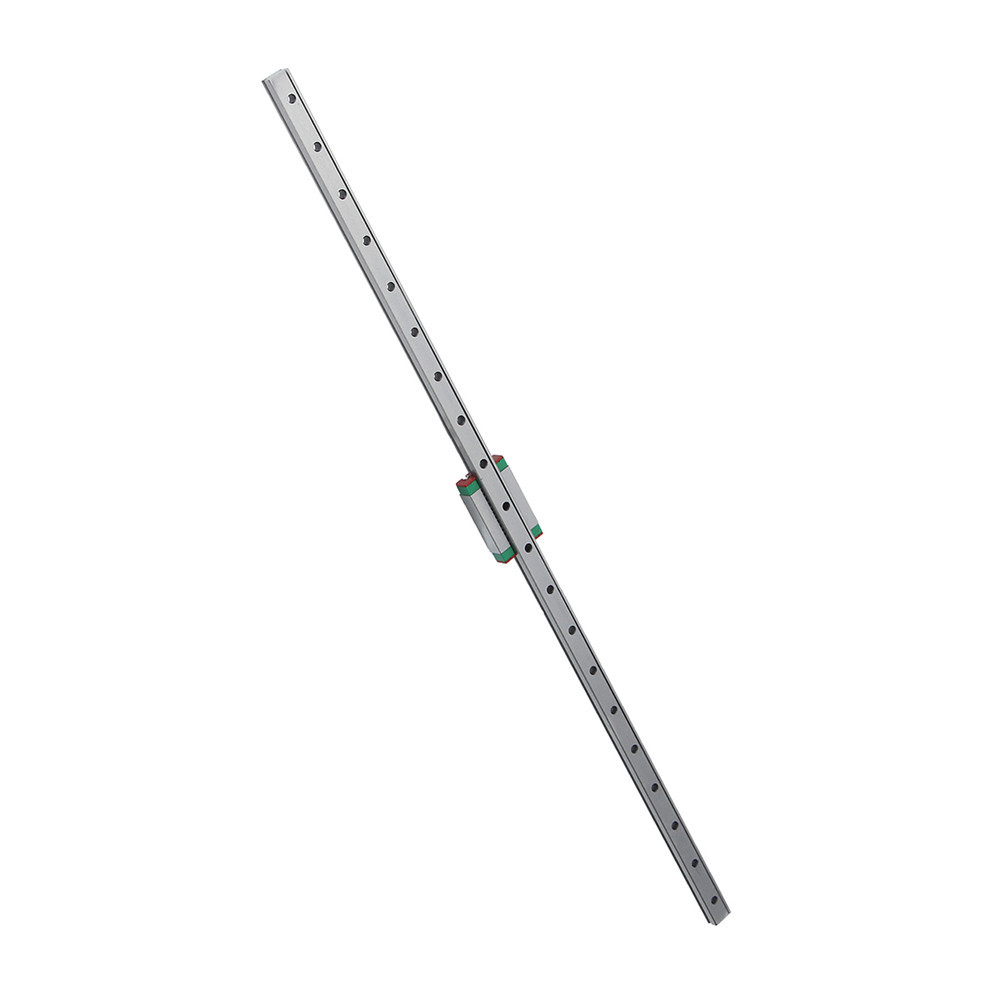

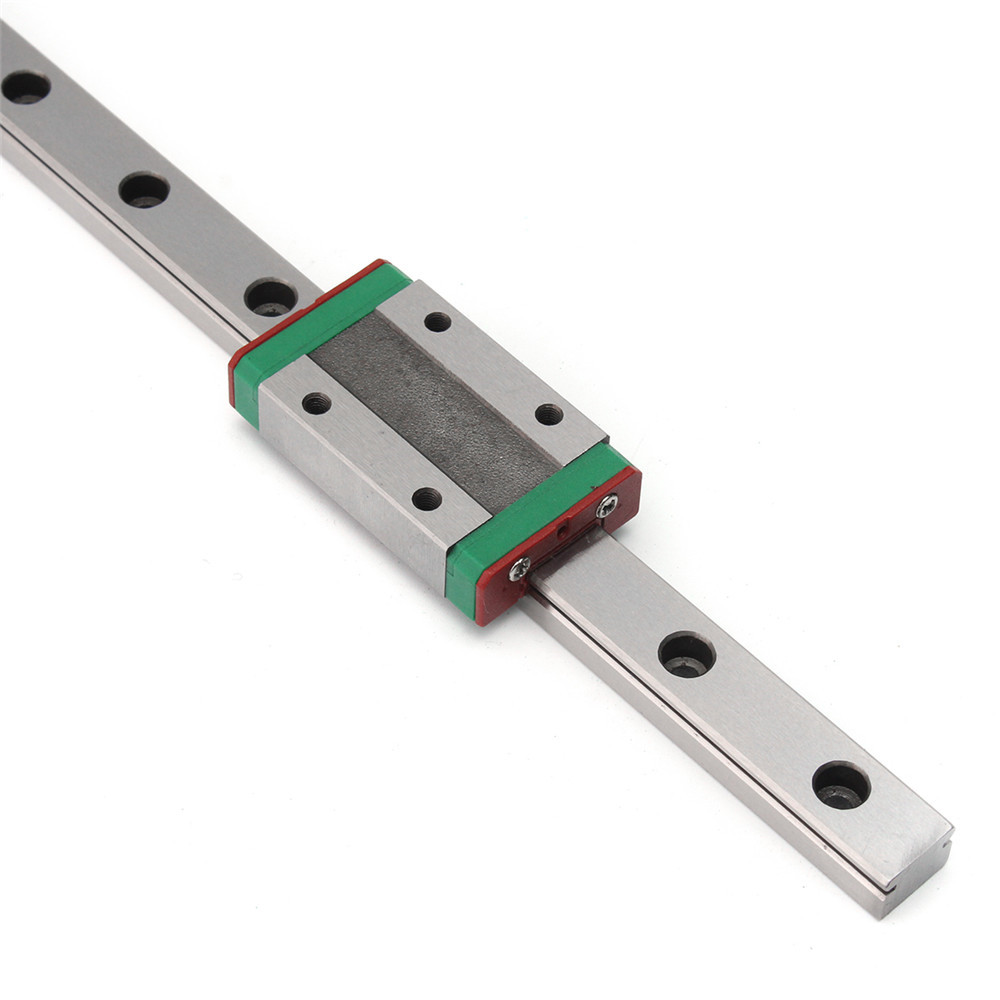

MGN12 100-1000mm Linear Rail Guide with MGN12H Linear Sliding Guide Block CNC Parts
MGN12 100-1000mm Linear Rail Guide with MGN12H Linear Sliding Guide Block CNC Parts
$12.99
Ex Tax: $12.99
- Stock: In Stock
- Model: MZ004258
- SKU: MZ004258
Description:
Moonzite MGN12H 250/300/500/550mm Linear Rail Guide Linear Sliding Guide Block CNC Tool
Specification:
Features:
Package Included:
More Details:
Moonzite MGN12H 250/300/500/550mm Linear Rail Guide Linear Sliding Guide Block CNC Tool

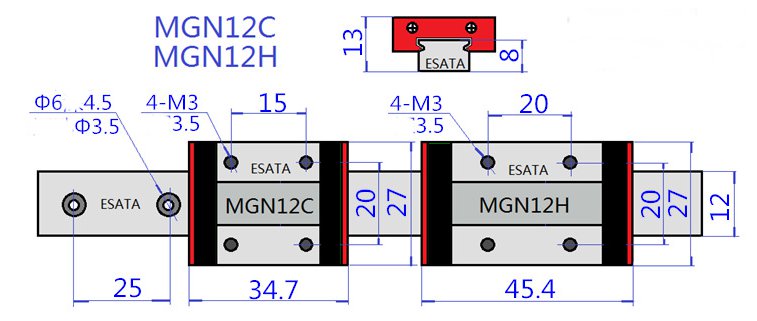

Specification:
| Height (Block) | 10mm |
| Width (Block) | 27mm |
| Length(Block) | 46mm |
| Height (Rail) | 8mm |
| Width(Rail) | 12mm |
| Length(Rail) |
100mm/200mm//300mm//400mm//500mm 600mm//700mm//800mm//900mm//1000mm |
| Rolling bearing seat material | Bearing steel |
| Quantity | 1pcs |
High precision, smooth, high wear resistance and low noise.
Advanced production technology, precise products, high hardness and durability.
High bearing capacity and low friction.
Widely used in CNC machine tools, machining centers, electronics, automated machinery, textile machinery, automotive woodworking machinery, printing machinery, etc.
Installation Precautions:
When installing, do not remove the plastic rail in the slider in advance, otherwise it will easily cause the steel ball in the slider to fall out during assembly and cannot be installed and used normally.
Installation steps:
1. Align the end of the rail with the slider.
2. Use the guide rail to slowly push out the plastic rail.
3. The plastic rail falls naturally until the slider is completely loaded into the guide rail.
Note:
Please note that the package includes one size set or one single linear block only.
1 x MGN12 Linear Rail + MGN12H Linear Rail Guide Block or
1 x MGN12H Linear Rail Guide Block
More Details:
