17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser

17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
$16.99
Ex Tax: $16.99
  • Stock: In Stock
  • Model: MZ005444
  • SKU: MZ005444
Description:

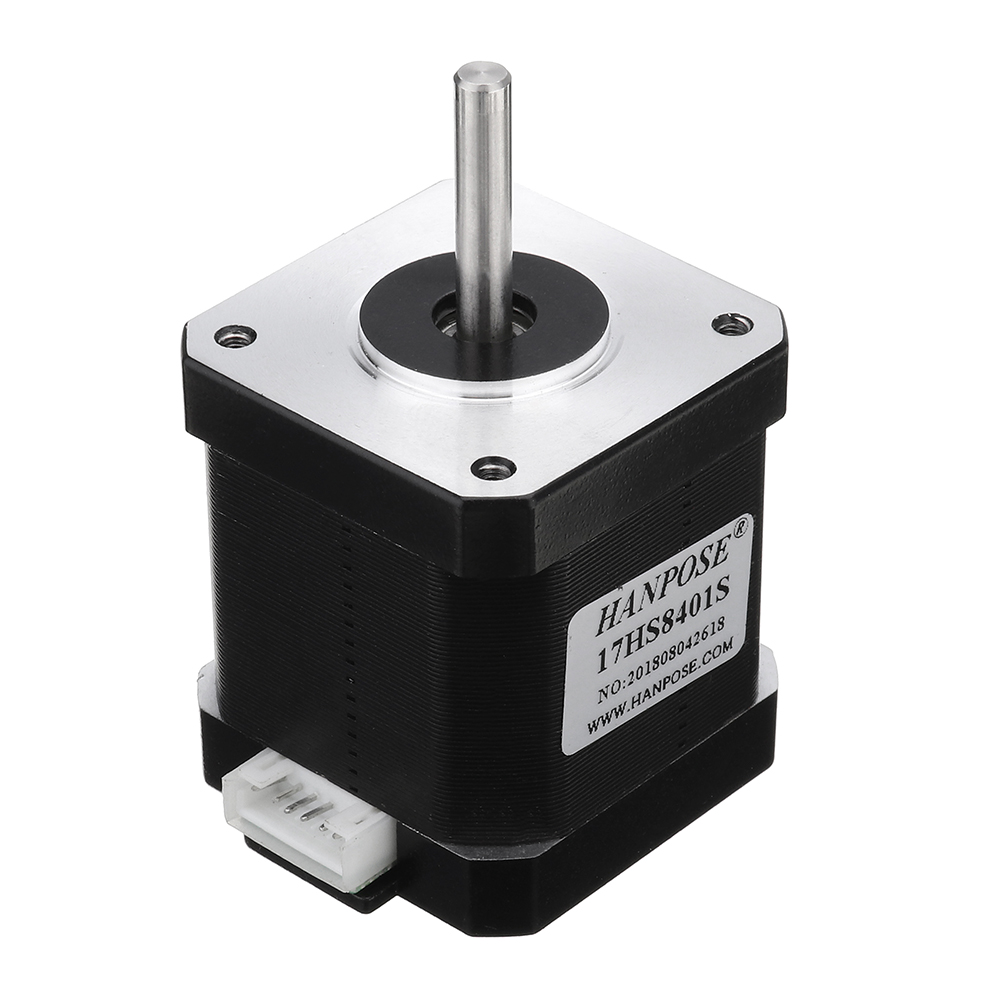

HANPOSE 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
Certification: CE, ROSH, ISO, FCC
Color: Black(Surface Treatment)

Specification:
Model 17HS8401-S
Type Hybrid
Phase 2
Step Angle 1.8°
Motor Size 42 *48 mm
Shaft "D" shaft 21 x Ф5mm
Outlet way "4" plug line
Motor leads Dupont line(1M)
Adapter drive Two-phase step drive
Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment,  Non-standard Equipment, Placement machine ect.

Electrical Specifications:
Model No. Step Angle Motor Length Rated
Current
Resistance
/Phase
Inductance
/Phase
Holding Torque Detent
Torque
Inertia Of
Rotor
  Lead
( °) (L)mm (A) (Ω) (mH) (N.cm)  (N.cm)  (G. cm²) (No.)
17HS8401-S 1.8 48 1.8 1.8 3.2 52 2.6 68 4

General Specification:
Precision angle step ±5% (full step, no charge)
Resistance accuracy ±10%
Precision inductance ±20%
Temperature rise 80deg Max (rated current, 2 phase on)
Ambient temperature ( - 20°)-(+ 50°)
Insulation resistance 100MΩ Min, 500VDC
Insultion Force 500VAC for a minute

Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
5. Color: Black(Surface Treatment)

Package Included: 1 X 17HS8401-S Stepper Motor

More Details:

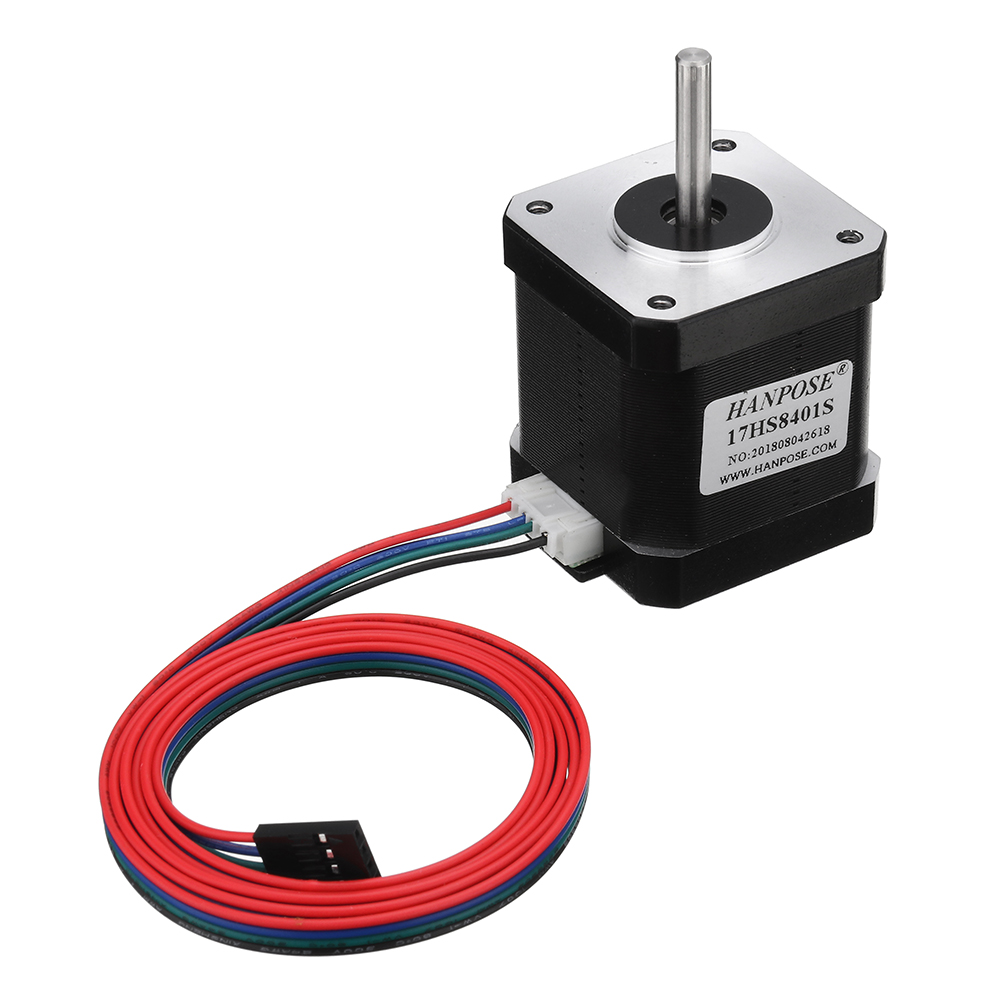

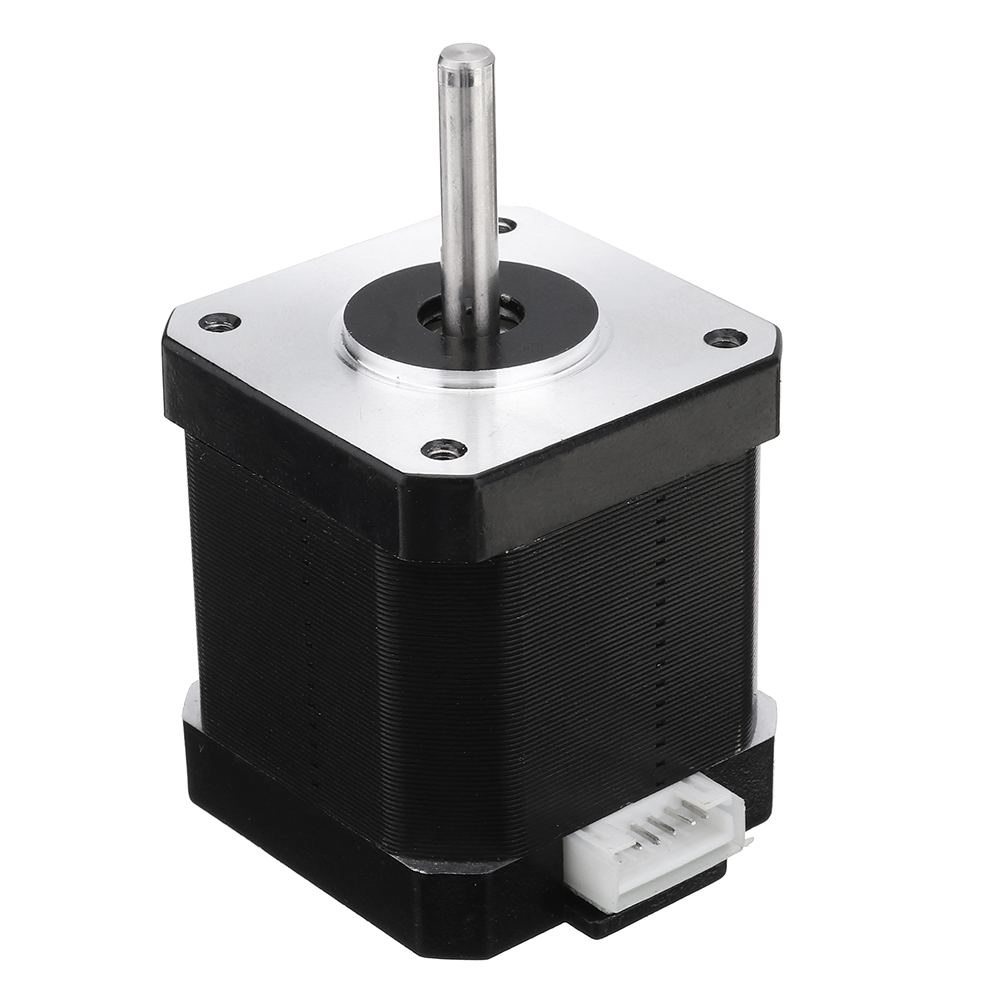

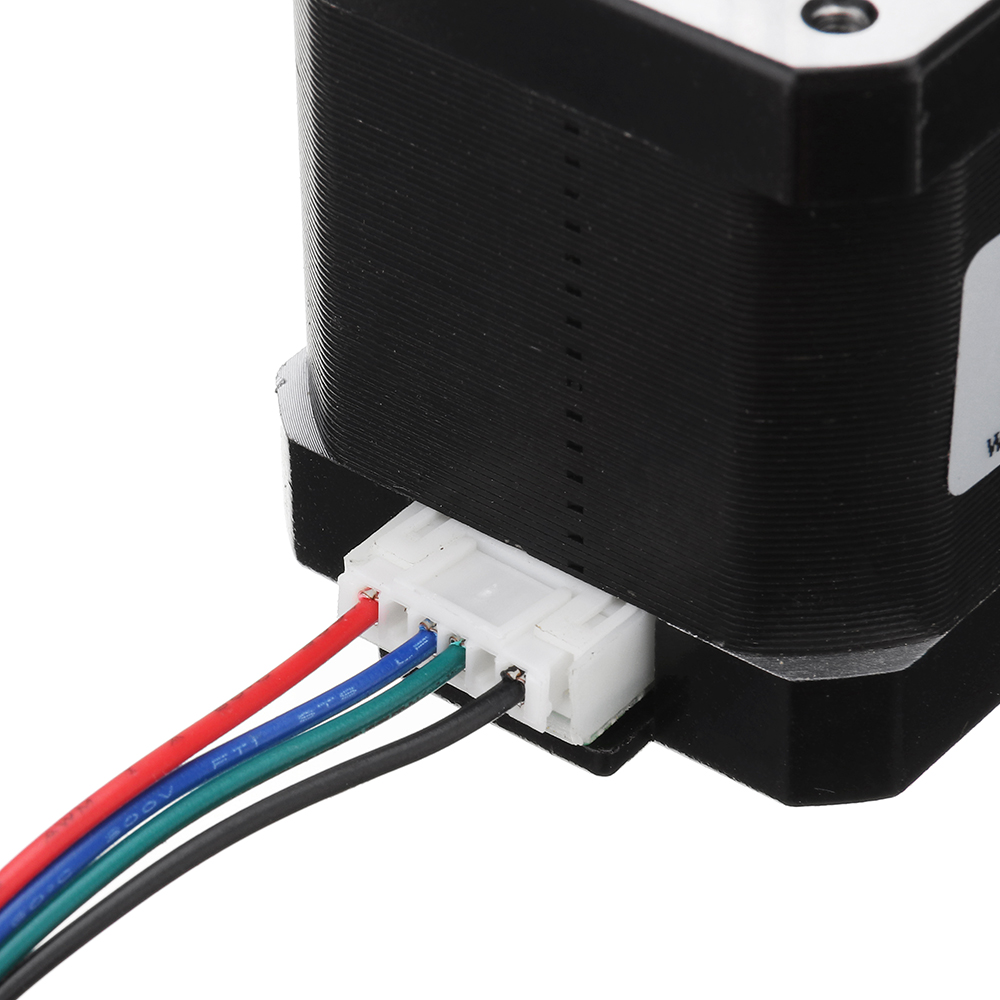

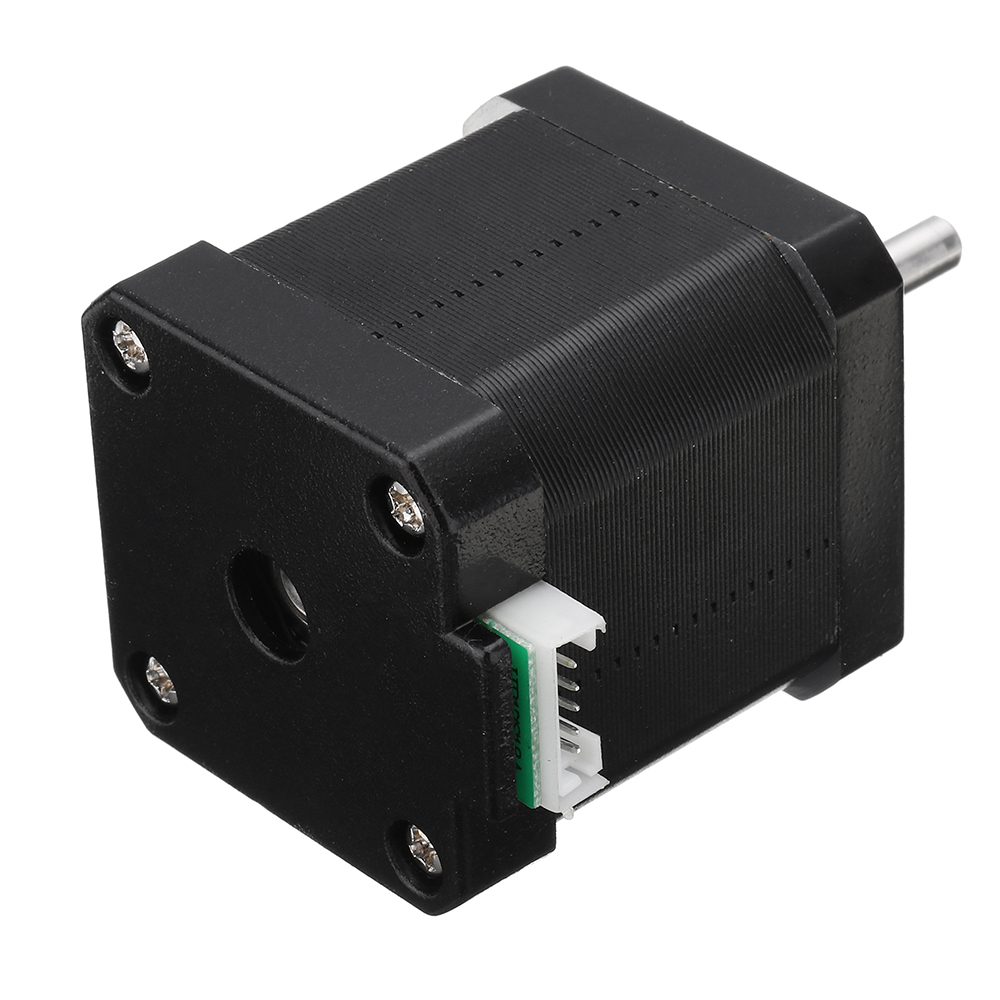

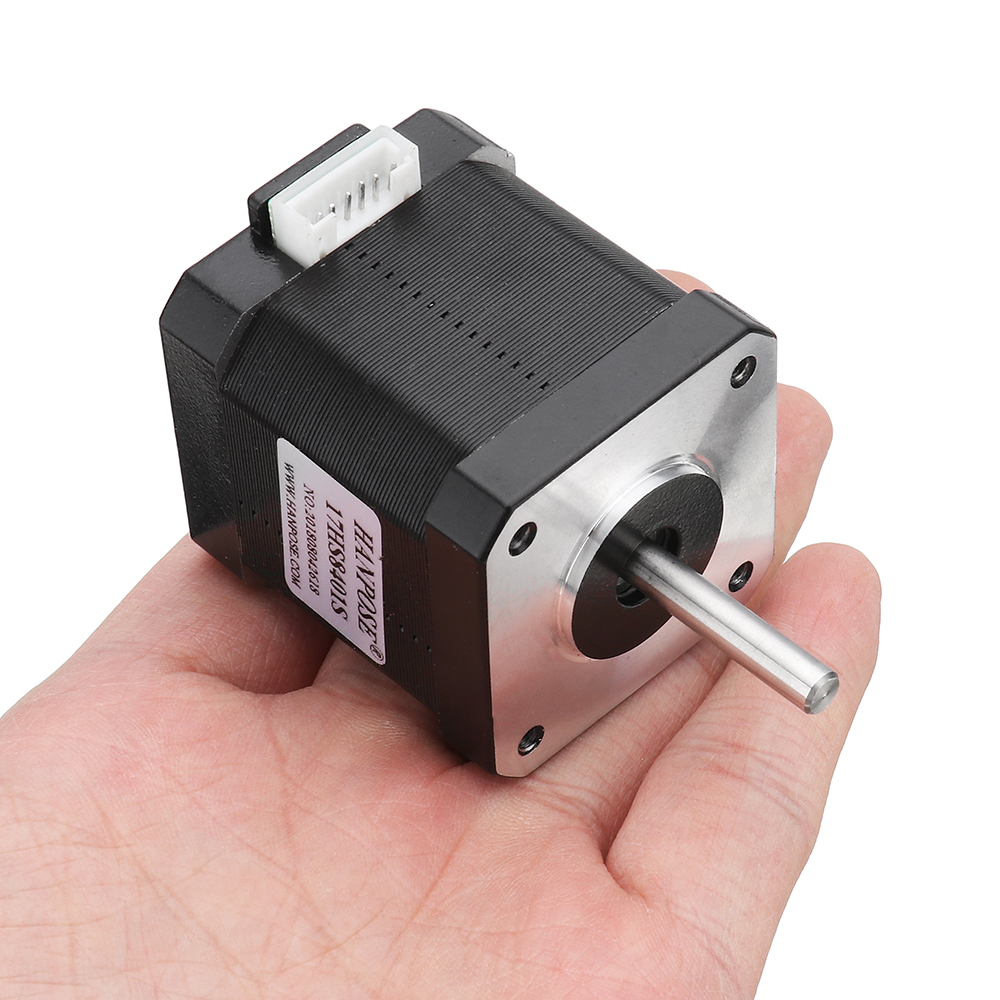

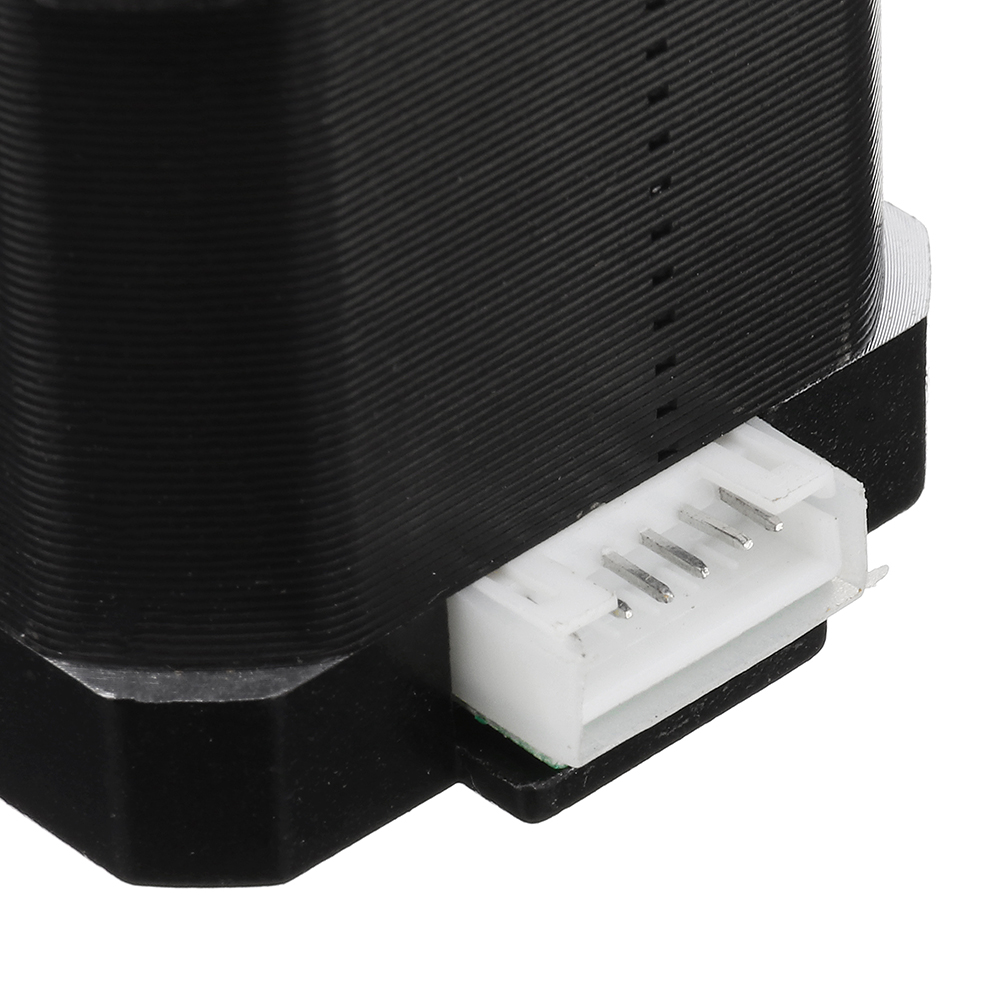

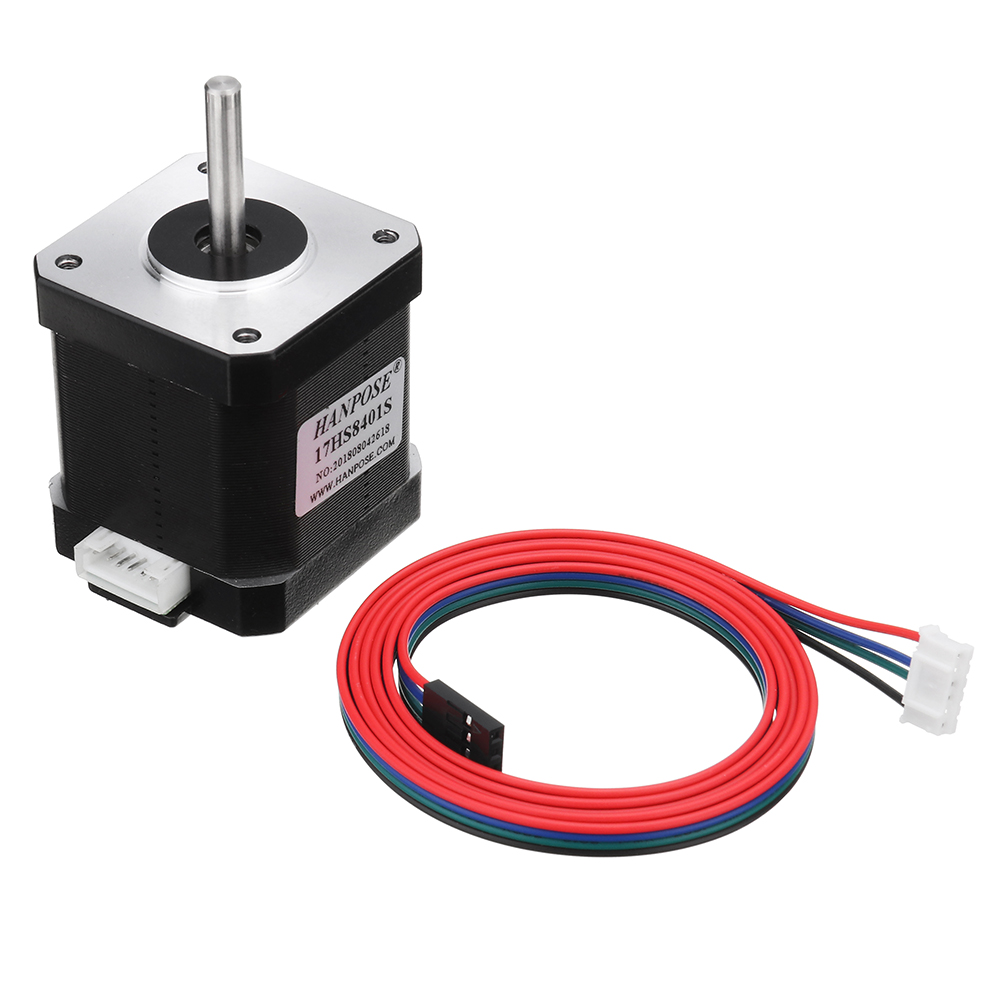

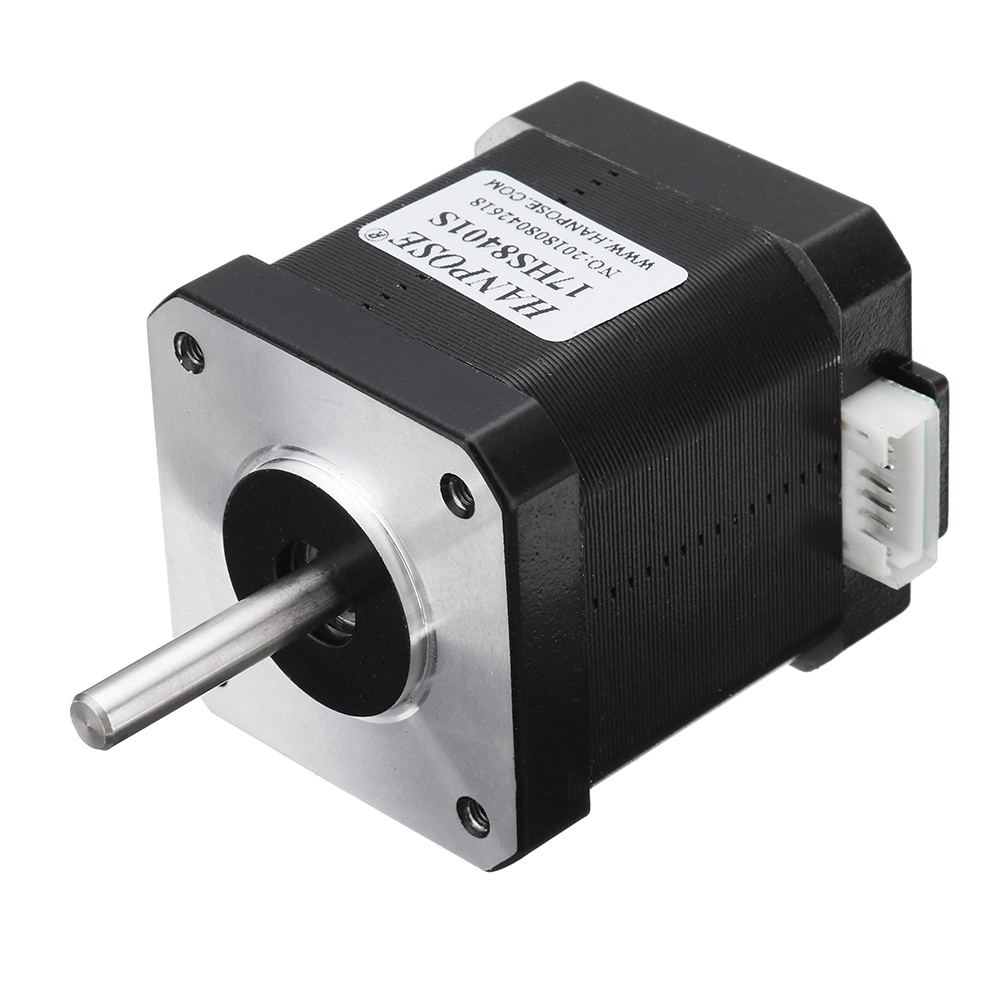

HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-1 HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-2 HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-3 HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-4 HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-5 HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-6 HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-7 HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-8 HANPOSE-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-CNC-La-1415412-9
