3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser

3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
3Pcs 17HS8401-S 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.8A 52N.cm 4-lead for 3D Printer CNC Laser
$32.99
Ex Tax: $32.99
  • Stock: In Stock
  • Model: MZ005890
  • SKU: MZ005890
Certification: CE, ROSH, ISO, FCC
Color: Black(Surface Treatment)


Specification:
Model17HS8401-S
Phase2
Step Angle1.8°
Motor Size42 *48 mm
Shaft"D" shaft 21 x Ф5mm
Outlet way"4" plug line
Motor leadsDupont line(1M)
Adapter driveTwo-phase step drive
Scope3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment,  Non-standard Equipment, Placement machine ect.

Electrical Specifications:
Model No.Step AngleMotor LengthRated
Current
Resistance
/Phase
Inductance
/Phase
Holding TorqueDetent
Torque
Inertia Of
Rotor
  Lead
( °)(L)mm(A)(Ω)(mH)(N.cm) (N.cm) (G. cm²)(No.)
17HS8401-S1.8481.81.83.2522.6684

General Specification:
Precision angle step±5% (full step, no charge)
Resistance accuracy±10%
Precision inductance±20%
Temperature rise80deg Max (rated current, 2 phase on)
Ambient temperature( - 20°)-(+ 50°)
Insulation resistance100MΩ Min, 500VDC
Insultion Force500VAC for a minute

Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
5. Color: Black(Surface Treatment)

Package Included:

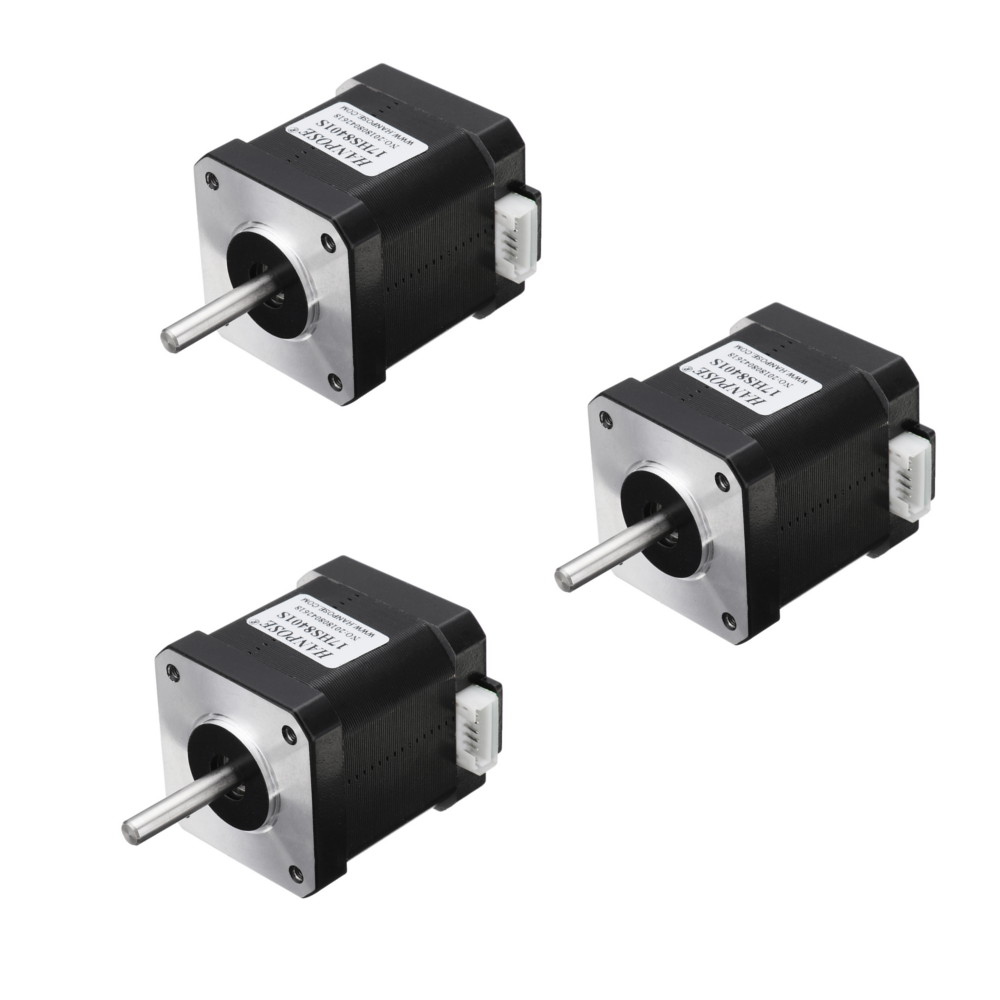

3Pcs X 17HS8401-S Stepper Motor

More Details:

HANPOSE-3Pcs-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-C-1702784-1

HANPOSE-3Pcs-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-C-1702784-2

HANPOSE-3Pcs-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-C-1702784-3

HANPOSE-3Pcs-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-C-1702784-4

HANPOSE-3Pcs-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-C-1702784-5

HANPOSE-3Pcs-17HS8401-S-48mm-Nema-17-Stepper-Motor-42-Motor-42BYGH-18A-52Ncm-4-lead-for-3D-Printer-C-1702784-6
