$17.49
Ex Tax: $17.49
  • Stock: In Stock
  • Model: MZ004068
  • SKU: MZ004068

Available Options

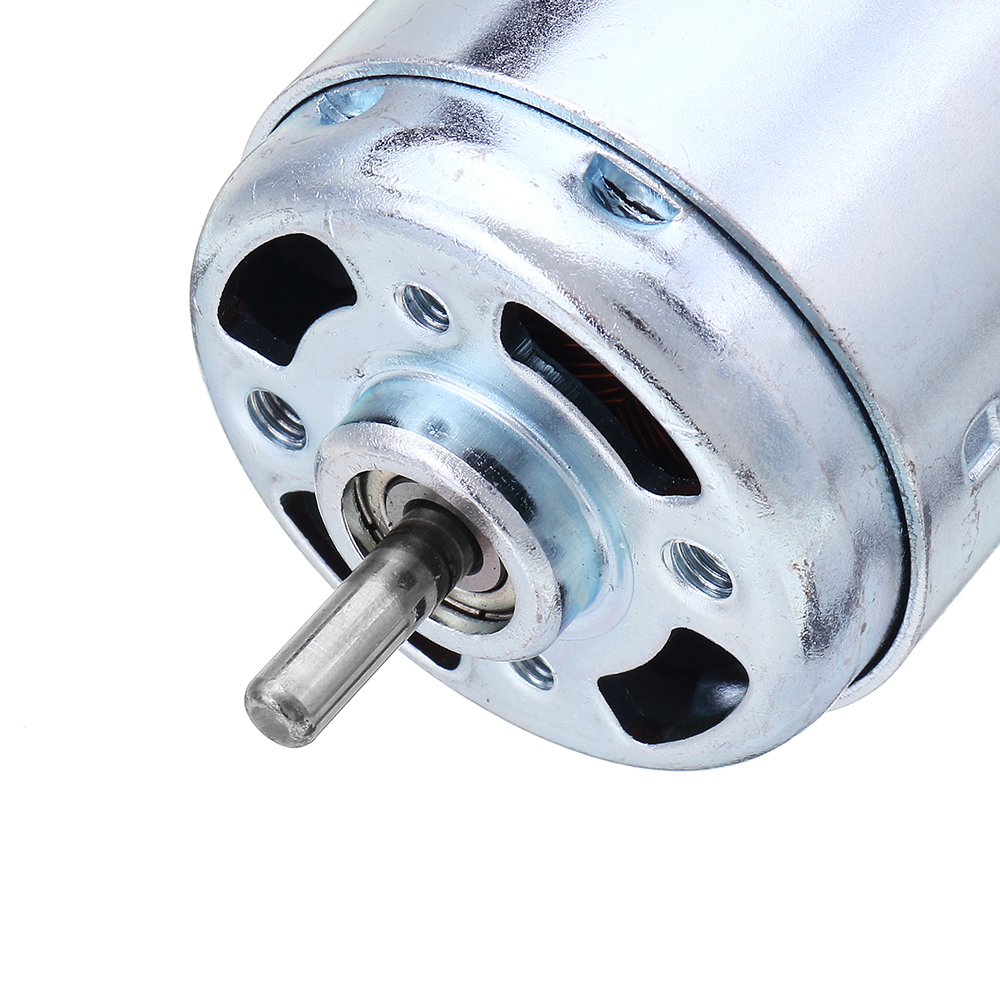

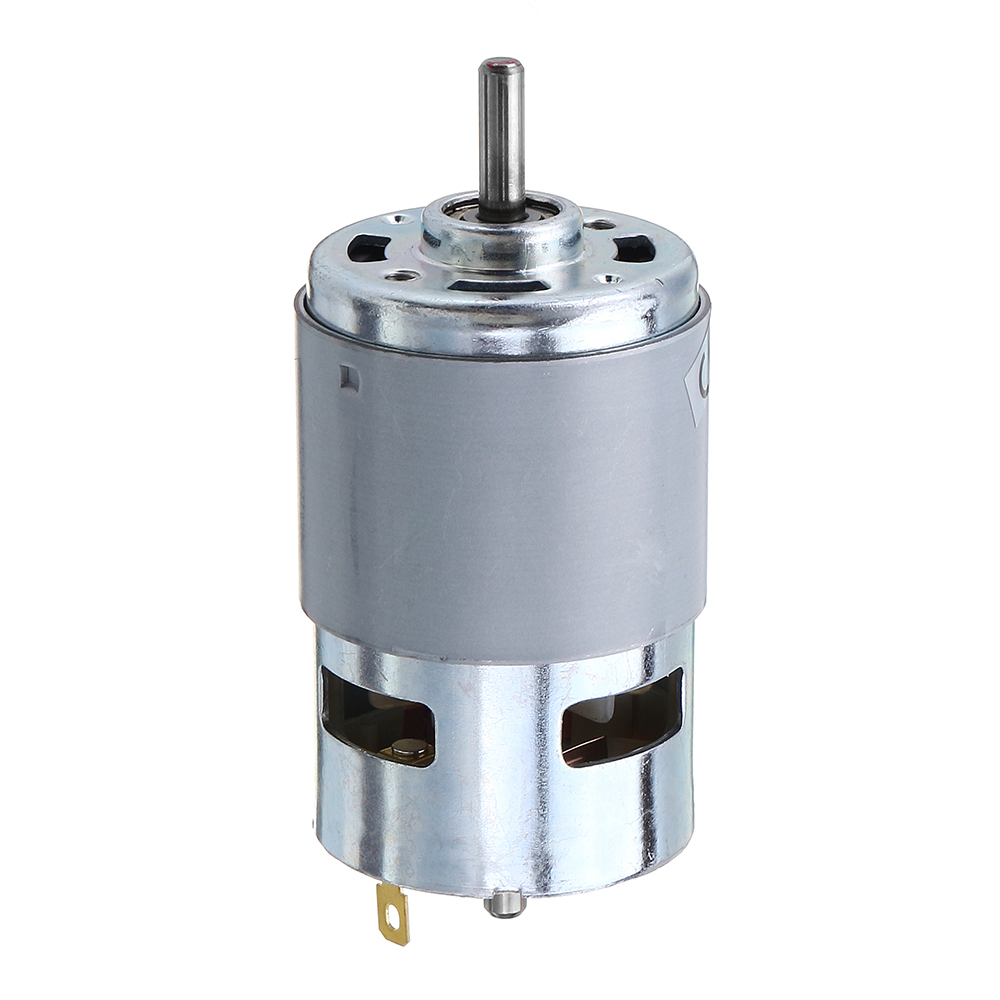

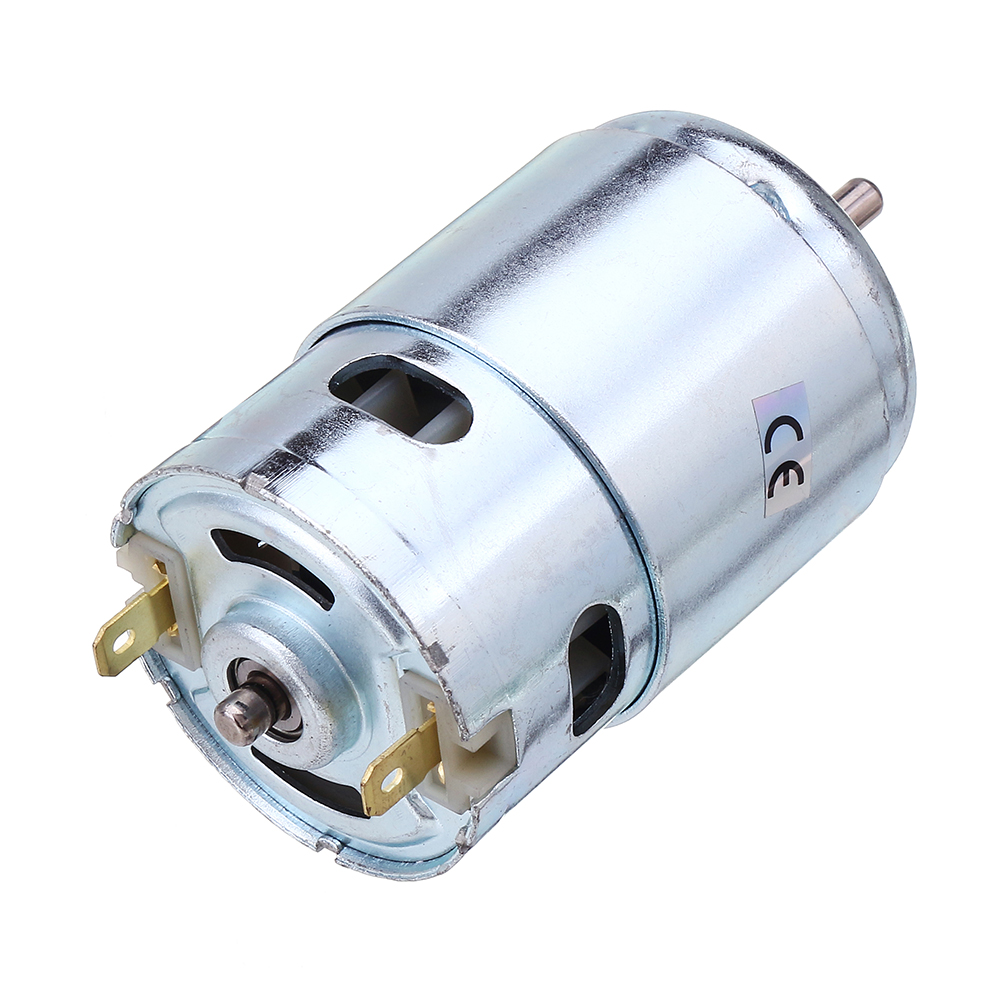

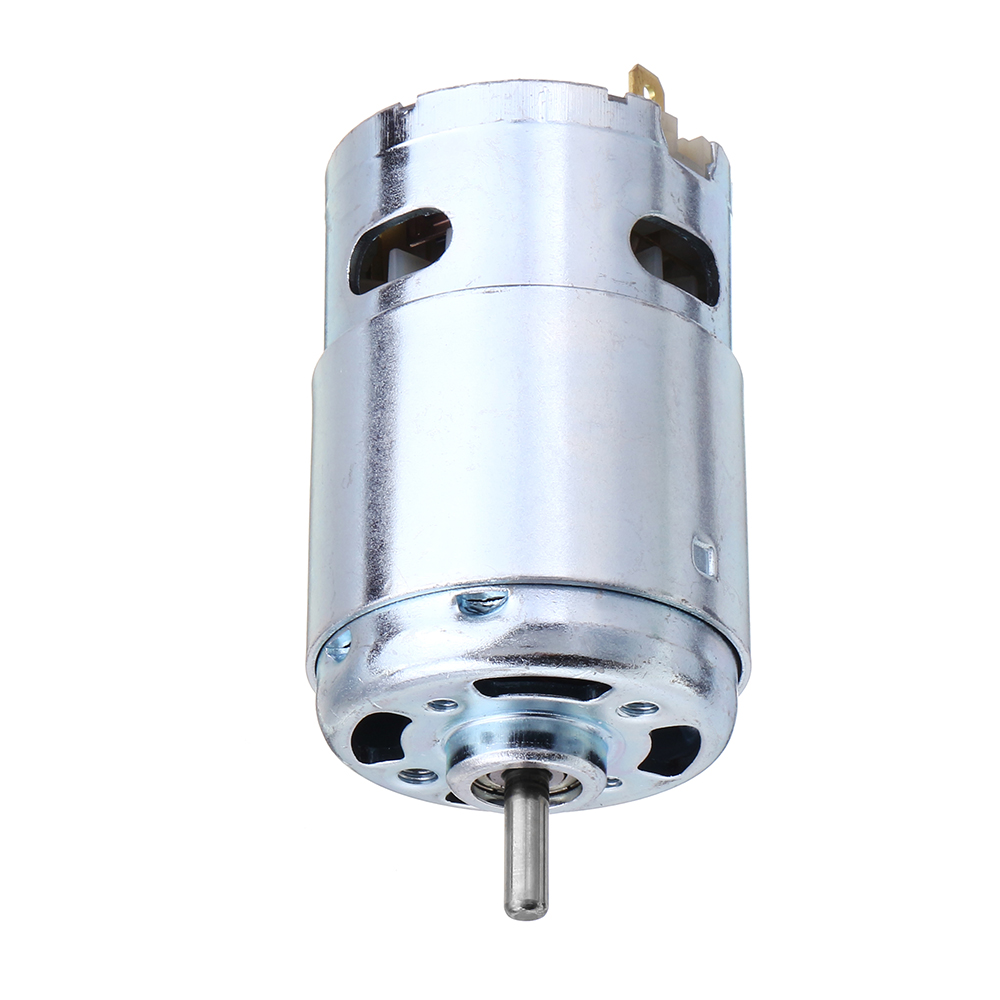

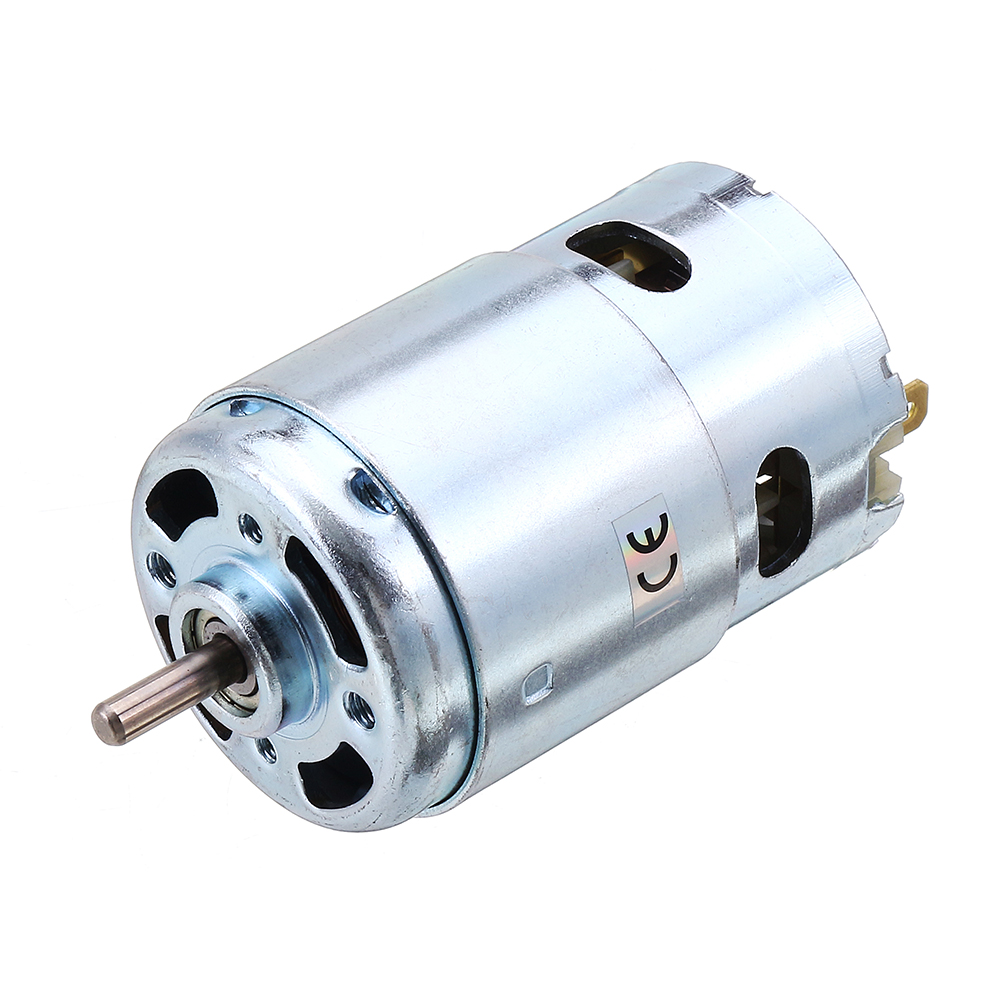

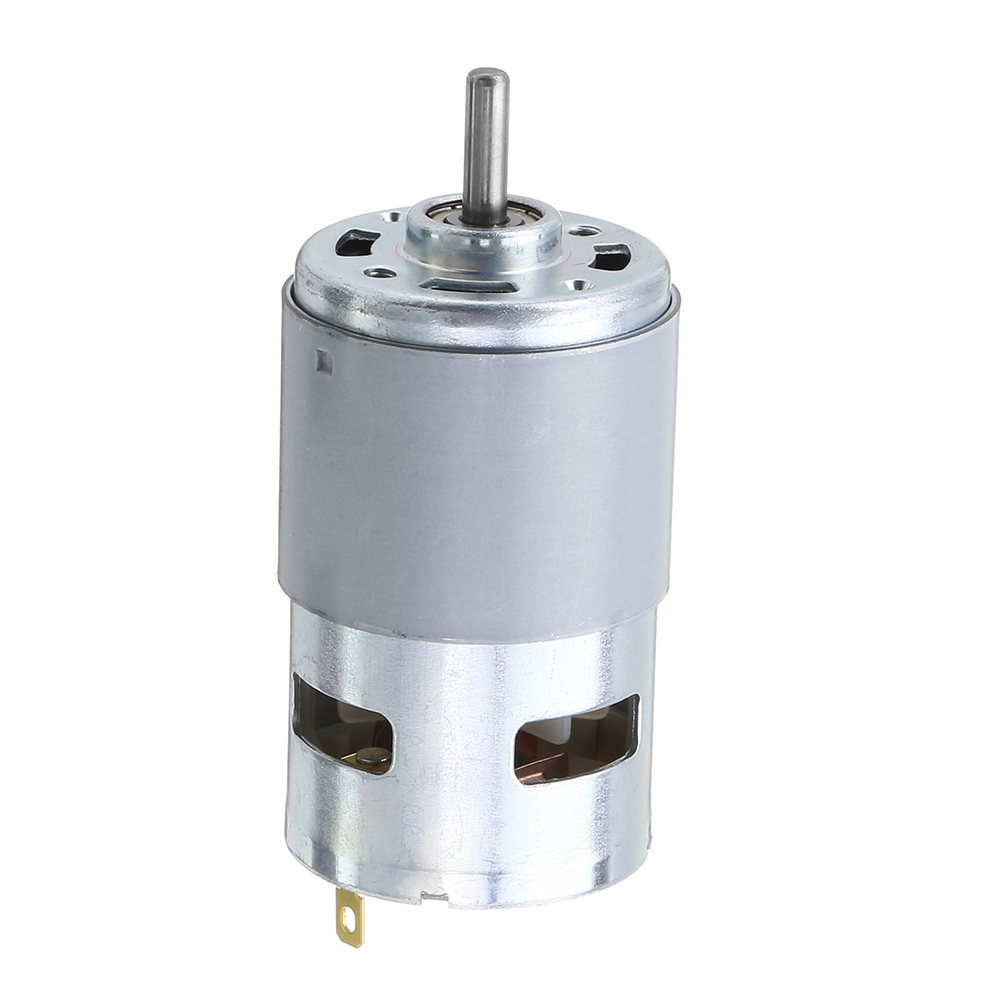

Description: Moonzite 775 795 895 Motor/Motor Bracket DC 12V-24V 3000-12000RPM Motor Large Torque Gear Motor

Specification:
Type Model
#1 775/795 bracket
#2 895 bracket
#3 775 motor
#4 795  motor
#5 895 (low speed)
#6 895 (high speed)

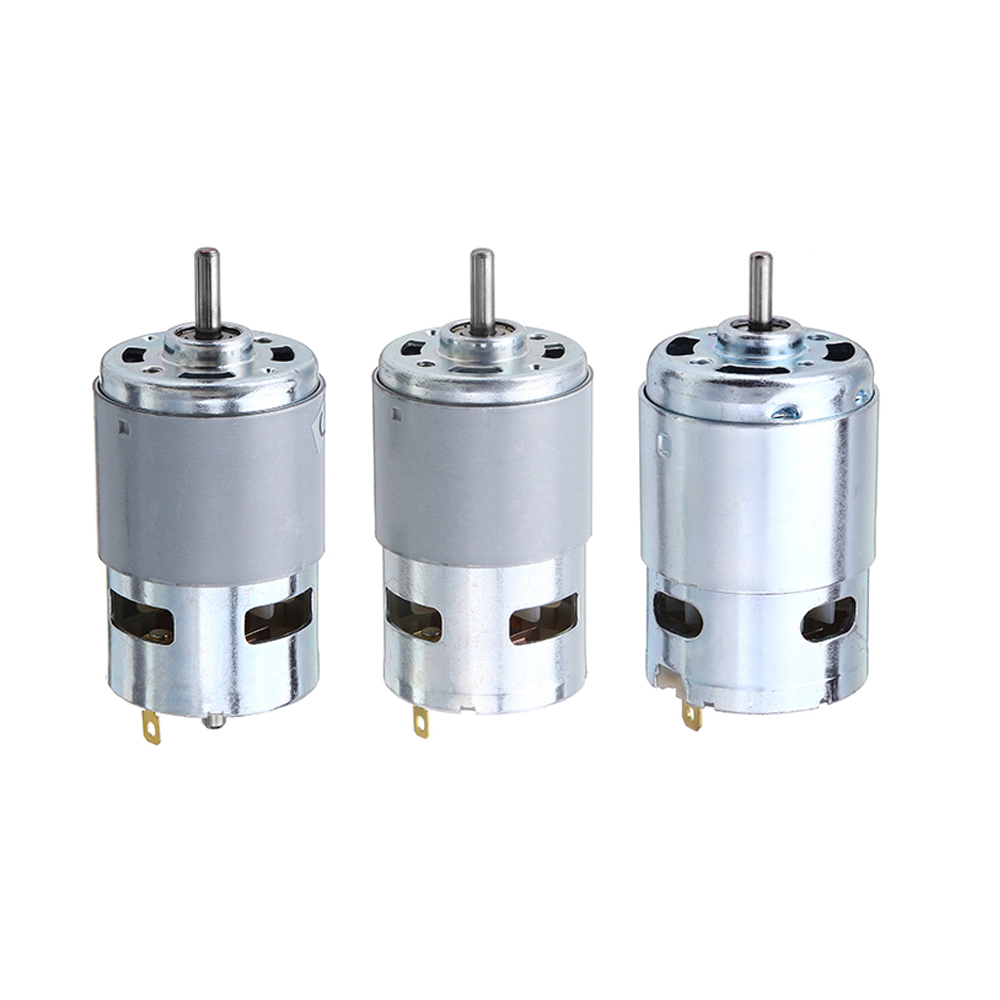

Model 775 795 895 (low speed) 895 (high speed)
Rated voltage 12V 12V 12-24V 12-24V
Speed
12V 10000rpm
12V 11000rpm
12V 3000rpm
24V 6000rpm
12V 6000rpm
24V 12000rpm
Torque 3kg.cm 4kg.cm 12V: 5.2kg.cm
24V: 10kg.cm
12V: 4.2kg.cm
24V: 8kg.cm
Former high level 4.5mm 4.5mm 4.5mm 4.5mm
Front steps diameter
17.5mm 17.5mm 18mm 18mm
Body diameter 42mm 42mm 48mm 48mm
Shaft diameter
5mm 5mm 5mm 5mm
Body length
67mm 70.5mm 72mm 72mm
Length of output shaft at tail 6mm 3mm 6mm 6mm
Diagonal installation pitch
29mm 29mm 29mm 29mm
Mounting hole size M4 M4 M4 M5 M4 M5
Power 150W 180W 200W 200W

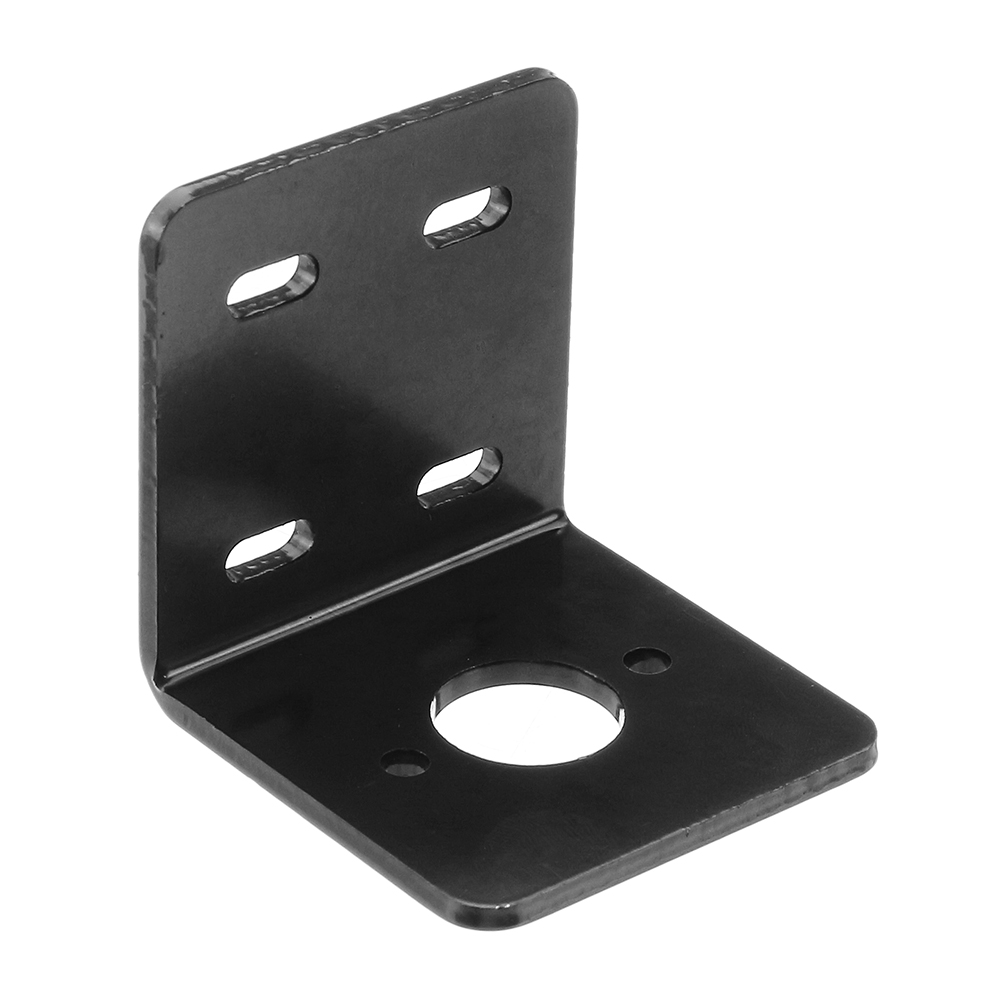

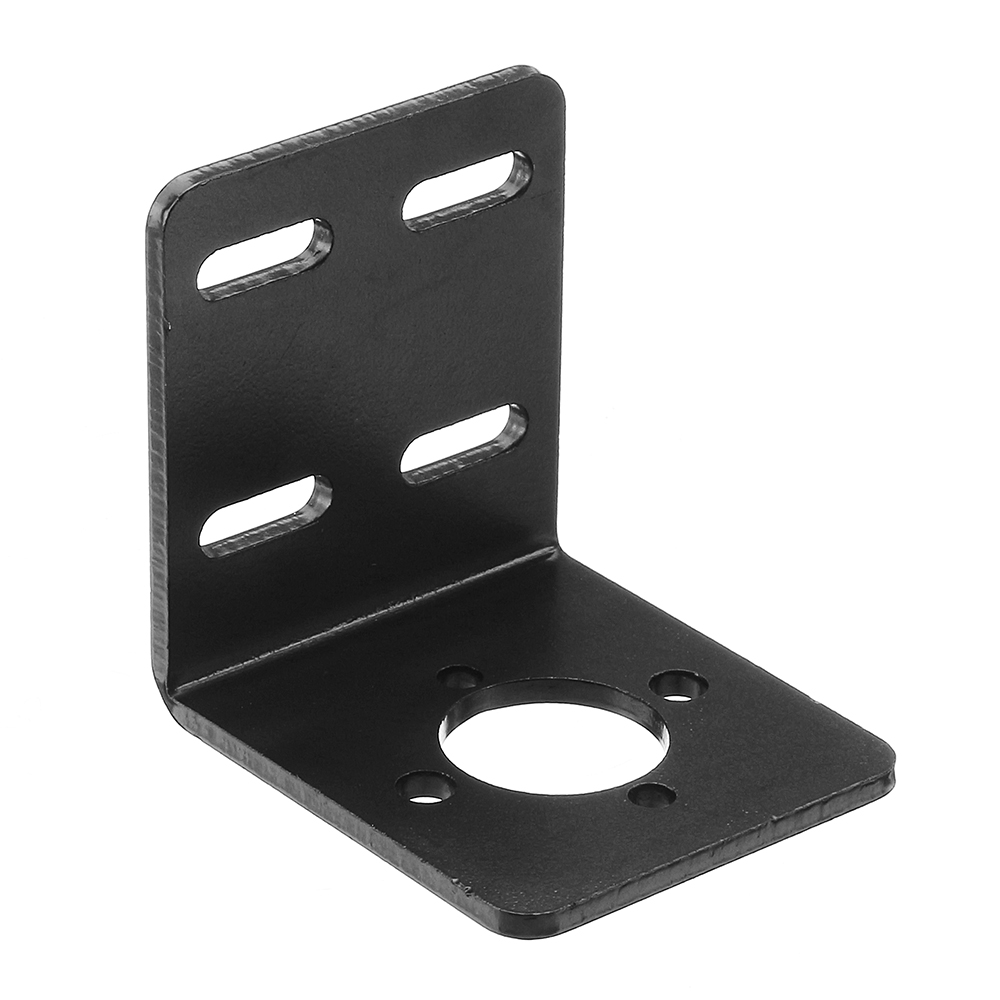

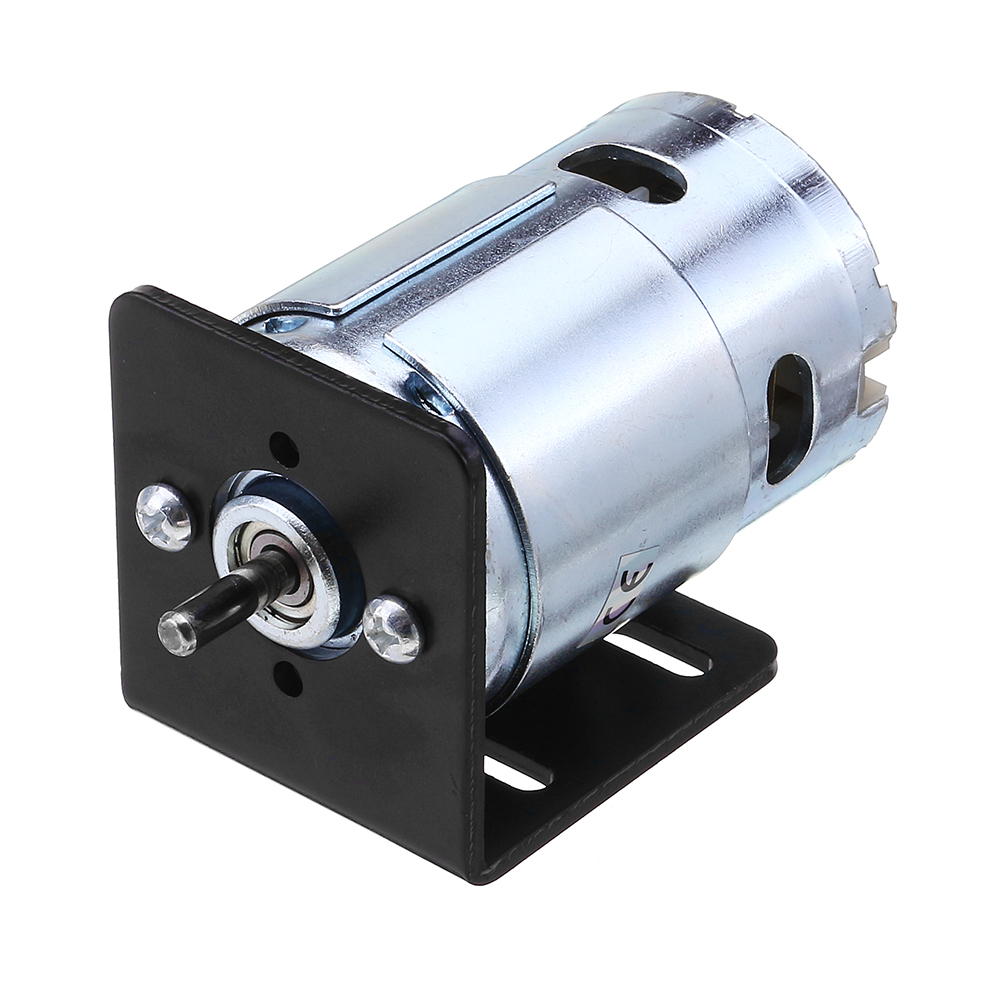

Model 775/795 bracket 895 bracket
Vertical surface
Thickness 3mm 3mm
Height 52mm 54mm
Width 50mm 50mm
Bottom plate
Length 52mm 54mm
Thickness 3mm 3mm
Motor fixing hole
M4 vertical hole:M4 29mm
Cross bore: M5 32mm

Features:
Starting current needs to above 10A.
Double ball bearings, high speed, large torque, low noise.
Built-in cooling fan.
Durable and long service life.
Suitable for mini cutting machine, sanding machine, lathe tool, milling machine, bench drill, electric hand drill, polishing machine, electric grinder, engraving machine, etc.

Note: Please note that the package includes one item only.

Package Included:
1 x Motor

More Details:

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-1

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-2

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-3

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-4

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-5

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-6

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-7

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-8

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-9

Machifit-775-795-895-MotorMotor-Bracket-DC-12V-24V-3000-12000RPM-Motor-Large-Torque-Gear-Motor-1342261-10
