MT109 Portable 9999 Counts True RMS Multimeter AC DC Voltage Current NCV Temperature Tester
MT109 Portable 9999 Counts True RMS Multimeter AC DC Voltage Current NCV Temperature Tester
$28.99
Ex Tax: $28.99
- Stock: In Stock
- Model: MZ003439
- SKU: MZ003439
● HD black EBTN screen!
● Integration design inside and out!
● 9999 counts high precision measurement!
Features:● Integration design inside and out!
● 9999 counts high precision measurement!
The 9999counts is a pocket-sized 3 9/10-bit automatic digital instrument. It has the features of stable performance, high precision, high reliability ,clear readings, and overload protection . With AAA 1.5V battery-driven,the instrument uses a large-screen LCD display,boost power supply, even in the 2.3V low battery edge, it can guarantee the backlight high brightness, It is easy to carry, is a vast number of users extremely like the instrument. This series of instruments can be used to measure the DC voltage and AC voltage DC current and AC current, resistance, capacitance diode,continuity test, frequency measurement and true RMS measurement and other parameters. It is an ideal tool for the laboratory, factory, radio enthusiasts and families.

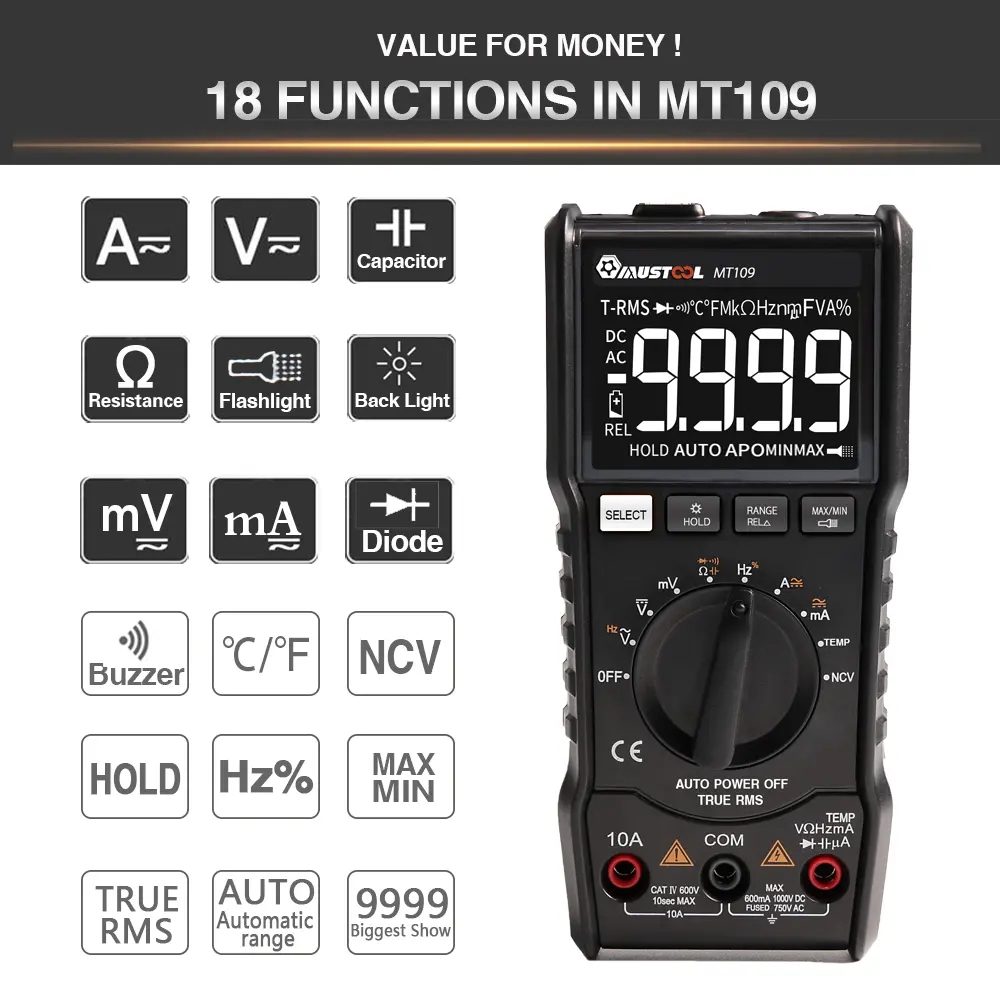

1. True RMS

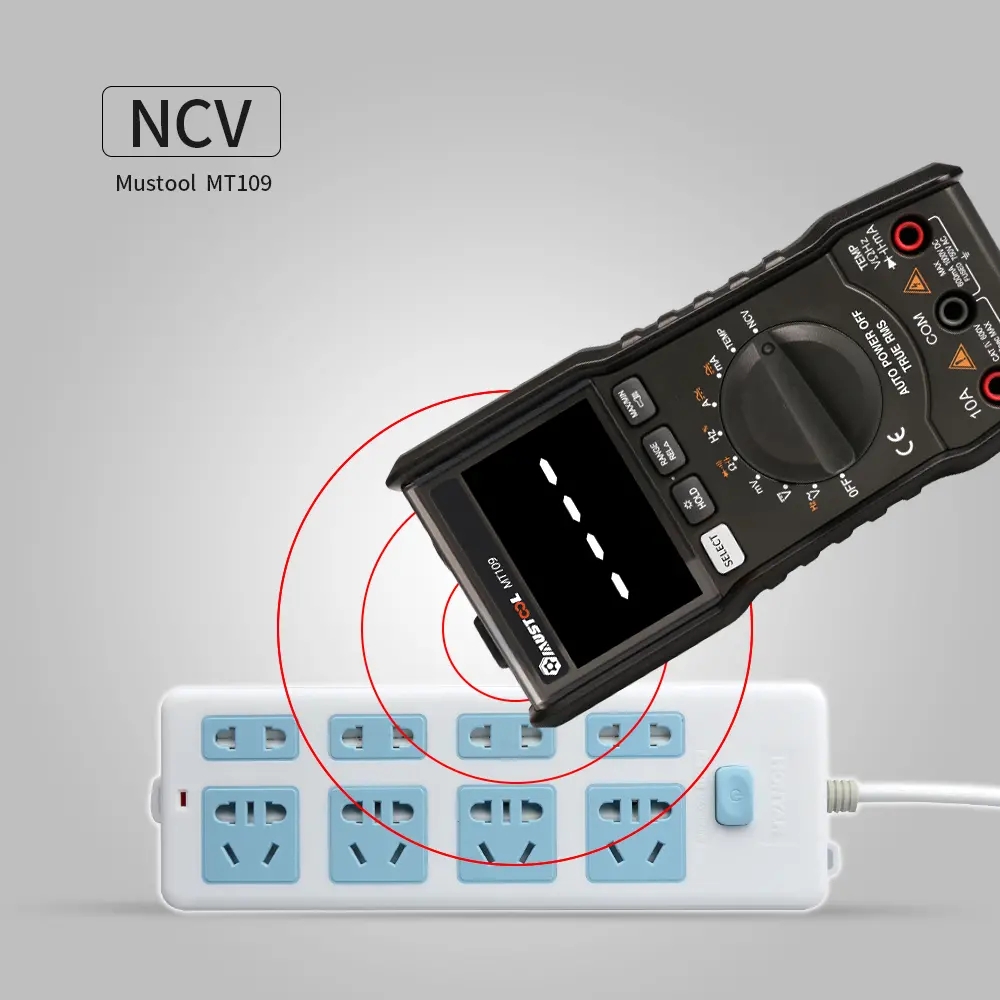

2. NCV

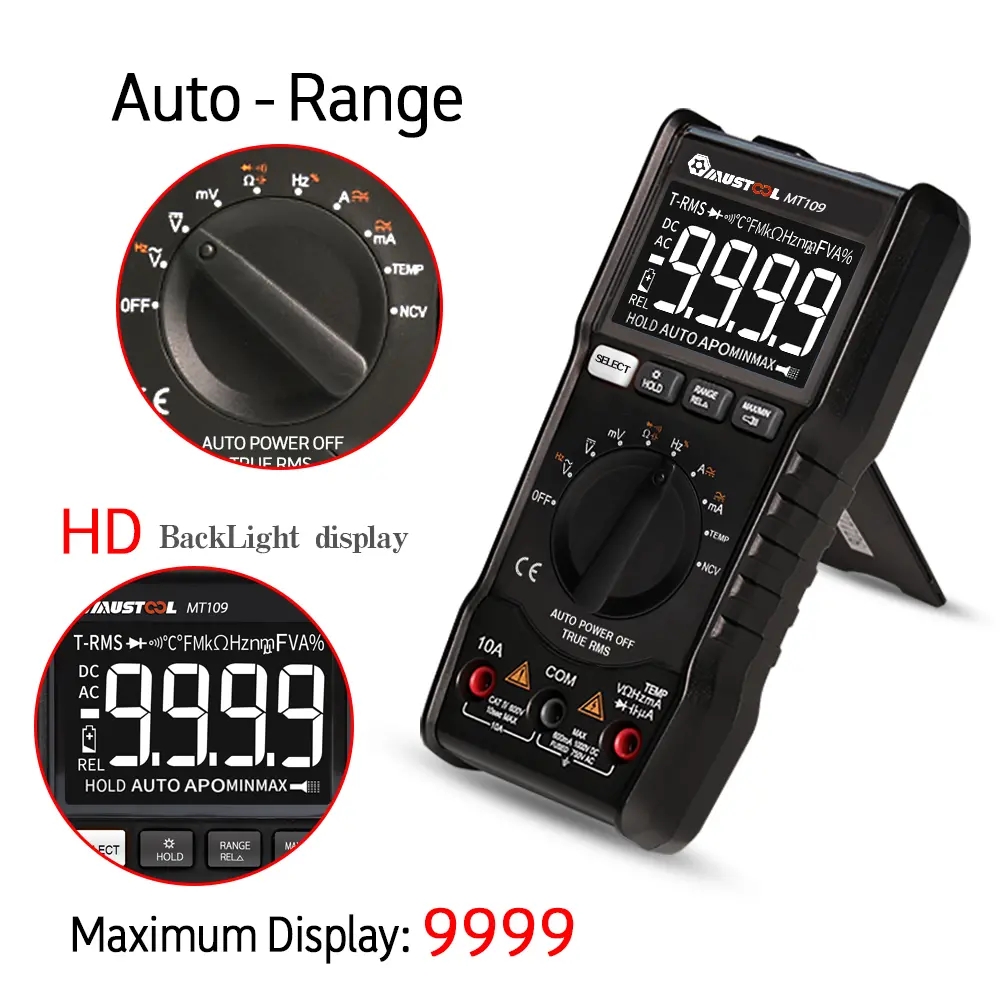

3. Auto range
4. 9999 Counts display
5. Black EBTN screen

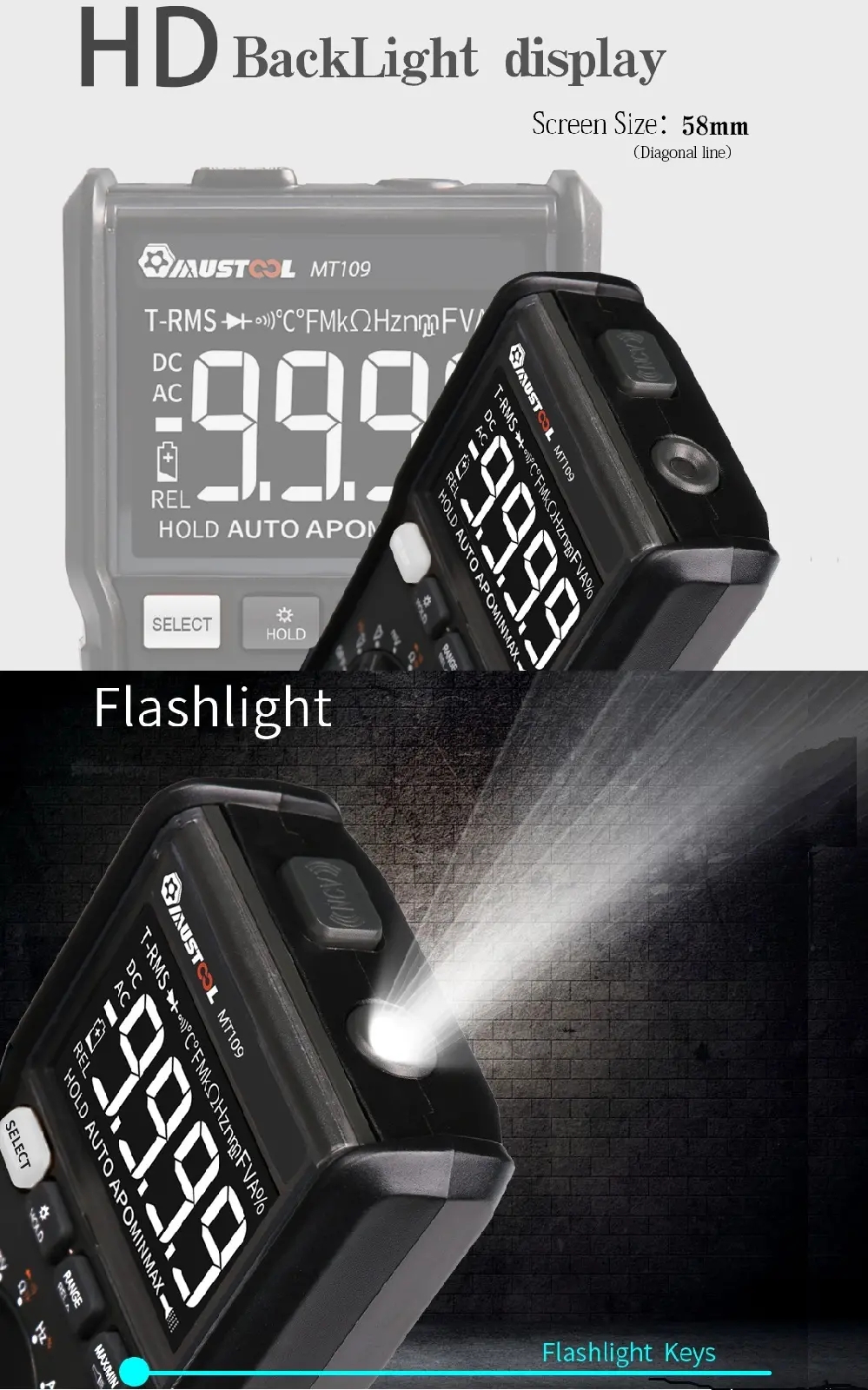

6.Main measurements: DC/AC/Resistance/Continuity/Diode/Capacitance/Frequency/Temperature7.Flashlight
8.Backlight
9.Data Hold
10. Auto power off
11. Full unit symbol
12. Max/Min function
13. Relative value measurement
Specification:
Display: Black EBTN screen
Maximum display: 9999 (3 9/10) bits automatic polarity display
Measurement: double integral A / D conversion
Sampling rate: about 3 times per second
Overrange display: the most significant bit was "0L"
Low voltage display: Yes
Working environment: (0~
Power supply: 2 x AAA 1.5V battery(not included)

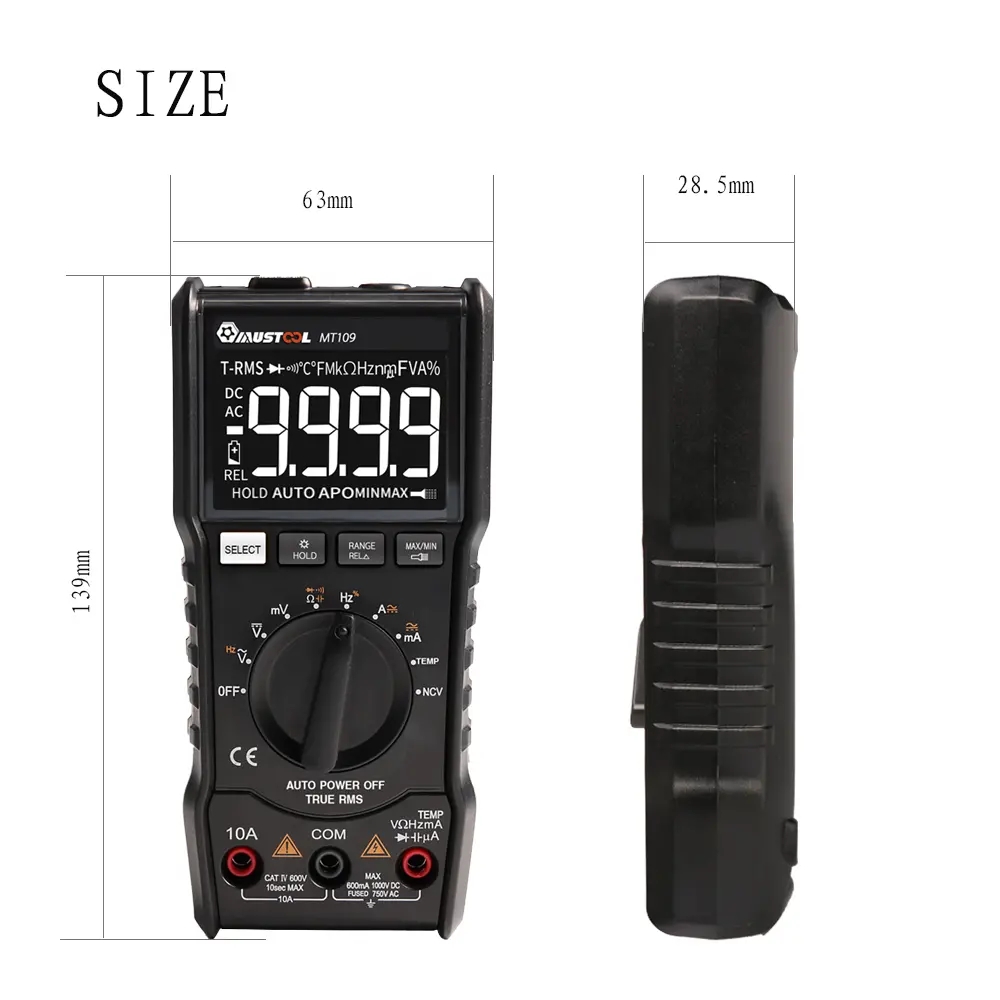

Volume (size): 142×70×32mm(L×W×H)
DC voltage(DCV)
| Accuracy Range | 9999counts | Resolution |
| 100mV | ±(0.5%+3) | 0.01mV |
| 1V | 0.1mV | |
| 10V | 0.001V | |
| 100V | 0.01V | |
| 1000V | ±(0.8%+10) | 0.1V |
AC current(ACV)
| Accuracy Range | 9999counts | Resolution |
| 100mV | ±(0.8%+3) | 0.01mV |
| 1V | 0.1mV | |
| 10V | 0.001V | |
| 100V | 0.01V | |
| 750V | ±(1.2%+10) | 0.1V |
DC Current (DC mA)
| Accuracy Range | 9999counts | Resolution |
| 100mA | ±(1.2%+10) | 10uA |
| 1000mA | 100uA |
AC Current(AC mA)
| Accuracy Range | 9999counts | Resolution |
| 100mA | 10uA | |
| 1000mA | 100uA |
DC/AC 10A Current (DC/ACA)
| Accuracy Range | 9999counts | Resolution |
| 10A | ±(2.0%+30) | 0.01A |
Resistance(Ω)
| Accuracy Range | 9999counts | Resolution |
| 1000Ω | ±(0.8%+5) | 0.1Ω |
| 10kΩ | ±(0.8%+3) | 1Ω |
| 100kΩ | 10Ω | |
| 1000kΩ | 100Ω | |
| 10MΩ | 1kΩ | |
| 100MΩ | ±(2.5%+3)>60MΩfor reference only | 10kΩ |
Diodes and on-off test
| Range | Display value | Test Conditions |
| Diodes Buzzer | Diode forward voltage drop | Positive DC current of about 1mA, open circuit voltage of about 3V, |
| The buzzer buzzes for a long time, and the test resistance is less than(50±20)Ω | Open circuit voltage is about 3V Press "SELECT" to switch between two functions |
Capacitance(C)
| Accuracy Range | 9999counts | Resolution |
| 100nF | 10pF | |
| 1000nF | 100pF | |
| 10uF | 1nF | |
| 100uF | 10nF | |
| 1000uF | 100nF | |
| 10mF | 11uF | |
| 100mF | 10uF |
Frequency measurement:
| Accuracy Range | 9999counts | Resolution |
| 10Hz | ±(0.1%+3) | 0.01Hz |
| 100Hz | 0.1Hz | |
| 1kHz | 1Hz | |
| 10kHZ | 10Hz | |
| 100kHz | 100Hz | |
| 1MHz | 1kHz | |
| 10MHz | 10kHz |
Temperature measurement (°C/°F)
| Accuracy Range | 9999counts | Resolution |
| (-20-1000 )℃ | ±(1.0%+5)<400℃ ±(1.5%+15)≥400℃ | 1℃ |
| (0-1832 )℉ | ±(0.75%+5)<750℉ ±(1.5%+15)≥750℉ | 1℉ |
Package Includes:
1 x MT109 Multimeter(battery not included)
1 x English User Manual
1 x One Pair Test Pens

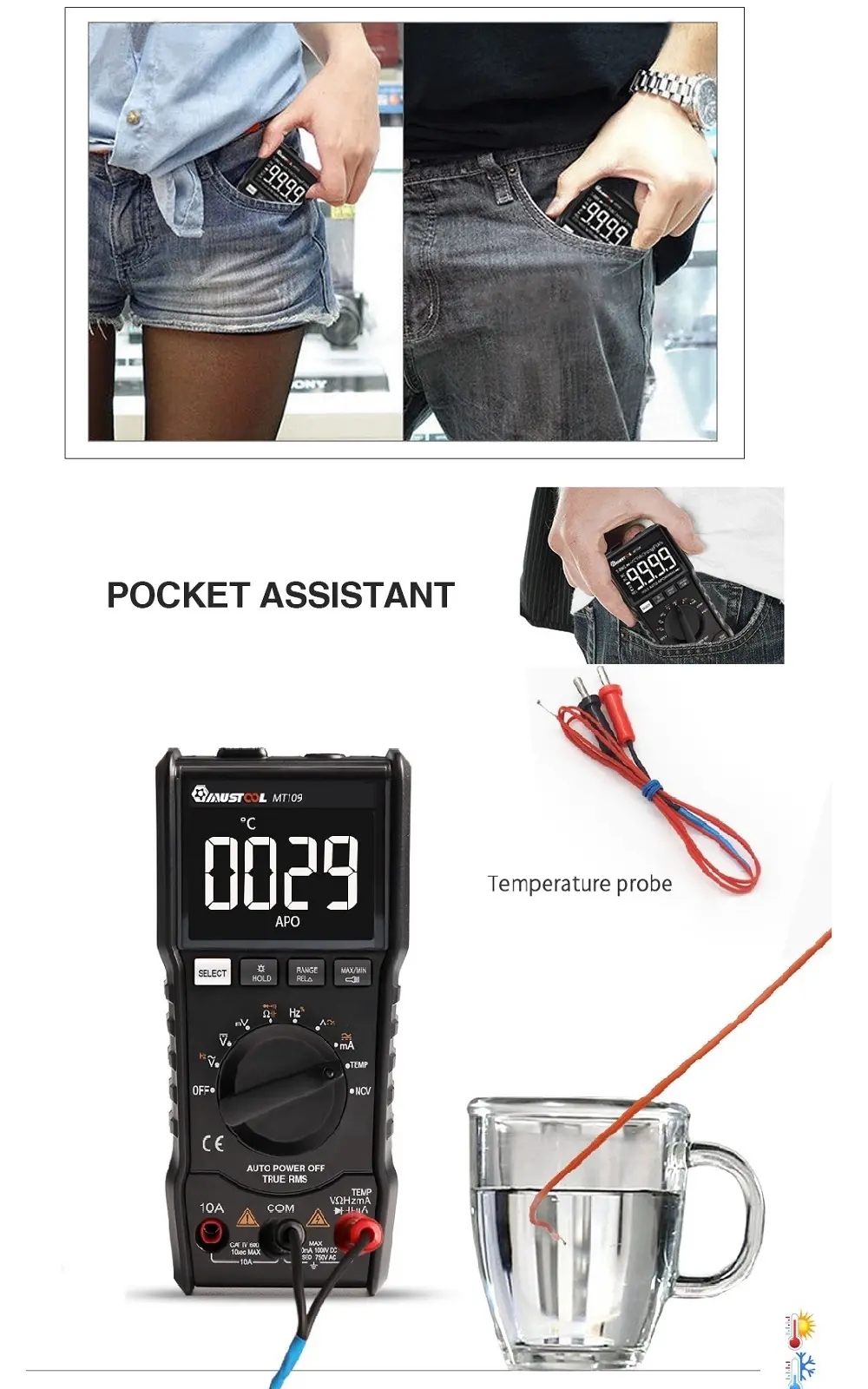

1 x Temperature Test Probe

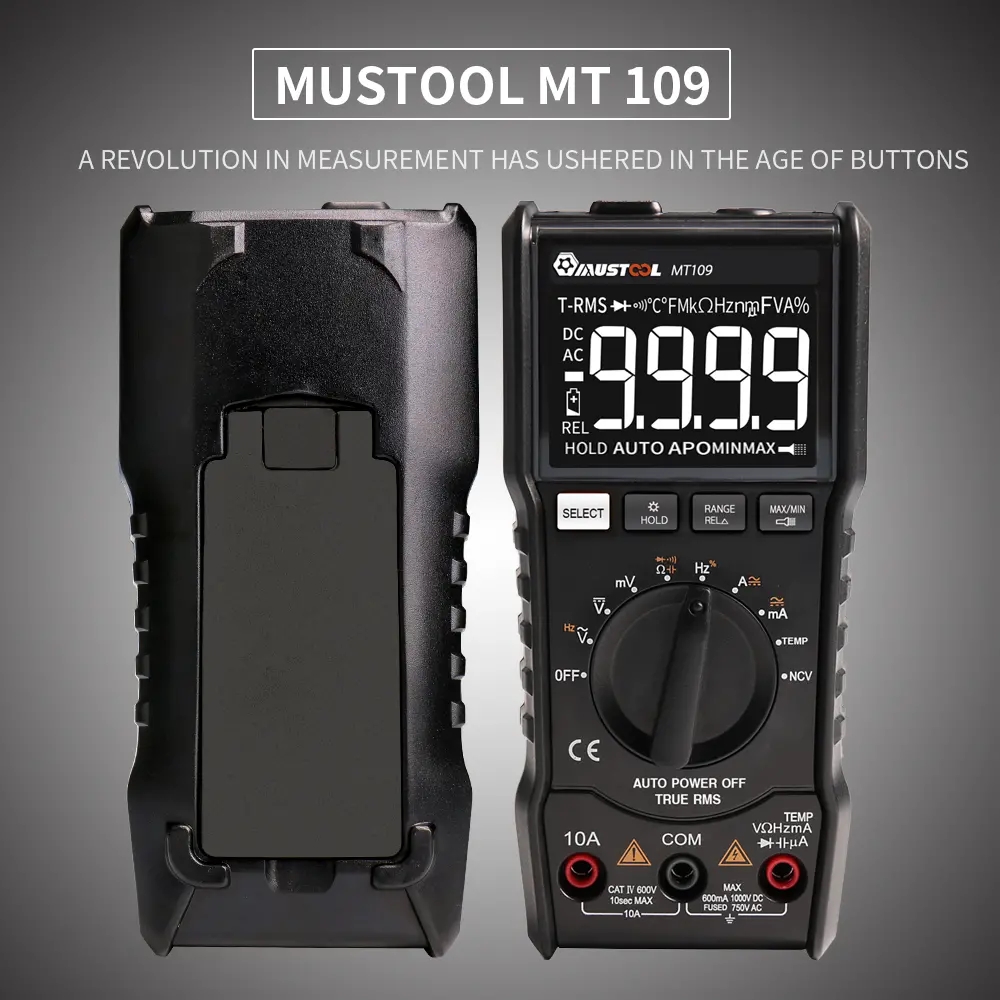

Detials Pictures:
