800~1700nm Live Fiber Optic Identifier Built in 10mw Visual Fault Locator for 3.0/2.0/0.9/0.25mm Fiber Optic Cable
800~1700nm Live Fiber Optic Identifier Built in 10mw Visual Fault Locator for 3.0/2.0/0.9/0.25mm Fiber Optic Cable
$124.99
Ex Tax: $124.99
- Stock: In Stock
- Model: MZ002854
- SKU: MZ002854
Description:

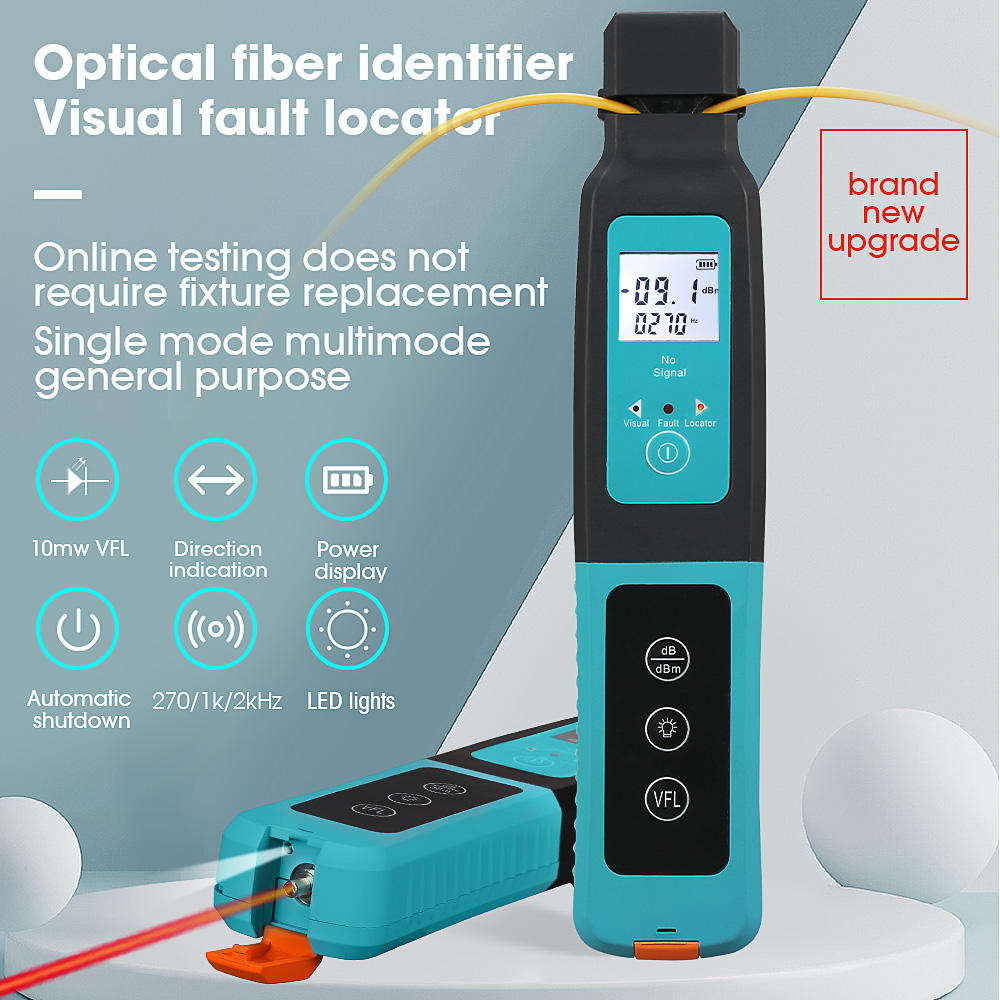

Optical Fiber Identifier is an important tool for optical fiber network maintenance, which is used for nondestructive fiber identification work, can be detected in any location of both SM and MM fiber.
Features:

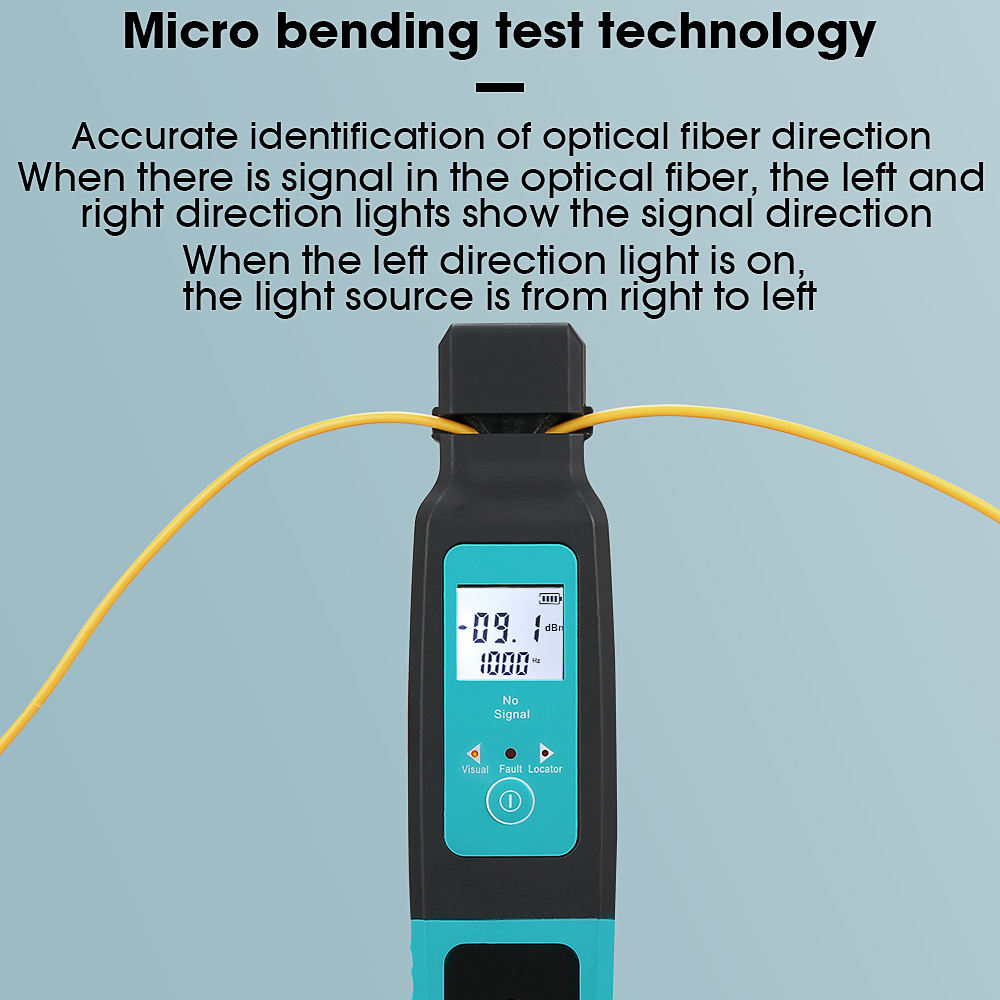

Direction indication of optical signal, for single mode and multi-mode

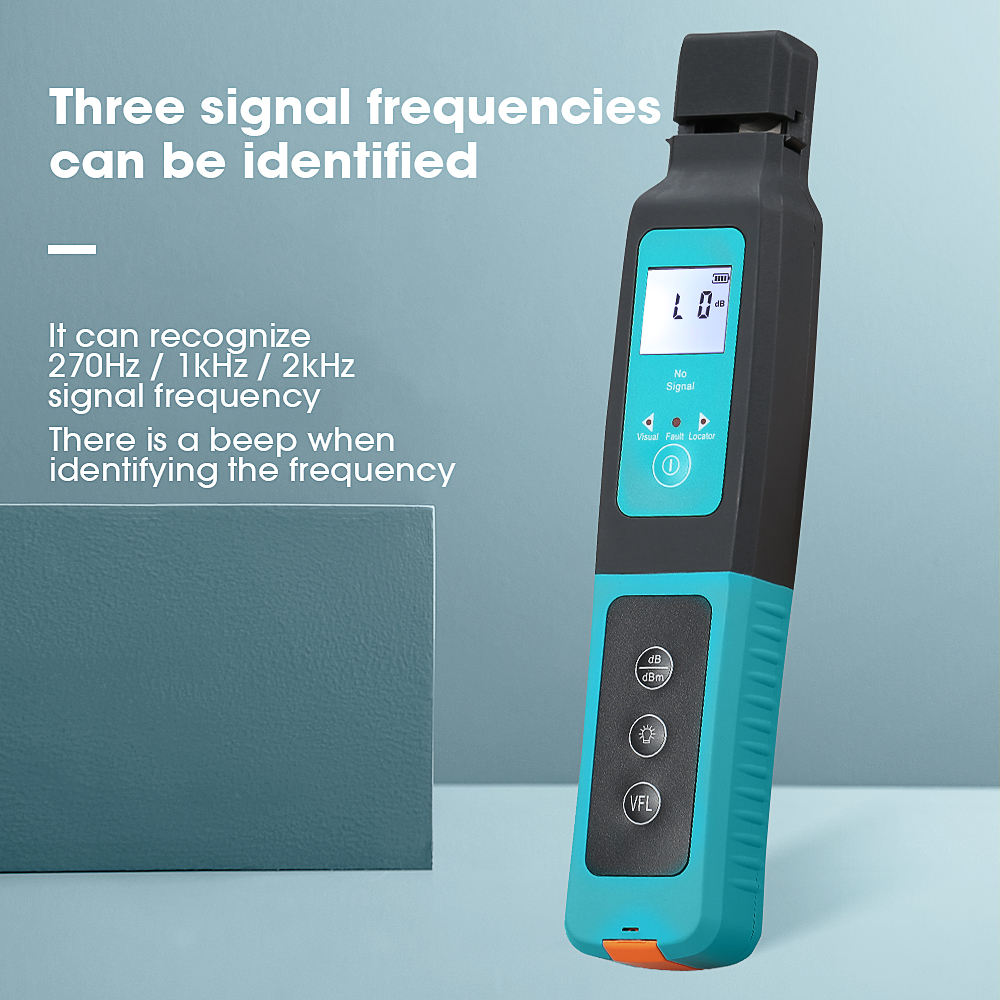

Automatic identification of three signal frequencies (270Hz / 1kHz / 2KHz)

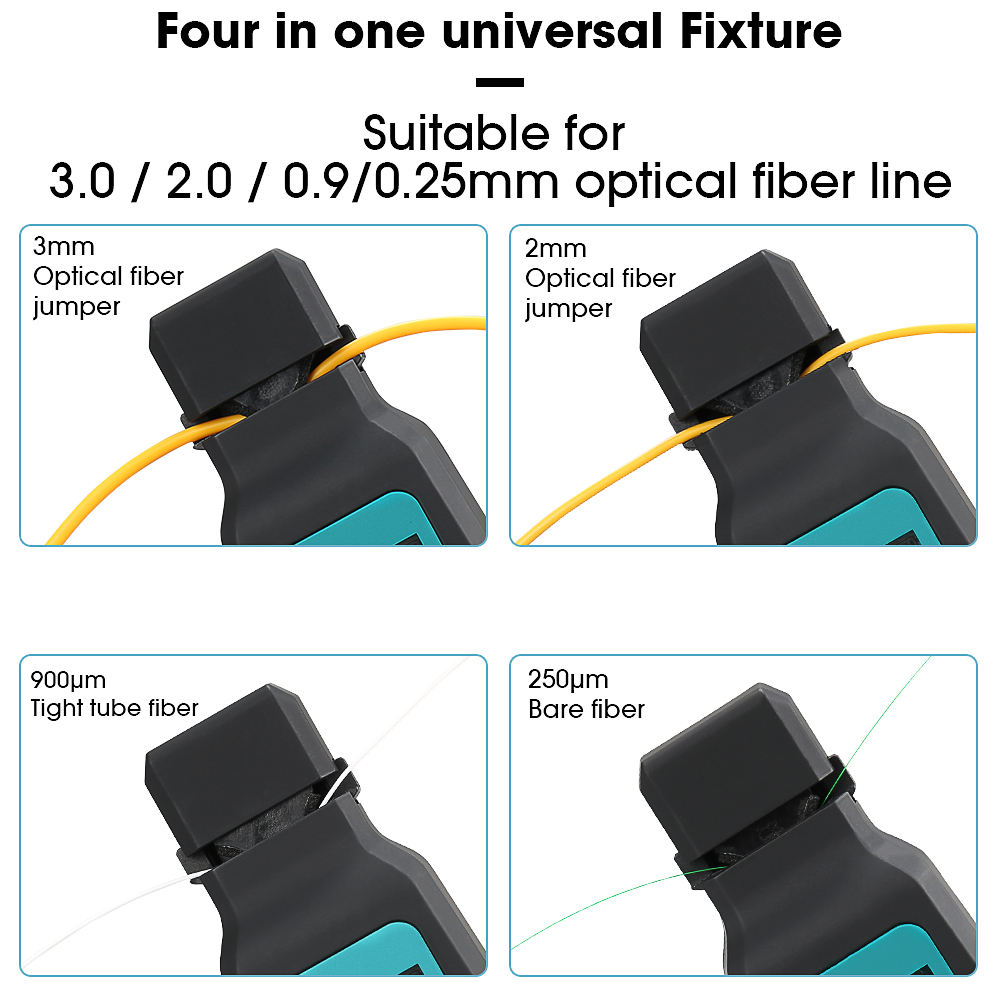

Four in one universal fixture, online testing, no need to replace the fixture

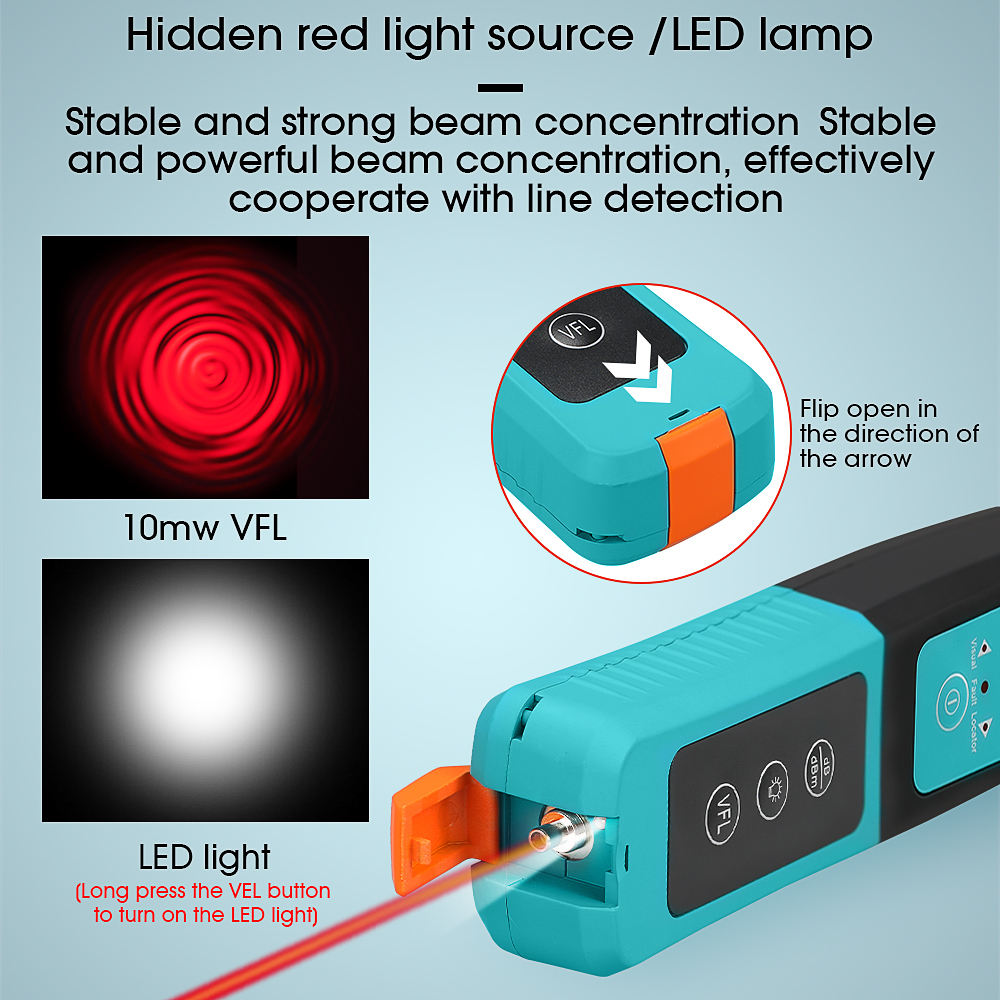

Hidden red light source, stable and strong light source, effective with line detection
Power display
Automatic shutdown

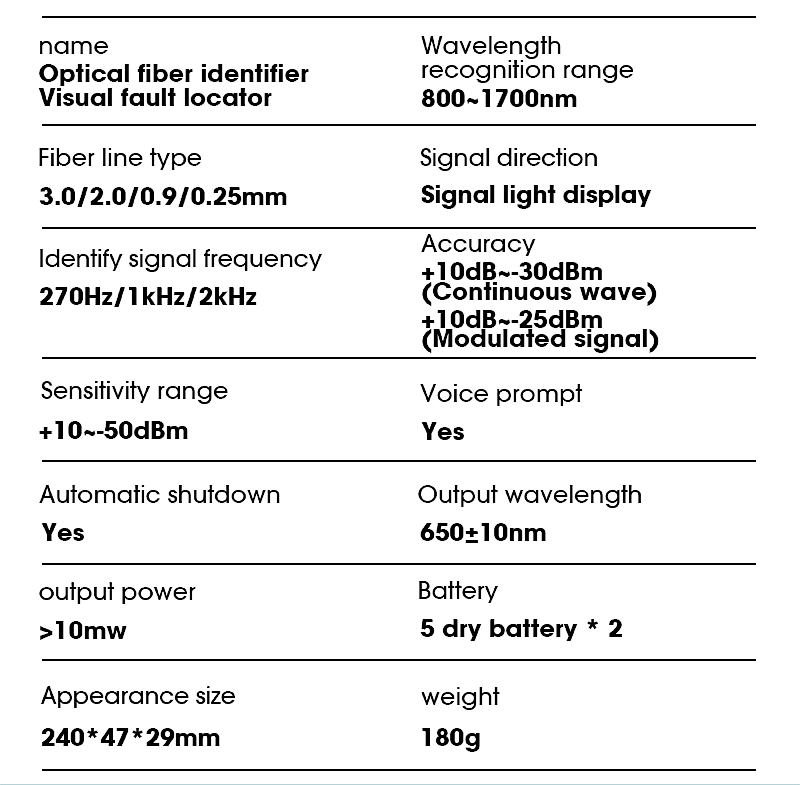

Specification:
Name: Optical fiber identifier Visual fault locator
Fiber line type: 3.0/2.0/0.9/0.25mm
Identified Wavelength Range: 800nm-1700nm
Output wavelength: 650±10nm
Output power: >10mw
Identified Signal Type: 270Hz/1KHz/2KHz
Display Type: LED
Detector Type: InGaAs

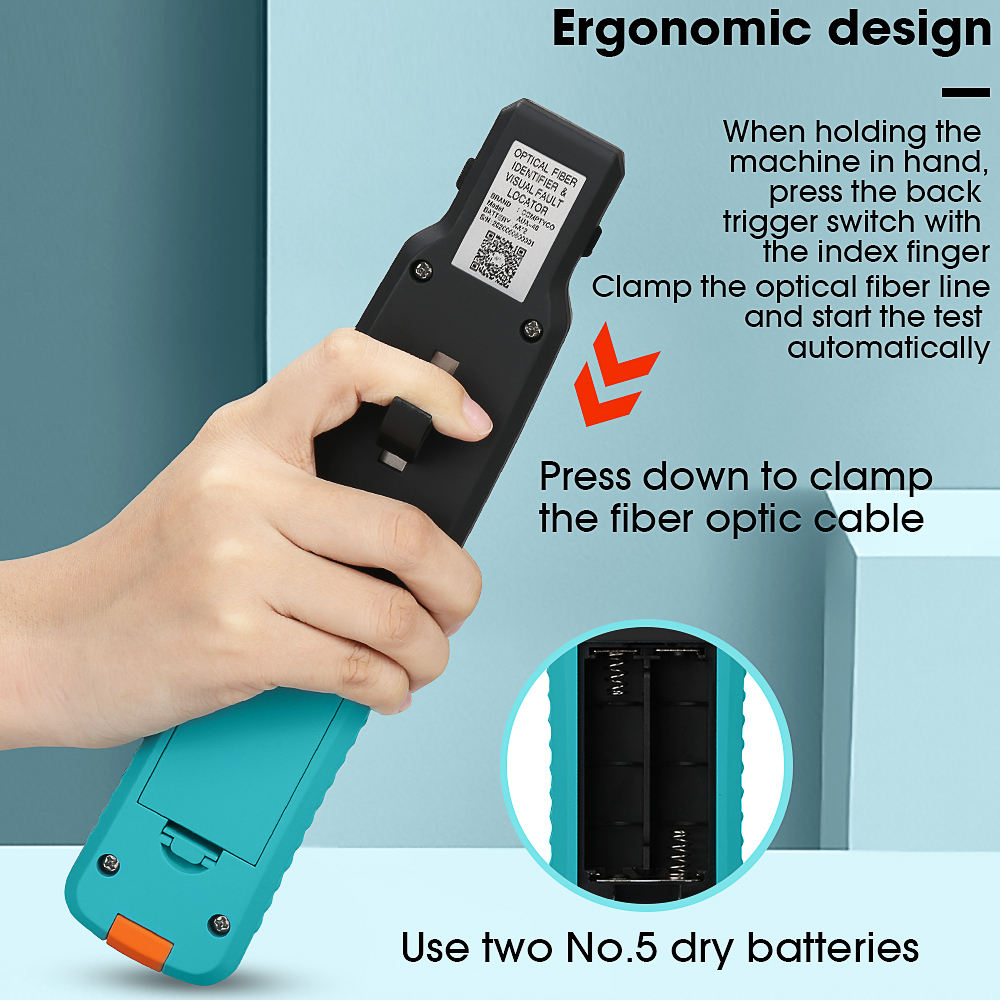

Alkaline Battery: 2 x No.5 dry battery(Not included)
Sensitivity range: +10～-50dBm
Signal direction: Signal light display
Accuracy:
+10dB~-30dBm (Continuous wave)
+10dB~-25dBm(Modulated signal)
Voice prompt: Yes
Automatic shutdown: Yes
Weight: 180g
Packing weight: 300g

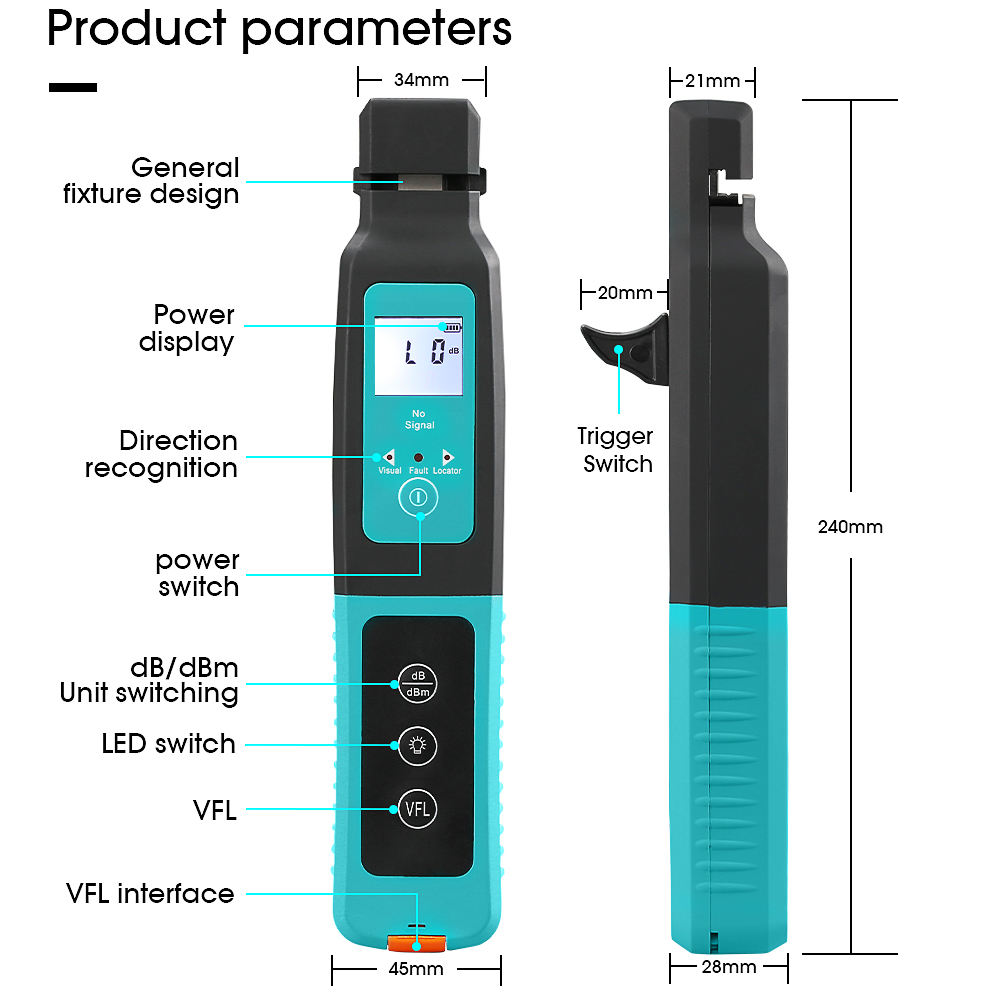

Product size: 240 x 47 x 29mm
Packing size: 240 x 95 x 60mm

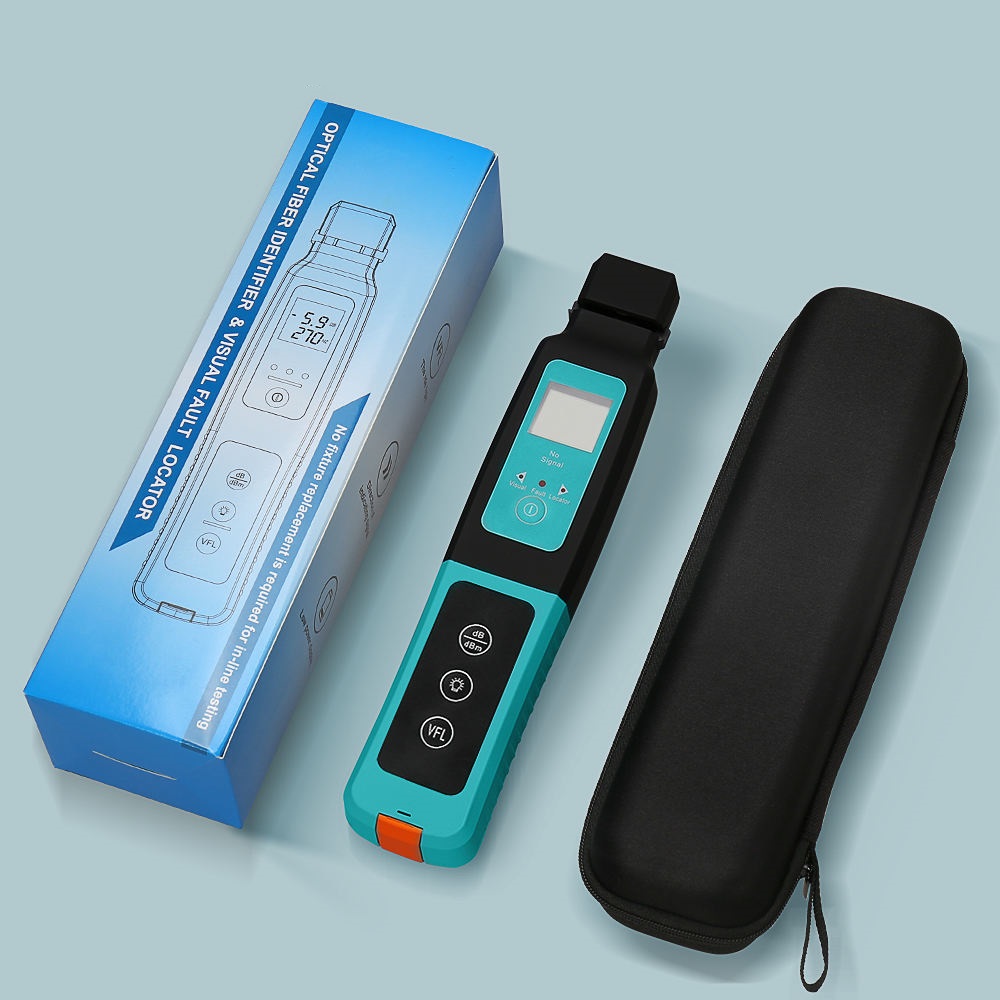

Package included:
1 x Optical Fiber Identifier(Not included battery)
1 x User manual
1 x Storage Bag
1 x Box
