51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering

51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
51MP 1080P 60FPS HDMI USB Digital Industrial Video Microscope Camera 180X C-MOUNT Lens with 11.6inch LCD Screen for Phone PCB Soldering
$349.99
Ex Tax: $349.99
  • Stock: In Stock
  • Model: MZ006741
  • SKU: MZ006741
Feature:

1. PC supports for multiple system, supports for Windows XP/7/8/10 system.
2. Comes with a 180X C-mount zoom lens for industrial microscope camera.
3. This 51MP industrial microscope camera is suitable for repairing industry.
4. Adopts high quality metal housing, sturdy, durable and has long life.
5. High resolution and dual output, which makes it more convenient to use.

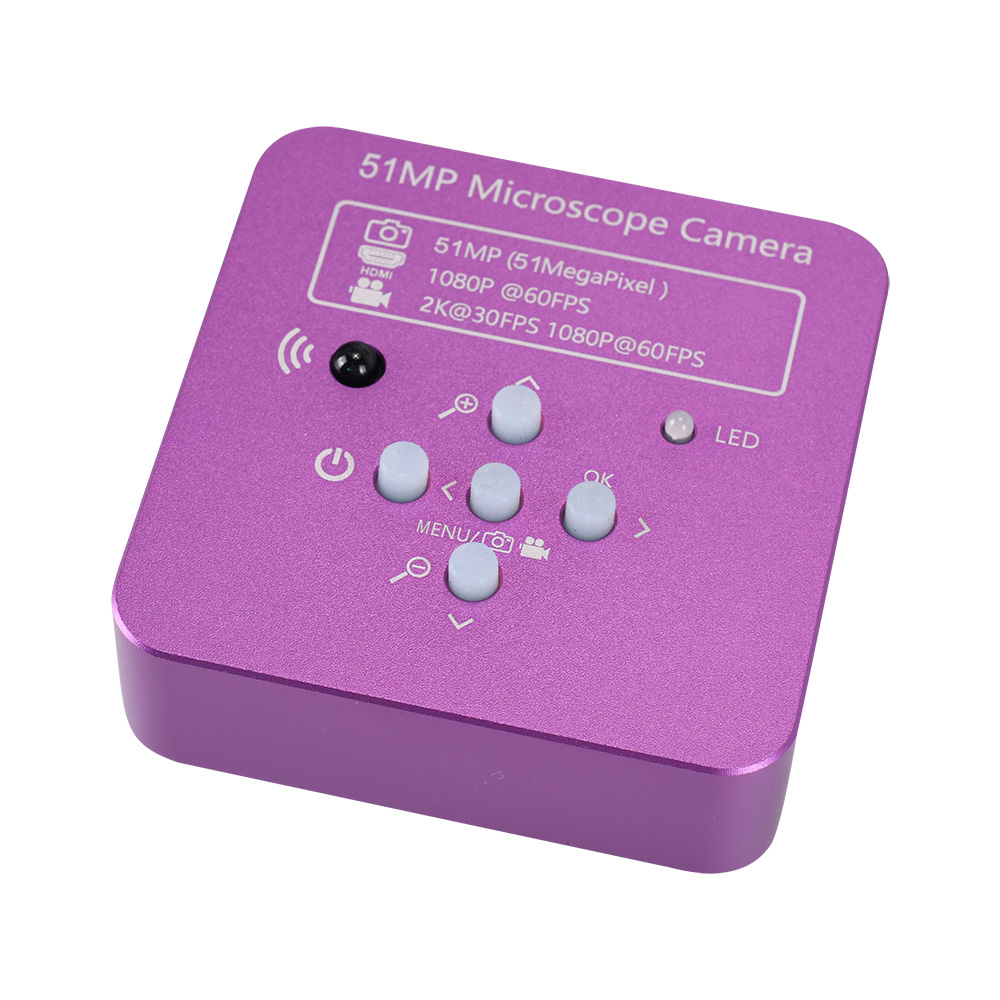

Camera Specification:

Item Type: Microscope Camera
Module: 5130
Sensor: 51MP CMOS
Optical Format: 1/2.3 inch
Pixel Size: 1.335μmx1.335μm
Interface: HDMI (Type A). USB (Type B). Small memory card
HDMI Image Resolution: 51MP
Video Resolution: 2.7K at 30FPS 1080p at 60FPS
HDMI Resolution: 1920 x 1080p 60FPS
HDMI Scale: Support 4: 3,16: 9,16: 10 screen
USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPS
Small Memory Card: Up to 128GB (not included)
AWB: AWB color correction/automatic/manual
R.G.B value setting independent
Exposure: Automatic/manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dotted Line: 2 lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English/Simplified Chinese/French/Spanish/Japanese/German  And other languages.
Digital Zoom: Support
Infrared Remote Control: Support
Voltage Input: DC 12V
Power Supply Voltage: Input: AC100-240V
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port
Remote Control Battery: 1 x 2302 button battery (delivered without battery)

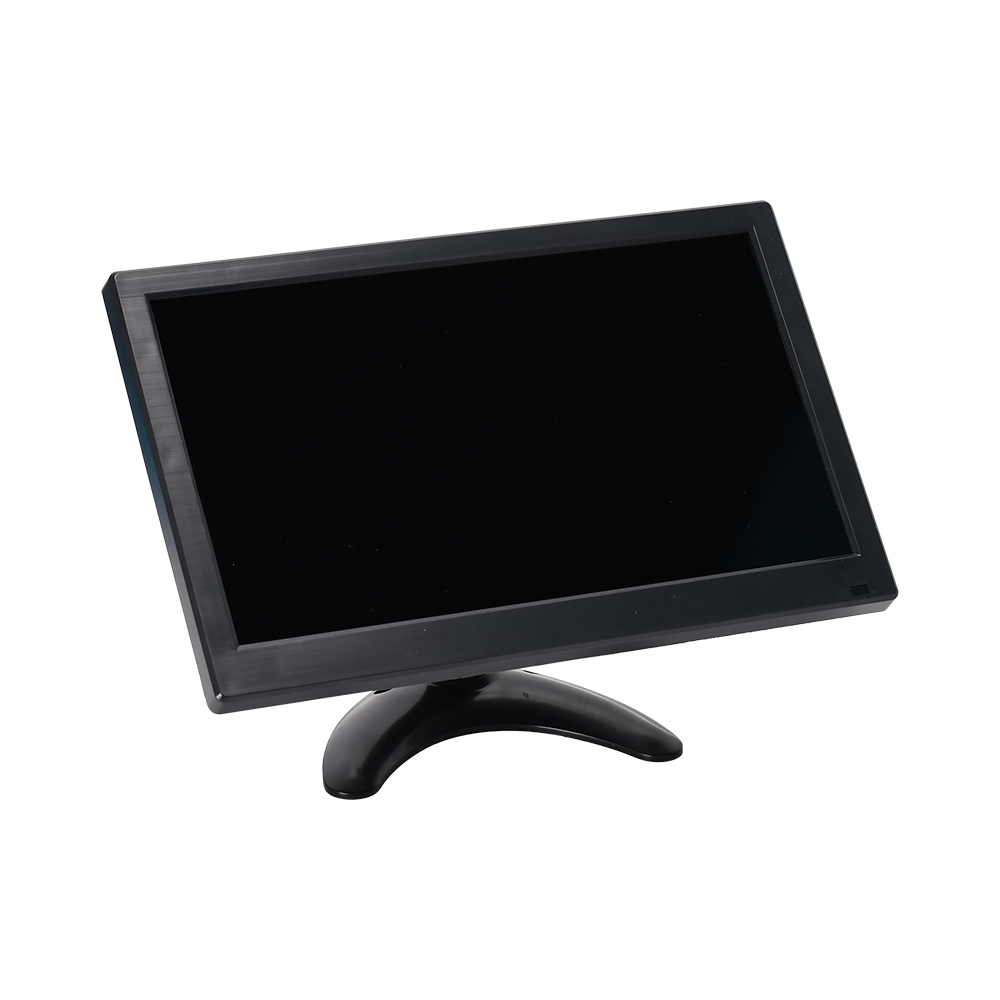

11.6-inch HD IPS Monitor Resolution:1920x1080P

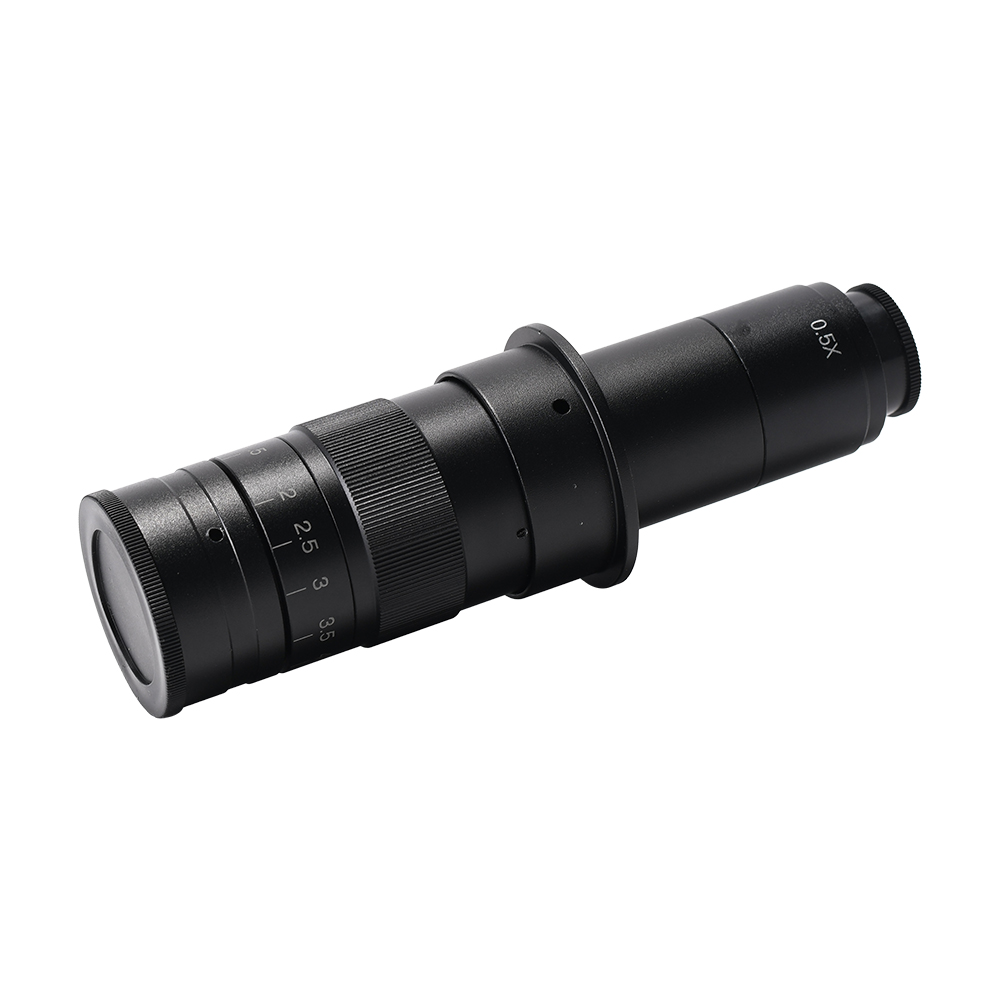

180X C-Mount Lens:
Zoom C-Mount Lens
0.5X C-mount adapter
Objective Magnification Power by 0.7X-4.5X
Working distance: 100mm
Maximum field of view: 18.5mm x 10.5mm
Minimum field of view: 2.8mm x 1.6mm

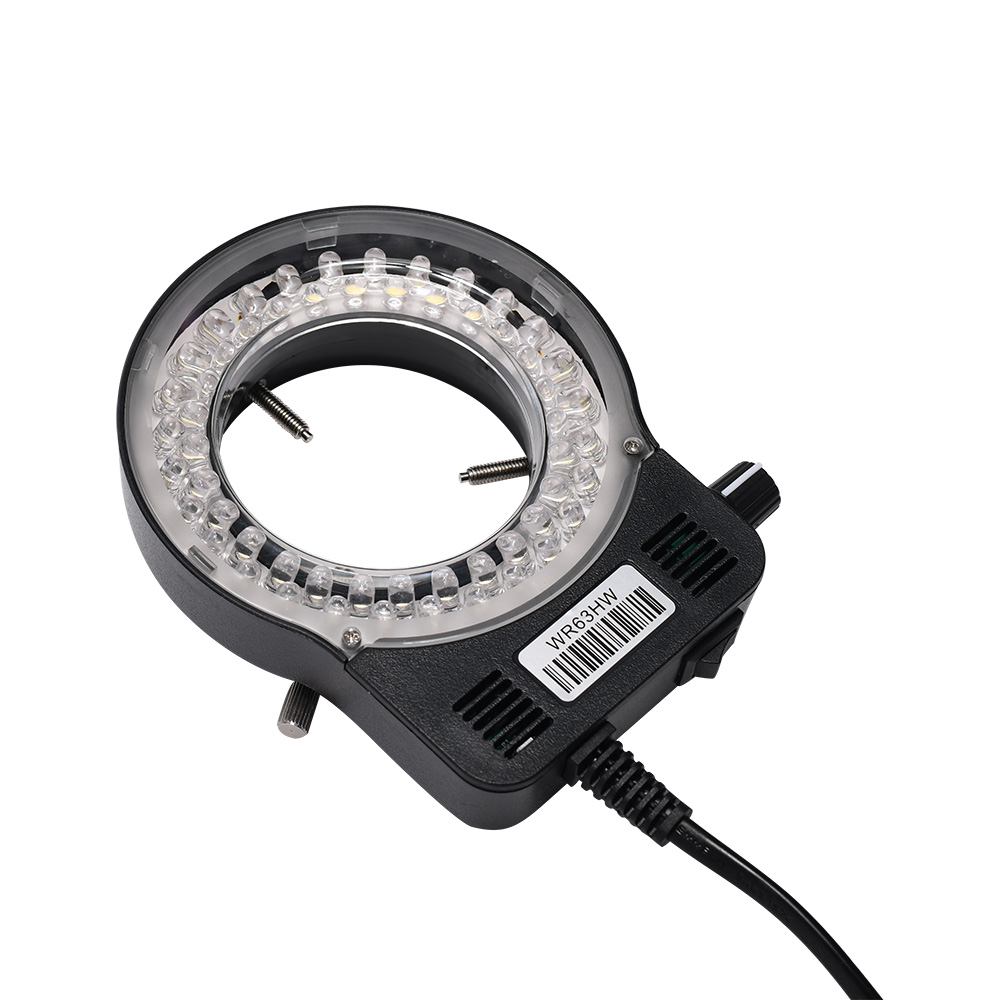

56 LED Microscope Ring Light:
56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

Package Includes:

1 x Microscope Camera
1 x180X Lens
1 x Microscope light source

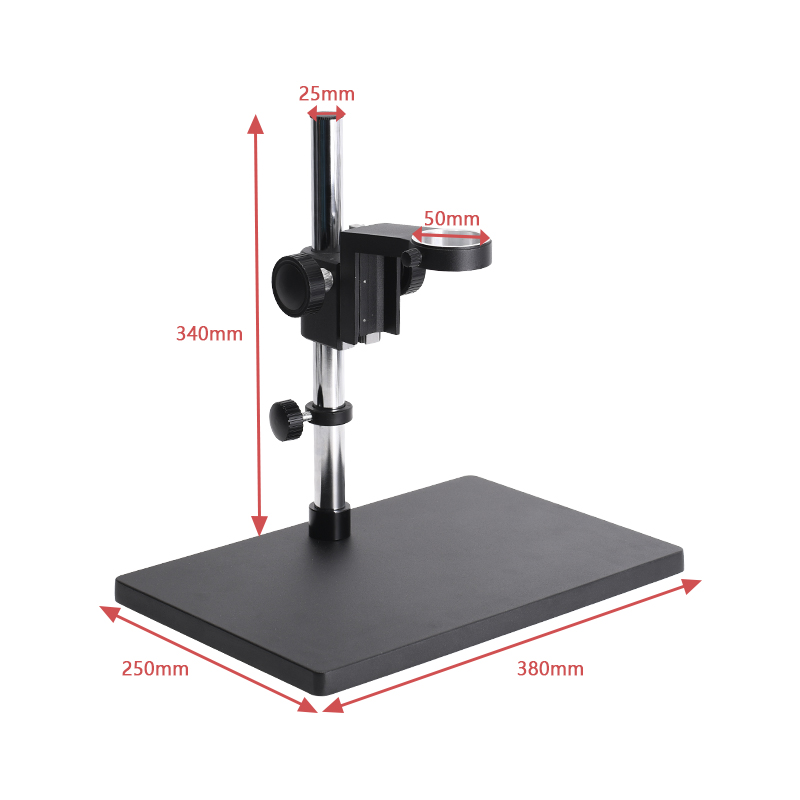

1 x Camera Stand
1 x 11.6-inch HD IPS Monitor
1 x Power Supply(EU Plug)
1 x USB Cable
1 x High Definition Multimedia Interface Cable
1 x Software CD
1 x Remote Control (Battery Not Included)

Note:

1. PC Support: Support for Windows XP/7/8/10 system.
2. For USB output, Software operating white balance, exposure and color adjustment can adjusted. (The camera keys are not available  Remote control cannot operate )
3. For high-definition multimedia interface output, the function can  adjusted when connected to the monitor.(Camera keys available  The remote control can be operated wirelessly)
4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.
5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).
