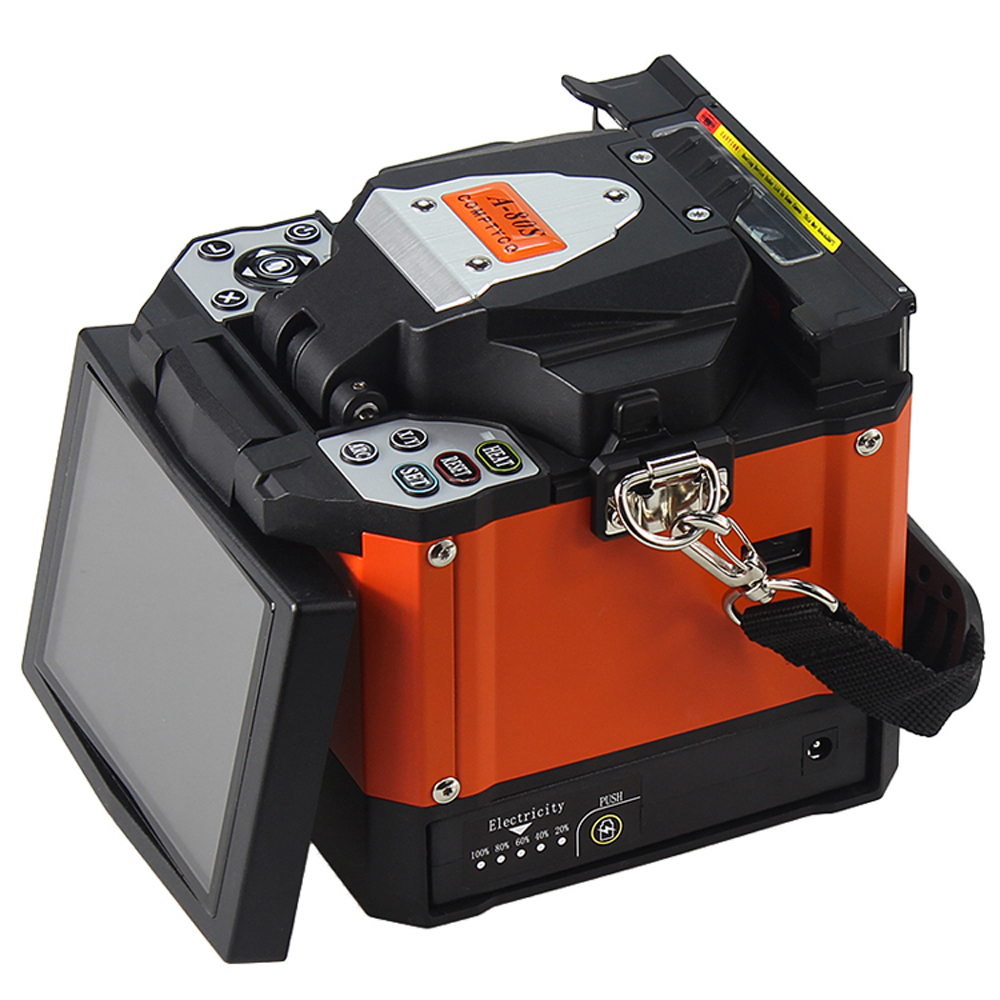

A-80S AC 110/220V Orange Automatic Fusion Splicer Machine Fiber Optic Fusion Splicer Fiber Optic Splicing Machine

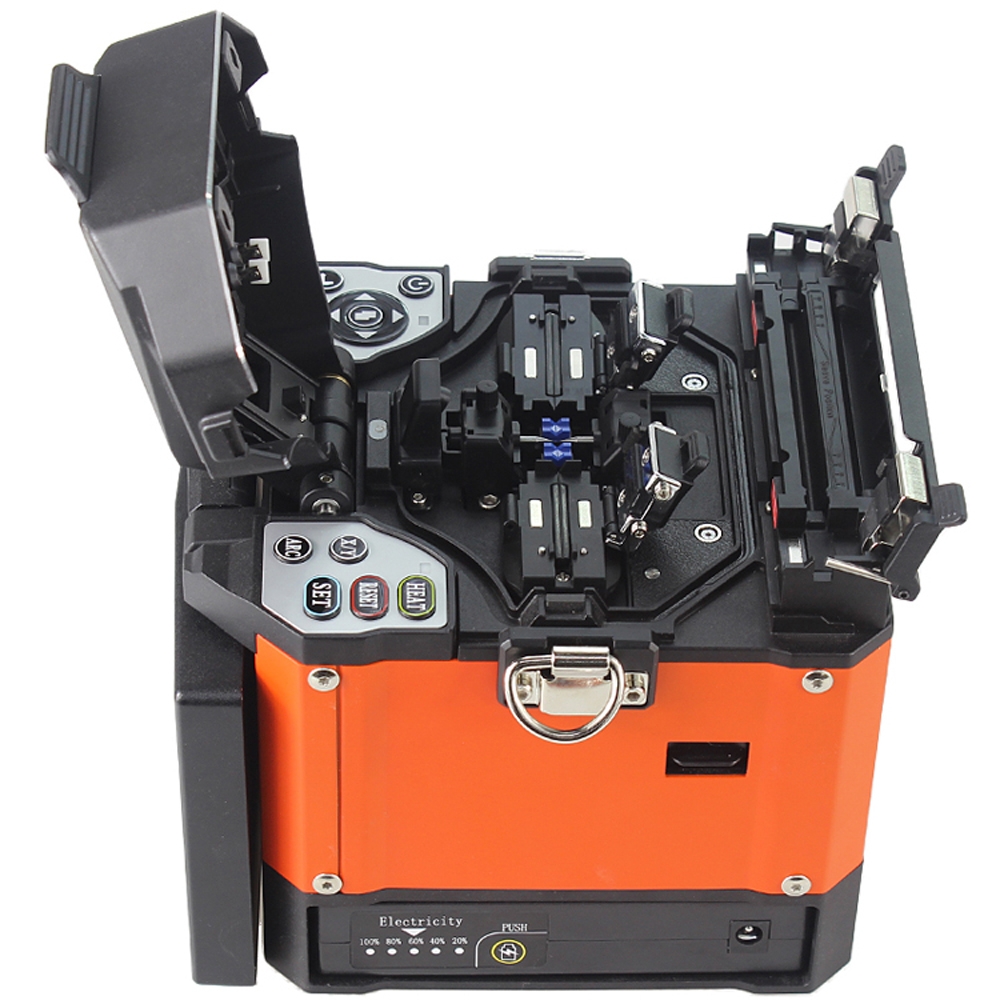

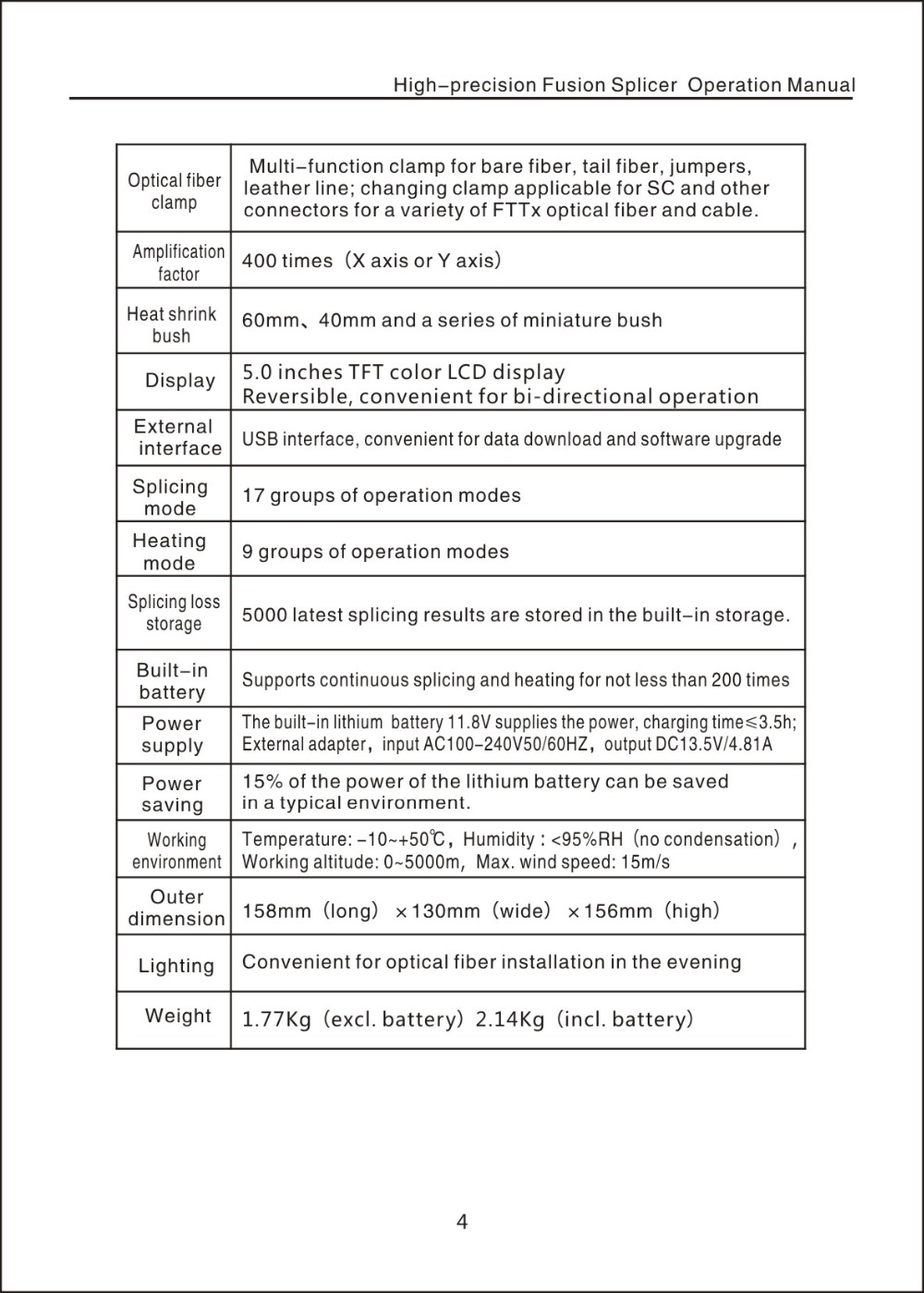

Optical fiber clamp: Multi-function clamp for bare fiber, tail fiber, jumpers, leather line; changing clamp applicable for SC and other connectors for a variety of FTTx optical fiber and cable.

Amplification factor: 400 times(X axis or Y axis)

Heat shrink bush: 60mm, 40mm and a series of miniature bush

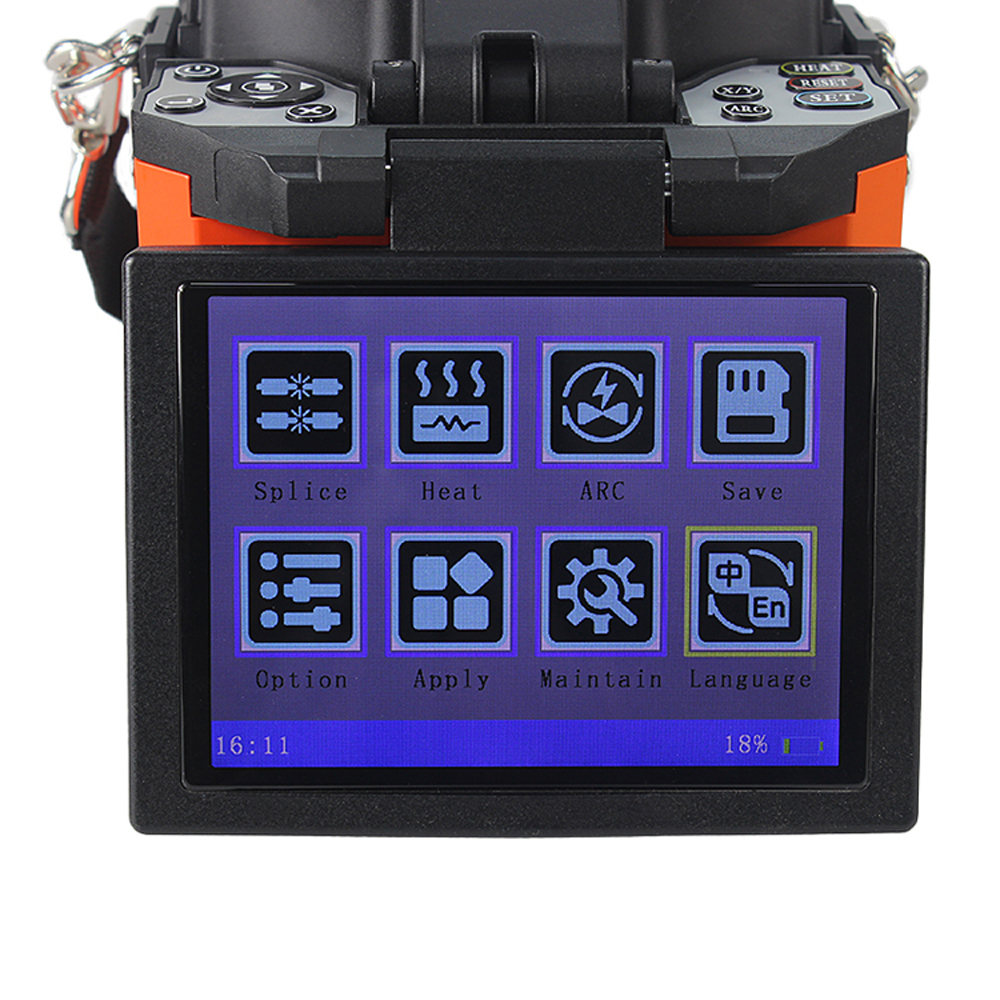

Display: 5.0 inches TFT color LCD display reversible, convenient for bi-directional operation

External interface: USB interface, convenient for data download and software upgrade

Splicing mode: 17 groups of operation modes

Heating mode: 9 groups of operation modes

Splicing loss storage: 5000 latest splicing results are stored in the built-in storage

Built-in battery: Supports continuous splicing and heating for not less than 200 times

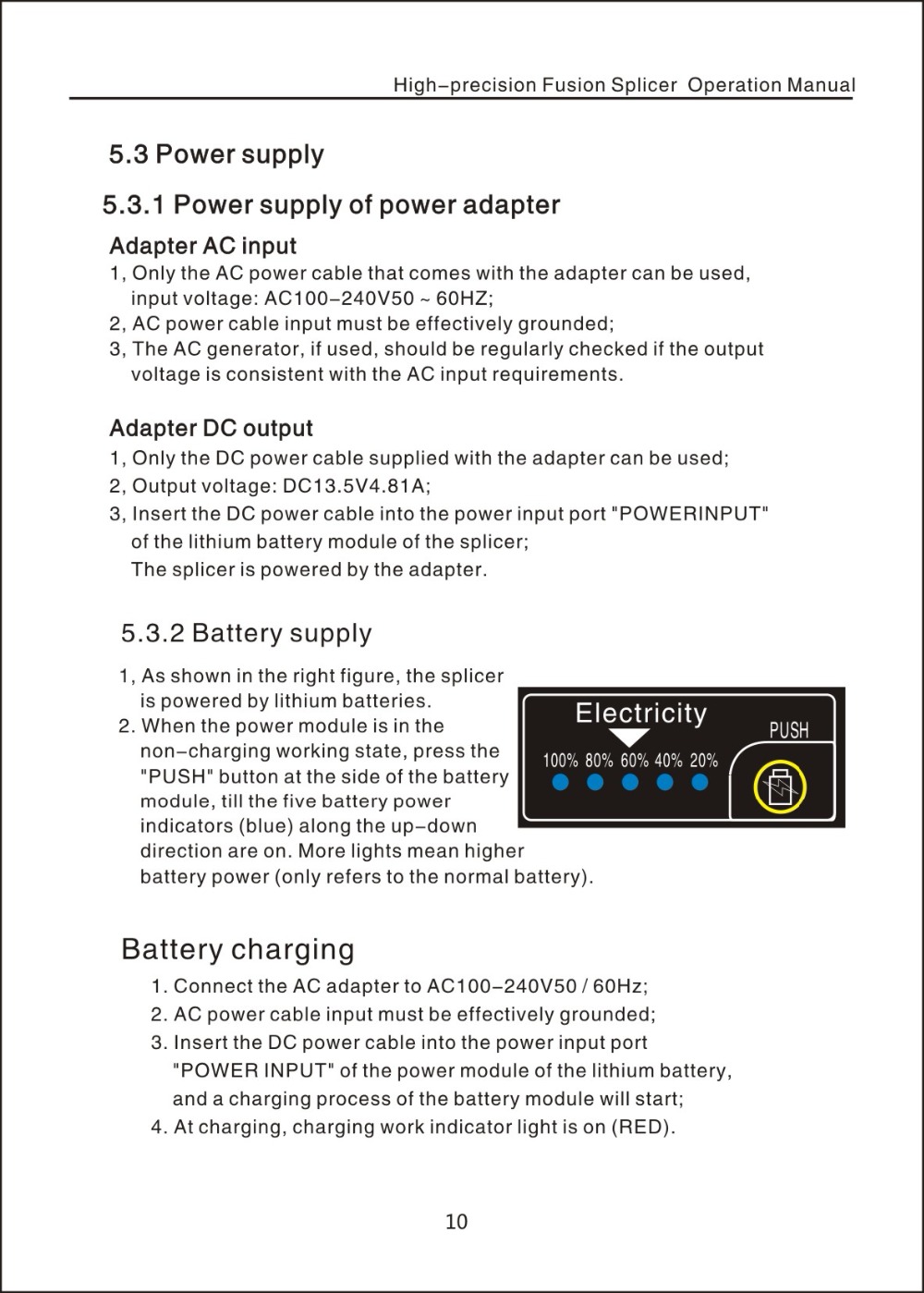

Power supply: The built-in lithium battery 11.8V supplies the power, charging time<=3.5h; External adapter, input AC 100-240V 50/60Hz, output DC 13.5V/4.81A

Power saving: 15% of the power of the lithium battery can be saved in a typical environment

Working environment: Temperature: -10~+50C, Humidity: <95%RH(no condensation), Working altitude: 0-5000m, Max. Wind speed: 15m/s

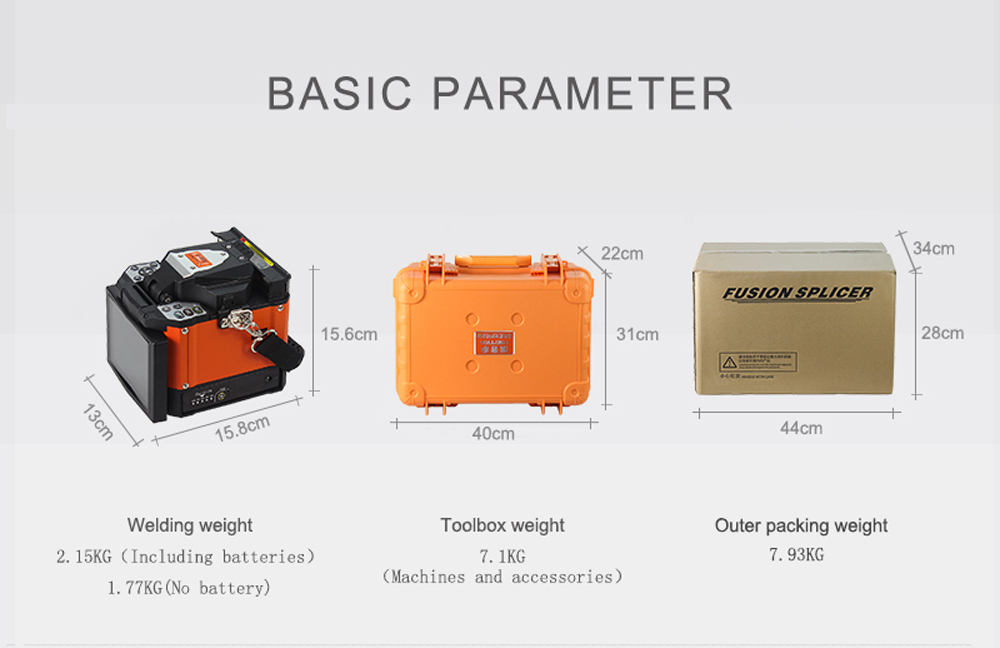

Outer dimension: 158*130*156mm(L*W*H)

Lighting: Convenient for optical fiber installation in the evening

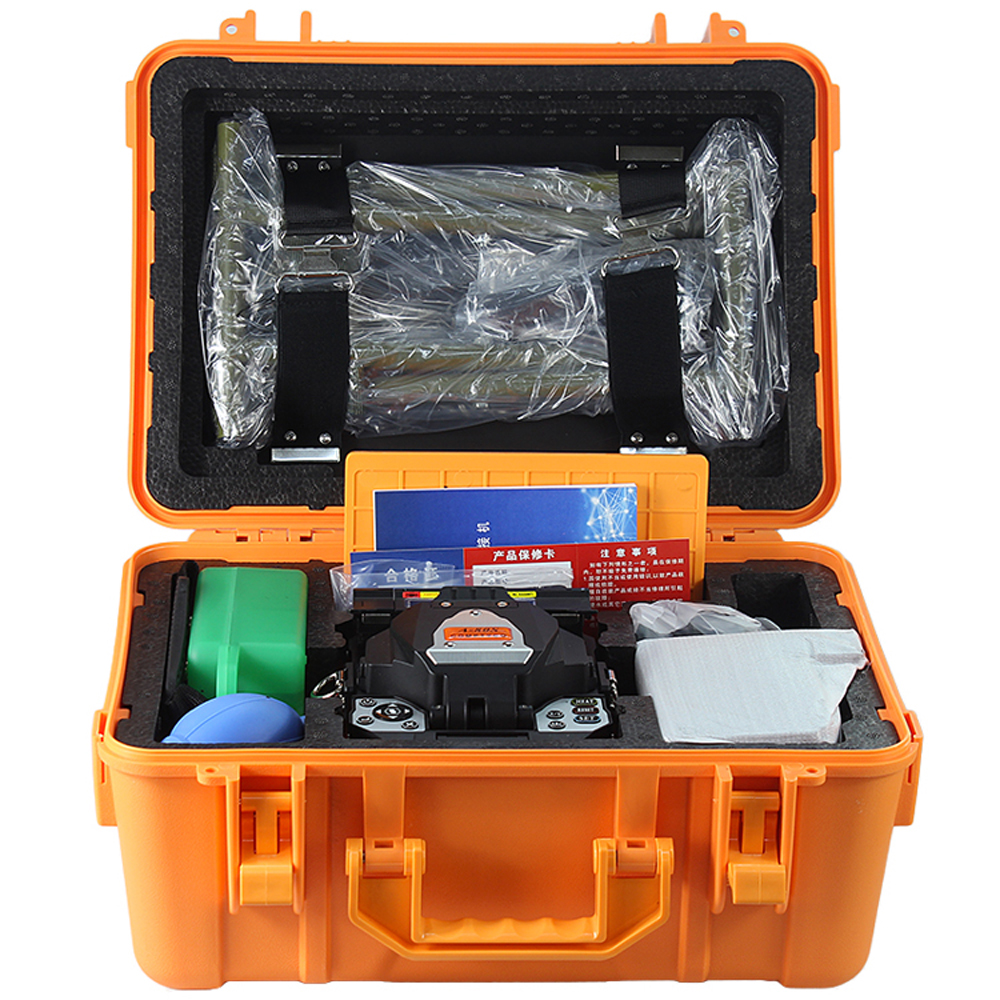

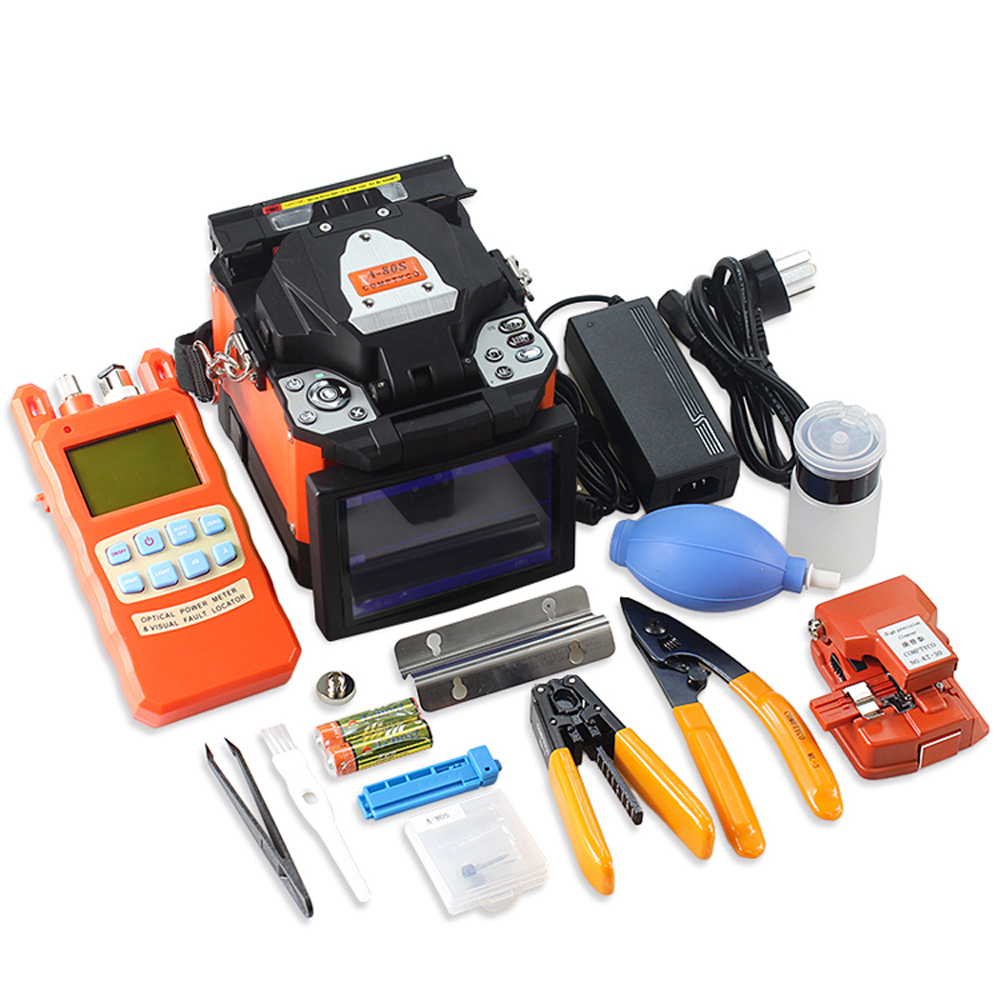

Package included:

1 x Fusion Splicer Machine

1 x toolbox

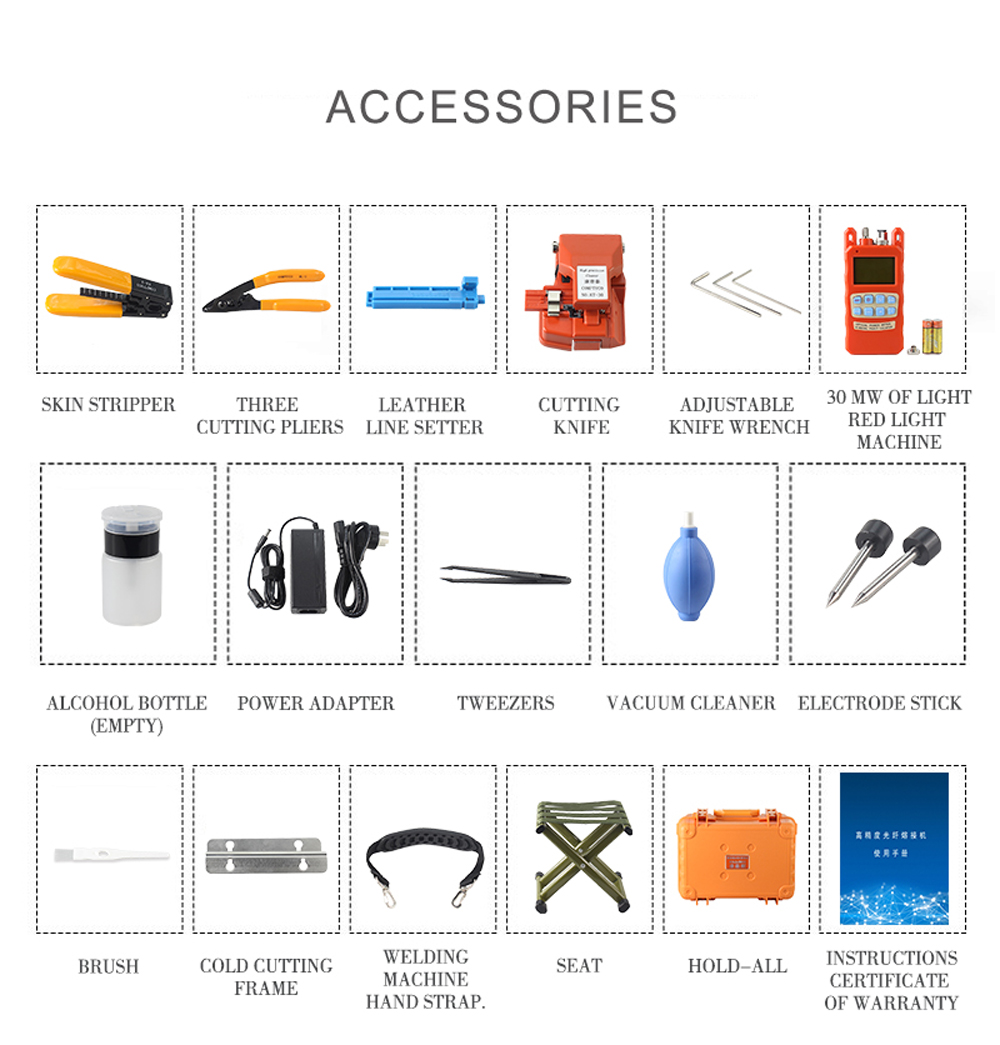

1 set accessories
