AT50 150W 1.9-54MHz HF Shortwave Automatic Antenna Tuner with Housing Assembled ATU100 ATU-100 Serious

$85.99

Ex Tax: $85.99

Qty

>>Please Contact us to Download the English User Manual<<

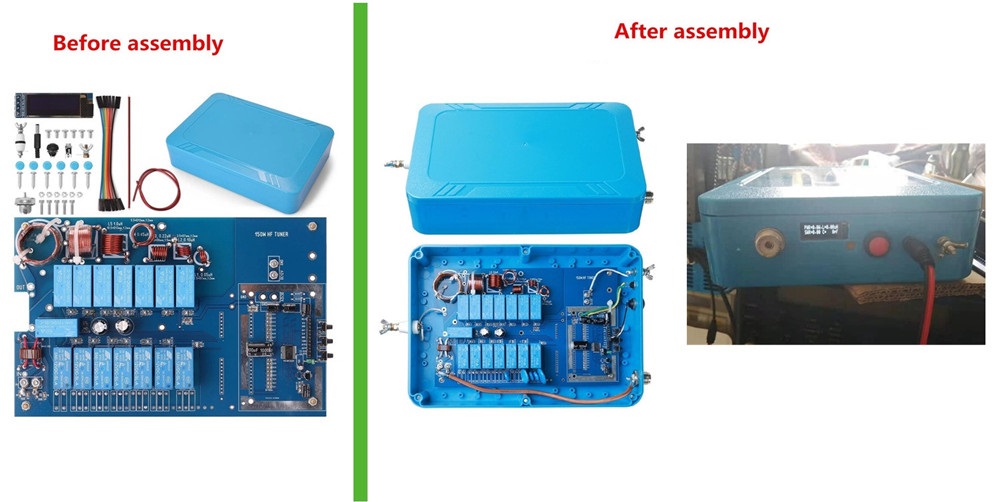

Note: the product needs to be assembled

Features:

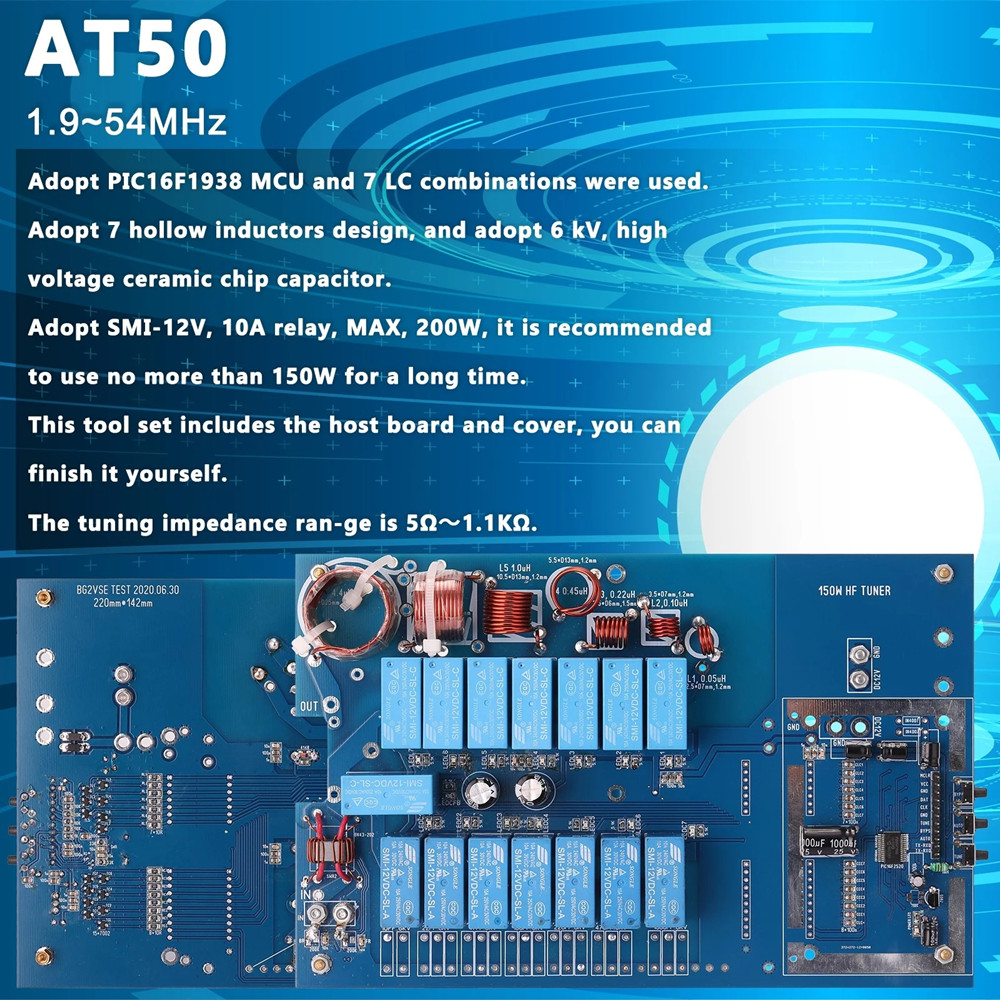

Adopt PIC16F1938 MCU and 7 LC combinations were used.

Adopt 7 hollow inductors design, and adopt 6 kV, high voltage ceramic chip capacitor.

Adopt SMI-12V, 10A relay, MAX, 200W, it is recommended to use no more than 150W for a long time.

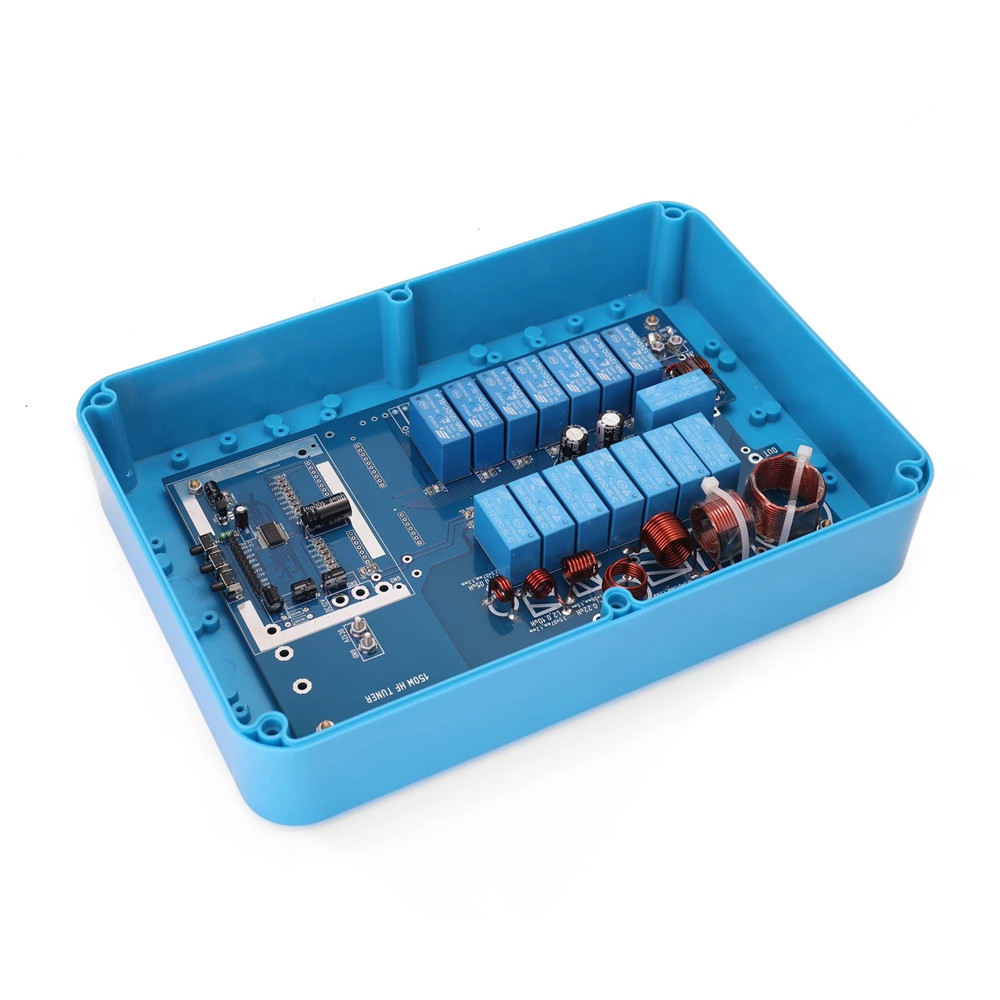

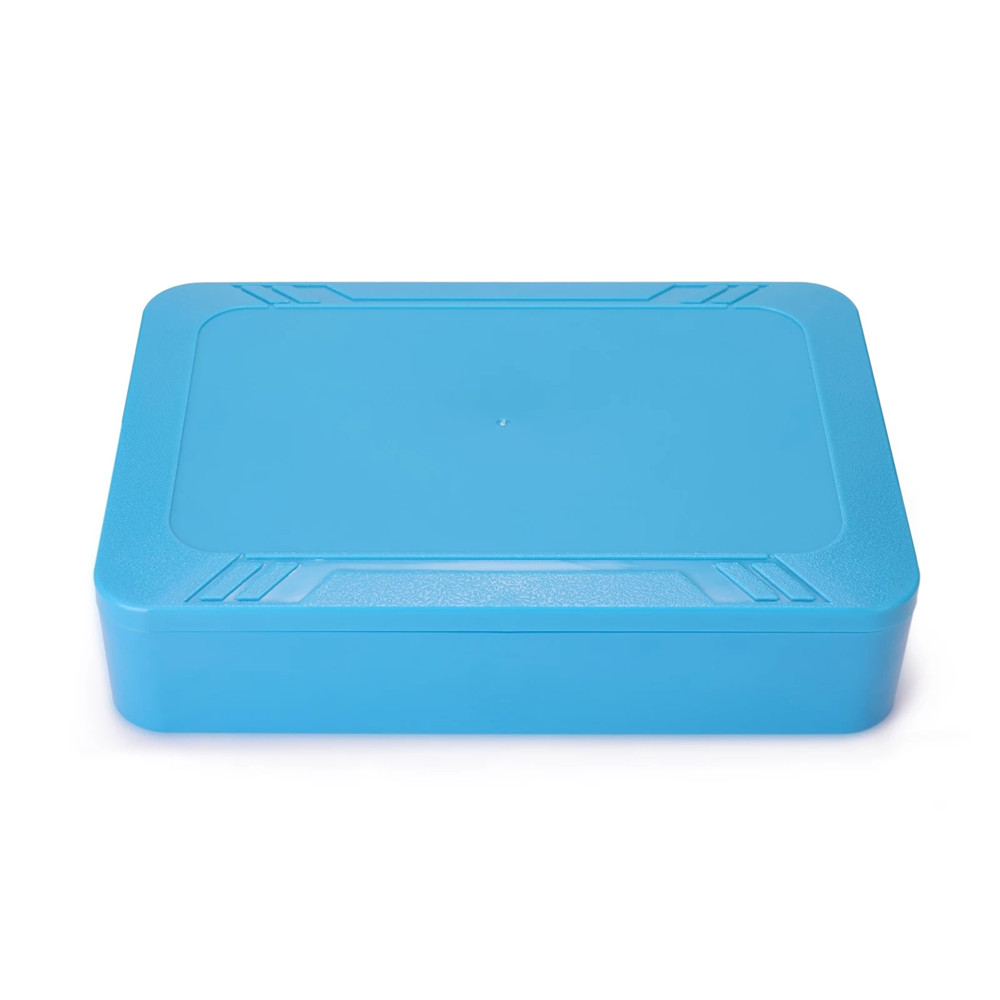

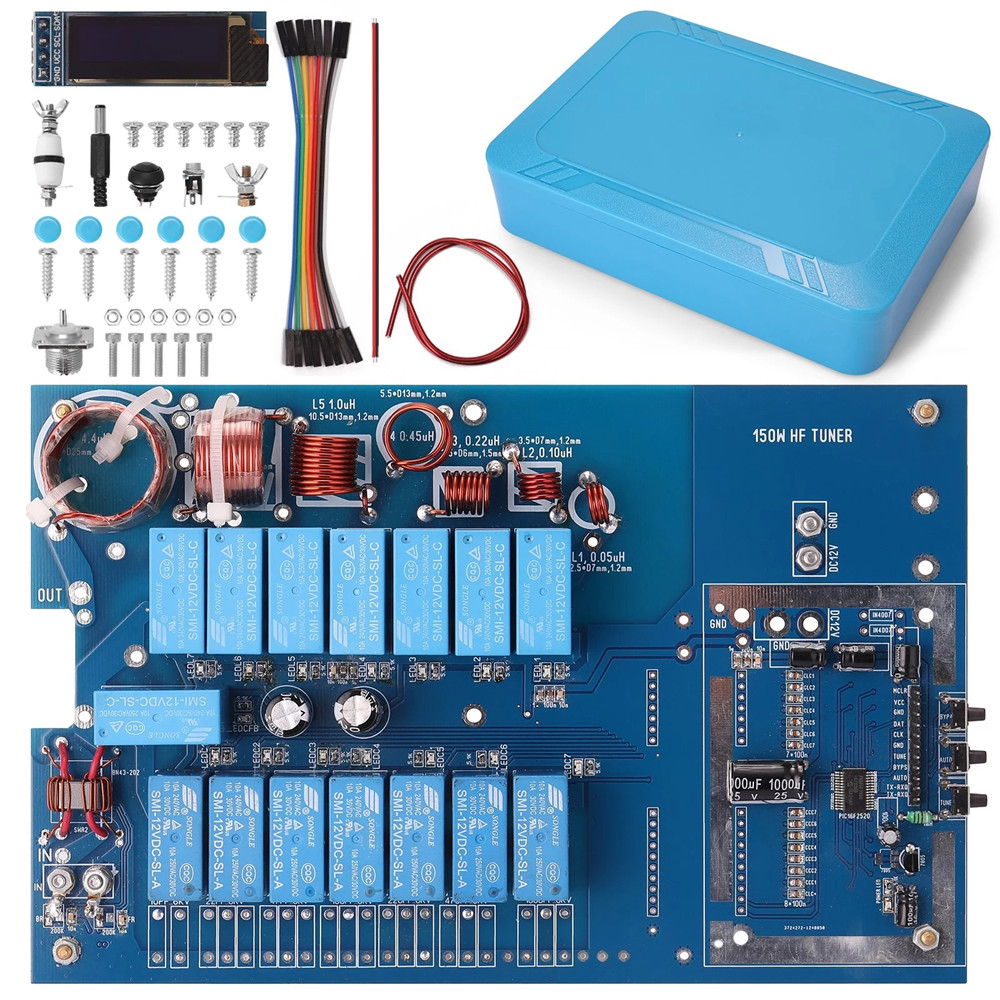

This tool set includes the host board and cover, you can finish it yourself.

The tuning impedance ran-ge is 5Ω～1.1KΩ.

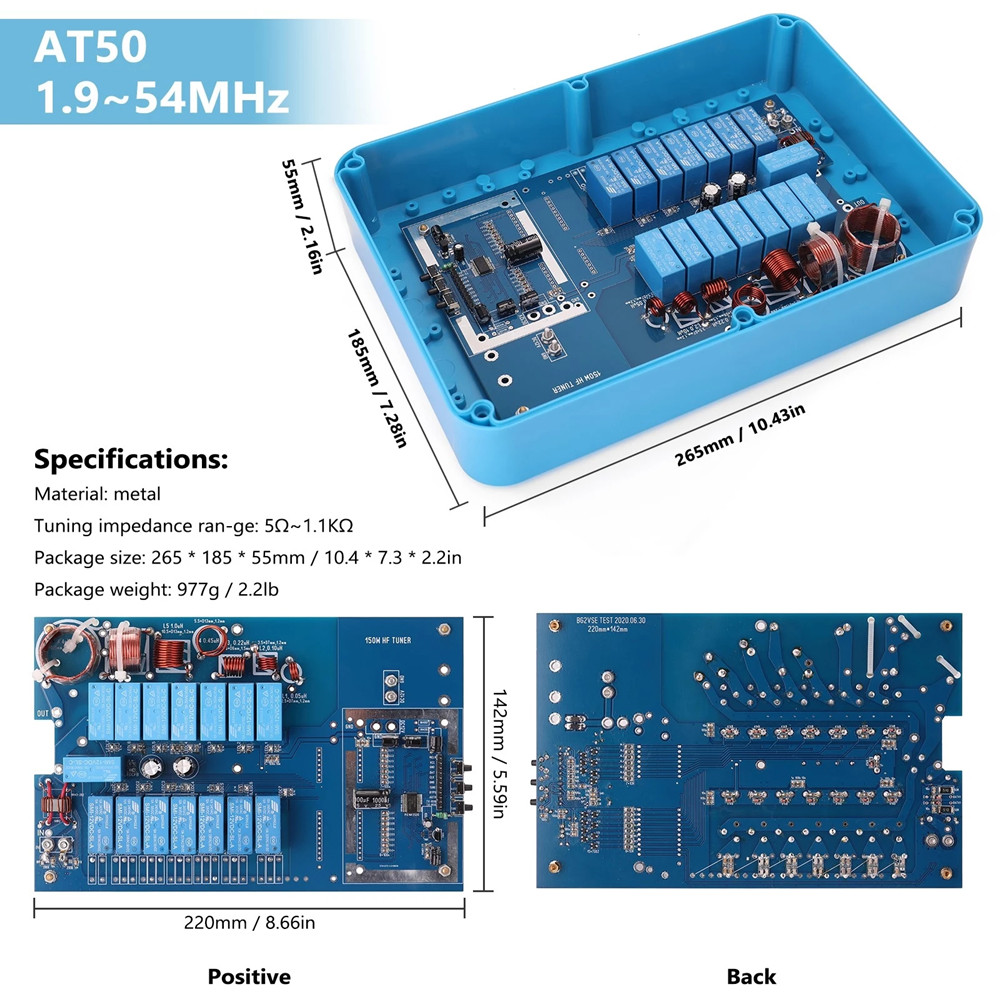

Specification:

Material: metal

Tuning impedance ran-ge: 5Ω~1.1KΩ

Package size: 265 * 185 * 55mm / 10.4 * 7.3 * 2.2in

Package weight: 977g / 2.2lb

Package Included:

1 x Shortwave Automatic Antenna Tuner
