NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch On Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support

NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch On Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch On Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch On Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch On Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch On Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch On Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
NH-F M5 Screw Hole Mini Type 30kg Holding Force Switch On Off Dial Indicator Gauge Stand Holder Magnetic Base Shaft Support
$17.99
Ex Tax: $17.99
  • Stock: In Stock
  • Model: MZ003538
  • SKU: MZ003538

Description:

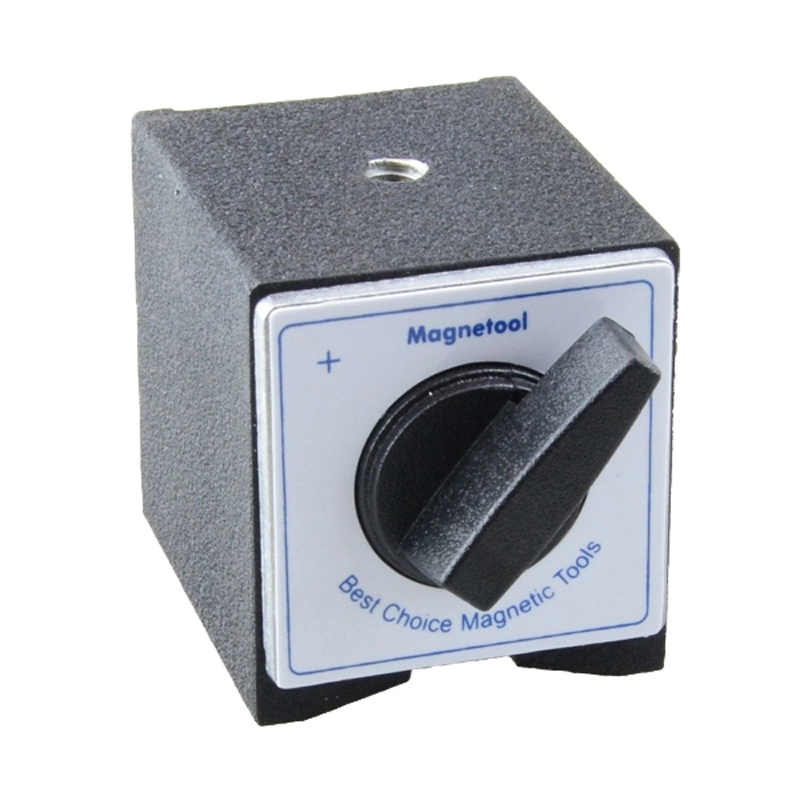

The Magnetic Base has permanent magnet inside the metal block body, with the "on/off" or "+ / -"switch to open or shade the magnetic field to hold on the ferrous metal surface or remove the magnetic base. The magnetic base has the screw hole on the top surface to install holderfor dial indicator, gauge, line cutting arm, lifting bar and etc.

Note: 1,The Magnetic holding force is depend on the holding ferrous material, thickness, flatness, roughness and etc.

          2, 30kg is the type tested max holding break force, not the bending or friction force.

          3, Because of the interior magnet is made of strong Ndfeb material, the rotating support is special, so operate the switch

Specification:

Base    Model Magnetic Base Size (mm) Holding Force   Kg Screw Hole Material Weight
Length Width Height Panel Switch Kg
NF-H 36 30 35 30 M5 Metal Plastic 0.20
MB-6D 60 50 55 60 M8x1.25 0.95
MB-8D 60 50 55 80 M8 0.95
MB-10D 74 50 55 100 M8 1.19
MB-12D 120 50 55 120 M8 1.95
MB-15D 126 60 52 150 M8 2.30

Package includes:

1 X NF-H Magnetic Base

Details pictures:

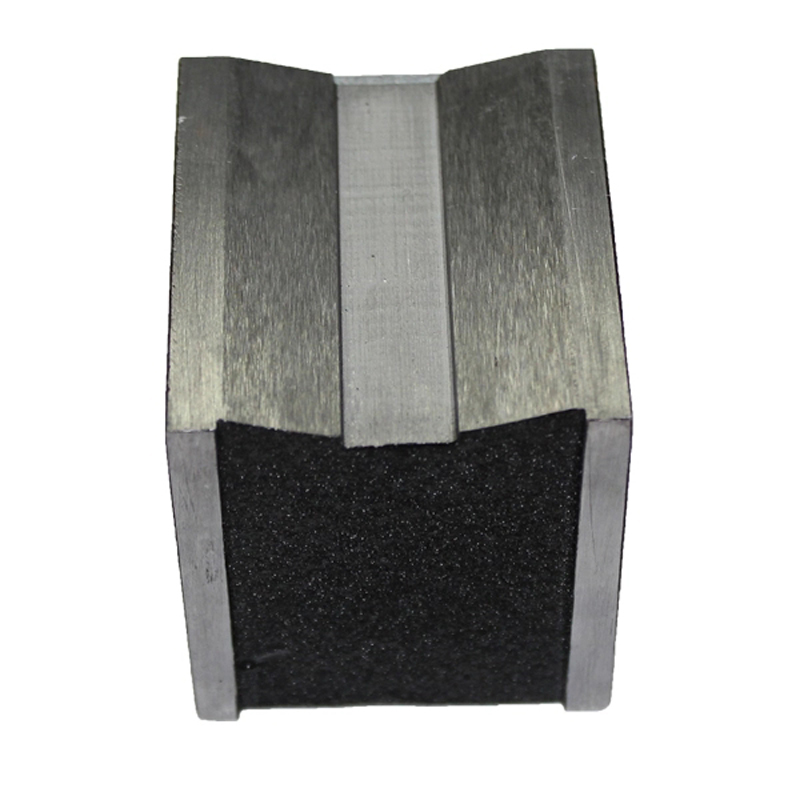

NH-F-M5-Screw-Hole-Mini-Type-30kg-Holding-Force-Switch-On-Off-Dial-Indicator-Gauge-Stand-Holder-Magn-1537894-1

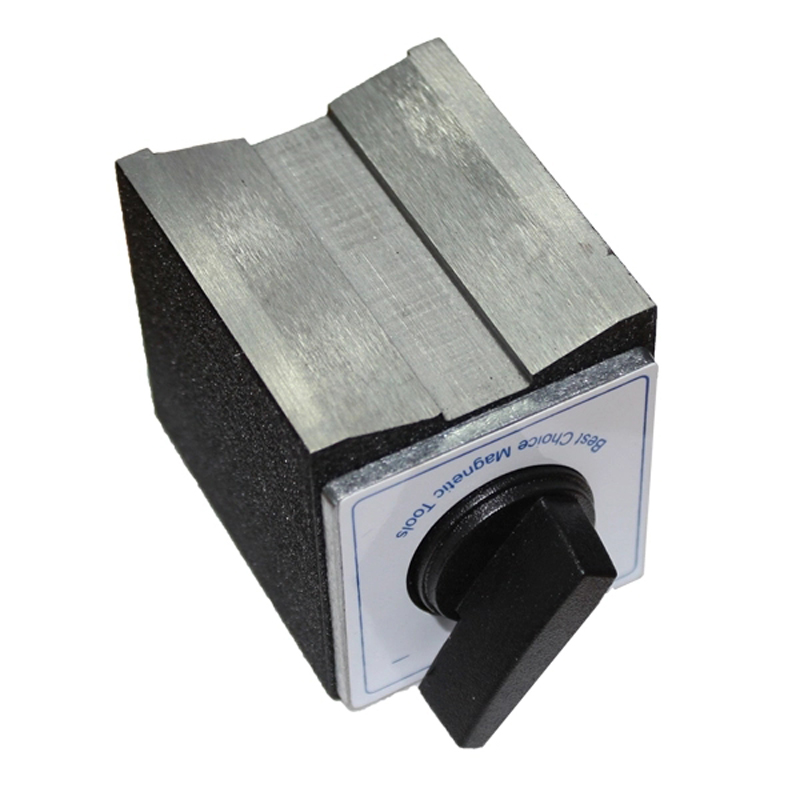

NH-F-M5-Screw-Hole-Mini-Type-30kg-Holding-Force-Switch-On-Off-Dial-Indicator-Gauge-Stand-Holder-Magn-1537894-2


NH-F-M5-Screw-Hole-Mini-Type-30kg-Holding-Force-Switch-On-Off-Dial-Indicator-Gauge-Stand-Holder-Magn-1537894-3
