PD45W Power Adapter 12-24V Type-C to DC5525 QC3.0 Fast Charging PD Line
PD45W Power Adapter 12-24V Type-C to DC5525 QC3.0 Fast Charging PD Line
$23.99
Ex Tax: $23.99
- Stock: In Stock
- Model: MZ000922
- SKU: MZ000922
Features:
1. 110V ~ 240V input voltage can be used, stable current and fast charging output.
2. PC flame-retardant and fire-retardant materials, integrated design without joints, beautiful and elegant appearance.
3. The internal integrated intelligent constant current circuit has over-voltage / over-current / over-charge protection functions, as well as strong stability and safety charging capabilities. It can not only charge mobile devices, but also prevent your mobile devices from Used damage.
It can be a PD power adapter and universal interface DC 5525 and TYPE-C.
5. Brand new and high quality. Suitable for TS100 intelligent electric iron.
6. It provides stable and reliable power supply.
Specifications:
Input voltage range: AC100-240V
Output: DC QC3.0 + TYPE-C PD
Input current: 1.3A
Output power: 45W
Colour: Black
Material: Pure PC fireproof plastic
Output voltage accuracy: 5%.
Current output range: 2.25-3A
Voltage output: 20V
Plug: US Plug / Europe Plug
Power supply size: 60mm x 60mm x 30mm
Output line length: 1.5m
Weight: about 150g (including power cord)
FAQ about PD45W Adapter:
FAQ about PD45W Adapter:
Q: In addition to the wires that come with the PD45W adapter, can other wires be used with SQ-001 or D60 soldering irons?
A: The operating voltage range of SQ-001 and D60 is 12-24V. Other lines need to bring a PD chip, because the built-in PD chip can seduce a voltage of 20V. So, the data line needs to bring PD protocol to lure out 12-24V to use. Cannot be used without PD chip.
Q: Can this PD45W adapter and its own cable charge my phone?
A: The output voltage of the PD45W adapter and the built-in line is 20V, which cannot charge the mobile phone. Because this data line has a PD chip, the induced voltage is 20V. The input voltage of the mobile phone is generally 5V , too high voltage may cause damage to the mobile phone!
Packaging includes:
1 x PD45W power adapter
1 x Fast charging source PD cable (Type-C to 5525)

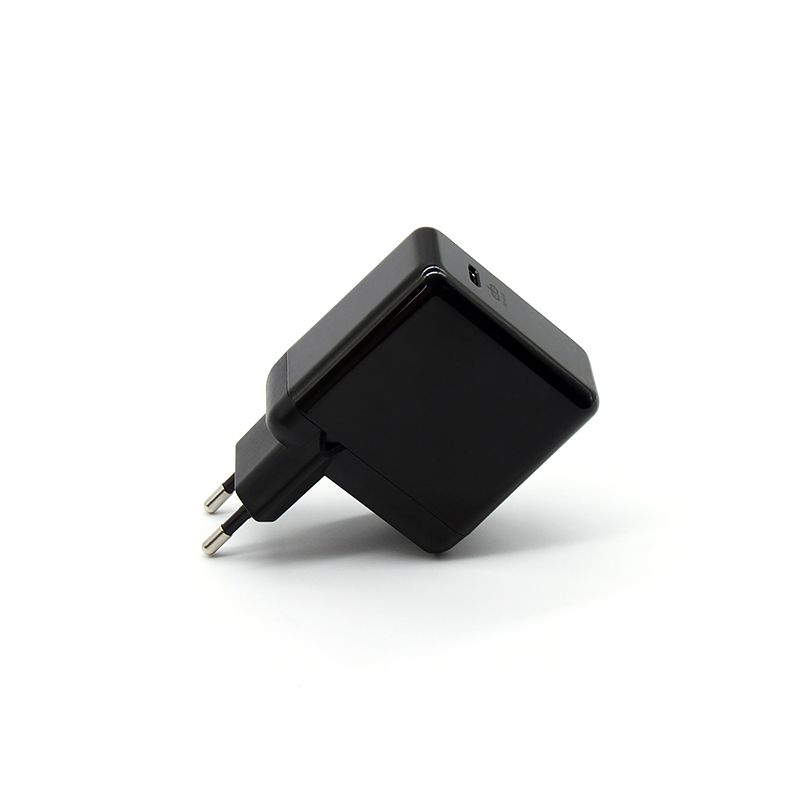

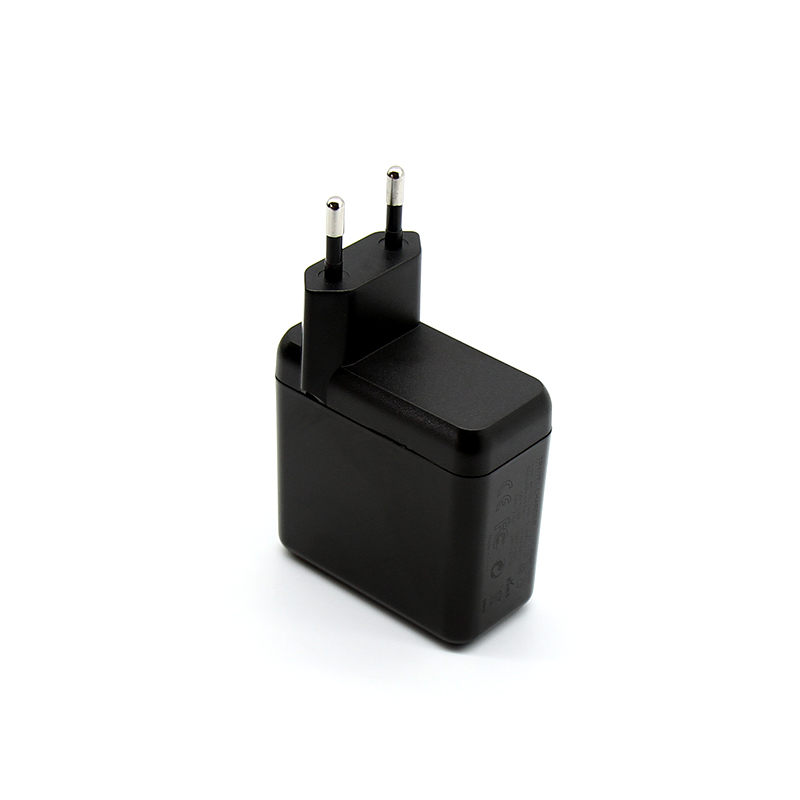

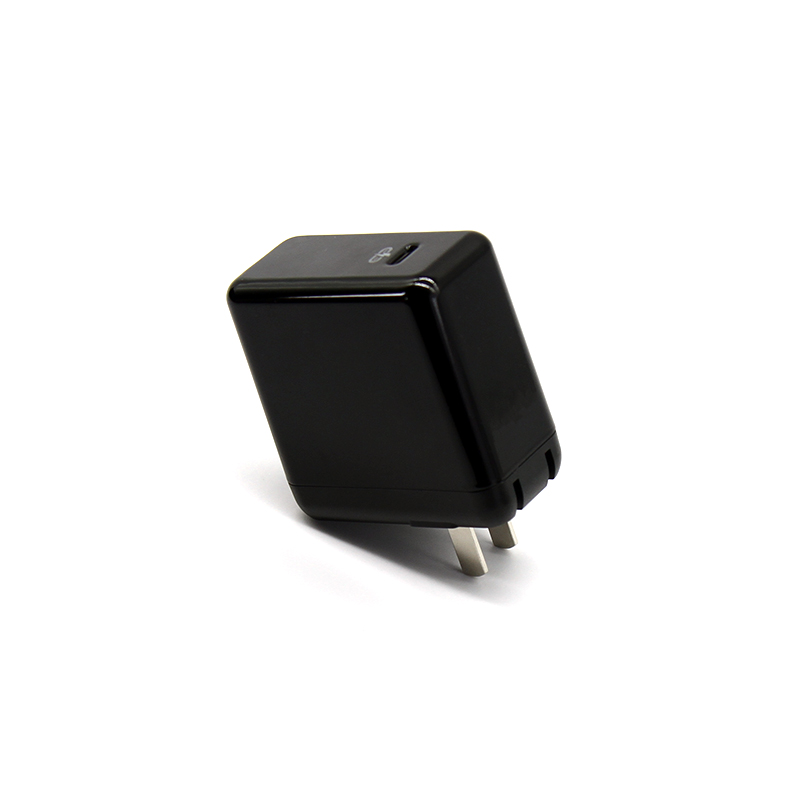

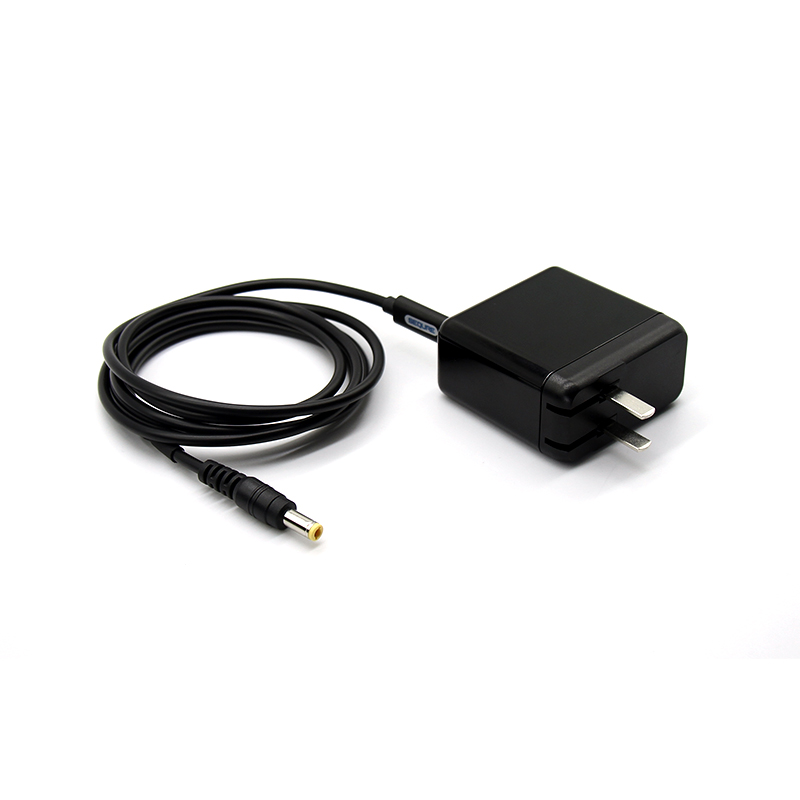

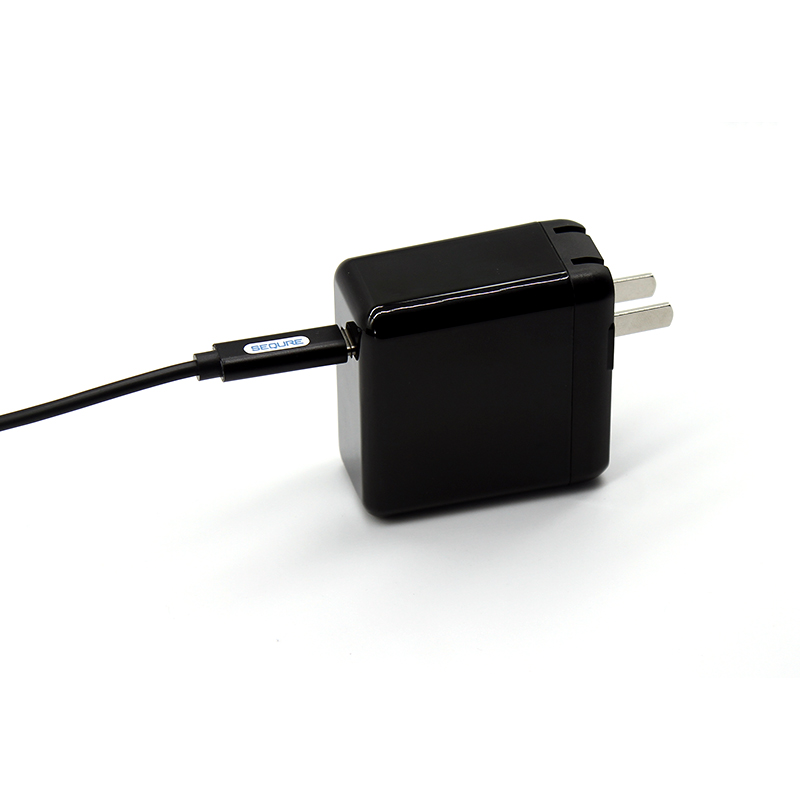

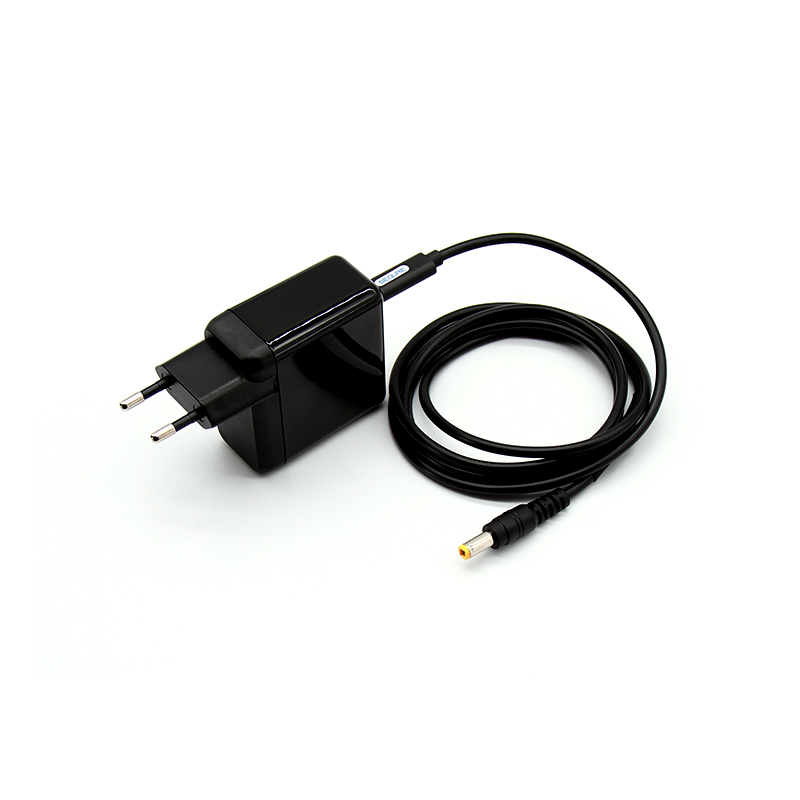

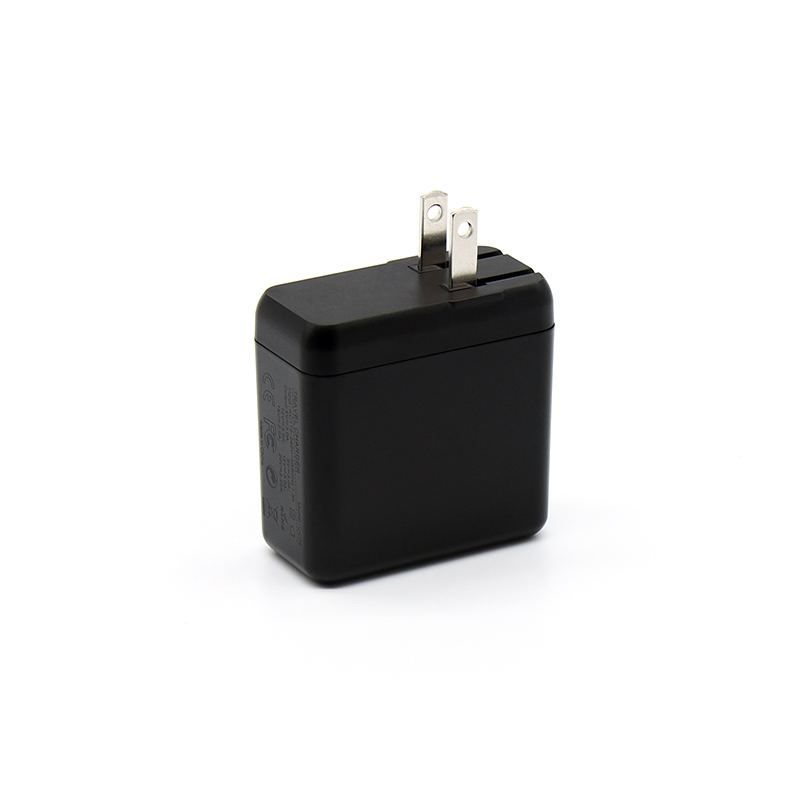

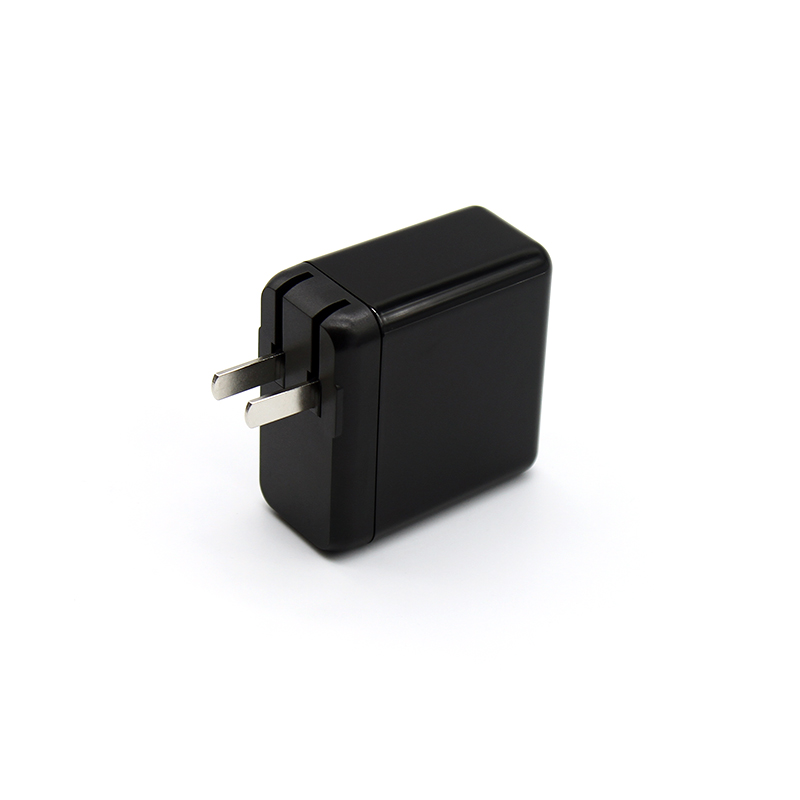

Detail Pictures:
