"Handheld Vector Network Analyzer" is a product based on the open source project of NanoVNA, which is more professional and practical. It includes a 4.3-inch IPS TFT IPLCD screen for clearer.

Features:

Use 4.3-inch IPS TFT LCD and resistive touch screen, with a larger view angle and can be seen clearly in strong outdoor light.
The Lipo charing IC to be changed to IP5306 (with 2A high charing current), making the charging time shorter.
Use a larger and better operating level.
Use a larger and better operating power switch.
Support Chinese and English menu switching.
Upgrade the user program by virtual U disk (16MB SPI flash memory inside).
Standard aluminium housing to protect SMAhead and reduce the interference of external electromagnetic wave to instrument.

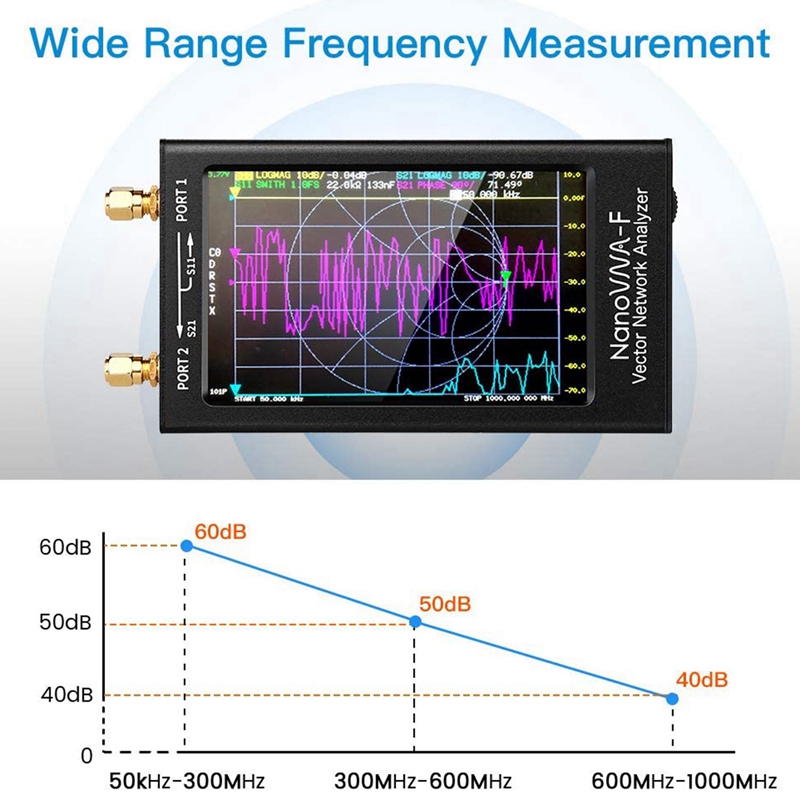

The NanoVNA-F measurement range is 50k-1GHz. Use the harmonic of the clock chip SI5351 to measure frequency up to 1000MHz. At 600M-1GHz, the S11 has a dynamic range of 40dB (the standing wave ratio is less than 1.02).
The RF front end is designed with a metal shield that allows the S21 to have a dynamic range better than 60dB over the full frequency range.

Specifications:

Main material: PCB
Color: black
Measurement frequency: 50KHz~1000MHz
RF output: -13dBm (Max.-9dBm)
Frequency accuracy: <0.5PPM
Port SWR: <1.1
Display: 4.3 inch IPS TFT (800*480)
USB interface: USB Type-C
Communication mode: CDC (serial)
Power consumption: USB 5V 200mA, can use battery powered, maximum charging current 2A
Output capacity: 5V/1A
Number of calibration points: 101
Number of scanning points: 101
Display tracking: 4, Marking: 4, Setting save: 5
Scanning time: about 1.9s/time (50KHz~1000MHz full frequency band)
Can measure S parameters, voltage standing wave ratio SWR, phase map, group delay, Smith chart and so on.

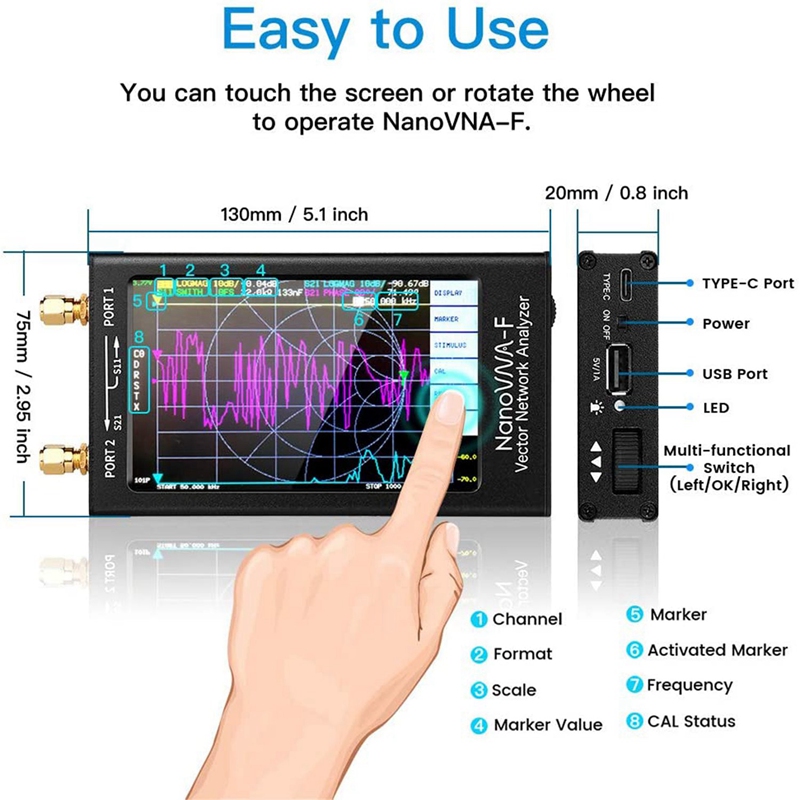

Item size: 140 * 75 * 20mm / 5.5 * 3.0 * 0.8in
Package size: 145 * 85 * 30mm / 5.7 * 3.3 * 1.2in
Package weight: 600g / 1.3lb

Package list:

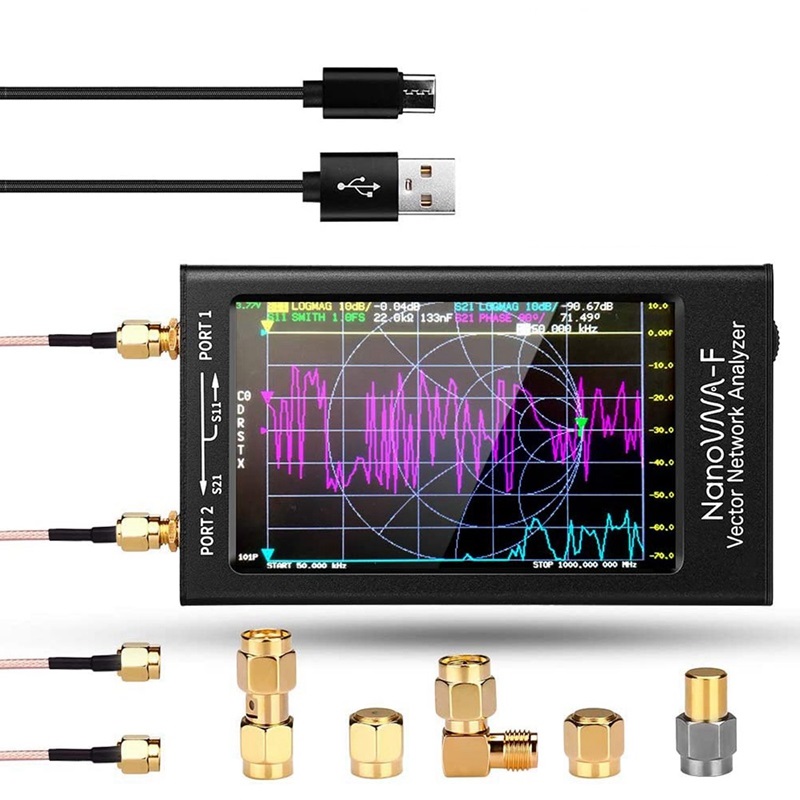

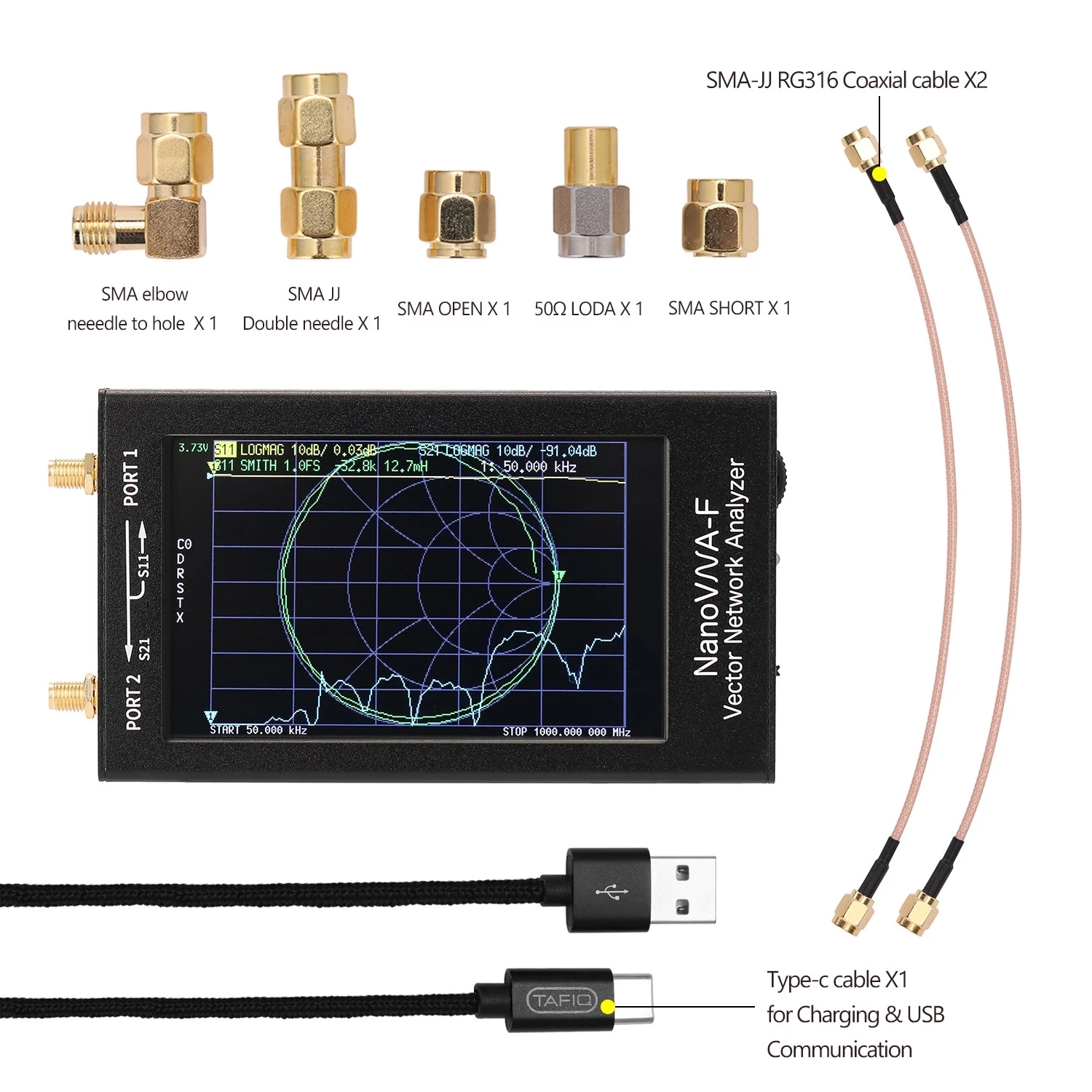

1 * Host
2 * 200mm SMA-JJ RG316 Cable
1 * Set of Calibration Parts
1 * SMA-JJ Double Needle
1 * SMA Elbow (external screw inner hole to inner screw inner needle)
1 * Type-C Data Cable
