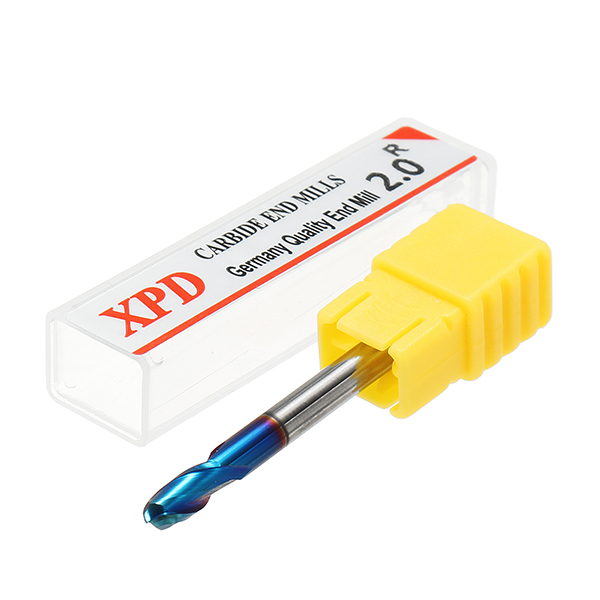

R0.5-R3 2 Flutes Tungsten Carbide End Mill HRC65 NACO Coated Ball Nose Milling Cutter
R0.5-R3 2 Flutes Tungsten Carbide End Mill HRC65 NACO Coated Ball Nose Milling Cutter
$10.99
Ex Tax: $10.99
- Stock: In Stock
- Model: MZ004371
- SKU: MZ004371
Description:

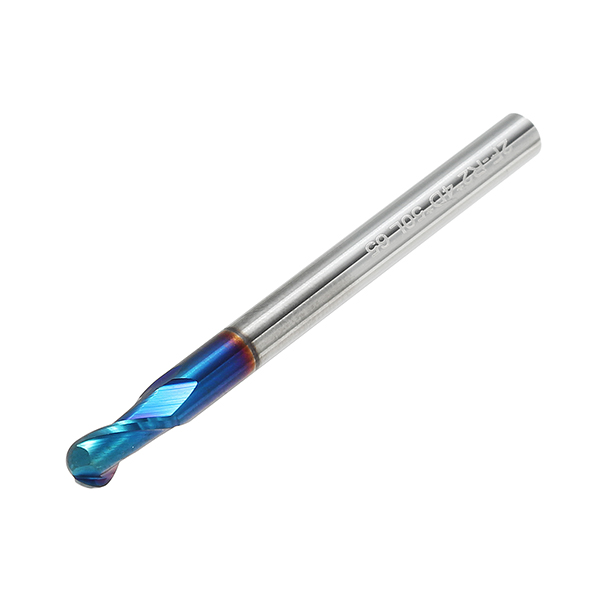

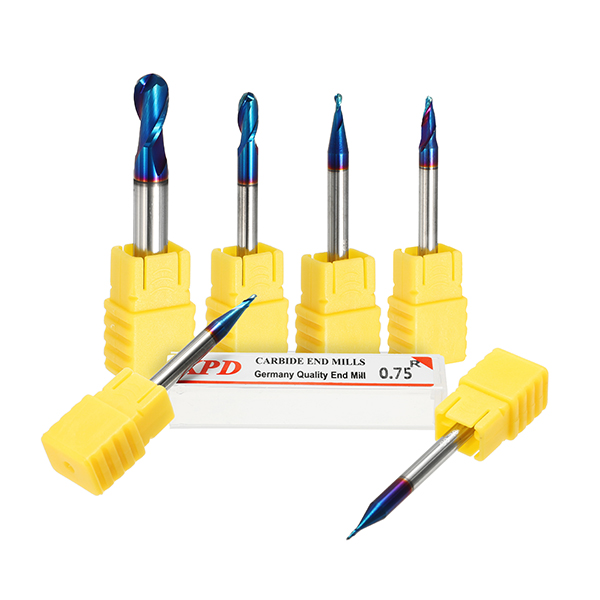

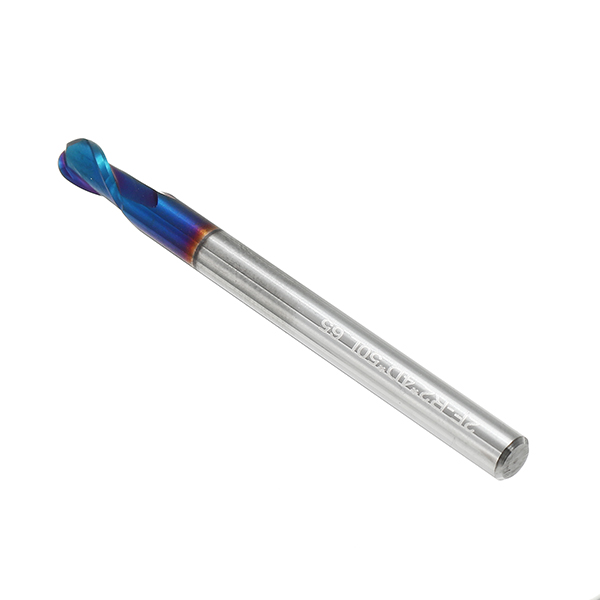

R0.5-R3 2 Flutes Tungsten Carbide End Mill HRC65 NACO Coated Ball Nose Milling Cutter CNC Tool
Specification:
Material: Carbide (tungsten steel)
Coating: NACO-blue Coated

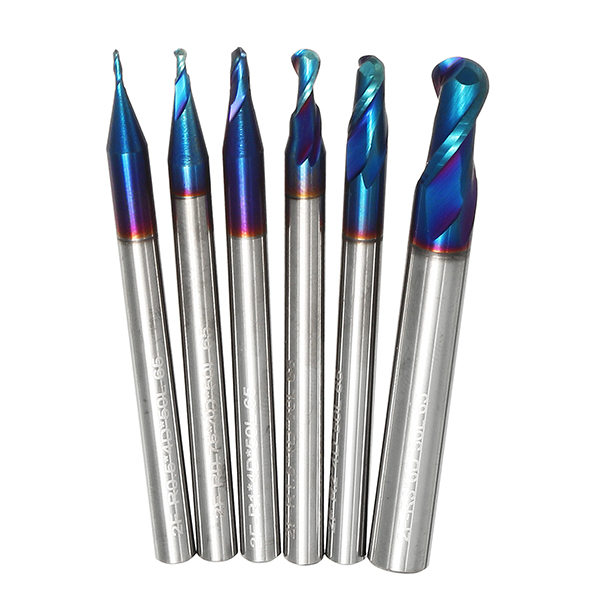

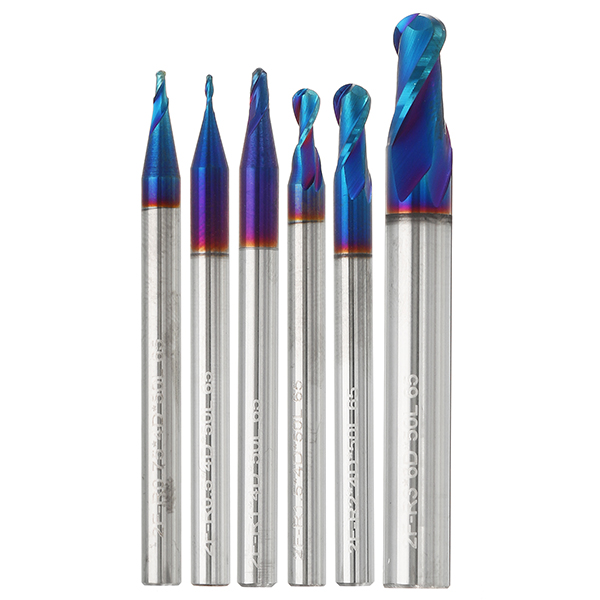

Sizes: R0.5/ R0.75 /R1 /R1.5 /R2 /R3
Flute: 2 Flutes

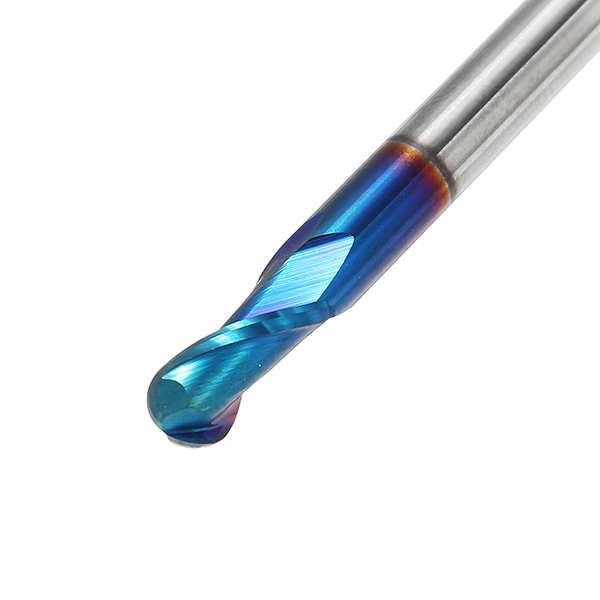

Head Shape: Ball Nose
Head Shape: Ball Nose
Highest cutting hardness: HRC65
| Type | Radiu of Nose Head (mm) | Diameter of Head (mm) | Diameter of Shank (mm) | Blade Length (mm) | Total Length (mm) |

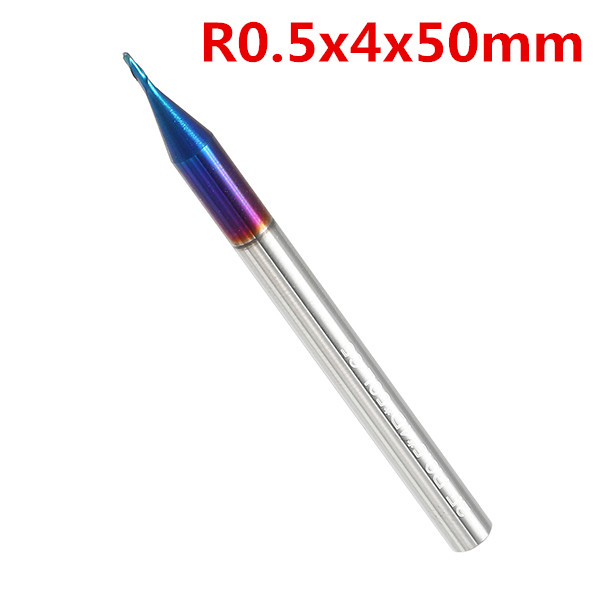

| R0.5x4x50mm | 0.5 | 1 | 4 | 3 | 50 |
R0.75x4x50mm | 0.75 | 1.5 | 4 | 4 | 50 |
| R1x4x50mm | 1 | 2 | 4 | 5 | 50 |

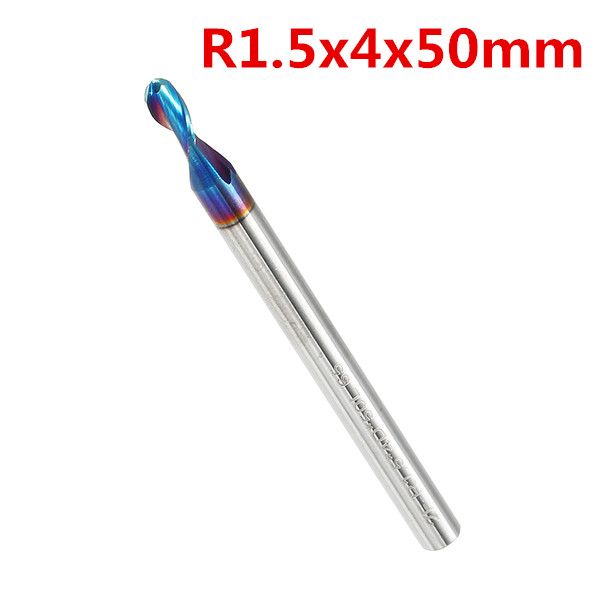

| R1.5x4x50mm | 1.5 | 3 | 4 | 8 | 50 |
| R2x4x50mm | 2 | 4 | 4 | 10 | 50 |

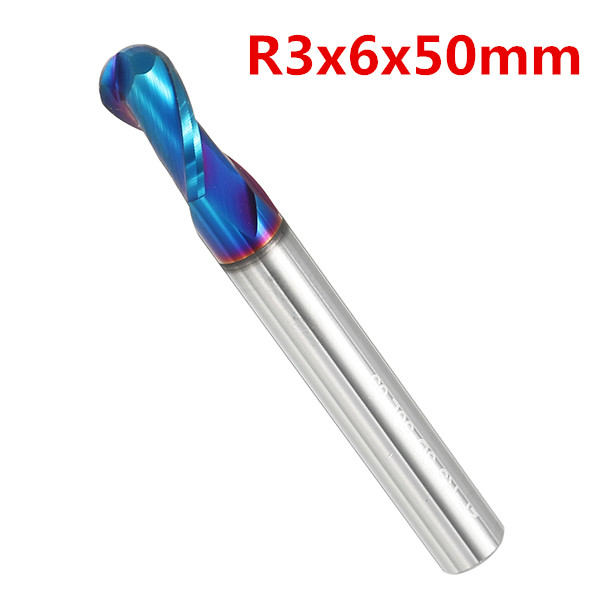

| R3x6x50mm | 3 | 6 | 6 | 14 | 50 |
Quantity: 1pc
Features:
- Durable and practical.
- Highest harness could reach HRC65 for general steel alloy steel mold steel.
- Two flutes design provides small chip loads and quicker removal.
- Round nose design, negative angle design, higher precision.
- Suitable for DIY, Home and General Building / Engineering Using.
Package Included:
1pc x 2 Flutes Ball Nose End Mill Cutter
Notice:
1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
More Details:
,
,
,
,
,
,
,
,
,
