T-962 Infrared IC Heater Desktop Reflow Solder Oven BGA SMD SMT Rework Station Reflow Wave Oven
T-962 Infrared IC Heater Desktop Reflow Solder Oven BGA SMD SMT Rework Station Reflow Wave Oven
$297.99
Ex Tax: $297.99
- Stock: In Stock
- Model: MZ002846
- SKU: MZ002846
Description:
The INFRARED IC HEATER T962 is a micro processor controlled reflow-oven. It can be used for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed. A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMD/BAG and other small electronic parts mounted on a PCB assembly. The T962 may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
Features:
(1) A large infrared soldering area
Effective soldering area: 180*235mm; this increases the usage range of this machine drastically and makes it an economical investment.
(2) Choice of different soldering cycles
Parameters of eight soldering cycles are predefined and the entire soldering process can completed automatically from Preheat, Soak andReflow through to cool down.
(3) Special heat up and temperature equalization with all designs Uses up to 800 Watts of energy efficient Infrared heating and air circulation to re-flow solder.
(4) Ergonomic design, practical and easily operated
Good build quality but at the same time light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
(5) Large number of available functions
The T962 can solder most double-face PCB boards small parts, for example CHIP, SOP, PLCC, QFP, BGA etc. It is the ideal rework solution from single runs to on-demand small batch production.
Specification:
Power supply: AC110V/ AC220V
Rated power:800W
Maximum Soldering Area: 180×235 mm
Temperature Range: 0℃-280℃
Cycle Time: 1～8 min
Select waves cycle
(1) Installation of the machine
-Place this machine on an even surface with good ventilation and no combustible items nearby. Make sure to leave adequate space in front of the machine for opening for opening the drawer. Leave at least 20 mm on either side because the machine will emit heat when in use. Check that the power supply is 220V or 110V; connect the machine with power supply and press the POWEW ON button and the LCD will light up.

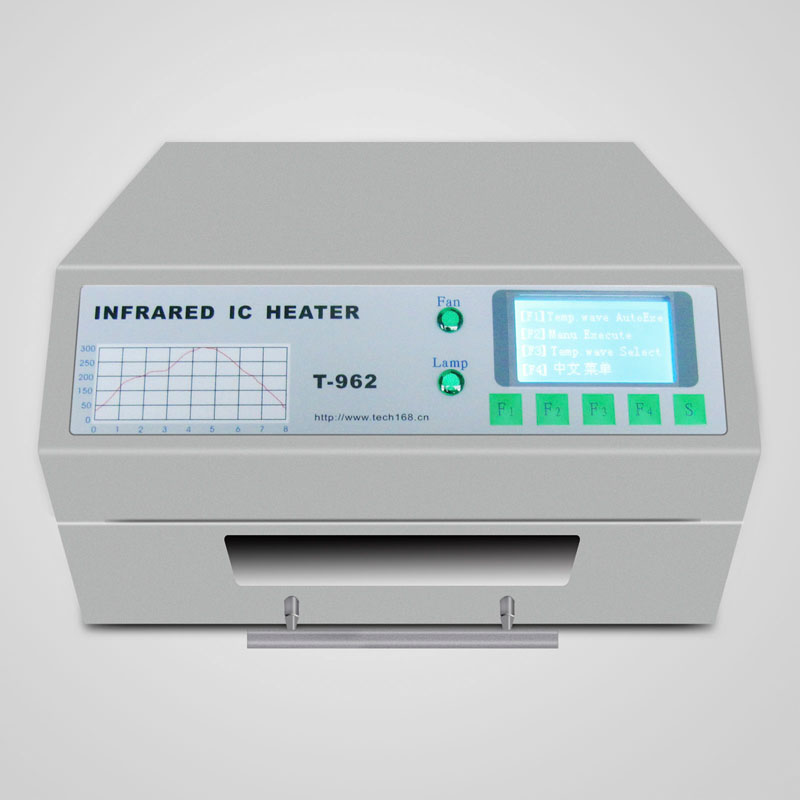

-Press “s” button to go to the main menu page.
-Press “F4” to Select English Menu
-In the main menu, press the “F3” button to select different temperature waves. This example shows wave one:
-Press “F3” button again to see the parameters for chosen waves, for example soldering paste sort, soldering temperature, time etc.
-Press the “F4” button to return previous page. Press the temperature waves that the”F1” key carries out to make selection automatically, the process will shut down automatically upon completion and a warning buzzer will sound.
-In the main menu page, press “F2” button for manual operations
-Press “F1” button to start cooling, Press F1/S key again to stop. Press “F2” button to start heat up, Press F2/S key again to stop.
Operating instructions
(1) Place the product to be worked on in the drawer, close the drawer and press F1 to switch on. The automatic performance makes a selection of heat wave, shows the current performance time, the enactment temperature and measure temperature on the LCD screen, and the automatic formation order form wave.
(2) The whole process is in your supervision and control, you can see the product through the drawer window and you can see the data on the LCD screen. If it doesn’t achieve your desired result, please modify the data by yourself at any time.
(3) The pre-set up wave cycle is according to the temperature that the different solder paste needs. You can pre-set up other wave cycle according to your needs.

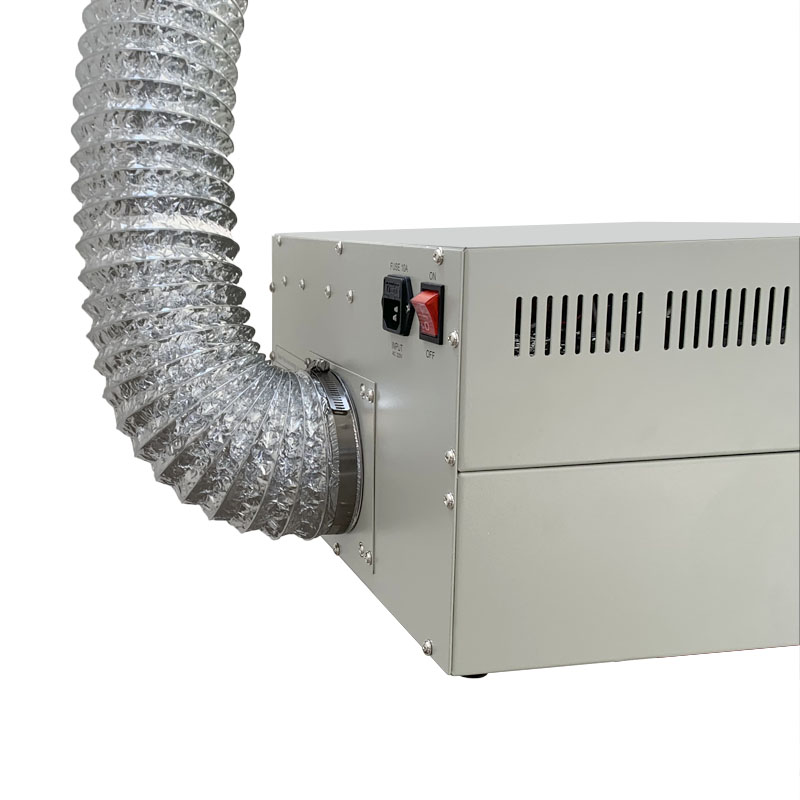

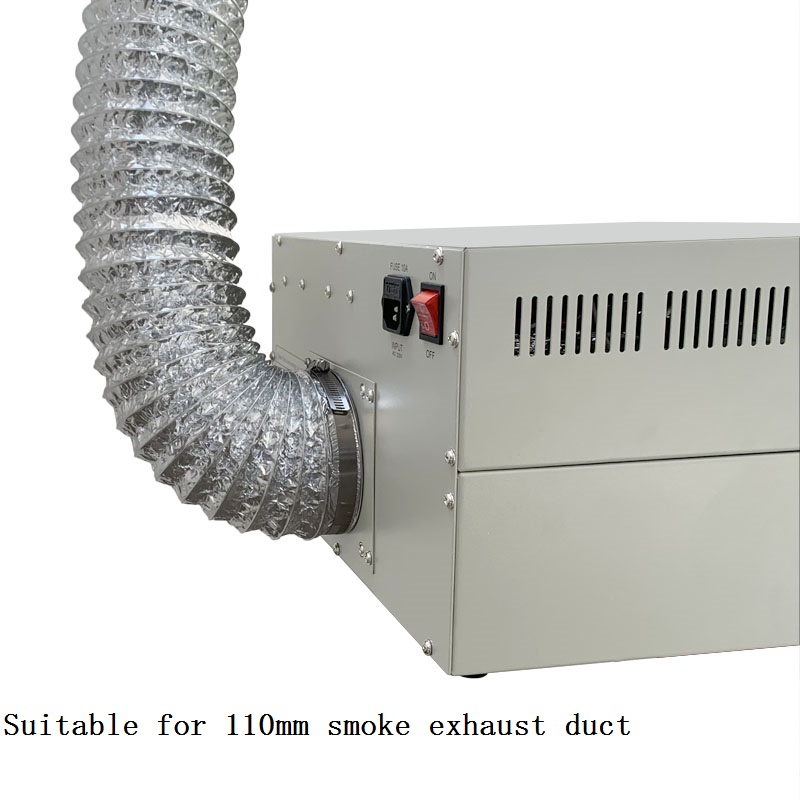

(4) In the process, you can press “S” to force to stop; when finished, the exhaust fan will work automatically to cool;
you also can force to turn on the exhaust fan.
(5) Should there be any faults or blemishes after completion of the soldering, you can sold it automatically again, or you can sold it manually.
Package included:
1 x Reflow Solder Oven

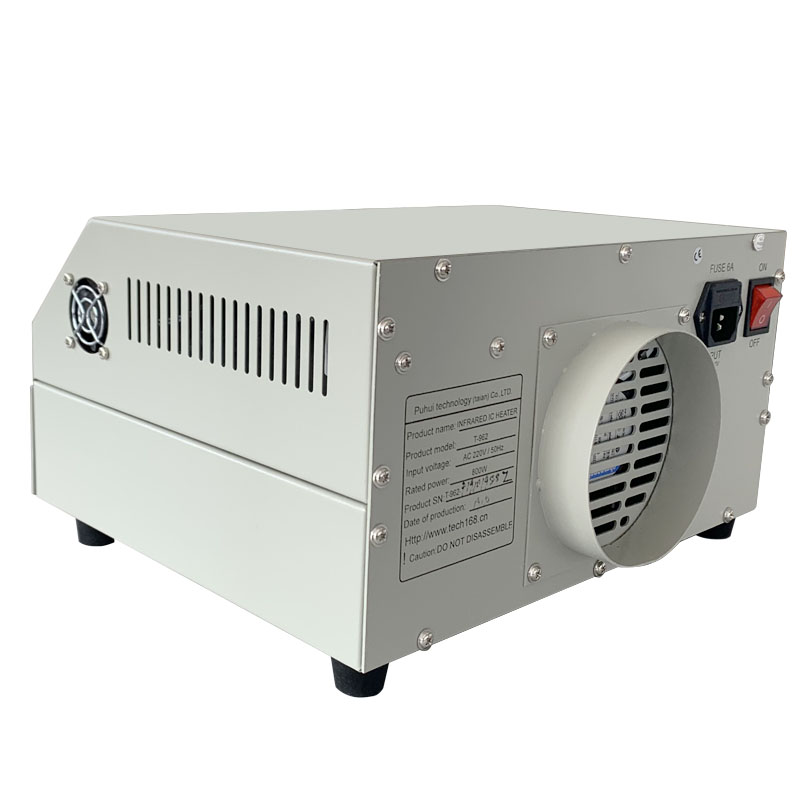

Details Pictures:
