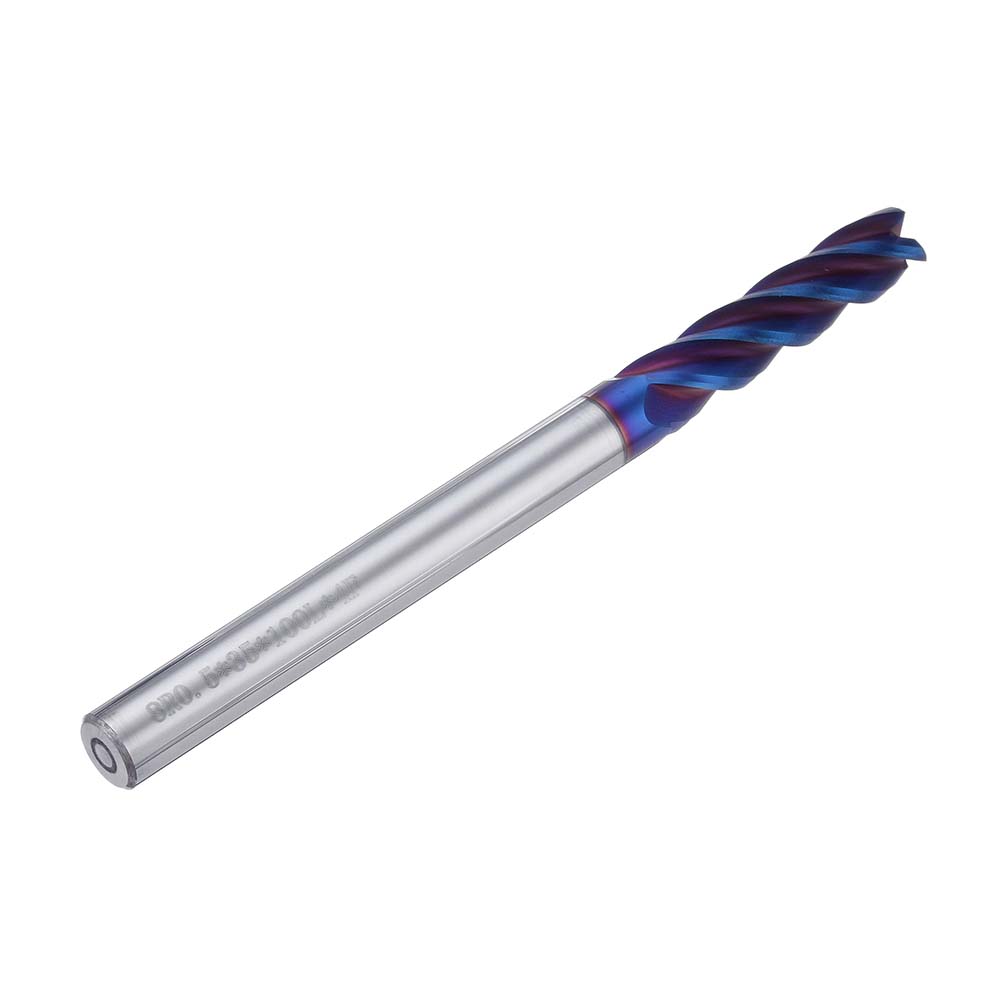

4 Flutes R0.5 Ball Nose Milling Cutter HRC60 Tungsten Carbide NACO Coated Milling Cutter
4 Flutes R0.5 Ball Nose Milling Cutter HRC60 Tungsten Carbide NACO Coated Milling Cutter
$11.99
Ex Tax: $11.99
- Stock: In Stock
- Model: MZ006329
- SKU: MZ006329
Description:
R0.5 Ball Nose 4 Flutes Tungsten Carbide Milling Cutter HRC60 NACO Coated Milling Cutter CNC Tool
Specification:
Model Number: HRC60
Material: Carbide (tungsten steel)
Coating: NACO-blue Coated
Head: Ball nose end
Flute: 4 Flutes
Highest cutting hardness: HRC60
Rotate angle: 35°
Rotate angle: 35°
| Size | Model | Diameter of Head(mm) | Radiu | Diameter of Shank (mm) | Total Length (mm) |
| #1 | Φ4*R0.5*4D*100L | 4 | R0.5 | 4 | 100 |
| #2 | Φ5*R0.5*6D*100L | 5 | R0.5 | 6 | 100 |
| #3 | Φ5*R1*6D*100L | 5 | R1 | 6 | 100 |
| #4 | Φ6*R0.5*6D*100L | 6 | R0.5 | 6 | 100 |
| #5 | Φ6*R1*6D*100L | 6 | R1 | 6 | 100 |
| #6 | Φ8*R0.5*8D*100L | 8 | R0.5 | 8 | 100 |
| #7 | Φ8*R1*8D*100L | 8 | R1 | 8 | 100 |
Quantity: 1pc
Features:
Durable and practical.
Highest harness up to HRC60 for general steel alloy steel mold steel.
Four flute ball nose design provides small chip loads and quicker removal.
Suitable for DIY, Home and General Building / Engineering Using.
Package Included:
1pc x 4 Flutes Milling Cutter
Notice:
1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2. The color may have different as the difference display, pls understand.
