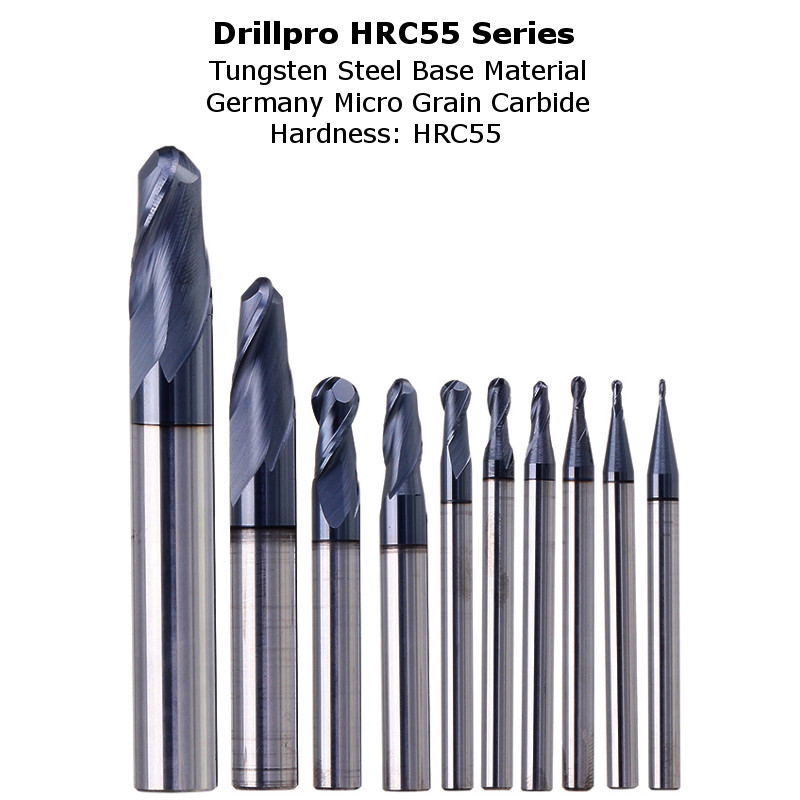

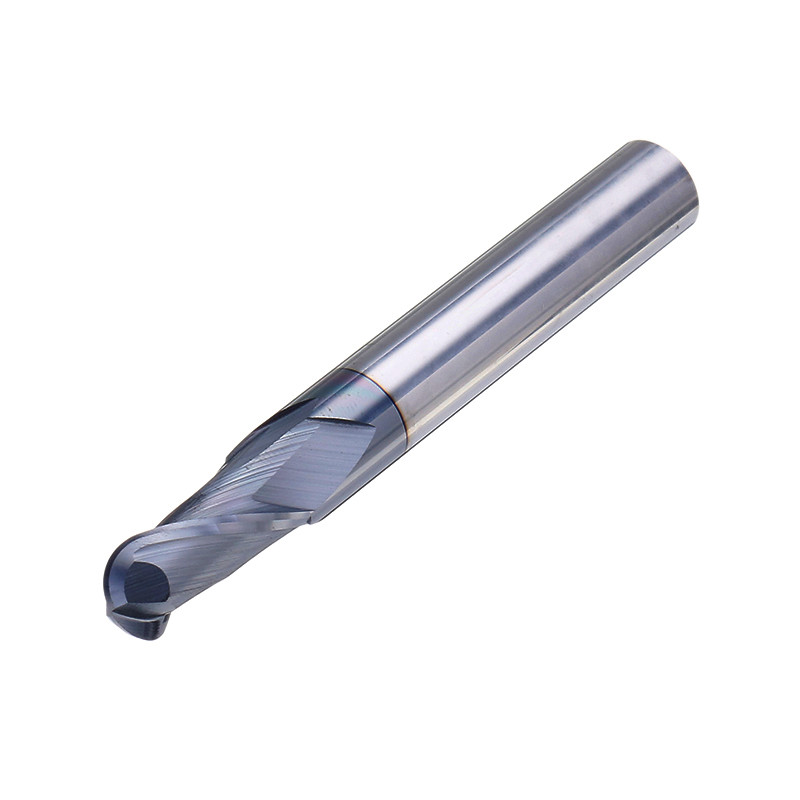

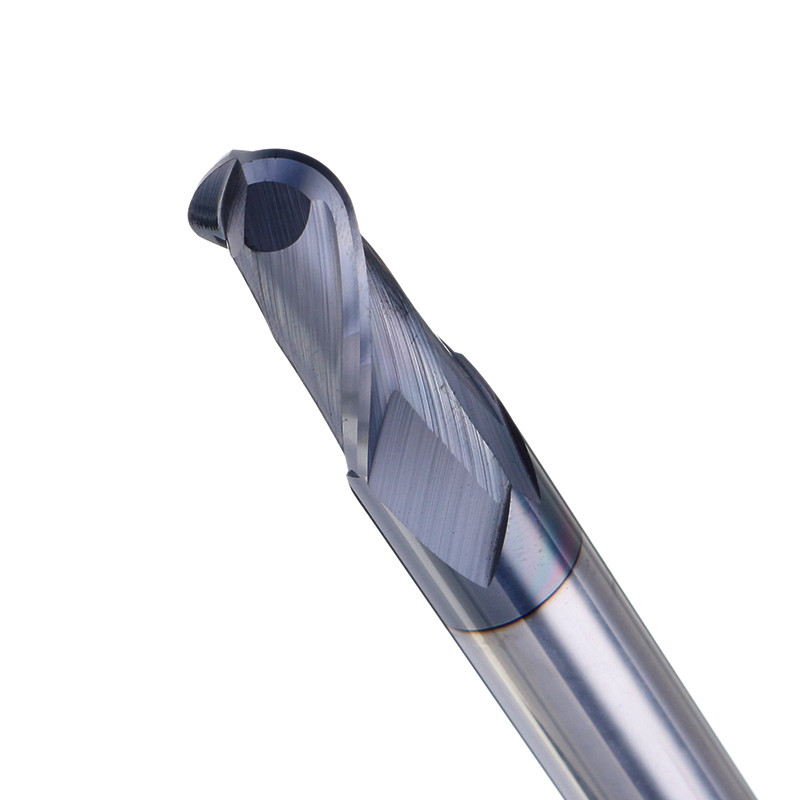

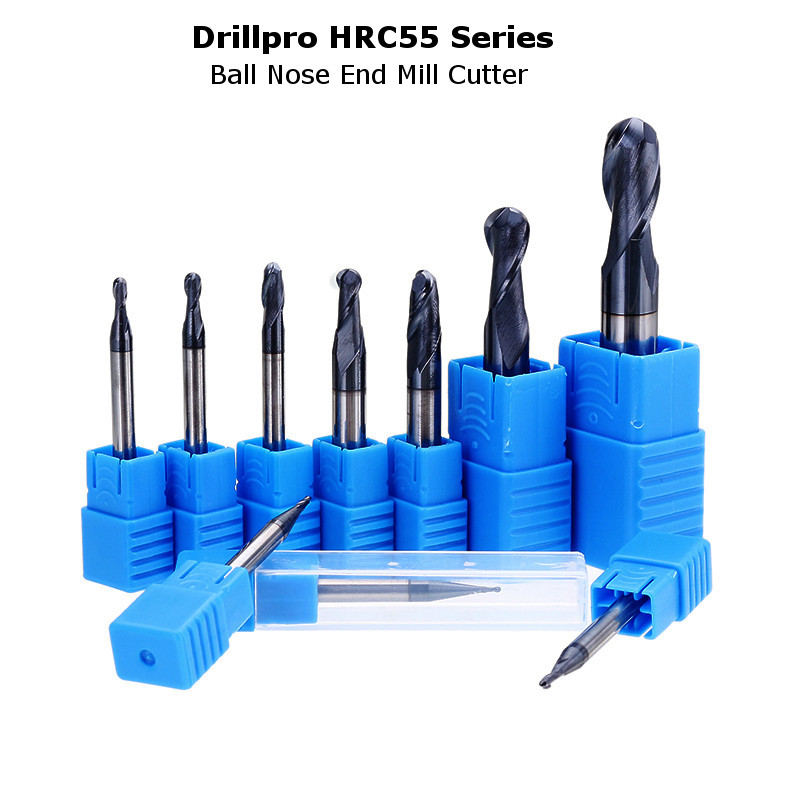

R0.5-R5mm Ball Nose Tungsten Carbide End Mill Cutter HRC55 TiAlN Coating End Milling Cutter CNC Tool
R0.5-R5mm Ball Nose Tungsten Carbide End Mill Cutter HRC55 TiAlN Coating End Milling Cutter CNC Tool
$8.99
Ex Tax: $8.99
- Stock: In Stock
- Model: MZ004554
- SKU: MZ004554
Description:
Moonzite R1-R5mm Ball Nose Tungsten Carbide End Mill Cutter HRC55 TiAlN Coating End Milling Cutter CNC Tool
Specification:
Features: Special Ball nose design provides small chip loads and quicker removal, more sharp.

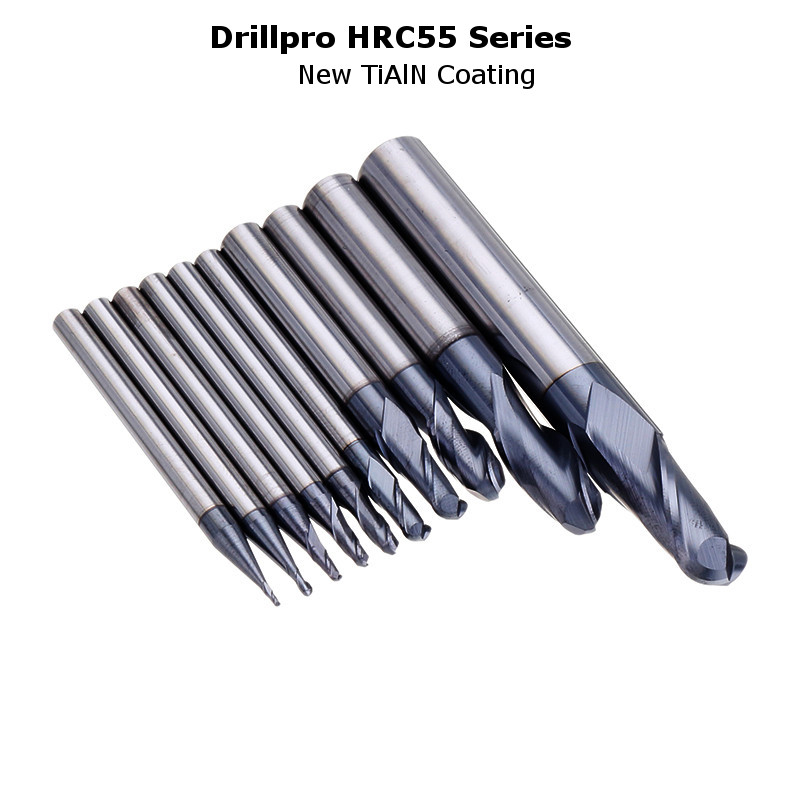

New TiAlN nano coating, hardness up to 55 HRC for general steel alloy steel mold steel.

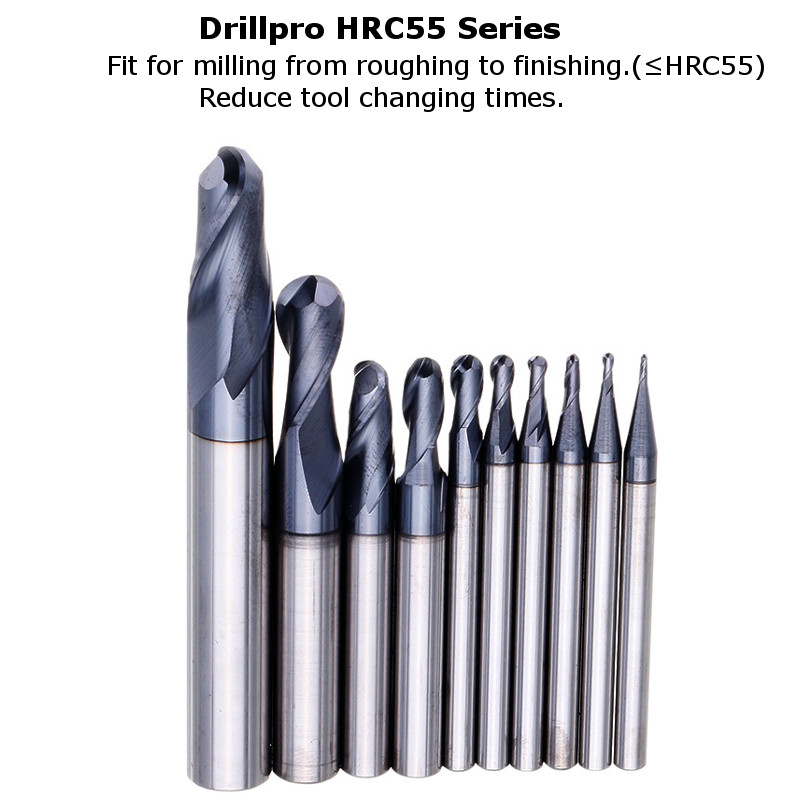

Fit for milling from roughing to finishing one time(≤55HRC), reduce tool changing times.
Chamfer design, easy to install
Package Included: 1 x End Mill Cutter
More Details:
,
,
,
,
,
Specification:
Material: Carbide tungsten steel base metal
Coating: Black TiAlN Nano Coated
Flute: Ball Nose
Highest cutting hardness: HRC55|
Radius (mm) |
Diameter of Shank (mm) |
Blade Length (mm) |
Total Length (mm) |
| R0.5 | 4mm | 3 | 50 |
| R0.75 | 4mm | 4 | 50 |
| R1 | 4mm | 6 | 50 |
| R1.25 | 4mm | 8 | 50 |
| R1.5 | 4mm | 8 | 50 |
| R2 | 4mm | 10 | 50 |
| R2.5 | 6mm | 13 | 50 |
| R3 | 6mm | 15 | 50 |
| R4 | 8mm | 20 | 60 |
| R5 | 10mm | 25 | 75 |
Features: Special Ball nose design provides small chip loads and quicker removal, more sharp.
New TiAlN nano coating, hardness up to 55 HRC for general steel alloy steel mold steel.
Fit for milling from roughing to finishing one time(≤55HRC), reduce tool changing times.
Chamfer design, easy to install
Package Included: 1 x End Mill Cutter
