UT210E Auto Range True Rms Clamp Multimeter

UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
UT210E Auto Range True Rms Clamp Multimeter
$46.99
Ex Tax: $46.99
  • Stock: In Stock
  • Model: MZ003663
  • SKU: MZ003663
  • UPC: 681877469956




Description:


Moonzite UT210E Digital Auto Range 2000Counts True RMS Clamp Multimeter Clamp Meter Ammeter Voltmeter Resistance Frequency Capacitance Temperature Tester


UT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size.
It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in the situation such as variable frequency voltage and current with VFC .

It has the design of full range of overload protection ,along with the unique exterior design, which makes it a more remarkable new practical electric testing instrument.
UT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, smelting, telecommunications, manufacturing, oil,defensie, power, foundry, circuit of power equipment inspection, and maintenance and repairs.


Main features

1. Ultra-portable tools for advance electricians
2. 100A AC and DC current measurement with 1mA resolution
3. True RMS response for AC current
4. V.F.C function for measuring signal at variable frequency
5. 600V AC and DC voltage measurement

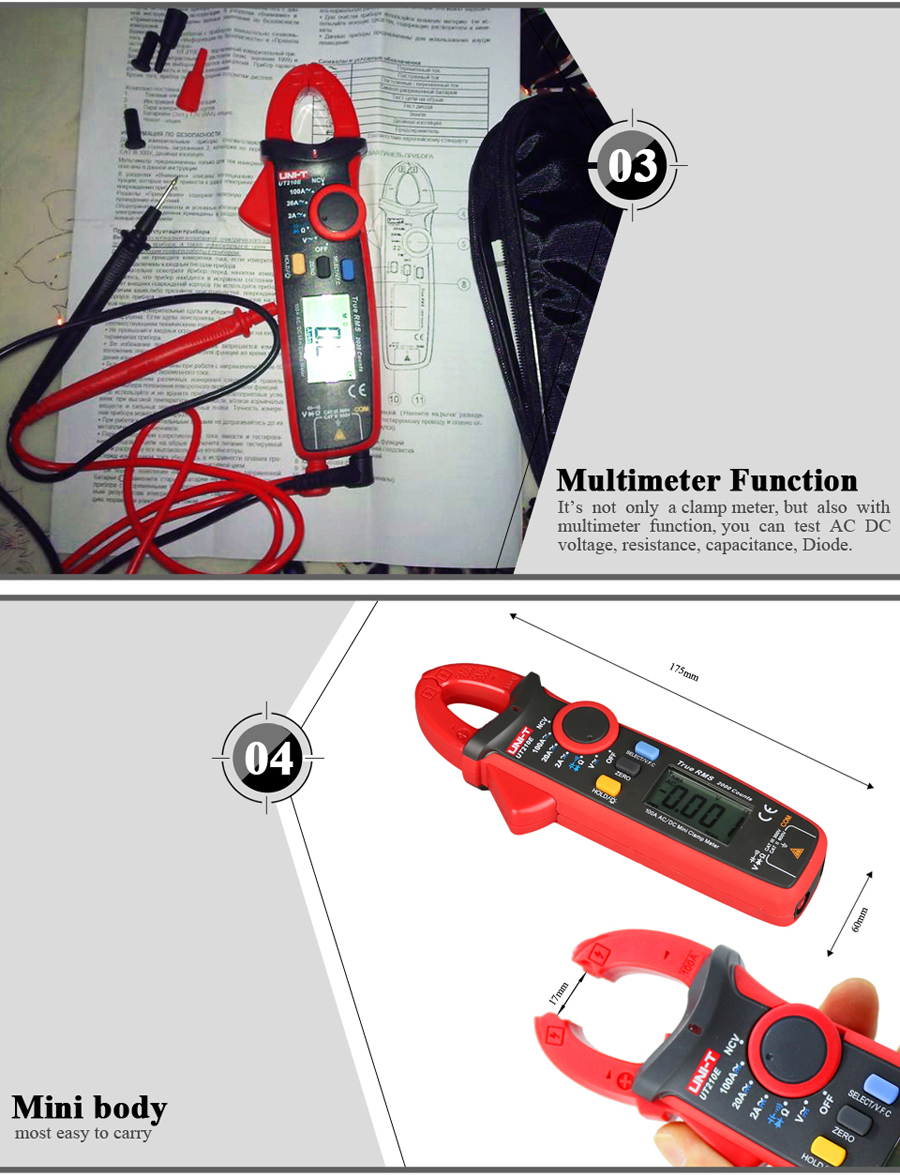

6. Resistance, diode, continuity and capacitance functions
7. Non-contact voltage detection with LED indication
8. Display backlight
9. Data HOLD, MAX, MIN, MAX-MIN, and ZERO model

Specifications Range Best Accuracy
Model   UT210D UT210E
AC Current (A) 20A/200A ±(2.5%+8)
2A/20A/100A   ±(2.5%+5)
DC Current (A) 20A/200A ±(2%+3)
2A/20A/100A   ±(2%+3)
AC Voltage (V) 2V/20V200V/600V ±(1%+3) ±(1%+3)
DC Voltage (V) 200mV/2V/20V200V/600V ±(0.7%+3) ±(0.7%+3)
Resistance (Ω) 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(1%+2) ±(1%+2)
Frequency(Hz) 10Hz/100Hz/1kHz/10kHZ/60kHz ±(1%+4)
Capacitance (F) 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4%+5) ±(4%+5)
Temperature(°C)  -40~1000°C ±(1%+3)
Temperature(°F)  -40~1832°F ±(1.5%+5)
Features
Display Count   2000 2000
Auto Range
Jaw Capacity   17mm 17mm
True RMS
Diode Around 3.0V
V.F.C.
NCV
Data Hold
Zero Mode
LCD Backlight
Auto Power Off Around 15 Minutes
Continuity Buzzer
Low Battery Indication ≤2.5V
Input Protection
Input Impedance for DCV ≥10MΩ
General Characteristic
Power AAA 1.5V × 2Batteries(Not included)
LCD Size 39.3mm × 26.5 mm
Product Color Red and Grey
Product Net Weight  170g
Product Size 175mm × 60mm × 33.5mm
Standard Accessories Test Lead, Point Contact Temperature Probe
Test Lead
Standard Individual Packing Box, Carrying bag, English Manual
Standard Quantity Per Carton 40PCs
Standard Carton Measurement 385mm × 345mm × 305mm  (0.041 CBM Per Standard Carton)
Standard Carton Gross Weight 11Kg

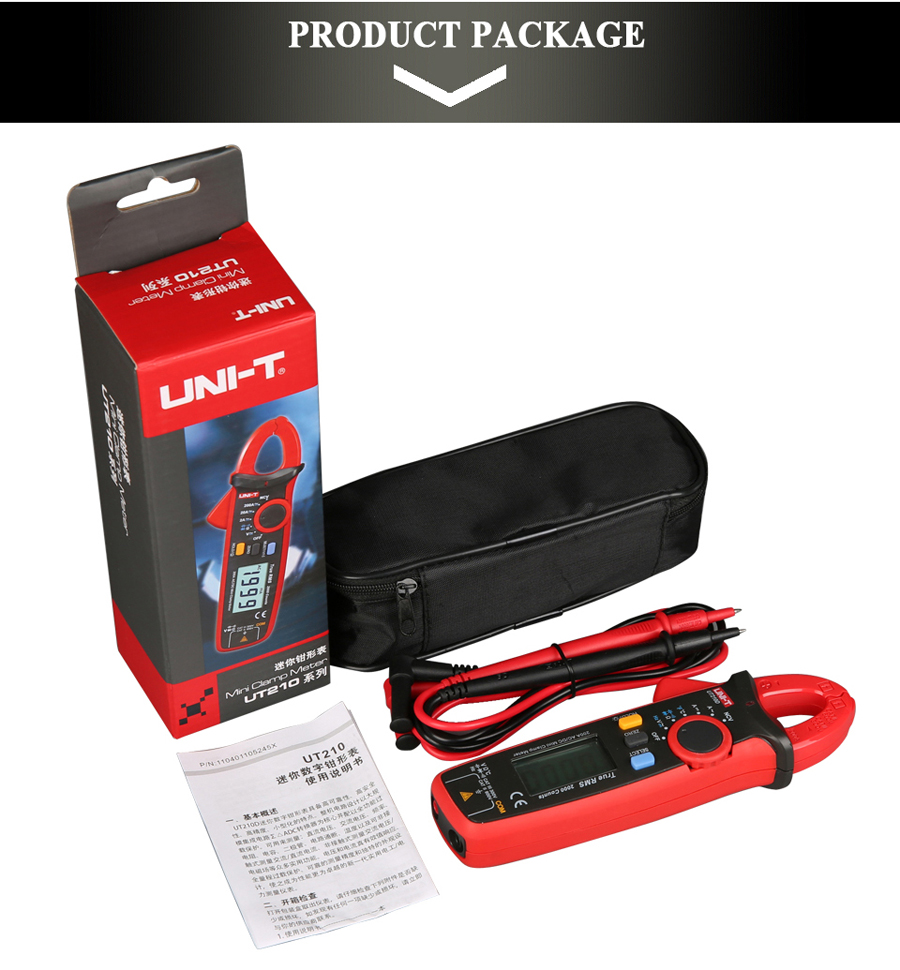

Package includes:

1 x Moonzite UT210E Multimeter
1 x Color Retail Box,
1 x Carrying bag,
2 x Probe
1 x English user munual >>>contact us DOWNLOAD<<<
