UT890C+ Digital True RMS Multimeter Multimetro Tester With Test Lead Cable
UT890C+ Digital True RMS Multimeter Multimetro Tester With Test Lead Cable
$33.99
Ex Tax: $33.99
- Stock: In Stock
- Model: MZ003227
- SKU: MZ003227
Description:
Moonzite UT890C+ Digital True RMS Multimeter Multimetro Tester With Test Lead Cable
Moonzite UT890C+ Digital True RMS Multimeter Multimetro Tester With Test Lead Cable
Features:
Overload protection up to 600V.
Data hold and True RMS function.
Low battery indicating protection.
High accuracy and resolution up to 6,000 counts.
Add to unique MAX-MIN value calculate function.
Specification:
Specification:
| Basic functions | Range | Basic accuracy | |||||
| Model | Moonzite | UT890C + | UT890D | ||||
| DC voltage V | 600.0mV | (0.5% + 4) | (0.5% + 4) | ||||
| 6.000V / 60.00V / 600.0V | (0.5% + 2) | (0.5% + 2) | |||||
| 1000V | (0.7% + 10) | (0.7% + 10) | |||||
| AC voltage V | 6.000V / 60.00V / 600.0V | (0.8% + 3) | (0.8% + 3) | ||||
| 750V | (1.0% + 10) | (1.0% + 10) | |||||
| AC current A | 6.000mA / 60.00mA | (1.0% + 12) | (1.0% + 12) | ||||
| 600.0mA | (2.0% + 3) | (2.0% + 3) | |||||
| 20.00A | (3.0% + 5) | (3.0% + 5) | |||||
| A direct current | 60.00A / 6.000mA / 60.00mA | (0.8% + 8) | (0.8% + 8) | ||||
| 600.0mA | (1.2% + 5) | (1.2% + 5) | |||||
| 20.00A | (2.0% + 5) | (2.0% + 5) | |||||
| Resistance | 600.0 | (0.8% + 5) | (0.8% + 5) | ||||
| 6.000k / 60.00k / 600.0k / 6.000M | (0.8% + 3) | (0.8% + 3) | |||||
| 60.00M | (1.0% + 25) | (1.0% + 25) | |||||
| Temperature ℃ | -400 ℃ ~ 1000 ℃ | (1.0% + 3) | |||||
| Temperature ℉ | -40 ℉ ~ 1832 ℉ | (1.5% + 5) | |||||
| Capacitance F | 6.000nF | (5.0% + 35) | (5.0% + 35) | ||||
| 60.00nF ~ 600.0F | (2.5% + 20) | (2.5% + 20) | |||||
| 6000F | (5.0% + 10) | (5.0% + 10) | |||||
| Frequency Hz | 9.999Hz ~ 9.999MHz | (0.1% + 5) | (0.1% + 5) | ||||
|
Measuring range: 10Hz ~ 10MHz (auto range), 100kHz:100mVrms input amplitude 30Vrms, > 100kHz ~ 1MHz:200mVrms input amplitude 30Vrms, > 1MHz:600mVrms input amplitude 30Vrms | |||||||
| Special features | |||||||
| Max / Min | |||||||
| True RMS measurement TRMS | |||||||
| Frequency response |
Applicable sine wave and triangular wave, 200Hz other waveforms for reference | 40Hz ~ 1kHz | |||||
| Diode test | |||||||
| Continuity Buzzer | |||||||
| hFE | |||||||
| REL | |||||||
| Data Hold | |||||||
| LCD backlight | |||||||
| Battery voltage tips | |||||||
| Automatic shutdown | About 15 minutes | ||||||
| Input impedance | 10M | ||||||
| General Characteristics | |||||||
| Environment | 18 C ~ 28 C (64 F ~ 82 F); relative humidity: 75% | ||||||
| Battery | 9V battery (6F22)(Not included) | ||||||
| LCD size | 63mm × 29mm | ||||||
| Colors | Red + Grey | ||||||
| Body weight | 300g | ||||||

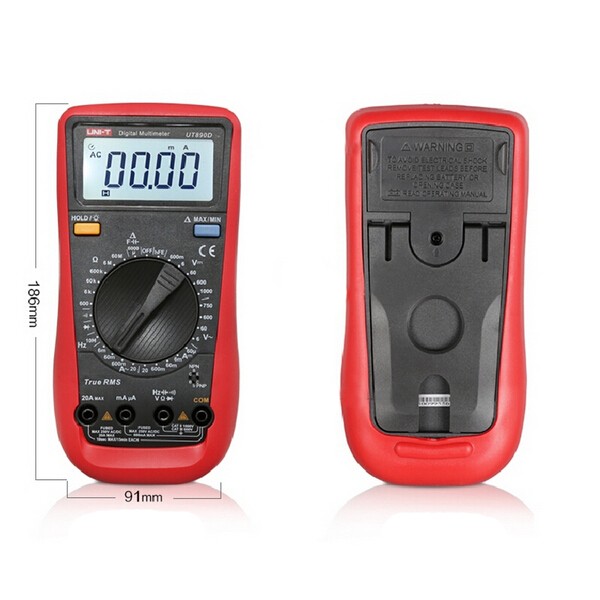

| Dimensions | 186mm × 91mm × 39mm | ||||||
| Standard accessories | Table pen, temperature probe (onlyUT890C +) | ||||||
| Standard Package | Outer box, manual, warranty card | ||||||
| Standard Pack Quantity | 40 | ||||||
| Standard package size | 645mm × 450mm × 340mm | ||||||
| Standard Gross Weight | 22.8 Kg | ||||||

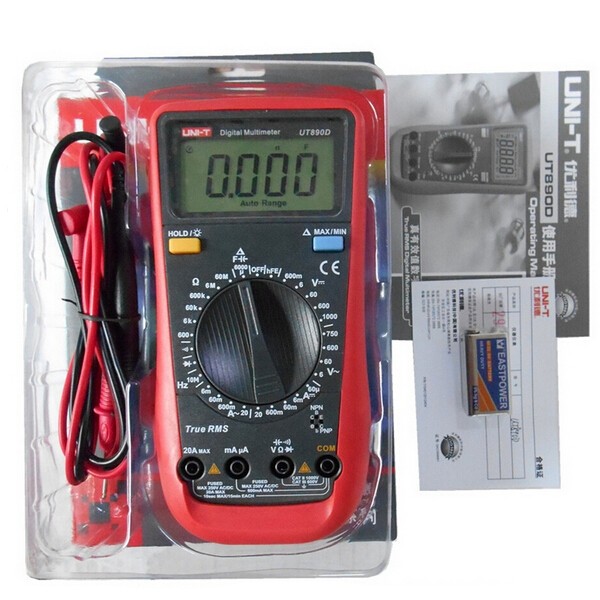

Packing included:
1 x Moonzite UT890C+ Digital Auto Range True RMS Multimeter
1 x Table Pen
1 x Temperature Probe
1 x English User munual >>>CLICK TO DOWNLOAD<<<<

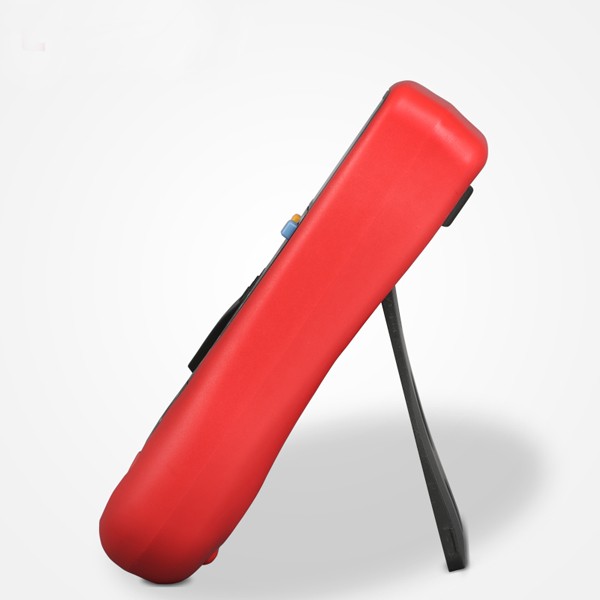

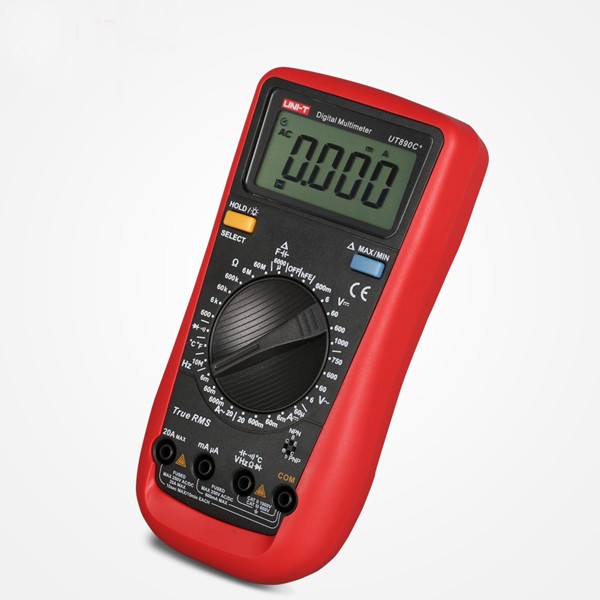

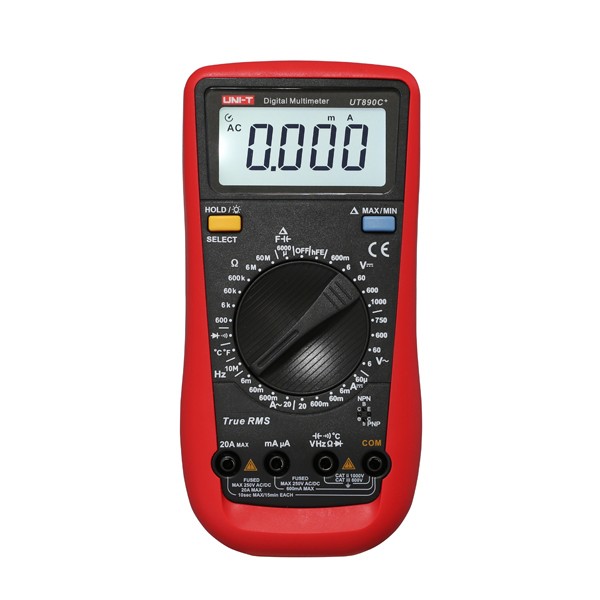

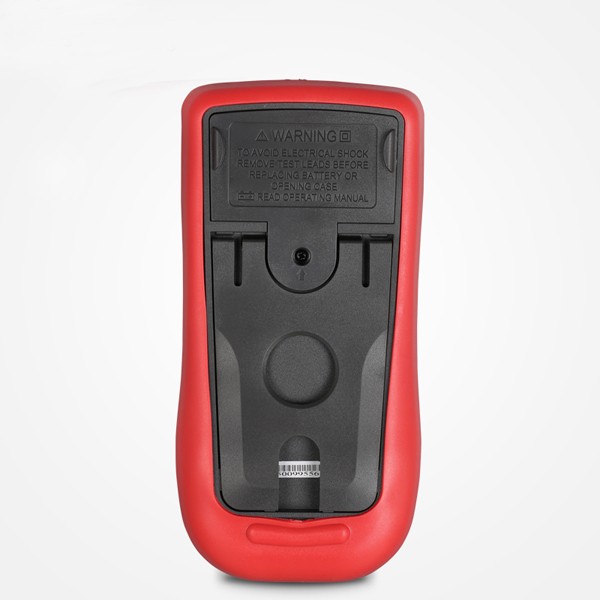

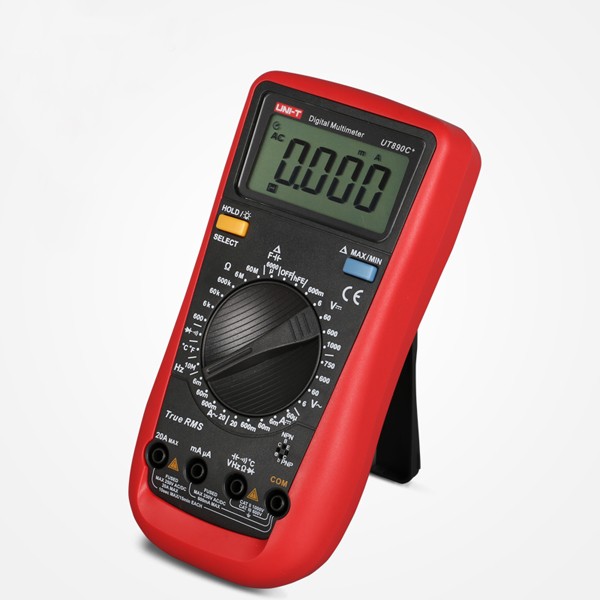

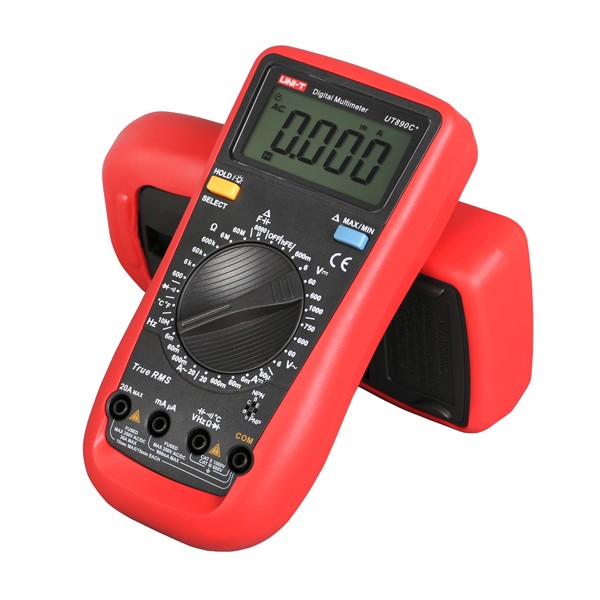

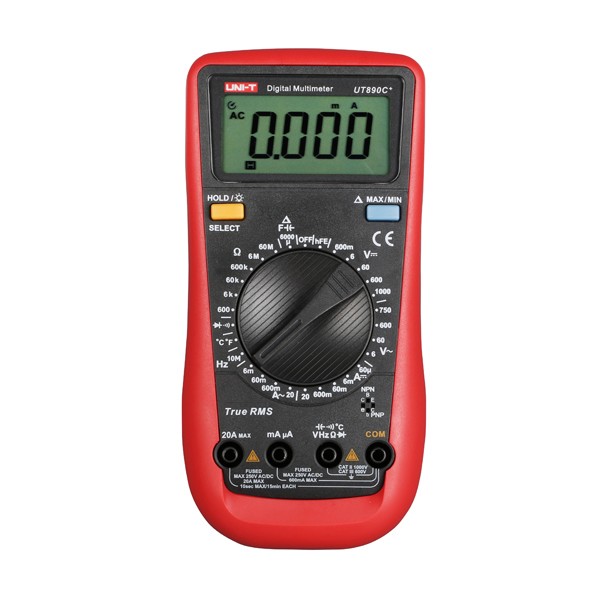

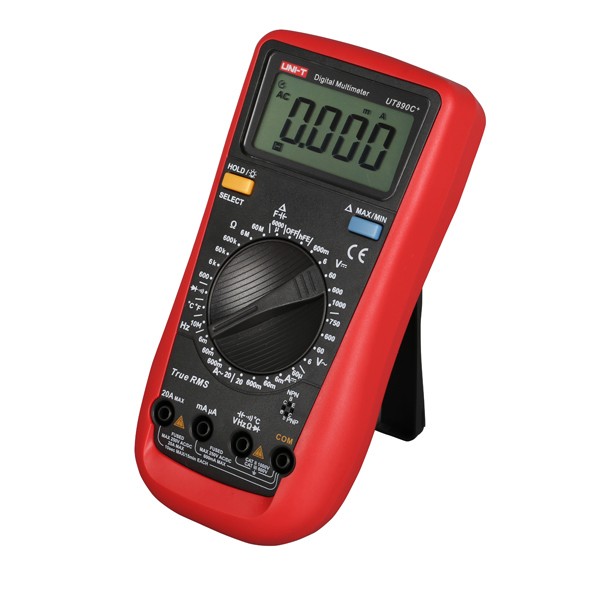

Details pictures:
1 x Moonzite UT890C+ Digital Auto Range True RMS Multimeter
1 x Table Pen
1 x Temperature Probe
1 x English User munual >>>CLICK TO DOWNLOAD<<<<
Details pictures:
