Z5 Multifunction Non-contact Digital Multimeter Pen Type Meter 6000 Counts True RMS AC/DC Voltage Resistance Capacitance Frequency Tester Tool
Z5 Multifunction Non-contact Digital Multimeter Pen Type Meter 6000 Counts True RMS AC/DC Voltage Resistance Capacitance Frequency Tester Tool
$22.99
Ex Tax: $22.99
- Stock: In Stock
- Model: MZ004547
- SKU: MZ004547
- UPC: 681877472611
Features:
[LCD Display]: Greatly enhance the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.

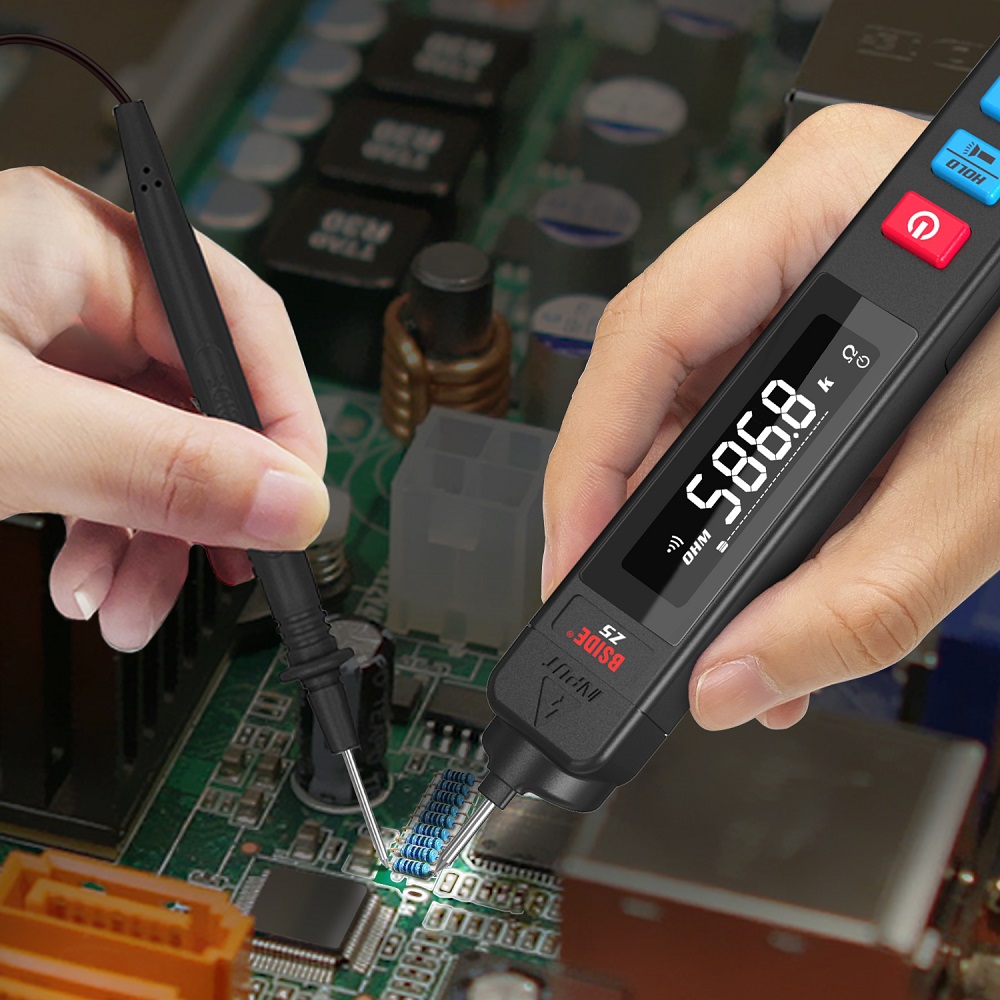

[High Efficiency]: Single test lead design makes the measurement more efficient, especially for electronic components maintenance. You no longer have to worry about the tip of the test lead moving while reading the test results.
[Easy to Use]: Automatic identification design make it very easy to use. BSIDE smart technology make this multimeter can automatically identify the tested parameters and choose their required range.

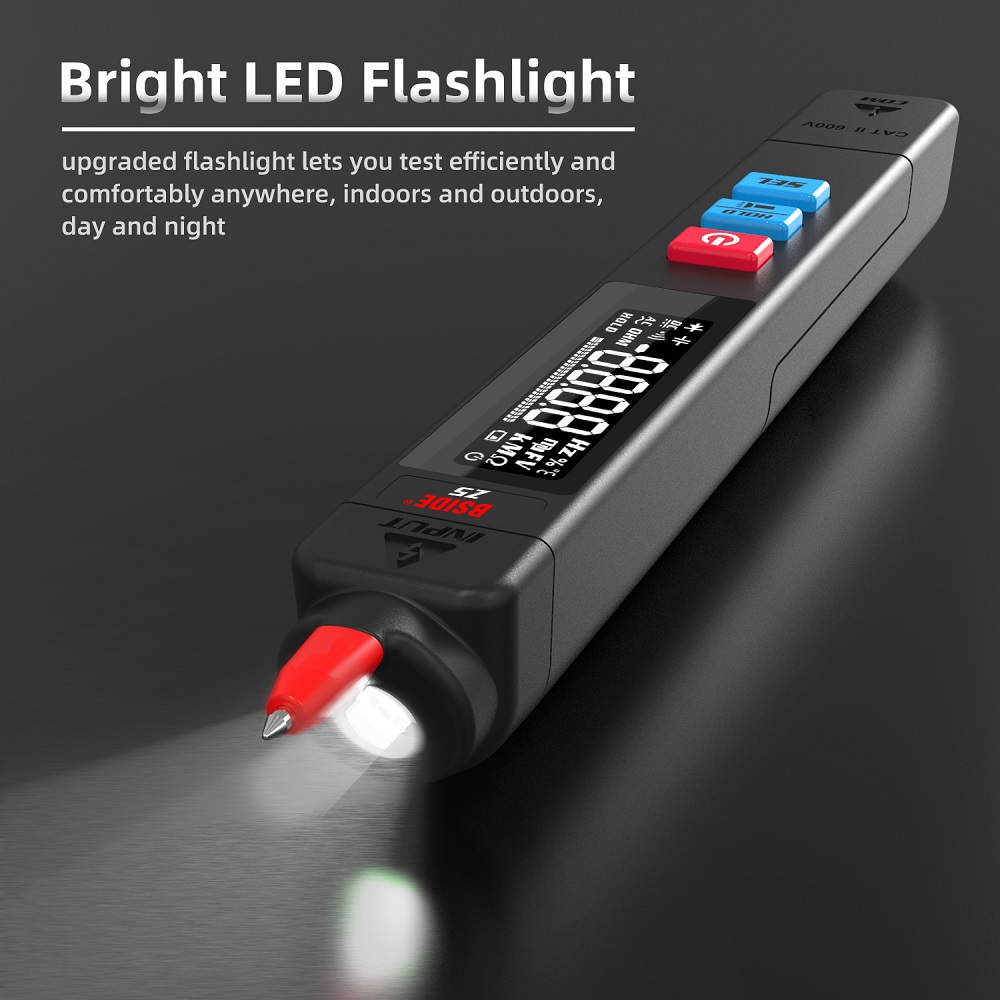

[Upgraded Flashlight]: Upgraded flashlight can change the dark environment.
Specification:
Max Display: 6000 counts True RMS

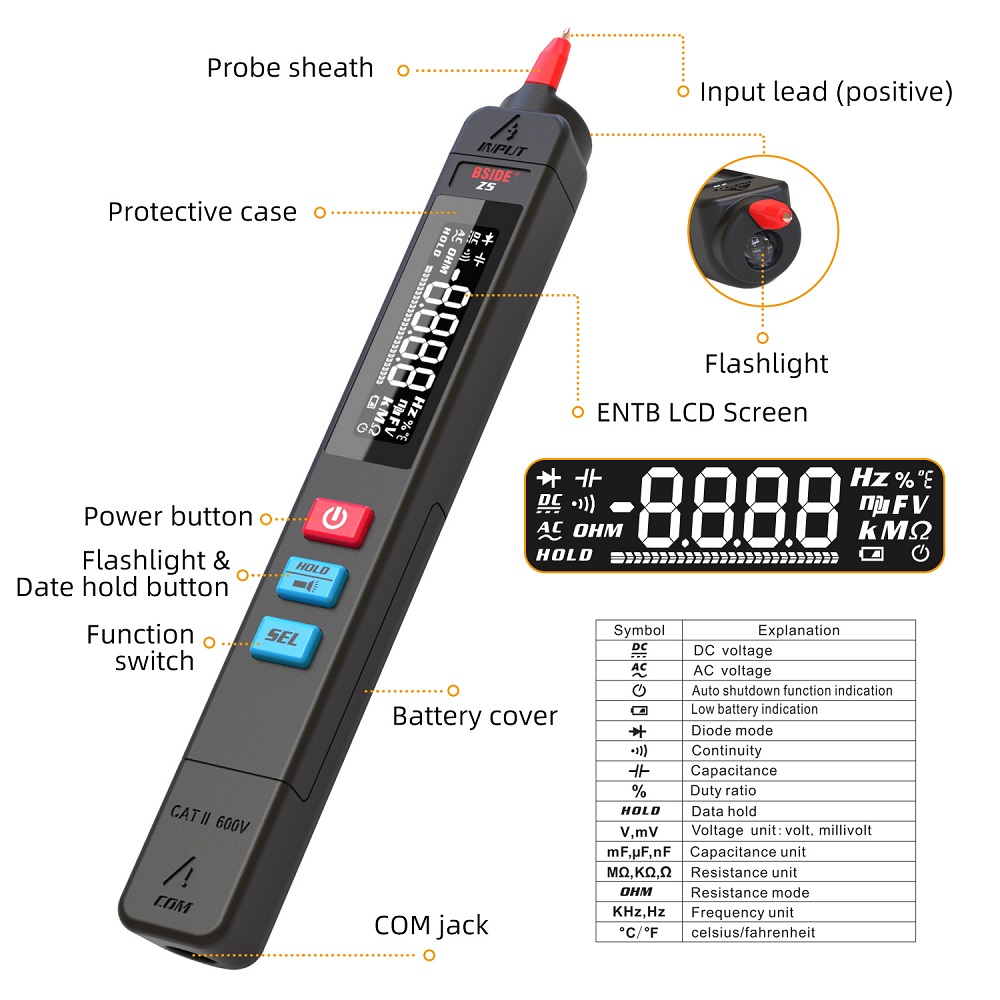

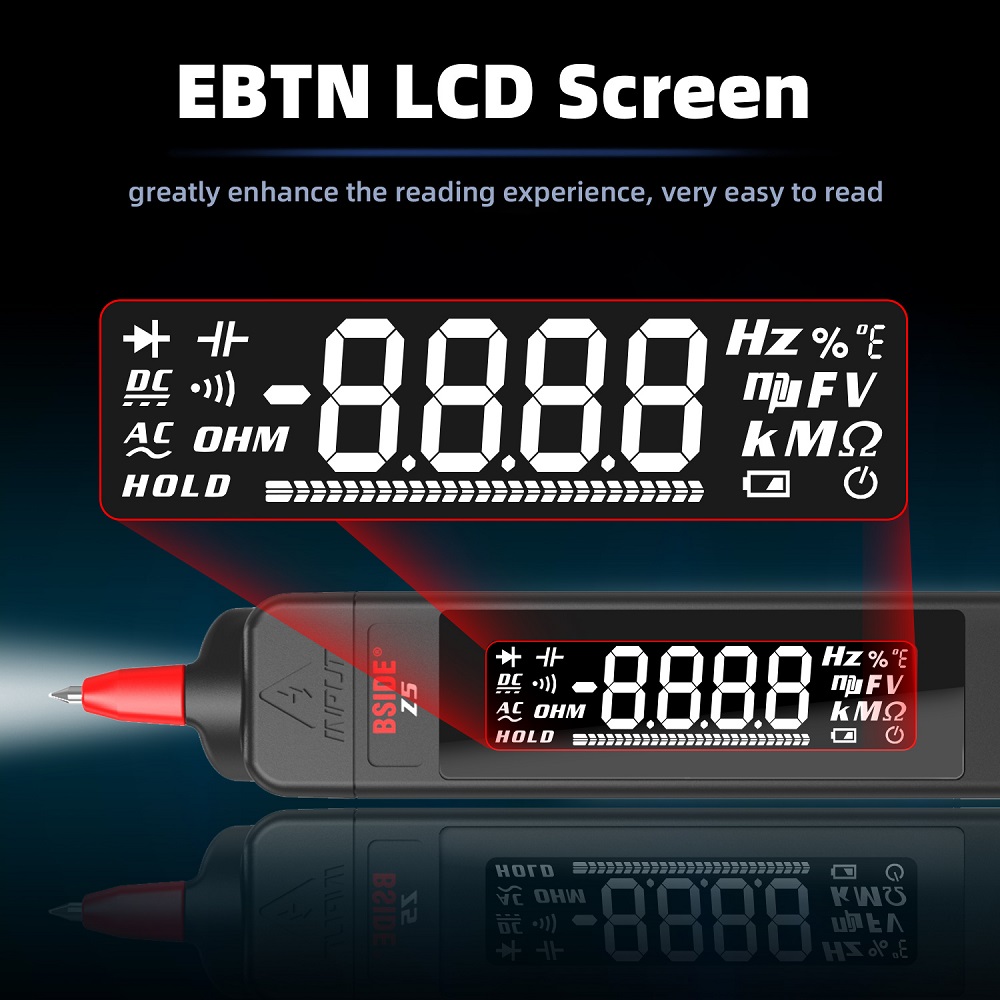

Display Type: EBTN screen
Screen: 1.9 inches
DC Voltage: 0.1V-600V ±(0.8%+3); Resolution: 0.001V.
AC Voltage: 0.1V-600V ±(1.2%+5); Resolution: 0.001V.
Resistance: 0.1Ω-10MΩ ±(1.2%+3), 10MΩ-60MΩ ±(2.0%+10); Resolution: 0.1Ω
Capacity: 1nF-1.00mF ±(3.5%+8), 1mF-60.00mF ±(4.5%+10); Resolution: 0.001nF
Frequency: 10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz
Duty Cycle: 0.1%-99.9% ±(1.5%+5) ; Resolution: 0.1%
Diode: Auto identify diode if less than 3.0V.

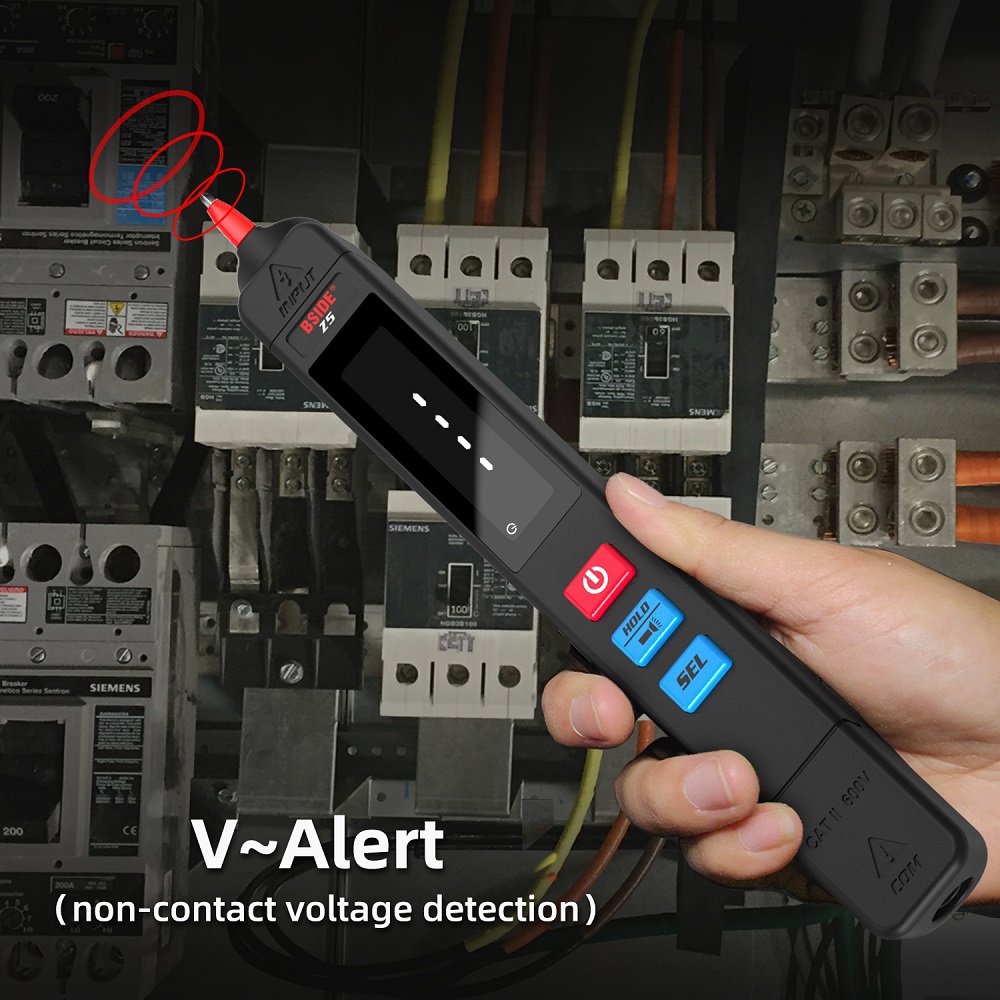

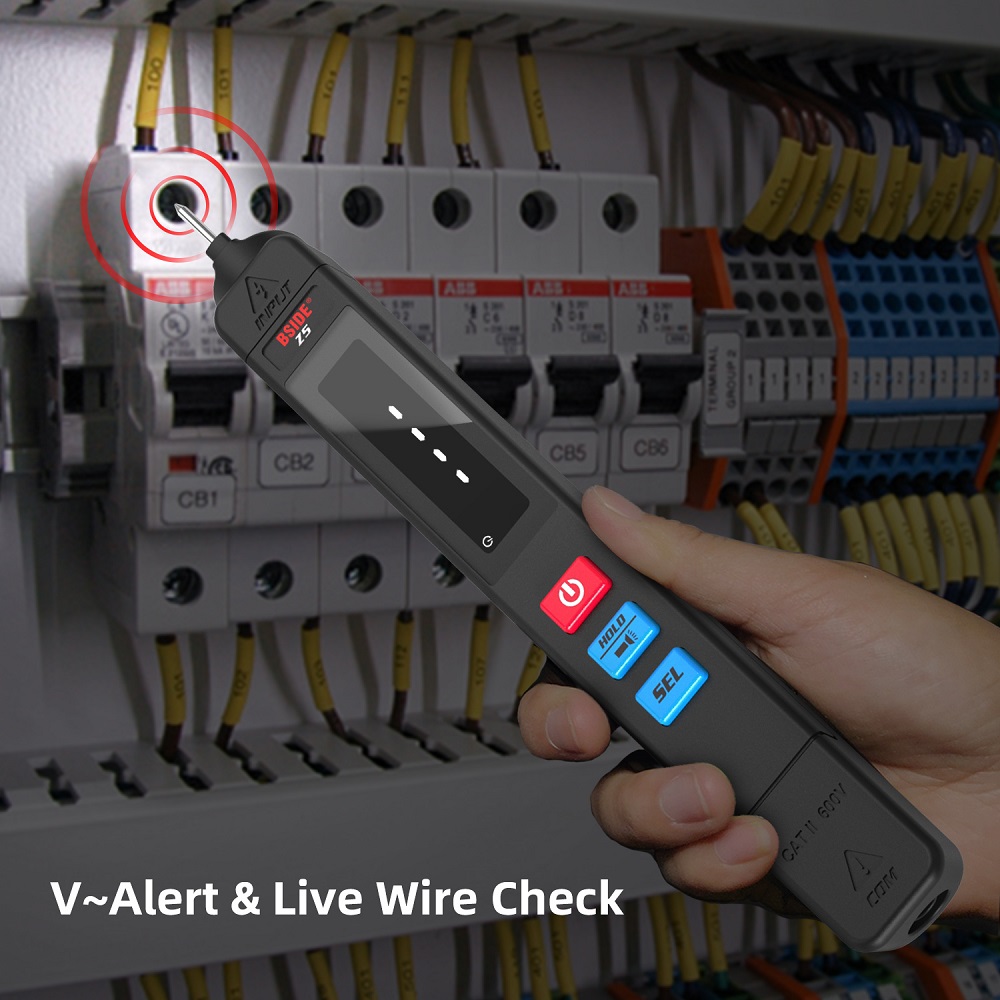

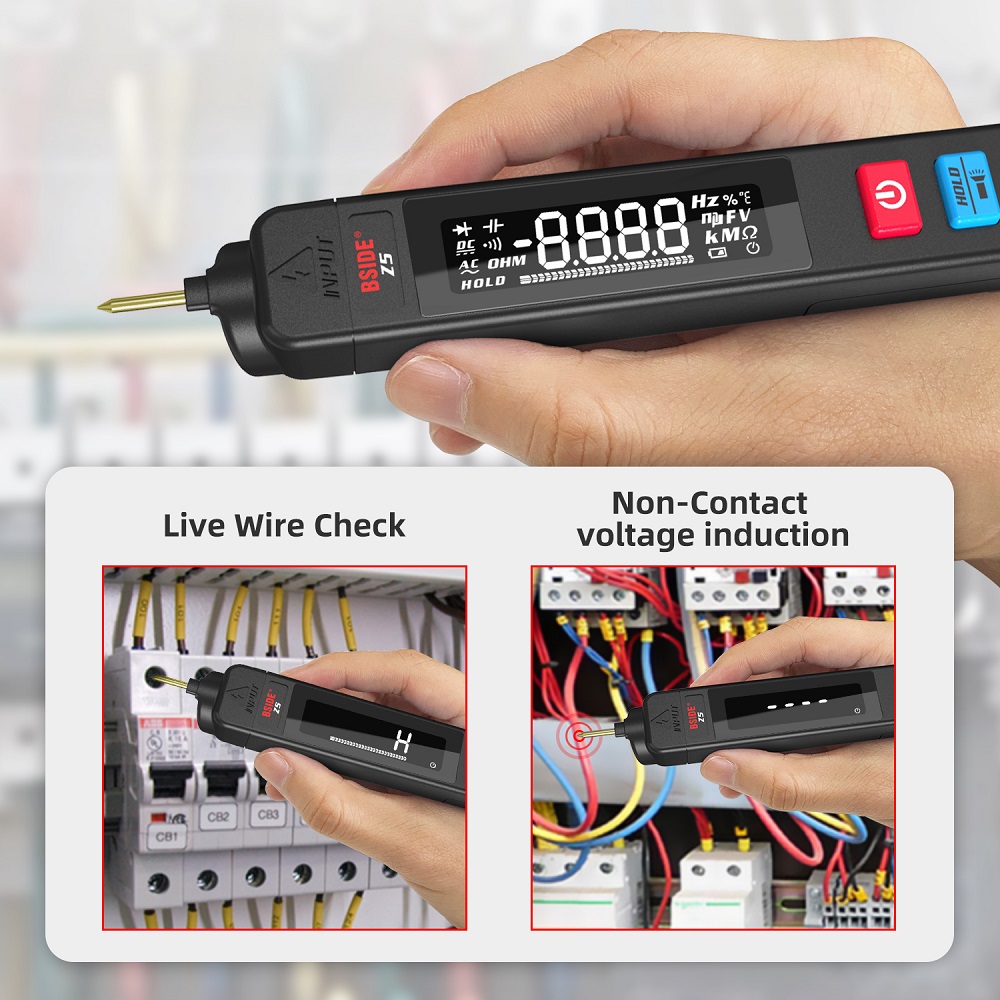

V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe.

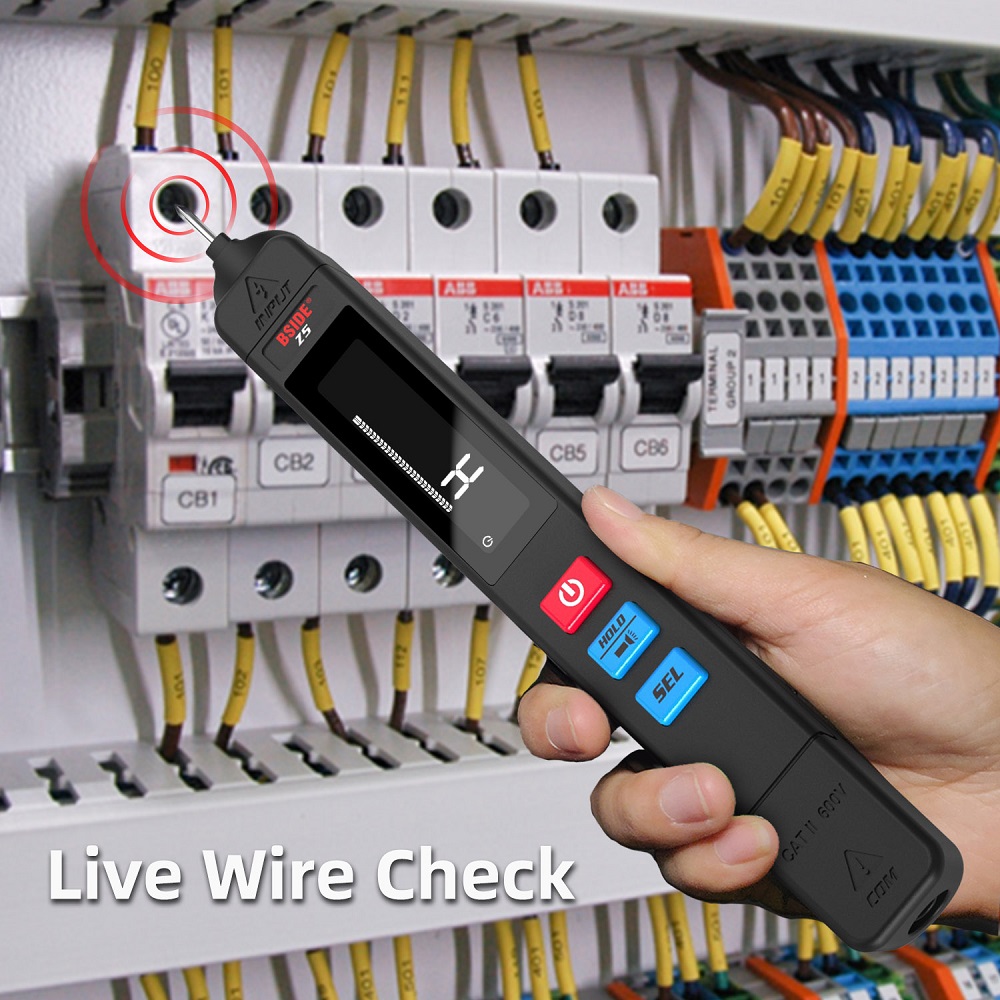

Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 50Ω, the beeper sounds.

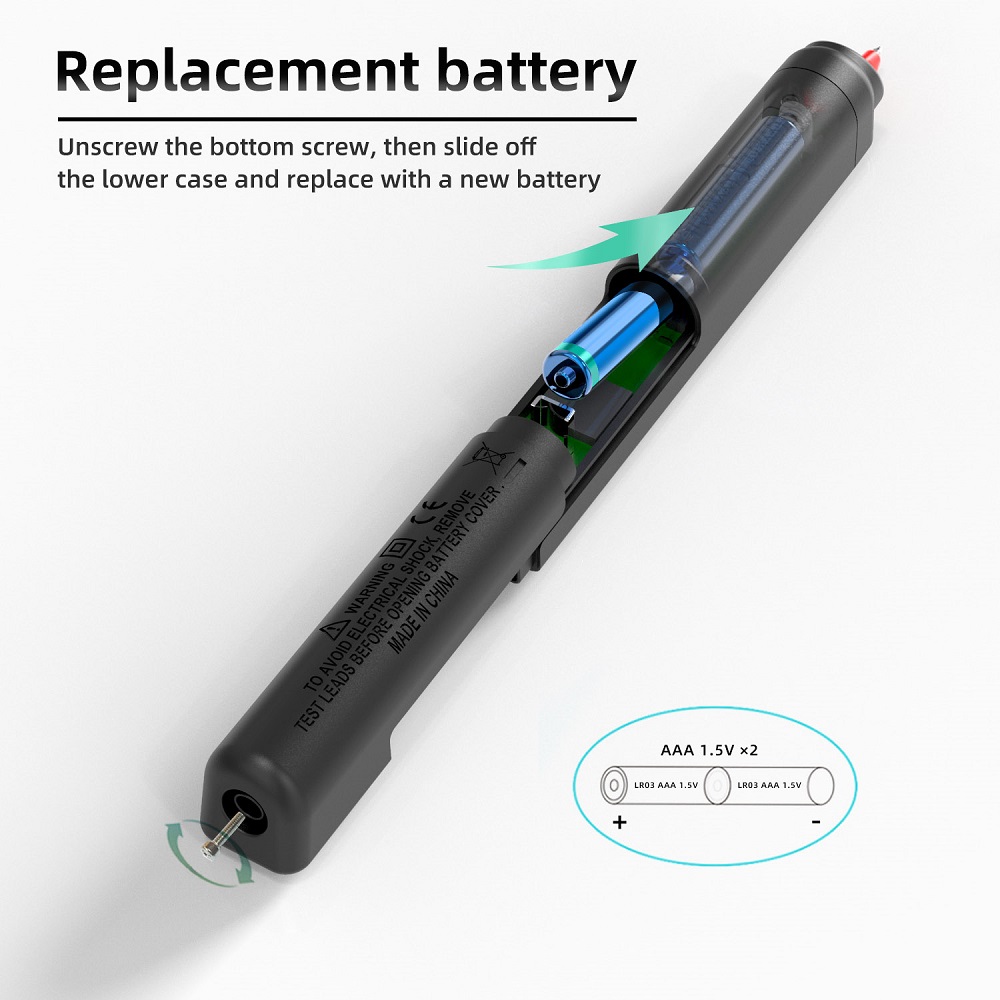

Power: 2 x 1.5V AAA battery (not included)

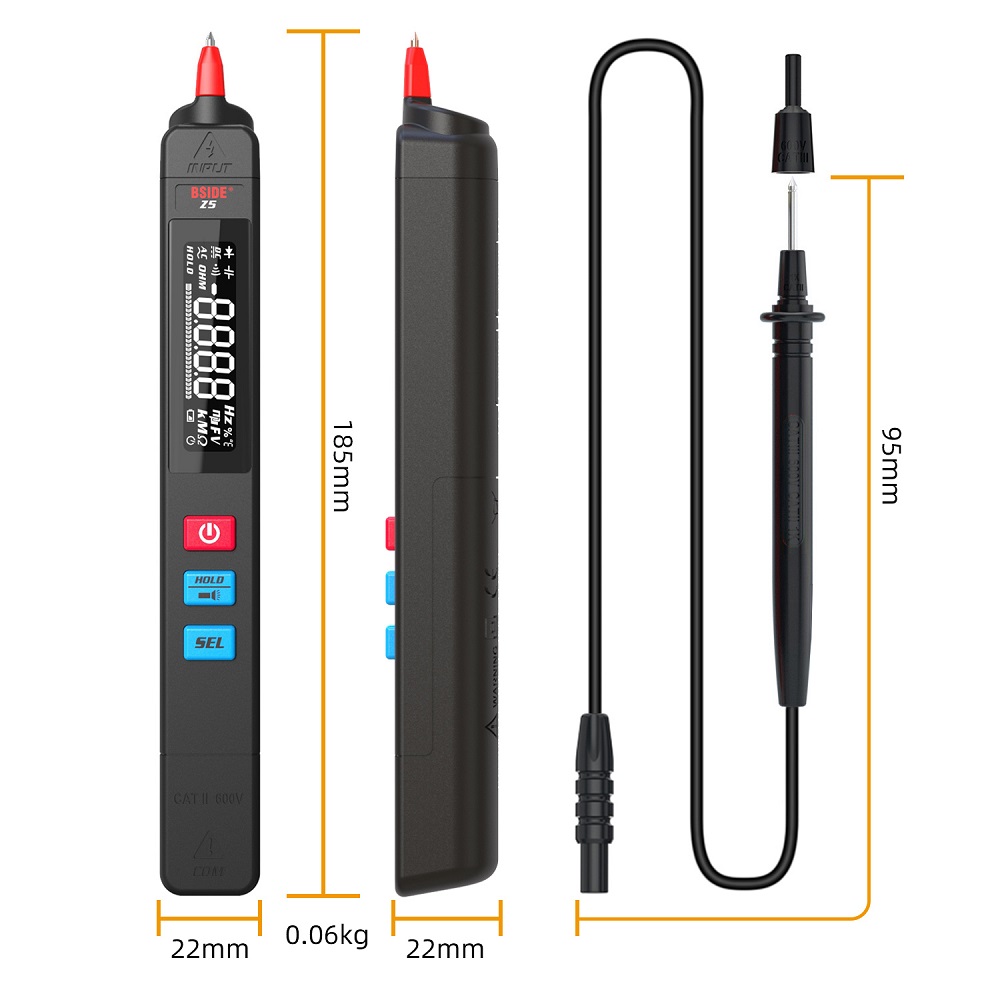

Size: 185 x 22 x 22mm
Weight: 52g

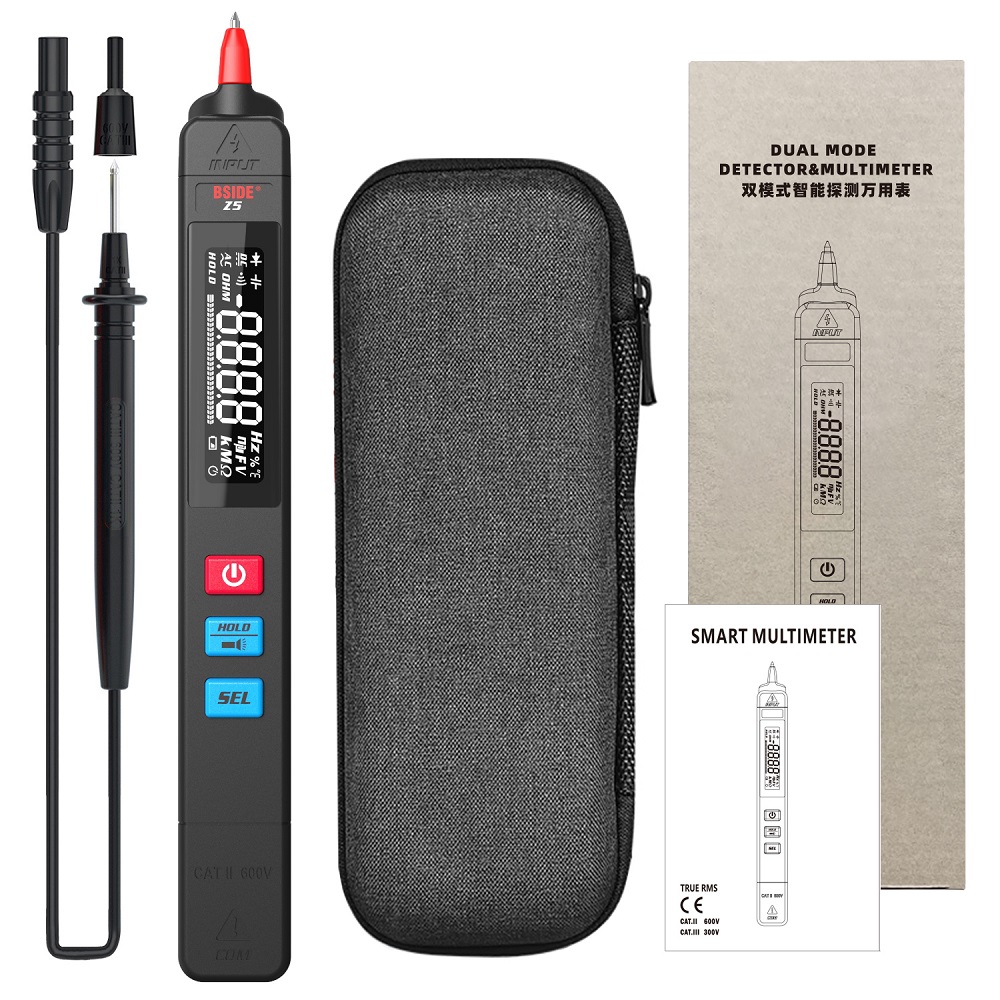

Package Includes:
1 x Z5 Ultra-portable Multimeter (Not included battery)
1 x Test Lead
1 x Alligator clip
1 x EVA portable cloth bag
1 x Screwdriver
1 x User Manual
1 x Quality Certificate
1 x Packing Box
