ZX7-250 220V 10-250A Electric ARC Welding Stick Welding Machine IGBT LCD Digital Display
ZX7-250 220V 10-250A Electric ARC Welding Stick Welding Machine IGBT LCD Digital Display
₹11,327.60
Ex Tax: ₹11,327.60
- Stock: In Stock
- Model: MZ002841
- SKU: MZ002841
Features:
-Digital display, allows adjusting output current ranging from 10 to 250A.

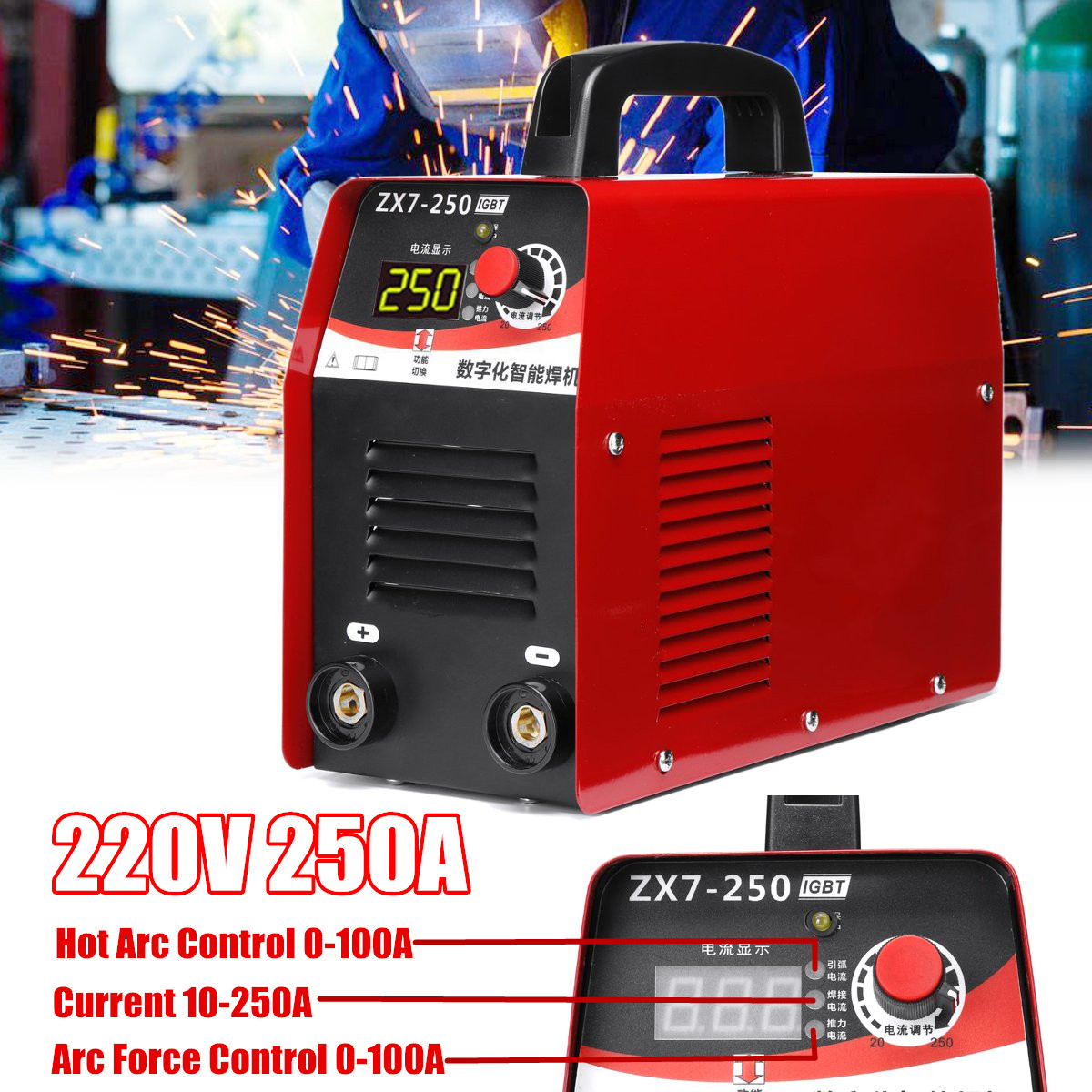

-Arc force control, 0-100A adjustable, prevents the electrode from sticking during welding.
-Hot start, increases the output amperage at arc start to eliminate sticking of the electrode.
-Advanced IGBT inverter technology, features excellent arc stability and less spatter.
-High welding efficiency, 60% duty cycle, ensures long time welding.
-Suitable for up to 3.2mm electrodes, can weld with 4.0mm sticks occasionally.
-Applications: Suitable for aerial work, field work, interior decoration, maintenance and so on.
Specifications:
Style: Arc Welding
Material: Metal + ABS
Color: Red + Black
Input voltage: 220V
Rated frequency: 50/60Hz
Max power: 9500W
Output current: 10-250A
No-load voltage: 56V
Efficiency: 85%
Duty cycle: 60%
Power factor: 0.73
Protection grade: IP21S
Applied stick thickness: ≤3.2 mm (continuous weld); ≤4.0 mm (occasionally)
Applied electrode: general, stainless steel, cast iron and other basic coated electrode
Applied material: stainless steel, carbon steel, iron, copper and other non-ferrous metal
Recommended weld thickness: 2-10mm
Package Included:
1 x Electric welding machine

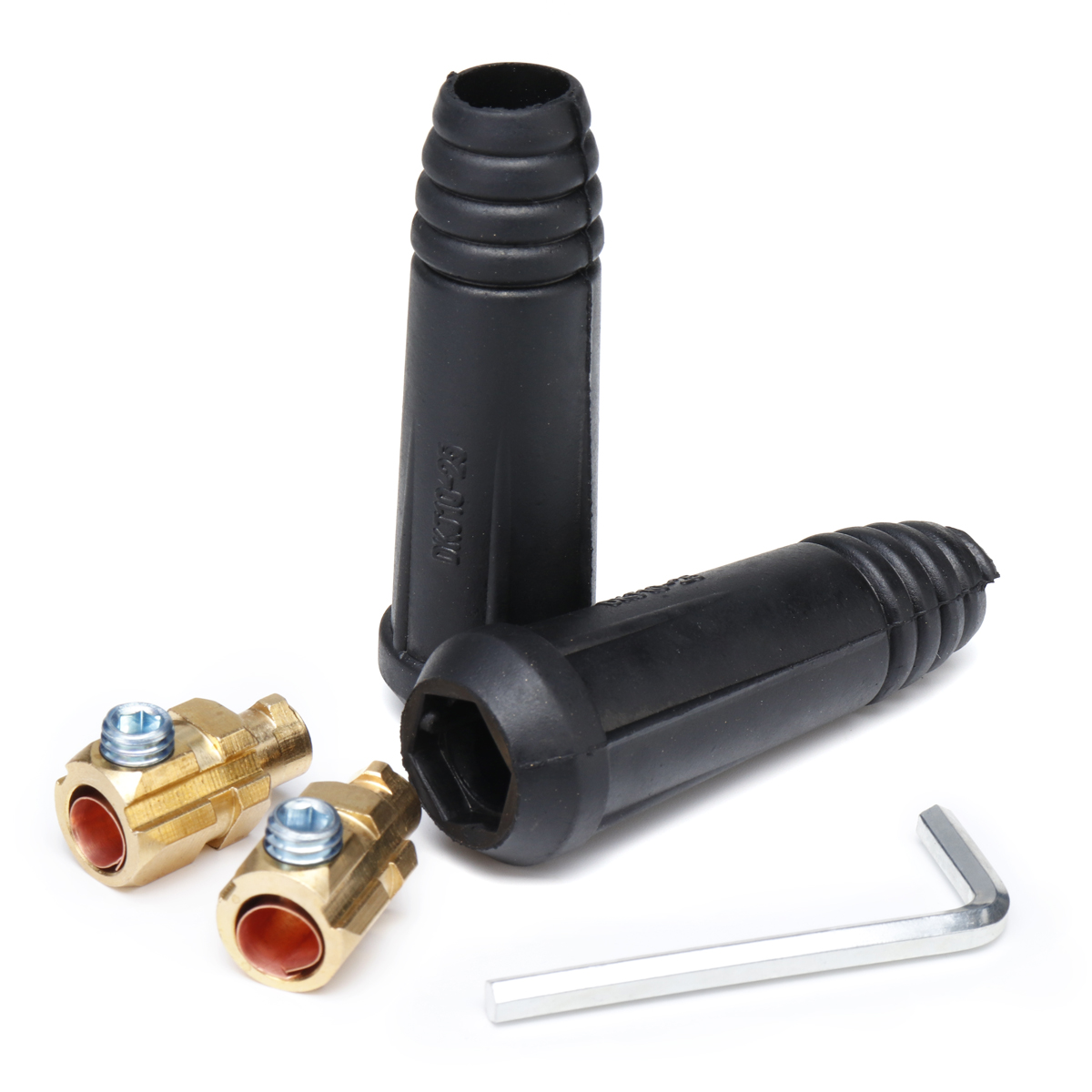

2 x Connector
1 x Wrench
Detail Pictures:
